Dometic D15 User manual

D15,D50,D52
Wine refrigerator
Operating manual . . . . . . . . . . . . . . . . . . . . .9
Weinkühlgerät
Bedienungsanleitung . . . . . . . . . . . . . . . . .29
Cave à vin réfrigérée
Notice d’utilisation . . . . . . . . . . . . . . . . . . .50
Enfriador de vino
Instrucciones de uso . . . . . . . . . . . . . . . . . . 71
Aparelho de refrigeração para
vinho
Manual de instruções . . . . . . . . . . . . . . . . .92
Refrigeratore per vino
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . 113
Wijnkoelkast
Gebruiksaanwijzing . . . . . . . . . . . . . . . . . 134
Vinkøleapparat
Betjeningsvejledning . . . . . . . . . . . . . . . . 155
Vinkyl
Bruksanvisning . . . . . . . . . . . . . . . . . . . . . 176
Vinkjøler
Bruksanvisning . . . . . . . . . . . . . . . . . . . . . 197
Viinijäähdytin
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . . 218
Устройство для охлаждения
вина
Инструкция по эксплуатации . . . . . . . . . 239
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
REFRIGERATION
MACAVE
D15-D50-D52-O-12s.book Seite 1 Donnerstag, 27. April 2017 5:29 17

D15-D50-D52-O-12s.book Seite 2 Donnerstag, 27. April 2017 5:29 17

D15, D50, D52
3
D15 D50
D52
1
2
3
4
5
6
7
1
2
5
6
7
1
D15-D50-D52-O-12s.book Seite 3 Donnerstag, 27. April 2017 5:29 17

D15, D50, D52
4
#
1 2 3 4 5 6 7 8
D15, D50
1 8 4 2 3
D52
2
3
D15-D50-D52-O-12s.book Seite 4 Donnerstag, 27. April 2017 5:29 17

D15, D50, D52
5
54
76
98
D15-D50-D52-O-12s.book Seite 5 Donnerstag, 27. April 2017 5:29 17

D15, D50, D52
6
0
AB
a
AB
b
D15-D50-D52-O-12s.book Seite 6 Donnerstag, 27. April 2017 5:29 17

D15, D50, D52
7
AB
c
1
2
d
1
e
D15-D50-D52-O-12s.book Seite 7 Donnerstag, 27. April 2017 5:29 17

D15, D50, D52
8
1
f
D15-D50-D52-O-12s.book Seite 8 Donnerstag, 27. April 2017 5:29 17

EN
D15, D50, D52
9
Please read this instruction manual carefully before first use,and store it in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4 Accessories and spare parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7 Setting up and connecting the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8 Using the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10 Maintaining and cleaning the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
12 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
D15-D50-D52-O-12s.book Seite 9 Donnerstag, 27. April 2017 5:29 17

EN
Explanation of symbols D15, D50, D52
10
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
•Before you use the appliance for the first time, check that the operat-
ing voltage matches the mains voltage (see type plate).
•Do not operate the appliance if it is visibly damaged.
•This appliance may only be repaired by qualified personnel. Inade-
quate repairs may cause serious hazards.
Should your appliance need to be repaired, please contact customer
services.
•People (including children) whose physical, sensory or mental capac-
ities prevent them from using this device safely should not be allowed
to operate it without the supervision of a responsible adult.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
D15-D50-D52-O-12s.book Seite 10 Donnerstag, 27. April 2017 5:29 17

EN
D15, D50, D52 Safety instructions
11
•Electrical devices are not children’s toys!
Always keep the appliance out of the reach of children.
•Children must be supervised to ensure that they do not play with the
appliance.
•If this appliance’s connection cable is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
•Do not store any explosive substances, such as spray cans with propel-
lants, in the appliance.
!CAUTION!
•Disconnect the appliance from the mains
– Before cleaning and maintenance
–Afteruse
•The appliance should be moved and set up by at least two people.
Otherwise this could lead to back or other injuries.
ANOTICE!
•Never pull the plug out of the socket by the connection cable.
•Do not use accessories that have not been recommended by the man-
ufacturer. This can lead to injury and material damage.
2.2 Operating the appliance safely
!WARNING!
•Never use the appliance in rooms where flammable materials are
stored or flammable gases have built up. Sparks from the motor could
ignite them.
!CAUTION!
•Do not use the appliance with wet hands.
ANOTICE!
•Only use the appliance indoors, never outside.
•Never expose the appliance to moisture.
•Keep children and animals at a safe distance when operating the appli-
ance.
•Do not place any electrical devices inside the cooler.
D15-D50-D52-O-12s.book Seite 11 Donnerstag, 27. April 2017 5:29 17

EN
Scope of delivery D15, D50, D52
12
3Scopeofdelivery
•Wine refrigerator
•Water tank
•Key
•Operating instructions
4 Accessories and spare parts
Available as accessories (not included in the scope of delivery):
5 Intended use
The appliance is a wine refrigerator. It is only intended for storing wine.
Please refer to the “Country versions” table for the suitable connection voltage for
your appliance, see chapter “Technical data” on page 28.
Label Ref. number
D15 D50 D52
Storage base 9103500158 9103500159 9103500159
Presentation shelves (tilted) – 9103500157 –
Active carbon filter 9103540115 9103540115 9103540115
D15-D50-D52-O-12s.book Seite 12 Donnerstag, 27. April 2017 5:29 17

EN
D15, D50, D52 Technical description
13
6 Technical description
The wine refrigerator comes in three models:
•D15:
with capacity for up to 23 standard Bordeaux bottles
•D50:
with capacity for up to 62 standard Bordeaux bottles
•D52:
with capacity for up to 67 standard Bordeaux bottles
D15,D50: The appliance has two separate adjustable temperature zones.
D52: The appliance has an adjustable temperature zone and a drinks mode.
The temperature can be set in steps of 1 °C or 1 °F using sensor buttons.
The temperature zones are chilled or heated automatically to reach or maintain the
temperature that is set.
Factory fitted with shelves.
You can increase the capacity by using the optional accessory of reinforced storage
shelves.
The appliance has:
•Sensor buttons: Just touch slightly to select the required function.
•automatic defrosting
•a UV impervious door
•An active carbon filter for improving the inner climate
•a fan for maintaining a constant inner climate, such as in a wine cellar (dynamic
cooling mode)
•a lockable glass door with a reversible door hinge
•detachable shelves for storing the bottles
•a Sabbath mode
•LED interior lighting with two operating modes
•a temperature memory function: The set temperature is also saved when the unit
is switched off.
•a temperature monitor: A warning signal sounds and the temperature display
flashes if the interior temperature noticeably deviates from the one set.
D15-D50-D52-O-12s.book Seite 13 Donnerstag, 27. April 2017 5:29 17

EN
Technical description D15, D50, D52
14

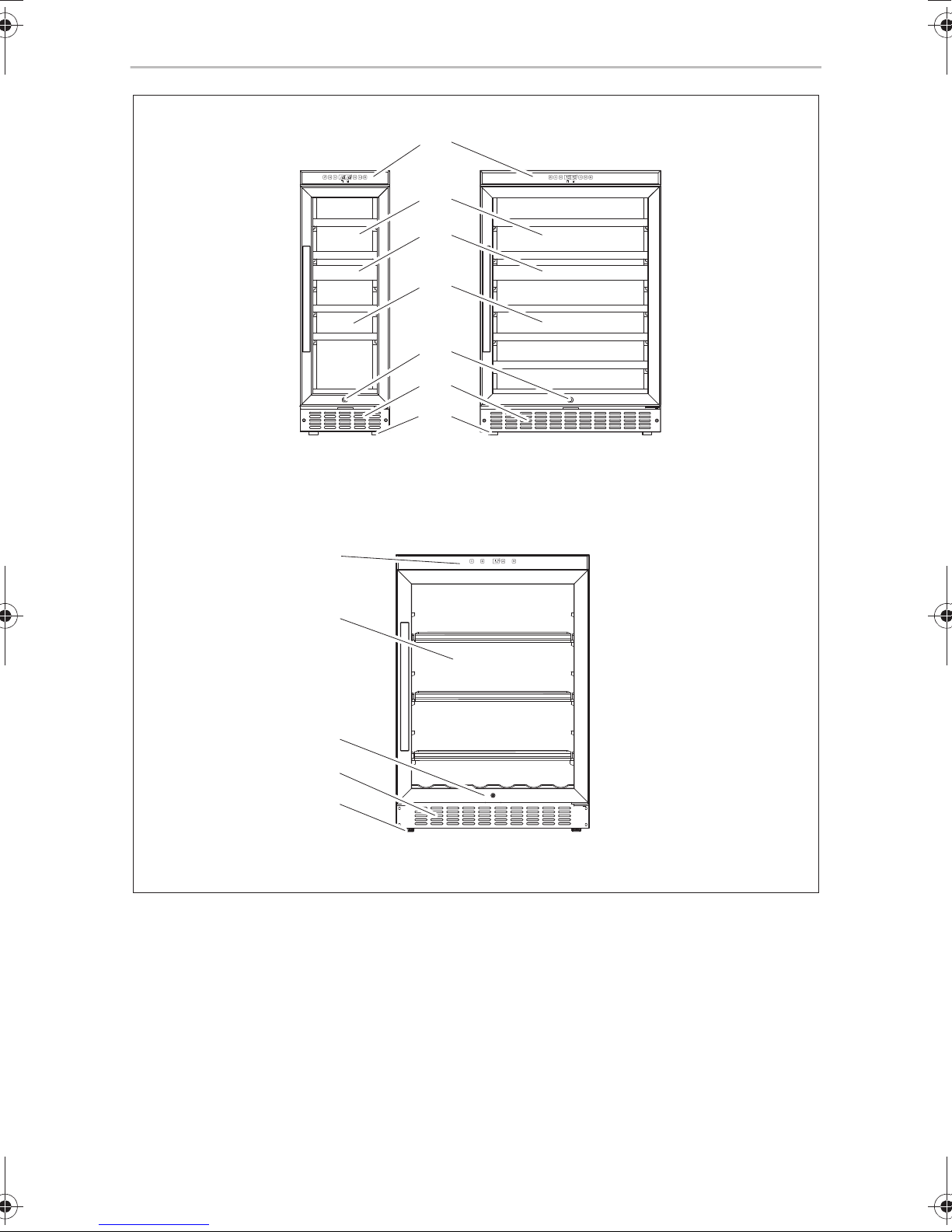

Overview:
No. in
fig. 1,
page 3
Label
1 Control panel
2D15,D50: Upper temperature zone
D52: Temperature zone
3D15,D50: Cooling area divider
4D15,D50: Lower temperature zone
5Lock
6 Ventilation slots
7 Height-adjustable feet
D15-D50-D52-O-12s.book Seite 14 Donnerstag, 27. April 2017 5:29 17

EN
D15, D50, D52 Technical description
15

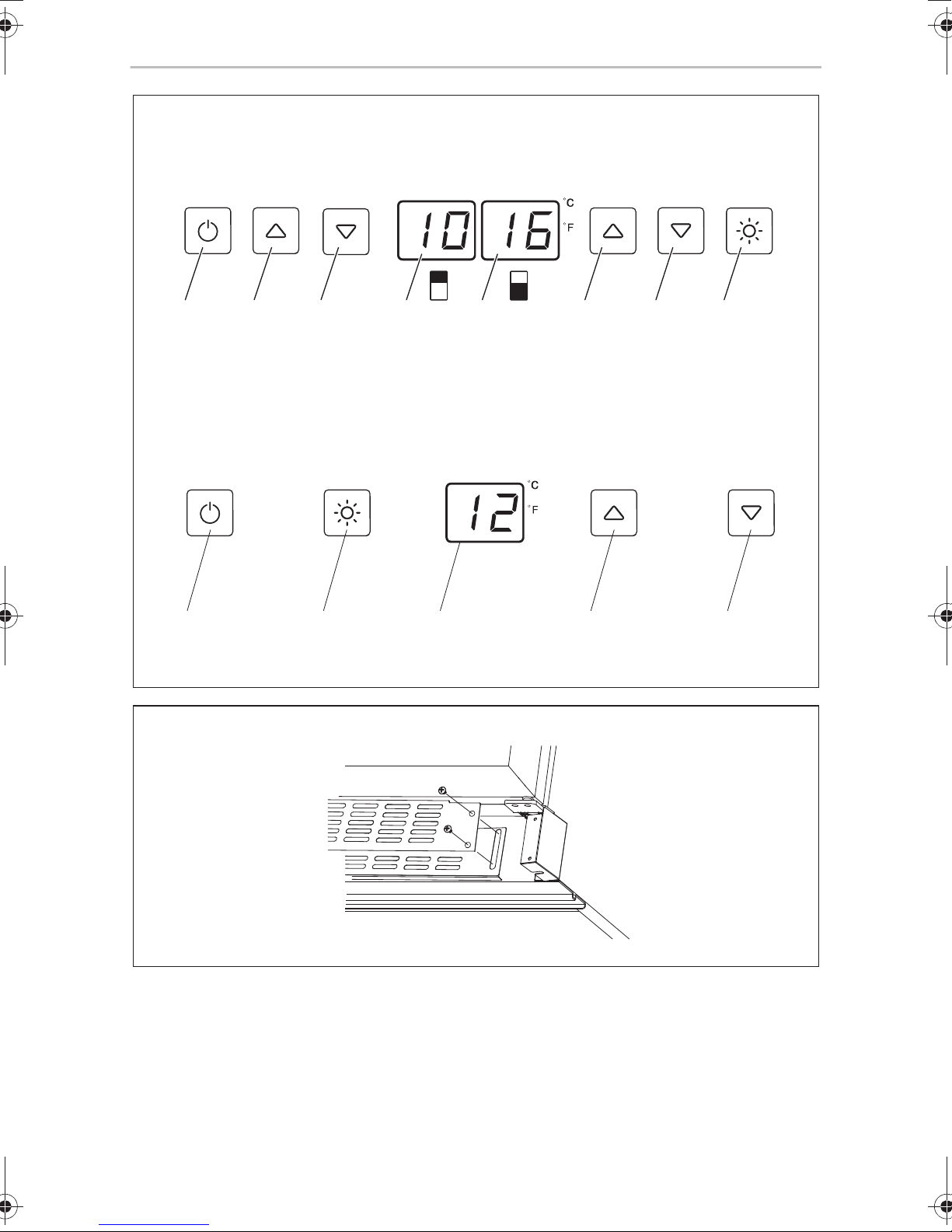

Controls:
No. in
fig. 2,
page 4
Symbol Description
1 On/off switch
2D15,D50: Increases the set temperature of the upper
temperature zone by 1 °C or 1 °F
D52: Increases the set temperature by 1 °C or 1 °F
3D15,D50: Reduces the set temperature of the upper
temperature zone by 1 °C or 1 °F
D52: Reduces the set temperature by 1 °C or 1 °F
4D15,D50: Display indicates the current temperature of the upper
temperature zone
D52: Display indicates the current temperature
5D15,D50: Display indicates the current temperature of the lower
temperature zone
6D15,D50: Increases the set temperature of the upper
temperature zone by 1 °C or 1 °F
7D15,D50: Reduces the set temperature of the lower temperature
zone by 1 °C or 1 °F
8 Switches the interior light on or off
D15-D50-D52-O-12s.book Seite 15 Donnerstag, 27. April 2017 5:29 17

EN
Setting up and connecting the appliance D15, D50, D52
16
7 Setting up and connecting the
appliance
7.1 Notes on setting up the appliance
All models can be set up on a fitted or free-standing basis.
When selecting the location, observe the following instructions:
•The ambient temperature should be in the range specified for your country in the
supplementary “Country versions” booklet. Otherwise, it could mean that the
inner temperature you set cannot be reached or maintained. This could also be
the case if there are extreme fluctuations in the ambient temperature
•The appliance should stand in the coldest part of the room, away from heat
sources (ovens, heating devices or radiators).
•The location must not be damp or wet.
•The appliance must not be exposed to direct sunlight. This can damage the
acrylic coating and lead to higher power consumption.
•The ground must be level and sufficiently stable to bear the appliance at full
capacity.
•The appliance must be sufficiently ventilated. The ventilation slots on the front of
the appliance must not be obstructed.
•Note the information on the electrical connection, see chapter “Information on
electrical connection” on page 17.
•Remove all the inner and outer packaging materials before setting up.
•Make sure the appliance is level by adjusting the feet.
7.2 Notes on installing the appliance
The models can be installed in a kitchen unit under the counter.
Installation size (in mm)
D15 D50 D52
Width 300 600 600
Depth 590 590 575
Height 870 870 865
D15-D50-D52-O-12s.book Seite 16 Donnerstag, 27. April 2017 5:29 17

EN
D15, D50, D52 Setting up and connecting the appliance
17

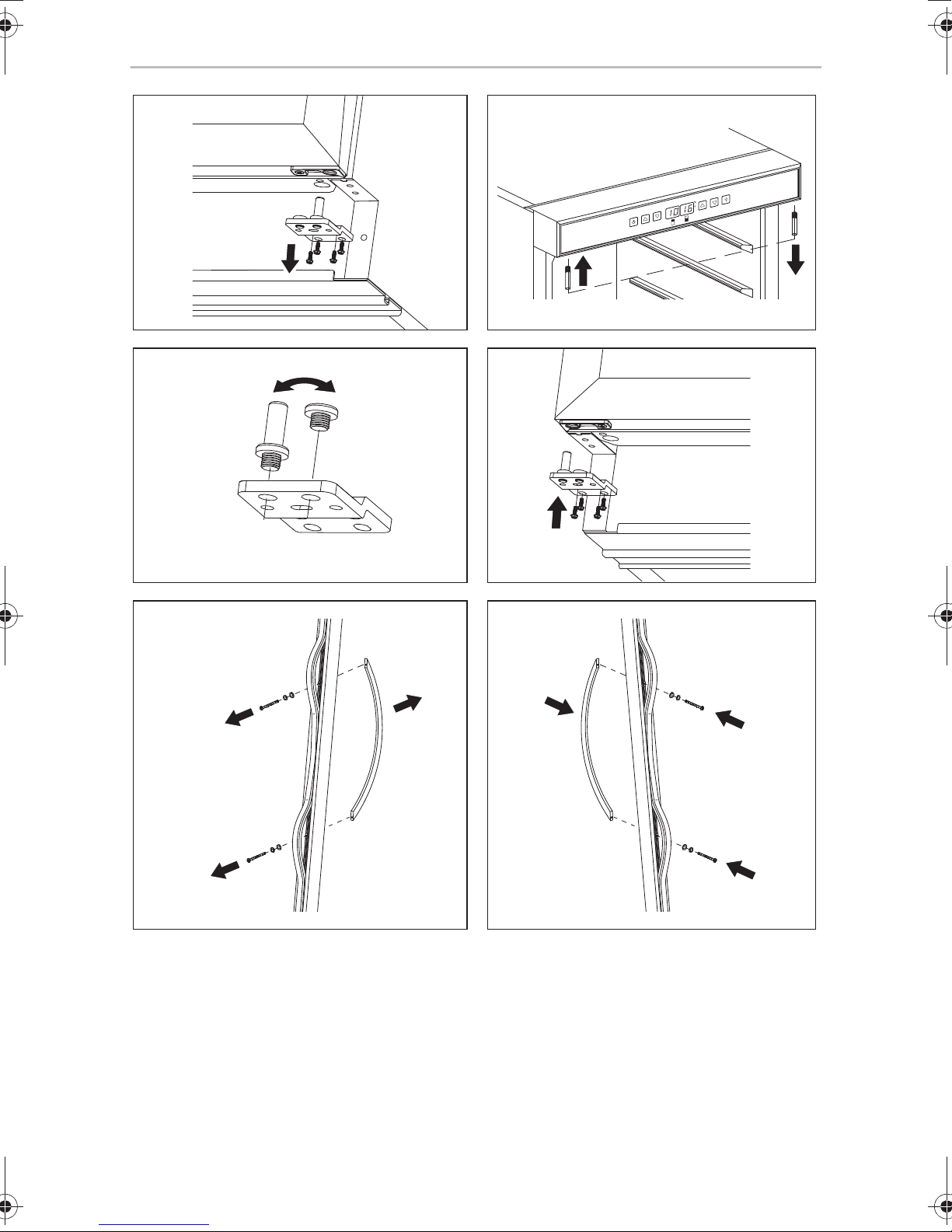

7.3 Reversing the door
You can also change the hinge of the door, so that it opens to the left rather than the
right.
Then fit the door handle on the other side, see chapter “Fitting the door handle on
the other side” on page 17.
➤Change the door as described in fig. 3, page 4 to fig. 7, page 5.
Fitting the door handle on the other side
➤Fit the door handle on the other side as described in fig. 8, page 5 to fig. 9,
page 5.
7.4 Information on electrical connection
A
Observe the following when connecting the appliance:
•Connect the appliance to a separate circuit that is protected with 15 A.
•Have the socket and power circuit checked by a qualified electrician to ensure
that the socket is earthed correctly.
•Check that the voltage specification on the type plate is the same as that of the
power supply.
•If you use an extension cable, this must be approved for the same values as the
appliance, see chapter “Technical data” on page 28.
•Do not use an extension cable or a multiple power socket that can be switched
off with just one switch.
•The cable must rest securely behind the appliance and not be allowed to lie or
hang unprotected.
NOTICE!
Leave the appliance tostand upright forabout2hours after transporting,
before you connect it to the power supply.
Otherwise this could cause faults in the cooling system.
D15-D50-D52-O-12s.book Seite 17 Donnerstag, 27. April 2017 5:29 17

EN
Using the appliance D15, D50, D52
18
8 Using the appliance
8.1 Energy saving tips
•Do not open the appliance more often than necessary.
•Do not leave the door open for longer than necessary.
•Clean dust and dirt from the condenser at regular intervals.
8.2 Storing bottles
A
Please note the following:
•Only store wine in unopened bottles.
•Do not overload the appliance.
•Do not cover the shelves with aluminium foil or any other objects, as this
obstructs the air circulation.
•If the appliance has been empty for a long time, disconnect it from the power
supply and clean it thoroughly. Leave the door open slightly to allow the air to
circulate and prevent condensation, mould or odours from building up.
•After a power cut or if the appliance has been switched off, wait 3 to 5 minutes
before switching on the appliance again.

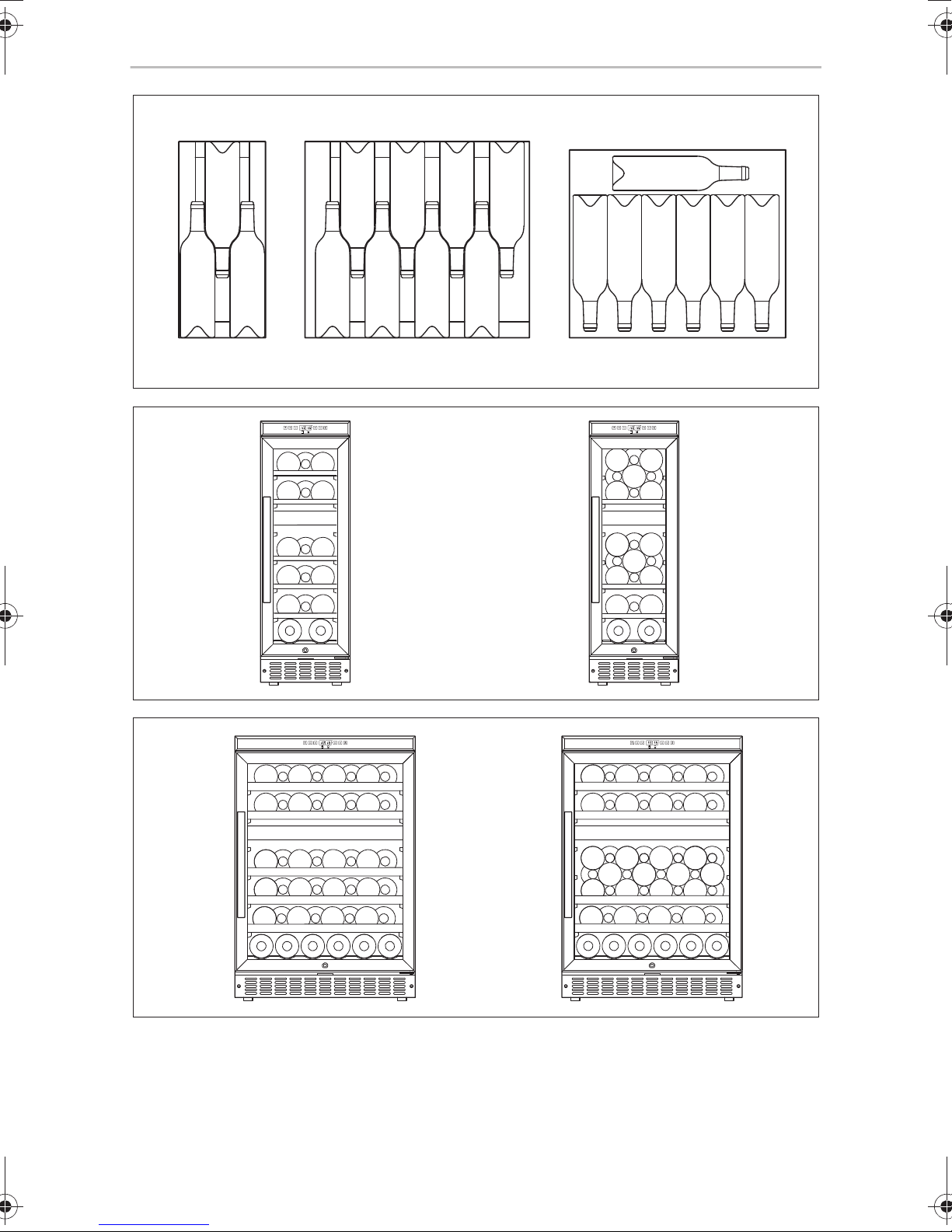

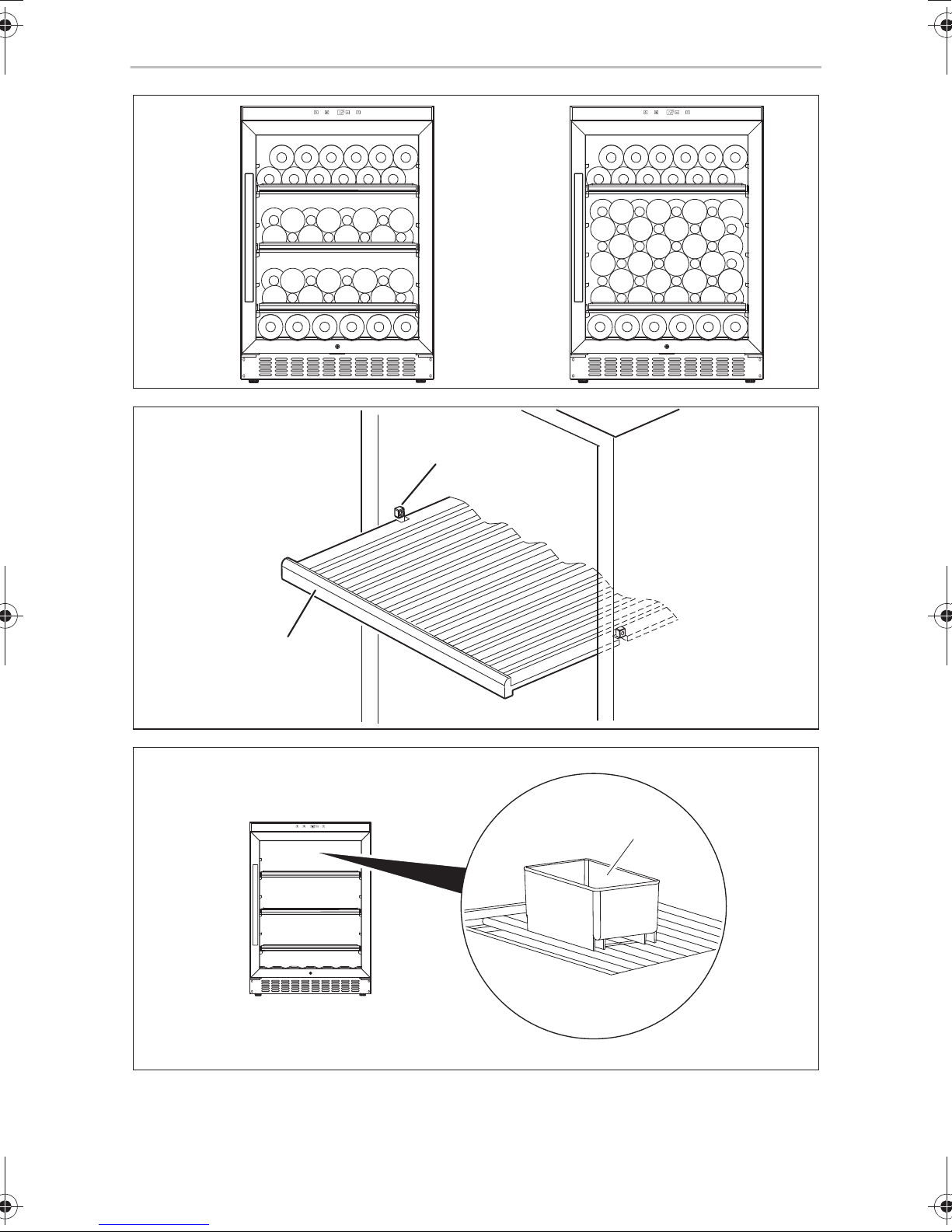

➤Position the bottles as shown in fig. 0, page 6.
The following variants are possible:
•D15:
– with shelves (fig. aA, page 6)
– with storage shelves (accessory) (fig. aB, page 6)
•D50:
– with shelves (fig. bA, page 6)
– with storage shelves (accessory) (fig. bB, page 6)
•D52:
– with shelves (fig. cA, page 7)
– with storage shelves (accessory) (fig. cB, page 7)
NOTICE!
Be sure to use reinforced storage shelves (accessory) if you want to stack
bottles.
D15-D50-D52-O-12s.book Seite 18 Donnerstag, 27. April 2017 5:29 17

EN
D15, D50, D52 Using the appliance
19
Brief instructions:
Key lock
If the buttons are not touched for 2 minutes or longer, the key lock is activated
automatically.
➤To remove the key lock, press the and buttons for at least 5 seconds.
Sets the unit (°C or °F)
You can select whether the temperature is displayed in Fahrenheit or Celsius.
➤To do this, press the button for 5 seconds.
✓The unit is converted and the display shows the temperature in the other unit.
Function Press the button
Switch the appliance on > 5 s
Switch the appliance off > 5 s
Unlock the keypad + > 5 s
Changes the unit (°C/°F) > 5 s
Indicates the set temperature of the corresponding
temperature zone or < 1 s
Increase the temperature in the corresponding temperature
zone by 1 °C or 1 °F < 1 s
Decreases the temperature in the corresponding
temperature zone by 1 °C or 1 °F < 1 s
Switches off the fan (silent mode) > 5 s
Switches on the fan (dynamic cooling) > 5 s
Switches interior light on/off < 1 s
D15-D50-D52-O-12s.book Seite 19 Donnerstag, 27. April 2017 5:29 17

EN
Using the appliance D15, D50, D52
20
Setting the temperature
I
➤Press the corresponding buttons or to set the temperature.
✓The display flashes while you make the setting.
✓Once you have set the temperature, the display shows the current temperature
of the interior for the corresponding temperature zone.
D15,D50:
The appliance has two separate adjustable temperature zones. The temperature of
each zone can be set between 5 °C and 22 °C (41 °F and 72 °F).
The lower temperature zone at 13 °C to 22 °C (55 °F to 72 °F) is ideal for storing
white and red wines.
The upper temperature zone at a setting of 5 °C to 13 °C (41 °F to 55 °F) is
suitable for storing sparkling wine and white wine.
I
D52:
The appliance has an adjustable temperature zone. The temperature can be set
between 5 °C and 22 °C (41 °F and 72 °F).
NOTE
When using the appliance for the first time or if it has not been used for a
long time, the inner temperature could differ from the one you have set.
The temperature display flashes as long as this is the case.
Once the set temperature has been reached, the temperature display
lights up constantly.
NOTE
•The temperature for the lower temperature zone must always be
just as high or higher than the upper temperature zone .
•The appliance functions at its best if the difference in temperature
between the two zones is at least 4 °C (39 °F).
D15-D50-D52-O-12s.book Seite 20 Donnerstag, 27. April 2017 5:29 17
