Domyos VM 630 User manual

NOTICE D’UTILISATION
OPERATING INSTRUCTIONS
MODO DE EMPLEO
GEBRAUCHSANWEISUNG
ISTRUZIONI PER L’USO
GEBRUIKSHANDLEIDING
MANUAL DE UTILIZAÇÃO
INSTRUKCJA UŻYTKOWANIA
VM 630

VM 630
Réalisation : EVOLUTION + 32 / 69 88 87 89
DECATHLON
4, Boulevard de Mons - 59665 Villeneuve d'Ascq - France
Made in China
Notice à conserver
Keep these instructions
Bitte bewahren Sie diese Hinweise auf
Istruzioni da conservare
Conservar instrucciones
Bewaar deze handleiding
Instruções a conservar
Bevar vejledningen
Zachowaj instrukcję

3

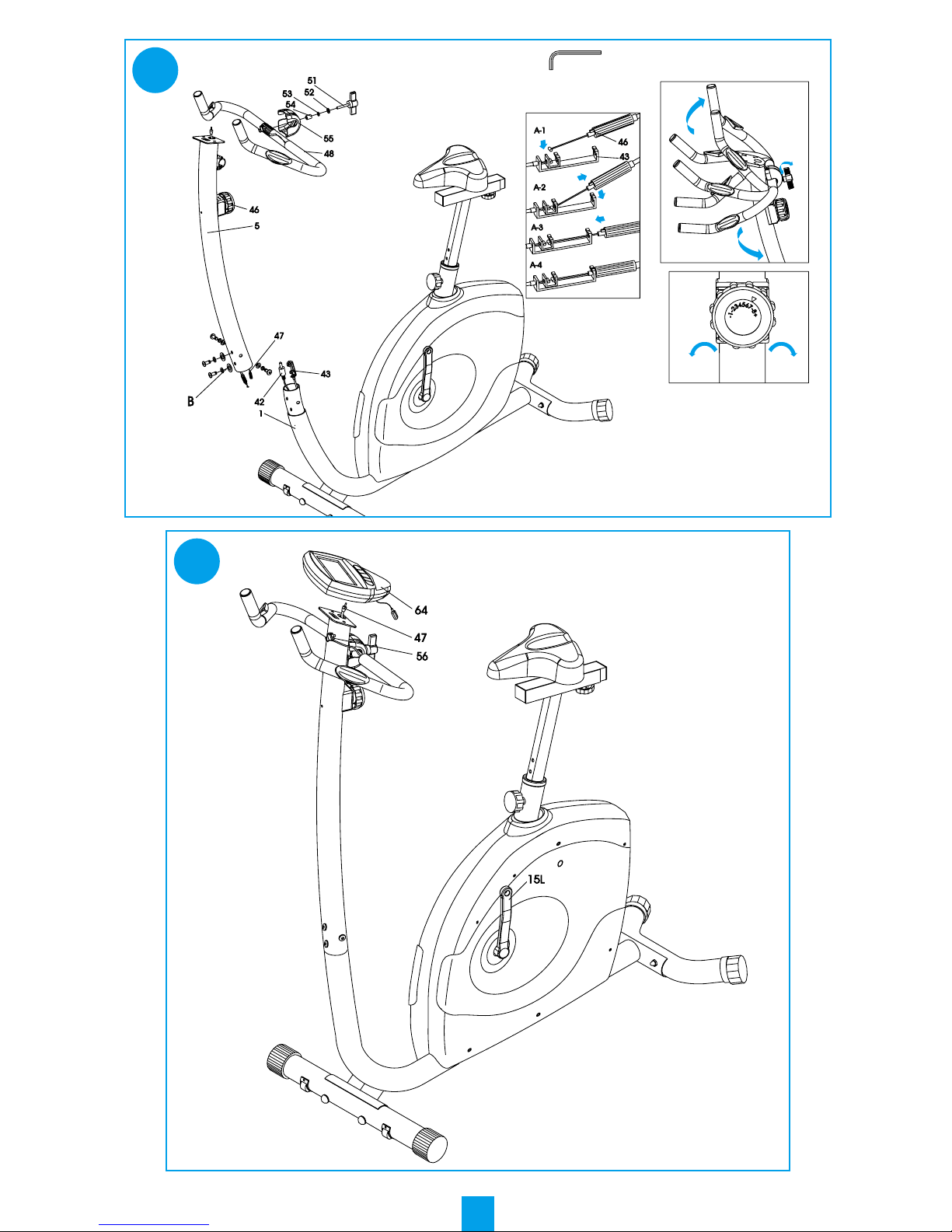

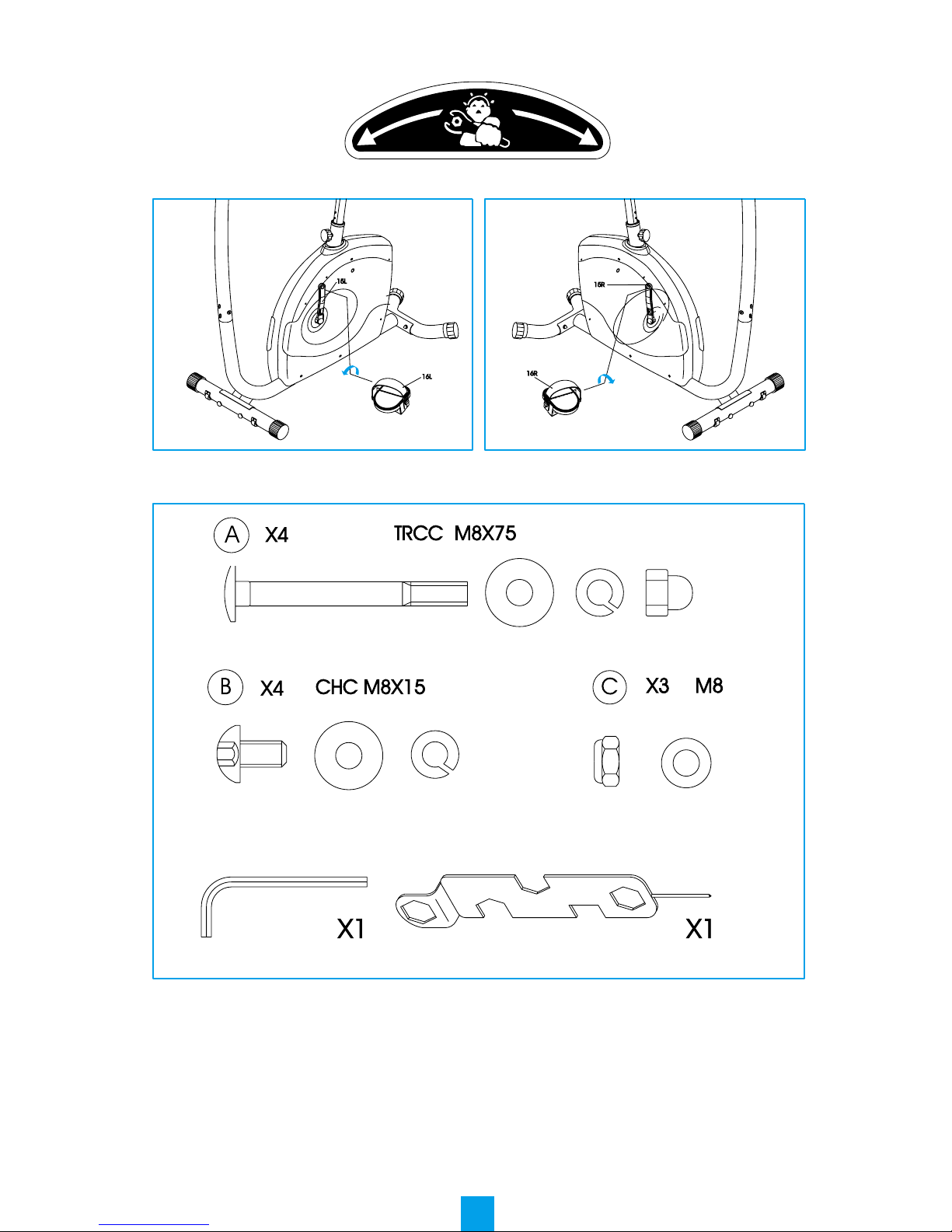

MONTAGE • ASSEMBLY • MONTAJE • ZUSAMMENBAU • MONTAGGIO •
AFWERKING • MONTAGEM • MONTAŻ •

4
1
2

5
+ -
3
4

6

14
ENGLISH
You have chosen a DOMYOS fitness machine and we wish to thank you for the trust you place with us.
We created the DOMYOS brand to enable all sports aficionadoes to remain at peak fitness. This item was designed
by sportsmen for sportsmen and women. We would very much appreciate receiving any of your comments and suggestions
about DOMYOS products. To this aim, the staff at your local store and the DOMYOS design department are at your disposal.
If you wish to write to us, you can send us email at the following address: [email protected].
We wish you enjoyable training sessions and hope that this DOMYOS item be a source of pleasure for you.
Seat
Handlebars
Console
Resistance knob
Handlebar post
Wheel
Seat knob
Seat post
Seat post knob
Pedal
BACK
RIGHT SIDE
FRONT
Model N°: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Serial N°: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Write the serial number in the space
above for future reference.
CAUTION
Read all warnings affixed to the product.
Read precautions and instructions in this manual
before using this equipment.
Keep this manual for future reference.
Serial number
Decal

15
ENGLISH
1. Read all the instructions in this manual before using the product. Use
this product only in the way described in this manual. Keep this manual
during the product’s service life.
2. This appliance is in compliance with European, American and
Chinese standards related to fitness products for domestic and non-the-
rapeutic use. (EN-957-1 and 5 classes HC / ASTM F1250 / GB17498)
3. An adult should do the assembly of the appliance.
4. It is up to the owner to make sure that all of the product’s users are
properly informed on all the user precautions.
5. DOMYOS disclaims all responsibility concerning claims for injury or
for damages suffered by any persons or property arising from the nor-
mal or abnormal use of this product by the purchaser or by any other
person (valid only in the United States).
6. The product is intended for domestic use only. Do not use the product
in a commercial, rental or institutional context.
7. Use the product indoors, away from moisture and dust, on a level
and solid surface and in a clear area. Be sure there is enough space for
safe access to and passage around the product. Cover the floor beneath
the product for protection.
8. It is the user’s responsibility to ensure efficient maintenance of the
appliance. After assembling the product and before each use, check
that the attachment elements are well tightened without extending.
Check the state of wear and tear parts.
9. In the event of damage to your product, have all worn out or defec-
tive parts replaced immediately by the After-Sales Service of your nea-
rest DECATHLON store and do not use the product before it is comple-
tely repaired.
10. Do not store the product in a humid place (edge of swimming pool,
bathroom…)
11. Always wear sports shoes to protect the feet while exercising. Wear
appropriate clothing when exercising. DO NOT wear loose clothing
that could get caught in moving parts. Remove jewellery.
12. Tie long hair so that it does not get in the way when exercising.
13. If you feel pain or dizziness while exercising, stop immediately, rest
a while and consult your doctor.
14. Keep children and pets away from the product at all times.
15. Keep hands and feet away from moving parts.
16. Before starting an exercise program, you should consult a doctor to
make sure that there are no counter-indications especially if you have
not practiced any sport for several years.
17. Do not let setting devices extend outward.
18. Do not tinker with your VM630.
19. Keep your back straight when using the product. Do not arch your
back.
20. The heart rate sensor and the body fat measurer are not medical
devices. Various factors may affect the accuracy of rate readings. The
heart rate sensor is intended only as exercise help in determining heart
rate trends in general. The body fat measurer is intended only as exer-
cise help in determining body fat rate trends in general.
21. Notice to persons with pacemakers, defibrillator or other implan-
ted electronic device. Persons who have a pacemaker use the pulse
sensor and the body fat measurer at their own risk. Before starting the
exercise programme, an exercise test under the supervision of a doc-
tor is recommended.
22. Pregnant women are not advised to use the VM630 and the body
fat measurer. Please consult your doctor prior to use.
23. Always hold the handlebar when getting on, getting down, or using
the product.
24. Care should be taken mounting/dismounting the exercise bicycle.
25. When you stop exercising, allow the pedals to slowly come to a
stop.
26. Maximum user weight: 110 kg – 242 pounds.
PRESENTATION
WARNING
Consult your doctor before starting an exercise program. This is particularly important for people over 35 or having had health problems before.
Read all the instructions before use. DECATHLON disclaims any responsibility for any bodily injury or damage inflicted to property resulting from
the use of this product.
WARNING
The VM630 is a new generation exercise bike.
This bike places you in an anatomic position, the back straight and the arms in a resting position.
This product is equipped with magnetic transmission for greater pedaling comfort without jolts.
Warning: to reduce the risk of serious injury, please read the important precautions below before using the product.

16
ENGLISH
SETTINGS
Warning: It is necessary to get off the bike to proceed to the settings (saddle, handlebar)
The warning decals shown on this page have been placed on the product in the locations shown below. If a decal is missing or
illegible, please contact your nearest DECATHLON store and order a free replacement decal. Place the decal on the product in
the location shown.
HOW TO ADJUST THE
POSITION OF THE SEAT
For effective exercising, the seat
should be at the proper height.
As you pedal, there should be a
slight bend of the knees when the
pedals are at the lowest position.
To adjust the seat, first hold the
seat (45) and loosen the seat post
knob (41). Align one of the holes
in the seat post (4) with the hole in
the frame tube (4). Insert the seat
knob into the frame and the seat
post, and tighten the seat knob
into the frame.
You may also adjust the horizon-
tal position of the seat. Hold the
seat (45), loosen the seat knob
(67), adjust the position of the
seat, and firmly tighten the seat
knob (67).
CAUTION :
• Be sure to insert the seat post
knob through one of the holes
in the seat post, and firmly tigh-
ten the seat post knob.
• Never exceed the maximum
saddle height.
• Never sit on the saddle if the
seat knob is not firmly tightened.
HOW TO ADJUST THE
HANDLEBAR
To adjust the handlebar (48), loo-
sen the handlebar knob (51).
When the handlebar is in the sui-
table position, tighten the knob
(51).
HOW TO ADJUST THE
PEDAL STRAP
To adjust the pedal strap, first
release the brake system under the
pedal. Adjust the strap to the desi-
red position and then press the
brake to block the strap.
HOW TO LEVEL THE BIKE
If the bike rocks during use, turn
one or both plastic caps (8) at the
end of the back foot (3) until the
rocking stops.
SETTING THE RESISTANCE
The brakes system and the resis-
tance are coupled with the peda-
ling speed.
The resistance setting is done with
the knob indexed (46) from 1 to
8.
Position 1 corresponds to the least
resistance and position 8 to the
highest resistance.
You can adjust the resistance
while pedaling.
Product in accordance with
EN 957 class HC, ASTM F 1250 class B, GB17498,
not suitable for therapeutic purposes.
DECATHLON - 4, bvd. de Mons – BP299
59665 Villeneuve d’Ascq Cedex – France
F : (+).33.3.20.33.50.00
-----------------------------------------------------------
EN957 Class HC, ASTM F1250 class B, GB17498
Item n°: x/xxx.xxx Order n°: xxxxxxxxxx
Supplier code: xxxxxx Made in China
 WARNING
• Misuse of this product may result in
serious injury.
• Read user’s manual and follow all
warnings and operating instruc-
tions prior to use.
• Do not allow children on or around
machine.
• Replace label if damaged, illegible,
or removed.
• Keep hands, feet and hairs away
from moving parts.
MAXI
100 kg / 220 lbs
1 3
4
5
2
+ -
45 48
51
67
4
1
41
45
38
67
46
1 2
3
54

17
ENGLISH
VM630 METER
AUTO ON/OFF :
The monitor will turn on automatically if the exercise machine is in
motion. If you stop exercising for over 4 minutes, the monitor will turn
off and reset all function values to zero.
"SCAN" :
Press the UP or DOWN button until the scanning dot flashes on the
screen. The Monitor will display the following functions and each
function will remain on the main screen for 5 seconds. Time–Speed-
Distance–Calories–Heart rate.
"TIME" :
Press the UP or DOWN button until the TIME dot displays on the
screen. Monitor will display the Time function on the main screen. If
you want to setup the value, please press the ENTER/RESET to TIME
function button and press the UP or DOWN button to enter the value
you want.
• Count up: Without setting the time value, the monitor will count up
the time from 00:00~99:59.
• Count down: Setting the exercise time from 1:00~99:00 minutes,
the monitor will count down from your setting values. Once the set-
ting value is reached, the monitor will set off an alarm.
"SPEED" :
Press the UP or DOWN button until the SPEED dot displays on the
screen. The monitor will display the current speed on the main screen.
The monitor will display the current speed from 0.00 ~ 99.9 Km/h or
Mile/h.
KEY GUIDE
FUNCTIONS AND OPERATIONS
FULL LCD DISPLAY
"ENTER/RESET":
1. Select function to be preset. Gender-Height-Weight-Age-Time-
Distance-Calorie-Pulse
2. Press this button to enter setting mode.
3. Press this button to confirm the setting values.
4. Hold two seconds to reset all of the values to zero.
5. Hold over 5 seconds, the display and function will return to preset
your personal data for body fat measuring.
HEART RATE :
Press this button to detect your heart rate.
MEASURE :
Press this button to access your body fat measurement. Before opera-
ting this function, you have to enter your personal data in monitor.
"UP" :
1. Increase the setting value of the following functions. Gender -
Height-Weight-Age-Time- Distance-Calorie-Pulse
2. Select function and display on the main screen during exercise.
Scan-Time-Speed- Distance -Calorie -Pulse.
"DOWN" :
1. Decrease the setting value of the following functions. Gender -
Height-Weight-Age-Time- Distance-Calorie-Pulse
2. Select function and display on the main screen during exercise.
Scan – Heart rate-Calorie-Distance-Speed-Time.

18
BATTERY REPLACEMENT
DISTANCE :
Press the UP or DOWN button until the DIST dot displays on the
screen. The Monitor will add the distance covered. If you want to
setup the value, please press the ENTER/RESET to DIST button and
press the UP or DOWN button to enter the value you want.
• Count up: Without setting the distance value, the monitor will count
up the distance from 0.1~999.9Km or Mile.
• Count down: Setting the exercise distance from 1.0~999.0 Km or
Mile, the monitor will count down from your setting values. Once
the setting value is reached, the monitor will set off an alarm.
CALORIES :
Press the UP or DOWN button until the CAL dot displays on the
screen. The Monitor will add the calorie consumption. If you want to
setup the value, please press the ENTER/RESET to CAL button and
press the UP or DOWN button to enter the value you want.
• Count up: Without setting the distance value, the monitor will count
up the distance from 0.1~999.0.
• Count down: Setting the exercise calorie from 1.0~999.0, the
monitor will count down from your setting values. Once the setting
value is reached, the monitor will set off an alarm.
Warning: this is an estimate and should in no case be taken as a
medical indication.
PULSE (Target Heart Rate) :
Press the UP or DOWN button until the pulse dot displays on the
screen. The monitor will display your current heart rate in beats per
minute. If you want to setup the value, please press the ENTER/RESET
to T.H.R. button and press the UP or DOWN button to enter the value
you want.
Pulse Limit:
Setting the value of pulse limit between 60 to 220, the monitor will
measure your heartbeats. Once the setting value is reached, the
monitor will flash until your heart beats below your setting value.
Place the palms of your hands on both of the contact pads and the
monitor will show up your heartbeat rate in beat per minute (BPM) on
the LCD display.
NOTE :
1. If no pulse signal input within 16 seconds, the display will indica-
te “P”. It is a power saving device. Customer can press the up & down
keys to restart Pulse function
Warning: this is an estimate and should in no case be taken as a
medical indication.
HEART RATE RECOVERY :
This is a function to check the condition of pulse recovery when exer-
cising has stopped. This is scaled from F1.0 to F6.0 where F1.0 is
the best, F6.0 is the worst, and the increment is 0.1. This function may
reflect your heart pulse recovery ability and improve it through exer-
cise. In order to get a correct rating, users must test it straight after
the finish of the workout by pressing the “RECOVERY” key and then
stop exercising. After the key is pressed, please also apply the heart
rate detector appropriately. The test will last for 1 minute and the
result will show in the display. When pressed again it will exit the
HEART RATE RECOVERY mode.
BODY FAT MEASUREMENT (Body Mass Index) :
When you turn on the monitor or press the ENTER/RESET button for
over 6 seconds, the monitor will go into BODY FAT MEASUREMENT
function. Before pressing the MEASURE button to measure your body
fat, you have to enter your personal data into the monitor. Select the
personal data and press the UP or Down button to enter your perso-
nal data. Then press MEASURE button and place the palms of your
hands on both of the contact pads. The monitor will show your body
fat ratio on LCD. The default value of personal data is described as
follows. The personal data will not be retained in the monitor when
the monitor power is off or being reset.
GENDER: male, HEIGHT: 175 cm, WEIGHT: 70 kg, AGE: 30 years
old.
A. Body Types: There are 9 body types divided according to the FAT%
calculated. Type 1 is Ultra-sportsman type. Type 2 is Ideal-sports-
man type. Type 3 is Ultra Slim type. Type 4 is Sportsman type.
Type 5 is Ideal-healthy Type. Type 6 is slim type. Type 7 is too fat.
Type 8 is Fat type. Type 9 is Ultra body fat type.
B. BMR: Basal Metabolism Ratio. The monitor will calculate the data
of gender, height, weight and age to show your value. The value
will show on the screen from 1 ~ 9999 Kcal.
C. BMI: Body Mass Index. The monitor will calculate the data of
height and weight to show your value. The value will show on the
screen from 1.0 ~ 99.9 on screen.
D. FAT %(BODY FAT RATIO): The monitor will calculate the data of
gender, height, weight and age to show your BODY FAT RATIO.
The value will show on screen from 5 ~ 50%.
Warning: this is an estimate and should in no case be taken as a
medical indication.
1. Insert 2 batteries type AA or UM-3 into the battery compartment
in the back of the monitor.
2. Ensure that the batteries are correctly fitted and correctly positio-
ned, make sure the battery spring is in proper contact with the bat-
tery.
3. If the display appears blank or displays only partial segment, remo-
ve the batteries and wait 15 seconds, then reinstall the battery.
4. Whenever the batteries are removed, all the functions values will
reset to zero.
5. The batteries must be removed from the appliance before it is
scrapped and must be disposed of safely.
6 . Take old batteries to recycling centers intended for that purpose.
ENGLISH

19
The exercise bike provides an excellent kind of cardio-training activity. Training on this equipment is designed to increase your cardio-vascular
capacity. On this principle, you improve your physical condition, your endurance and you burn calories (an indispensable activity for weight
loss in association with dieting).
Finally, the exercise bike allows you to tone the muscles in the legs and buttocks.
The muscles in the calves and the lower abdominals are also worked.
PARTS OF THE BODY WORKED
Weight Maintenance/Warm-up:
progressive effort starting at 10
minutes.
For a workout designed either to keep you in
shape or for re-education purposes, you may
train every day for around ten minutes. This
type of exercise is designed to stimulate your
muscles and joints or may be used as a
warm-up to additional physical activity.
To increase the muscle tone of the legs, select
a higher resistance and lengthen the exercise
period.
Of course, you may vary the pedalling resis-
tance throughout your exercise session.
Aerobic fitness workout: moderate
effort for a fairly long period (35
min to 1 hour).
If you wish to lose weight, this type of exerci-
se, combined with a diet, is the only way to
increase the quantity of energy consumed by
the organism. Nevertheless, it is pointless to
push yourself beyond your limits. It is the
regularity of training that will allow you to
obtain the best results.
Select a fairly weak pedalling resistance and
exercise at your own rhythm, but at least for
a period of 30 minutes. This exercise should
raise a slight sweat but should under no cir-
cumstances leave you breathless. It’s the
duration of the exercise, at a slow rhythm,
that will require your organism to draw its
energy from your fat reserves provided that
you pedal for more than thirty minutes, a
minimum of three times a week.
Aerobic training for endurance: sus-
tained effort for 20 to 40 minutes.
This type of training targets significant rein-
forcement of the cardiac muscle and impro-
ved respiratory activity.
The resistance and/or speed of pedalling is
increased so as to increase respiration during
the exercise. The effort here is more sustained
than for the maintenance workout.
As your training progresses, you will be able
to sustain the effort for longer periods, at a
faster rate or with a higher degree of resis-
tance. You may train a minimum of three
times a week for this type of training.
Training at a faster rate (anaerobic workout
and workout in the red zone) is reserved for
athletes and requires adequate preparation.
After each training session, take several
minutes to pedal with diminishing speed and
resistance in order to cool down and pro-
gressively bring the body to a state of rest.
When just starting out, begin by training over several days with a slight resistance and pedalling speed, without forcing, and taking rest breaks as
needed. Then progressively increase the frequency or duration of your exercise sessions.
USAGE
DECATHLON guarantees this product for parts and labor, under normal conditions of use, for 5 years for the structure and 2 years for wear parts
and labor starting on the date of purchase, confirmed by the date on the sales ticket. This guarantee applies only to the original purchaser.
DECATHLON’S obligation in compliance with this warranty is limited to the product’s replacement or repair, at DECATHLON’S convenience.
To have the product repaired, bring it to a DECATHLON store.
All the products covered by this warranty, shall be accepted by DECATHLON in one of its authorized service centers, sent postage paid together
with the proof of purchase.
This warranty cannot be applied in the following cases:
• Damage caused during transport
• Misuse or abnormal use
• Repairs done by people not authorized by DECATHLON
• The commercial use of the product concerned
This trade warranty does not exclude the legal guarantee(s) applicable according to countries and / or provinces.
This guarantee gives you specific rights recognized by the law. You may also have rights that vary from one province to another as specified by the
salesperson of your equipment.
DECATHLON
- 4 BOULEVARD DE MONS – BP299 –
- 59665 VILLENEUVE D’ASCQ – France -
TRADE WARRANTY
ENGLISH

2020
Warm-up phase : progressive effort.
Warming up is a preparatory phase before any activity. It puts the person INTO
OPTIMUM CONDITIONS for carrying out his or her favorite sport. It is a METHOD
OF PREVENTING ACCIDENTS TO TENDONS AND MUSCLES. There are two
aspects : WAKING UP THE MUSCULAR SYSTEM, GENERAL WARMING UP.
1) The muscular system is prepared in a SPECIAL STRETCHING SESSION which
PREPARES FOR EACH ACTIVITY : each group of muscles is used, joints are used.
2) Global warming up gradually brings the cardiovascular and respiratory sys-
tem into action, improves irrigation of the muscles and prepares for making
efforts. It must be sufficiently long : 10 min for a leisure sport activity, 20 min
for a competition sport activity. Note that warming up must be longer : after
55 years old, in the morning.
Training
TRAINING is the main phase of your physical activity. You can improve your phy-
sical condition by REGULAR training.
• Anaerobie exercice to develop endurance.
• Aerobic exercice to develop cardio-pulmonary resistance.
Slowing down
This is the continuation of an activity at low intensity, the gradual “return to rest”
phase. SLOWING DOWN brings the cardiovascular and respiratory system, the
blood flow and muscles back to “normal” (eliminating the counter effects of an
exercice, such as lactic acids, the accumulation of which is one of the major cau-
ses of muscular pains such as cramps and stiff muscles).
Stretching
STRETCHING must follow the slowing down phase while joints are still warm in
order to reduce risks of injury. Stretching after an activity : minimizes MUSCULAR
STIFFNESS due to an accumulation of LACTIC ACIDS, “stimulates” BLOOD
CIRCULATION.
CARDIO - TRAINING
• Exercise from 80 to 90% and
beyond : Anaerobic zone and red
zone reserved for high perfor-
mance and specialised athletes.
• Exercise of 70% to 80% of the
maximum cardiac rate :
Endurance exercise.
• Exercise from 60 to 70% of the
maximum cardiac rate : Getting
fit / favourable consumption of
fat.
• Exercise from 50 to 60% of the
maximum cardiac rate :
Maintenance /Warm up.
200 195 185
190 180 175 170 165 160 155
20
60%
70%
80%
100%
60%
50%
70%
80%
100%
25 30 35 40 45 50 55 60 65
160 156 148
152 144 140 136 132 128 124
140 136 129
133 126 122 119 115 112 108
120 117 111
114 108 105 102 99 96 93
100 97 92
95 90 87 85 82 80 77
50%
WARNING, TECHNICAL INSET
WARNING TO USERS
You must work towards getting fit in a controlled
manner.
Do no hesitate to consult a doctor before any
physical activity, especially if : you have not
practiced any sports activities in recent years,
you are more than 35 years old, you are not sure
about your health, you are following medical
treatment.
CONSULT A DOCTOR
BEFORE PRACTISING ANY SPORT.
Exercice range
AB
C
D
Beats per minute
CARDIO-TRAINING EXERCICE
Cardio-training exercice is a form of aerobics (conditioning the body in the presence of oxygen) and allows you to improve your cardio-vascular
capacity. To be more precise, you will improve the tonicity of the heart and your blood vessels. Cardio-training exercice carries the oxygen breathed
in from the air to your muscles. It is the heart that pumps this oxygen through the body and, in particular, to the muscles being exercised.
CONTROLLING YOUR HEARTBEAT
PHASES OF A PHYSICAL ACTIVITY
It is vital to measure your pulse periodically in order to control your
degree of exercising. If you do not have an electronic measuring
device, follow this procedure :
To take your pulse, position two fingers : on the neck, or below the
ear, or at the inside wrist beside the thumb.
Do not press too hard : excessive pressure reduces the blood flow
and can slow down the heartbeat. After counting the pulsations for
30 seconds, multiply by 2 to obtain the number of pulsations per
minute.
Example : 75 pulsations counted in 30 seconds corresponds to a
heart beat of 150 pulsations per minute.
ENGLISH
