Donaldson Torit MediaFilter Horizontal Series User manual

Installation
and Operation Manual
IOM AD3029501
Revision 2
Modular MediaFilter™ – Horizontal Series –
Ambient Collectors
Models HA-1A, HA-1B, HA-2A, and HA-2B
Throughout this manual
statements indicating
precautions necessary
to avoid equipment failure are
referenced in a Note. Statements
indicating potential hazards that
could result in personal injury or
property damage are referenced
in a CAUTION! box.
Illustrations in this manual are for
reference only, as actual product
may vary.
Installation,
Operation and
Service Information
This manual is property of the owner. Leave with the unit when set-up and
start-up are complete. Donaldson Company reserves the right to change design
and specifications without prior notice.

Donaldson Company, Inc.
2
CAUTION!
Application of Mist Control Equipment
• Combustible materials such as buffing lint, rouge, aluminum and steel dust, weld fume,
or flammable solvents represent fire or explosion hazards. Use special care when
selecting and operating all mist collection equipment when combustible materials are
present to protect workers and property from damage due to fire and/or explosion.
Consult and comply with National and Local Codes relating to fire or explosion, and
all other appropriate codes when determining the location and operation of mist
collection equipment.
• When combustible materials are present, consult with an installer of fire extinguishing
systems familiar with these types of fire hazards and local fire codes for
recommendations and installation of fire extinguishing and explosion protection
systems. Donaldson dust collection equipment is not equipped with fire extinguishing
or explosion protection systems.
•DO NOT allow sparks, cigarettes, or other burning objects to enter the hood or duct
of any mist control equipment.
• For optimum collector performance, use only Donaldson replacement parts.
Warning – Improper operation of a mist control system may result in conditions in the work
area or facility that could result in severe personal injury and product or property damage.
Check that all collection equipment is properly selected and sized for the intended use.

Modular MediaFilter – Horizontal Series – Ambient Collectors
3
This manual contains specific precautionary statements relative to worker safety. Read
thoroughly and comply as directed. Discuss the use and application of this equipment with a
Donaldson Torit representative. Instruct all personnel on safe use and maintenance
procedures.
Data Sheet
Model Number _______________________________ Serial Number ________________________________
Ship Date ____________________________________ Installation Date ______________________________
Customer Name ____________________________________________________________________________
Address ____________________________________________________________________________
____________________________________________________________________________
Filter Type ____________________________________________________________________________
Accessories ____________________________________________________________________________
Other ____________________________________________________________________________
Contents
Description ........................................................... 4
Purpose and Intended Use .................................... 4
Rating and Specification Information .................. 5
Operation ............................................................. 6
Inspection on Arrival ........................................... 7
Installation Codes and Procedures ....................... 7
Site Selection ........................................................ 7
Unit Location ....................................................... 7
Electrical Wiring .................................................. 8
Rigging Instructions ............................................. 8
Hoisting Information ..................................... 8
Standard Equipment ............................................ 9
Ceiling Mount ................................................ 9
Magnehelic®Gauge ..................................... 10
Electrical Connection ......................................... 12
Preliminary Start-Up Check............................... 13
Optional Equipment ........................................... 13
Drain Collection Container ......................... 13
P-Trap or Y-Strainer Installation.................. 14
Service Information ........................................... 14
Operational Checklist .................................. 14
Troubleshooting ................................................. 19
Service Notes ..................................................... 21
Warranty ............................................................ 24
Magnehelic®is a registered trademark of Dwyer Instruments, Inc.

Donaldson Company, Inc.
4
CAUTION!
• Misuse or modification of this
equipment may result in personal injury.
• Do not misuse or modify.
Description
The Modular MediaFilter –Horizontal Series
ambient collectors are designed to collect airborne
mist such as oil- or water-soluble and synthetic
coolant from machining operations. Two stages of
filtration plus an optional HEPA filter provide a
cleaner, healthier work environment as well as a
more cost efficient means of mist collection. With
airflow capacities from 1,500 to 6,000 cfm, the
Modular MediaFilter –Horizontal Series is a
strategic component to meeting industrial and
government air-quality standards. The high
efficiency filter system allows filtered air to be
returned to the plant environment.
Designed to increase the versatility of the unit,
standard options include motor starter controls,
drain collection containers, and control boxes with
remote START/STOP or machine interlock
capabilities.
Purpose and Intended Use
Airborne mist is small droplets of liquid that are
suspended in the air. Modular MediaFilter –
Horizontal Series collectors are commonly used in
machine tool operations where metalworking fluids
are used. Metalworking fluids include straight oil,
water-soluble coolants, soluble oil, and semi-
synthetic coolants. Other contaminants, such as
dust from the part or the tool or smoke from the
combustion of the oil or coolant are also generated
when using metalworking fluids and should be
considered when selecting equipment.

Modular MediaFilter – Horizontal Series – Ambient Collectors
5
Modular MediaFilter –Horizontal Series
Rating and Specification Information
snoitacificepS eludoMelgniS eludoMelbuoD
stnemeriuqeRlacirtcelE
esahp/elcyc/egatlov3/06/064/032/802
3/06/575
3/06/05/002
3/06/064/032/802
3/06/575
3/
06/05/002
,MFC lanimon 0003ot0051 0006ot0003
rewopesroHrotoM 5dna,3,2/11,15dna15
,aerAretliF tf
2
621 252
sretliFyramirPforebmuN 12
,thgieWgnippihS sbl 525 577
dirty-air
inlet
lift and turn latches
lift-off hinge
motor and
blower access
clean-air
outlet
1 /2-i NP dr i1n Tan

Donaldson Company, Inc.
6
Unit Operation
Operation
During normal operation, contaminated air enters
the unit through the open inlet located on the back
of the unit. The air passes through the first-stage
filter assembly designed to collect and coalesce
large droplets and particles. Smaller mist droplets
pass to a second-stage fiberglass vee-bag filter. The
vee-bag’s open pleat design and precise bag spacing
allows contaminant loading throughout the life of
the filter. As mist particles coalesce and form large
droplets, the droplets run down into the bottom of
the filter and drain into the hopper. The collected
liquid drains from the hopper into a P-trap or
collection bottle. Clean, mist-free air exits the filter
and discharges through the end of the collector.
prefilter vee-bag filter
dirty-air
inlet
clean-air
outlet
large mist droplets

Modular MediaFilter – Horizontal Series – Ambient Collectors
7
CAUTION!
OSHA may have requirements regarding
recirculating filtered air in your facility.
Consult with the appropriate local
authorities to ensure compliance with all
codes regarding recirculating filtered air.
Inspection on Arrival
1. Inspect unit on delivery.
2. Report any damage to the delivery carrier.
3. Request a written inspection report from the
Claims Inspector to substantiate claim.
4. File claims with the delivery carrier.
5. Compare unit received with description of
product ordered.
6. Report incomplete shipments to the delivery
carrier and your Donaldson Torit
representative.
7. Remove crates and shipping straps. Remove
loose components and accessory packages
before lifting unit from truck.
Installation Codes and Procedures
1. Safe and efficient operation of the unit depends
on proper installation.
2. Authorities with jurisdiction should be
consulted before installing to verify local codes
and installation procedures. In the absence of
such codes, install unit according to the
National Electric Code and NFPA No. 70-latest
edition.
3. A qualified installation and service agent must
complete installation and service of this
equipment.
4. All shipping materials, including shipping
covers, must be removed from the unit prior to,
or during unit installation.
Note: Failure to remove shipping materials
from the unit will compromise unit
performance.
Site Selection
1. The unit can be suspended or hung from
overhead supports. The supports must be
adequate to carry the live load of the unit and
installation performed to reduce sway or
vibration to the unit.
2. Provide clearance from heat sources and
interference with utilities when selecting the
location for suspended units. Reference the
Specification Control drawing.
Unit Location
1. When hazardous conditions or materials are
present, consult with local authorities for the
proper location of the collector.
2. Load-bearing supports must be sized to
accommodate the entire weight of the unit plus
the weight of the collected material, and piping.
Reference the Specification Control drawing
shipped with the unit.
3. Locate the collector to ensure easy access to
electrical connections and routine maintenance.
CAUTION!
Donaldson Torit equipment is not
designed to support site-installed ducts,
interconnecting piping, or electrical
services. All ducts, piping, or electrical
services supplied by others must be
adequately supported to prevent severe
personal injury and/or property damage.

Donaldson Company, Inc.
8
CAUTION!
• Electrical installation must be
performed by a qualified electrician
and comply with all applicable
national and local codes.
• Lock out electrical power sources
before performing service or
maintenance work.
• Do not install in classified hazardous
atmospheres without an enclosure
rated for the application.
CAUTION!
• Failure to lift the collector correctly
can result in severe personal injury or
property damage.
• Use appropriate lifting equipment and
adopt all safety precautions needed
for moving and handling the
equipment.
• A crane or forklift is recommended
for unloading, assembly, and
installation of the collector.
• Location must be clear of all
obstructions, such as utility lines or
roof overhang.
Electrical Wiring
1. All electrical wiring and connections, including
electrical grounding, should be made in
accordance with the National Electric Code
and NFPA No. 70-latest edition.
2. Check local ordinances for additional
requirements that apply.
3. The appropriate wiring schematic and electrical
rating must be used. See unit’s rating plate for
required voltage.
4. If the unit is not furnished with a factory-
mounted disconnect, an electric disconnect
switch having adequate amp capacity shall be
installed in accordance with Part IX, Article
430 of the National Electric Code and NFPA
No. 70-latest edition. Check unit’s rating plate
for voltage and amperage ratings.
5. Refer to the wiring diagram for the number of
wires required for main power wiring and
remote wiring.
Rigging Instructions
Suggested Tools & Equipment
Crane or Forklift Socket Wrenches, metric
Slings, Spreader Bars, End Wrenches, metric
and Clevis Pins Level
Drift Pins Drill and Drill Bits
Clamps Reciprocating Saw
Screwdrivers
Hoisting Information
1. Use all lifting points provided.
2. Use clevis connectors, not hooks, on lifting
slings.
3. Use spreader bars to prevent damage to units
casing.
4. Check the Specification Control drawing for
weight and dimensions of the unit,
subassemblies, and components to ensure
adequate crane capacity.
5. Allow only qualified crane operators to lift the
equipment.
6. Refer to applicable OSHA regulations and local
codes when using cranes, forklifts, and other
lifting equipment.
7. Lift unit and accessories separately, and
assemble after unit is in place.
8. Use drift pins to align holes in section flanges
during assembly.

Modular MediaFilter – Horizontal Series – Ambient Collectors
9
Ceiling Mount
Standard Equipment
Ceiling Mount

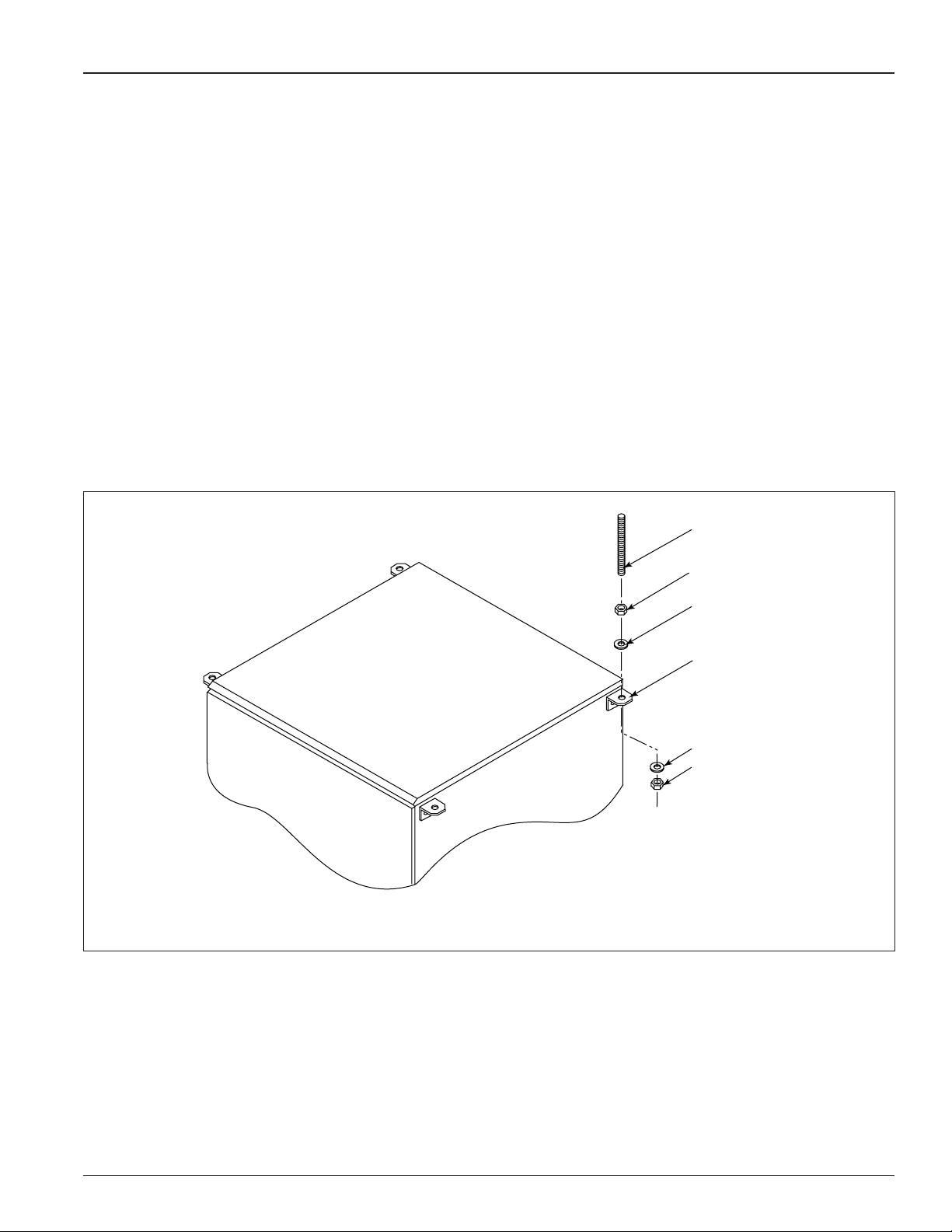

1. Position the unit as close to the mist source as
possible allowing optimum extraction air
movement.
2. Remove the transportation support from the
power pack.
3. Install the discharge cover.
4. Use six pieces of 1-13 threaded rod to suspend
unit.
5. Place a 1-in flat washer on the threaded rod
and thread a 1-13 lock nut a minimum of
1 1/2-in.
6. Insert rod with washer and hex nut through the
ceiling mount bracket from the bottom up.
7. Place another 1-in flat washer from the top
down and secure with a hex nut as shown.
8. Lift the unit into position and secure to ceiling
joists.
9. Level unit and tighten all hardware.
1-13 threaded
1-13 hex
1-in flat washer
1-in flat washer
1-13 lock
ceiling mount bracket
Note: unit shown is for reference only

Donaldson Company, Inc.
10
Magnehelic Gauge
The Magnehelic is a differential pressure gauge
used to measure the pressure difference between
the clean- and dirty-air chambers and provides a
visual display of filter change requirements. The
high-pressure tap is located in the dirty-air
chamber and the low-pressure tap is connected the
clean-air chamber.
1. Choose a convenient, accessible location on or
near the unit for mounting that provides the
best visual advantage.
If unit is equipped with factory-installed pressure
taps, skip to Step 5.
2. Before drilling, place a piece of non-combustible
cloth over the filter opening in the clean-air
chamber to protect them from drilling chips.
3. Place a piece of wood behind the drill location
in the dirty-air chamber to protect the filters
from damage by the drill bit. Use a .406-inch
diameter bit to drill the holes.
4. Mount the pressure tap hardware in the clean-
and dirty-air chamber.
5. Plug the pressure ports on the back of the gauge
using two, 1/8-in NPT pipe plugs supplied.
Install two, 1/8-in NPT male adapters supplied
with the gauge into the high- and low-pressure
ports on the side of the gauge. Attach the
mounting bracket using three, #6-32 x 1/4-in
screws supplied.
6. Mount the gauge and bracket assembly to the
supporting structure using two self-drilling
screws.
7. Thirty-five feet of plastic tubing is supplied and
must be cut in two sections. Connect one
section of tubing from the gauge’s high-pressure
port to the pressure fitting located in the dirty-
air chamber. Connect remaining tubing from
the gauge’s low-pressure port to the fitting in
the clean-air chamber. Additional tubing can be
ordered from your representative.
8. Carefully remove the cloth protecting the
filters. Close access doors and tighten securely
by hand.
9. Zero and maintain the gauge as directed in the
manufacturer’s Operating and Maintenance
Instructions provided.
10. Repeat the above steps to install the
Magnehelic Gauge for the HEPA module.

Modular MediaFilter – Horizontal Series – Ambient Collectors
11

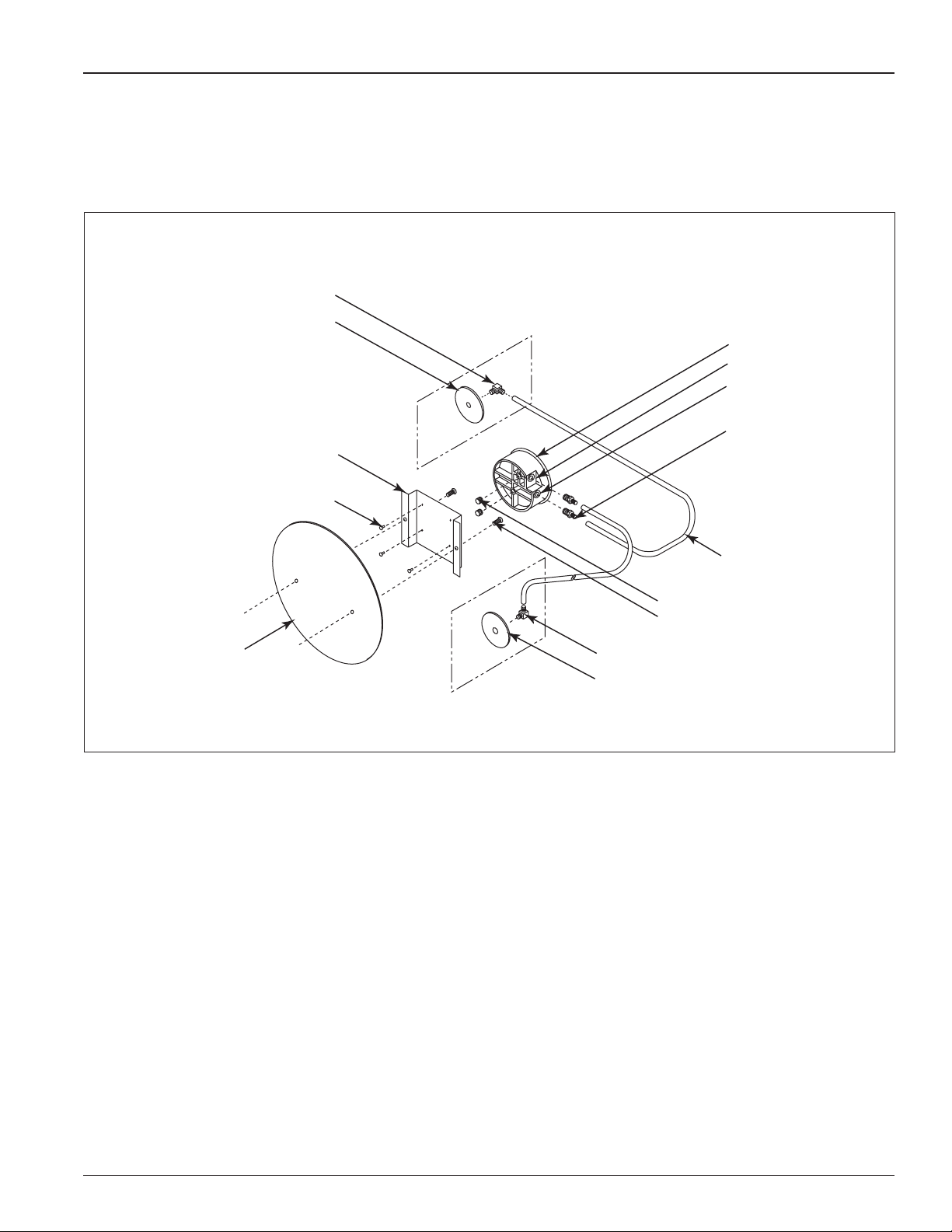

Magnehelic Gauge Installation
1/8-in NPT x90°
male elbow
clean-air plenum
drill location
mounting bracket
#6-32 x1/4-in mounting screws
support structure
mounting surface
Magnehelic gauge
high-pressure port
low-pressure port
two, 1/8-in NPT
adapters
plastic tubing
two, 1/8-in NPT pipe plugs
two, self-drilling screws
1/8-in NPT x90° male elbow
dirty-air plenum
drill location

Donaldson Company, Inc.
12
Electrical Connection
All the Modular MediaFilter —Horizontal Series
Ambient collectors must be equipped with a
customer-supplied safety disconnect with short
circuit protection, contactors, and overload
protection.
CAUTION!
• Electrical installation must be
performed by a qualified electrician
and comply with all applicable
national and local codes.
• Lock out electrical power sources
before performing service or
maintenance work.
• Do not install in classified hazardous
atmospheres without an enclosure
rated for the application.
Motor Starter Wiring Diagram
jçíçê
cN
cO
cP
fiN
fiO
fiP
d
aáëÅçååÉÅí=pïáíÅÜ
^N ^O
iN iO iP NP
qN qO qP NQ
^O
VR VS VT VU
qN qO qP
d
gìåÅíáçå
_çñ
1. Mount the control box in a convenient,
accessible location.
2. Make the wiring connections to the fan motor
according to the wiring diagram located inside
the control box and the instructions on the
motor decal.
Note: All electrical components must be sized
for the supply voltage and motor
horsepower.
3. Turn the fan-motor ON then OFF and check for
proper rotation by removing the inspection
cover located on the side of the unit. Proper
rotation is counterclockwise.
To reverse rotation, single-phase power supply:
Follow manufacturer’s instructions on the
motor’s nameplate.
To reverse rotation, three-phase power supply:
Turn electrical power OFF at source and switch
any two leads on the output-side of the fan-
motor starter.

Modular MediaFilter – Horizontal Series – Ambient Collectors
13
Preliminary Start-Up Check
1. Check all electrical connections for tightness
and contact.
2. Check for and remove all loose items in or near
the inlet and outlet of the unit.
3. Check that all remote controls are wired into
the control system and all service switches are
in the OFF position.
4. Check that all optional accessories are installed
properly and secured.
5. Check that hopper discharge is open and the
storage container or drains are installed and
sealed properly.
6. Turn power ON at source.
7. Turn the fan motor ON then OFF to check for
proper rotation by referencing the rotation
arrow located on the motor’s mounting plate.
To reverse rotation, single-phase power supply:
Follow manufacturer’s instructions on the
motor’s nameplate.
To reverse rotation, three-phase power supply:
Turn electrical power OFF at source and switch
any two leads on the output-side of the fan-
motor starter.
Optional Equipment
Drain Collection Container
1. Install the drain collection container during
installation or after unit is in its final operating
position.
2. Turn unit OFF.
3. Remove the container by unscrewing the
container from the cap. Clean the container,
faucet, and re-install.
Note: Close the faucet before turning the
collector back ON.
Drain Collection Container
O=PLUJáå=la=ëé~ÅÉê
N=NLO=íç=NJáå=kmq=êÉÇìÅÉê
PLQJáå=ÜÉñ
äçÅâ=åìí
Ñ~ìÅÉí
NJÖ~ääçå=Çê~áå
ÅçääÉÅíáçå=ÄçííäÉ

Donaldson Company, Inc.
14
P-Trap or Y-Strainer Installation
1. Install the 1 1/2-in NPT pipe as shown below.
2. Plumb the P-trap to a receptacle or install a
return line back to the machine center.
3. Fill P-trap before starting unit.
First-Stage Filters
An optional 4-in impinger with a 1-in aluminum
mesh filter, or a 4-in high efficiency filter are
available for heavy liquid-load applications. These
are re-usable filters and may need periodic
cleaning.
HEPA Filter
Recommended for applications generating smoke
or other fine particulate, the optional HEPA filter
features 99.97% efficiency on 0.3-micron particles.
The HEPA filter is used in machining processes
generating large amounts of heat or in applications
using straight oil as a lubricant or coolant.
Service Information
Operational Checklist
1. Monitor overall performance of the collector.
2. Monitor exhaust. Exhaust should remain
visually clean throughout filter life. If leaks are
visible, check the filters and optional HEPA
filter for positive gasket seals.
3. Monitor hopper drainage. If slow or stopped,
check hopper and drain lines for obstructions
and clean as necessary.
4. Check P-trap and refill if necessary.
5. Monitor pressure drop across filters. If the
pressure is high, clean or replace the first-stage
filters. If the reading remains high, the second-
stage vee-bag filter may need replacement.
ÜçééÉê
N=NLOJáå
kmq=éáéÉ
éáéÉ=éäìÖ
ã~ñáãìã
Ñáää=äÉîÉä

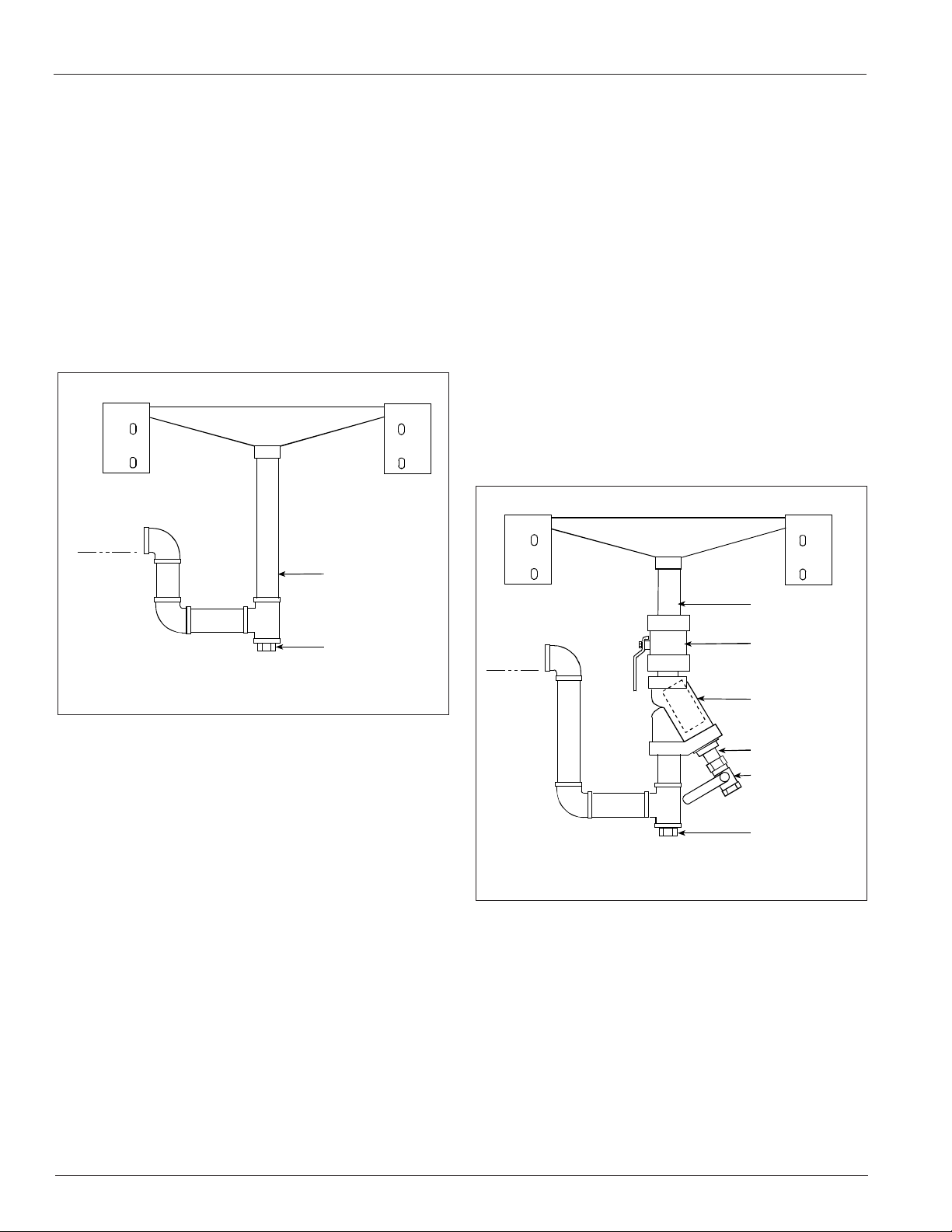

P-Trap Installation
ÜçééÉê
N=NLOJáå
kmq=éáéÉ
éáéÉ=éäìÖ
ã~ñáãìã
Ñáää=äÉîÉä
OJáå=Ä~ää=î~äîÉ
N=NLOJáå
óJëíê~áåÉê
NJáå=kmq=éáéÉ
PLQJáå=Ä~ää=î~äîÉ
Y-Strainer Installation

Modular MediaFilter – Horizontal Series – Ambient Collectors
15
First-Stage Filter Cleaning
1. Remove the first-stage filter.
2. Replace 4-in multi-vee filter as necessary.
3. Tap metal first-stage filters gently over an
appropriate waste container to dislodge
particulate. If further cleaning is required, soak
in an appropriate wash tank, rinse, dry, and
re-install.
HEPA Filter
1. Open the HEPA module’s access door.
2. Pull the two clamping handles up to lower the
filter from its seal.
3. Remove the filter and dispose of properly.
4. Install new HEPA filter with the filter gasket
and the airflow direction arrow pointing
toward the power pack. Push clamping handles
down to raise the filter to the seal.
5. Inspect the door gaskets for condition and
replace as necessary.
6. Close and secure doors.
Dirty-Air Inlet Hopper
Clean hopper by scraping the particulate out. Do
not allow particulate to fall into drain.
Vee-Bag Filter Module Hopper
1. Access the hopper through the filter access
doors.
2. Clean hopper by scraping the particulate out.
Do not allow particulate to fall into drain.
CAUTION!
• Use proper safety and protective
equipment when removing
contaminants and filters.
• Use care when removing filters to
avoid personal injury.
Second-Stage Vee-Bag Filter Replacement
1. Open the two filter access doors.
2. Remove the vee-bag filter support rod by lifting
the rod from its retaining brackets.
3. Pull rod from the bag loops.
4. Move the vee-bag filter to the filter track side
of the unit and slide it off its track while guiding
the trailing bags from the cabinet. Dispose of
properly.
5. Install a new vee-bag filter in the track and
carefully place the individual bags in the
cabinet.
6. Reach through the adjacent door and distribute
the bags. Insert the support rod through all
loops.
7. Place the rod in the retaining brackets at each
end.
8. Inspect the door gaskets for condition and
replace as necessary.
9. Close and secure doors.

Donaldson Company, Inc.
16
P-Trap Maintenance
1. Place a suitable container under the P-trap, turn
the collector OFF, and remove the pipe plug.
2. Allow fluid and particulate to drain.
3. Use thread sealant and replace pipe plug.
4. Refill the P-trap with suitable fluid before
restarting the collector.
P-Trap with Y Strainer, Screen Cleaning
1. Place a suitable container under the screen
clean-out valve, turn the collector OFF, close
the P-trap valve, then open the screen clean-out
valve.
2. Allow fluid and particulate to drain.
3. With the clean-out valve open, slowly open the
P-trap valve. This allows fluid still trapped in
the hopper to drain.
Note: A substantial amount of fluid may be
trapped in the hopper and could exceed
the container capacity. Open the P-trap
valve slowly.
ÜçééÉê
N=NLOJáå
kmq=éáéÉ
éáéÉ=éäìÖ
ã~ñáãìã
Ñáää=äÉîÉä
ÜçééÉê
N=NLOJáå
kmq=éáéÉ
éáéÉ=éäìÖ
ã~ñáãìã
Ñáää=äÉîÉä
OJáå=Ä~ää=î~äîÉ
N=NLOJáå
óJëíê~áåÉê
NJáå=kmq=éáéÉ
PLQJáå=Ä~ää=î~äîÉ
P-Trap
Y-Strainer

Modular MediaFilter – Horizontal Series – Ambient Collectors
17
P-Trap with Y Strainer, Screen Removal
1. Close the P-trap valve.
2. Unscrew the screen cap and pull the screen out.
3. Clean the screen and the inside of the Y-strainer
body, and reassemble taking care to seat the
screen in the body and cap.
4. Close the clean-out valve.
4. Refill the P-trap with suitable fluid before
restarting the collector.
ÜçééÉê=Çê~áå
Ñ~ìÅÉí
Drain Collection Container
Drain Collection Container
1. Turn unit OFF.
2. Remove the container by unscrewing the
container from the cap. Clean the container,
faucet, and reinstall.
Note: Close the faucet before turning the
collector back ON.

Donaldson Company, Inc.
18
Split Taper™ Bushing Mounting Instructions
Many fans are furnished with split taper bushings
for mounting the impeller to the shaft. When
properly assembled, the bushings grip the hub with
a positive clamping action.
1. Bushel barrel and bore of impeller are tapered
to ensure concentric mounting and a true
running propeller.
2. Capscrews, when tightened, lock bushing in
propeller. Use special plated capscrews and
nylock nuts.
.oNgnihsuB eziStloB
euqroT
sbL-tF
H/L/HQ/TQ 02-4/1 2/1-7
3. Bushing is split so that when the locking
capscrews force bushing into tapered bore, the
bushing grips the shaft with a positive clamping
fit. This will withstand vibration and heavy
loads without being loosened.
4. Impeller and bushing assembly is keyed to the
shaft and held in place by compression, which
adds driving strength.
Note: Before assembly, ensure shaft and
keyway are clean and smooth.
Check key size with both shaft and
bushing keyway.
5. To assemble, insert the capscrews through the
clearance holes in the bushing and install
bushing loosely into the impeller. Do not press
or drive. Start capscrews by hand, turning them
just enough to engage threads in the nylock nut.
Do not use a wrench at this time. The bushing
should be loose enough in the propeller to move
freely. Slide impeller and bushing assembly onto
shaft, allowing adequate clearance for shaft
end play to prevent friction. Fit key into
keyway. Do not force impeller and bushing
onto shaft. If it does not go on easily, check
shaft, bushing, and key sizes once again.
Tighten capscrews gradually and evenly with
wrench similar to mounting an automobile
wheel. Rotate a quarter turn on each capscrew
successively until all capscrews are tight.
These capscrews force the taper bushing into
the hub, which in turn compresses the bushing
onto the shaft. This makes a positive clamping
fit. The torque must not exceed the value
specified in the table.
CAUTION!
Do not attempt to pull bushing flange
flush with hub end. There should be a
clearance which varies approximately
3/16-in to 1/4-in with the bushing size
when tightened. This is not a locating
dimension.
Impeller Assembly Removal
1. Remove all capscrews from impeller and hub
assembly.
2. Insert capscrews into the threaded holes in the
bushing flange.
3. Tighten each bolt in quarter of a turn
increments to push the impeller off the bushing.
This forces the bushing loose from the propeller
hub and releases the compression so that the
entire assembly will slide from the shaft.
4. Pull the bushing off the shaft.
Note: If the assembly has been in place
sometime it may be necessary to use
a wheel puller to remove the
bushing. Never use a wheel puller on the
impeller.

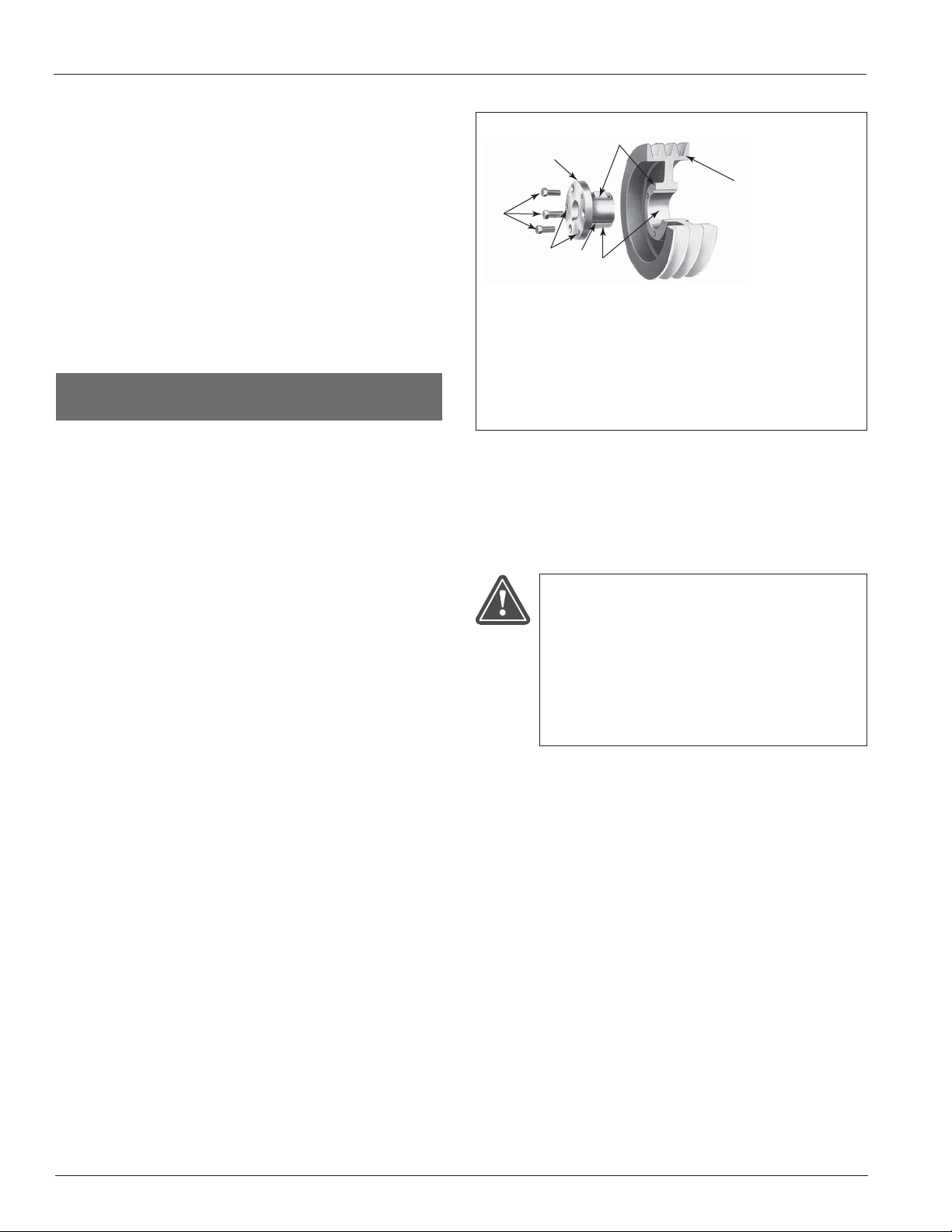

Split Taper Bushing Installation
Split Taper
Bushing
C
A
EDB
A. External key,except G,H and Idler Bushings
B. Bushing barrel and Product bore are tapered
C. Bushing cap screws
D. Bushing barrel is split (except idler bushings)
E. Removal holes are threaded,installation holes are not
BROWNING Split
Taper Bushed
Product (Gripbelt
Sheave Shown)
®
Browning®is a registered trademark and Split Taper™ is a tradename of Emerson Power Transmission Manufacturing, L.P.

Modular MediaFilter – Horizontal Series – Ambient Collectors
19
Troubleshooting
melborP esuaCelbaborP ydemeR
rotomdnanafrewolB
tratstonod
eziseriwrotomreporpmI deificepssaeguageriwtcerrocehtgnisueriweR
.sedoclacoldnalanoitanyb
yltcerrocderiwtoN ylppusrofgniriwrotomtcerrocdnakcehC
gniriws'rerutcafunamrotomeeS.egatlov
ehtdnamargaidgniriwwolloF.margaid
.edoCcirtcelElanoitaN
elbaliavarofderiwtontinU
egatlov
.egatlovylppusreporprofgniriwtcerroC
nwodtiucrictupnI llanotiucricrotomotylppusrewopkcehC
.sdael
nwodtiucricylppuslacirtcelE .egatlovreporproftiucricylppusrew
opkcehC
ecalpeR.tluafrekaerbtiucricroesufrofkcehC
.yrassecensa
esufnwolB ehtkcehc,nwolbsahesuffI.sesufllakcehC
elbissoprofgnitcetorpsawesufehttahttiucric
gniriwroecivedlortnoc,
remrofsnart,rotom
.melborp
deppirtyalerdaolrevO rotomnowardpmakcehC.daolrevoteseR
spmadetarehtsdeecxeward
pmafI.sdael
rofkcehc,etalpemanrotomehtnodetsil
.smelborpwolfriarorewolb
retaehdaolrevoevitcefeD
ylbmessadaolrevoro
.yrassecensaecalpeR
remrofsnartevitcefeDehttatneserperastloV-511tahtkcehC
.slanimretteltuoremrofsnart
rot
omdnanafrewolB
yatstonodtub,trats
gninnur
dellatsniretratsrotomtcerrocnI fiecalperdnaretratsrotomreporprofkcehC
.yrassecen
daolrevotiucriclacirtcelEsahtiucricylppusrewopehttahtk
cehC
.tnempiuqellanurotrewoptneiciffus
teltuoria-naelC
tsimliognigrahcsid
yltcerrocdellatsnitonsretliF tnemecalpeRretliFgaB-eeVegatS-dnoceSeeS
.51egaPno
egamadretliF eniunegylnoesU.yrassecensasretlifecalpeR
.
straptnemecalpernosdlanoD
esoolsrewardsseccA .ylerucessroodsseccanethgiT

Donaldson Company, Inc.
20
melborP esuaCelbaborP ydemeR
wolfriatneiciffusnI sdrawkcabnoitatornaFehtnodetacidnisanoitatorrewolbkcehC
eeS.gnisuohrewolbehtnoworran
oitator
.31egaPnokcehCpU-tratSyranimilerP
tonroneposroodsseccA
thgitdesolc
dnaecalpnierasroodsseccallatahtkcehC
.deruces
detcirtseraeratsuahxenaF.snoitcurtsborofaeratsuahxenafkceh
C
.sirbedrolairetamevomeR
retlifegats-tsrifdeggulP .ecalperronaelcdnaevomeR
tnemecalpersdeenretliF nosdlanoDeniuneggnisuecalperdnaevomeR
gaB-eeVegatS-dnoce
SeeS.sretliftnemecalper
.51egaPnotnemecalpeRretliF
retlifAPEHdeggulP .yrassecensaecalpeR
reppohtneiciffusnI
egrahcsid
part-PdeggulPecnanetniaMparT-PeeS.part-PnaelC
.61egaPno
noitcellocniarddeggulP
reniatnoc
dnareniatnocnoitcellocnaelcdnaevomeR
reniatnoCnoitcelloCniarDeeS.tecuaf
.71egaPno
morfgnikaeldiuqiL
roodr
otcelloc
part-PdeggulPecnanetniaMparT-PeeS.part-PnaelC
.61egaPno
llufreniatnocnoitcellocniarD
deggulpro
eeS.reniatnocnoitcellocniarD.FFOtinunruT
.71egaPnoreniatnoCnoitcelloCniarD
