Dorel Asia DA2081 User manual

BOOKLET CONTAINS
NOTE:
Date of purchase:
_______ / _______ / _______
UPC CODE:
DOREL ASIA
Model No:
DA2081
KITCHEN ISLAND SET
THIS INSTRUCTION
0-65857-16118-2
Lot number:
________________________
IMPORTANT SAFETY
INFORMATION. PLEASE READ
AND KEEP FOR FUTURE
(TAKEN FROM CARTON)
REFERENCE.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE
of charge.
Tel #: [phone]
E-Mail: [e-mail]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

* Ensure that all parts and components are located before beginning assembly.
* Assemble on soft surface to prevent damage to the product finish.
* Read all instructions before use of the kitchen island.
* Caution :Adult assembly required.
* Assembly will require 2 people
* Estimated assembly time:30 minutes
* DO NOT place any type of electrical appliance on the unit.
* DO NOT place any pots or pans containing hot liquids on the unit.
Customer Service Department No. 413
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product model number, color and a
detailed description of the part.
* DO NOT place any item on the kitchen island with dimensions exceeding those of the top panel.
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada H1G 3L1
* DO NOT use the unit if it is damaged or broken.
E-MAIL: [email protected]
NOTE
* Phillips head screwdriver is not included.
* DO NOT use power tools.
* DO NOT place any item on the top panel weighing more than 50 lbs.
WARNING
* DO NOT use the kitchen island as a seating surface.
LIMITED WARRANTY
Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such
defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of
proof of purchase. This is solely limited to the repair or replacement of defective furniture components and no assembly
labor is included. This warranty does not apply to any product which has been improperly assembled, subjected to
misuse or abuse or which has been altered or repaired in any way. This warranty gives you specific legal rights and you
may also have other rights which vary from State to State.
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
CARE AND CLEANING
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used occasionally to clean
surface. Dry immediately. Do not use any abrasives that may damage finish. Excessive exposure to sunlight and
extreme changes in temperature and moisture can damage wood furniture.

Ø5/32" X 1"
D8 x Ø5/32 x 1-1/2"
D8 x Ø5/32 x 1-1/4"
8 x 30mm
12
WOOD DOWEL
D10 x Ø1/4" x 12mm
D11 x Ø1/4" x 3"
Ø5/32" x 7/8"
D6 x Ø2.5" x 12mm
10
4
5
CAM BOLT
CAM LOCK
ALLEN KEY
1 PC
7
9
30 PCS
BARREL NUT
14 PCS
HEX SOCKET HEAD BOLT
8
2
3
6
2 PCS
KNOB
18 PCS
FLAT HEAD SCREW
2 PCS
ROUND HEAD BOLT
4 PCS
4 PCS
24 PCS
11
KITCHEN ISLAND SET
DA2081

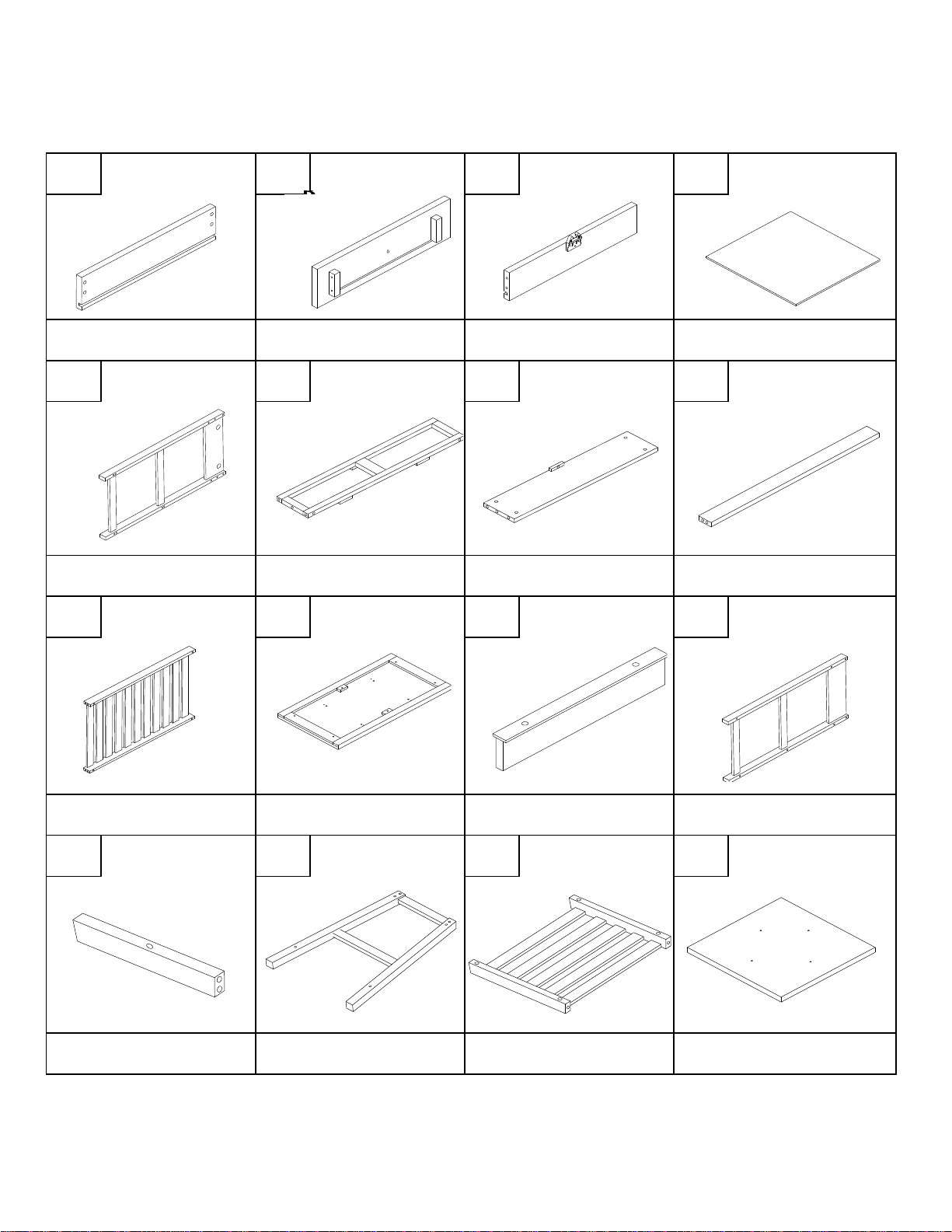

HARDWARE LIST
1
ROUND HEAD SCREW
ROUND HEAD SCREW
DRAWER STOPPER
4 PCS
2 PCS
2 PCS
FLAT HEAD SCREW
8 PCS
13
14
D11 x Ø1/4" x 2-1/2"
16 PCS
HEX SOCKET HEAD BOLT

BOTTOM SHELF
1 PC
H
F
FRONT UPPER FRAME
1 PC
TOP PANEL
1 PC
BACK CENTER RAIL
1 PC
I
J
K
L
2 PCS
LEFT SIDE PANEL
1 PC
2 PCS
DRAWER SIDE
4 PCS
DRAWER BACK
1 PC
BACK UPPER PANEL
A
C
E
DRAWER FRONT
2 PCS
DA2081
G
DRAWER BOTTOM
1 PC
M
N
UPPER RAIL
LEG FRAMES
D
B
2 PCS
WOOD GUIDES
RIGHT SIDE PANEL
KITCHEN ISLAND SET
PARTS LIST
4 PCS
4 PCS
O
P
SHELF
SEAT BOARD
2 PCS
2 PCS
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC
PARTS LIST FOR TABLE
DRAWER SIDE
4 PCS DRAWER FRONT
2 PCS DRAWER BACK
2 PCS DRAWER BOTTOM
2 PCS
LEFT SIDE PANEL
1 PC FRONT UPPER FRAME
1 PC BACK UPPER PANEL 1 PC BACK BRACE
1 PC
BOTTOM PANEL
1 PC TOP PANEL
1 PC WOOD GUIDE
2 PCS
ABCD
EFH
IJKL
G
PARTS LIST FOR STOOL
UPPER RAIL
4 PCS SIDE PANEL
4 PCS SHELF
2 PCS
MNOP
SEAT BOARD
2 PCS
RIGHT SIDE PANEL
1 PC

KITCHEN ISLAND SET
DA2081
STEP 1

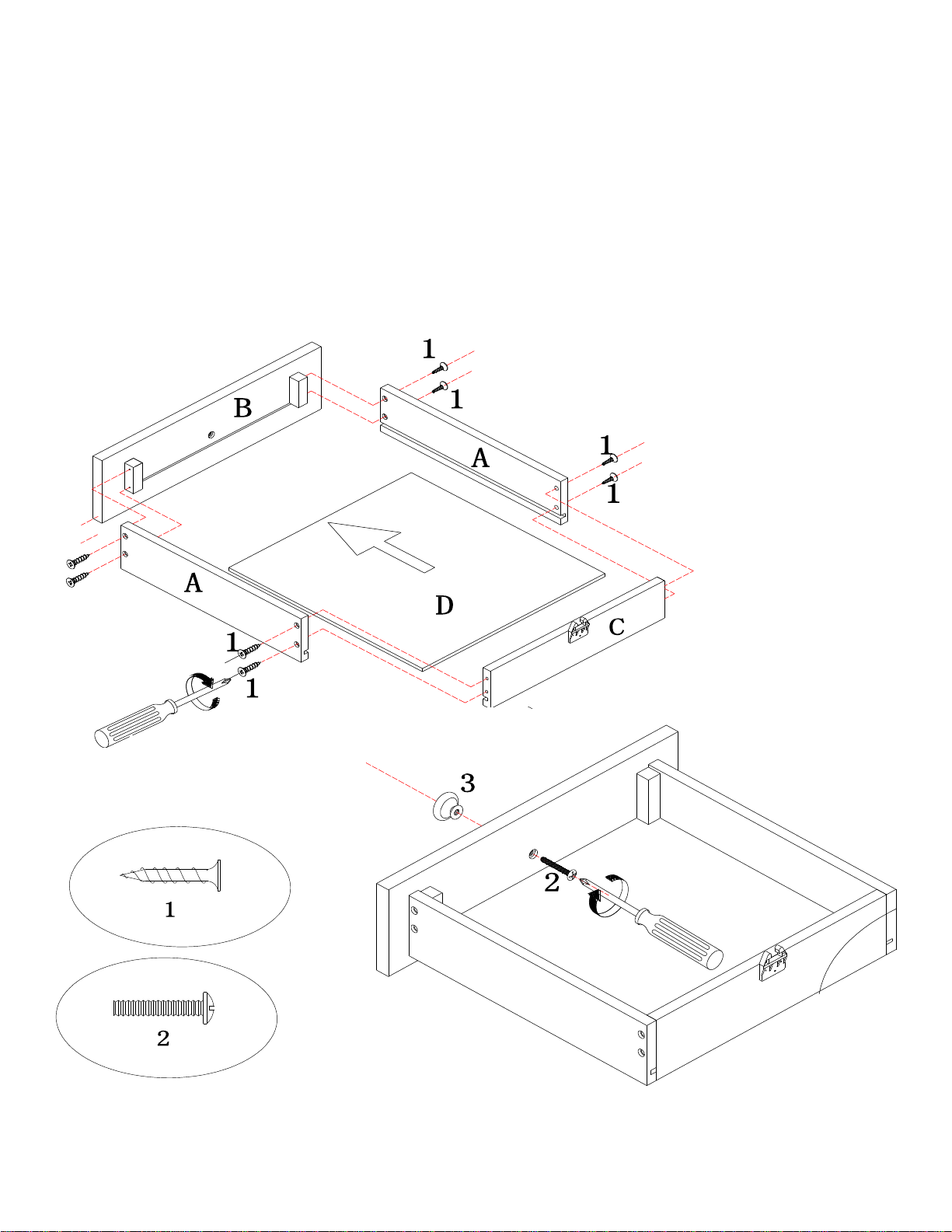

Attach drawer sides (A ) to drawer front (B) with flat head screws (1).
Insert drawer bottom (D) into the grooves of the drawer sides (A) and drawer front (B).
Attach drawer back (C) to drawer sides (A) with flat head screws (1).
Attach knob (3) to drawer front (B) with round head bolt (2).
Use a Phillips head screw driver (not included) to tighten flat head screws (1) and round head bolt (2).
NOTE: Repeat this step to assemble the other drawer .
O
O
O
O
O
O

KITCHEN ISLAND SET
DA2081
STEP 2

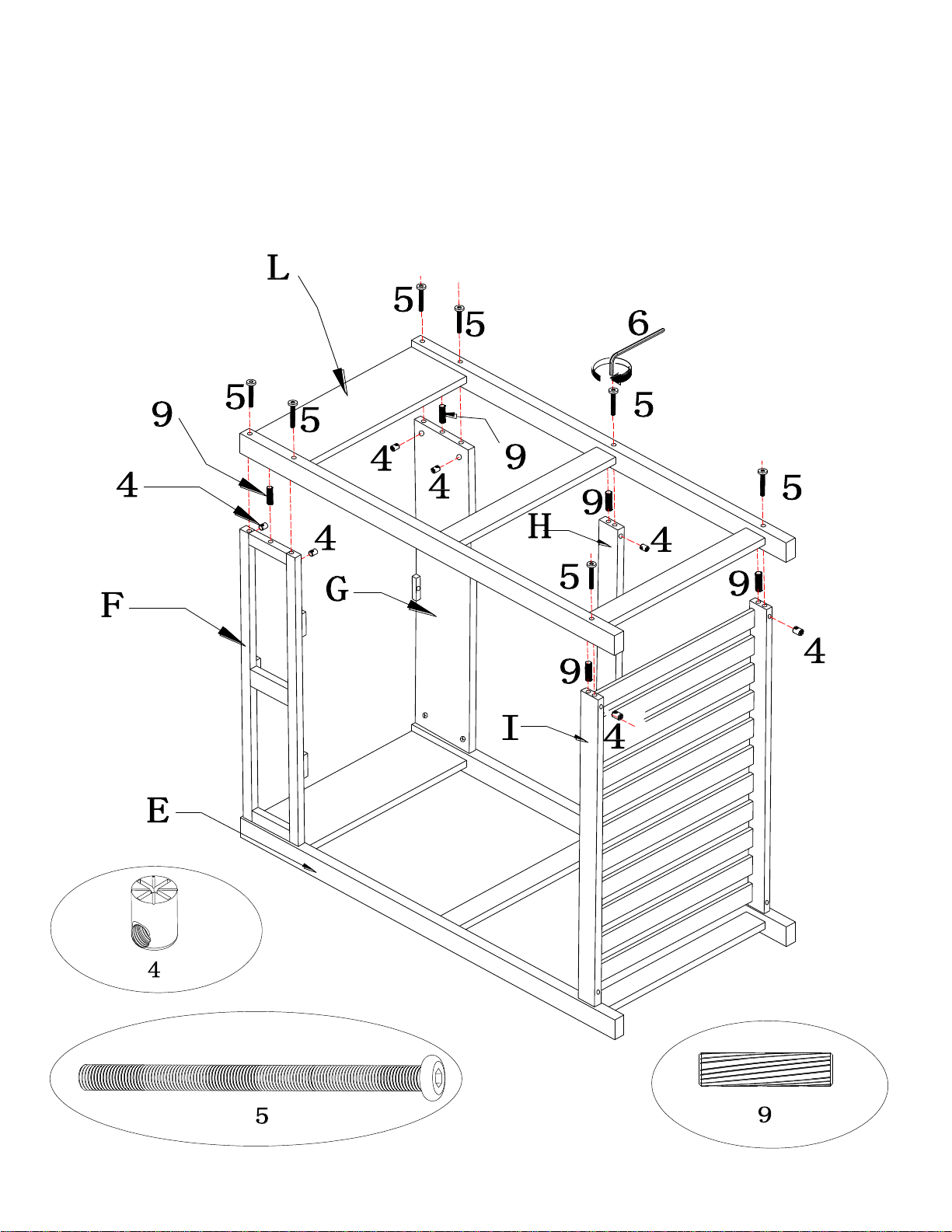

Insert wood dowels (9) into left side panel (E).
Insert barrel nuts (4) into back upper panel (G), back center rail (H), bottom shelf (I) and front upper frame
(F) as shown.
Attach back upper panel (G), back center rail (H), bottom shelf (I) and front upper frame (F) to left side
panel (E) with hex socket head bolts (5).
Use Allen key (6) to tighten bolts.
O
O
O
O
O
O

DA2081
KITCHEN ISLAND SET
Insert wood dowels (9) and barrel nuts (4) into bottom shelf (I), back center rail (H), back upper panel (G)
and front upper frame (F).
Attach right side panel (L) to bottom shelf (I), back center rail (H), back upper panel (G) and front upper
frame (F) with hex socket head bolts (5). Use Allen key (6) to tighten bolts.
STEP 3
O
O
O
O
O
O

KITCHEN ISLAND SET
DA2081

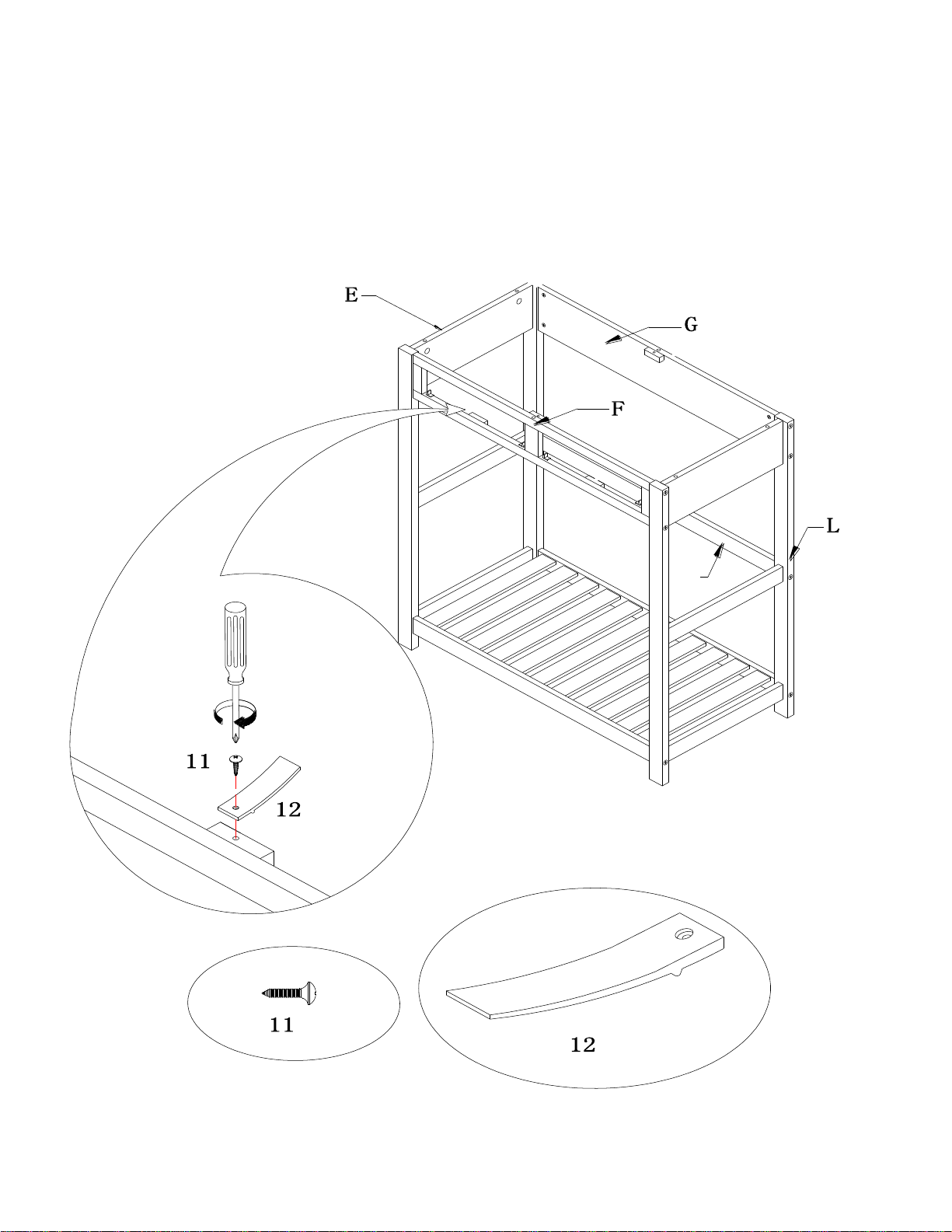

Attach drawer stoppers (12) to front upper frame (F) with round head screws (11).
Use a Phillips head screw driver (not included) to tighten the screws.
STEP 4
O
O
O
O
O
O
H

KITCHEN ISLAND SET
DA2081
Insert wood dowels (9) and cam bolts (7) into top panel (J) as shown.
Attach wood guides (K) to top panel (J) with round head screws (10).
Use a Phillips head screw driver (not included) to tighten the screws.
STEP 5
O
O
O
O
O
O

DA2081
KITCHEN ISLAND SET
STEP 6
Insert cam locks (8) into the left side panel (E) and right side panel (L).
Insert wood dowels (9) into front upper frame (F) and back upper panel (G).
Fasten top panel (J) to the assembled base unit by rotating cam lock (8) 1/2-turn clockwise.
Secure top panel (J) to the assembled base with flat head screws (1).
Use a Phillips head screw driver (not included) to tighten the screws.
O
O
O
O
O
O
J
1/2 turn clockwise to fasten
align cam lock
cutout with
cam bolt
H
F
J
1/2 turn clockwise to fasten
align cam lock
cutout with
cam bolt
H
F
J
1/2 turn clockwise to fasten
align cam lock
cutout with
cam bolt
H
F
J
1/2 turn clockwise to fasten
align cam lock
cutout with
cam bolt
H
F
J
1/2 turn clockwise to fasten
align cam lock
cutout with
cam bolt
H
F

KITCHEN ISLAND SET
DA2081
STEP 7

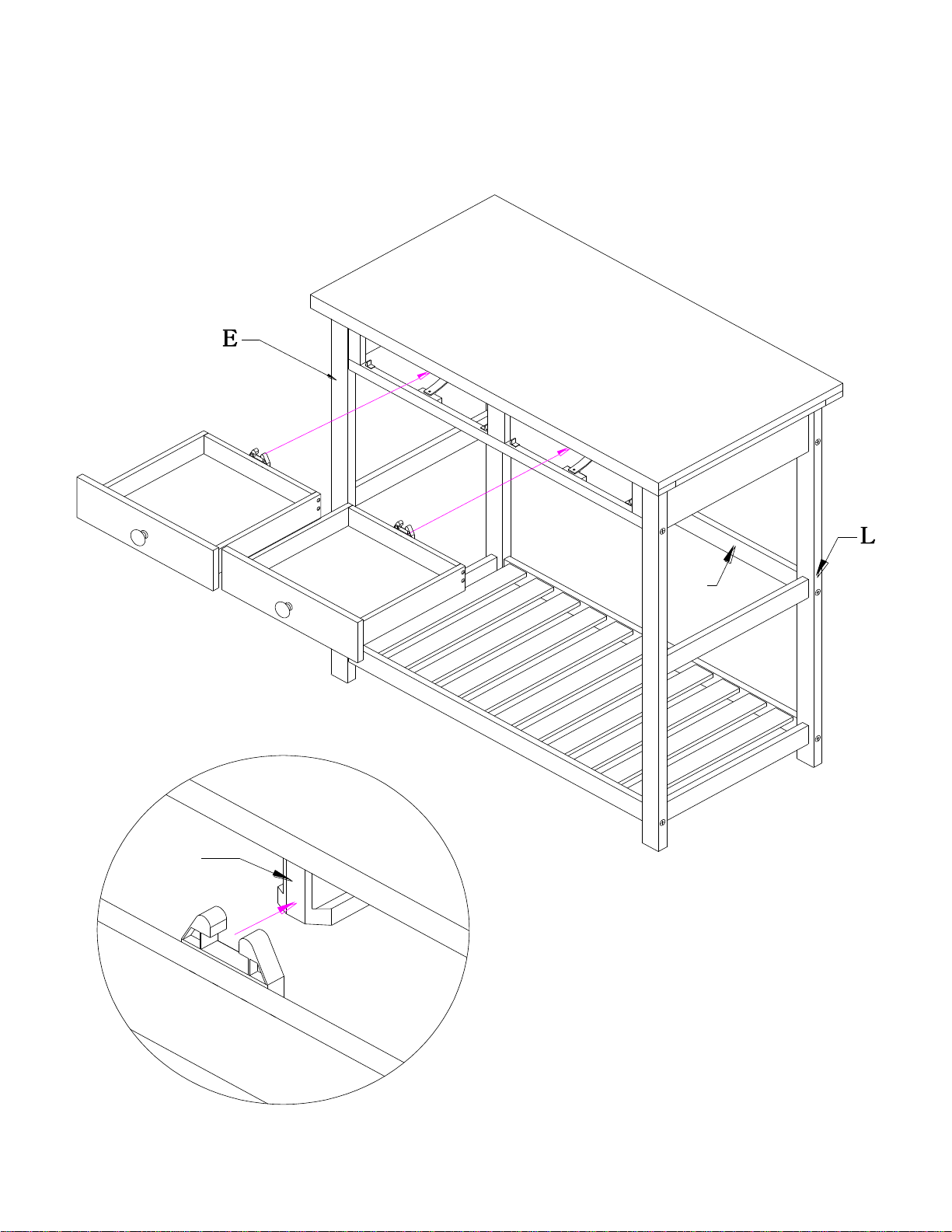

Insert the drawers into the kitchen island.
O
O
O
O
O
O
K
J
C
J
B
BH
H

KITCHEN ISLAND SET
DA2081
STEP 8

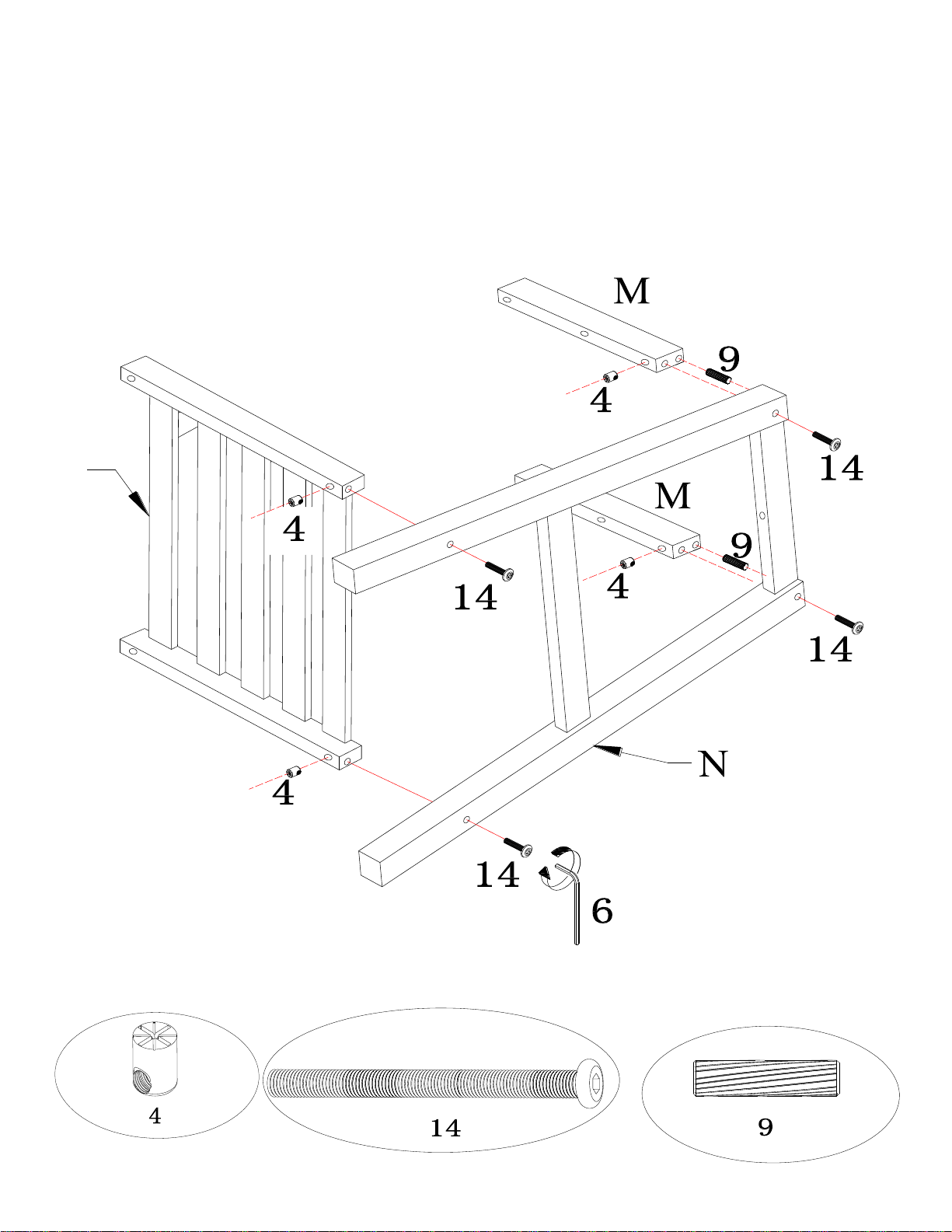

Insert barrel nuts (4) into shelf (O) and upper rails (M) as shown.
Insert wood dowels (9) into upper rails (M).
Attach side panel (N) to shelf (O) and upper rails (M) with hex socket head bolts (14).
Use Allen key (6) to tighten bolts.
O
O
O
O
O
O
O

KITCHEN ISLAND SET
DA2081
Insert wood dowels (9) into upper rails (M).
Insert barrel nuts (4) into upper rails (M) and shelf (O).
Attach side panel (N) to shelf (O) and upper rails (M) with hex socket head bolts (14).
Use Allen key (6) to tighten bolts.
STEP 9
O
O
O
O
O
O

KITCHEN ISLAND SET
DA2081

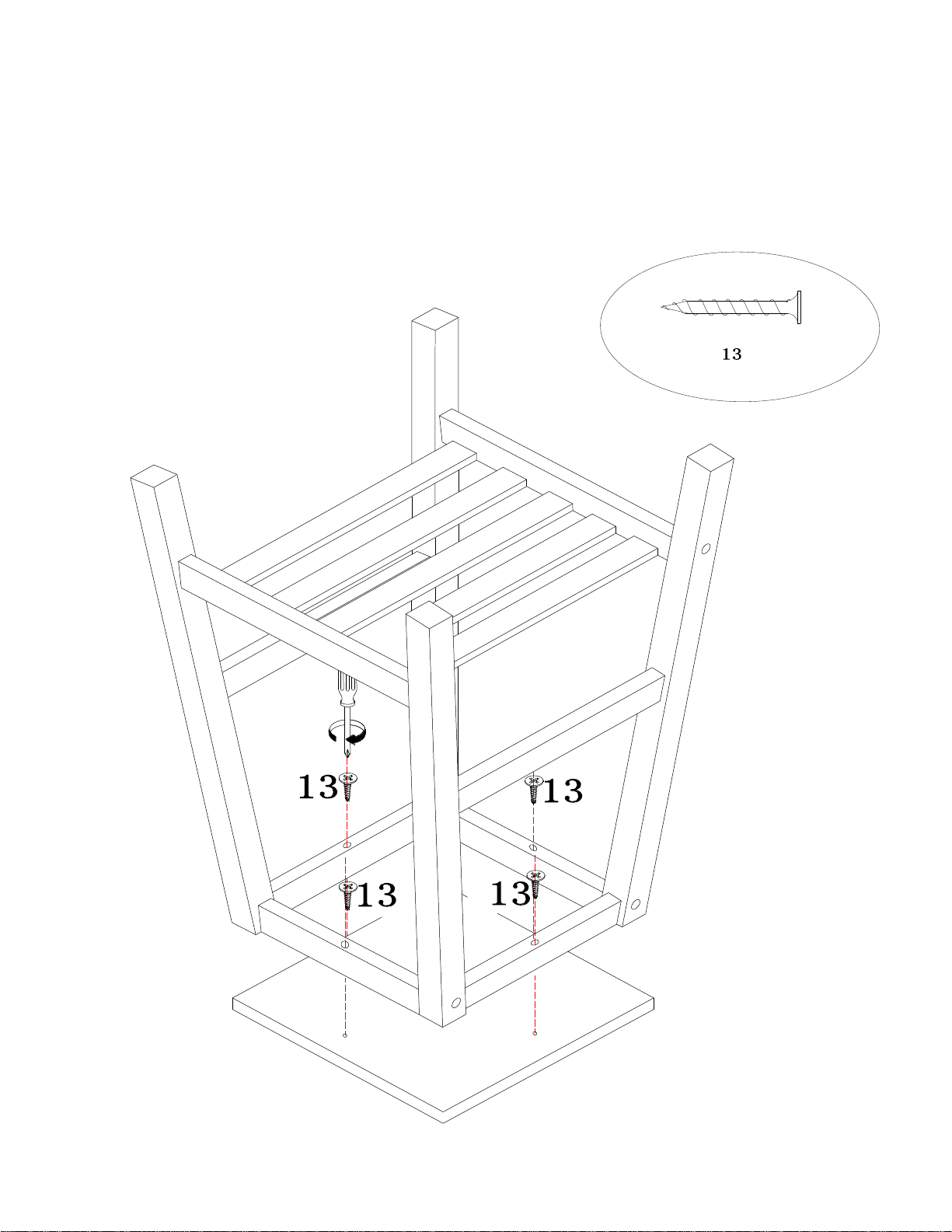

Fasten seat board (P) to the assembled unit with flat head screws (13).
Use a Phillips head screw driver (not included) to tighten the screws.
NOTE : Repeat steps 8-10 to assemble the other stool.
Attach top panel (P) to right side top (Q) with Phillips round head screws (12). Insert cam bolts (14)
STEP 12STEP 11
STEP 10
O
O
O
O
O
O
P
P

WARNINGS:
*
*
*
*
That's it ! You've finished assembling your kitchen island set.
CAUTION: "This unit is intended for use only with the products
and/or maximum weights indicated. Use with other products and/or
products heavier than the maximum weights indicated may result in
instability causing possible injury."
DA2081
KITCHEN ISLAND SET
DO NOT place any pots or pans containing hot liquids on the unit.
DO NOT place any item on the kitchen island with dimensions exceeding those of the top panel.
DO NOT use the kitchen island as a seating surface.
DO NOT place any type of electrical appliance on the unit.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [e-mail]
Fax #: [phone]
Attach top panel (P) to right side top (Q) with Phillips round head screws (12). Insert cam bolts (14)
STEP 12STEP 11
O
O
O
O
O
O
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
50 LBS
5 LBS
5 LBS
20 LBS
Product maximum Weights

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Customer Service Phone Number 1-800-295-1980
Customer Service Fax Number 514-353-7819
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity: (Please be sure to list model number or SKN number)
Email: [email protected]
Customer Service Representative Mailing Address:
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
MODEL #: DA2081 (walnut)
Customer Service
C
B
E
A
B
B
B
