DEAR DR. FREI NON-CONTACT
INFRARED FOREHEAD
THERMOMETER OWNER
Thank you for choosing TM Dr. Frei® Non-Contact Infrared
Forehead Thermometer Model MI-100. We are sure that
having appraised worthily the high quality and reliability of this
device you will become a regular user of the products of Swiss
Trademark Dr. Frei®.
This innovative medical device uses advanced infrared (IR)
technology to measure temperature instantly and accurately on
the forehead or object.
Before starting to use this device please study the user’s
manual carefully. The user’s manual offers all information you
need to correctly measure your blood pressure and pulse. For
all questions concerning the device please contact your local
distributor or Dr. Frei® service center in your country.
EN
5
TABLE OF CONTENTS
IMPORTANT INFORMATION ON BODY
TEMPERATURE AND ITS MEASUREMENT............ 6
About Normal Body Temperature & Fever ................. 6
ADVANTAGES OF NON-CONTACT INFRARED
FOREHEAD THERMOMETER MODEL MI-100 ........ 7
Important information ................................................. 7
BEFORE YOU BEGIN ............................................... 8
Cautions and Warnings .............................................. 8
Meter Overview and Display Screen .......................... 8
Select the Display Mode ........................................... 10
Select the Temperature Unit ......................................11
Replacing the Battery ................................................11
PERFORM THE TEST ............................................. 13
Using the Device As a Body Measurement
Thermometer ............................................................ 13
Using the Device As an Object Measurement
Thermometer ............................................................ 15
METER MEMORY.................................................... 17
Recalling the Memory ............................................... 17
Measurement Result ............................................... 18
Switch OFF the Device Manually ............................. 18
SYSTEM TROUBLESHOOTING ............................. 19
MAINTENANCE....................................................... 19
SYMBOL INFORMATION ........................................ 20
SPECIFICATIONS.................................................... 21
WARRANTY............................................................. 22
APPENDIX QUICK GUIDE .................................... 102
6
IMPORTANT INFORMATION ON
BODY TEMPERATURE AND ITS
MEASUREMENT
About Normal Body Temperature & Fever
The temperature in the forehead and temple area differs from the
internal temperature, which is taken orally or rectally. Vasocon-
striction, an effect which constricts the blood vessels and cools
the skin, can occur during the early stages of a fever. In this case,
the temperature measured by the Dr.Frei Non-Contact Infrared
forehead thermometer may be unusually low. If the measure-
ment therefore does not match the patient’s own perception or is
unusually low, repeat the measurement every 15 minutes. As a
reference, you can also measure the internal body temperature
using a conventional oral or rectal thermometer.
Body temperature can vary from one individual/person to next.
It also varies by location on the body and time of day. Below
shows the statistical normal ranges from different sites. Please
keep in mind that temperatures measured from different sites,
even at the same time, should not be directly compared. Fever
indicates that the body temperature is higher than normal. This
symptom may be caused by infection, overdressing or immuni-
zation. Some people may not experience fever even when they
are ill. These include, but are not limited to, infants younger than
3 months old, persons with compromised immune systems, per-
sons taking antibiotics, steroids or antipyretics (aspirin, ibupro-
fen, acetaminophen), or persons with certain chronic illnesses.
Please consult your physician when you feel ill even if you do
not have fever.
Table *1 Body Site Normal Temperature Range
Body Site
Normal Temperature Range
Oral 0.6°C (1°F) or more
above or below 37°C (98.6°F)
Rectal/ear 0.3°C to 0.6°C (0.5°F to 1°F)
higher than oral temperature
Axillary (armpit) 0.3°C to 0.6°C (0.5°F to 1°F)
lower than oral temperature
* Body Temperature at WebMD;
website: http://rstaid.webmd.com/body-temperature retrieved at 2010 Jan 7.
EN
7
ADVANTAGES OF NON-CONTACT
INFRARED FOREHEAD
THERMOMETER MODEL MI -100
Important information
This thermometer is clinically proven to produce accurate
temperature measurements.
The thermometer model MI-100 is intended for the intermittent
measurement and monitoring of human body temperature from
forehead measurement at home.
The thermometer measures the infrared heat generated by the
surface of the skin over the vessel and its surrounding tissue.
The thermometer then converts it into a temperature value.
• Automatically power off if left idle for 25 seconds and the
backlight switch off in rst 5 seconds.
• Memory function allows you to store 20 most recent body
mode temperature results.
• Easy to read LCD with backlight in a dark environment.
• Color visible indication of alarm (red) and normal reading
(green).
• Distance between device and forehead measurement within
5 cm.
A control measurement using a conventional thermometer is rec-
ommended in the following cases:
1. If the reading is surprisingly low.
2. For new-born infants up to 100 days old.
3. For children under three years of age who have a weakened
immune system or who react unusually in the presence or
absence of fever.
The thermometer does not emit any infrared signal.
NOTE:
Please be advised that the accuracy cannot be ensured
when the thermometer is not clean. Check that the detect-
ing sensor is clean before taking a measurement
8
BEFORE YOU BEGIN
Cautions and Warnings
1. As with any thermometer, proper technique is crucial to ob-
taining accurate temperature readings. Please read this manual
thoroughly and carefully before using.
2. Always operate the thermometer in an operating temperature
range 16°C to 40°C (60.8°F to 104°F), and relative humidity less
than 95%.
3. Always store the thermometer in a cool and dry place -20°C to
50°C (-4°F to 122°F) and relative humidity less than 95%.
4. Avoid direct sunlight.
5. Avoid dropping the thermometer, if it happens and you think
the thermometer may be damaged, please contact customer
services immediately.
6. Do not disassemble the thermometer.
7. Basic safety precautions should always be observed, espe-
cially when the thermometer is used on or near children and
disabled persons.
8. This thermometer is not intended to substitute for a consulta-
tion with your physician.
9. This thermometer and the subject must remain in a stable
environment for at least 30 minutes before measuring the tem-
perature.
10. When the measured temperature falls within the temperature
range of ≥37.5°C (99.5°F) and <43°C (109.4°F), as indicated by
the red backlight on display, please consult with your physician
immediately.
Meter Overview and Display Screen
Package Contents:
Thermometer
Quick User Guide
User’s Manual
3V CR2032 Battery
EN
9
1 2
34
5

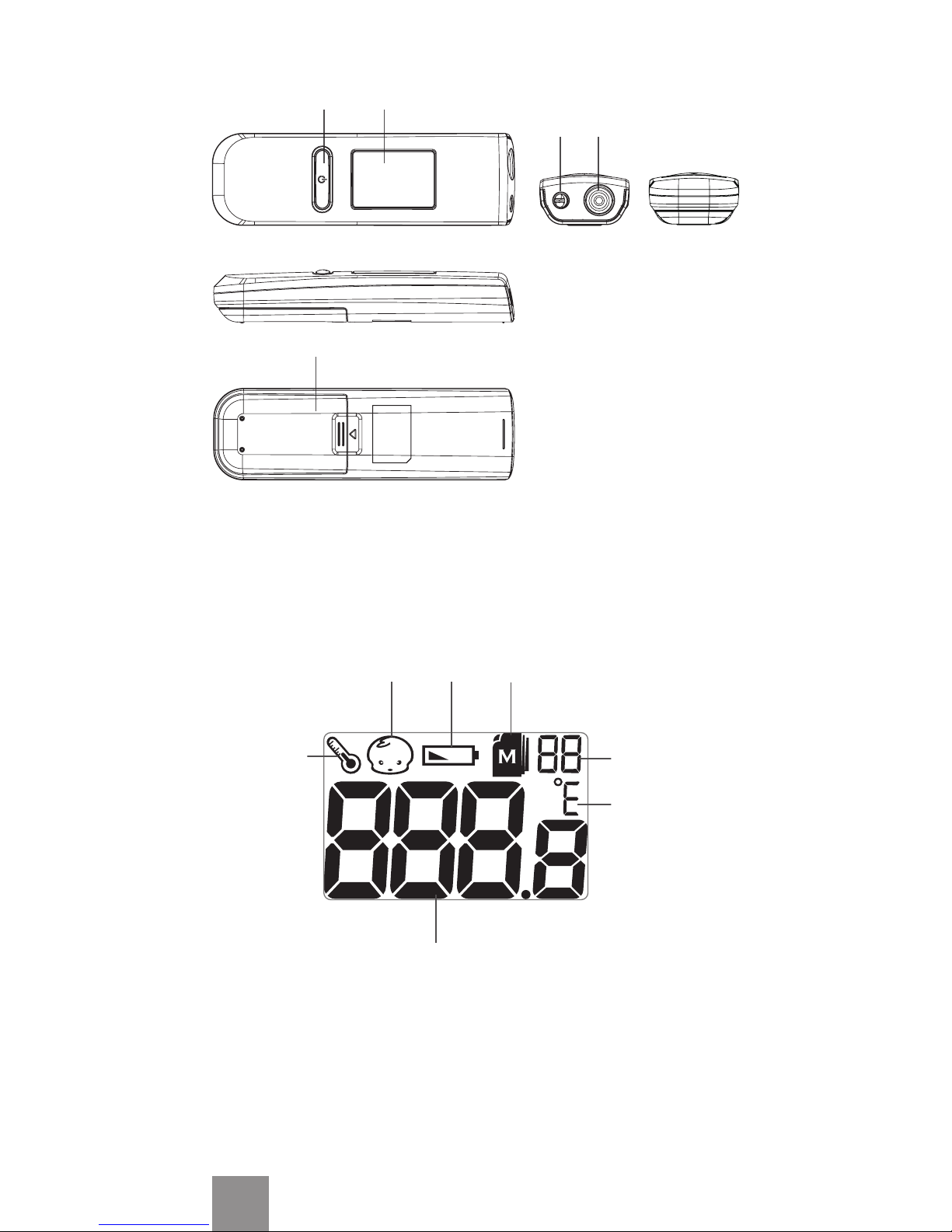

1. On/Scan Button
2. Display Screen
3. Guiding Light
4. Detecting Sensor
5. Battery Compartment
1. Object temperature indicator
2. Body temperature indicator
3. Low battery indicator
4. Memory mode
5. Memory set
6. Temperature unit
7. Temperature reading
1
234
5
6
7
10
Select the Display Mode

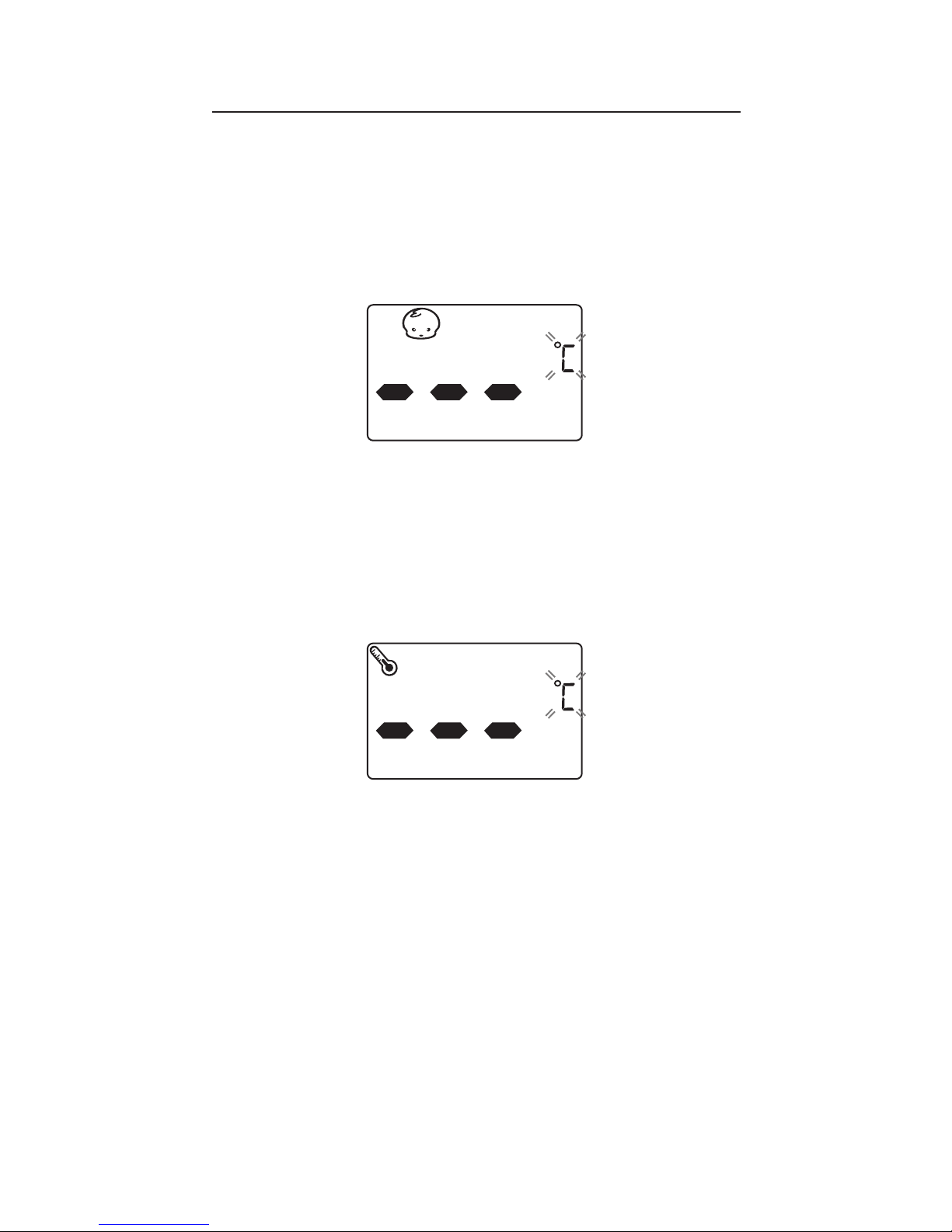

Two modes can be selected.
1. Body Mode.
Press On/Scan button for less than 2 seconds to turn on the
This mode is used to measure the forehead temperature.
2. Object Mode.
Press On/Scan button for 2~5 seconds to turn on the ther-
This mode is used to measure the object temperature.
EN
11
Select the Temperature Unit
This meter provides two measurement units used for indicating
the body/object temperature, °C or °F, for your preferred selec-
tion.

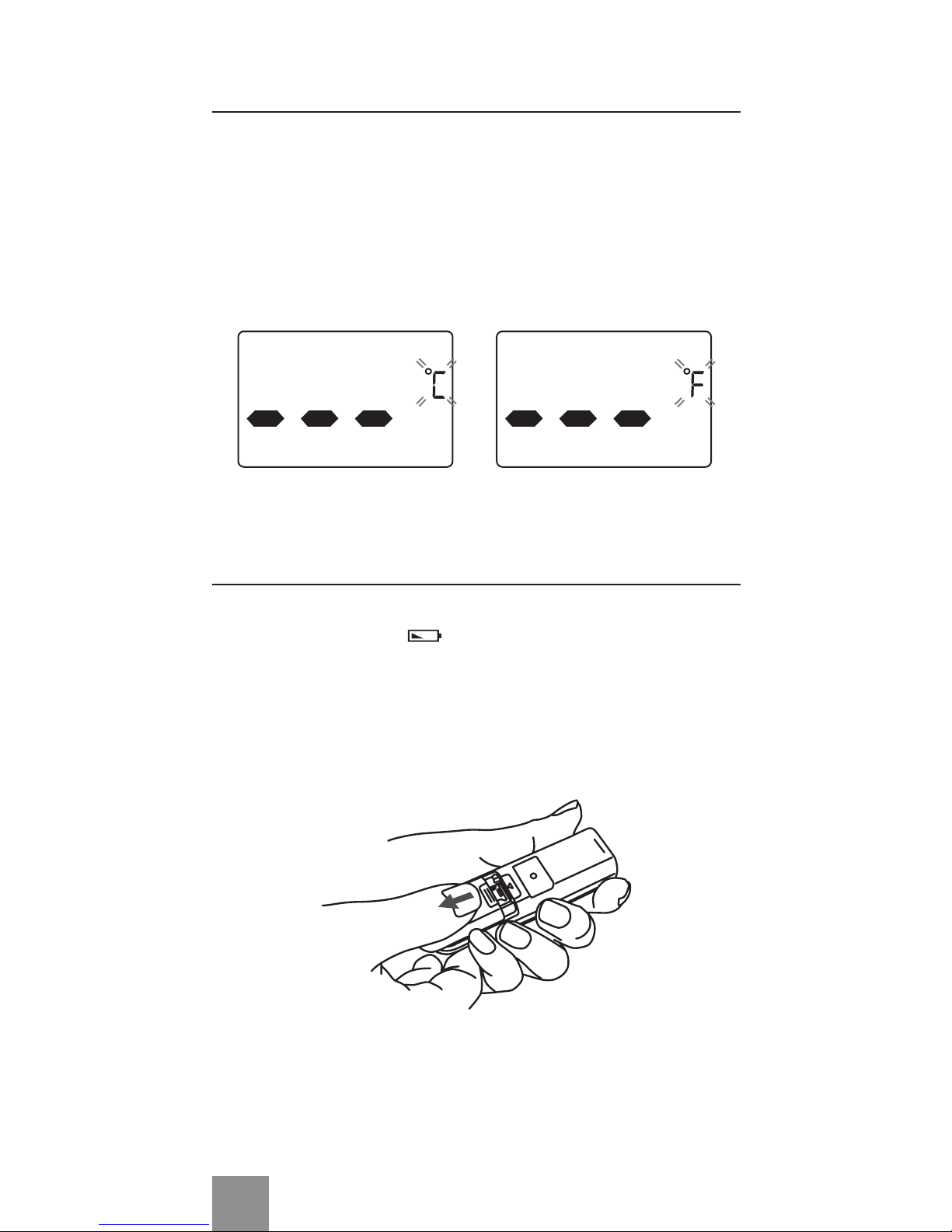

When device is off, press On/Scan button for 8 seconds (the
memory recall interface will display before entering into unit se-
lection operation) to set up the unit, as ° C or ° F is blinking, press
the On/Scan button to switch between unit C and F. The device is
standby for measurement
The device will switch off since no button pressed within 5
seconds.
Replacing the Battery
The thermometer comes with one 3V CR2032 lithium battery.
The meter will display « » to alert you when the meter power
is getting low, please follow the steps below to replace new bat-
tery immediately.

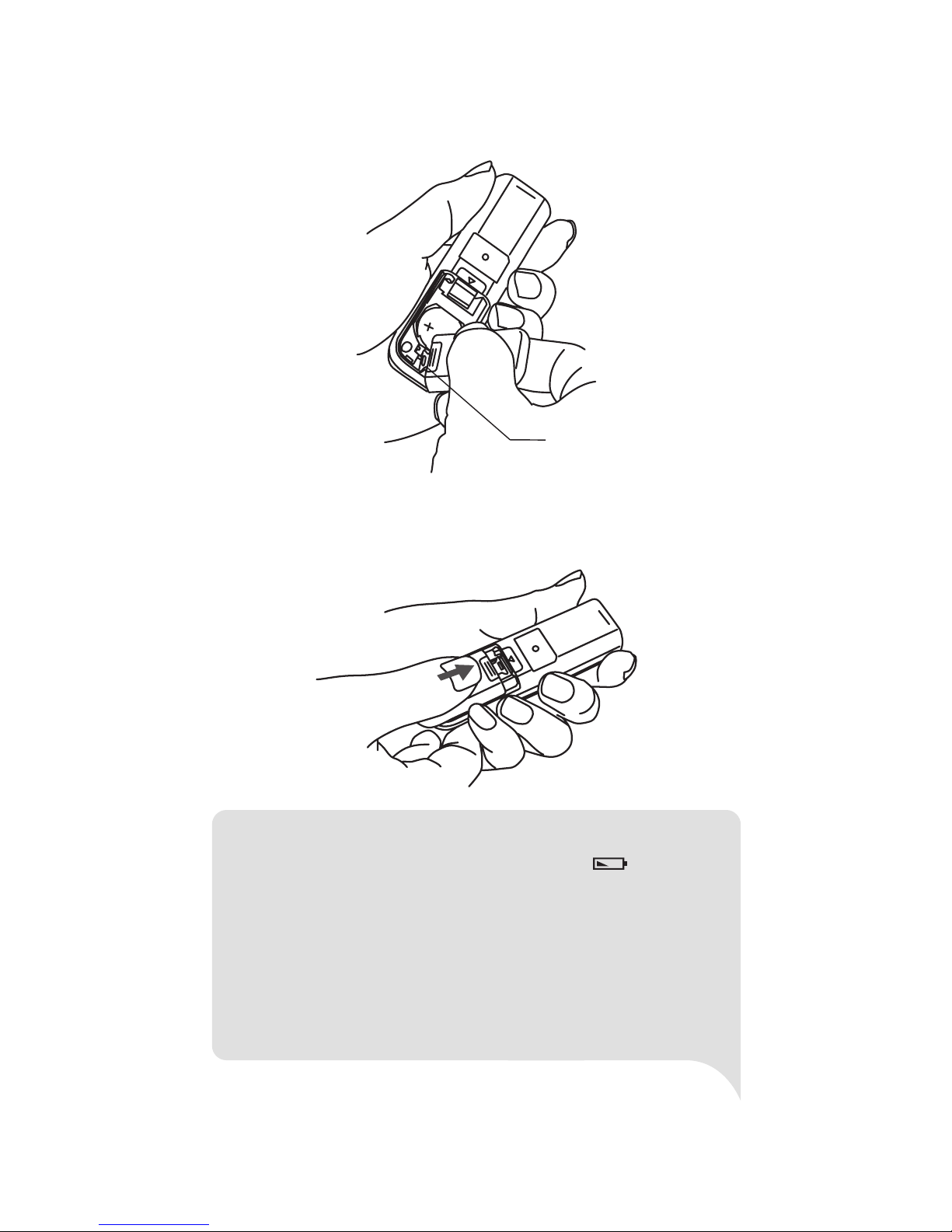

1. Press the buckle on battery cover and lift up to Remove the
cover.
12
2. Remove the old battery with battery hook by lifting the battery
slightly upward and replace with one new 3V CR2032 lithium
battery.
3. Close the battery cover.
Battery hook
NOTE:
1. Although the thermometer works when « » appears,
we still recommend that you change the battery to ob-
tain an accurate result.
2. Remove the battery if stored for a long period of time.
3. The battery should be kept away out of child’s reach.
4. The battery shall be properly disposed according to your
local environmental regulations.
5. Follow the national requirement to dispose the unit.
EN
13
PERFORM THE TEST
Using the Device As a Body Measurement
Thermometer

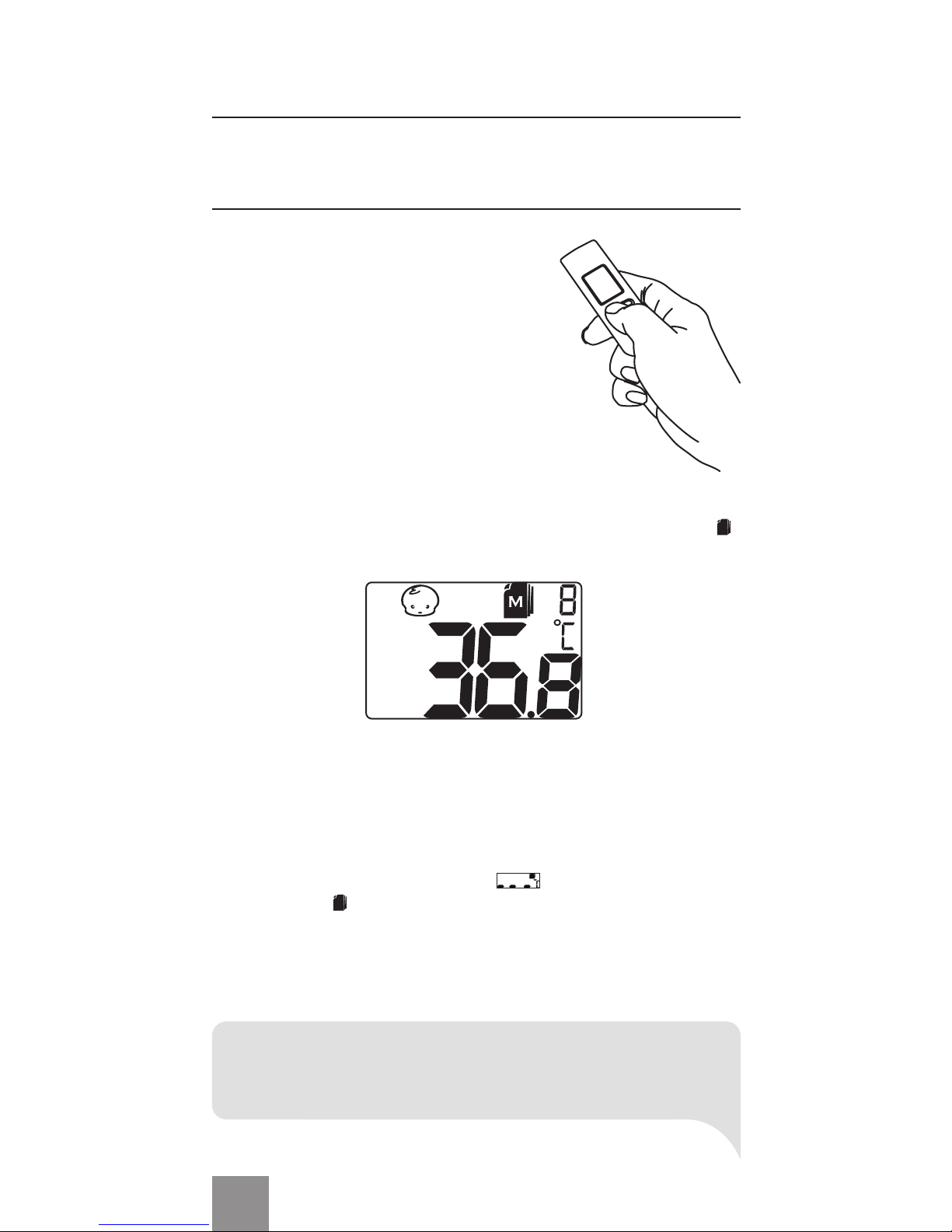

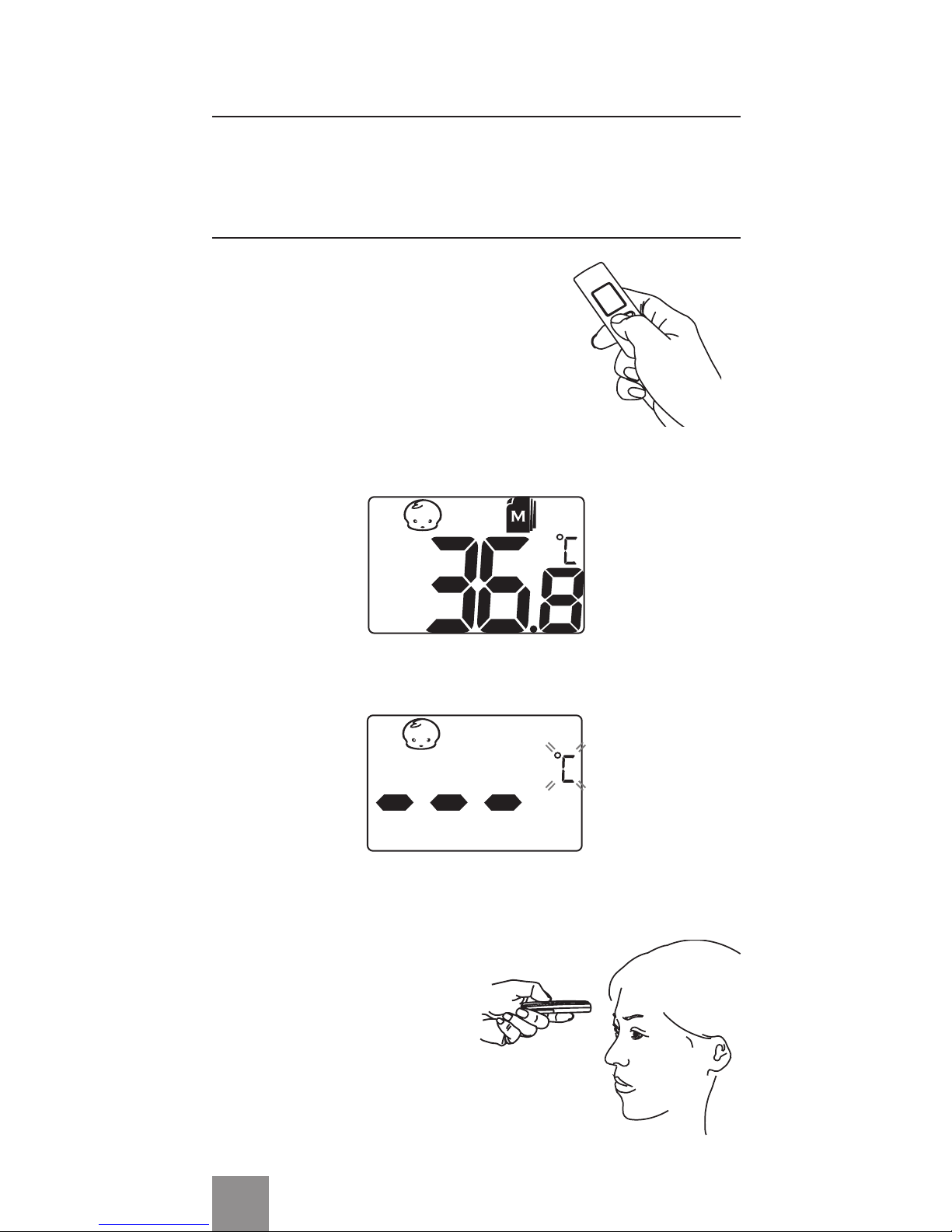

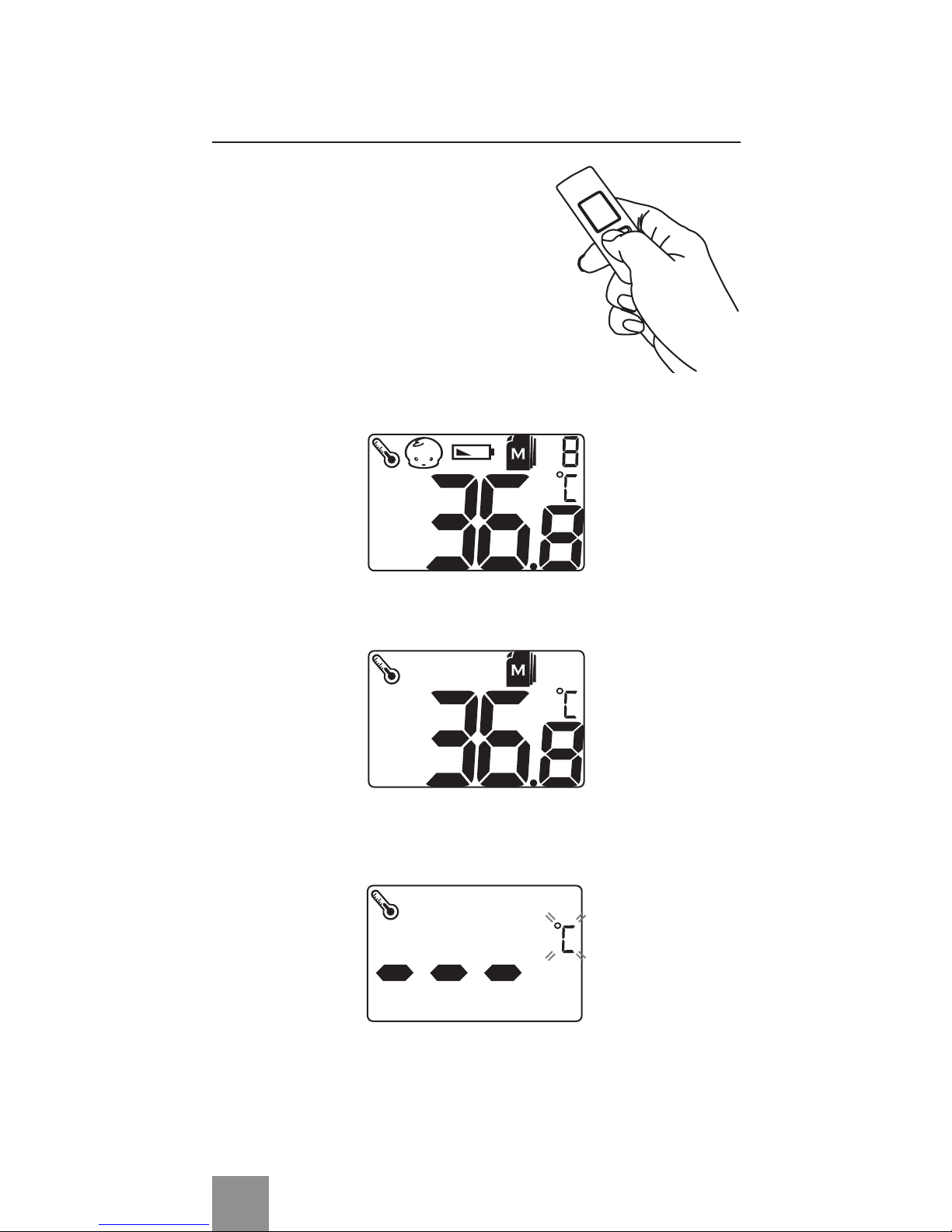

1. Press On/Scan button for less than
2 seconds to turn on the thermometer
The full display will be showed on the
meter for 2 seconds.
2. The last memory displays for 2 sec-
onds.
-
ment. The temperature unit ashes.
4. Move the detecting sensor close to the forehead.
Make sure the detecting sensor is at and close to the forehead,
not at an angle. Perform a forehead measurement with a dis-
tance within 5 cm.
Press On/Scan button for up
to 3 seconds, the meter will
take measurement.
14
5. Read the result.
The measurement result will be done once releasing
the button. The reading is shown together with green
backlight and three short beeps.
NOTE:
• As the forehead measurement temperature is likely to
be affected by sweat, oil and the surroundings, the read-
ing shall be taken as a reference only.
• Babies’ skin reacts very quickly to the ambient tempera-
ture. Therefore, do not take their temperature with the
Dr.Frei Non-Contact Infrared forehead thermometer
during or after breastfeeding because the skin tempera-
ture may then be lower than the internal body tempera-
ture.
• If the reading is < 32°C (89.6°F), the display will show
“L” together with red backlight and three short beeps.
• If the reading is ≥ 32°C (89.6°F) and < 37.5 °C (99.5°F),
the display will show together with green backlight and
three short beeps.
• If the reading is ≥ 37.5 °C (99.5°F) and < 43°C (109.4°F),
the display will show together with red backlight and ten
short beeps.
• If the reading is ≥ 43°C (109.4°F), the display will show
“H” together with red backlight and ten short beeps.
• The interval for the next measurement should be 3 sec-
onds.
• Device is standby for another measurement with last
readings stays on the display, °C or °F is blinking. The
device cannot do another measurement during previous
measurement shows on the display with backlight that
lasts for 5 sec.
• The thermometer will automatically turn off if left idle for
25 seconds and the backlight switch off in rst 5 sec-
onds.
EN
15
Thermometer
1. Press On/Scan button for 2~5 sec-
onds to turn on the thermometer
The object mode icon will appear with a
short beep during this operation. The full
display will be showed on the meter for
2 seconds.
2. The last memory displays for 2 seconds.
-
16
Make sure the detecting sensor
is at and close to the object, not
at an angle. Perform an object
measurement with a distance
within 5 cm.
Press On/Scan button for up to
5 seconds, the meter will take
measurement.
5. Read the result.
The measurement result will be done once releasing the button.
The reading is shown together with green backlight and three
short beeps.
NOTE:
• If the reading is < 0°C (32°F), the display will show “L”
together with red backlight and three short beeps.
• If the reading is ≥ 0°C (32°F) and < 100 °C (212°F), the
display will show together with green backlight and three
short beeps.
• If the reading is ≥ 100°C (212°F), the display will show
“H” together with red backlight and ten short beeps.
• The interval for the next measurement should be 3 sec-
onds.
• Device is standby for another measurement with last
readings stays on the display, °C or °F is blinking. The
device cannot do another measurement during previous
measurement shows on the display with backlight that
lasts for 5 sec.
• The thermometer will automatically turn off if left idle for
25 seconds and the backlight switch off in rst 5 sec-
onds.
EN
17
METER MEMORY
Recalling the Memory
Your thermometer stores 20 most recent
body temperature readings.
1. Be sure the thermometer is OFF be-
fore recalling this memory.
2. Press On/Scan button for 5~8 sec-
onds to enter the memory mode.
Each time you press the On/Scan button, a result will be dis-
played in the order (latest result shown rst), together with « »
and number (from 1 to 20 ).
Backlight in green or red will appear according to the memory
reading.
When the memory is full, the oldest result is deleted as the new
one added. When the last record displayed in the Display, press
Memory Button again to return the rst record.
If there is no readings existed, «» will be shown on the
display while « » is blinking.
3. Exit the memory.
The device will switch off since no button pressed within
5 seconds.
NOTE:
Only the body temperature records can be read in this
memory mode.
18
Measurement Result
Message
What it means
Measured temperature falls outside
the displayed temperature range of
32°C to 43°C (89.6°F to 109.4°F), is
shown on the display with red back-
light:
• Hi-temperature ≥43°C (109.4°F)
• Lo-temperature < 32°C (89.6°F)
Measured temperature falls in normal
reading, within the range of 32°C to
37.5°C (89.6°F to 99.5°F), is shown
on the display with green backlight.
Measured temperature falls within the
range of ≥37.5°C (99.5°F) and < 43°C
(109.4°F), is shown on the display
with red backlight.
Switch off the Device manually
After the measurement is completed,
Press On/Scan button to turn off the
thermometer while the backlight is on,
either using as a body measurement
thermometer or an object measure-
ment thermometer.
EN
19
SYSTEM TROUBLESHOOTING
Message What it means
What to do
Appear when
environmental
temperature is
below system
operation range,
or the object
temperature is
below displayed
temperature
range.
Put the thermome-
ter under operating
temperature range
of 16°C to 40°C
(60.8°F to 104°F),
or under object
temperature range
of 0°C to 100°C
(32°F to 212°F)
Appear when
environmental
temperature is
above system
operation range,
or the object
temperature is
above displayed
temperature
range.
Put the thermome-
ter under operating
temperature range
of 16°C to 40°C
(60.8°F to 104°F),
or under object
temperature range
of 0°C to 100°C
(32°F to 212°F)
Battery is low and
«» appears
on display.
Please replace
battery as soon as
possible.
If the thermometer
is broken or affect-
ed by EMF.
Please contact the
customer service
line.
MAINTENANCE
Cleaning and Care
• The detecting sensor is not waterproof. Please wipe with a
clean and dry cotton swab to clean the detecting sensor on
the inside.
20
• The body of the thermometer is not water-resistant. Never put
the thermometer under a running tap or submerge it into wa-
ter. Use a soft and dry cloth to clean it. Do not use abrasive
cleaners.
• Store the thermometer in a cool and dry location. Free from
dust and away from direct sunlight.
SYMBOL INFORMATION
Symbol
Referent
Consult instructions for use
Manufacturer
Serial number
Caution, consult accompanying documents
Mark СE
Authorized representative in the European
Community
Type BF Equipment
Collection for electrical and
Electronic equipment
Other manuals for MI-100
1
Table of contents
Languages:
Other Dr.Frei Thermometer manuals
Dr.Frei
Dr.Frei MI-200 User manual
Dr.Frei
Dr.Frei T-10 User manual
Dr.Frei
Dr.Frei T-10 User manual
Dr.Frei
Dr.Frei T-30 User manual
Dr.Frei
Dr.Frei MI-100 User manual
Dr.Frei
Dr.Frei T-10 User manual
Dr.Frei
Dr.Frei T-20 User manual
Dr.Frei
Dr.Frei T-10 User manual
Dr.Frei
Dr.Frei T-30 User manual
Dr.Frei
Dr.Frei T-20 User manual
