Section 1
Introduction
Introduction This manual provides the basic information needed to setup and install a
Vitalert 3000 Series monitor. The setup must be performed by or under the
direct supervision of an authorized North American Dräger representative.
The instructions are divided into the following sections:
Section 2 contains an equipment and accessory checklist, followed by
complete procedures for installing the monitor, connecting it to anesthesia
machines and other equipment, and connecting external sensors.
Section 3 contains cleaning and replacement procedures and instructions on
use of the Vitalert 3000 Series maintenance screen.
Section 4 contains repacking instructions.
Warnings, Cautions,
and Notes All parts of this manual contain warning and caution statements about the
Vitalert 3000 Series monitor.
•Warning statements are used in this manual with procedures that, if not
performed correctly, could result in personal injury.
•Caution statements are used in this manual to alert service personnel to
the possibility of equipment damage if a procedure is not performed
correctly.
•Note statements are used in this manual to clarify information that may
not be readily obvious, such as secondary cause and effect.
1-1
RETURN TO CD-ROM TABLE OF CONTENTS

RETURN TO CD-ROM TABLE OF CONTENTS

Section 2
Setup and Installation
Overview This section contains an equipment checklist along with all the steps
necessary for the installation and connection of the Vitalert 3000 Series
monitor and external sensors.
Equipment/
Accessory
Checklist
Remove the Vitalert 3000 Series monitoring system and accessories from
the container. Use the checklist below to make sure the following articles
were included in the container:
1 Vitalert 3000, 3100, 3200, or 3300 monitor
1 Power cable
1 Data cable (DB9/DB9)
1 Vitalert 3000 Series Operator’s Manual
Respiratory Accessories:
1 Gas sample line
1 Adapter/filter
1 Water trap reservoir
1 Six-foot exhaust hose
1 Scavenger adapter assembly
2 Air filters
Pulse Oximetry Accessories (models 3000, 3200)
1 Patient cable with pre-amp
1 Finger probe
Noninvasive Blood Pressure Accessories (models 3100, 3200)
1 Cuff extension hose
1 Adult cuff
Installing the
Vitalert 3000 Series
Monitor
Installing the Vitalert 3000 Series requires approximately 13.5 by 17 inches
of shelf space. The shelf should be capable of supporting at least 35
pounds.
NOTE: The Vitalert 3000 Series monitor is equipped with a universal
power supply for 100-240 VAC primary electrical power. The
supplied power cord comes with a 117 VAC hospital grade
plug. If a different plug is needed, an appropriate connector
must be installed on the cord by a qualified electrician.
Attach one end of the power cable to the receptacle on the rear panel. The
other end of the Vitalert 3000 Series power cable must be plugged into a
grounded outlet.
CAUTION: The Vitalert 3000 Series may have a leakage current of up to
50 µA. When plugged into the convenience receptacle of
another device, the monitor may contribute up to 50 µAto
the total system chassis leakage current of that device.
2-1
RETURN TO CD-ROM TABLE OF CONTENTS

Section 2
Setup and Installation

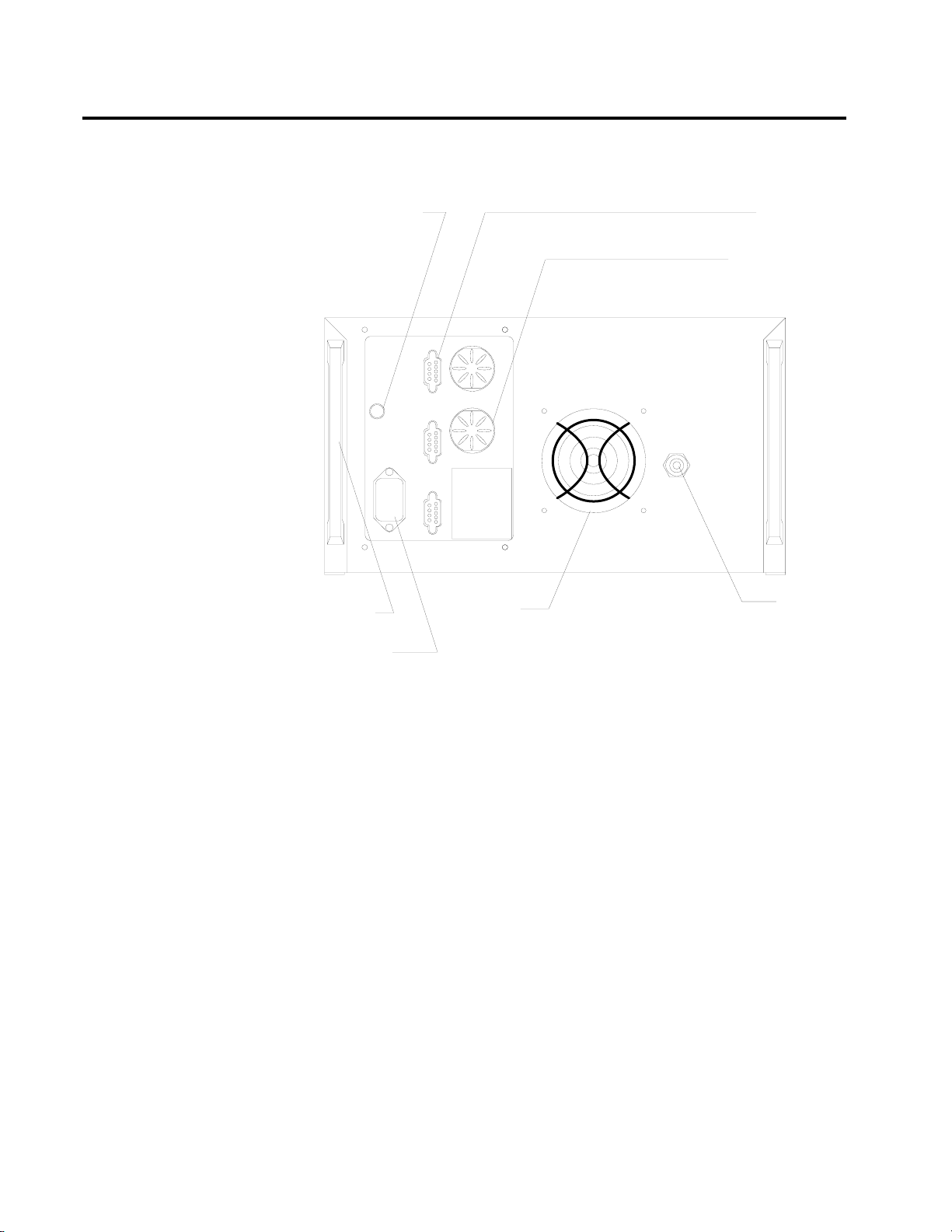

The back panel of the Vitalert 3000 Series is shown in the figure below.
CIRCUIT BREAKER
HANDLE (2X)
POWER CABLE
TERMINAL
EXHAUST
OUTPUT
FAN
SPEAKERS (2X)
DB9 SERIAL
PORTS (3X)
SU30027
PORT B
PORT C
PORT A
CONNECT TO RECEPTACLE MARKED
"HOSPITAL GRADE" ONLY
VITALERT 3000
Configuring Default
Values All system settings on the Vitalert 3000 Series, including alarm limits,
Datascan settings, units of measure, etc., are initially configured with
factory default values. Initial setup of the machine should include
configuring all of the system settings and the monitor setup values.
In addition to the template that contains the factory default alarm limit
settings, the monitor can store eight additional templates in its memory for
later selection. As part of your installation procedure, configure the
Standard Site Defaults; these settings become the default alarm limit values
upon power-up for all subsequent cases. For complete information on
templates, see the Vitalert 3000 Series Operator’s Manual.
2-2
RETURN TO CD-ROM TABLE OF CONTENTS

Section 2
Setup and Installation
Connecting the
Vitalert 3000 Series
to a Computer
To interface the Vitalert 3000 Series to a computer (with RS-232 serial Port),
contact North American Dräger for technical support.
Connecting the
Vitalert 3000 Series
to a Vitalert 2000
To connect the Vitalert 3000 Series to a Vitalert 2000:
1. Connect one end of a Vitalink data cable to a serial port on the rear
panel of the Vitalert 3000 Series monitor.
2. Connect the other end of the data cable to the serial port on the back of
the Vitalert 2000 (see Vitalert 2000 Operator’s Manual).
3. Secure all connections with the captive screws provided.
4. Configure the Vitalert 3000 Series’ serial port, via the Serial Ports
System Configuration screen, for the following parameters:
BAUD RATE: 9600
DATA BITS: 8
PARITY: NONE
STOP BITS: 1
PROTOCOL: VITALINK
5. Configure the port of the Vitalert 2000 for the same parameters given in
step 4 (see Configuration section of the Vitalert 2000 Operator’s Manual).
Configure the RTS/CTS as OFF in the communication port
configuration screen of the Vitalert 2000.
Connecting the
Vitalert 3000 Series
to a Narkomed 2C
To connect the Vitalert 3000 Series to a Narkomed 2C anesthesia system:
1. Connect one end of a Vitalink data cable to Port C on the rear of the
Vitalert.
2. Connect the other end of the cable to Port A or Port B on the rear of
the Narkomed 2C (see the Narkomed 2C Setup and Installation Manual
and the Narkomed 2C Operator’s Manual).
3. Secure all connections using the captive screws provided.
4. Configure the Vitalert’s Port C, via the Serial Ports System
Configuration screen, for the following parameters. To ensure proper
communication, the port must be configured exactly as shown below.
BAUD RATE: 9600
DATA BITS: 8
PARITY: NONE
STOP BITS: 1
PROTOCOL: VITALINK
2-3
RETURN TO CD-ROM TABLE OF CONTENTS

Section 2
Setup and Installation
5. Configure the port on the Narkomed 2C for the same parameters given
in step 4 (see Invoking the Serial Ports Screen in the Narkomed 2C
Operator’s Manual).
Connecting the
Vitalert 3000 Series
to a Narkomed 2B
To connect the Vitalert 3000 Series to a Narkomed 2B anesthesia system:
1. Connect one end of a Vitalink data cable to Port C on the rear of the
Vitalert.
2. Connect the other end of the cable to Port A on the rear of the
Narkomed 2B (see the Narkomed 2B Operator’s Manual).
3. Secure all connections using the captive screws provided.
4. Configure the Vitalert’s Port C, via the Serial Ports System
Configuration screen, for the following parameters. To ensure proper
communication, the port must be configured exactly as shown below.
BAUD RATE: 1200
DATA BITS: 8
PARITY: NONE
STOP BITS: 1
PROTOCOL: VITALINK
5. Configure Port A of the Narkomed 2B for the same parameters given in
step 4 (see the Configuration section of the Narkomed 2B Operator’s
Manual).
Connecting the
Vitalert 3000 Series
to the O.R. Data
Manager
To connect the Vitalert 3000 Series to the O.R. Data Manager:
1. Connect one end of a Vitalink data cable to a serial port on the rear of
the Vitalert.
2. Connect the other end of the cable to the Vitalink port on the rear of
the O.R. Data Manager (see the O.R. Data Manager Setup and Installation
Manual).
3. Secure all connections using the captive screws provided.
4. Configure the Vitalert’s serial port, via the Serial Ports System
Configuration screen, for the following parameters.
BAUD RATE: 9600
DATA BITS: 8
PARITY: NONE
STOP BITS: 1
PROTOCOL: VITALINK
2-4
RETURN TO CD-ROM TABLE OF CONTENTS

Section 2
Setup and Installation
5. Configure the Vitalink port on the O.R. Data Manager for the same
parameters given in step 4 (see the O.R. Data Manager Setup and
Installation Manual).
WARNING: The Vitalert 3000 Series serial communication ports are not
compatible with Narkomed 3 serial communication ports. Do
not connect these two devices, as this connection could result
in the loss of visual and audible alarms.
Connecting the

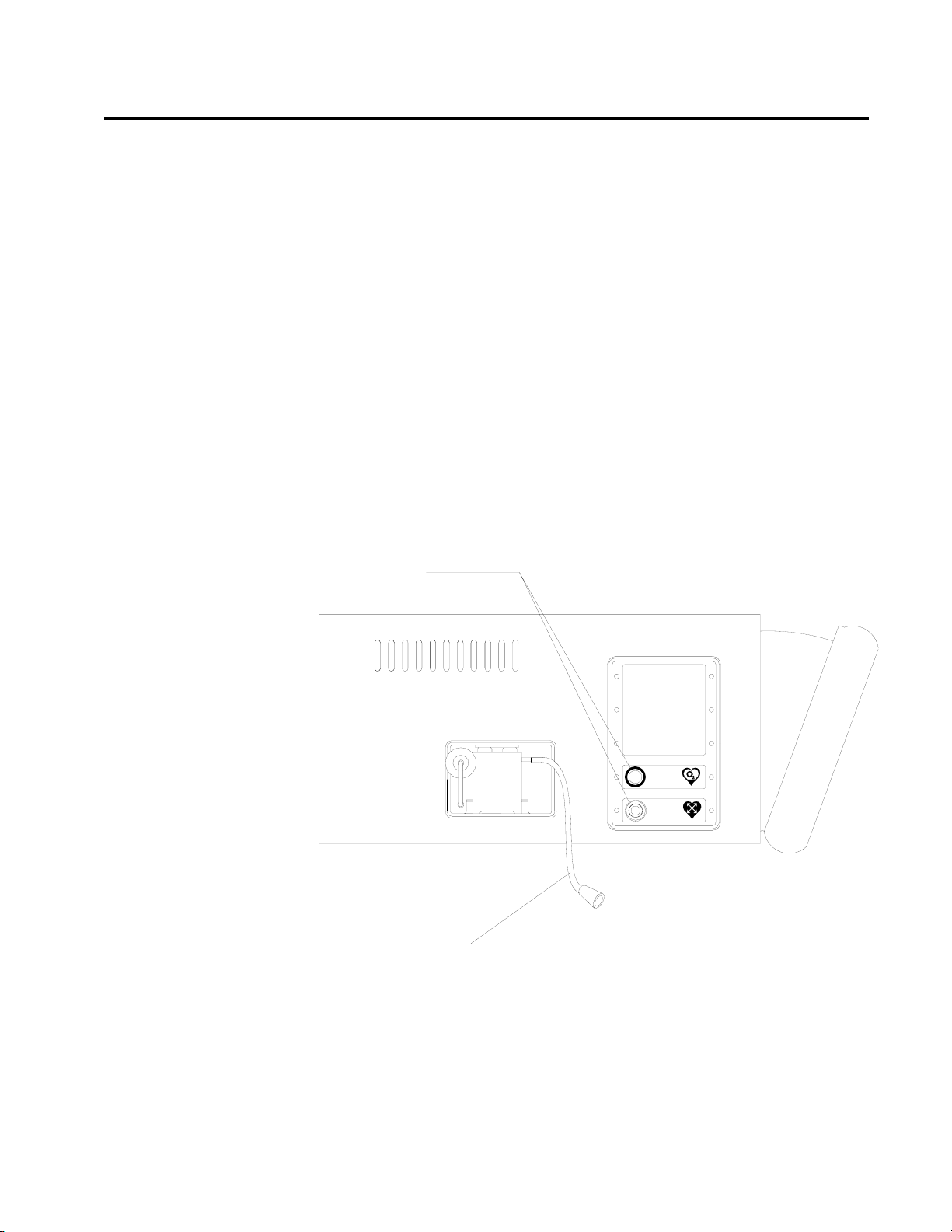

External Sensors If applicable, connect each of the external sensors to be used in conjunction
with the Vitalert 3000, 3100, or 3200 at the interface panel on the left side of
the chassis as shown in the figure below. Inputs are provided for the
following sensors:
• Pulse Oximeter (models 3000, 3200)
• Blood Pressure Cuff (models 3100, 3200)
OXIMETER
SENSOR
BP CUFF
SENSOR INPUTS
SAMPLE LINE
CONNECTOR
SU30013
2-5
RETURN TO CD-ROM TABLE OF CONTENTS

Section 2
Setup and Installation
Installing the
Oximeter Sensor The connector end of the patient module cable connects to an interface
panel on the left side of the Vitalert 3000 or 3200. The finger sensor
connects to the patient module. The cable extension can be installed
between the patient module and the finger sensor for additional mobility.
To install the patient module and sensor, follow these steps, using the
figure below for reference:
1. Make sure the Vitalert monitor is unplugged.
2. Attach the cable to the interface panel by aligning the red dots and
inserting the cable connector into the panel socket.
3. Insert the sensor connector into the patient module socket and latch it
into place.
4. Fasten the patient module to a sheet or similar article using the clip
attached to the cable.
LATCH
CLIP
FINGER
SENSOR
INTERFACE
PANEL
PATIENT
MODULE
SU30004
2-6
RETURN TO CD-ROM TABLE OF CONTENTS

Section 2
Setup and Installation
Connecting the
Noninvasive Blood
Pressure Cuff Hose

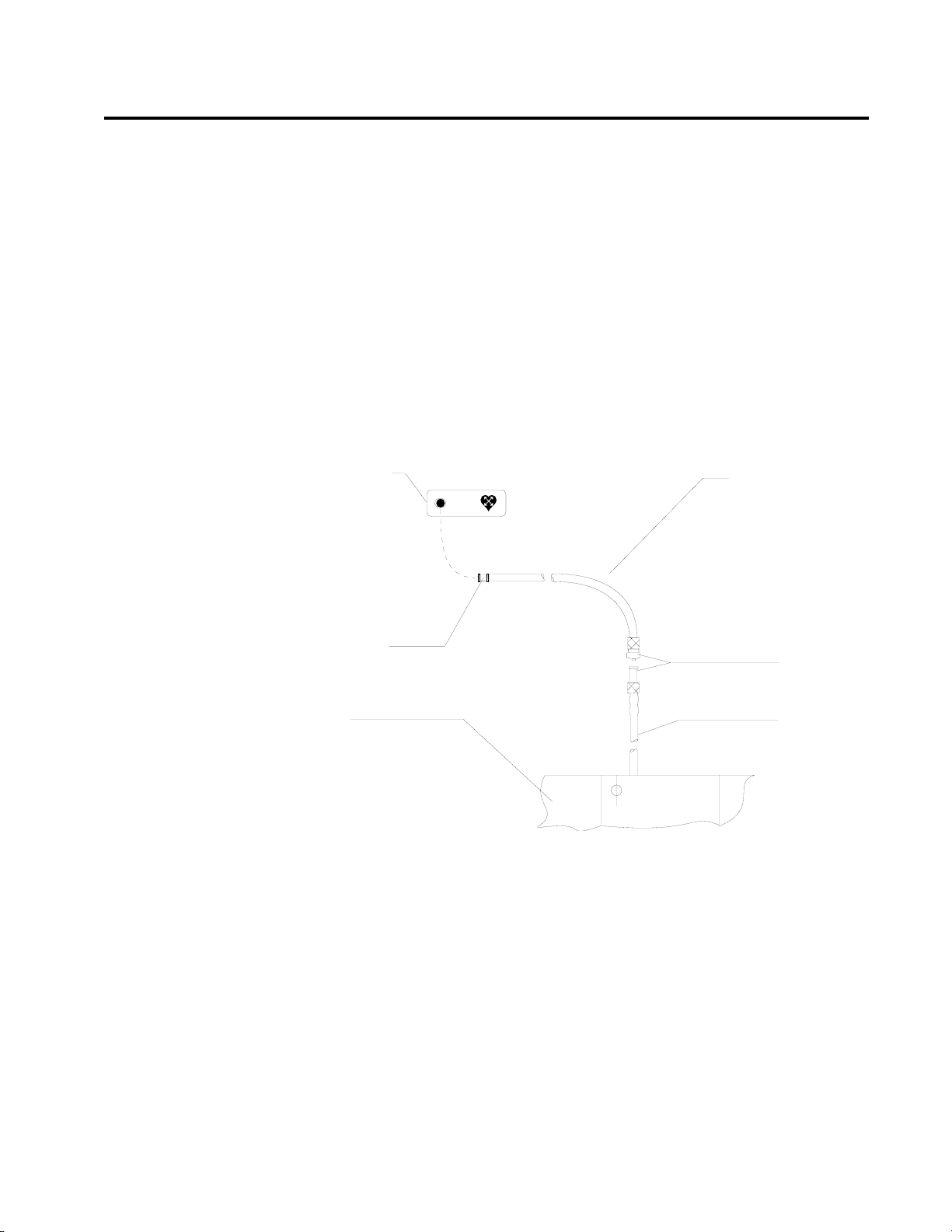

To connect the noninvasive blood pressure hose, follow these steps, using
the figure below for reference:
1. Connect the cuff hose (attached to the cuff) to the extension hose (with
a threaded fitting on one end and a Luer-lock fitting on the other end)
by inserting the Luer-lock fitting on the cuff hose into the Luer-lock
fitting on the extension hose and twist until they lock together.
2. Attach the other end of the extension hose to the fitting labeled BP
CUFF on the Vitalert 3100 or 3200 interface panel. Hand-tighten the
threaded hose fitting onto the threaded fitting of the interface panel.
Make sure that the hose is not pinched or kinked.
BP CUFF
EXTENSION HOSE
LUER-LOCK
FITTINGS
CUFF HOSE
THREADED
FITTING
CUFF
INTERFACE
PANEL
SU30006
CUFF HOSE
2-7
RETURN TO CD-ROM TABLE OF CONTENTS

Section 2
Setup and Installation
Installing the
Gas Analyzer
Sample Line
The illustration shows the components associated with the patient sample
line. The following paragraphs describe the installation of each component.
Water Trap
Reservoir Insert the reservoir by guiding its rubber port seals into the mounting
bracket’s gas flow ports on the left side of the Vitalert 3000 Series
monitoring system. Gently push at the reservoir’s base until it rests flat
against the mounting bracket.
Air Filter Install the Air Filter onto the fitting located to the left of the water trap
reservoir, and connect the PVC sample line to the air filter.
Adapter/Filter Mount the combination adapter/filter for the sample line between the
endotracheal tube (or face mask) and the patient breathing system. This
filter is intended to prevent particulate contamination of the sample line.
Patient
Sample Line Install the sample line between the adapter/filter and the water trap
reservoir as follows:
1. Insert the male Luer-lock fitting on one end of the line into the
female Luer-lock fitting on the adapter/filter. Twist clockwise until
secure.
2. Insert the male fitting on the other end of the line into the female
fitting attached to water trap reservoir. Twist clockwise until secure.
Take care not to kink or pinch the sample line.
SU30007
Y-PIECE
ADAPTER/FILTER
PATIENT
SAMPLE
LINE
WATER TRAP
RESERVOIR
LUER-LOCK FITTING
AIR
FILTER
PVC SAMPLE
LINE
2-8
RETURN TO CD-ROM TABLE OF CONTENTS

Section 2
Setup and Installation
Gas Analyzer
Exhaust Because the monitor withdraws a portion of the patient breathing system
gas, sampling gas must be exhausted to the scavenging system.
If you have an open reservoir scavenging system, connect the exhaust line
leading from the rear of the monitor to the scavenger as shown in the
figure below:
If you have a scavenger interface for passive systems, connect the exhaust
FITTING
EXHAUST
PORT ON REAR
OF V3000
(REAR VIEW OF SCAVENGER)
EXHAUST
SU30008
line leading from the rear of the monitor to the scavenger using a
scavenger adapter, as shown in the figure below:
SCAVENGER
SCAVENGER
ADAPTER
SU30049
2-9
RETURN TO CD-ROM TABLE OF CONTENTS

RETURN TO CD-ROM TABLE OF CONTENTS

Section 3
Routine Maintenance
Overview This section includes cleaning and replacement procedures and instructions
on the use of the Vitalert 3000 Series maintenance screens.
Cleaning and
Sterilization Clean and sterilize the Vitalert 3000 Series monitor and its parts according
to the guidelines below. Follow your institution’s policies regarding specific
methods and agents for cleaning and sterilization. Determination of the
need and frequency of sterilization of any particular component is the
responsibility of the user institution. Sterilization procedures should be
performed according to procedures established by the user institution,
following the specific instructions provided by the manufacturer of the
sterilizing equipment or agent to be used. Such policies, procedures, and
instructions should ultimately be consistent with established principles of
clinical microbiology and infection control.
Surfaces Clean painted, plated, and plastic surfaces of the Vitalert 3000 Series with a
soft cloth moistened with an aqueous germicidal cleaner. Mix the
germicidal cleanser in accordance with instructions provided by the
manufacturer. Do not use solvent cleaners or abrasive cleaning agents on
any surfaces of the monitor.
Do not use anesthetic agents for cleaning purposes.
CAUTION: Do not allow liquid to enter the interior of the Vitalert 3000
Series monitor.
Pulse Oximeter
Sensor Do not autoclave the sensor or interface cable. The sensor can be cleaned
by wiping the patient contact areas with a liquid disinfection agent or
alcohol. Do not use acetone or acetone/alcohol mixtures because they will
damage the sensor. Do not immerse the sensor or interface cable. Do not
allow liquid to enter the interior of the sensor.
Noninvasive
Blood Pressure
Cuff
Before cleaning or sterilizing the NIBP cuff, detach it from the extension
hose by twisting the Luer-lock fitting at the juncture of the cuff hose and
measurement hose. Clean the cuff with a liquid disinfection agent or mild
detergent solution.
Do not autoclave the cuff. It can be sterilized with ethylene oxide gas,
followed by at least 2 hours aeration in an appropriate aeration cabinet.
Do not autoclave the extension hose. It can be sterilized with ethylene
oxide gas (cold cycle), followed by at least 8 hours aeration in an
appropriate aeration cabinet.
3-1
RETURN TO CD-ROM TABLE OF CONTENTS

Section 3
Routine Maintenance
Replacing the Water
Trap Reservoir The disposable water trap reservoir is held by a bracket mounted next to
the patient interface panel on the left side of the Vitalert 3000 Series
monitor. It is designed to collect excess water accumulation in the sample
flow.
To replace a reservoir that is filled to capacity:
1. Detach the full reservoir’s flexible hose fitting at the sample line
connection by twisting the Luer-lock fitting counterclockwise.
2. To gain access to the reservoir, temporarily remove the air filter by
turning it counterclockwise and pulling it from its mounting.
3. Grasp the full reservoir at the base and gently pull away from the
mounting bracket, allowing the rubber port seals on top of the reservoir
to disengage from the gas flow ports of the mounting bracket. Dispose
of the full reservoir properly.
4. Insert the new reservoir by guiding its rubber port seals into the
mounting bracket’s gas flow ports; gently push at the reservoir’s base
until it rests flat against the mounting bracket.
5. Connect the new reservoir’s flexible hose fitting to the male Luer-lock
fitting on the sample line; twist clockwise until secure.
6. Reattach the air filter to the fitting alongside the reservoir. Turn the
filter clockwise until secure.
SU30039
PATIENT
SAMPLE
LINE
WATER TRAP
RESERVOIR
LUER-LOCK FITTING
AIR
FILTER
PVC SAMPLE
LINE
3-2
RETURN TO CD-ROM TABLE OF CONTENTS

Section 3
Routine Maintenance
Replacing the Air
Filter The purpose of the air filter is to collect particulate contamination, and it
should be replaced if it becomes clogged. Refer to the previous illustration
for the location and mounting arrangement of the air filter.
1. Remove the air filter by turning it counterclockwise until it separates
from the fitting on the machine.
2. Disconnect the PVC sample line from the filter by holding the filter and
turning the Luer-lock fitting on the PVC sample line counterclockwise.
3. Install the replacement air filter on the fitting. Turn the filter clockwise
until secure.
4. Reconnect the PVC sample line to the filter. Twist the Luer-lock fitting
on the PVC sample line clockwise until secure.
Main Maintenance
Screen The Vitalert 3000 Series monitors include a maintenance mode that allows
the setting of gas sample flow rates, gas analyzer calibration, and
diagnostic testing of the NIBP and SpO2monitors. These maintenance
functions are represented by a series of screens that you can access from
the display panel. In addition to these functions a Preventive Maintenance
Schedule (PMS) screen is provided for setting the next PMS due date.
The Main Maintenance Screen is shown in the following figure. This screen
displays the machine serial number, the date that the machine was last
maintained, the hours since last service, total hours on the machine, and
the version number for each software set in the machine.
To access the Main Maintenance Screen:
1. Simultaneously press and hold the and keys.
MONITOR
SYSTEM CONFIG
2. While holding the keys, press the rotary dial.
3-3
RETURN TO CD-ROM TABLE OF CONTENTS

Section 3
Routine Maintenance
3
MAIN
PMS
SCHEDULE
MONITORS
KEYS
SERVICE
RESET
HOURS
ROTATE DIAL TO MOVE CURSOR
PRESS TO ACTIVATE FEATURE
333
SU30040
MACHINE SERIAL NUMBER
LAST SERVICE DATE
HOURS RUN SINCE LAST SERVICE
TOTAL HOURS RUN
VA3:00004
07-14-93
97
3383
OXIM SW VERSION:
GAI SW VERSION:
GAS BENCH SW VERSION:
V 1.0.7
V 1.2.3
V 1.0.1
SERVICE PERSON
IDENTIFICATION
SERVICE TYPE
Accessing the
Maintenance
Screens
Specific maintenance screens are accessed through the Main Maintenance
Screen as follows:
1. Use the rotary dial to position the cursor on PMS or MONITORS.
2. Press the dial to enter the selection.
NOTE: The monitor must be cycled through the Standby mode at the
completion of a maintenance session.
3-4
RETURN TO CD-ROM TABLE OF CONTENTS
