Dräger Infinity Acute Care System M540 User manual

This Quick reference guide is not a replacement or
substitute for the Instructions for Use.
Any use of the medical device requires full under-
standing and strict observation of the Instructions for
use.
Quick reference guide
Infinity®Acute Care
System
Infinity M540 patient monitor
Software VG7.n

2 Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n
Contents
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Side view of the M540. . . . . . . . . . . . . . . . . . . . . . 3
Dialogs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Calibrating the touchscreen . . . . . . . . . . . . . . . . . 4
To select a view. . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Discharging a patient . . . . . . . . . . . . . . . . . . . . . . 4
Selecting a new patient category . . . . . . . . . . . . . 5
To adjust the alarm volume . . . . . . . . . . . . . . . . . . 5
Pausing acoustic alarm signals (audio pause) . . . 5
Pausing alarms at the M540 . . . . . . . . . . . . . . . . . 6
Pausing alarm monitoring temporarily . . . . . . . . . 7
Activating or deactivating alarm monitoring . . . . . 7
Setting the upper and lower alarm limits. . . . . . . . 8
Archive function . . . . . . . . . . . . . . . . . . . . . . . . . . 8
To access stored events . . . . . . . . . . . . . . . . . . . . 9
Electrode placement . . . . . . . . . . . . . . . . . . . . . . . 10
ECG parameter setup functions . . . . . . . . . . . . . . 12
Respiration parameter setup functions . . . . . . . . . 14
SpO2and Pulse CO-Ox monitoring with Masimo
SET MCable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
SpO2and pulse rate monitoring with Nellcor
OxiMax MCable . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Temperature parameter setup functions . . . . . . . . 18
Non-invasive blood pressure parameter setup
functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
To assign a pressure label manually. . . . . . . . . . . 20
Zeroing a specific transducer . . . . . . . . . . . . . . . . 20
Invasive pressure parameter setup functions . . . . 21
Mainstream CO2monitoring . . . . . . . . . . . . . . . . . 22
Microstream CO2monitoring . . . . . . . . . . . . . . . . 23

Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n 3
Trademarks
– Infinity®
– MCable®
–MPod
®
are trademarks of Dräger.
–Masimo
®
– SET®
– Pulse CO-Oximeter Signal Extraction®
are trademarks of Masimo corporation.
– Microstream®
is a trademark of Oridion Medical 1987 Ltd.
– Nellcor®
– OxiMax®
– SatSeconds®
are trademarks of a Medtronic company.

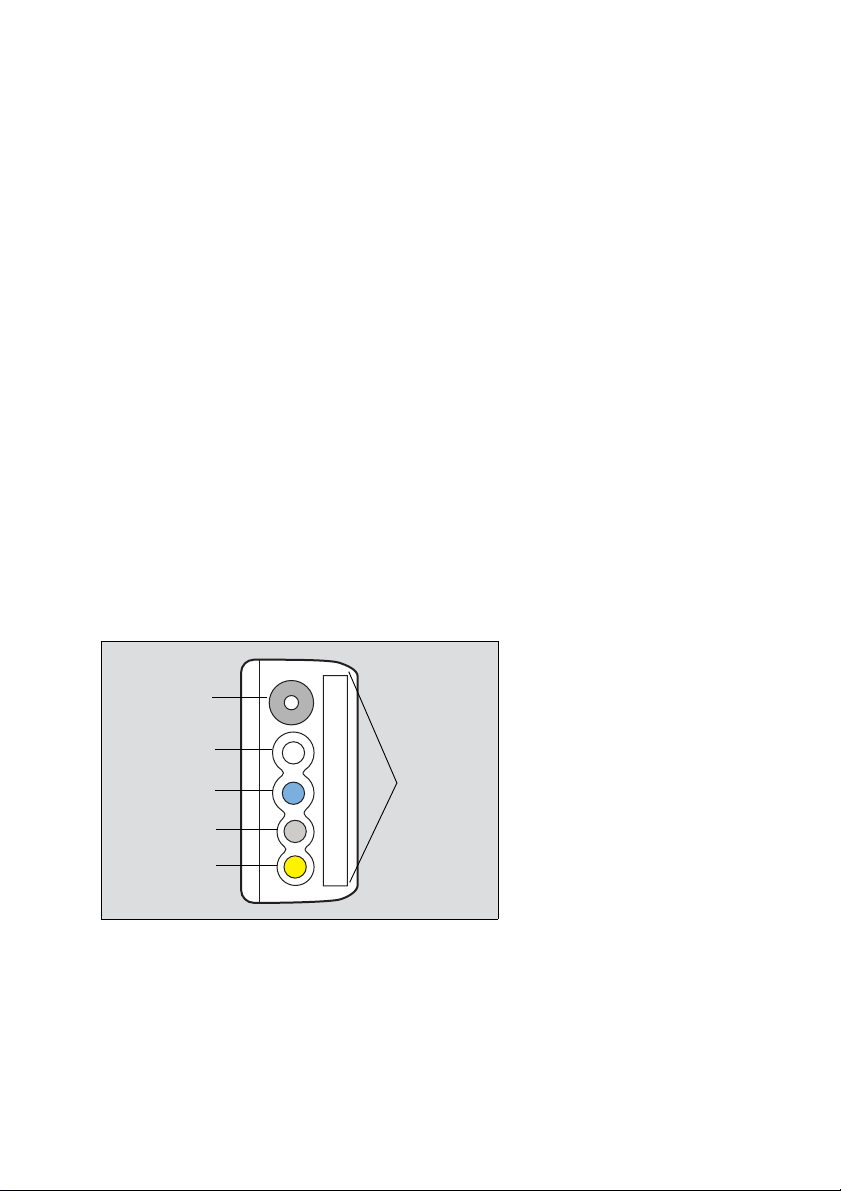

Side view of the M540
ANon-invasive blood pressure connector
BTemp (2) / Aux connector
CSpO2connector
DHemo connector
ECO2connector
FECG connector
310
A
B
C
D
E
F

4 Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n
Dialogs
To access parameter-specific setup pages directly, touch the corresponding parameter fields on the main screen.
Calibrating the touchscreen
If the touchscreen is out of alignment, the user can calibrate it at any time.
To calibrate the touchscreen
1Touch the Menu function key.
2Touch the Screen setup tab > Settings tab > Touch calib.
3Touch each cross appearing successively in each corner of the screen.
or
1Push and hold the following two keys simultaneously:
2Touch each cross appearing successively in each corner of the screen.
To select a view
Touch the currently selected function key several times (for example, View 5) to scroll through the available
view labels.
Discharging a patient
A patient discharge has the following effect at the M540:
– All demographic data are removed from the screen
– Any active recordings are canceled at the Cockpit if the M540 is docked in an IACS configuration
– Factory or user default limit settings are restored
– The message Discharged, Touch screen to resume monitoring appears
To discharge a patient
Press the Discharge function key (if available for display).
or
1Press the Menu function key.
2Touch the Main tab.
3Touch Discharge. The message Caution discharge will delete patient data appears.
4Touch Discharge.

Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n 5
Selecting a new patient category
After selecting the patient category, the new patient category label appears in the header bar.
A patient category change does not affect the following settings: the patient and physician names, patient ID, birth
date, admit date, height, and weight.
To select a new patient category
1Press the Menu function key.
2Touch the Patient setup tab.
3Touch Patient category and then select the appropriate category (Adult, Pediatric, Neonate). The message
Changing category will change alarm settings and algorithmic processing appears.
4Touch OK.
To adjust the alarm volume
1Press the Alarms function key.
2Touch the Alarm volume button and select the desired volume level (Off, 5%, 10 to 100% in increments of
10%).
When the M540 is on wireless transport in an IACS configuration or in standalone mode and it loses its connection
to the ICS, the alarm volume setting is automatically set to 100%. The setting Off is no longer available until the
connection to the ICS is restored.
Pausing acoustic alarm signals (audio pause)
Active alarms can be paused, or silenced, at the M540 for two minutes. In addition to pausing alarms, the setting
of the quiet mode feature determines how subsequent alarm conditions are announced.
You can initiate an audio pause in several ways:
– From an M540 in standalone mode or on wireless transport
– From an ICS
– From the remote view of another Infinity monitor within the same monitoring unit
– From the Cockpit when the M540 is docked in an IACS configuration
– From a remote device when remote control and remote silence are activated at the remote device and the
Cockpit (refer to the IACS Monitoring Applications IFU)
– When first turning on the device

6 Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n
Pausing alarms at the M540
The following happens at the M540 when you pause active alarms:
– All acoustic alarm signals are paused for a maximum of about two minutes.
– The Audio paused message appears in the alarm message header of the Cockpit along with the timer and the
following symbol:
– The alarm message appears in the color corresponding to the alarm priority.
– The parameter field no longer flashes in the color corresponding to the alarm priority. It appears in solid color.
– The alarm bar no longer flashes for high-priority and medium-priority alarm conditions.
The behavior of new alarm condition while the systems is in an audio pause state is determined by the Quiet mode
setting.
To initiate an audio pause at the M540
Press the yellow key on the M540:
Pressing the key again cancels the audio pause period and all alarm events are reported as usual.
To initiate an audio pause remotely
Press the following key on the main menu bar of the ICS to audio pause alarms for all assigned patients:
Press the same button in the viewport area to pause alarm tones for an individual patient. For more information,
refer to the instructions for use of the ICS.
Refer to the instructions for use of any remote device within the same monitoring unit for instructions on how
to initiate an audio pause.
Pressing the key again cancels the audio pause period and all alarm events are reported as usual.

Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n 7
Pausing alarm monitoring temporarily
If the password-protected alarm pause feature is activated, you can pause alarm monitoring temporarily. The alarm
pause duration is adjustable from 1 minute to 5 minutes.
The following happens when you pause alarm monitoring:
– Acoustic and optical alarm signals for new alarm conditions are suppressed for all parameters until alarm mon-
itoring begins again
– Alarm signals for any active alarm condition stop immediately
– The alarming parameter field and alarm bar return to the pre-alarm state
– Alarm messages are removed from the alarm message field in the header bar
– The far right field of the header bar turns yellow and displays the alarm message All alarms pause, a timer,
and the following symbol:
To pause alarm monitoring temporarily
1Press the Alarms function key.
2Touch All alarms pause.
As soon as the alarm pause period ends, the M540 generates acoustic and optical alarm signals as needed.
To activate alarm monitoring after pausing
1Press the Alarms function key.
2Touch All alarms pause before the alarm pause period ends to cancel the alarm pause.
Activating or deactivating alarm monitoring
If the password-protected alarm pause feature is set to No timeout, the following happens when you deactivated
alarm monitoring:
– All acoustic and optical alarm signals for new alarm conditions are suppressed for all parameters until alarm
monitoring is manually activated again
– Acoustic alarm signals for any active alarm condition stop immediately
– The alarming parameter field and alarm bar return to the pre-alarm state
– Alarm messages are removed from the alarm message field of the header bar
– The far right field of the header bar turns yellow and displays a message that all alarms are off and the following
symbol appears:

8 Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n
To deactivate alarm monitoring
1Press the Alarms function key.
2Touch All alarms off.
To activate alarm monitoring after deactivating
1Press the Alarms function key.
2Touch All alarms off.
The M540 provides acoustic and optical alarm signals again when it detects a new alarm condition.
Setting the upper and lower alarm limits
You can configure the upper and lower alarm limits of a parameter manually to trigger acoustic and optical alarm
signals if a parameter goes above or below the set limits.
To set an individual parameter’s alarm settings
1Touch the parameter field (for example, HR) to access that parameter’s dialog.
2Touch the tab for configuring the parameter limits (for example, HR limits).
3Touch the upper or lower alarm limit.
4Touch the up or down arrow to change the alarm limit setting.
5Touch OK.
Archive function
The archive function setting determines what happens in response to an alarm limit violation. The available settings
are:
–Off – no event is stored and no recording is generated.
–Store – stores the event for later review.
–Record – stores the event for later review when in standalone mode or on wireless transport. Once the M540
is docked, any stored event is transferred to the alarm history of the IACS where you can request a manual
recording of the event.
–Str/Rec – generates a timed recording for an M540 docked in an IACS configuration and stores the event.
When the M540 is in standalone mode or on wireless transport, this setting stores an event for later review.
Once the M540 is docked, any stored event is transferred to the alarm history of the IACS where you can re-
quest a manual recording of the event.

Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n 9
To configure an individual parameter’s archive function
1Touch the parameter field to access that parameter’s dialog (for example, HR).
2Touch the tab for configuring the parameter limits (for example, HR limits).
3Touch Archive and toggle to one of the following settings: Off, Store, Record, Str/Rec.
4Touch X to close the dialog.
To access stored events
Select the Review function key. The following diagram shows the Event recall dialog.
AEvent list with date, time, and cause of each event.
BArrow buttons for scrolling through the event list.
CView button for viewing a single event in greater detail.
DDelete button for deleting an event.
ELock button for locking an event (if the M540 is docked in an IACS configuration, pressing this button has no
effect on events at the Cockpit).
069
A B
C
DE

10 Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n
Electrode placement for adult and pediatric patients
Standard configuration, three electrodes (IEC/AHA)
Standard configuration, five electrodes (IEC/AHA)
Pacer configuration, five electrodes (IEC/AHA)
314 315
316 317
318 319

Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n 11
Standard configuration, six electrodes (IEC/AHA)
12-lead configuration, ten electrodes for
12-lead Rest ECG monitoring (AHA)
12-lead configuration, ten electrodes for
12-lead Rest ECG monitoring (IEC)
Electrode placement for neonates
320 321
324 322
495
IEC electrode
(neonates)
placement
328
AHA electrode
placement
(neonates)

12 Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n
ECG parameter setup functions
All ECG parameter setup functions take place in the ECG dialog.
Selection Available settings Description
Settings – ECG 1 page
Tone vol-
ume1)
Off, 5, 10 (default) to 100% in increments of 10% Selects the volume of the pulse tone.
If you dock the M540 in an IACS configura-
tion, this setting is replaced by the pulse
tone volume setting of the Cockpit.
When you undock the M540, this setting is
replaced by the Transport pulse tone set-
ting configured under the Alarm setup tab.
Tone
source 1)
ECG (default), PI Selects the source of the pulse tone.
ECG
filter 1)
–Off – provides the greatest sensitivity to noise or ar-
tifact (the message Filter off appears in the wave-
form channel)
Passband: 0.08 - 40Hz
–Monitor (default) – recommended for standard
monitoring; reduces wandering isoelectric line, mus-
cle artifact, and power line interference. No mes-
sage appears in the waveform channel.
Passband: 0.5 - 40Hz
–ESU – reduces signal distortion during electrosur-
gery (the message Filter ESU appears in the wave-
form channel). This selection is not available when
the M540 is in standalone mode.
Passband: 0.5 - 16Hz
12-lead monitoring is not available when the ESU filter
is enabled. Likewise, the ESU filter selection is not
available when you are using 12-lead monitoring.
Controls the sensitivity to various artifact
sources.
When the M540 is set to OR alarms and the
filter selection is set to Monitoring:
– the hardware low pass ESU filter is
activated.
–RRi is unavailable
– 12-lead ECG monitoring is unavailable
None of these settings are of diagnostic
quality.
HR
source 1)
–ECG (default) – derives the heart rate from the ECG
signal.
–Arterial pressure – derives the heart rate from the
arterial blood pressure signal. The heart rate param-
eter field label changes to APR and appears in the
color of ART.
–SpO2– derives the heart rate from the pulse oxim-
etry signal. The heart rate parameter field label
changes to PLS and appears in the color of SpO2.
–Auto – derives the heart rate either from the ECG
signal or other available sources. If an ECG signal
is not available, the M540 switches to Arterial pres-
sure, and then to SpO2.
Selects a different source for the heart rate
when the ECG channel is unavailable due
to artifact resulting from surgical proce-
dures.

Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n 13
Show all
leads
None Shows all ECG waveforms. Press any-
where in the waveform area to access addi-
tional ECG waveforms. Press Menu to
close all the ECG waveforms.
Size all
ECG 1)
0.25, 0.5, 1 (default), 2, 4, 8 mV/cm Sets the amplitude of ALL displayed ECG
leads.
Color 1) Red, White, Yellow, Green (default), Light blue, Blue,
Purple, Orange
Determines the color of the ECG wave-
forms, and the arrhythmia/ST parameter la-
bels and values.
Settings – ECG 2 page
Pacer de-
tection
(Not avail-
able in
neonatal
mode)
–On (default)
–Off – the message Pacer off appears in the wave-
form channel
–Fusion – the message Pacer fusion appears in the
waveform channel
Determines whether pacer impulses are
detected.
QRS
sync
marker
–On – displays QRS synchronization markers
–Off (default)
Determines whether vertical white markers
appear on the waveform to identify QRS
complexes. The markers help determine
when it is safe to perform synchronized car-
dioversion.
Cable
type 1)
(TruST is
only avail-
able with
a 6-wire
lead set)
–Auto (default)
– 3, 5, 6, and 12 leads (if activated)
When using the ECG extension cable, the system al-
ways assumes the cable is a 6-wire lead set.
When set to Auto, it detects the number of
connected lead wires automatically. If auto
mode does not detect the connected lead
set, it allows you to select the cable type
manually. “12” denotes a combination of a
6-wire lead set and 4-wire lead set for 12-
lead monitoring.
ARR lead
11)
ARR lead
21)
ECGI,ECGII (arrhythmia lead 1 default), ECGIII,
ECGaVR, ECGaVL,ECGaVF,ECGV (arrhythmia lead
2 default), ECGV+,ECGV1 to ECGV6
Assigns the lead for QRS processing.
ARR pro-
cessing 1)
ECG1, ECG1&2 (default)
The ECG1&2 selection is not available if the neonatal
patient category is selected.
ECG1 setting – arrhythmia processing oc-
curs only on the lead selected as arrhyth-
mia lead 1.
ECG1&2 setting – arrhythmia processing
occurs on the leads selected as arrhythmia
lead 1 and arrhythmia lead 2.
1) This setting is a patient default which may be unique for each patient category; it is part of the profile.
QRS
thresh-
old
–Normal (default)
–Low
This function is only available for adult and
pediatric patients.
Normal – detects QRS complexes ≥0.5
mV.
Low – detects QRS complexes ≥0.2 mV.
Selection Available settings Description

14 Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n
Respiration parameter setup functions
All respiration parameter setup functions take place in the respiration dialog.
Rest ECG setup page
Gender –Unknown (default)
–Male
–Female
Race –Unknown (default)
–Caucasian
–Asian
–African
–Other
Selection Available settings Description
Selection Available settings Description
Settings 1 page
Resp. lead 1) I, II (default) Selects the lead for respiration monitoring.
Relearn None Initiates a relearning of the respiration signal, only
in Auto mode.
Marker 1) On, Off (default) Superimposes a vertical line on the respiration
waveform when a breath is detected.
Monitoring 1) –On (default in neonatal mode)
–Off (default in adult/pediatric mode)
Turns respiration monitoring on or off.
Apnea time 1) Off, 10, 15 (default), 20, 25, 30 s Determines how long an apnea has to last before
an alarm is triggered.
Apnea
archive 1)
–Off
–Str/Rec – a recording as well as an event
storage is triggered automatically in re-
sponse to an apnea.
–Store (default) – a waveform segment is
stored in response to an apnea.
–Record – a recording is triggered
automatically in response to an apnea.
Determines what happens in response to an ap-
nea.
In case of false apnea alarms, it is advised to ob-
serve the patient’s breathing pattern (belly or
chest), and reposition electrodes accordingly, or
to adjust the detection threshold manually.
Color 1) Red, White, Yellow, Green, Light blue (de-
fault), Blue, Purple, Orange
Determines the color of the waveforms, and the
parameter labels and values.
Change pa-
rameter
A list of currently available parameters. Changes the parameter field to a different param-
eter.
1) This setting is a patient default which may be unique for each patient category; it is part of the profile.

Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n 15
Selection Available settings Description
Settings 2 page
Mode1) Auto (default), Manual Determines the processing mode for the breath-
related impedance change.
Coincidence 1) On, Off (default) Determines whether you are alerted when the re-
spiratory rate is within 20% of the heart rate,
which is an indication that the M540 is counting
heart beats as respiration.
Resp.
threshold
10% to 100% (in 10% increments) –
default: 50%
Adjusts the breath detection threshold.
1) This setting is a patient default which may be unique for each patient category; it is part of the profile.
327327
AHA electrode placement (adult)
IEC electrode placement (adult)
AHA electrode placement (adult)
314
327
IEC electrode placement (adult)
IEC electrode
placement
(neonates)
AHA electrode
placement
(neonates)

16 Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n
SpO2and Pulse CO-Ox monitoring with Masimo SET MCable
All SpO2parameter setup functions take place in the SpO2dialog.
Selection Available settings Description
Tone
volume 1)
Off, 5, 10 (default), 20, 30, 40, 50, 60, 70, 80, 90,
100%
Adjusts the volume of the pulse tone.
If you dock the M540 in an IACS configura-
tion, this setting is replaced by the pulse
tone volume setting of the Cockpit.
When you undock the M540, this setting is
replaced by the Transport pulse tone set-
ting configured under the Alarm setup tab.
Tone
source 1)
–ECG (default) – the heart blip pulsates with each
detected pulse.
–SpO2
Selects the source of the pulse tone which
affects the ECG and SpO2parameter field
display. For the SpO2selection, the higher
the pitch of the tone, the higher the SpO2
saturation percentage.
Bar graph 1) On, Off (default) Displays a bar graph that is proportional to
the pulse rate and strength.
Averaging
time 1)
2 to 4, 4 to 6, 8 (default), 10, 12, 14, 16 s Determines how quickly the reported SpO2
value responds to changes in the patient’s
oxygen saturation.
A longer averaging time provides a more
accurate result. However, in clinical situa-
tions where rapid physiological changes
have to be monitored, use a shorter averag-
ing time
Sensitivity
mode 1)
–Normal (default) – standard mode
–APOD (adaptive probe off detection) – the least
sensitive mode for detecting a reading on patients
with low perfusion. Provides the best detection for
detached sensors. This mode is useful for patients
at particular risk for sensors becoming detached
such as children or patients who are restless.
–Max. – provides maximum sensitivity for poor sig-
nals (this mode is recommended for patients with
low perfusion or when the low perfusion or low sig-
nal quality message is displayed in APOD or
Normal sensitivity mode. Max. mode is not recom-
mended for care areas where patients are not
monitored visually, such as general wards. It is de-
signed to interpret and display data at the measur-
ing site when the signal may be weak due to
decreased perfusion.)
Determines the level of detection sensitivity.
Fast SAT
mode 1)
On, Off (default)
When the Averaging time setting is set to 2 to 4 s or
4 to 6 s, the Fast SAT mode selection is grayed out.
Activates rapid tracking of arterial oxygen
saturation changes.

Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n 17
SpO2and pulse rate monitoring with Nellcor OxiMax MCable
All SpO2parameter setup functions take place in the SpO2dialog.
Color 1) Red, White (default), Yellow, Green, Light blue,
Blue, Purple, Orange
Determines the color of the waveforms, and
the parameter labels and values.
Change pa-
rameter
A list of currently available parameters. Changes the parameter field to a different
parameter.
1) This setting is a patient default which may be unique for each patient category; it is part of the profile.
Selection Available settings Description
Tone volume 1) Off, 5, 10 (default), 20, 30,
40, 50, 60, 70, 80, 90, 100%
Sets the volume of the pulse tone.
– If you dock the M540 in an IACS configuration, this setting is
replaced by the pulse tone volume setting of the Cockpit.
– When you undock the M540, this setting is replaced by the
Transport pulse tone setting configured under the Alarm
setup tab
Tone source 1) –ECG (default) – the
heart rate blip pulsates
with each detected
pulse.
–SpO2
Selects the source of the pulse tone which affects the ECG and
SpO2parameter field display. For the SpO2selection, the higher
the pitch of the tone, the higher the SpO2saturation percentage.
Bar graph 1) On, Off (default) Displays a bar graph that is proportional to the pulse rate and
strength.
Response
mode 1)
–Normal (default) – 90%
change within 5 to
7 seconds
–Fast – 90% change with-
in 2 to 4 s
Establishes the frequency the oximeter uses to calculate, record,
and display SpO2saturation levels.
– Normal mode responds to changes in blood oxygen
saturation in 5 to 7 seconds
– Fast mode responds to changes in blood oxygen saturation
levels in 2 to 4 seconds when calculating %SpO2.
SatSeconds 1) Off (default), 10, 25, 50, 100 This selection does the following:
– Analyzes desaturation events by multiplying their duration
(seconds) by the number of percentage points the patient
exceeds the alarm limit.
– Eliminates nuisance alarms caused by brief and numerous
violations of lower and upper alarm limits.
– Overrides the alarm validation setting and the SpO2high
priority desaturation alarm for neonatal patients.
Color 1) Red, White (default),
Yellow, Green, Light blue,
Blue, Purple, Orange
Determines the color of the waveforms, and the parameter labels
and values.
Change pa-
rameter
A list of currently available
parameters.
Changes the parameter field to a different parameter.
1) This setting is a patient default which may be unique for each patient category; it is part of the profile.
Selection Available settings Description

18 Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n
Temperature parameter setup functions
All temperature parameter setup functions take place in the temperature dialog.
Selection Available settings Description
Ta
Tb
–TOral
–TEso
–TNasal
–TRect
–TBlad
–Tcore
–TBld1
–TBlnkt
–TSkin
–TR
–TL
Ta configures the first temperature value on
the M540.
Tb configures the second temperature
value on the M540.
∆TDifference Ta–Tb
T1a
T1b
–T1Oral
–T1Eso
–T1Nasal
–T1Rect
–T1Blad
–T1core
–T1Bld1
–T1Blnkt
–T1Skin
–T1R
–T1L
T1a configures the third temperature value.
T1b configures the fourth temperature
value.
∆T1 Difference T1a–T1b
Color 1) Red, White (default), Yellow, Green,
Light blue, Blue, Purple, Orange
Determines the color of the parameter
labels and values.
Change parameter A list of currently available
parameters.
Changes the parameter field to a different
parameter.
1) This setting is a patient default which may be unique for each patient category; it is part of the profile.

Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n 19
Non-invasive blood pressure parameter setup functions
All non-invasive blood pressure parameter setup functions take place in the non-invasive blood pressure dialog.
Selection Available settings Description
Settings
Interval time 1)
(Cardiac bypass mode au-
tomatically deactivates in-
terval measurements)
Off (default), 1 min, 2 min, 2.5 min, 3 min,
5 min, 10 min, 15 min, 20 min, 25 min,
30 min, 45 min, 60 min, 120 min, 240 min
Defines intervals for the non-invasive
blood pressure measurements.
Inflation mode Adult (default), Pediatric, Neonate Sets a threshold for maximum cuff in-
flation.
Continuous mode 1) On, Off (default) Initiates successive non-invasive
blood pressure measurements for
5min.
Chime 1) On, Off (default) Determines if a tone sounds at the end
of a completed non-invasive blood
pressure measurement.
Venous stasis 1) On, Off (default) Stops blood flow to the lower part of
the cuffed limb for a fixed time.
Color 1) Red, White (default), Yellow, Green,
Light blue, Blue, Purple, Orange
Determines the color of the parameter
labels and values.
Change parameter A list of currently available parameters. Changes the parameter field to a dif-
ferent parameter.
1) This setting is a patient default which may be unique for each patient category; it is part of the profile.

20 Quick reference guide –Infinity®Acute Care System – Infinity M540 VG7.n
To assign a pressure label manually
1Touch the invasive pressure parameter field.
2Touch the Settings tab.
3Touch Edit label.
4Touch the appropriate pod label Pod 1A label,Pod 1B label, and so on.
5Touch the new pressure label.
6Touch Xto close the dialog.
Or
1Touch the Menu function key.
2Touch Label IP.
Zeroing a specific transducer
To zero a specific sensor
1Touch the appropriate invasive pressure parameter field.
2Touch the Settings tab.
3Align the transducer to the level of the heart (phlebostatic axis point, fifth intercostal space and midaxillary line).
4Close the transducer stopcock to the patient and open it to air.
5Touch Zero on the M540.
If the zeroing of the transducer is successful, the message Zero accepted appears. If zeroing fails, the
message did not zero appears. In that case, repeat steps three to five.
6Touch Xto close the dialog.
Zeroing all pressure transducers
To zero all pressure transducers from the hemodynamic pods
1Align the transducer to the level of the heart (phlebostatic axis point, fifth intercostal space and midaxillary line).
2Close the stopcocks to the patient, and open them to air.
3Press the key (A) on the Hemo4, Hemo2, or the MPod – QuadHemo.
4Verify that the transducers have been zeroed. If zeroing failed, repeat steps two and three.

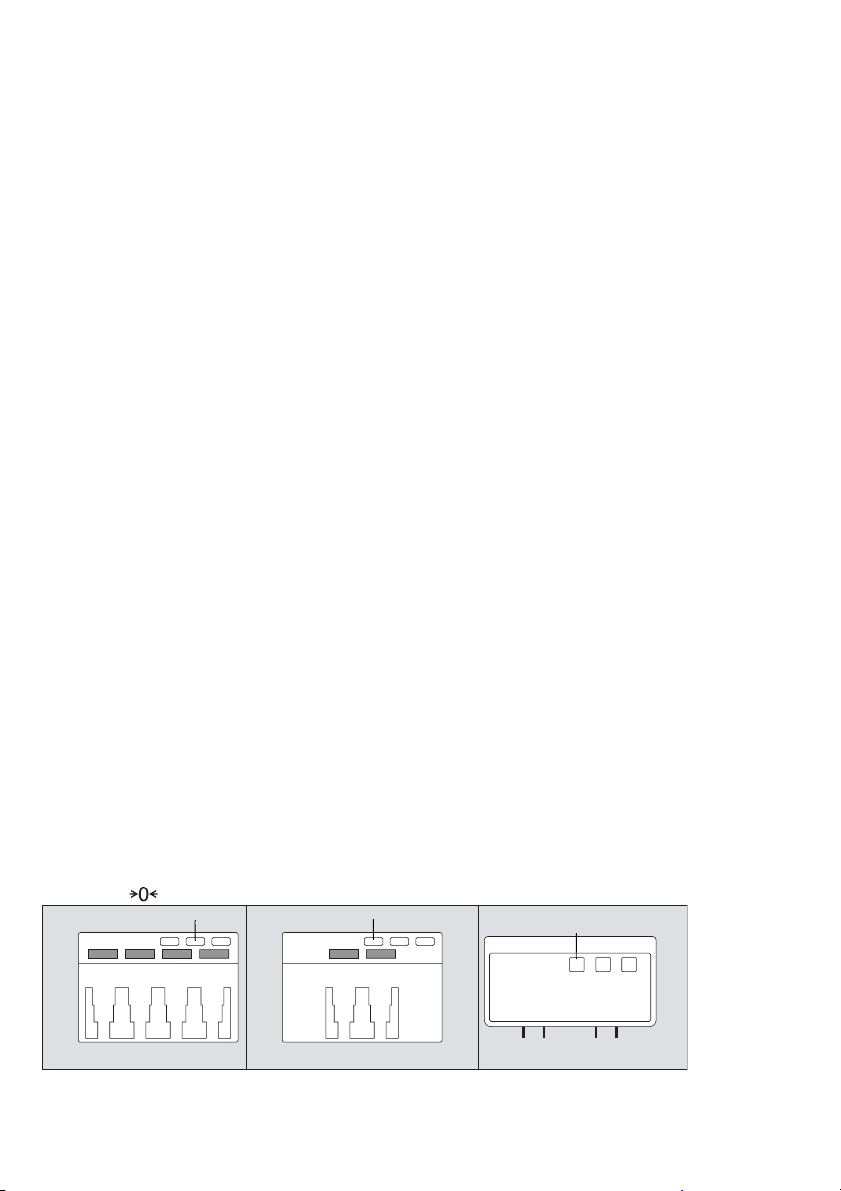

Hemo4 pod AHemo2 pod A
A
MPod – Quad Hemo
