Dr.Prepare D-SP002 User manual

CATALOGUE
English User Manual
German User Manual
Espanol User Manual
01-06
07-13
14-20
21-27
Japanese User Manual

Model: D-SP002
24000mAh
PORTABLE SOLAR
CHARGER
Manual
- 01 -

PRODUCT OVERVIEW
60 cm / 24 in
Micro USB Cable
60 cm / 24 in
USB-A to USB-C Cable
8
9
10
11
12
1
2
3
4
5
6
Hook
On/Off Button
Temperature Indicator
LED Power Indicators
Solar Panel
LED Solar Indicator
Flashlight
Quick Charge USB Output
Quick Charge Micro USB Input
USB-C Input/Output
USB Output
Water-resistant Silicone Cover
7
- 02 -
7
6
12
8910 11
4
1
2
3
5

SPECIFICATIONS
1 LED On
2 LEDs On
3 LEDs On
4 LEDs On
Battery level at 0% - 25%
Battery level at 26% - 50%
Battery level at 51% - 75%
Battery level at 76% - 100%
Lithium Polymer
24000mAh / 88.8 Wh
1W LED (3 Light Modes: Bright, Strobe, and SOS)
80-90 Hours
6 Hours (when simultaneously recharged with
both USB inputs)
85 Hours (when recharged via direct sunlight)
7.12 x 3.53 x 1.26 inch / 18.1 x 8.97 x 3.2 cm
19.46 oz / 551g ± 10g
Battery Type
Capacity
Flashlight Power
Battery Life of Flashlight
Recharging Time
Dimensions
Weight
General
Input
Output
DC 5-6.5V / 3A, 6.5-9V / 2A, 9-12V / 1.5A Max
DC 5V / 3A Max
DC 5V / 2.4A Max
QC USB-A
USB-C
USB-A
Solar Panel
USB-C
QC Micro USB
USB-C + QC Micro USB
DC 5V / 300mA Max
DC 5V / 3A Max
DC 5V / 2A ，9V / 2A,12V / 1.5A Max
DC 33W Max
- 02 -

Note: When the temperature is too high, the Temperature Indicator will flash.
• 1 x 24000mAh Portable Solar Charger
• 1 x Micro USB Cable (60 cm / 24 in)
• 1 x USB-A to USB-C Cable (60 cm / 24 in)
• 1 x User Guide
• 1 x Carabiner
Recharged via the sunlight.
Place the solar panel under direct sunlight. Recharging will start with the
green LED Solar Indicator turning on and the blue LED Power Indicators
lighting up on by on according to the battery levels.
RECHARGING THE PORTABLE CHARGER
Note: The recharging time may vary according to the intensity of sunlight.
6LED Solar Indicator
PACKAGE INCLUDES
- 03 -

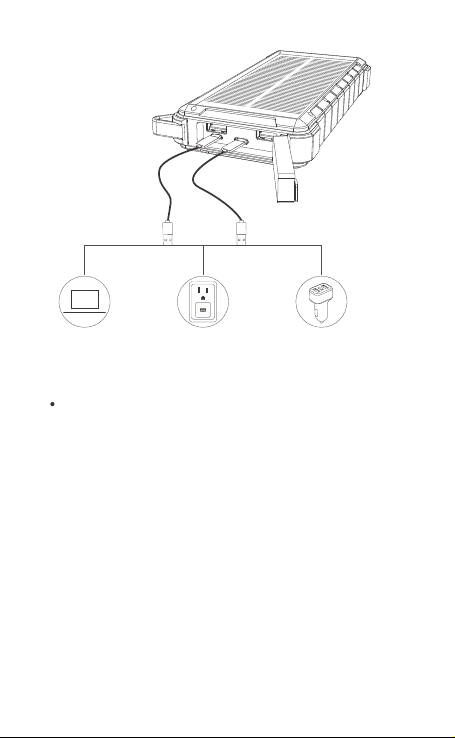

Recharged via the USB input port.
Use the included USB cables to recharge the portable charger through
electrical outlets or other power sources until all 4 LED Power Indicators
become solid blue.
Note: Suggest use chargers with QC 2.0 or QC 3.0. Can be recharged
simultaneously by QC Micro USB and USB-C with a maximum input of
5V/4A.
- 04 -

CHARGING THE DEVICES
Connect your devices to the output ports of portable charger with USB cables
and charging will start automatically. The blue LED Power Indicators will turn
on to show the battery levels.
Note: we recommend you to use certified Apple cables to charge Apple
products.
FLASH LIGHT OPERATIONS
On/Off Button
Long Press the On/Off Button to turn on the flashlight. Press the On/Off
Button again to switch light modes.
- 05 -

CAUTION
CUSTOMER SUPPORT
WARRANTY
Do not drop, knock, or disassemble the product.
Do not keep metal objects around the portable charger.
Avoid exposure to static electricity, strong magnetic fields, and radiation.
Stop using the portable charger if you notice unusual smells, heating,
distortion, or any other abnormalities.
Keep the product out of reach of children.
Keep the product away from water, liquids, and moist.
Dispose of the product according to the local recycling and environmental
regulations.
Dr.Prepare products are covered by a 12-month limited warranty from the
original purchase date. If any problems occur, please contact our support
team.
We only provide after-sales services for products that are sold by Dr.Prepare
or retailers and distributors authorized by Dr.Prepare. If you have purchased
your unit from other channels, please contact your seller for more information
about return and warranty.
Keep the product away from fire, heat sources, or high temperatures in case
of shortened lifespan or damages.
If you have any questions or concerns, please give us a call at 1-800-330-8678
or send us an email at mydr[email protected]
- 06 -
