Dtronic DT3210 User manual

User Manual
DT3210
Barcodescanner –DT3210
:0645733500
: [email protected]
:https://www.dtronic.nl/
Datum :2-2-2024
Versie :1.0

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 2 van 59
Introduction
Thank you for trusting a product from DTRONIC. Please read the contents of the user manual
carefully in order to use the products safely and effectively.
You are advised to keep this manual correctly for your installation and as a reference. Please do not
disassemble the product or tear off the seal, otherwise we will not provide warranty or
replacement service.
The illustrations in this user manual are for reference only. If there are images that do not match
the actual product, please take the actual product as standard.
Updated information is subject to change without notice. All information in this manual is
copyrighted and our company reserves all rights. It is prohibited to distribute, copy, compile or sell
all or part of this manual without our written permission.
DTRONIC is a BOIP registered trademark and legally protected in cooperation with GS1. Diwolar is
the only company with the rights to market this trademark. If you have purchased a product that
was not purchased through Diwolar, the warranty is void. When contacting customer service
always ask for the order number. This user manual applies to DTRONIC barcode scanners that
identify barcodes using a laser scan pattern.
DTRONIC is not liable for damages and defects suffered when the barcode scanner fails, does not
work properly or is misused.
Do you have any questions about your product? We will be happy to assist you.
Mail: [email protected] Bereikbaar van 09:00-17:00u
WhatsApp: [phone] Bereikbaar van 09:00-17:00u
Website: www.dtronic.nl Webshop 24/7 geopend
Kind regards, team Dtronic
-Diederik Director
-Arjan Operations manager
-Marjolein Financial employee
-Jaxx Administrative employee
-Tim Customer service
-Hessel Customer service
- Roger Test center
- Kees-Jan Logistics

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 3 van 59
Inhoud
INTRODUCTION..........................................................................................................................2
1. PRODUCT.............................................................................................................................5
1.1 Function............................................................................................................................ 5
1.2 Unbox................................................................................................................................ 5
1.3 Start .................................................................................................................................. 5
1.4 Window............................................................................................................................. 5
1.5 Reading ............................................................................................................................. 6
1.6 Picture............................................................................................................................... 6
1.7 Led indicator..................................................................................................................... 6
2. SYSTEM SETUP .....................................................................................................................7
2.1 System Setup .................................................................................................................... 7
2.1.1 Setup code.............................................................................................................. 7
2.1.2 Restore factory default settings............................................................................. 7
2.1.3 Product User Settings............................................................................................. 8
2.1.4 Led .......................................................................................................................... 8
2.1.5 Level lighting........................................................................................................... 9
2.1.6 Beeper Duration..................................................................................................... 9
2.1.7 Beeper settings..................................................................................................... 10
2.1.8 Set the beep switch.............................................................................................. 10
2.1.9 Power on beep switch.......................................................................................... 10
2.1.10Read success beep switch .................................................................................... 11
2.2 Reading mode settings ................................................................................................... 11
2.2.1 Level trigger mode................................................................................................ 11
2.2.2 Continuous mode (default) .................................................................................. 11
2.2.3 Pulse trigger mode ...............................................................................................12
2.2.4 Auto Scan mode ................................................................................................... 12
2.2.5 Repeat read switch............................................................................................... 13
2.2.6 Code reading timeout........................................................................................... 13
2.2.7 One read timeout.................................................................................................13
2.3 Communication settings.................................................................................................15
2.3.1 Communication settings.......................................................................................15
2.3.2 USB keyboard .......................................................................................................15
2.3.3 USB keyboard sending speed...............................................................................17
2.3.4 Set USB keyboard sending speed.........................................................................18
2.3.5 Control Characters................................................................................................ 18
2.3.6 Serial communication settings .............................................................................19
2.3.7 Serial port baud rate setting.................................................................................19
2.3.8 Serial port output ................................................................................................. 20
2.3.9 Serial port parity bit setting..................................................................................21
2.4 Data format setting.........................................................................................................21
2.4.1 Custom prefix on/off settings............................................................................... 21
2.4.2 Customized prefixes............................................................................................. 22
2.4.3 Custom suffix on/off settings ...............................................................................22
2.4.4 Custom suffixes ....................................................................................................23
2.4.5 Custom ID output method ................................................................................... 23
2.4.6 Customize Code ID ............................................................................................... 24
2.4.7 Terminator settings..............................................................................................24
2.4.8 CTRL + X................................................................................................................26

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 4 van 59
2.4.9 Data output settings............................................................................................. 28
2.4.10Pre/Post data length setting.................................................................................28
2.5 Symbologies.................................................................................................................... 28
2.5.1 1D all symbologies................................................................................................ 29
2.5.2 2D all symbologies................................................................................................ 29
2.5.3 Inverse barcode....................................................................................................29
2.5.4 All barcodes.......................................................................................................... 30
2.5.5 EAN8 Settings .......................................................................................................30
2.5.6 Code 11 Settings................................................................................................... 31
2.5.7 Add-on code setting .............................................................................................31
2.5.8 EAN 13 settings.....................................................................................................32
2.5.9 ISSN Settings......................................................................................................... 32
2.5.10ISBN setting ..........................................................................................................33
2.5.11UPC-A settings...................................................................................................... 33
2.5.12UPC-E settings ......................................................................................................34
2.5.13UPCE ..................................................................................................................... 34
2.5.14EAN/UPC...............................................................................................................35
2.5.15Code 39 Settings................................................................................................... 35
2.5.16Code 39 Length Setting ........................................................................................36
2.5.17Code 32 settings................................................................................................... 37
2.5.18Code 128 settings.................................................................................................37
2.5.19Code 128 length setting .......................................................................................37
2.5.20Code 93 settings................................................................................................... 38
2.5.21Code 93 Length Setting ........................................................................................38
2.5.22Codabar Settings ..................................................................................................39
2.5.23Codabar Length Setting........................................................................................ 40
2.5.24GS1 Databar Limited............................................................................................. 40
2.5.25GS1 Databar omnidirectional ............................................................................... 41
2.5.26GS1 Databar Expanded......................................................................................... 41
2.5.27Data matrix Code.................................................................................................. 41
2.5.28MSI........................................................................................................................42
2.5.29QR......................................................................................................................... 42
2.5.30Micro QR code...................................................................................................... 43
2.5.31PDF417 .................................................................................................................43
2.5.32Micro PDF417....................................................................................................... 43
2.5.33RSS-Expanded.......................................................................................................44
2.5.34RSS-Limited........................................................................................................... 44
2.5.35RSS-14...................................................................................................................44
2.5.36Straight 2 of 5 Industrial.......................................................................................44
2.5.37Interleave 2 of 5 (ITF5) setting ............................................................................. 45
2.5.38Aztec code ............................................................................................................46
2.5.39ITF25 length setting..............................................................................................46
APPENDIX.................................................................................................................................47
2.5.40AIM ID................................................................................................................... 47
2.5.41Code ID .................................................................................................................48
2.5.42ASCII...................................................................................................................... 49
2.5.43Check Digit............................................................................................................ 55

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 5 van 59
1. Product
1.1 Function
- Works with Plug&Play and without installation software.
- Works with most WMS systems.
- Some WMS or POS systems must be set up to use a scanner.
- Device the scanner is connected to will see it as keyboard.
- Basically the scanner scans the 95% of bar codes, remaining 5% can be set as desired with this
manual.
- There are patented parts in the scanner, DTRONIC has the rights to sell these items on the
Dutch, Belgian and German market
1.2 Unbox
After opening the box containing the product, perform the following steps:
- Remove the scanner accessories from the packaging.
- Remove the scanner from the packaging.
- At the packing list, check that everything is complete and in good condition. If there are
damaged or missing parts, save the original packaging and contact DTRONIC for customer
service.
Packing list:
1. Handheld scanner
2. USB Connection Cable (for wireless scanners, this is the charging cable).
3. Paperclip
4. Abridged user manual
1.3 Start
Startup: connect the computer to the scanner. The computer will recognize it as a keyboard and the
scanner can be used.
Power off: remove the cable connected to the scanner; remove the USB connected to the
computer.
Restart: if the scanner crashes or is unresponsive, turn it off and restart it. Optionally, use the
factory setting from this manual
1.4 Window
The scanning window must be kept clean, the supplier does not bear the warranty responsibility
due to improper maintenance. Prevent the window from wearing out or being scratched by a hard
object. Use a soft cloth to remove stain on the scanning window. Clean the scan window with a soft
cloth, such as a lens cleaning cloth
Spraying liquid on the scan window is prohibited. Prohibit all cleaning solvents except cleaning
water.

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 6 van 59
1.5 Reading
If the bar code is small, it should be closer to the scan window; if the bar code is large, it should be
further away from the scan window for easier reading.
If the bar code is highly reflective (for example, the coated surface), you may need to tilt the bar
code at an angle to scan the bar code. The best distance to read a bar code is 10-15 cm
1.6 Picture
1.7 Led indicator
INDICATOR STATUS
EXPLAIN
Red light on
Charging
Red light off
No charging
Green light on
No decoding
Green light off
Decode succesfully
One blue light on
Pairing successful or connect to
USB

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 7 van 59
2. System Setup
2.1 System Setup
Option and function setting mainly by reading a series of special bar codes. In this chapter, we give
you a detailed introduction to the options and functions available for user setup and the
corresponding setup code.
This method of setting up the scan is direct, easy to understand and user-friendly.
2.1.1 Setup code
Startup settings (default)
Exit Settings
2.1.2 Restore factory default settings
Restore factory settings

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 8 van 59
2.1.3 Product User Settings
Save user default settings
Restore user default settings
2.1.4 Led
Enable Aimer
Disable Aimer
Enable Illumination
Disable Illumination
Always off
Always on

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 9 van 59
2.1.5 Level lighting
1
2
3
2.1.6 Beeper Duration
Short
Normal
2.7Khz
Mute

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 10 van 59

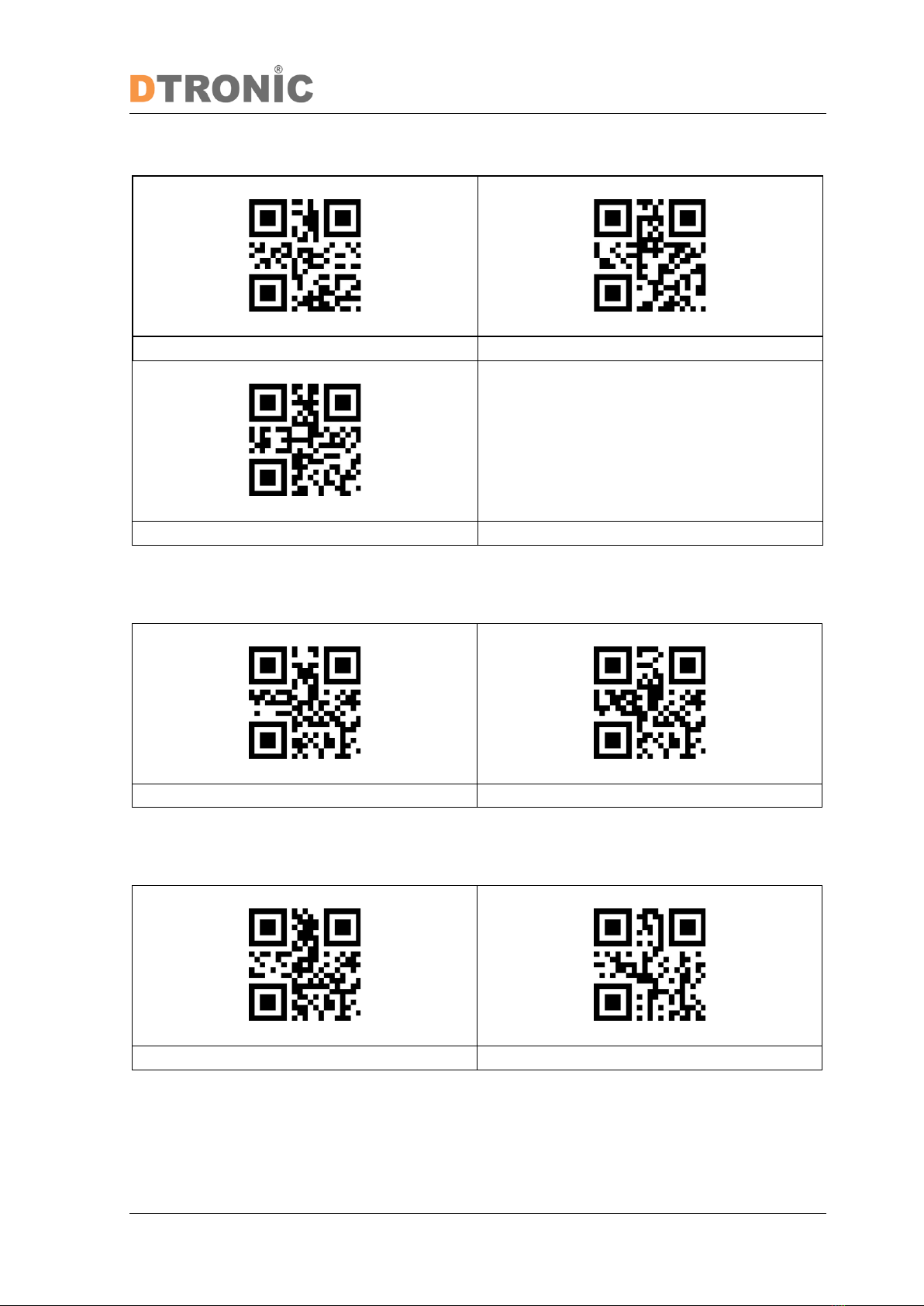

2.1.7 Beeper settings
Volume set to High (50%) (default)
Volume set to midrange (25%)
Volume set to bass (12.5%)
2.1.8 Set the beep switch
Open (default)
Close
2.1.9 Power on beep switch
Open (default)
Close

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 11 van 59
2.1.10 Read success beep switch
Open (default)
Close
2.2 Reading mode settings
2.2.1 Level trigger mode
Enter the reading state when the trigger key pin is at low level. Press and hold the trigger key to
start reading code. After reading the code successfully or releasing the trigger key, the code reading
ends and the next decoding needs to re-enter the low level state.
Level trigger mode
2.2.2 Continuous mode (default)
When the reading setting code is switched to this mode, it enters the continuous reading state. In
this mode, the "repeat read switch" can be used to prevent the same barcode from being read
more than once.
Continuous mode (default)

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 12 van 59
2.2.3 Pulse trigger mode
When the reading setting code is switched to this mode, it enters the pulse-triggered reading state.
Pulse trigger mode
High sensitivity
Low sensitivity
2.2.4 Auto Scan mode
Auto scan
Delay 50ms
Delay 100ms
Delay 300ms

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 13 van 59

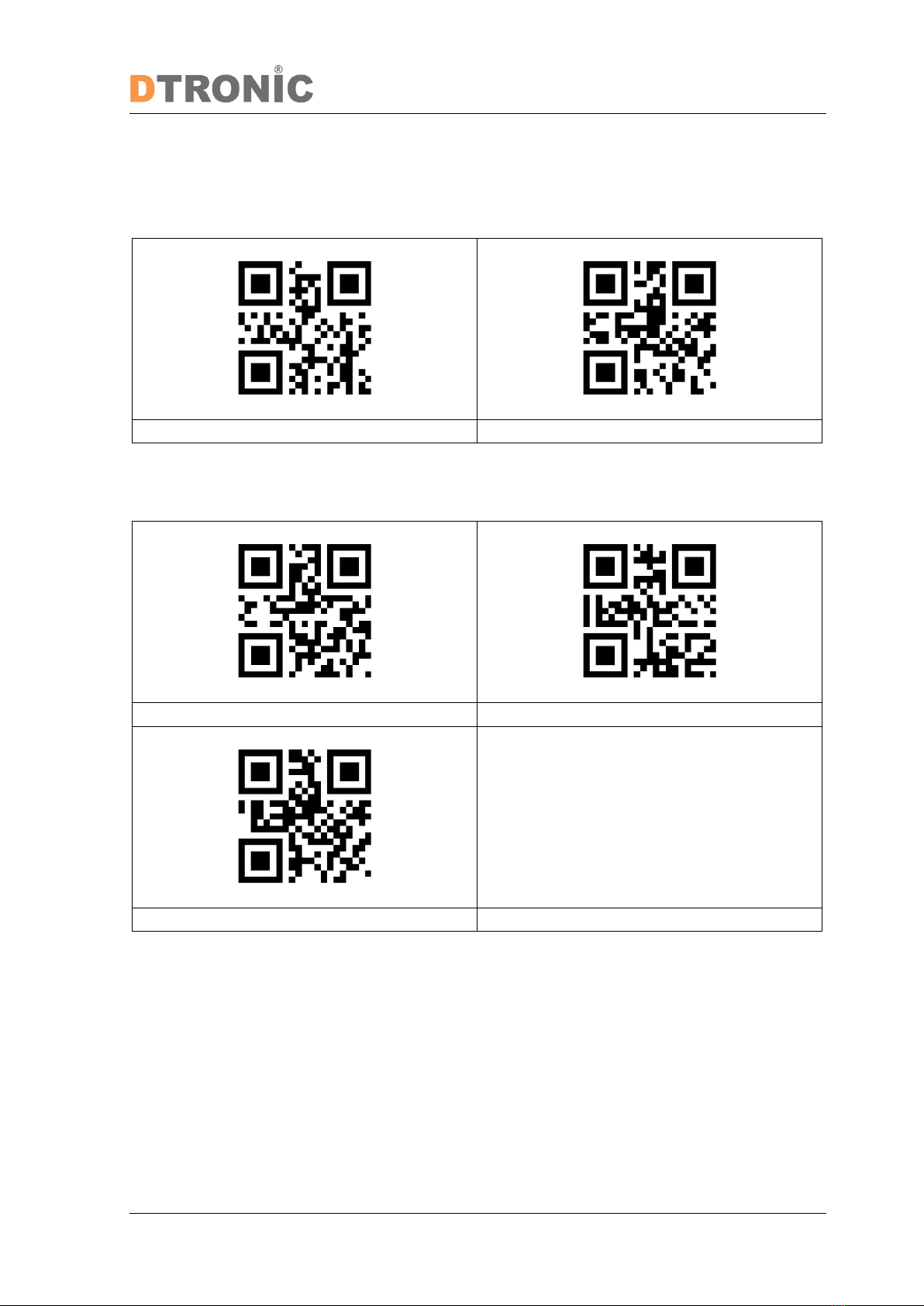

2.2.5 Repeat read switch
The repeat read setting is only available in continuous mode.
Allow repeat readings (default)
Repeat reading is not allowed
2.2.6 Code reading timeout
30sec
300sec
2400sec
2.2.7 One read timeout
One time reading timeout time, the unit is 0.1 seconds. The default value is 30 (3 seconds), when
set to 0, it means that the device is always in the reading state, and the time range can be set:
0~999.

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 14 van 59
Short time (3s)
In time (7s)
Long time (10s)
Valid only in "Level Trigger Mode" and "Pulse Trigger Mode".

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 15 van 59

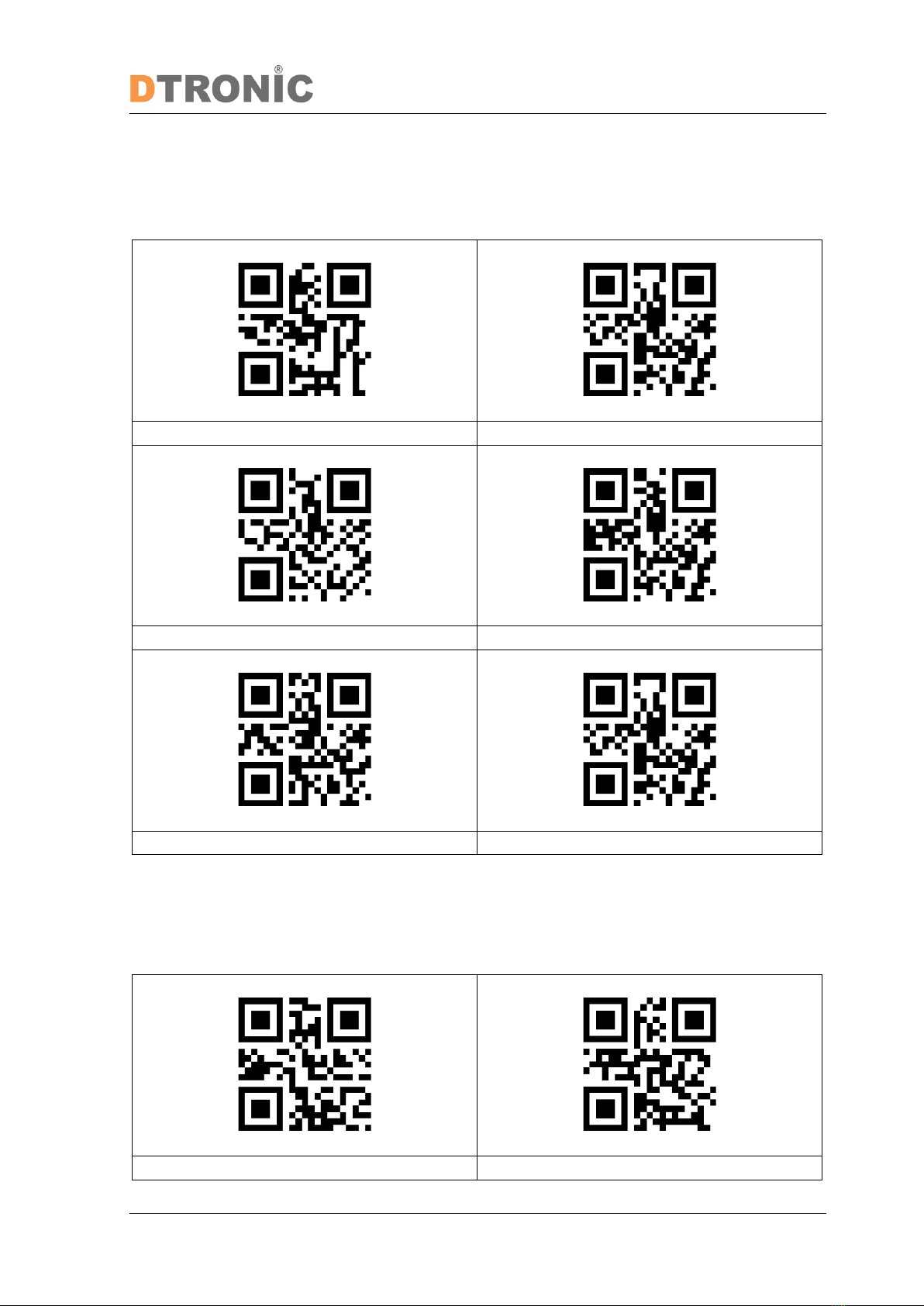

2.3 Communication settings
2.3.1 Communication settings
USB HID (default)
USB serial port
RS-232 serial port
Disable virtual keyboard
USB CDC
Enable virtual keyboard
2.3.2 USB keyboard
Portuguese (Brazil) cannot output "?" and "/" .
Nederlands
Italian

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 16 van 59
Spanish (Brazil)
Portuguese
Portuguese (Brazil)
French
German (Austria)
Turkish Q
Turkish F
English (UK)
Japanese
German (Switzerland)

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 17 van 59
French (Belgium)
America
2.3.3 USB keyboard sending speed
If there is missed data at the receiver side, the occurrence speed should be turned down, which is
easy to occur at the receiver side with poor performance.
5 ms (default)
10 ms
20 ms

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 18 van 59

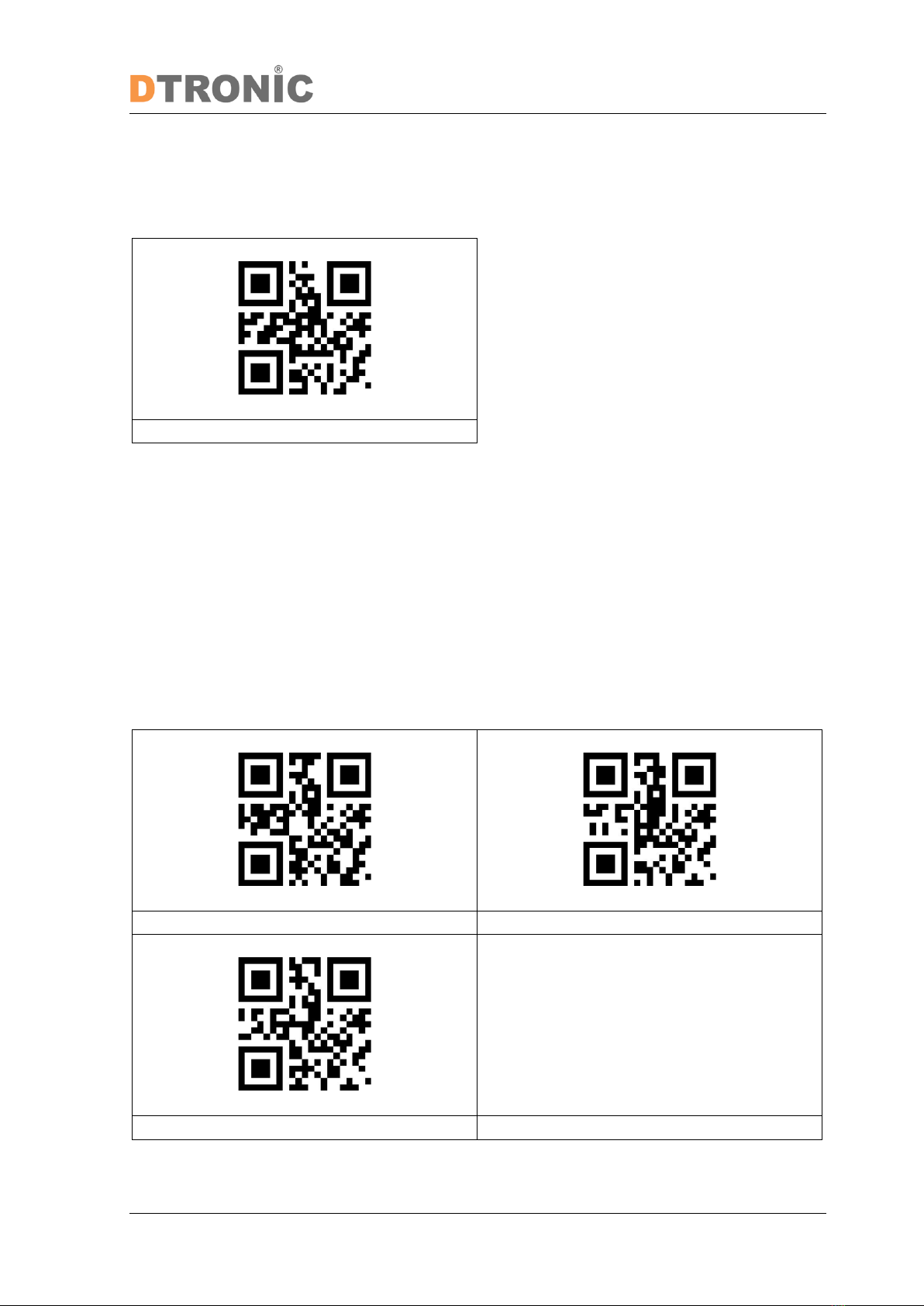

2.3.4 Set USB keyboard sending speed
USB keyboard send speed, unit is milliseconds (ms). The default value is 5ms, the settable time
range: 0ms~200ms.
Set USB keyboard sending speed
Setting the USB keyboard to send speed of 50ms can be set by reading the following barcodes in
order.
1. Read "Startup Settings"
2. Read the "Set USB keyboard send speed" setting code
3. Read data code: "5" "0" (see data code table)
4. Read "Save" (see data code table)
5. Read "Exit Settings"
2.3.5 Control Characters
Specific reference to the control character table, only the data content of the barcode is converted.
Off (default)
Control + ASCII mode
Alt + Keypad mode

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 19 van 59
2.3.6 Serial communication settings
Check bit O
Check bit S
Check bit E
Check bit M
Check bit N
2.3.7 Serial port baud rate setting
Baud rate 4800
Baud rate 9600 (default)

User manual ‘DT3210’
Datum : feb-2024
Versie : 1.0
pagina 20 van 59
Baud rate 19200
Baud rate 38400
Baud rate 57600
Baud rate 115200
2.3.8 Serial port output
UTF-8
GBK
Serial output according to barcode content
