Dtronic DT3422 User manual

User Manual
DT3422
Barcodescanner –DT3422
:0645733500
: [email protected]
:https://www.dtronic.nl/
Datum :23-8-2023
Versie :1.0

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 2 van 58
Introduction
Thank you for trusting a product from DTRONIC. Please read the contents of the user manual
carefully in order to use the products safely and effectively.
You are advised to keep this manual correctly for your installation and as a reference. Please do not
disassemble the product or tear off the seal, otherwise we will not provide warranty or
replacement service.
The illustrations in this user manual are for reference only. If there are images that do not match
the actual product, please take the actual product as standard.
Updated information is subject to change without notice. All information in this manual is
copyrighted and our company reserves all rights. It is prohibited to distribute, copy, compile or sell
all or part of this manual without our written permission.
DTRONIC is a BOIP registered trademark and legally protected in cooperation with GS1. Diwolar is
the only company with the rights to market this trademark. If you have purchased a product that
was not purchased through Diwolar, the warranty is void. When contacting customer service
always ask for the order number. This user manual applies to DTRONIC barcode scanners that
identify barcodes using a laser scan pattern.
DTRONIC is not liable for damages and defects suffered when the barcode scanner fails, does not
work properly or is misused.
Do you have any questions about your product? We will be happy to assist you.
Mail: [email protected] Bereikbaar van 09:00-17:00u
WhatsApp: [phone] Bereikbaar van 09:00-17:00u
Website: www.dtronic.nl Webshop 24/7 geopend
Kind regards, team Dtronic
-Diederik Director
-Arjan Operations manager
-Marjolein Financial employee
-Jaxx Administrative employee
-Tim Customer service
-Hessel Customer service
- Roger Test center
- Kees-Jan Logistics

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 3 van 58
Inhoud
INTRODUCTION..........................................................................................................................2
1. PRODUCT.............................................................................................................................5
1.1 Function............................................................................................................................ 5
1.2 Unbox................................................................................................................................ 5
1.3 Start .................................................................................................................................. 5
1.4 Window............................................................................................................................. 5
1.5 Reading ............................................................................................................................. 6
1.6 Picture............................................................................................................................... 6
1.7 Led indicator..................................................................................................................... 6
2. SYSTEM SETUP .....................................................................................................................7
2.1 System Setup .................................................................................................................... 7
2.1.1 Setup code.............................................................................................................. 7
2.1.2 Restore factory default settings............................................................................. 7
2.1.3 Read version number ............................................................................................. 7
2.1.4 Product User Settings............................................................................................. 7
2.2 Pairing bluetooth .............................................................................................................. 8
2.3 Wireless ............................................................................................................................ 9
2.3.1 Bluetooth name...................................................................................................... 9
2.3.2 Led ........................................................................................................................ 10
2.3.3 Beeper Duration................................................................................................... 11
2.3.4 Beeper settings..................................................................................................... 11
2.4 Reading mode settings ................................................................................................... 11
2.4.1 Level trigger mode................................................................................................ 11
2.4.2 Continuous mode (default) .................................................................................. 12
2.4.3 Time display.......................................................................................................... 12
2.4.4 Auto Scan mode ................................................................................................... 12
2.4.5 Reread time out....................................................................................................12
2.4.6 Code reading timeout........................................................................................... 13
2.4.7 One read timeout.................................................................................................13
2.5 Communication settings.................................................................................................14
2.5.1 Communication settings.......................................................................................14
2.5.2 USB keyboard .......................................................................................................14
2.5.3 USB keyboard sending speed...............................................................................15
2.5.4 Set USB keyboard sending speed.........................................................................16
2.5.5 Control Characters................................................................................................ 16
2.5.6 Serial communication settings .............................................................................16
2.5.7 Serial port baud rate setting.................................................................................17
2.5.8 Serial port output ................................................................................................. 17
2.5.9 Serial port parity bit setting..................................................................................17
2.6 Data format setting.........................................................................................................18
2.6.1 Hide characters.....................................................................................................18
2.6.2 Custom prefix on/off settings............................................................................... 19
2.6.3 Customized prefixes............................................................................................. 19
2.6.4 Custom suffixes ....................................................................................................19
2.6.5 Terminator settings..............................................................................................20
2.6.6 CTRL + X................................................................................................................20
2.6.7 Case output settings............................................................................................. 22

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 4 van 58
2.6.8 Data output settings............................................................................................. 22
2.7 Symbologies.................................................................................................................... 23
2.7.1 1D all symbologies................................................................................................ 23
2.7.2 2D all symbologies................................................................................................ 23
2.7.3 Inverse barcode....................................................................................................23
2.7.4 All barcodes.......................................................................................................... 23
2.7.5 EAN8 Settings .......................................................................................................24
2.7.6 Code 11 Settings................................................................................................... 24
2.7.7 EAN 13 settings.....................................................................................................25
2.7.8 ISSN Settings......................................................................................................... 25
2.7.9 ISBN setting ..........................................................................................................25
2.7.10UPC-A settings...................................................................................................... 26
2.7.11UPC-E settings ......................................................................................................26
2.7.12UPCE ..................................................................................................................... 27
2.7.13EAN/UPC...............................................................................................................27
2.7.14Code 39 Settings................................................................................................... 27
2.7.15Code 39 Length Setting ........................................................................................28
2.7.16Code 32 settings................................................................................................... 29
2.7.17Code 128 settings.................................................................................................29
2.7.18Code 128 length setting .......................................................................................29
2.7.19Code 93 settings................................................................................................... 30
2.7.20Code 93 Length Setting ........................................................................................ 30
2.7.21Codabar Setting....................................................................................................31
2.7.22Codabar Length Setting........................................................................................ 31
2.7.23GS1 Databar Limited............................................................................................. 32
2.7.24GS1 Databar omnidirectional...............................................................................32
2.7.25GS1 Databar Expanded......................................................................................... 32
2.7.26Data matrix Code.................................................................................................. 32
2.7.27MSI........................................................................................................................33
2.7.28QR......................................................................................................................... 33
2.7.29Micro QR code......................................................................................................33
2.7.30PDF417 .................................................................................................................34
2.7.31Micro PDF417.......................................................................................................34
2.7.32RSS-Expanded.......................................................................................................34
2.7.33RSS-Limited........................................................................................................... 34
2.7.34RSS-14...................................................................................................................34
2.7.35Straight 2 of 5 Industrial.......................................................................................35
2.7.36Interleave 2 of 5 (ITF5) setting ............................................................................. 35
2.7.37Aztec code ............................................................................................................35
2.7.38ITF25 length setting..............................................................................................36
3. APPENDIX ..........................................................................................................................37
3.1.1 Appendix 1............................................................................................................ 37
3.1.2 Appendix Decimal.................................................................................................42
3.1.3 Set up Escaped Character Set 0............................................................................ 45
3.1.4 2、Set Custom Key............................................................................................... 45
3.1.5 3、Set control key codes .....................................................................................46
3.1.6 ASCII Table............................................................................................................ 47
3.1.7 Appendix Control Character.................................................................................51
3.1.8 Setting master keycode........................................................................................52
3.1.9 Appendix Symbologies .........................................................................................57

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 5 van 58
1. Product
1.1 Function
- Works with Plug&Play and without installation software.
- Works with most WMS systems.
- Some WMS or POS systems must be set up to use a scanner.
- Device the scanner is connected to will see it as keyboard.
- Basically the scanner scans the 95% of bar codes, remaining 5% can be set as desired with this
manual.
- There are patented parts in the scanner, DTRONIC has the rights to sell these items on the
Dutch, Belgian and German market
1.2 Unbox
After opening the box containing the product, perform the following steps:
- Remove the scanner accessories from the packaging.
- Remove the scanner from the packaging.
- At the packing list, check that everything is complete and in good condition. If there are
damaged or missing parts, save the original packaging and contact DTRONIC for customer
service.
Packing list:
1. Handheld scanner
2. USB Connection Cable (for wireless scanners, this is the charging cable).
3. Paperclip
4. Abridged user manual
1.3 Start
Startup: connect the computer to the scanner. The computer will recognize it as a keyboard and the
scanner can be used.
Power off: remove the cable connected to the scanner; remove the USB connected to the
computer.
Restart: if the scanner crashes or is unresponsive, turn it off and restart it. Optionally, use the
factory setting from this manual
1.4 Window
The scanning window must be kept clean, the supplier does not bear the warranty responsibility
due to improper maintenance. Prevent the window from wearing out or being scratched by a hard
object. Use a soft cloth to remove stain on the scanning window. Clean the scan window with a soft
cloth, such as a lens cleaning cloth
Spraying liquid on the scan window is prohibited. Prohibit all cleaning solvents except cleaning
water.

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 6 van 58
1.5 Reading
If the bar code is small, it should be closer to the scan window; if the bar code is large, it should be
further away from the scan window for easier reading.
If the bar code is highly reflective (for example, the coated surface), you may need to tilt the bar
code at an angle to scan the bar code. The best distance to read a bar code is 10-15 cm
1.6 Picture
1.7 Led indicator
INDICATOR STATUS
EXPLAIN
Red light on
Charging
Red light off
No charging
Green light on
No decoding
Green light off
Decode succesfully
One blue light on
Pairing successful or connect to
USB

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 7 van 58
2. System Setup
2.1 System Setup

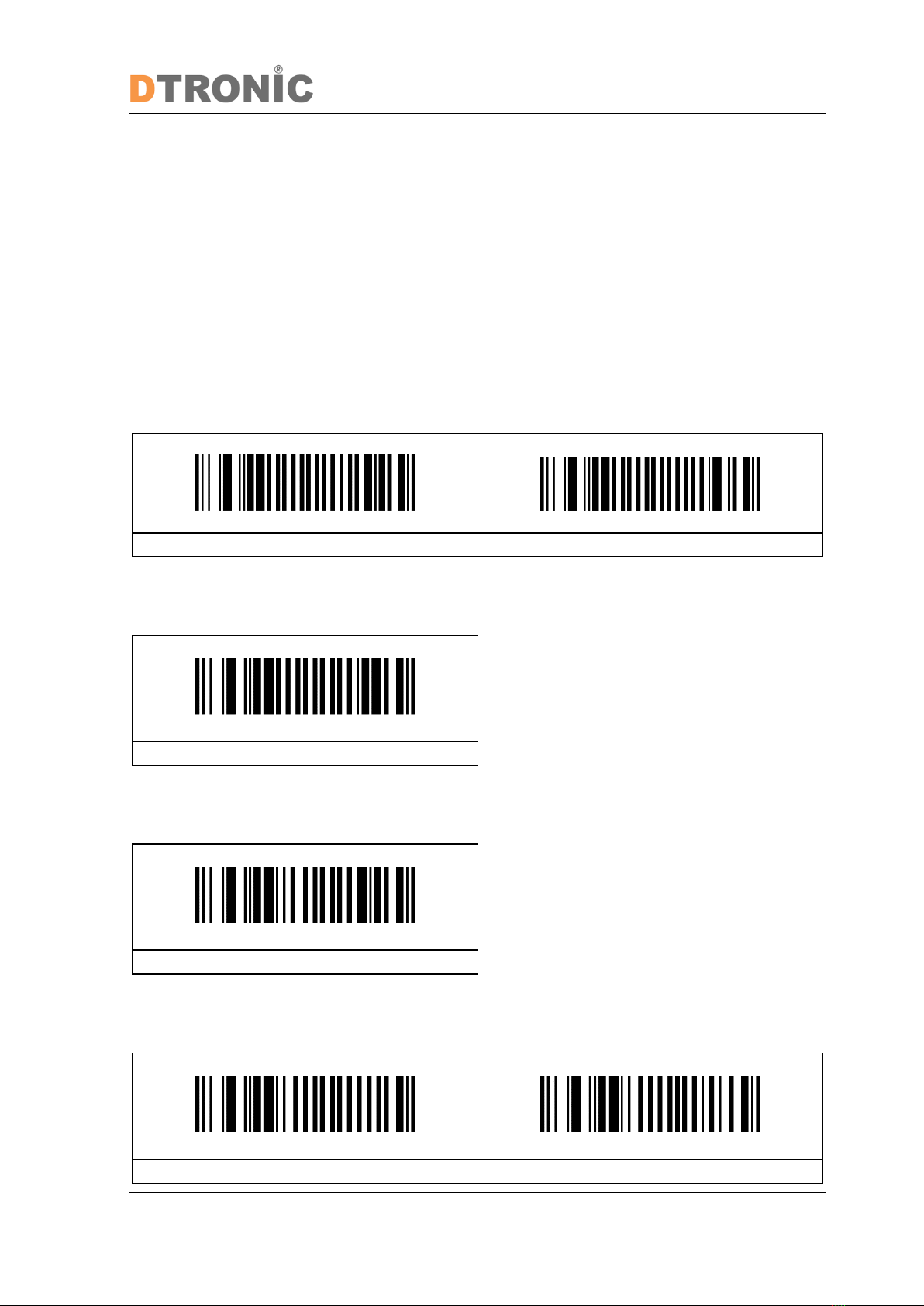

Option and function setting mainly by reading a series of special bar codes. In this chapter, we give
you a detailed introduction to the options and functions available for user setup and the
corresponding setup code.
This method of setting up the scan is direct, easy to understand and user-friendly.
2.1.1 Setup code
Startup settings (default)
Exit Settings
2.1.2 Restore factory default settings
Restore factory settings
2.1.3 Read version number
Read version number
2.1.4 Product User Settings
Save user default settings
Restore user default settings

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 8 van 58
2.2 Pairing bluetooth
1. Press the button on the scanner, the scanner turns on and a green light appears.
2. Connect the USB connector to the computer or laptop, wait a few moments for the
computer to find and actually see it.
3. At the bottom of the bar, right-click on the bluetooth icon.
4. Choose: Join PAN.
5. Put the scanner in connection mode, by holding down the scan button for 8 seconds.
6. Choose: Add device to PAN.
7. Computer finds the scanner as keyboard and is now in the list of connected devices.
8. Once again, put the scanner in connection mode by holding down the button for 8 seconds.
9. The scanner connects and everything works.
10. Open a WORD file and scan the barcode below to test.
11. Check that the number below also appears in WORD.

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 9 van 58
2.3 Wireless
Virtual Com-port
Quick Pair
2.4G Wireless
2.3.1 Bluetooth name
First scan the "Bluetooth name setting" and then scan another barcode that becomes the Bluetooth
name of this scanner.
NOTE:
The longest Bluetooth name can be 16 bytes. If the Bluetooth barcode is more than 16
bytes, the Bluetooth takes only the first 16 bytes as the Bluetooth name.
NOTE:
Full Bluetooth name format, including: Bluetooth name + protocol type, you can only
change the Bluetooth name. After you change the Bluetooth name, all Bluetooth
names with different protocol type will be changed at the same time. For example, you
can change the Bluetooth name in "HID mode" to "Scanner", then the Bluetooth name
becomes "ScannerHID". In SPP and BLE protocol, this is "ScannerSPP" and
"ScannerBLE".
HID coupling step 1:
1. After activation, the green light of the scanner always remains on;
2. Scan "Enter Setting" >> "Pair Mode" >> "Bluetooth HID Mode" >> "Exit Setting."
3. Now green remains on and two blue lights flash alternately.
4. When the blue and green lights are on and the buzzer sounds, pairing is successful.
HID pairing step 2:
1. After activation, the green light of the scanner always remains on;
2. Press the button for 8S.
3. Now green remains on and two blue lights flash alternately.
4. When the blue and green lights are on and the buzzer sounds, pairing is successful.
SPP pairing step:

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 10 van 58
1. After activation, the green light of the scanner always remains on;
2. Scan "Enter Setting" >> "Pair Mode" >> "Bluetooth SPP Mode" >> "Exit Setting."
3. Now green remains on and two blue lights flash alternately.
4. When the blue and green lights are on and the buzzer sounds, pairing is successful.
BLE pairing step:
1. After activation, the green light of the scanner always remains on;
2. Scan "Enter Setting" >> "Pair Mode" >> "Bluetooth BLE Mode" >> "Exit Setting"
3. Now green remains on and two blue lights flash alternately.
4. When the blue and green lights are on and the buzzer sounds, pairing is successful.
NOTE:
Double-clicking the button during connection exits "Pairing Mode"; if the pairing is not
established within a minute, "Pairing Mode" exits.
2.3.2 Led
Enable Aimer
Disable Aimer
Enable Illumination
Disable Illumination
Always off
Always on
Blink test mode
Disable blink test mode

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 11 van 58
2.3.3 Beeper Duration
Short
Normal
2.7Khz
2.3.4 Beeper settings
Volume set to High (50%) (default)
Volume set to midrange (25%)
Volume set to bass (12.5%)
2.4 Reading mode settings
2.4.1 Level trigger mode
Enter the reading state when the trigger key pin is at low level. Press and hold the trigger key to
start reading code. After reading the code successfully or releasing the trigger key, the code reading
ends and the next decoding needs to re-enter the low level state.
Level trigger mode
Sense mode

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 12 van 58
2.4.2 Continuous mode (default)
When the reading setting code is switched to this mode, it enters the continuous reading state. In
this mode, the "repeat read switch" can be used to prevent the same barcode from being read
more than once.
Continuous mode (default)
2.4.3 Time display
Enable
Disable
2.4.4 Auto Scan mode
Auto scan
Delay 50ms
Delay 100ms
Delay 300ms
2.4.5 Reread time out
1s
500ms (Default)

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 13 van 58
2.4.6 Code reading timeout
30sec
300sec
2400sec
2.4.7 One read timeout
One time reading timeout time, the unit is 0.1 seconds. The default value is 30 (3 seconds), when
set to 0, it means that the device is always in the reading state, and the time range can be set:
0~999.
Short time (3s)
In time (7s)
Long time (10s)
Valid only in "Level Trigger Mode" and "Pulse Trigger Mode".

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 14 van 58
2.5 Communication settings
2.5.1 Communication settings
USB HID (default)
Virtual Com
2.5.2 USB keyboard
Portuguese (Brazil) cannot output "?" and "/" .
Nederlands
Italian
Spanish (Brazil)
Portuguese
Portuguese (Brazil)
French
German (Austria)
Turkish Q

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 15 van 58
Turkish F
English (UK)
Japanese
German (Switzerland)
French (Belgium)
America
2.5.3 USB keyboard sending speed
If there is missed data at the receiver side, the occurrence speed should be turned down, which is
easy to occur at the receiver side with poor performance.
5 ms (default)
10 ms
20 ms

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 16 van 58
2.5.4 Set USB keyboard sending speed
USB keyboard send speed, unit is milliseconds (ms). The default value is 5ms, the settable time
range: 0ms~200ms.
Set USB keyboard sending speed
Setting the USB keyboard to send speed of 50ms can be set by reading the following barcodes in
order.
1. Read "Startup Settings"
2. Read the "Set USB keyboard send speed" setting code
3. Read data code: "5" "0" (see data code table)
4. Read "Save" (see data code table)
5. Read "Exit Settings"
2.5.5 Control Characters
Specific reference to the control character table, only the data content of the barcode is converted.
Alt + Keypad mode
2.5.6 Serial communication settings
Stop bit 1
Stop bit 2

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 17 van 58
2.5.7 Serial port baud rate setting
Baud rate 4800
Baud rate 9600 (default)
Baud rate 19200
Baud rate 38400
Baud rate 57600
Baud rate 115200
2.5.8 Serial port output
UTF-8
GBK
Serial output according to barcode content
2.5.9 Serial port parity bit setting
No checksum (default)
Odd calibration

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 18 van 58
Even Check
2.6 Data format setting
Length of custom prefix and suffix: (0~10) characters, if set to "on", "Code ID prefix", "custom
prefix", "end suffix", etc. will be added before and after the decoding information. "Custom suffix",
"End suffix", etc.
The maximum number of data cache is 5, and the maximum length of individual data is 7900
characters; the data output is sequential output, and you need to wait for the first barcode output
to finish before the second barcode output, and so on.
2.6.1 Hide characters
Hide from start
Hide from the end
1
2
3
4

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 19 van 58
2.6.2 Custom prefix on/off settings
Custom prefixes add a user-defined string before the decoded information. For example, if you
allow to add a custom prefix and set the prefix to the string "AB", after reading the barcode with
the data "123", the scanner adds the string "AB" before the string "123", and the host side receives
"AB123". After the barcode reading data is "123", the scanner will add the string "AB" before the
string "123", and the host side will receive "AB123".
If set to "Off", the decoded information will only have the barcode data information, no prefix, and
the default value is to turn off the custom prefix output.
Add custom Prefix
Add custom suffix
2.6.3 Customized prefixes
The custom prefix adds a user-defined string before the decoded information, and the output
format after customization is "Custom Content + Barcode Content".
Set the custom prefix to 'a' (the hex value of a is 0x61)
1. Read "Startup Settings"
2. Read the "Custom Prefix" setting code
3. Check the ASCII code of the character "a": the ASCII code of "a" is "0x61" (see ASCII code table)
4. Read data code: "6" "1" (see data code table)
5. Read "Save" (see data code table)
6. Read "Exit Settings"
Customized prefixes
2.6.4 Custom suffixes
Custom suffix adds a user-defined string after the decoded information, and the output format
after customization is "barcode content + custom content".
Set the custom suffix to 'a' (the hex value of a is 0x61)
1. Read "Startup Settings"
2. Read the "Custom Suffix" setting code
3. Check the ASCII code of the character "a": the ASCII code of "a" is "0x61" (see ASCII code table)
4. Read data code: "6" "1" (see data code table)
5. Read "Save" (see data code table)

User manual ‘DT3422’
Datum : feb-2024
Versie : 1.0
pagina 20 van 58
6. Read "Exit Settings"
Custom suffixes
2.6.5 Terminator settings
The terminator suffix is used to mark the end of a complete piece of data information. The
terminator suffix stands alone and does not participate in any other form of data formatting. The
terminator suffix must be the last piece of data sent, and no additional data will be added
thereafter.
The ending character can be set to carriage return, line feed, carriage return line feed, tab or ETX,
and the default ending character is set to carriage return.
No terminator
Enter (default)
Line Feed (Down)
Carriage return + Line feed (Enter+Down)
Tab
ETX
2.6.6 CTRL + X
Non- printable
ASCII control characters
Keyboard Control + ASCII ( CTRL+ X) Mode
Control + X Mode Off
Windows Mode Control + X
Mode On
