DTS Ice Bank User manual

*Model may differ from the one shown here

2
Safety requirements ...................................................................................................................................................3
Before you start............................................................................................................................................................3
Checklist..................................................................................................................................................................3
Suitable water for the ice bank.......................................................................................................................4
Powering on the ice bank.................................................................................................................................4
Building the ice .....................................................................................................................................................5
At milking........................................................................................................................................................................5
Cleaning the water filter....................................................................................................................................6
Controller settings for limited power supply environments.................................................................7
At the end of the season...........................................................................................................................................7
Troubleshooting ...........................................................................................................................................................8
Warranty ........................................................................................................................................................................8
Please cut out the instructions on the final page of this guide, and affix them to the
office or shed wall.
© 2017-2019 Dairy Technology Services (DTS) Limited.
All product names and brand names in this document are trademarks or registered trademarks of their respective holders.
No part of this publication may be photocopied, reproduced, stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of DTS Limited. Product
specifications may change without prior notice.
For more information on other quality DTS products, visit www.dts.co.nz
DTS Limited
38 The Boulevard
Te Rapa
Hamilton 3200
New Zealand
Postal address:
Private Bag 20502
Te Rapa
Hamilton 3241
New Zealand
Although the information presented in this product document is believed to be accurate and reliable, no responsibility for
inaccuracies can be assumed by DTS Limited. DTS Limited reserves the right at any time to change characteristics or specifications
without notice.
910036 Issue 4 08/2019
DTS Limited, 2019. All rights reserved.

3
This product contains electrical equipment and pressurised refrigerant gases. Repair,
maintenance, commissioning and decommissioning may only be carried out by people
appropriately licensed/registered to perform electrical installation work (wiring) and the
handling of refrigerant gases.
This equipment is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the equipment by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the equipment.
Warning! The ice bank is heavy. Always use appropriate hoisting equipment.

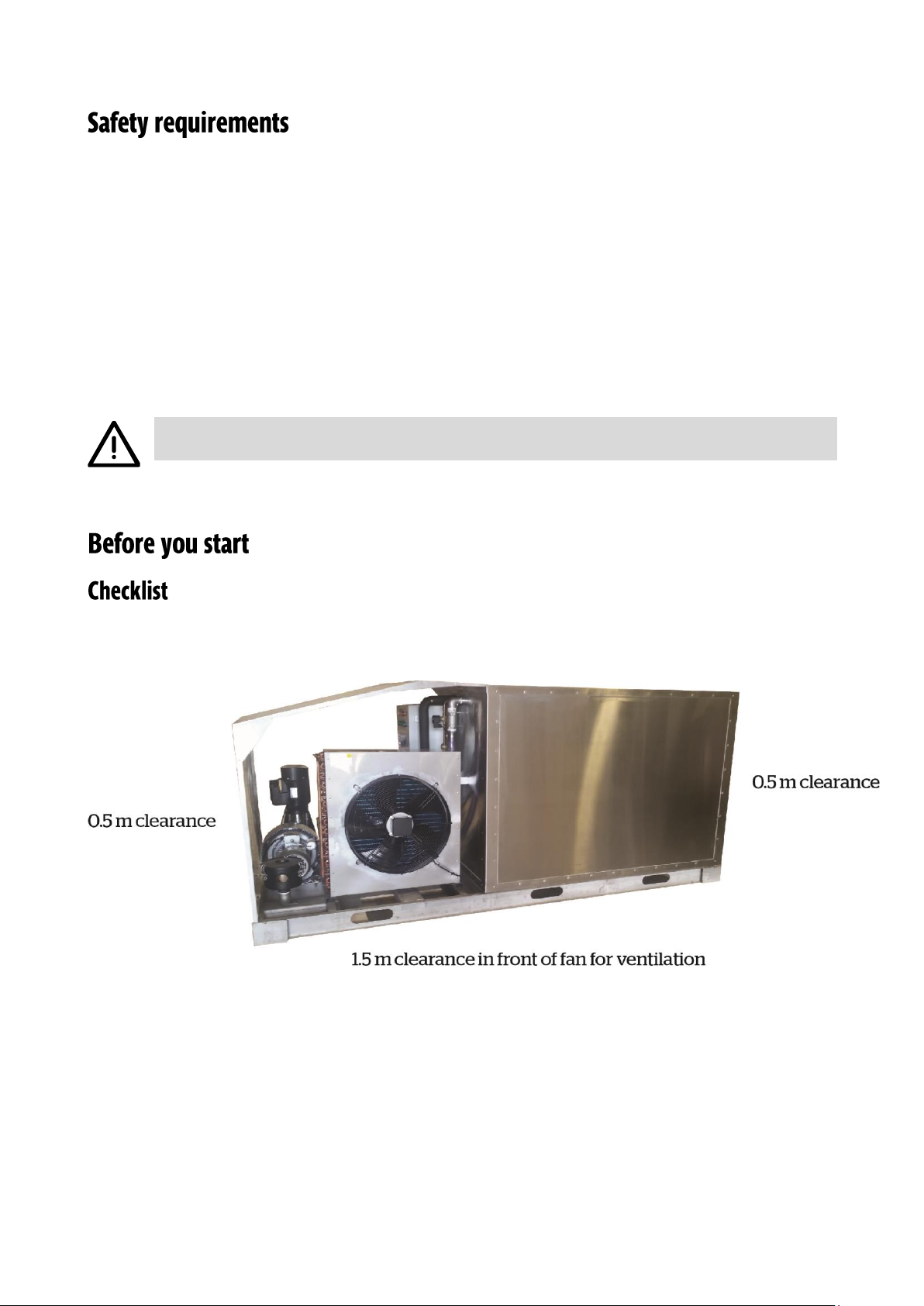

1Check that the ice bank will have enough clearance around it to allow for good air flow.
2Ensure the drain is where you want it to be.
3Fill water to the top of the cross-bars of the plate bank. Put the lid on the ice bank.

4
Fill the ice bank with clean, fresh water (rain water if possible). Do not use bore
water that is visibly discoloured or causes iron staining.
Water with high dissolved solids may alter the ice making process, reduce the ice yield and
interfere with the ice sensing circuit that controls the ice bank.
Water with extremely low dissolved solids (e.g. some reverse osmosis treated water) may also
prevent the ice bank from running as there won’t be a conductive path across the probes of the
ice bank sensor.
1Bleed the water pump and check all valves are open (except the drain valve).
2Before powering on the unit, check that the cooling and chilled water pump switches are in
the OFF position.

5
3Power on the ice bank and check that the white power light is ON. If not, check the circuit
breakers in the control cabinet.
1Rotate the cooling switch to ON. This will start the bubble pump and compressor. Allow a
short time delay before the compressor starts.
2The bubble pump will run when the water temperature is between 16 °C and 4 °C, and then
it will switch OFF automatically. The compressor will keep running to make the ice needed.
3The compressor will turn OFF when the ice thickness sensor is covered with ice.
1To begin the cooling process for milking, rotate the chilled water pump switch to ON. Or, if
installed, use the remote switch to turn the unit ON. This will start the bubble pump and
water pump, and deliver chilled water to the plate cooler.
2At the end of milking, turn the chilled water pump switch to OFF.
For best performance, the ice should be fully melted at the end of each milking.
The ice sensor can be moved to optimise the ice build-up. If it is closer to the plates, it will build
up less ice. Do not set more than 40 mm away from the plates.
At the start and end of the season, if the ice is not fully melted on minimal settings, it is
recommended that the cooling switch is turned OFF between morning and afternoon milkings
and the sensor position adjusted for the cooling load.

6
You can use the timer to switch the cooling ON/OFF for certain times in the day.
It is recommended that the water filter is checked and cleaned after the first week
of the season. Debris that may have built up during the off season will have been
flushed through, and these will affect the ice bank performance if not removed.
Before you get started, have a bucket of clean water on hand. This will be used to clean the
rings around the cylinder which is housed inside the water filter.
1Unscrew the cap off the water filter and pull the cylinder with the orange rings out.
2Unscrew the cap off the cylinder. Be careful not to drop the rings on the floor!
3Slide the rings off the cylinder and into the bucket of water.
4Clean the rings in the water and put them back on the cylinder. Screw the cylinder cap
back on.
5Put the cylinder back into the water filter and screw the cap back on.

7
The ice bank is supplied with the controller preset. If power supply is limited, it is possible to
set up the ice bank so that the refrigeration doesn’t run at the same time as the milking plant.
Set this up before milking:
1Ensure the mains switch is ON.
2Rotate the chilled water pump switch to ON. This activates the pump for milk cooling.
At this point the ice should have built up.
3Rotate the milk cooling switch to OFF.
This will stop the compressor running during milking.
4At the end of milking, turn the chilled water pump OFF and the milk cooling switch back ON
so that ice making can resume.
The chilled water pump switch must always be OFF when doing a hot wash, or the
wash will not be effective.
1Turn the cooling switch and chilled water pump switch to OFF. Drain the ice bank.
2Turn the main power OFF.
3Check and clean air and water filters and drain water from the pump bleed.
4Check that there is no debris in the tank.
5If you are restarting for the new season, see Powering on the ice bank on page 4.

8
1Check the thermal overloads inside the control cabinet and press the green button/s to
reset.
2Check the HP switch and reset it.
1Check that the chilled water pump is operating. Lift the lid and look into the tank. Water
should be flowing into the tank.
2Check that there are no restrictions in the plumbing system. This will prevent adequate
water flow from the pump.
3Check and clean the water filter. See Cleaning the water filter on page 6.
4Bleed the air from the water pump. Check that the time switch is not set to OFF. It should
be set to ON or AUTO if using the timer function.
For more information see www.dts.co.nz
