Duosida SES-32-3 User manual

1
CHARGING STATION INSTALLATION MANUAL
2020-7-22 The Fourth Edition
EN

2
CONTENTS
Safety first
1. Safety and user information 4
2. Installation requirements 8
3. Dos and don'ts 9
4. Installation notes 10
5. Cleaning and maintenance 11
Introduce
1. Product information 13
2. Spec and dimensions 14
3. Drawing 15
4. Mounting plate 16
5. Expansion bolt 17
6. Charging pile housing 18
7. Charging plug 19
8. Style 20
The installation procedure
1. Installation tools 23
2. Installation process 24
Contact
1. Contact information 28

3
Safety first
1.Safety and user information 4
2.Installation requirements 8
3.Dos and don'ts 9
4.Installation notes 10
5.Cleaning and maintenance 11

4
1. Safety and user information
Please observe all safety and user information，
Relevant local regulations for operating electrical
devices always apply.
Indicates：Risks arising from damage to the device
Risks for other users
Indicates：Dangerous electrical currents,
Dangers to life and limb
Indicates：important information and
particularities
1.Suitable for garages,carports or outdoor as well
as for underground parking garages, apartment
blocks, hotel parking lots.etc..
2.For wall mounting or freestanding with matching
Duostar stainless column,
3.IP class: IP 55(Splash-proof)

5
1. Safety and user information
Charging station should not be directly exposed to
sunlight
The installation site must offer protection against
rain and running water or other liquids
Keep away from fire to ensure personal safety
The installation site must offer sufficient space
We recommend that this product be installed in a
place that is rainproof and sun proof, or it can be
equipped with protective function. This can reduce
the possibility of failure and extend the life of the
product. If you need support, please contact your
supplier.

6
1. Safety and user information

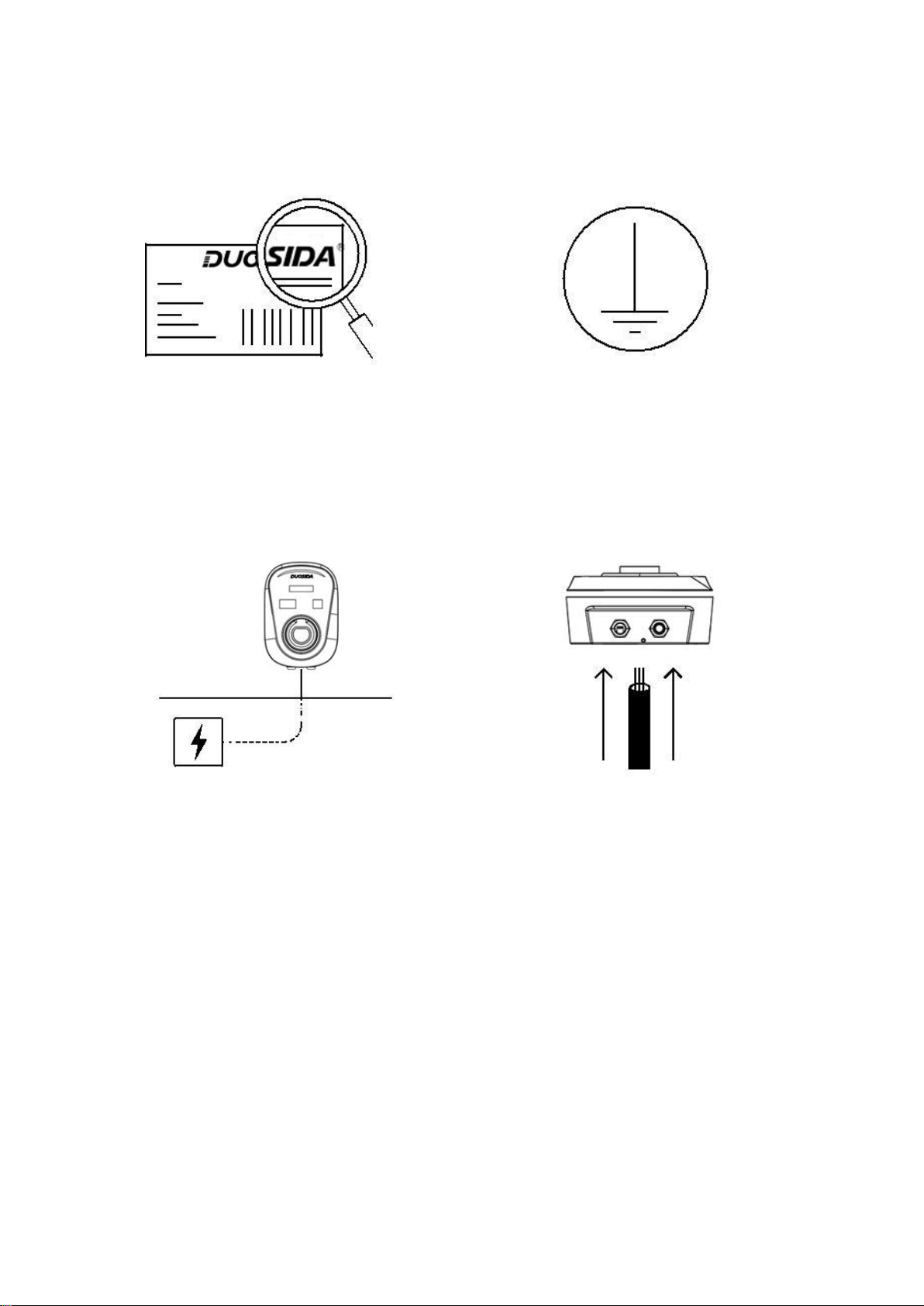

The rated voltage must Charging station must be connected
be observed. to a protective earth conductor
1.Ideally, the installation site should 1.Ideally, cable entry is from
already provide for connection the underside of the
to the electricity grid. housing base
2.Otherwise, a power supply cable 2.Above or below surface
must be installed especially power supply possible
3.If unsure, please contact your
Specialist electrical contractor

7
1. Safety and user information

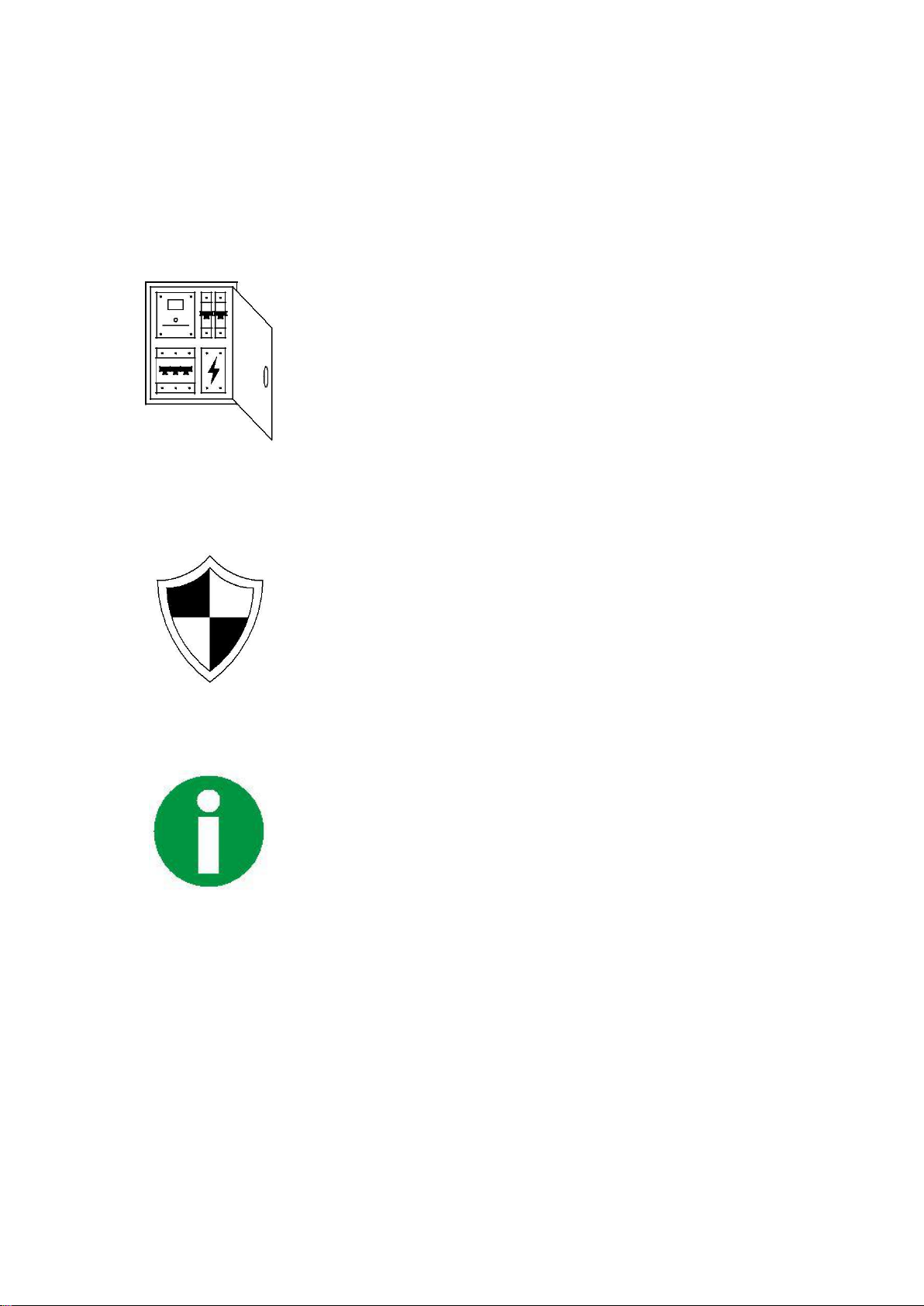

The power supply in the domestic power
distribution box must be protected separately
by a suitable and accurate dimension miniature
circuit breaker (C characteristic)
Complies with all technical safety requirements,
standards and guidelines.
Represents the current state of technology
DC fault current detection is required by law in
many countries

8
2..Installation requirements

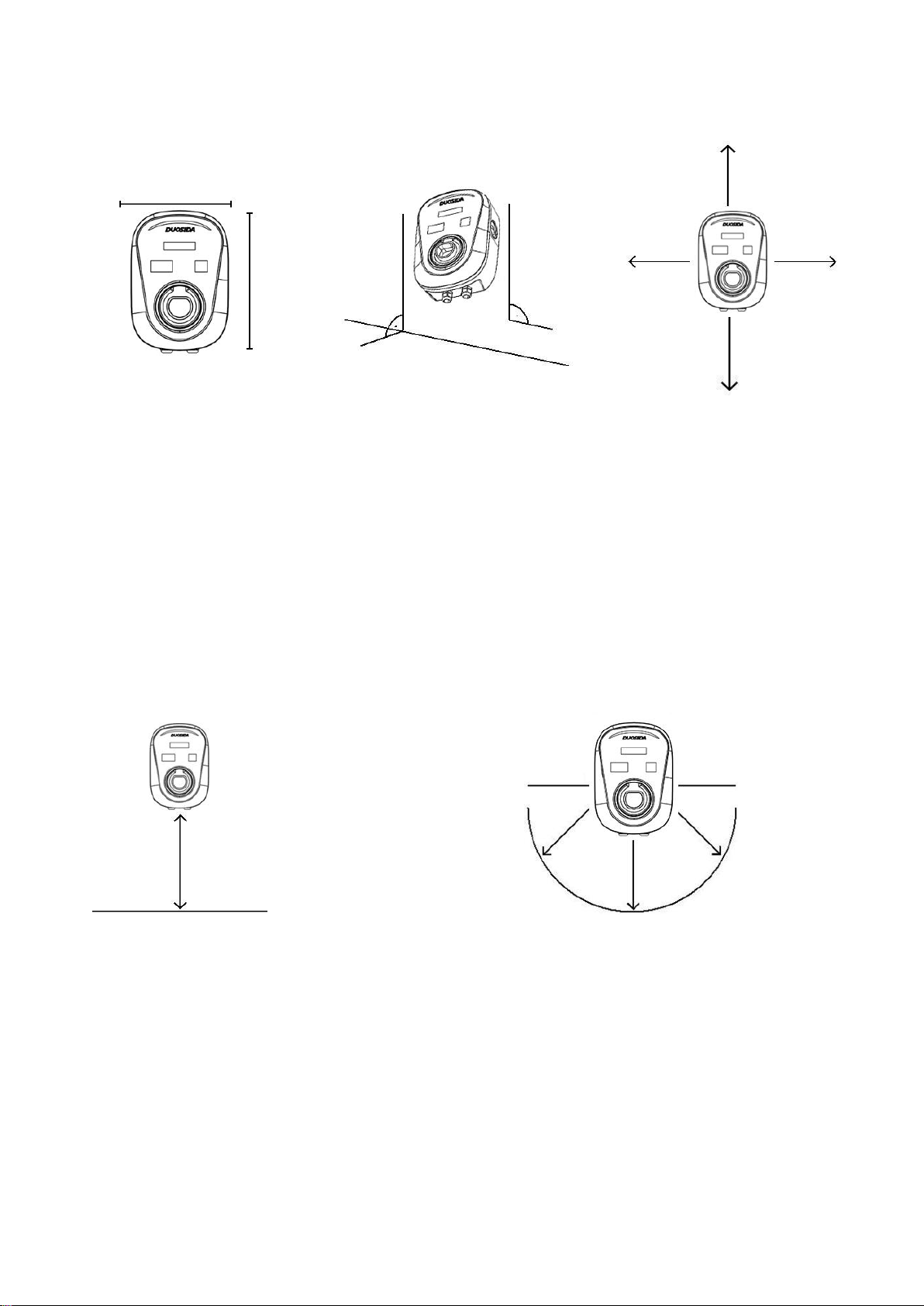

The installation surface The mounting substrate Minimum distances
measures at least must be level and firm to other technical
262 x 222 mm installations must be
(height x width) observed
The installation height is The installation site must be freely
be-tween 140 and 160 cm accessible
(floor to bottom edge of housing)

9
3.Dos and don'ts
The charging cable must not be The charging cable and the charging
Under strain during the connector must not be driven over
charging process
The charging cable must not The charging cable must be coiled
be kinked or twisted tightly and stored.

10
4.Installation notes
(De-)installation and repairs must only be
carried out by a specialist electrical contractor
No modifications must be made to the
charging station
None of the components need to be
maintained by the user
Different model has bit difference in size ,
appearance and function , The charging
station can be installed by yourself according
to the following installation procedure

11
5.Cleaning and maintenance
Charging station must only Maintenance must be checked
be cleaned using a dry cloth regularly
Cable must be checked regularly if there is any
damage or aging phenomenon

12
Introduce
1.Product information 13
2.The dimensions 14
3.Drawing 15
4.Mounting plate 16
5.Expansion bolts 17
6.Charging station housing 18
7.Charging plug 19
8.Style 20

13
1.Product information

14
2.The dimensions

15
3.Drawing

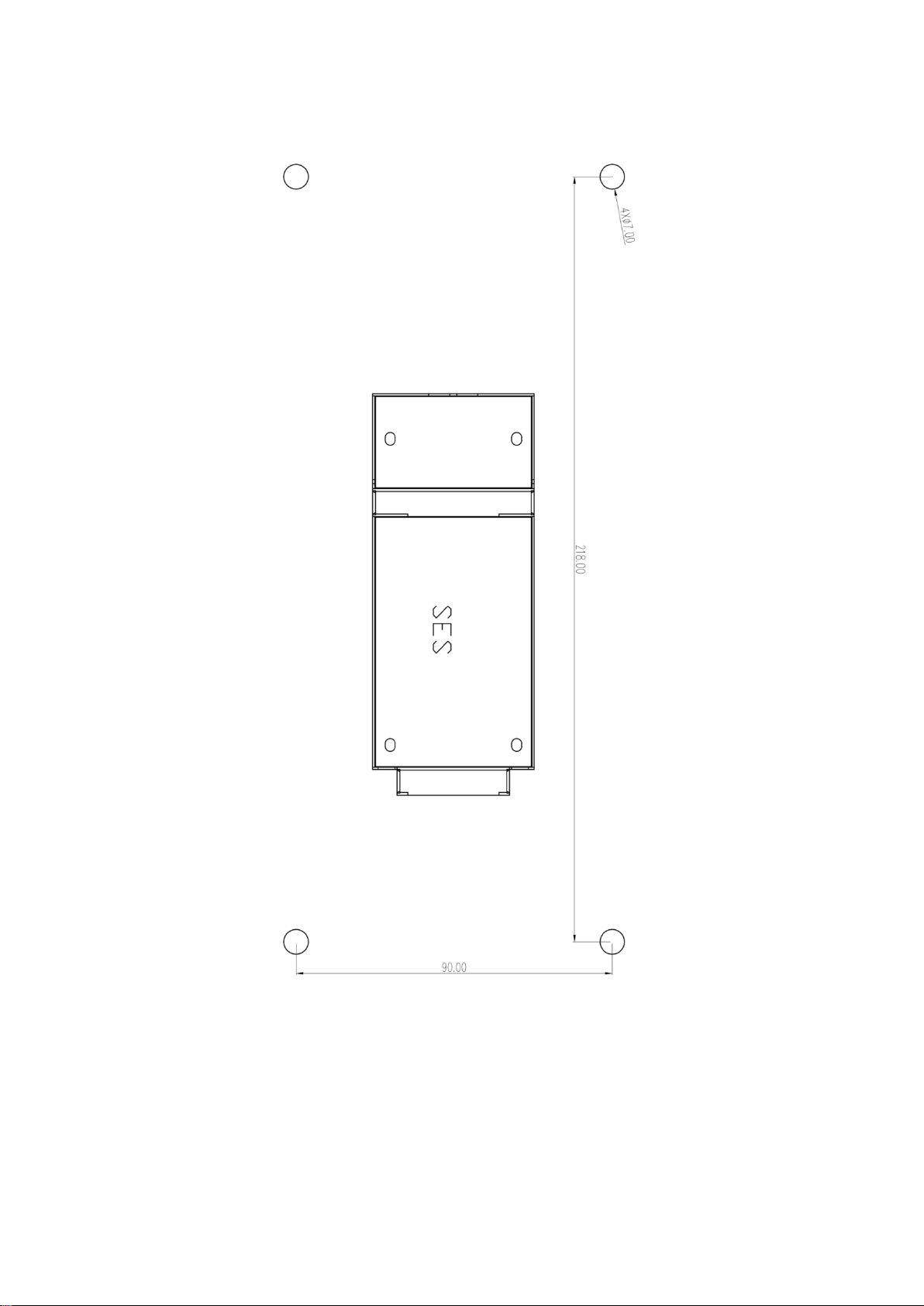

Installation drawing

16
4.Mounting plate
Mounting plate
Fixed behind the charging station
housing
Mounting plate
Fixed to wall

17

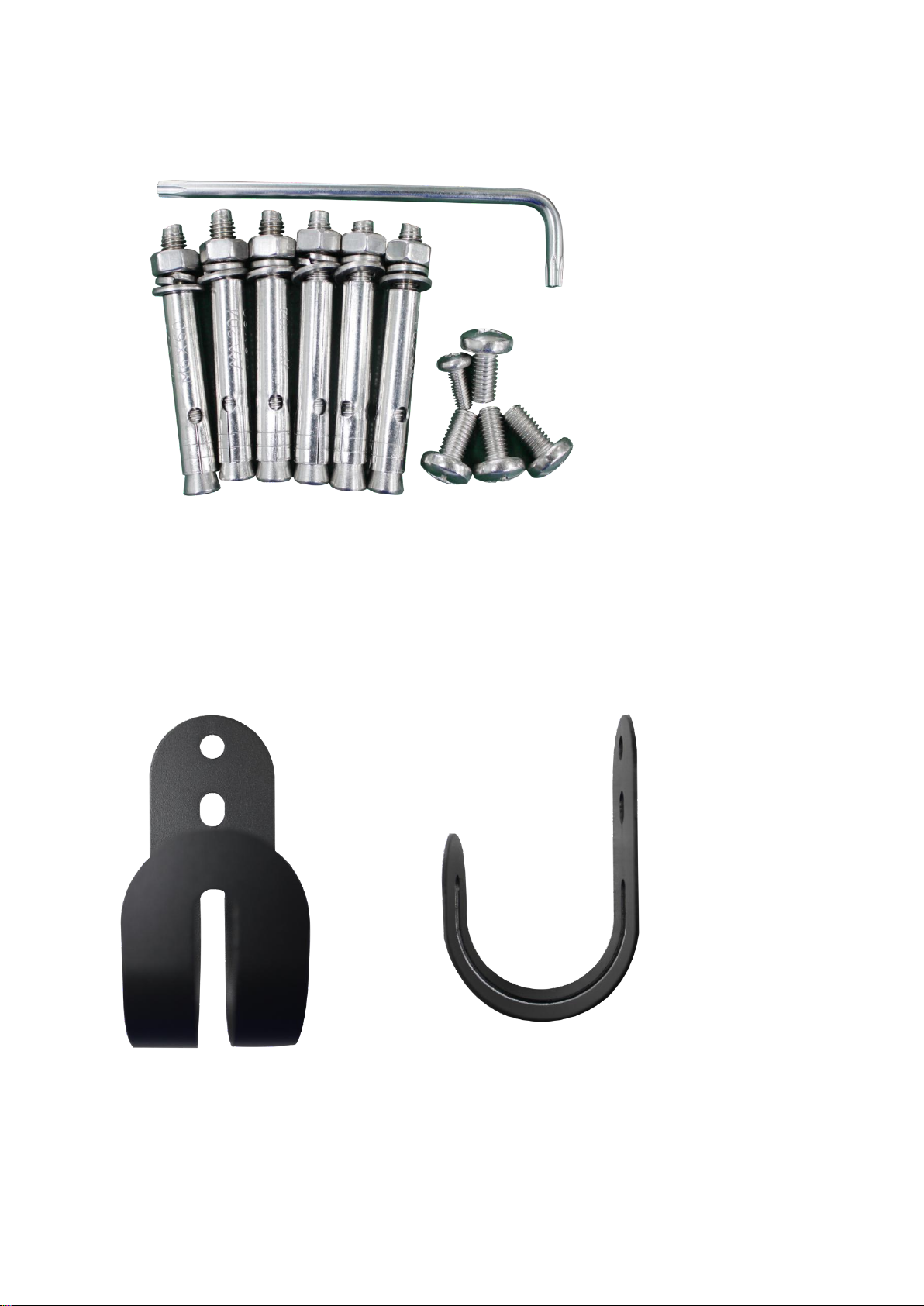

5.Expansion bolts and screws
Screws and tools for fixing charging station
Hook: it is used to wind and fix charging cable

18

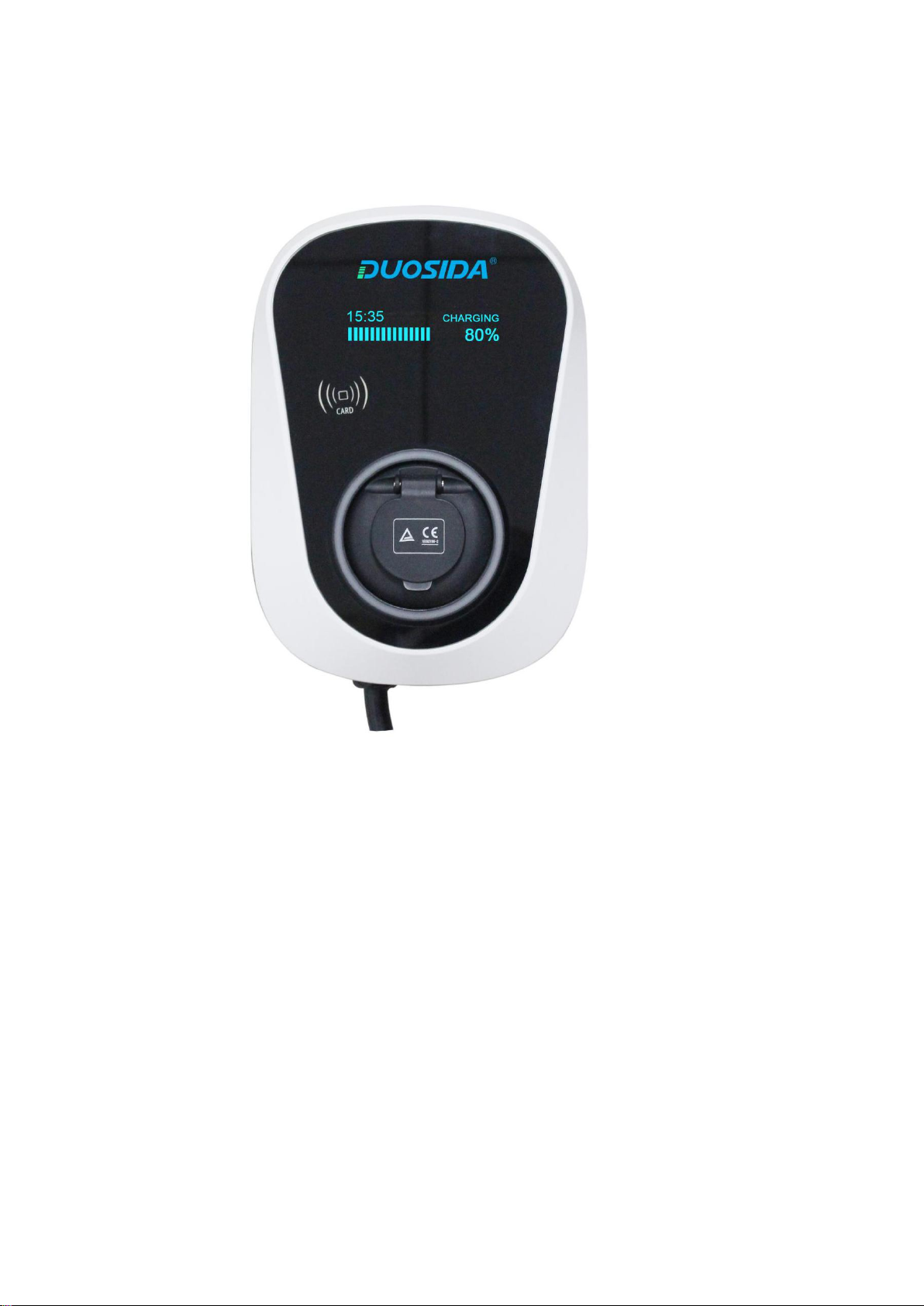

6.Charging station body
Charging station body

19
6. Charging plug
V4-DSIEC2b-EV32P V4-DSIEC2e-EV32P
Charging gun : Provide 16A / 32A for choosing
Superior protection performance, the protection
level reaches IP54 (working state)

20
8.Style - wall mounted
Technical specifications:
Installation method: wall mounted
Maximum power: 22W
Communication interface: (optional)
GPRS WIFI RFID
Outdoor protection:
Without power supply - the waterproof protection
grade can reach up to IP55
With power supply-The waterproof protection grade
state can reach up to IP54,under coupling state
Safety regulation: Meet IEC 61851 and IEC 62196
Operating temperature:
ambient temperature - 30 ℃ to 50 ℃
Output type:
EN 61851-1 MODE 3
22KW：400VAC@32A
Basic functions:
Starting mode: charge when plug
Optional：RFID Card
Reminder function: charging indication and fault
indication
Self-test function: fault self-position (can be checked
in the background after being networked)
Human-computer interaction:
Optional: LED display No Led display
Safety protection:
Double leakage detection and protection
Emergency stop button protection
Over current, over voltage, under voltage and over
temperature protection
Data record if Power off (can be checked in the
background system if being networked)
Surge protection meets the latest IEC 61851 standard
EMC meets the latest IEC 61851 standard
