Duracable DM140 User manual

Right in there with you.
dm140
stop Read manual before operating
keep manual for future reference

DM140 MACHINE MANUAL
2
Table of Contents
2Warranty, Parts and Service
3Safety Labels
4-7 DM140 Information and Specifications
8-9 DM140 Machine Schematics and Parts List

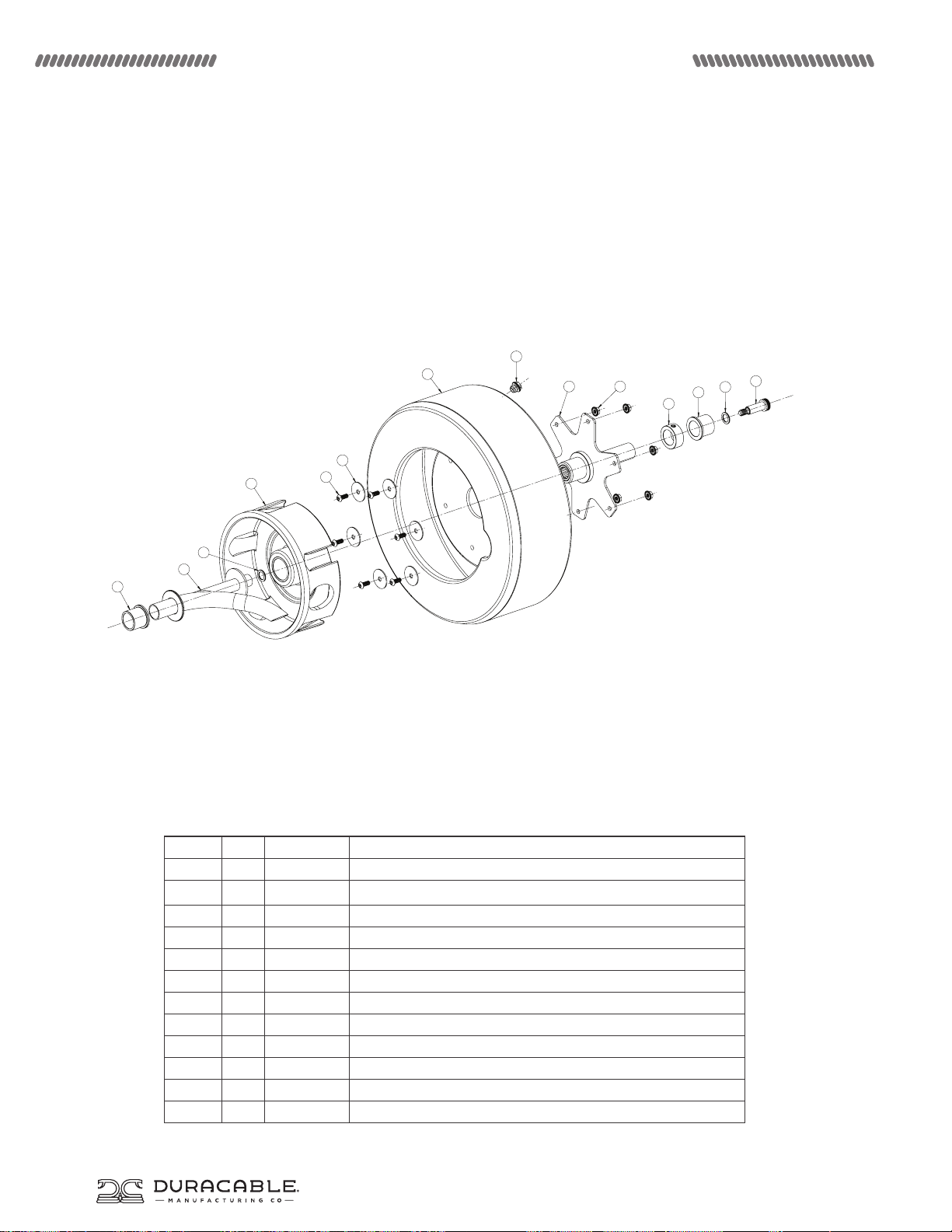

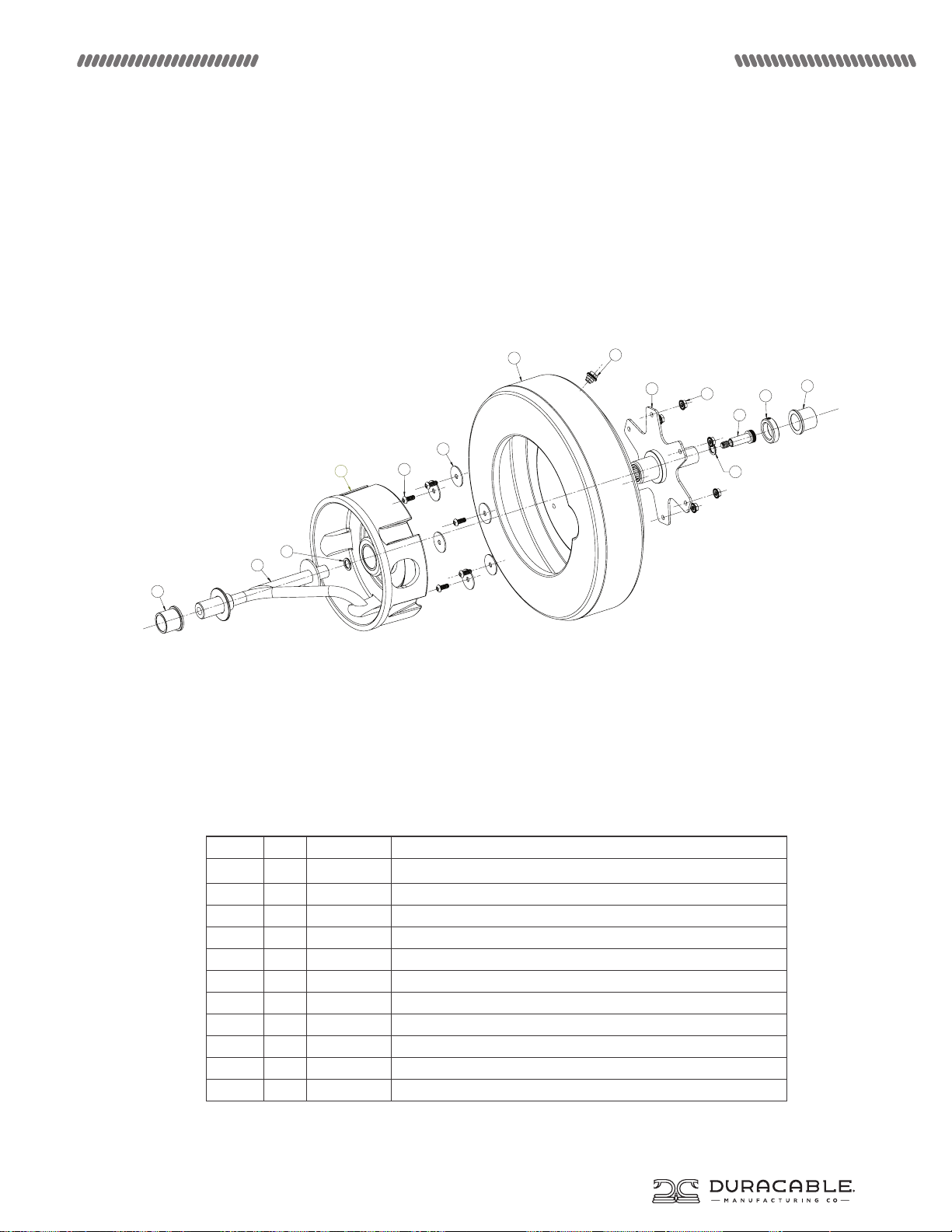

10-11 DM140 Reel Schematics and Parts List

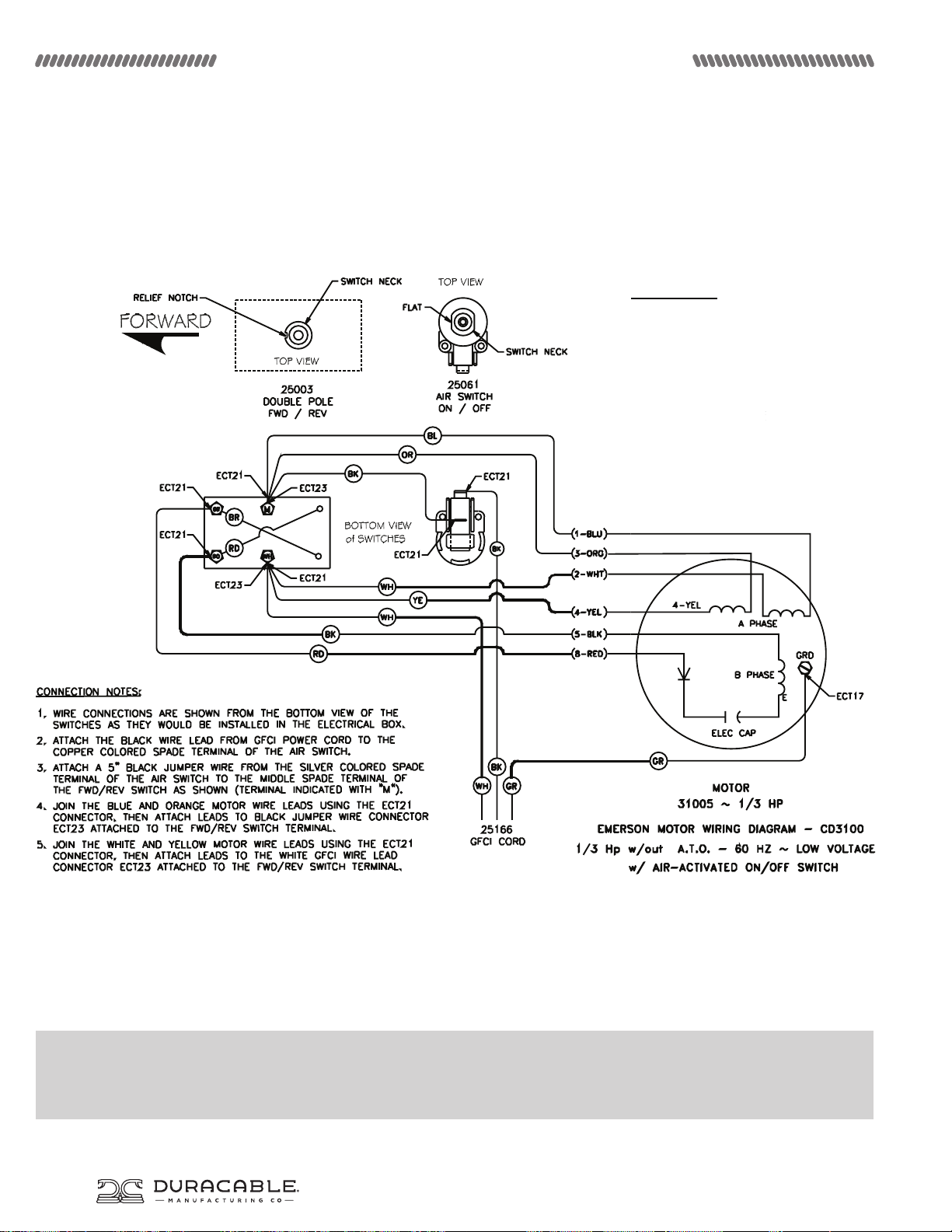

12-13 DM140 Electrical Schematics and Safety Information

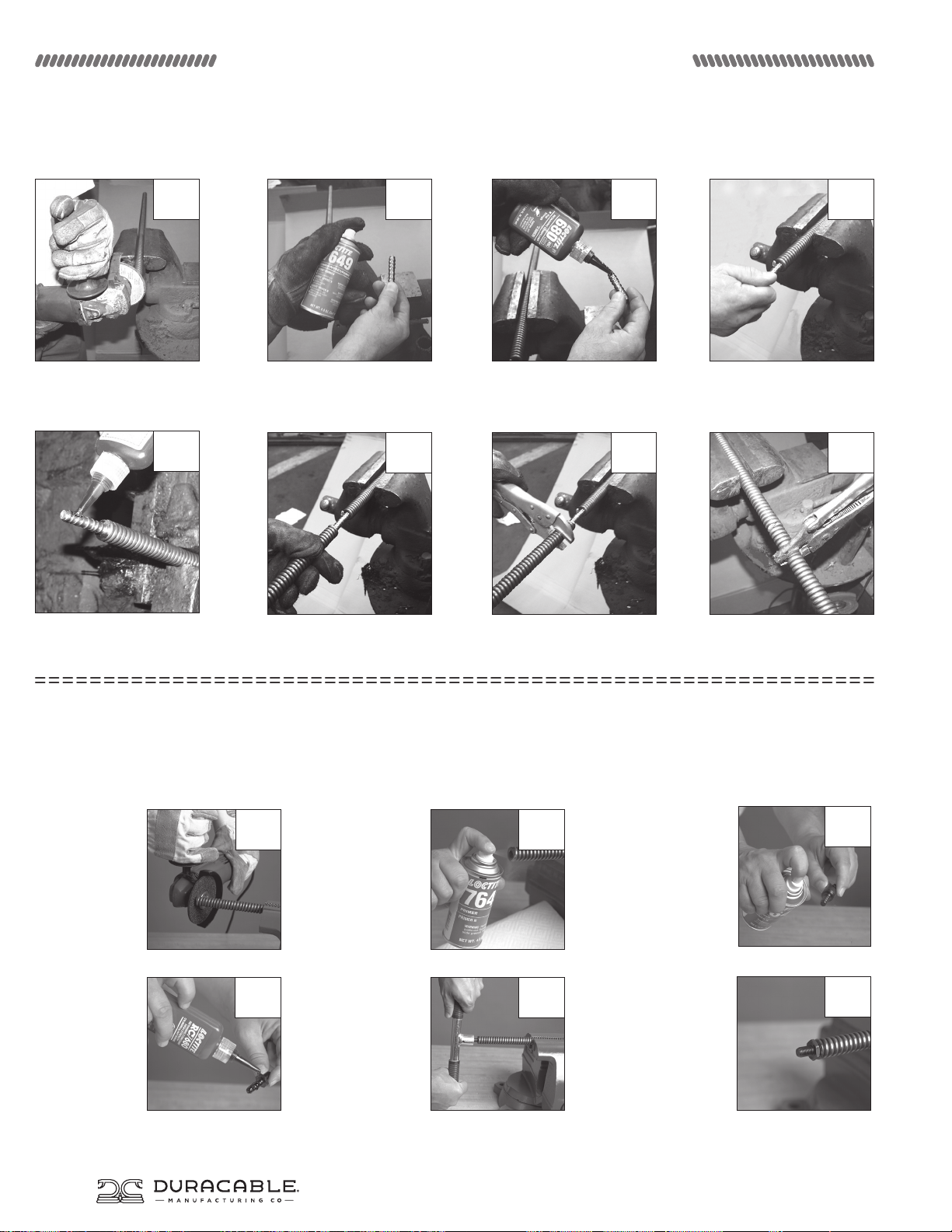

14 How to Splice DuraFlex®Cable and How to Bond End Fittings
WARRANTY
Duracable Manufacturing Company warrants the DM140 machine to be free from defects in material and workmanship for a period of two years
from the date of purchase. Warranty service can be obtained by contacting Duracable Manufacturing Company at the address listed below. If a defect
is covered by warranty, Duracable Manufacturing Company will repair or replace the defective machine or component without charge for labor or
materials (freight is not included).
Warranty of the machine is limited to the original purchaser. Duracable Manufacturing Company assumes no responsibility for damage or injury from
accident, neglect, abuse, misuse or from damage due to repair or alterations by others. This warranty does not cover damage to the machine from use
of parts other than genuine Duracable brand parts.
Duracable Manufacturing Company’s sole obligation and the original purchaser’s sole remedy under this warranty shall be for repair or replacement
as described above. All other warranties, expressed or implied, including but not limited to, implied warranties of merchantability and fitness for a
particular purpose, are disclaimed. In no event shall Duracable Manufacturing Company be liable for any incidental or consequential damages.
PARTS AND SERVICE INSTRUCTIONS
Parts can be purchased from Duracable Manufacturing Company. Service work is also available. Service is performed by trained factory personnel.
Machines sent to the factory for evaluation and repair can be estimated and quoted prior to service work. When sending a machine, be sure to include
the return address and include instructions on how the repair should be handled.Instructions can either be included with the machine,explained to your
account manager over the phone [phone]), or faxed (515-223-6109).
IMPORTANT
Keep this manual in a safe, convenient place for future reference. Important information about this machine, its diagrams and warranty information are
included in this manual.
Serial Number: Date of Purchase:
Duracable Manufacturing Company
300 Ashworth Road • West Des Moines, IA 50265

DM140 MACHINE MANUAL
3

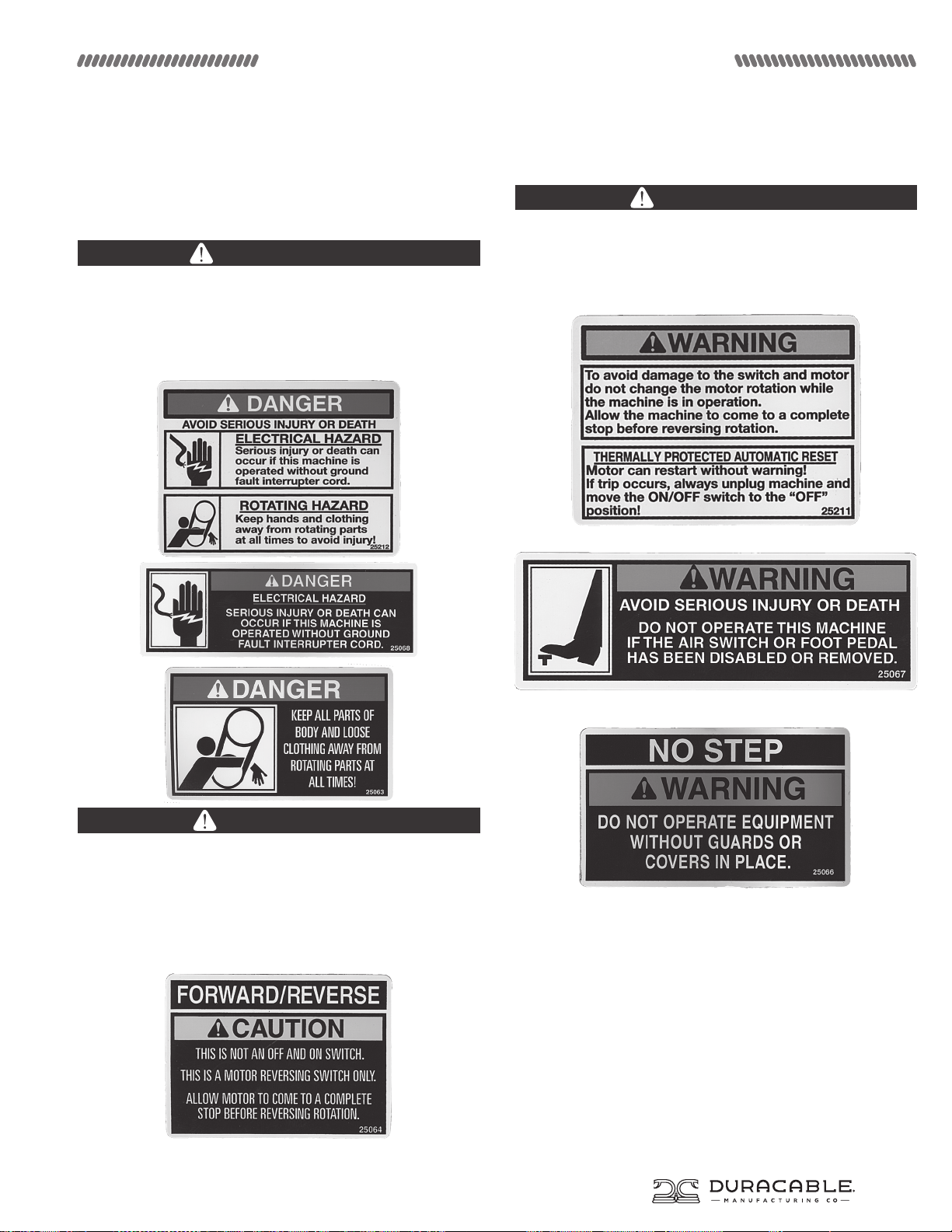

Safety Labels
Duracable Manufacturing uses three signal words on its
safety labels and instructions. These words have the following
definitions:
A ‘Danger’ label indicates an imminently hazardous situation
that, if not avoided, will result in death or serious injury. This
signal word is to be limited to the most extreme situation,
typically for machine components that, for functional purposes,
cannot be guarded. The word ‘danger’ will be in white letters on
a red background.
A ‘Caution’ label indicates a potentially hazardous situation that,
if not avoided, may result in minor or moderate injury. It may also
be used to alert against unsafe practices. The word ‘caution’ will
be in black letters on a yellow background.
The safety label format includes the signal word and symbol, a
picture (not required), and the message.
A ‘Warning’ label indicates a potentially hazardous situation
that, if not avoided, could result in death or serious injury, and
includes hazards that are exposed when guards are removed.
It may also be used to alert against unsafe practices. The word
‘warning’ will be in black letters on an orange background.
DANGER
WARNING
CAUTION

DM140 MACHINE MANUAL
4
Safe Machine Operation
Read this machine manual thoroughly before assembling or
operating the machine. Become familiar with its controls and
proper use before operating. Keep this manual in a handy place
for reference and parts replacement referral. This machine is
designed specifically for the purpose of opening and cleaning
drains. Use it for this purpose - do not use it for other purposes.
Use gloves to protect your hands. Wear them to feed and
retrieve cable. Use a material that can not be easily grabbed by
the cable. Most leather gloves and certain rubber gloves work
well.Duracable Manufacturing Company has each type available
through the Duracable Product Catalog. Also, avoid the use of
loose-fitting clothes or jewelry when operating this machine.
Keep guards in place to protect the operator from the electric
motor and electrical wiring. These guards are for safety
protection and must be in place when running the machine.
Each machine is equipped with an air foot pedal or toggle on/
o switch. The pedal allows the machine operator to turn the
machine on or o with the foot while keeping both hands on the
cable.
Select a work area free from obstruction with room to work.
Keep the machine within three feet of the pipe opening, allowing
only enough room to work. This is required to shorten the length
of exposed cable, thus providing maximum control in high-
torque situations. Take a position that is comfortable to the left
or right side of the machine for feeding or retrieving cable. For
high work openings, the machine can be placed on its back as
conditions require.
When performing a job, use the smallest blade first. Rinse the
pipe after each blade is run through the line in order to clean out
loosened debris. Then follow with the increasing sizes of blades
until the size used is one that actually scrapes the side of the pipe
or sewer. The cutting blades are flexible and can be compressed
to enter most cleanout openings. Centrifugal force created by
the spinning cable forces the blades to expand to their natural
diameter or to the walls of the pipe. It is advisable to maintain a
very keen cutting edge on the blades at all times.
Place two hands on the cable between the outlet of your
machine and the cleanout, and keep them there at all times
during operation. Your hands placed in the proper position will
provide a guide for the cable.
As the blade makes contact with an obstruction in the line, it
stops the blade from turning and builds torque in the cable.
Do not permit the blade to get hung up in an obstruction for
more than three seconds. Torque buildup can be both helpful
and dangerous. It is helpful when pulled from the obstruction
in a timely manner. When the cable is pulled away, the tension is
released and the blade turns at a high speed. When the blade is
free, feed it back into the obstruction to make use of the built-up
power to clean the line. It is dangerous because excess torque
can cause looping over of the cable. Serious injury to fingers
and hands is possible unless precautions are observed. When
retrieving cable from the line, feed the cable into the machine
until the blade is close to the cleanout opening. Shut o the
machine and hand-feed the remaining cable into the machine.
Unpacking Your Machine
The Model DM140 is shipped to you fully assembled and ready
to use. The base machine, reel, cable, and the revolving arm are
all included. When the machine arrives, remove it immediately
and inspect for damage. If any of the contents are damaged,
contact your motor freight carrier immediately.
Lubrication Maintenance
Caution: Do not over oil these points.
• Reel Shaft and Reel Bearings - Check and re-tighten set screws
during the first 24 to 48 hours of operation. The reel shaft
requires monthly lubrication. Use a multipurpose grease or
heavy oil. Keeping the shaft lubricated means the reel will
slide freely and will not “freeze” to the shaft and need to be
repaired. The reel bearings require some light oil monthly.
• Belt-Check tension during the first 24 to 48 hours of operation.
• Belt Tension - Ideal deflection is 1/4”. Over tensioning shortens
belt and bearing life.
• Air Foot Pedal - Check for wear or stress cracks.
Cable Care Instructions
Take care of your cable for optimum performance. The
recommended care procedure is as follows:
• Break in a new cable. To relieve the stress on new cable that
has been coiled since its manufacture, put it in a clean line and
run it for 10 minutes.
• Oil the cable once a week.
• Rinse the cable immediately after each use with the hottest
water available. This is especially important if the cable was in
acid or alkali during use.
• When one end of the cable begins to show wear, rewind and
use the opposite end. (Tip: order the same kind of end fittings
on both ends of the cable.)
• If the cable kinks, cut out the kink and splice the cable ends
together.
Installing New Cable
• Remove cable from the carton and lay it in a straight line on
the floor.
• Make sure the reel is secured on the machine and the revolving
arm rotates freely.
• Feed the cable through the revolving arm.
• The revolving arm must be turning counterclockwise while
loading the cable.
• Install the guide tube, cable end, and cutting blade. The cable
end may be bent to desired form (as shown on the next page).
Information and Specifications

DM140 MACHINE MANUAL
5
Information and Specifications

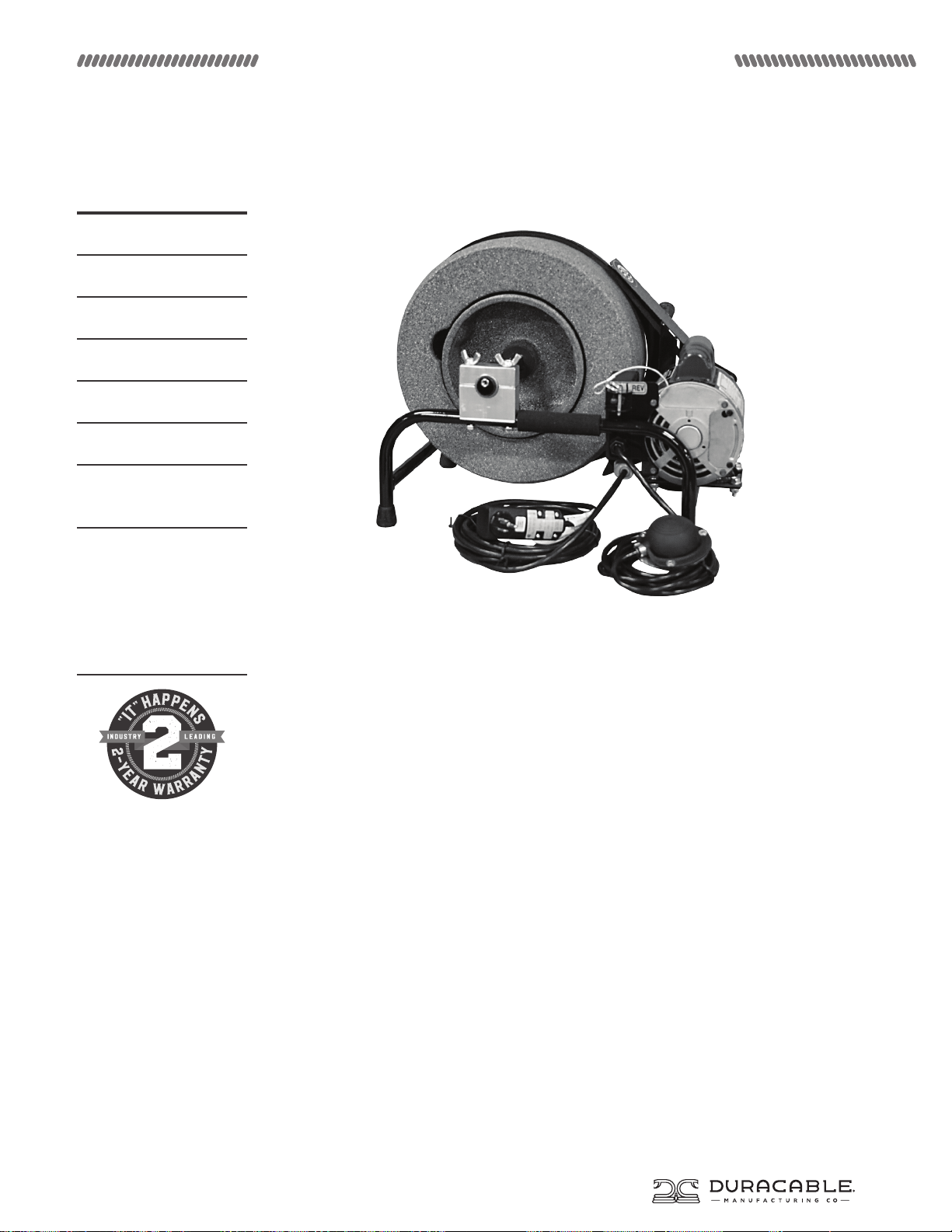

Model DM140 with 14013
14” Enclosed Polyethylene Reel
DM140
1/4 HP Motor
200 RPM
Pulley Drive
14” Reel
3/8” x 75’ Cable
2-Year Warranty
Continuous Weld
Uni-body Frame
USES:
1-1/4” to 3” lines,
Residential,
Sinks,
Bathtubs,
Shower Drains

DM140 MACHINE MANUAL
6
The Model DM140 is shown above with the 14013 reel. (See options on the
next page.)
Frame
The frame on Model DM140 is a continuously welded
uni-body frame made of steel tube with a heavy-duty
casted front bearing mount. Non-marring rubber pads
do not leave marks on the customers’ floors.
Head Bearing
The DM140 is equipped with a heavy-duty casted self-
aligning head bearing, which makes sure that the reel
stays properly aligned when it spins. This increases the
life span, making for a longer-lasting reel. The head
bearing holds the reel in place, as well as allowing quick
release of the reel. Just loosen the four wing nuts and
everything slides o for fast reel changes.
Electrical Wiring
The machine’s electrical wiring is located in the conduit
box on the right side of the motor, housing both the
forward/reverse switch and the air foot switch.
The Ground Fault Circuit Interrupter (GFCI) is built into
the electrical cord for added safety. The GFCI protects
the operator against electrical shock or electrocution. A
great feature is a switch guard that protects the forward/
reverse switch from accidentally being bumped and
going into reverse.
RPM/Drive
The Model DM140 has a 1/4 HP motor, operates at 200
rpm and has a heavy-duty 20-amp switch.
Maneuverability
Model DM140 can operate in the both the horizontal and
vertical position.
Cable and Reel Selections
The Model DM140 is recommended with the 14013 reel
which handles 3/8” and 1/2” x 75’ cable. An additional
reel (#14011P) is available which holds 1/4” x 75’ cable.
Standard Package
Model DM140’s standard package (part number
DM140SP1) comes with the following items: revolving
arm,1/4 HP motor at 200 rpm,14”enclosed polyethylene
reel, 3/8” x 75’ cable, and choice of end fittings. See the
machine packages and accessories charts on the next
page for additional options.
Information and Specifications
Machine Specifications (Approximate)
Length of Standard Machine 20”
Width of Machine with 14013 Reel 14”
Width of Machine with 14011P Reel 14”
Height of Machine with 14013 Reel 15”
Weight of Machine with 1/4 HP Motor 25.5 lbs
14013 Reel with 75’ Cable 28 lbs
Total Weight (machine, reel, cable) 53.5 lbs
Line Size 1-1/4”-3”
Recommended Use: residential lines, sinks,
bathtubs and shower drains

DM140 MACHINE MANUAL
7

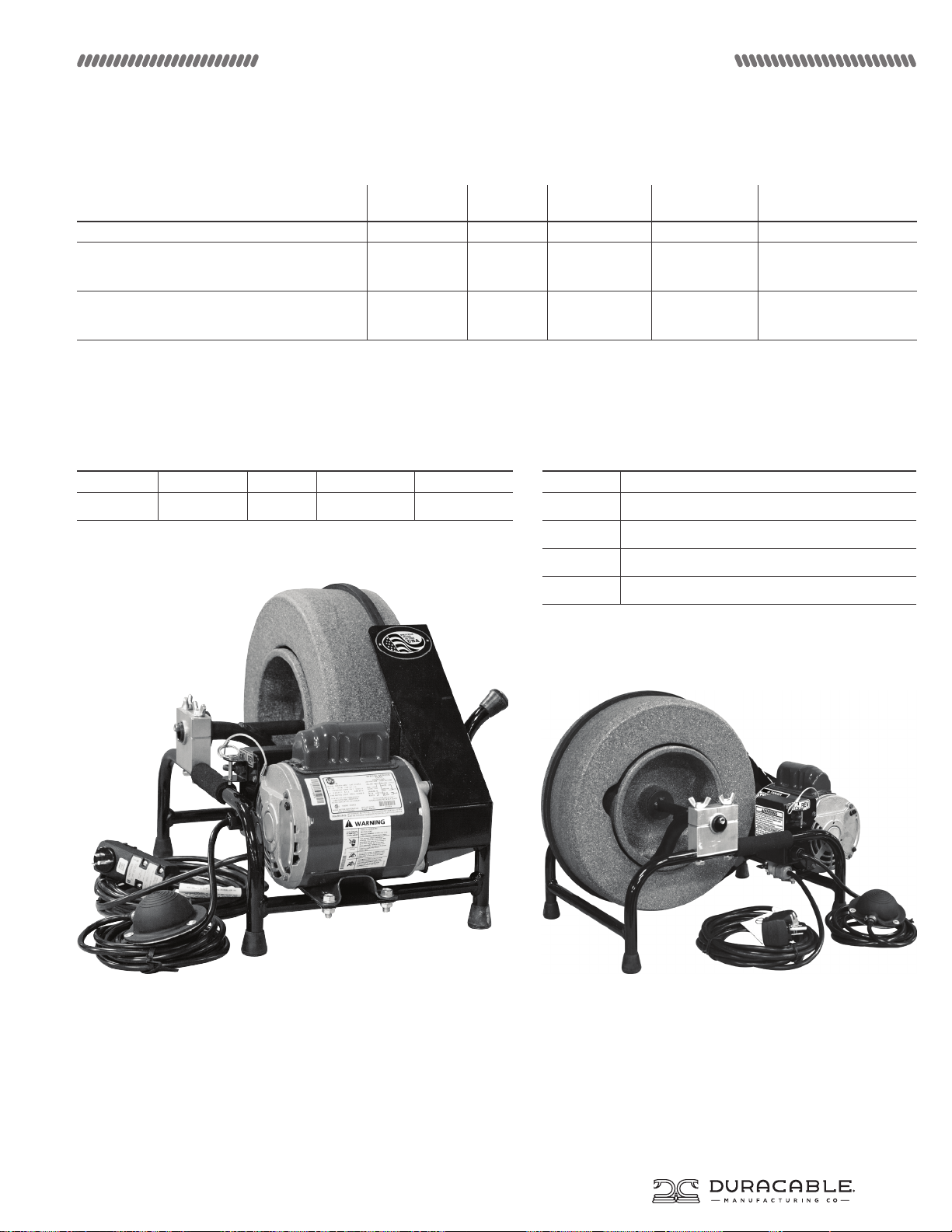

The Model DM140 is shown above (left and right) with the 14013 reel.
Information and Specifications
* Add CH in front of cable part # for Hollow Core.
* Add CI in front of cable part # for Inner Core.
* Maximum length of cable is not always the recommended length.
* Custom lengths are available.
Reels
Reel
Attachments
floating
Rings
floating ring
attachments Revolving Arm Cables*
Part # Dimensions Description Part # Part # Part # Part # Part # Dimensions
14013 14” Diameter Enclosed Polyethylene
Reel with Inner Reel
and Head Bearing
N/A N/A N/A 14RAW-R
(standard arm)
__50-060
__38-075
1/2” up to 60’
3/8” up to 75’
14011P 14” Diameter Enclosed Polyethylene
Reel with Inner Reel
and Head Bearing
N/A N/A N/A 25RAWP __25-075 1/4” up to 75’
Machine Packages
Part # Horse Power RPM Pedal/Switch Reel
DM140SP1 1/4 HP Motor 200 RPM Air Foot Pedal 14013
Machine Accessories / Replacement Parts
Part # Description
11005 1/4 HP Motor
25074 Air Foot Pedal (rubber) with 10’ Tubing
25061 Air Switch with Strain Relief Nut
25003 Forward/Reverse Switch

DM140 MACHINE MANUAL
8
23
20
16
19
14
3
15
12
10
12
18 9
13
17
21
22
5
7
4
29
27
2
1
26
25
28
6
8
11
24
DM140 Schematic

DM140 MACHINE MANUAL
9
Item Qty. Part# Description
1 2 1400-02 Clamp Block #1
2 2 1400-03 Clamp Block #2
3 1 1400-04 Conduit Box Mounting Plate
4 1 14010A V-Belt Pulley 4L 2” OD X 1/2 Bore Size
5 1 14010C 4L - Section V-Belt Trade Size 4L520
6 1 14013 14” Oversized Drum Assembly
7 1 14014 Belt Guard Assy
8 1 14015 Frame
9 1 14022 Electrical Switch Housing
10 1 25003 Toggle Switch - Detent 20 Amp., Dpdt, ON / OFF
11 1 25074 Foot Pedal w/ 10 Ft. Tubing
12 1 25061 Switch, Remote Air Actuated w/ Strain Relief Nut
13 1 25172 GFCI Cord 16/3 X 15’
14 1 25211 Decal, Switch Rotation Warning Series 1100
15 1 25212 Decal, GFI / Rotating Danger Series 1100
16 1 25015 Switch Guard
17 1 31005A US-Motor Model C55KFA-4891 HP 1/3 R.P.M. 1725
18 1 ELN1 Conduit Fitting Locknut, 1/2 Trade
19 1 ECT44 Plastic Right Angle Cable Glands (Mencom PCGA-13.5)
20 1 ECT26 ON / OFF Toggle Switch Boot
21 4 FLSC1 5/16-18 X 3/4 Lg Flange Hex Screw
22 4 FLNUT3 5/16-18 Flanged Hex Nut
23 1 MM38 3/16 Dia Detent Pin w/ Ring 1/16 Dia X 6Lg Attached Lanyard
24 4 MM77 8-32 X 7-3/4 Lg Motor Bolt
25 4 HHCS59 3/8-16 X 3 1/2 Long Cap Screw
26 4 HXNUT2 8-32 Hex Nut
27 4 HXNUT22 3/8-16 Hex Nut 21/64 Height
28 4 WGNUT4 3/8-16 Wing Nut
29 6 CPLUG9 Nonskid Tip, Rubber for 3/4 Leg OD
DM140 Schematic

DM140 MACHINE MANUAL
10
Item Qty. Part# Description
1 1 14RAW-R .866 ID-CW Revolving Arm R Assy
2 1 771406 14" Pro Big Mouth Plastic Reel W-Plug
3 1 771408 8.19 OD X 3" Long Inner Drum W-Bearing
4 1 14012 14" Drum Hub - Plate Weldment Assy
5 1 MM60 Standard Threaded Plug 1/2-13 UNC-2A
6 1 MM70 Set Screw Shaft Collar 1 1/2" OD X 1" ID
7 2 SB25 Thrust Bearing 3/4 OD X 1/2 ID X 1/16 Thick
8 2 SB26 "1 1/4 OD X 1.0 ID X 1 1/4 Long, Flanged - Sleeve Bearing
9 1 SKTS5 1/4 Dia X 1 1/4 Lg Shoulder 3/8-16 Thread
10 6 SHCS32 1/4-20 X 5/8 SBHCS
11 1 TS38-004 4' Tail Section for 3/8 Cable
12 6 WA47 1/4 Body Washer
13 6 FLNUT5 1/4-20 Serrated-Flange Locknut
8
1
7
3
12
10
2
5
9
7
8
6
134
NOTES:
ITEM
NO.
QTY.
PART
NUMBER
DESCRIPTION
1 1 14RAW-R .866 ID-CW REVOLVING ARM R ASSY
2 1 771406 14" PRO BIG MOUTH PLASTIC REEL W-PLUG
3 1 771408 8.19 OD X 3" LONG INNER DRUM W-BEARING
4 1 14012 14" DRUM HUB - PLATE WELDMENT ASSY
5 1 MM60 STANDARD THREADED PLUG 1/2-13 UNC-2A
6 1 MM70 SET SCREW SHAFT COLLAR 1 1/2" OD X 1" ID
7 2 SB25 THRUST BEARING 3/4 OD X 1/2 ID X 1/16 THICK
8 2 SB26
1 1/4 OD X 1.0 ID X 1 1/4 LONG, FLANGED - SLEEVE
BEARING
9 1 SKTS5 1/4 DIA X 1 1/4 LG SHOULDER 3/8-16 THREAD
10 6 SHCS32 1/4-20 X 5/8 SBHCS
11 1 TS38-004 4' TAIL SECTION FOR 3/8 CABLE
12 6 WA47 1/4 BODY WASHER
13 6 FLNUT5 1/4-20 SERRATED-FLANGE LOCKNUT
8
A
1234567
D
C
B
C
A
D
B
5 3 16 248 7
14" OVERSIZED
DRUM ASSEMBLY
14013
SHEET 1 OF 1
V. SAARD
2/8/2016
(UNLESS OTHERWISE SPECIFIED)
SCALE: 1:8
REV NO. DWG. NO.
D
SIZE
TITLE:
DRAWN BY DATE
ROTO-ROOTER CORPORATION
300 ASHWORTH ROAD, WEST DES MOINES, IOWA 50265
PHONE [phone], FAX [phone]
CASE DEPTH:
HEAT-TREAT SPECIFICATION
APPROVED BY/DATE
SQUARENESS: .005 T.I.R. in 12 IN.
PARALLELISM: .005 T.I.R. in 12 IN.
CONCENTRICITY: .005 T.I.R.
ALL MACHINED SURFACES TO BE
UNMARKED FILLET/CORNER RADII R. 12
UNMARKED CHAMFER/BREAK .03 X 45
DRAFT ANGLE 3
REMOVE ALL BURRS AND
BREAK ALL SHARP EDGES.
HARDNESS:
MATERIAL:
THIRD ANGLE
PROJECTION
CNC: DECIMAL: .X .015
.XX .010
.XXX .005
.XXXX .0005
ANGULAR : 1/2
FAB: DECIMAL : .X .060
.XX .030
.XXX .015
ANGULAR: 1
FRACTIONS: 1/32
TOLERANCES
EST.WT.
THE INFORMATION CONTAINED
IN THIS DRAWING IS THE SOLE
PROPERTY OF ROTO-ROOTER
CORPORATION.
ANY REPRODUCTION IN PART
OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
ROTO-ROOTER CORPORATION
IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
PROCESS:
14013 (14” Polyethylene Reel for 3/8” cable) Schematic for DM140

DM140 MACHINE MANUAL
11
Item Qty. Part# Description
1 1 14010P-01 14" Pancake Drum Hub - Plate Assy
2 1 25121 Bushing, Reel Shaft
3 1 25RAWP 1/4 Revolving Arm Welding Assy
4 1 771405 Narrow 14" Dia Big Mouth Plastic Drum
5 1 771408 8.19 OD X 3" Long Inner Drum W-Bearing
6 6 FLNUT5 1/4-20 Serrated-Flange Locknut
7 1 MM60 Standard Threaded Plug 1/2-13 UNC-2A
8 6 WA47 1/4 Body Washer
9 2 SB25 Thrust Bearing 3/4 OD X 1/2 ID X 1/16 Thick
10 2 SB26 1 1/4 OD X 1.0 ID X 1 1/4 Long, Flanged - Sleeve Bearing
11 6 SHCS32 1/4-20 X 5/8 SBHCS
12 1 SKTS5 1/4 DIA X 1 1/4 Lg Shoulder 3/8-16 Thread
10
3
?
8
4
10
2
12
7
1
6
6
11 6
NOTES:
ITEM
NO.
QTY.
PART
NUMBER
DESCRIPTION
1 1 14010P-01 14" PANCAKE DRUM HUB - PLATE ASSY
2 1 25121 BUSHING, REEL SHAFT
3 1 25RAWP 1/4 REVOLVING ARM WLEDING ASSY
4 1 771405 NARROW 14" DIA BIG MOUTH PLASTIC DRUM
5 1 771408 8.19 OD X 3" LONG INNER DRUM W-BEARING
6 6 FLNUT5 1/4-20 SERRATED-FLANGE LOCKNUT
7 1 MM60 STANDARD THREADED PLUG 1/2-13 UNC-2A
8 6 WA47 1/4 BODY WASHER
6 2 SB25 THRUST BEARING 3/4 OD X 1/2 ID X 1/16 THICK
10 2 SB26 1 1/4 OD X 1.0 ID X 1 1/4 LONG, FLANGED - SLEEVE BEARING
11 6 SHCS32 1/4-20 X 5/8 SBHCS
12 1 SKTS5 1/4 DIA X 1 1/4 LG SHOULDER 3/8-16 THREAD
8
A
1234567
D
C
B
C
A
D
B
5 3 16 248 7
14" BIG MOUTH
PANCAKE DRUM
14011
SHEET 1 OF 1
V. SAARD
2/1/2016
(UNLESS OTHERWISE SPECIFIED)
SCALE: 1:8
REV NO. DWG. NO.
D
SIZE
TITLE:
DRAWN BY DATE
ROTO-ROOTER CORPORATION
300 ASHWORTH ROAD, WEST DES MOINES, IOWA 50265
PHONE [phone], FAX [phone]
CASE DEPTH:
HEAT-TREAT SPECIFICATION
APPROVED BY/DATE
SQUARENESS: .005 T.I.R. in 12 IN.
PARALLELISM: .005 T.I.R. in 12 IN.
CONCENTRICITY: .005 T.I.R.
ALL MACHINED SURFACES TO BE
UNMARKED FILLET/CORNER RADII R. 12
UNMARKED CHAMFER/BREAK .03 X 45
DRAFT ANGLE 3
REMOVE ALL BURRS AND
BREAK ALL SHARP EDGES.
HARDNESS:
MATERIAL:
THIRD ANGLE
PROJECTION
CNC: DECIMAL: .X .015
.XX .010
.XXX .005
.XXXX .0005
ANGULAR : 1/2
FAB: DECIMAL : .X .060
.XX .030
.XXX .015
ANGULAR: 1
FRACTIONS: 1/32
TOLERANCES
EST.WT.
THE INFORMATION CONTAINED
IN THIS DRAWING IS THE SOLE
PROPERTY OF ROTO-ROOTER
CORPORATION.
ANY REPRODUCTION IN PART
OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
ROTO-ROOTER CORPORATION
IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
PROCESS:
63
14011P (14” Flat Polyethylene Reel for 1/4” cable) Schematic for DM140

DM140 MACHINE MANUAL
12
The wiring diagram for the basic DM140 is shown above. If you experience any electrical diculties in operating your machine,
or you notice any frayed or inadequate wiring, or wiring that does not conform to the diagram, discontinue use of your machine
immediately and have a qualified electrician repair it, or return it for repair to Duracable Manufacturing.
MOTOR LEADS
#1 - BLUE
#2 - WHITE
#3 - ORANGE
#4 - YELLOW
#5 - BLACK
#8 - RED
Electrical Schematic for air foot pedal

DM140 MACHINE MANUAL
13
Handle with Care
Every year many people are injured or killed by electricity.
Most of these accidents could have been prevented with
simple precautions and careful use of electricity. Following are
some tips to help avoid electrical accidents. Read through this
information. Be sure you understand its importance. If you have
questions or feel you may have a potential electrical hazard, tell
your supervisor or call a qualified electrician immediately.
General Electrical Guidelines
Remember, electricity is always trying to make a circuit. It can
travel through an electric wire, metal pipe, or even your body.
Electrical shock can occur when you come in contact with an
energized electrical unit and a good conductor. Shock can range
from a slight tingle to a severe burn, or death by electrocution.
Electrical accidents happen in everyday situations. Most
electrocutions occur in a wet environment or when an electrical
product is being repaired or installed. Think about, and take
precautions against, potentially dangerous situations.
When disconnecting electrical cords, pull on the plug rather
than the cord to avoid damage. Use rubber gloves and rubber
boots or insulated shoes to protect yourself, especially if you
are in a wet or damp environment. Before using this machine,
make sure a properly grounded, three-prong, 110-volt outlet is
available. Where it is not available, use a three-prong adapter
and connect the grounding lug to a known ground. Never cut o
a grounding prong to fit a two-prong outlet. This eliminates the
ground protection.
Electrical Procedures
Do not leave the machine plugged in when not in use. Even with
the switch o, a machine can shock or electrocute its handler.
The Model DM140 machine must be grounded to protect the
operator from shock. This is accomplished by using the Ground
Fault Circuit Interrupter (GFCI) Cord to ensure proper grounding.
Check electrical cords before each use for signs of damage.
Repair or replace cords which are pinched, cracked, frayed, or
worn. Remember, the GFCI oers no protection against electric
shock for wiring preceding it in the system. Your GFCI is direct-
wired to the machine, plug the GFCI into the power source
receptacle.
Discontinue use and repair immediately any machine that causes
the slightest shock or is damaged in any way. It could lead to a
serious electrical shock or electrocution.
Inspect the machine daily for wear or damage that might expose
live electrical parts.
Ground Fault Circuit Interrupters (GFCI)
A GFCI works by detecting changes in electrical current flow.
It breaks the circuit before serious injury can occur. For your
protection, heed the “DANGER” warning on the machine cover
and use the GFCI cord. The GFCI must be tested before each use.
Use the following procedure:
• Insert the unit into a 110-volt, AC-grounded receptacle;
• Push the “test” button in - the red indicator light should go o;
• Push the “reset” button in - if the red indicator light goes on,
the unit is ready for use;
• Do not use the unit if the light does not go on when reset;
• Do not use the unit if the indicator light remains on when the
test button is pushed.
Extension Cords
• Use extension cords only when necessary.
• Position cords in use to prevent tripping hazards. Do not place
them in areas where they can be damaged by trac.
• Avoid coiling extension cords during use to prevent possible
overheating of the cord.
• Discard cracked or damaged cords.
• The following cord sizes and lengths should be observed
according to the National Electrical Code when using this
machine:
• 12 gauge wire - 75’ of cord, maximum.
• 14 gauge wire - 50’ of cord, maximum.
• 16 gauge wire - 25’ of cord, maximum.
• Cord sizes smaller than 12 gauge should not be used for 3/4
HP motors. Larger gauge cords can be run greater distances,
but are not practical because of their size and weight.
• To protect your motor, observe the guidelines mentioned. If
you have a run more than 75’, use a generator to reduce your
cord length from the power source to a working distance
within these guidelines.
Overhead Power Lines
• When working outdoors, keep clear from overhead power
lines in all directions.
• Check the location of power lines before using a ladder. Use
approved ladders made of non-conductive material.
• Never place a ladder where it can slide into a power line.
• When carrying or moving a ladder or equipment, lower it to
avoid touching a power line.
• Never assume that a wire is safe to touch.
Electrical Safety

DM140 MACHINE MANUAL
14
1. Cut a few inches off of each
cable end and remove any burrs
with a grinding disk or file.
2. Spray Loctite Primer in and
around the cable end and splice
core to thoroughly remove
grease and grime.
3. Apply Loctite Retaining
Compound to splice core.
4. Insert splice core into cable
one turn.
8. Continue turning and the
cable ends will meet at the
center of the splice core.
7. Place vise grips on free cable
end and turn counterclockwise.
6. Align other piece of cable onto
splice core.
5. Apply Loctite Retaining
Compound to other end of splice
core.
1 2 3 4
56 7 8
You can attach end fittings and splice cores to DuraFlex cable using a chemical bonding process, which means you can make quick cable repairs on
the job—without welding. With Loctite Primer and Loctite Retaining Compound, you can quickly create a dependable bond that is as strong as a
conventional weld. Please note that these products are not the same thread-locking compounds available in hardware stores and plumbing-supply
houses, they are heavy-duty, permanent-bonding compounds made especially for jobs such as bonding cable fittings.
1. Cut the cable
end and remove
any burrs with a
grinding disk or
file.
2. Spray Loctite
Primer in and
around the
cable end to
thoroughly
remove grease
and grime.
3. Spray Loctite
Primer on the
end fitting to
thoroughly
remove grease
and grime.
4. Apply Loctite
Retaining
Compound to the
end fitting.
5. Using the
wrench (part
number EW),
screw the fitting
into the cable
end until fitting
is totally sealed.
6. The Retaining
Compound will be
fully bonded to
the cable in just a
few minutes.
123
4 5 6
How to splice duraflex®cable
How to Bond End Fittings to duraflex®cable

DM140 MACHINE MANUAL
15
Notes

dm140
300 ASHWORTH ROAD
WEST DES MOINES, IOWA 50265
DURACABLE.COM 800.247.4081
ANSWER LINE: 877.257.1781
FAX: [phone]
DM140MM
UPDATED JUNE 2017
DM140 Machine Manual
