Durafit Tiger User manual

DURAFIT
DURAFIT
TIGER
TIGER
CAUTION
READ THIS MANUAL BEFORE USING YOUR
EQUIPMENT
CONTACT:
EMAIL:
WEBSITE:
https://www.durafit.in/
world-class
futuristic products
in the fitness
industry
USER GUIDE
[email protected]
6379905512 /
6383151885

“Today I will do what others won’t, so tomorrow I can accomplish what others can’t.”
2
Special tips:
Before installation and operation, please read this operation 1.
manual carefully.
2. It is important your treadmill receives regular maintenance to prolong
its useful life. Failing to regularly maintain your treadmill may void your
warranty.
3. Please save this manual for future reference.

◆ Company Passed ISO9001:2000 Quality System
Certification
◆ Most of our products have been passed European Union
CE.RoHS, Germany TUV.GS,SGS Certification,and they
are approved qualified two consecutive years for the
sampling inspection performed by National Athletic Sports
Goods Inspection Center.
◆ Our products fully obtain recognition from domestic and
foreign customers
◆ Business Policy: Satisfaction from customers is our good
foundation.
Table of Contents
Maintainence
“Do something today that your future self will thank you for.”
Important Precaautions
Workout Guidelines
Certifications
Assembly
Treadmill Operations
3
Main technical Features
Recycling Information Common Errors
Warranty

WARNING:
THE SECURITY KEY HAS A MAGNET WHICH MUST BE PUT IN THE DISPLAY.
AT THE END OF THE LACE THERE IS A CLAMP WHICH SHOULD BE ATTACHED
TO THE CLOTHES.THE TREADMILL WILL START WORKING ONLY IF THE KEY
IS PLACED IN THE DISPLAY.THIS IS ESSENTIAL.
A CORRECT LUBRICATION OF THE TREADMILL WITH SILICON OIL OR
TEFLON IS REALLY IMPORTANT. THIS LUBRICATION MUST BE PERFORMED
REGULARLY DEPENDING ON EACH PERSON, EVEN BEFORE ITS FIRST USE.
YOU MUST PRESERVE THE ORIGINAL PACKAGING WITH ITS PROTECTIONS,
PURCHASE RECEIPT, MANUAL AND COMPONENTS DURING THE GUARANTEE
PERIOD.
In order to decrease the risk of suffering severe injuries, read carefully all
Our company doesn’t take any responsibility for personal injuries or
the important instructions and warnings regarding the use of a treadmill
before using it.
property damages resulting from the use of this product.
1. Before starting any workout program, consult your doctor. It’s specially
important for people older than 35 years old, people with health problem
and pregnant women.
2. The owner must ensure that all users are correctly informed about the
warnings.
3. Use the equipment as explained in the instructions manual.
4
“Sweat is fat crying.”
Important Precautions

5
“You miss 100% of the shots you don’t take.”
4. Keep the equipment in an enclosed area, away from dust or humidity.
Don’t store it in a garage, indoor backyard or near the water. Humidity,
dust and water could lead to a malfunction of the equipment, annulling its
guarantee.
5. Place the unit on a flat surface. If the surface is uneven, the proper
functioning could be affected. Some models include levelers or levelling
threads behind the legs, helping the leveling. Please read the manual to
verify if your unit is provided with one of them.
6. The unit must be placed in a ventilated area. Don’t use it in places with
sprays or with oxygen dispenser. The air you breath may be affected and
cause an accident.
7. Keep children younger than 12 years old and pets away from the
equipment. Keep the security distance.
8. Check in the manual the maximum weight your equipment can support.
An excessive weight could lead to a malfunction in the operating system,
which won’t be covered by the guarantee.
9. Wear suitable clothes and shoes. Do not use loose clothe that may get
hooked.
10. If your equipment is working through a power supply: make sure that the
power cord and plug are in good conditions. Carry out the connection
only when the circuit has ground connection, otherwise it could cause
damages on the equipment or in the property which the guarantee won’t
cover. Power cords must be away from hot surfaces.
11. If it is a battery-powered unit: check and make sure that they are
charged enough so the display will fully function.

6
“No matter how slow you go, you are still lapping everybody on the couch.”
12. If your equipment is provided with a security key, please understand
the produce before using it. The security key has a magnet which must
be put in the display. At the end of the lace there is a clamp which should
be attached to the clothes. The treadmill will start working only if the
key is placed in the display. THIS IS ESSENTIAL.
13. If your unit works thanks to a power supply: don’t put it into operation
while you are on the belt. The motor would be unnecesarily loaded.
The right way is placing yourself with open legs, each one on a side of
the belt and sit up once it is ongoing.
14. If your unit works with an electric supply: check the speed it can reach,
for your security. The best is to adjust gradually the speed in order to
avoid sudden changes.
15. If your unit works through an electric supply: never leave the
machine unattended while it’s working. Take the security key off, turn
the “on“ button into “off“ and unplug the power cord.
16. If your equipment is provided with a pulse sensor, you may know it isn’t
a medical instrument. It’s designed as a help for the workout and
determines the tendencies of heart rates. There are some factors which
could affect the accuracy of the heart rate interpretations, for example
the movements of the user.
17. The machines don’t take too much space as they can be folded. Once
folded, make sure that all is well assembled to the locking system, either
if it has a lock or an hydraulic engine. Don’t try to move it or raise unless
you are insured. Should any damage happen being the machine uninsured,
it won’t be covered by the guarantee.
18. Check and tighten all screws on a regular basis, because due to
vibrations screws and nuts tend to loosen. Damages caused by a lack of
maintenance won’t be covered by the guarantee.

7
“No matter how slow you go, you are still lapping everybody on the couch.”
19. A correct lubrication of the treadmill with silicon oil or Teflon is
REALLY IMPORTANT. This lubrication must be performed regularly
depending on each person, even before its first use. The lubrication must
be carried out this way: disconnect the equipment of the electricity supply
(in case you have one), pull up the tapestry from the side with one hand
and spread the oil on the board. Please repeat this procedure from the
other lateral side. Connect the equipment to the power supply (in case you
have one) and turn the “on” button (red button) into the correct position (I),
insert the security key and let the treadmill work for several minutes
without any weight on it. Repeat this action on a regular basis.
20. Two people will be needed in order to take the unit from the
package. Otherwise, the damages caused in this moment won't be covered
by the guarantee.
21. Don't let any object fall into the grooves.
22. If the unit works through a power cord: unplug always the power cord
before cleaning it, after the workout and before performing any maintenance
duty.
23. This unit is designed for a domestic purpose and in an interior place, not
for business environment or outside.
24. Do a workout with stretches before and after the sessions, you will avoid
injuries.
25. Drink water before, during and after the workout.
26. If you start feeling pain or dizziness while training: STOP IMMEDIATELY.
27. YOU MUST PRESERVE THE ORIGINAL PACKAGING WITH ITS
PROTECTIONS, MANUAL AND COMPONENTS DURING THE
GUARANTEE PERIOD.

“The difference between the impossible and the possible lies in a person’s determination.”
8
28. The accessories can be different to the other models.
29. This electronic product can't be thrown under any circumstances into
the municipal rubbish bins. With the aim of preserving the environment,
this product must be recycled according to the applicable law of your
country. Please contact your town council to know more about this
procedure.
30. Should you need technical assistance or advise with the installation of
pieces, You can get in touch with us .
YOU MUST KEEP THE PURCHASE RECEIPT IN ORDER TO HAVE ACCESS
TO THIS SERVICE KEEP THESE ADVISES FOR FUTURE REFERENCES.
2. Main Technical Features
1Panel displays Time, Speed, distance, Calorie, MP3
input, Bluetooth App
2
3
Display Mode LCD
Running Area
Motor
Machine Size(L*W*H)
Max. weight (Walking)
Max. weight (Running)
1230*420 (mm)
2 HP (4 HP) DC
1540*700*1270 (mm)
120 kg
90 kg
4
5
6
7
Inclination
Lubrication Auto Lubrication
8
9
15 Level Auto Incline

“If you want something you’ve never had, you must be willing to do something
you’ve never done.”
9
Safety key
Advanced belt system
Emergency stop key with smooth
stop system
1.8 mm thickness
10
11
Speed Range 1-14 km/hr
12
Music System Yes (Aux )
13
Input voltage 220V±10%
14
Frequency 50/60 HZ
15
Input current ≤8A
16
Temperature 0
∽ 40℃
17
Gross Weight/Net Weight 68/58
18

10
“If you want something you’ve never had, you must be willing to do something
you’ve never done.”
No. Fittings Qty
1.
2.
3.
4
5
6
M8*20
M8*45
ST4*15
M8 Nut
Flat washer
Multi Wrench
6
2
2
2
8
1
7
8
9
5mm Wrench
6mm Wrench
Security Key
1
1
1
3. Assembly
Main Part name Qty
Main Frame 1 Set
Plastic Cover 1 Pair
10
11
12
User’s Manual
MP3 Wire
Silicone oil
1
1
1

1. Carry out the machine from the package by two persons and place
it lightly on flat floor, and put other fittings beside the machine. Lift
up the stand tube and electronic watch according to the picture
(make sure not to press the signal wire)
2. One person hold the electronic watch steady and the other person
puts 4PCS M8*20 and 2PCS M8X45 screw and fix them onto the stand
tube with FLAT WASHERS.
“To give anything less than your best is to sacrifice the gift.”
11
STEP-2:
Use 2PCS M8*20 screws and FLAT WASHERS to screw up the left 1.
and right stand tube with the electronic watch.
STEP-1:

1. Use 2PCS ST4X15 screws to fasten the plastic cover at bottom of
stand tube.
2. Put on the safety, turn on the power switch, then can start machine.
“To give anything less than your best is to sacrifice the gift.”
12
STEP-3:
4. Workout Guidelines
BEWARE: Before starting to use this or any exercise programs, consult
your doctor. This is specially important for people older than 35 years old,
or for people with health problems.

13
WARM UP: Start stretching and slightly activating the muscles
WORKOUT FOCUSED ON THE TRAINING AREA: Do some exercises
COOL DOWN: Finish with stretching exercises during 5-10 minutes.
FREQUENCY OF THE WORKOUT: In order to be fit or improve your
If your equipment is provided with a pulse sensor, you must keep in
mind this isn’t a medical instrument. Several factors can vary the
accuracy of the heart rate interpretations. The pulse sensor is just a help
for the work outs, determining the general tendencies of the heart rate.
PROGRAM WITH WARM UP WORKOUTS:
between 5 and 10 minutes. The warm up will increase your
corporal temperature, your heart rate and your blood flow, making
you ready for the workouts.
during 20-30 minutes with your heart rate (don’t maintain your heart
rate more than 20 minutes during the first weeks of the exercise
program). Breath constantly and deeply during the workout (never
hold your breath).
Stretching increases the flexibility of your muscles and help you to
avoid injuries after the workouts.
shape, complete three workout sessions each week, with a rest day
between the workouts. After some moths of regular training, you will
be able of completing up to five workouts a week.
“To give anything less than your best is to sacrifice the gift.”

14
“To give anything less than your best is to sacrifice the gift.”

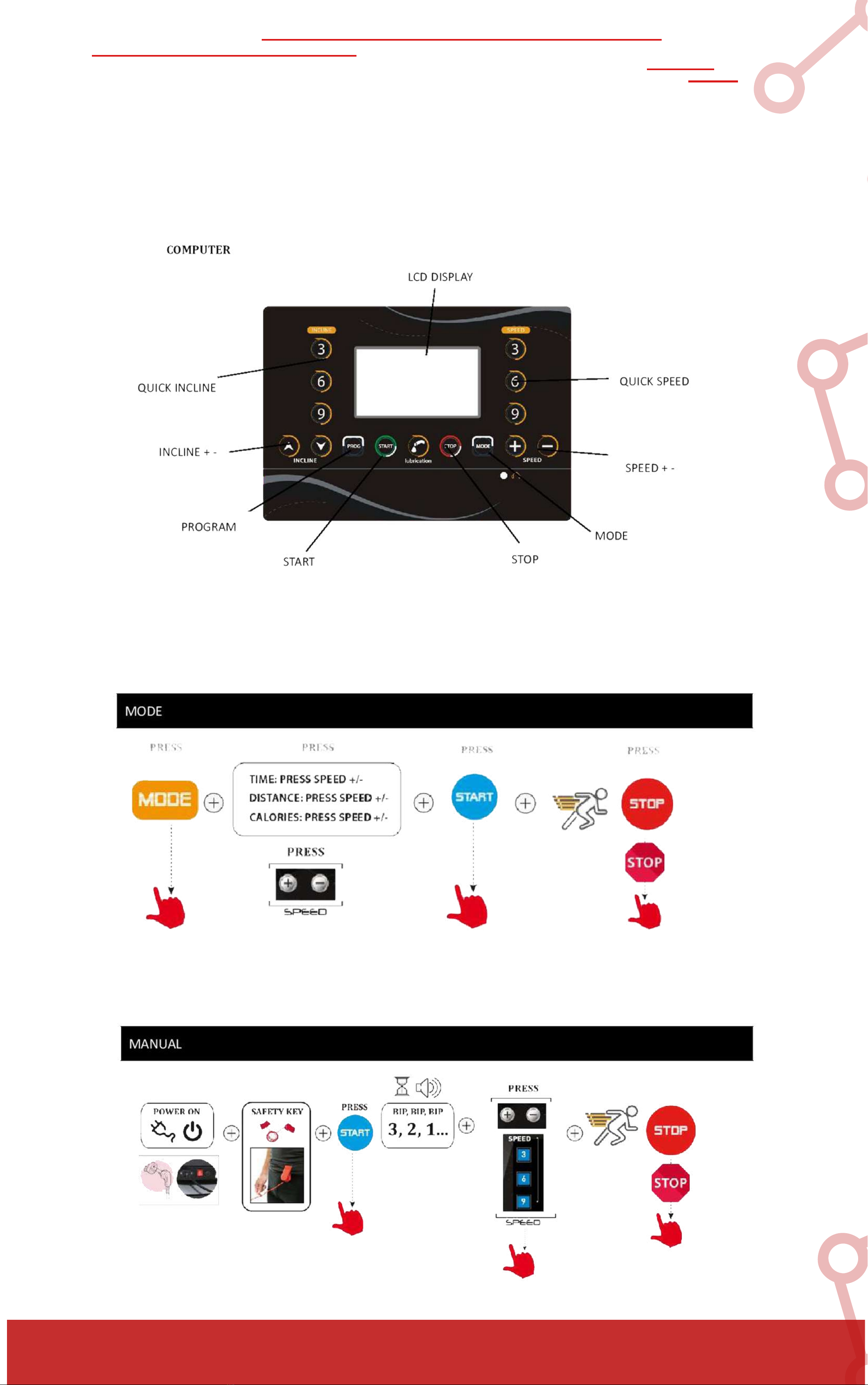

5. Treadmill Operation

15
“To give anything less than your best is to sacrifice the gift.”

16
“To give anything less than your best is to sacrifice the gift.”

17
STORAGE: Keep your equipment in a enclosed place, away from dust or
ELECTRIC CABLE: Make sure that the cable and plug are in perfect
SCREWS AND CONNECTING CABLES: Supervise and tighten the screws
LUBRICATION: It’s a correct lubrication of the treadmill with silicon oil or
humidity. Don’t store it neither in a garage or in a indoor backyard, or near
the water. Humidity, dust and water could damage it and have an effect
on its functioning.
conditions. Electric cables must be away from hot surfaces.
on a regular basis, because due to the vibration the screws and nuts tend
to loosen.
teflon is really important. This lubrication must be performed regularly
depending on its use even before the first use.
a) The step to lubricate the running board is as follows:
(see the above figure)
“To give anything less than your best is to sacrifice the gift.”
Regular maintainence of the treadmill
This product must be earthed. If the power
cord is damaged, it must be replaced
with a manufacturer recommended power
cord.
DO NOT TANGLE THE POWER CORD
6. Maintainence

18
“To give anything less than your best is to sacrifice the gift.”
Align and Tighten the Belt of the Treadmill
ALIGN THE BELT: Due to its use, the belt can move off center. If the
belt has moved to the left, start treadmill and increase the speed to
3MPH .Use the 6mm Wrench to turn the fixed left bolt clockwise or turn
the fixed right bolt counterclockwise. Don’t tighten the belt too much in
order to be able to walk. Repeat this procedure until the belt is properly
aligned.
b) Stop the running belt and fold the treadmill.
c) Turn over the running belt at the back of the main frame.
Insert the lubricant pot as deep as possible into the middle of
the running belt. Apply the lubricant onto the inner side of the
running belt.
Lubricate both sides of the running belt. After the lubrication is
completed, start the machine at 1km/h to let the running belt bring
silicon all over the board.
After running for a period of time, the treadmill must be configured with
special cymene silicone oil for lubrication.
Suggestion: Do not lubricate more than what you need to.
Remember: Regular and reasonable lubrication is to improve the lifespan of
your treadmill.

19
This electronic product must not be disposed of in municipal waste.
To preserve the environment, this product must be recycled after its useful
life as required by law.
“To give anything less than your best is to sacrifice the gift.”
7. Recycling Information
TIGHTEN THE BELT: (if the belt slips on the treadmill when walking).
Start treadmill and increase the speed to 3MPH.Using the 6mm Wrench ,
turn both bolts 1/4 clockwise. If the belt is properly tight to walk, you
must be able to pull up each side of the belt 5 or 7 cm off the platform.
Be careful and maintain the belt aligned. Repeat this procedure until the
belt is properly tightened.

20
“To give anything less than your best is to sacrifice the gift.”
7. Common Errors
