Durafit Heavy-Hike GV-4602F Instruction Manual

- 0 -
Durafit Heavy-Hike Manual
Durafit Heavy-Hike (DFIHCI01)
Motorized Foldable Treadmill with Auto-Incline
Operating Instructions Manual
Special tips:
1. Before installation and operation, please read this operation manual carefully.
2. It is important your treadmill receives regular maintenance to prolong its useful life.
Failing to regularly maintain your treadmill may void your warranty.
3. Please save this manual for future reference.

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 1 -
Durafit Heavy-Hike Manual
Table of Contents
1Brief Description…………………………………………………………………2
2Main Technical Features……………………………………………………………2
3Tips for safety……………………………………………………………………3-4
4Installation…………………………………………………………………………4
5Use and Operation……………………………………………………………… 4-6
6Maintenance…………………………………………………………………… 6-8
7Guides for malfunction………………………………………………………… 8-9
8Warranty………………………………………………………………………… 9
9Error and self-inspection………………………………………………………… 9-10

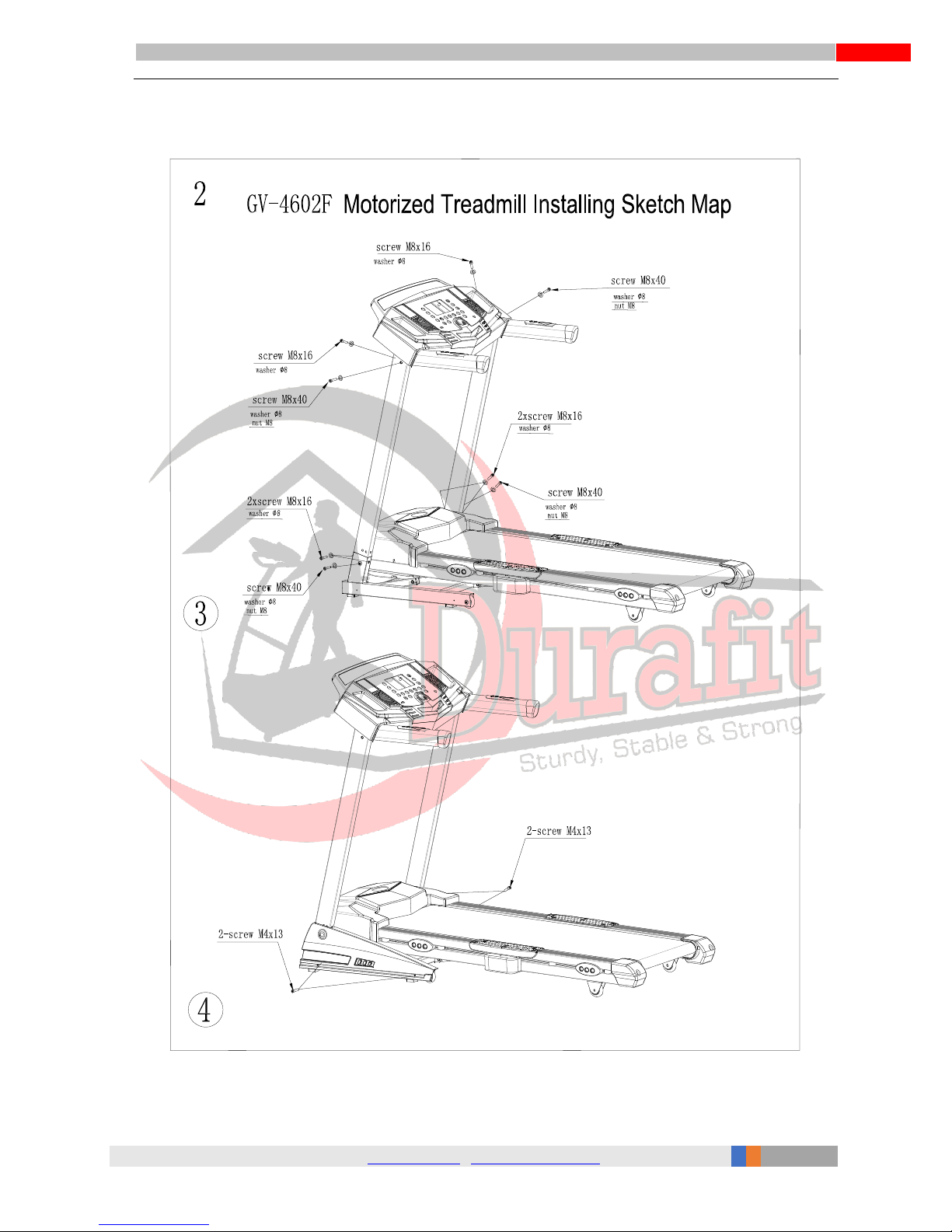

10 Installation Sketch……………………………………………………………11-12

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 2 -
Durafit Heavy-Hike Manual
1. Brief Description

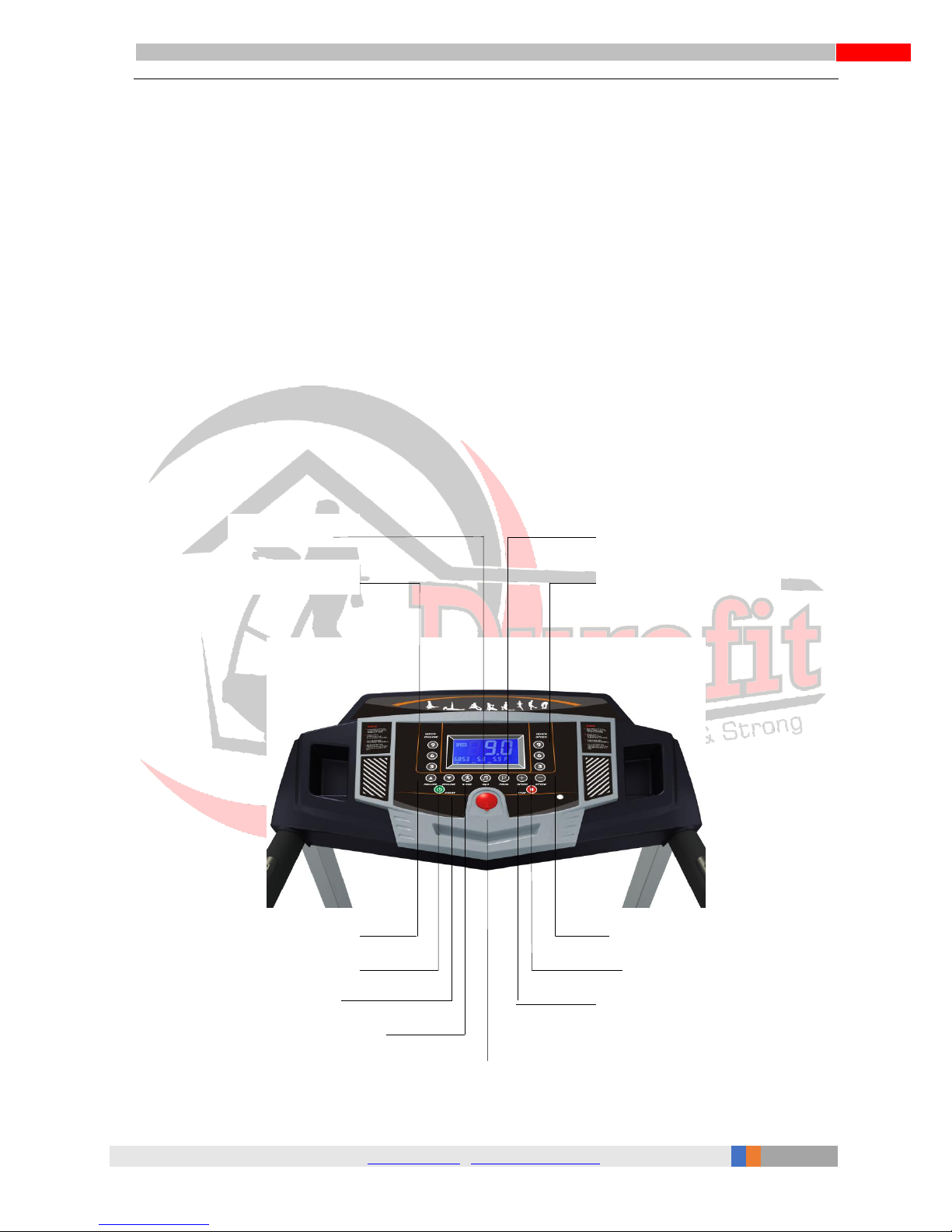

Diagram 1: DFIHCIM1 Motorized Treadmill
2. Main Technical Features
This treadmill is for home use
❖Panel displays speed, time, distance, heart rate, calorie etc.
❖Display Mode：LCD
❖Input voltage: 220V±10%
❖Frequency: 50HZ
❖Input current: ≤8A
❖Temperature for working: 0∽40℃
❖Speed range: 1∽16km/h
❖Auto incline: 0-16
❖Program: Time display range: 0:00∽99:59(minute : second);
❖Distance display range:0.1~99.99kms
❖Machine size (L*W*H) ：1545x725x1210（mm）
❖Gross Weight / Net Weight：76KG/84KG
Safety key
Heart rate sensor
Meter accessories
Handle
Power switch
Pillar accessories
Running belt
Footplate
Running belt adjustor

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 3 -
Durafit Heavy-Hike Manual
3. Tips for Safety
3.1 Insert the power plug into the socket directly. Current load should be less than 10A. Do not
use an extension cord. Do not attempt to disable the grounded plug by using improper adapters or
in any way modify the cord set.
3.2 The continuous running time is less than 2 hours,maximum weight is less than 120kgs.
The treadmill is intended for in-home use only and not suitable for long time continuous running
more than 2 hours.
3.3 Place your treadmill on a clean floor，not place it on a thick carpet - it will not be convenient
for ventilation, as heat generated by motor needs to be cleared. Also, please don’t put the treadmill
in moist place or outdoors to avoid breakdown due to water or heat.
3.4The treadmill should be placed in a position, convenient for the electric socket. Do not block
the rear of the treadmill. Provide a minimum of 1-meter clearance between the rear of the treadmill
and any fixed object.
3.5 Fresh users should grip the handrails when jogging and running until he/she is familiar with
the product. Please don’t stand on the running belt, when switching the power on. Please stand on
the footplates besides the treadmill and press the “start” button. Once the machine starts running at
the lowest speed, you can start running on the belt.
3.6While running, you should dress properly. Don’t dress too loosely as your clothes might get
entangled in the space beneath & beside the running belt. Please wear sport shoes with soft sole.
3.7Ensure that the machine is powered off, before taking down the protective cover of treadmill
3.8Don’t let children and non-users get close to the running treadmill to avoid unnecessary injury.
3.9Please make sure one end of the safe key has been placed in the appropriate position and the
other one has been nipped to your clothes when you are running on the machine. This way, you can
pull the safe key if you want to bring the treadmill to a sudden stop in case of any unavoidable
accident. This will significantly avoid injuries from running/walking accidents.
3.10 If you are enjoying other entertainment while running such as watching TV, reading, please
be particularly careful. These activities will distract your attention, which may make you lose your
balance.
3.11 Please pull the plug off from socket and keep the safety key in the socket, when the treadmill
is unused.
3.12 Please don’t put anything under treadmill and don’t let your children play near it after folding.

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 4 -
Durafit Heavy-Hike Manual
3.13 To be on the safer side and to avoid any oversight, please consult your doctor at first before
running, if you have one of the following diseases.
a) Cardiopathy, hypertension, sugar diabetes, respiratory disease, smoking, and other
chronic diseases, complication disease.
b) If you are over 35 years old and heavier than average weight.
c) Pregnant or Breast-Feeding Women
3.14 Please stop exercising immediately, take rest and consult your doctor if you’re feel giddy,
nauseous, or other symptoms.
3.15 Please drink adequate water after exercising for more than 20 minutes on the treadmill.
4. Installation: See “Installation sketch” in the End
5. Use and Operation
5.1 Panel Keys and Function
（2）Prog
（1）MP3
（5）incline-up
（7）START
（3）incline shortcut key
（6）speed-down
（8）speed-up
（4）speed shortcut key
（11）safety key
（9）Mode
（12）STOP
（10）incline-down

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 5 -
Durafit Heavy-Hike Manual
（1）“MP3”
This Key can be used as a toggle switch to the Speakers in the Treadmill to Power them ON & OFF
（2）“PROG”(could be pressed continuously to your expected mode)
Press the “PROG” key once again to enter “48 preset programs”. There are 48 programs,
“P1-P48”, with a speed graph as below:
PROGRAMME 1 PROGRAMME 12
PROGRAMME 2 PROGRAMME 13
PROGRAMME 3 PROGRAMME 14
PROGRAMME 4 PROGRAMME 15
PROGRAMME 5 PROGRAMME 16
PROGRAMME 6 PROGRAMME 17
PROGRAMME 7 PROGRAMME 18
PROGRAMME 8 PROGRAMME 19
PROGRAMME 9 PROGRAMME 20
PROGRAMME 10 PROGRAMME 21
PROGRAMME 11 PROGRAMME 22
48 programmes
BLUE = SPEED RED = INCLINE

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 6 -
Durafit Heavy-Hike Manual
PROGRAMME 23 PROGRAMME 36
PROGRAMME 24 PROGRAMME 37
PROGRAMME 25 PROGRAMME 38
PROGRAMME 26 PROGRAMME 39
PROGRAMME 27 PROGRAMME 40
PROGRAMME 28 PROGRAMME 41
PROGRAMME 29 PROGRAMME 42
PROGRAMME 30 PROGRAMME 43
PROGRAMME 31 PROGRAMME 44
PROGRAMME 32 PROGRAMME 45
PROGRAMME 33 PROGRAMME 46
PROGRAMME 34 PROGRAMME 47
PROGRAMME 35 PROGRAMME 48

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 7 -
Durafit Heavy-Hike Manual
（3）Incline short cut key:
When running, press this key to shift to the mentioned Incline Level directly.
（4）Speed short cut key
When running, press this key to shift to the mentioned speed directly.
（5）Incline up:
Press this key to increase the incline to the level you need from 16 possible levels
（6）“speed down”
Under running condition, press this key to reduce the speed to the exact number you need, to
the first decimal
（7）Start: Under ready condition, press this key to initiate the treadmill at a speed of 1.0km/h.
（8）Stop: Under running condition, press this key, if it runs at speed more than 3.0km/h, it will
slow down then stop. If it runs at speed less than 3km/h, then it stops immediately. During this
stopping process, other keys are not available.
（9）“Mode”
Under ready condition, press this key to initiate Target-Seeking mode。There are 3 modes of
Target-Seeking available in the treadmill:
•Time - The first mode of countdown is calculated by time - you could adjust the
countdown time by pressing “speed+”or “speed-”
•Distance - if you press “mode”key again,then it goes to distance countdown ,we also
could press “speed+”or “speed-”to adjust the countdown distance
•Calories - Finally, you also could press the ”mode”key again, it moves to calorie
countdown. You could press the “speed+”and “speed -”to adust your expected
calorie to start the final count down.
No matter which Target-Seeking mode is your choice, after you choose one mode, press the
“start/stop”key to start your running/walking in that mode.
（10）Incline Down:
Press this key to reduce the incline as per your need.
( 11 ) Speed up:
Under running condition, press this key to increase the speed to the exact number you need, to
the first decimal
（12）“safety key”
In case of emergency, pull this key to stop the machine.

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 8 -
Durafit Heavy-Hike Manual
5.2 Initial Startup Testing
Perform the below actions when you are using the treadmill for the first time.
1. Insert power plug into the socket. Turn the switch on the Treadmill frame to “1” position
2. Put the safe key in the right position to turn the circuit on. Press “on/off” and keep it running
without any load. Let the treadmill run without load at low speed for 1 minute. Test the condition of
running belt for consistent tightness (testing from low speed to high ones). After testing, press
“on/off”.
3. If everything is ok, then start to run
5.3 Treadmill operating instructions
1. Insert power plug into the socket. Turn the switch on the Treadmill frame to “1” position. Place
the safe key in the appropriate slot.After a few seconds, panel will show that the machine is ready.
2. Clip the other end of safe key to your clothes, and stand on the footplate on both sides.
3. Press“start/stop” key, running belt moves at the lowest speed (1.0km/h). Speed windows will
display your running speed.
4. Start to run.
5. Press speed keys to adjust speed -the speed window will display your speed .
6. To end your exercise safely, please first press “start/stop” key to halt the treadmill. Please don’t
leave the running belt until it stops slowly.
7. Turn off the power.
(Note: Our treadmill can test your heart rate via the heart rate sensor. The data is only for
reference.)
6. Maintenance
6.1 Ways to identify the degree of tightness of running belt and poly V-belt.
When the running belt skips it can be due to looseness in the Running Belt or the poly V-Belt
in motor. Please follow the below steps to identify which belt needs to be adjusted, and to take
corrective action:
a) Cut off power, Take the screw off the bolt on Motor Protection Cover in the front of the
treadmill.
b) Switch on the Treadmill and Increase the speed to be around 3km/h. Step on the running
belt with pressure and try your best to make the running belt stop.
c) If running belt stops, together with the front roll, but the motor still runs, then, it means the
poly V-belt needs to be adjusted.
d) If running belt stops, but front roll still runs, then it means the running belt needs to be
adjusted.

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 9 -
Durafit Heavy-Hike Manual
6.2 The adjustment steps for poly V-belt
Cut off power firstly and take down the Motor Protection Cover.
a) Loosen the four screws for the motor, adjust them in a circuit clockwise, and then screw down
the loose screws.
b) Keep the power on, and adjust the poly V-belt. Check if the belt is loose or not, following the
point 6.1b above, if yes, please repeat the action same to point a) above.
6.3 Adjustment steps for running belt
a) Increase the speed to be 5.6km/h.
b) Turn the bolts at both right and left sides to be half a circuit or a circuit by the 8mm spanner.
(Tighten or loosen based on belt grip –refer Diagrams 1 & 2)
c) After adjustment, if running belt still skips, please repeat the steps above.
Tighten the running belt (diagram 1) loosen the running belt (diagram 2)
6.4 The adjustment steps for running belt deflection
Under continuous usage, the running belt can start to be deflected towards one side or the
other. Then it needs to be adjusted. The steps are as follows:
a) Place the treadmill on a horizontal floor, Increase the running speed to be 5.6km/h.
b) If the running belt is deflected to the right, adjust the bolt on the right by turning it for half
an circle clockwise, then adjust the bolt on the left by turning it for half an circle counter
clockwise.(see diagram 3)
c) If the running belt is deflected to the left, adjust the bolt on the left by turning it for half an
circle clockwise, then adjust the bolt on the right by turning it for half an circle counter
clockwise.(see diagram 4
d) After the adjustment, the running belt still keeps deflecting, please repeat the steps above.
Diagram 3: running belt deflected to right Diagram 4: running belt deflected to left

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 10 -
Durafit Heavy-Hike Manual
6.5 Running board lubrication
The treadmill is equipped with lubricated running board, which needs constant maintenance.
The friction between running board and running belt has a great effect on the treadmills’ e life. So
Please lubricate your machine without fail for every 250kms or 6 months of usage, whichever
comes earlier. The steps are as follows:
a) Cut off the power
b) Wipe out the dust between running board and running belt with a clean cloth.
c) Daubing the Silicon oil on the running board and running belt equably.
d) While adding lubrication oil, please keep your clothes away from the machine for avoiding the
injury.
6.6 Cleaning
a) Please power off and pull the plug cap out before cleaning.
b) Wipe out the dust stuck on the surface and running board frequently.
c) Please clean the surface of frame and running belt with a soft cloth dipped in soap, don’t use
things like eradicator and naphtha.(After cleaning, please dry it before use)
d) Please take the Motor Protection Cover off every two months and use vacuum dust-collector to
suck the dust inside. The dust can cause the components of circuitry board to short circuit.
6.7 Folding & Storage
6.7.1 Folding & Unfolding
Please make sure that the plug cap has been pulled out before cleaning or maintenance. The
treadmill has a hydraulic system that greatly reduces the stress in lifting and lowering the
treadmill.
Once lifted, you will hear a light click sound and the hydraulic system locks the treadmill in
place. Now the treadmill can be moved around like a shopping cart using the wheels under the
frame. After placing the treadmill at the desired place, the user has to place his foot at the joint of
the Hydraulic system as a gentle kick and use his hands to gently push the treadmill down. This
unlocks the treadmill and slowly and automatically brings the Treadmill to the ground without any
assistance. The user can move away once the Hydraulic Lock is removed.
6.7.2 Storage
The treadmill should be deposited indoor in case of being damp. Water can’t be spattered and
nothing can be laid and inserted into the treadmill. Please keep the air a little humid in winter. And
please avoid any big static electricity, as it may disturb the operation of meters or even damage
them.

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 11 -
Durafit Heavy-Hike Manual
7. Guides for malfunction
7.1 Analyzing and eliminating malfunction
Item.
Malfunction
Reasons
Solution
1
Treadmill can’t be started
The safe key isn’t in the
right position
Put the safe key in the right
position
The electrical switch is
placed to “0”
Turn the electrical switch to “1”
creepage switch is not
right
Replace creepage switch
2
Meter can’t display
The meter control line
and control panel are
unconnected
Pull the bolt out and open the
motor cover and reconnect it
Turn on the meter and reconnect
3
Heart rate can’t be displayed
The pole of heart rate
sensor is not wet enough
Wet the pole with water or liquor
for hard contact lenses
Disturbed by
electromagnetism
Stay away from
electromagnetism
4
Incline doesn’t work
The motor wire is not
well connected
Open the motor cover and
reconnect it
5
Running belt runs faster or
slower than what has been
displayed
Unadjusted
Readjust it
6
Running belt slips
Running belt is not tight
enough
Please read point 3.3 Adjustment
steps for tightening running belt
for reference
7
Running belt is deflected
The running belt is
unadjusted.
Please read point 3.4 The steps
for adjusting the deflected
running belt for reference
7.2 If you still can’t solve the problems after taking the solutions above, we hope that you can
contact our Customer Care to resolve the issue through our Pan-India Service Network.

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 12 -
Durafit Heavy-Hike Manual
8 Error and self-inspection
8.1 Error：Treadmill gives the following error code if anything wrong，please contact the
professional service people soon if it happens.
Error Code
Reason
E00
please check if the safety key is in the right position,
without changing any other part
E01
Please check if the main line was in good connection
E02
Change the MCB if still with the problems after restarting the treadmill
E03
Please check if the speed sensor on the motor was in the right position,
without any shifting.
E04
Self-inspection if both the incline motor and connecting line are proper. If
it is not OK, please change the MCB.
E05
Change the MCB if still with the problems after restarting the treadmill
E06
Change the MCB if still with the problems after restarting the treadmill
8.2 Self-inspection
No need to perform self-inspection unless in the case of breakdown. If necessary, please do it under
the instruction of professional technicians, due to the complexity of the process and difficulty in
reading the inspection output.
a，open the red power switch, pull out the safe key
b，Press the “start” and ”speed +” key at the same time and keep them pressed, meanwhile, use
another hand to put on the safe key ,then release the “start”and “speed+” buttons. Press the “mode”
key,then the LCD will start to show the internal data
c，after the LCD finishes displaying data, then press the “mode” key again.
d，the treadmill runs from the lowest speed to highest speed , while changing the incline also from
lowest to highest. Then treadmill is stopped automatically. The whole self-inspection process takes
about 2 minutes

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 13 -
Durafit Heavy-Hike Manual

Durafit –Sturdy, Stable & Strong | www.durafit.in | [e-mail] | 7019384428
- 14 -
Durafit Heavy-Hike Manual
