DXV Equility D22690A109 User manual

- 1 -
INSTALLATION INSTRUCTIONS
SAVE FOR FUTURE USE
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018 7302362-100 Rev. A (5/18)
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is tessential that the tools and materials be on hand before work is begun.
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: Pictures may not exactly define contour of china and components.
!
Equility™ (Formerly LYNDON®)
1-Piece Toilet, Concealed Trapway
Right Height®, Elongated, HET
Models: D22690A109 - Left-Hand Trip Lever
D22690A108 - Right-Hand Trip Lever
GasketWax Ring
Regular Screwdriver
10'
Level Flexible Supply Tube
Closet Bolts
Putty Knife
Tape Measure Hacksaw
SealantAdjustable Wrench
a. Close toilet supply valve and ush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug oor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from ange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
NOTE: Distance from wall to
closet flange centerline must
be as listed below:
IMPORTANT: Water supply on
the wall is required at 2-1/4" or 8"
from centerline of the toilet (see
rough-in). First suggested
position is hidden behind the
toilet. The geometry of the toilet
gives space for this installation.
The second suggested position is
next to the toilet. Between these
two positions, the space for the
supply between wall and toilet is
limited to 4-1/2". In this case,
check your supply and hose
dimensions.
1
2
REMOVE OLD TOILET
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL
PLUMBING AND BUILDING CODES
ROUGHING-IN DIMENSIONS:
30-3/16"
(767 mm)
7-1/2"
(191 mm)
7/8"
(23 mm)
18-1/2"
(470 mm)
3-5/16"
(85 mm)
3-1/8"
(79 mm)
7-11/16"
(195 mm)
13-11/16"
(347 mm)
16-1/2"
(419 mm)
14"
(356 mm)
10-5/8"
(270 mm)
30-13/16"
(783 mm)
12"
(305 mm)
FINISHED
WALL
C/L OF SEAT POST
HOLES 5-1/2"
(140mm) CENTERS
14"
(356 mm)

- 2 -
INSTALL CLOSET BOLTS
Install closet bolts in ange channel
and slide into place parallel to wall.
TIP: Place 2 pieces of masking tape
on oor (as shown) to help with
alignment in step 4.
Apply weight evenly. Do not move
after placement. Water tight seal
may break.
7302362-100 Rev. A (5/18)
1
4
2
5
3
!
WARNING:
Overtightening of water supply
line nuts could result in breakage
and potential ooding. If the
connection leaks after hand
tightening, replace the supply
line. Do not use any type of
sealant on the water supply
connection.
Use of plumber’s putty,
pipe dope, or any other
type of sealant will void
the warranty.
For seat installation,
see instructions
included with seat.
*
!
CLOSET FLANGE
DRAIN
CENTER LINE
CLOSET BOLTS
CLOSET BOLT
WASHER
NUT
Press
firmly.
WAX RING

- 3 -
8
When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth. Avoid
detergents, disinfectants, or cleaning products in aerosol cans. NEVER use abrasive scouring powders or abrasive pads on
your toilet seat. Some bathroom chemicals and cosmetics may damage the seat's nish.
WARNING: Do not use in-tank cleaners. Products containing chlorine (calcium hypochlorite) can seriously damage ttings in
the tank. This damage can cause leakage and property damage.
DXV shall not be responsible or liable for any tank tting damage caused by the use of cleaners containing chlorine (calcium
hypochlorite).
7302362-100 Rev. A (5/18)
6 7
CARE AND CLEANING
ADJUSTMENTS
• Adjust water level.
Water level should
be adjusted to level
indicated on tank
by adjusting oat cup.
See Step 7 for water level
adjustment method
• If bowl fails to siphon,
an adjustment may be
required with the lift
chain. Simply remove the
bead chain from
the retainment clip and
take up slack on the
chain, and reinsert on lift
rod. Make sure the chain
is not too taught.
Turn on water supply.
Submerge the FLOAT CUP
under the water for 30
seconds. Adjust the water
to desired level by turning
WATER LEVEL ADJUSTMENT
ROD and moving FLOAT CUP
up or down.
VALVE
BODY
ADJUSTABLE
HEIGHT
WATER LEVEL
ADJUSTMENT
ROD
TANK
LEVER
FLUSH
VALVE
TOP ARM
NIPPLE
Diagram 1
PARTS FOR WATER
CONNECTION
(SEE STEP 9)
CONE WASHER
FLAPPER
THREADED
SHANK
SHANK
WASHER
COUPLING NUT
(HAND TIGHT ONLY)
FILL
VALVE
F L OAT
CUP
CRITICAL LEVEL
MARK ("C.L.")
MUST BE
1" ABOVE
OVERFLOW PIPE
REFILL
TUBE
LOCK NUT
!

- 4 -
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: [phone]
www.DXV.com
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: [phone]
www.DXV.ca
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
7302362-100 Rev. A (5/18)
TROUBLESHOOTING
IF FILL VALVE SHUTS OFF BUT CONTINUES TO LEAK SLOWLY, repeat Step 9.
IF FILL VALVE TURNS OFF AND ON DURING PERIODS OF NON-USE,
it is a signal you are wasting water because:
• The end of the rell tube is inserted into overow pipe, below water level in tank.
Attach rell tube to overow pipe using "S" clip provided.
• The ush valve is leaking because it's worn, dirty or misaligned with tank ball or
apper (replace with a new apper). IF FILL VALVE WON'T TURN ON OR
SHUT OFF or REFILL OF TANK WATER IS SLOW after valve has been in
use for some time, Fluidmaster Model 242 Replacement Seal may be needed.
Go to our website at www.fluidmaster.com for more solutions to toilet problems.
9
LIFT ARM
FIRST
LIFT ARM
FIRST
LIFT ARM
FIRST

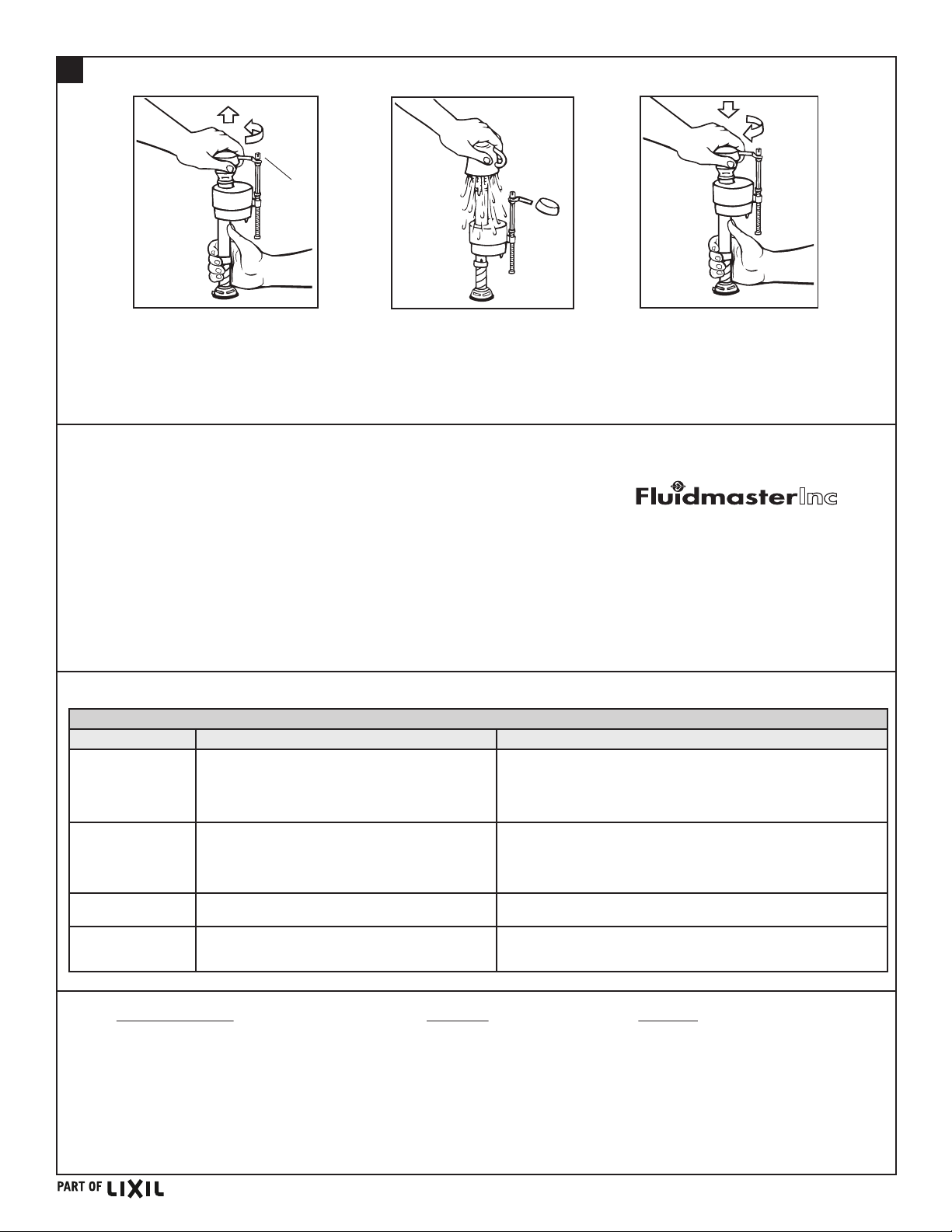

IMPORTANT: Always clear sand
and rust from system.
• Make sure water supply is off. Remove
valve TOP by lifting arm and rotating
top and arm 1/8 turn counterclockwise,
pressing down slightly on cap.
• While holding a container over
the uncapped VALVE to prevent
splashing, turn water supply on
and off a few times. Leave water
supply off.
• Replace TOP by engaging lugs and
rotating 1/8 turn clockwise. MAKE
CERTAIN TIP IS TURNED TO THE
LOCKED POSITION. VALVE MAY NOT
TURN ON IF TOP IS NOT FULLY TURNED
TO THE LOCKED POS
For troubleshooting information please contact:
© 2001 Fluidmaster, Inc.
® Registered trademark of Fluidmaster, Inc.
30800 Rancho Viejo Road
San Juan Capistrano, CA 92675
[phone] [phone]
www.uidmaster.com
NOTE: Pictures are representative and may not exactly depict the flush valve.
PARTS - See list label under the tank cover
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Does not ush a. Water supply valve closed.
b. Supply line blocked.
c. Flush valve chain too loose or disconnected.
d. Sand or debris lodged in water control.
a. Open valve and allow water to ll tank.
b. Shut off water supply, disconnect supply line and inspect all gaskets and
washers. Reassemble. Also, see Fluidmaster maintenance. (see Step 9)
c. Readjust chain length as required.
d. Shut off water supply. Remove cap and clean as per Step 9.
Poor or sluggish ush a. Bowl water level too low.
b. Supply valve partly closed.
c. Partially clogged trapway and/or drain pipe and/or vent.
d. Supply pressure too low.
a. Check that rell tube is connected to water control and inserted into tank
overow without being kinked or damaged.
b. Open supply valve fully. Be sure that proper supply tube size is used.
c. Remove obstruction. Consult a plumber if necessary.
d. Normal supply pressure must be at least 20 psi.
Toilet leaks a. Poor supply line connection.
b. Poor bowl to tank/oor connection.
a. Review Step 6.
b. Review Step 1-5.
Toilet does not shut off a. Flush valve chain too tight, holding ush valve open.
b. Flush valve seat and/or apper worn or deformed.
c. Sand or debris lodged in water control.
a. Readjust chain length as needed. Review Step 6.
b. Shut off water supply. Replace ush valve.
c. Shut off water supply. Remove cap and clean per Step 9.
Always use quality Fluidmaster repair parts when
maintaining your Fluidmaster products. Fluidmaster
shall not be responsible or liable for any damages
caused by products used with Fluidmaster valves
that were not manufactured by Fluidmaster, Inc.
