E-Z Trail 550 User manual

E-Z Trail 550
GRAIN CART
OPERATORS MANUAL
&
PARTS BOOK
Read and understand the manual. This manual provides information and procedures
to safely operate and maintain the Grain Cart.
1050 E. Columbia
P.O. BOX 168
Arthur, IL 61911
Toll Free: 800-677-2802
Phone: [phone]
www.e-ztrail.com

E-ZTrail.com 550 Grain Cart
1
WARNING
• Do not attempt to clean, adjust, lubricate, or enter the grain cart while any part is in operation.
• Do not start the machine without all guards and shields in place, and in good working condition.
• Do not operate on public roads unless equipped with proper lighting or warning devices. It is the responsibility of
the user and owner to install lighting or other equipment as required by state and federal laws.
• Do not allow children to play on or around the grain cart.
OPERATION
• The indicator ag in front of the auger shows the position of the inner door.
• When engaging the PTO, the door should be closed and the tractor should be running at low RPM’s to prolong
the life of the drive-line and gearbox.
• With the auger running, open the door and begin unloading grain. Do not exceed 750 PTO RPM for maximum
eciency and auger life.
• When the cart is nearly empty, the door can be partially closed to provide better clean out.
• The top auger must remain locked in the unloading position while the PTO is engaged. Folding the top auger
while the auger is turning can cause damage to the augers.
• Check wheel nuts for the proper torque before rst use, after the rst load, and then periodically afterwards.
(350ft/lbs)
MAINTENANCE
If you have further questions, please contact us at 217-543-3471.
Parts may be ordered online at www.e-ztrail.com, where you can also download additional manuals.
Grease Regularly:
►PTO Sha
►U-Joint Gearbox
►Bearing at TOP of the Lower Auger
►Bearing at the TOP of the Top Auger
►Auger Hinge
R e c o m m e n d e d Ti r e I n  a t i o n :
PSI
23.1-26, 12 Ply..................40
Before rst use, then annually:
►Check gearbox oil level, use 90W oil.
►Check wheel bearings for sucient grease &
proper adjustment.

Introduction
E-ZTrail.com 550 Grain Cart
Product Improvements
Because E-Z Trail Inc. maintains an ongoing program
of product improvement, we reserve the right to make
improvements in design or changes in specications
without incurring any obligation to install them on
units previously sold.
2
550 Grain Cart
Engineered Design
Intended Usage
E-Z Trail Grain Carts have been designed and
engineered to transport and reload grain & seeds and
have been manufactured according to USA & North
American Standards
Do not use the Grain Cart for any other purpose than
its intended use of transporting and unloading grain
and seeds.

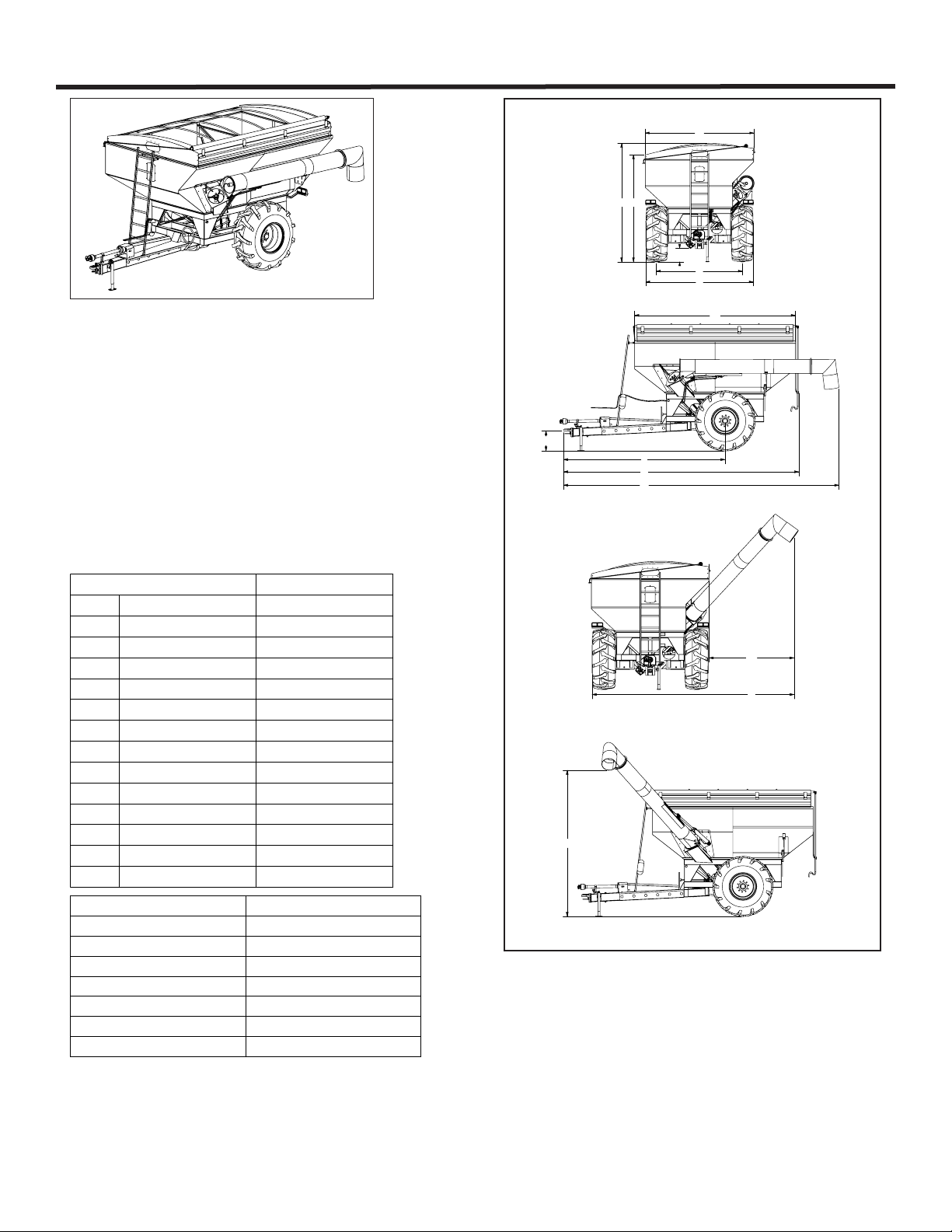

Dimensions and Specications
* Specications subject to change without notice.
DIMENSIONS
550
A
Bin Width 118in
B
Transport Height 129in
C
Loading Height 116in
D
Ground Clearance 14in
E
Track 94in to 120in
F
Transport Width 117in
G
Bin Length 162in
H
Tongue Height 21in
I
Hitch to Axle Length 163in
J
Length 237in
K
Transport Length 278in
L
Unloading Width 203in
M
Discharge Reach 86in
N
Discharge Height 148in
*SPECIFICATIONS 550
Auger Diameter 14"
Capacity 550 Bu
Unload Time 6T/Minute
Standard Tires
23.1-26
Unloaded Weight 6,800 lbs
Loaded Weight 41,998lbs
Tongue Weight (Loaded) 2866lbs
A
F
D
E
B C
K
G
J
H
I
M
L
N

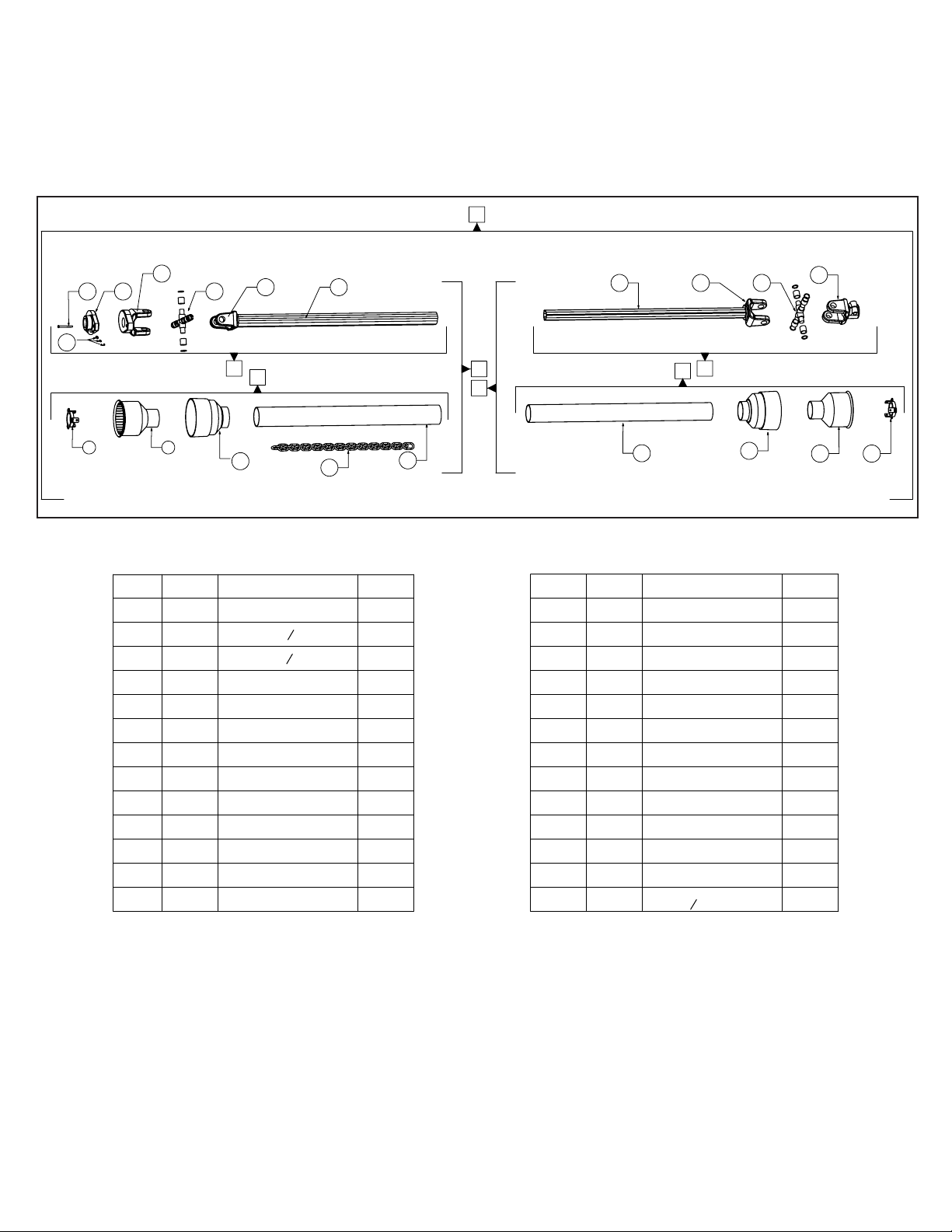

550 Hub, Driveshaft, & Decals
E-ZTrail.com 550 Grain Cart
3
4
5
1
3
2
7
6
8
9
11
10
12
13
14
15
16
17
22
18
21
19
23
24
23 22
20
38
25
26
27
28 30
31
32 33 34
35
36
37
29
39
40
42
41
43 44
45
Item Part No. Description Qty.
1 56129 Light Arm 2
2 56290
Warning Lamp, Right 1
3 56291
Warning Lamp, Left 1
4 50420
Wheel, 26 x 20 2
5 55801 Hand Wheel 1
6 55013
Safety Shroud 1
7 51602
Hose Holder 1
8 55012
PTO Bearing Box 1
9 50576
Jack 1
10 50711
Hitch Bracket 1
11 50710
Cast Hitch 1
12 55615
PTO Shaft Assembly 1
13 55909
PTO Holder 1
14 55403
180" Hydraulic Hose 2
15 55803 Ladder 1
Item Part No. Description Qty.
16 55804 Safety Grate 1
17 55805
Axle 2
18 55912
U-Joint Assembly 1
19 55291
Front Yoke 1
20 50384
U-Joint Cross 1
21 51289
Rear Yoke 1
22 55476 1
3
8
" Pillow Block
2
23 55477 1
3
8
" Bearing
2
24 55102
Drive Shaft (102") 1
25 50548
Hub Assembly 2
26 50455
Hub Cap 2
27 50458
Cotter Pin 2
28 50452
Castle Nut 2
29 50451
Washer 2
30 50460
Outer Bearing 2
Item Part No. Description Qty.
31 50453 Outer Race 2
32 50655
Wheel Nut 20
33 50549
550 Hub 2
34 50542
Wheel Stud 20
35 50540
Inner Race 2
36 50545
Inner Bearing 2
37 50541
Grease Seal 2
38 55511
Spindle, Bolt-In 2
39 51255
Stripe Decal 1
40 50252
Warning Decal Set 1
41 51246
E-Z Trail Decal 1
42 51251
Open-Close Decal 1
43 55247
Model Number Decal 1
44 51248
Handwheel Open Decal 1
45 55911
Decal Kit 1
4
5
1
3
2
7
6
8
9
11
10
12
13
14
15
16
17
22
18
21
19
23
24
23 22
20
38
25
26
27
28 30
31
32 33 34
35
36
37
29
39
40
42
41
43 44
45
Item Part No. Description Qty.
1 56129 Light Arm 2
2 56290
Warning Lamp, Right 1
3 56291
Warning Lamp, Left 1
4 50420
Wheel, 26 x 20 2
5 55801
Hand Wheel 1
6 55013
Safety Shroud 1
7 51602
Hose Holder 1
8 55012
PTO Bearing Box 1
9 50576
Jack 1
10 50711
Hitch Bracket 1
11 50710
Cast Hitch 1
12 55615
PTO Shaft Assembly 1
13 55909
PTO Holder 1
14 55403
180" Hydraulic Hose 2
15 55803 Ladder 1
Item Part No. Description Qty.
16 55804 Safety Grate 1
17 55805
Axle 2
18 55912
U-Joint Assembly 1
19 55291
Front Yoke 1
20 50384
U-Joint Cross 1
21 51289
Rear Yoke 1
22 55476 1
3
8
" Pillow Block
2
23 55477 1
3
8
" Bearing
2
24 55102
Drive Shaft (102") 1
25 50548
Hub Assembly 2
26 50455
Hub Cap 2
27 50458
Cotter Pin 2
28 50452
Castle Nut 2
29 50451
Washer 2
30 50460
Outer Bearing 2
Item Part No. Description Qty.
31 50453 Outer Race 2
32 50655
Wheel Nut 20
33 50549
550 Hub 2
34 50542
Wheel Stud 20
35 50540
Inner Race 2
36 50545
Inner Bearing 2
37 50541
Grease Seal 2
38 55511
Spindle, Bolt-In 2
39 51255
Stripe Decal 1
40 50252
Warning Decal Set 1
41 51246
E-Z Trail Decal 1
42 51251
Open-Close Decal 1
43 55247
Model Number Decal 1
44 51248
Handwheel Open Decal 1
45 55911
Decal Kit 1
4
5
1
3
2
7
6
8
9
11
10
12
13
14
15
16
17
22
18
21
19
23
24
23 22
20
38
25
26
27
28 30
31
32 33 34
35
36
37
29
39
40
42
41
43 44
45
Item Part No. Description Qty.
1 56129 Light Arm 2
2 56290
Warning Lamp, Right 1
3 56291
Warning Lamp, Left 1
4 50420
Wheel, 26 x 20 2
5 55801
Hand Wheel 1
6 55013
Safety Shroud 1
7 51602
Hose Holder 1
8 55012
PTO Bearing Box 1
9 50576
Jack 1
10 50711
Hitch Bracket 1
11 50710
Cast Hitch 1
12 55615
PTO Shaft Assembly 1
13 55909
PTO Holder 1
14 55403
180" Hydraulic Hose 2
15 55803 Ladder 1
Item Part No. Description Qty.
16 55804 Safety Grate 1
17 55805
Axle 2
18 55912
U-Joint Assembly 1
19 55291
Front Yoke 1
20 50384
U-Joint Cross 1
21 51289
Rear Yoke 1
22 55476 1
3
8
" Pillow Block
2
23 55477 1
3
8
" Bearing
2
24 55102
Drive Shaft (102") 1
25 50548
Hub Assembly 2
26 50455
Hub Cap 2
27 50458
Cotter Pin 2
28 50452
Castle Nut 2
29 50451
Washer 2
30 50460
Outer Bearing 2
Item Part No. Description Qty.
31 50453 Outer Race 2
32 50655
Wheel Nut 20
33 50549
550 Hub 2
34 50542
Wheel Stud 20
35 50540
Inner Race 2
36 50545
Inner Bearing 2
37 50541
Grease Seal 2
38 55511
Spindle, Bolt-In 2
39 51255
Stripe Decal 1
40 50252
Warning Decal Set 1
41 51246
E-Z Trail Decal 1
42 51251
Open-Close Decal 1
43 55247
Model Number Decal 1
44 51248
Handwheel Open Decal 1
45 55911
Decal Kit 1
4
5
1
3
2
7
6
8
9
11
10
12
13
14
15
16
17
22
18
21
19
23
24
23 22
20
38
25
26
27
28 30
31
32 33 34
35
36
37
29
39
40
42
41
43 44
45
Item Part No. Description Qty.
1 56129 Light Arm 2
2 56290
Warning Lamp, Right 1
3 56291
Warning Lamp, Left 1
4 50420
Wheel, 26 x 20 2
5 55801
Hand Wheel 1
6 55013
Safety Shroud 1
7 51602
Hose Holder 1
8 55012
PTO Bearing Box 1
9 50576
Jack 1
10 50711
Hitch Bracket 1
11 50710
Cast Hitch 1
12 55615
PTO Shaft Assembly 1
13 55909
PTO Holder 1
14 55403
180" Hydraulic Hose 2
15 55803 Ladder 1
Item Part No. Description Qty.
16 55804 Safety Grate 1
17 55805
Axle 2
18 55912
U-Joint Assembly 1
19 55291
Front Yoke 1
20 50384
U-Joint Cross 1
21 51289
Rear Yoke 1
22 55476 1
3
8
" Pillow Block
2
23 55477 1
3
8
" Bearing
2
24 55102
Drive Shaft (102") 1
25 50548
Hub Assembly 2
26 50455
Hub Cap 2
27 50458
Cotter Pin 2
28 50452
Castle Nut 2
29 50451
Washer 2
30 50460
Outer Bearing 2
Item Part No. Description Qty.
31 50453 Outer Race 2
32 50655
Wheel Nut 20
33 50549
550 Hub 2
34 50542
Wheel Stud 20
35 50540
Inner Race 2
36 50545
Inner Bearing 2
37 50541
Grease Seal 2
38 55511
Spindle, Bolt-In 2
39 51255
Stripe Decal 1
40 50252
Warning Decal Set 1
41 51246
E-Z Trail Decal 1
42 51251
Open-Close Decal 1
43 55247
Model Number Decal 1
44 51248
Handwheel Open Decal 1
45 55911
Decal Kit 1
4
5
1
3
2
7
6
8
9
11
10
12
13
14
15
16
17
22
18
21
19
23
24
23 22
20
38
25
26
27
28 30
31
32 33 34
35
36
37
29
39
40
42
41
43 44
45
Item Part No. Description Qty.
1 56129 Light Arm 2
2 56290 Warning Lamp, Right 1
3 56291 Warning Lamp, Left 1
4 50420
Wheel, 26 x 20 2
5 55801 Hand Wheel 1
6 55013
Safety Shroud 1
7 51602
Hose Holder 1
8 55012
PTO Bearing Box 1
9 50576
Jack 1
10 50711 Hitch Bracket 1
11 50710 Cast Hitch 1
12 55615
PTO Shaft Assembly 1
13 55909
PTO Holder 1
14 55403
180" Hydraulic Hose 2
15 55803 Ladder 1
Item Part No. Description Qty.
16 55804 Safety Grate 1
17 55805
Axle 2
18 55912
U-Joint Assembly 1
19 55291
Front Yoke 1
20 50384 U-Joint Cross 1
21 51289 Rear Yoke 1
22 55476 1
3
8
" Pillow Block
2
23 55477 1
3
8
" Bearing
2
24 55102
Drive Shaft (102") 1
25 50548
Hub Assembly 2
26 50455 Hub Cap 2
27 50458
Cotter Pin 2
28 50452 Castle Nut 2
29 50451 Washer 2
30 50460
Outer Bearing 2
Item Part No. Description Qty.
31 50453 Outer Race 2
32 50655 Wheel Nut 20
33 50549 550 Hub 2
34 50542 Wheel Stud 20
35 50540 Inner Race 2
36 50545
Inner Bearing 2
37 50541
Grease Seal 2
38 55511
Spindle, Bolt-In 2
39 51255 Stripe Decal 1
40 50252 Warning Decal Set 1
41 51246
E-Z Trail Decal 1
42 51251
Open-Close Decal 1
43 55247
Model Number Decal 1
44 51248
Handwheel Open Decal 1
45 55911
Decal Kit 1

550 PTO Assembly
E-ZTrail.com 550 Grain Cart
4
18 19
17
20
21 2322 24 25 21 26
8 9
10 11 12 13 14 15 16
1
2
3
7
5
4
6
Item Part No. Description Qty.
1 55615
PTO Assembly (40 Series)
1
2 50616
Front
1
2
PTO
1
3 55617
Rear
1
2
PTO
1
4 50618 Front Shield Assy. 1
5 50619 Rear Shield Assy. 1
6 50265 Front Shaft Assy. 1
7 55266 Rear Shaft Assy. 1
8 50267
Front Shield Retaining
Collar
1
9 50268 Front Shield Inner Bell 1
10 50269 Front Shield Outer Bell 1
11 50272 Safety Chains 2
12 50271 Front Shield Tube 1
13 50273 Rear Shield Tube 1
Item Part No. Description Qty.
14 50274 Rear Shield Outer Bell 1
15 50275 Rear Shield Inner Bell 1
16 50276
Rear Shield Retaining
Collar
1
17 50278 Push Pin Set 2
18 50280 Shear Bolt w/ Lock Nut 1
19 50279 Front Spline w/ Pins 1
20 50283 Tractor Yoke 1
21 50284 Cross Kit 2
22 50285 Front Yoke 1
23 50287 Front Shaft 1
24 50288 Rear Shaft 1
25 50289 Rear Yoke 1
26 55291
Machine Yoke
(1
3
8
21 Spline)
1
18 19
17
20
21 2322 24 25 21 26
8 9
10 11 12 13 14 15 16
1
2
3
7
5
4
6
Item Part No. Description Qty.
1 55615
PTO Assembly (40 Series)
1
2 50616
Front
1
2
PTO
1
3 55617
Rear
1
2
PTO
1
4 50618 Front Shield Assy. 1
5 50619 Rear Shield Assy. 1
650265
Front Shaft Assy. 1
7 55266 Rear Shaft Assy. 1
850267
Front Shield Retaining
Collar
1
950268
Front Shield Inner Bell 1
10 50269 Front Shield Outer Bell 1
11 50272 Safety Chains 2
12 50271 Front Shield Tube 1
13 50273 Rear Shield Tube 1
Item Part No. Description Qty.
14 50274 Rear Shield Outer Bell 1
15 50275
Rear Shield Inner Bell 1
16 50276
Rear Shield Retaining
Collar
1
17 50278
Push Pin Set 2
18 50280
Shear Bolt w/ Lock Nut 1
19 50279 Front Spline w/ Pins 1
20 50283
Tractor Yoke 1
21 50284
Cross Kit 2
22 50285 Front Yoke 1
23 50287 Front Shaft 1
24 50288 Rear Shaft 1
25 50289 Rear Yoke 1
26 55291
Machine Yoke
(1
3
8
21 Spline)
1
18 19
17
20
21 2322 24 25 21 26
8 9
10 11 12 13 14 15 16
1
2
3
7
5
4
6
Item Part No. Description Qty.
1 55615
PTO Assembly (40 Series)
1
2 50616
Front
1
2
PTO
1
3 55617
Rear
1
2
PTO
1
4 50618 Front Shield Assy. 1
5 50619 Rear Shield Assy. 1
6 50265 Front Shaft Assy. 1
7 55266 Rear Shaft Assy. 1
8 50267
Front Shield Retaining
Collar
1
9 50268 Front Shield Inner Bell 1
10 50269 Front Shield Outer Bell 1
11 50272 Safety Chains 2
12 50271 Front Shield Tube 1
13 50273 Rear Shield Tube 1
Item Part No. Description Qty.
14 50274 Rear Shield Outer Bell 1
15 50275 Rear Shield Inner Bell 1
16 50276
Rear Shield Retaining
Collar
1
17 50278 Push Pin Set 2
18 50280 Shear Bolt w/ Lock Nut 1
19 50279 Front Spline w/ Pins 1
20 50283 Tractor Yoke 1
21 50284 Cross Kit 2
22 50285 Front Yoke 1
23 50287 Front Shaft 1
24 50288 Rear Shaft 1
25 50289 Rear Yoke 1
26 55291
Machine Yoke
(1
3
8
21 Spline)
1

E-ZTrail.com 550 Grain Cart
550 Top Auger Assembly
1
23
4
5
6
8
10
11
12
13
14
15
17
18
19
16
21
20
22
7
9
1
2
4
5
6
3
7
8
9
17
11
12
13
15
16
14
10
18
19
20
27
28
26
25
24
23

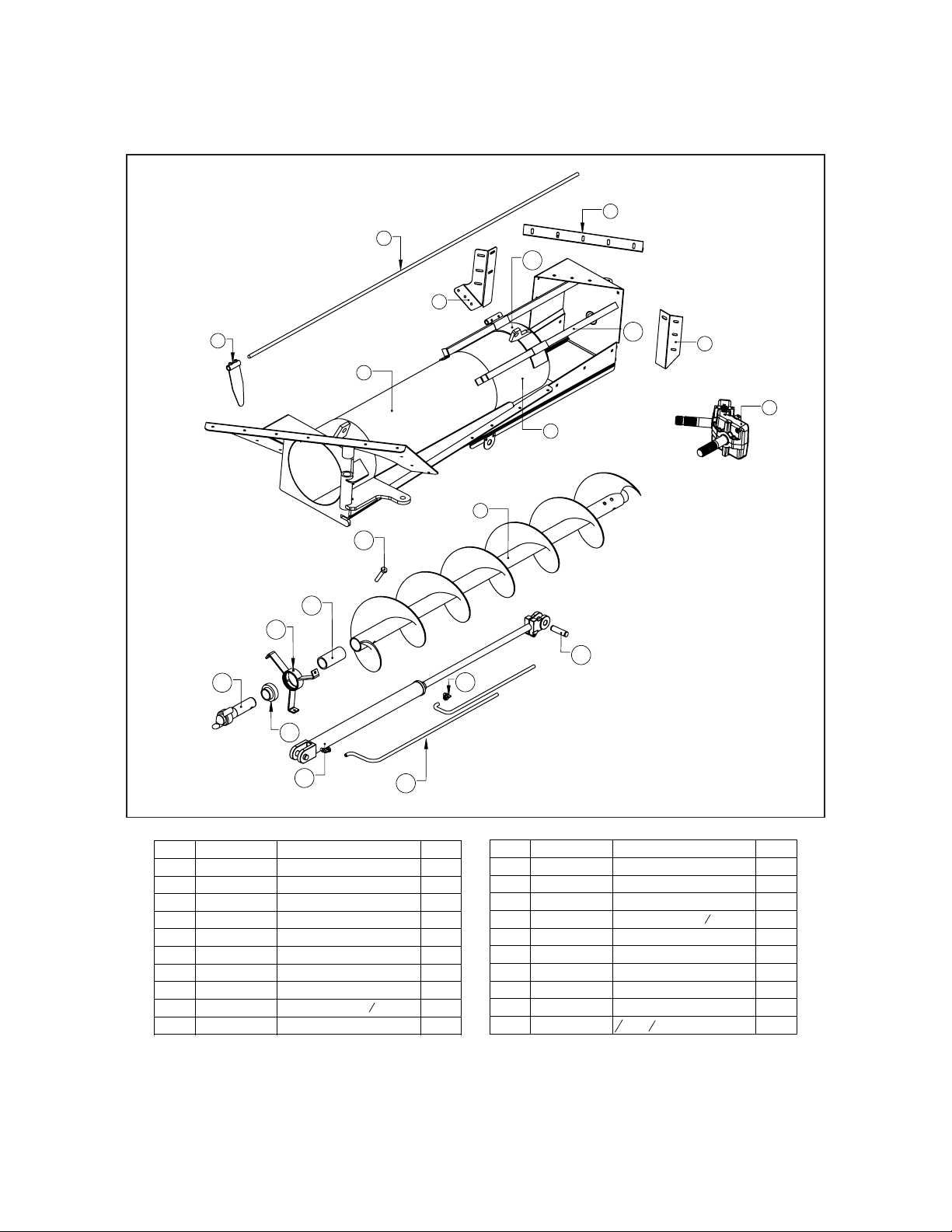

Item Part No. Description Qty.
1 55815 Auger Spout Rubber 1
2 55028
Discharge Head 1
2 55179
550X Discharge Head
3 50180 Flange Clamp 1
4 55809
Top Auger Tube 1
4 55812
550X Top Auger Tube 1
5 55810
Hinge Pin 1
6 55404
Hinge Pin Stop 1
7 50466
Sleeve
8 55811
Top Auger ( 127
7
8
")
1
8 55813
550X Top Auger (151
7
8
")
1
9 50381 5
8
" x 3
1
2
" Bolt w/ Locknut
1
10 50141
Top Stub Shaft 1
11 50135
Top Auger Spring 1
12 50128
Bearing Hanger 1
13 50629
2" Bearing 1
Item Part No. Description Qty.
1 51132 Indicator Flag 1
2 55808
Indicator Rod 1
3 55806
Bottom Auger Tube 1
4 55113
Front Auger Mounting Rail 1
5 55114
Top Auger Mounting Rail 1
6 55115
Rear Auger Mount Rail 1
7 55807
Inside Door 1
8 51223
Gearbox 1
9 55813
Bottom Auger (76
3
4
")
1
10 50469
Sleeve 1
11 50128
Bearing Hanger 1
12 50629
2" Bearing 1
13 50630
Pointed Shaft 1
14 51630
Hydraulic Cylinder (2
1
2
" x 30")
1
15 55401
35" Hydraulic Hose 2
16 50410
Hydraulic 90° Fitting 2
17 51412
1" Cylinder Pin 2
18 50835
Slide Rails 2
19 50836
Cylinder Anchor 1
20 50381 5
8
" x 3
1
2
" Bolt w/ Locknut
1
Item
Part No. Description Qty.
14 50451 Top Auger Idler Washer 1
15 50452
Castle Nut (1
1
4
" x 12)
1
16 50458
Cotter Pin (
3
16
" x 13")
1
17 51621
Hydraulic Cylinder (3" x 20") 1
18 50410
Hydraulic 90° Fitting 2
19 51419
Restrictor Fitting 1
20 55405
20' (240") Hydraulic Hose 1
21 51412
1" Cylinder Pin 2
22 55404
18' (216") Hydraulic Hose 1
23 55182
Adjustable Spout Lower 1
24 51183
Hydraulic Cylinder (1" x 8") 1
25 55184
Hydraulic Hose 30' 1
26 55185
Hydraulic Hose 29' 1
27 50837
Adjustable Discharge Head 1
28 55646
Adjustable Spout Rubber 1
5
1
23
4
5
6
8
10
11
12
13
14
15
17
18
19
16
21
20
22
7
9
1
2
4
5
6
3
7
8
9
17
11
12
13
15
16
14
10
18
19
20
27
28
26
25
24
23
Item Part No. Description Qty.
1 55815 Auger Spout Rubber 1
2 55028
Discharge Head 1
2 55179
550X Discharge Head
3 50180 Flange Clamp 1
4 55809
Top Auger Tube 1
4 55812
550X Top Auger Tube 1
5 55810
Hinge Pin 1
6 55404
Hinge Pin Stop 1
7 50466
Sleeve
8 55811
Top Auger ( 127
7
8
")
1
8 55813
550X Top Auger (151
7
8
")
1
9 50381 5
8
" x 3
1
2
" Bolt w/ Locknut
1
10 50141
Top Stub Shaft 1
11 50135
Top Auger Spring 1
12 50128
Bearing Hanger 1
13 50629
2" Bearing 1
Item Part No. Description Qty.
1 51132 Indicator Flag 1
2 55808
Indicator Rod 1
3 55806
Bottom Auger Tube 1
4 55113
Front Auger Mounting Rail 1
5 55114
Top Auger Mounting Rail 1
6 55115
Rear Auger Mount Rail 1
7 55807
Inside Door 1
8 51223
Gearbox 1
9 55813
Bottom Auger (76
3
4
")
1
10 50469
Sleeve 1
11 50128
Bearing Hanger 1
12 50629
2" Bearing 1
13 50630
Pointed Shaft 1
14 51630
Hydraulic Cylinder (2
1
2
" x 30")
1
15 55401
35" Hydraulic Hose 2
16 50410
Hydraulic 90° Fitting 2
17 51412
1" Cylinder Pin 2
18 50835
Slide Rails 2
19 50836
Cylinder Anchor 1
20 50381 5
8
" x 3
1
2
" Bolt w/ Locknut
1
Item Part No.
Description Qty.
14 50451 Top Auger Idler Washer 1
15 50452
Castle Nut (1
1
4
" x 12)
1
16 50458
Cotter Pin (
3
16
" x 13")
1
17 51621
Hydraulic Cylinder (3" x 20") 1
18 50410
Hydraulic 90° Fitting 2
19 51419
Restrictor Fitting 1
20 55405
20' (240") Hydraulic Hose 1
21 51412
1" Cylinder Pin 2
22 55404
18' (216") Hydraulic Hose 1
23 55182
Adjustable Spout Lower 1
24 51183
Hydraulic Cylinder (1" x 8") 1
25 55184
Hydraulic Hose 30' 1
26 55185
Hydraulic Hose 29' 1
27 50837
Adjustable Discharge Head 1
28 55646
Adjustable Spout Rubber 1
1
23
4
5
6
8
10
11
12
13
14
15
17
18
19
16
21
20
22
7
9
1
2
4
5
6
3
7
8
9
17
11
12
13
15
16
14
10
18
19
20
27
28
26
25
24
23
Item Part No. Description Qty.
1 55815 Auger Spout Rubber 1
2 55028
Discharge Head 1
2 55179
550X Discharge Head
3 50180 Flange Clamp 1
4 55809
Top Auger Tube 1
4 55812
550X Top Auger Tube 1
5 55810
Hinge Pin 1
6 55404
Hinge Pin Stop 1
7 50466
Sleeve
8 55811
Top Auger ( 127
7
8
")
1
8 55813
550X Top Auger (151
7
8
")
1
9 50381 5
8
" x 3
1
2
" Bolt w/ Locknut
1
10 50141
Top Stub Shaft 1
11 50135
Top Auger Spring 1
12 50128
Bearing Hanger 1
13 50629
2" Bearing 1
Item Part No. Description Qty.
1 51132 Indicator Flag 1
2 55808
Indicator Rod 1
3 55806
Bottom Auger Tube 1
4 55113
Front Auger Mounting Rail 1
5 55114
Top Auger Mounting Rail 1
6 55115
Rear Auger Mount Rail 1
7 55807
Inside Door 1
8 51223
Gearbox 1
9 55813
Bottom Auger (76
3
4
")
1
10 50469
Sleeve 1
11 50128
Bearing Hanger 1
12 50629
2" Bearing 1
13 50630
Pointed Shaft 1
14 51630
Hydraulic Cylinder (2
1
2
" x 30")
1
15 55401
35" Hydraulic Hose 2
16 50410
Hydraulic 90° Fitting 2
17 51412
1" Cylinder Pin 2
18 50835
Slide Rails 2
19 50836
Cylinder Anchor 1
20 50381 5
8
" x 3
1
2
" Bolt w/ Locknut
1
Item
Part No. Description Qty.
14 50451 Top Auger Idler Washer 1
15 50452
Castle Nut (1
1
4
" x 12)
1
16 50458
Cotter Pin (
3
16
" x 13")
1
17 51621
Hydraulic Cylinder (3" x 20") 1
18 50410
Hydraulic 90° Fitting 2
19 51419
Restrictor Fitting 1
20 55405
20' (240") Hydraulic Hose 1
21 51412
1" Cylinder Pin 2
22 55404
18' (216") Hydraulic Hose 1
23 55182
Adjustable Spout Lower 1
24 51183
Hydraulic Cylinder (1" x 8") 1
25 55184
Hydraulic Hose 30' 1
26 55185
Hydraulic Hose 29' 1
27 50837
Adjustable Discharge Head 1
28 55646
Adjustable Spout Rubber 1

E-ZTrail.com 550 Grain Cart
550 Bottom Auger Assembly
1
23
4
5
6
8
10
11
12
13
14
15
17
18
19
16
21
20
22
7
9
1
2
4
5
6
3
7
8
9
17
11
12
13
15
16
14
10
18
19
20
27
28
26
25
24
23
Item Part No. Description Qty.
1 55815 Auger Spout Rubber 1
2 55028
Discharge Head 1
2 55179
550X Discharge Head
3 50180 Flange Clamp 1
4 55809
Top Auger Tube 1
4 55812
550X Top Auger Tube 1
5 55810
Hinge Pin 1
6 55404
Hinge Pin Stop 1
7 50466
Sleeve
8 55811
Top Auger ( 127
7
8
")
1
8 55813
550X Top Auger (151
7
8
")
1
9 50381 5
8
" x 3
1
2
" Bolt w/ Locknut
1
10 50141
Top Stub Shaft 1
11 50135
Top Auger Spring 1
12 50128
Bearing Hanger 1
13 50629
2" Bearing 1
Item Part No. Description Qty.
1 51132 Indicator Flag 1
2 55808
Indicator Rod 1
3 55806
Bottom Auger Tube 1
4 55113
Front Auger Mounting Rail 1
5 55114
Top Auger Mounting Rail 1
6 55115
Rear Auger Mount Rail 1
7 55807
Inside Door 1
8 51223
Gearbox 1
9 55813
Bottom Auger (76
3
4
")
1
10 50469
Sleeve 1
11 50128 Bearing Hanger 1
12 50629
2" Bearing 1
13 50630
Pointed Shaft 1
14 51630
Hydraulic Cylinder (2
1
2
" x 30")
1
15 55401
35" Hydraulic Hose 2
16 50410
Hydraulic 90° Fitting 2
17 51412
1" Cylinder Pin 2
18 50835
Slide Rails 2
19 50836
Cylinder Anchor 1
20 50381 5
8
" x 3
1
2
" Bolt w/ Locknut
1
Item
Part No. Description Qty.
14 50451 Top Auger Idler Washer 1
15 50452
Castle Nut (1
1
4
" x 12)
1
16 50458
Cotter Pin (
3
16
" x 13")
1
17 51621
Hydraulic Cylinder (3" x 20") 1
18 50410
Hydraulic 90° Fitting 2
19 51419
Restrictor Fitting 1
20 55405
20' (240") Hydraulic Hose 1
21 51412
1" Cylinder Pin 2
22 55404
18' (216") Hydraulic Hose 1
23 55182
Adjustable Spout Lower 1
24 51183
Hydraulic Cylinder (1" x 8") 1
25 55184
Hydraulic Hose 30' 1
26 55185
Hydraulic Hose 29' 1
27 50837
Adjustable Discharge Head 1
28 55646
Adjustable Spout Rubber 1
6
1
23
4
5
6
8
10
11
12
13
14
15
17
18
19
16
21
20
22
7
9
1
2
4
5
6
3
7
8
9
17
11
12
13
15
16
14
10
18
19
20
27
28
26
25
24
23
Item Part No. Description Qty.
1 55815 Auger Spout Rubber 1
2 55028
Discharge Head 1
2 55179
550X Discharge Head
3 50180 Flange Clamp 1
4 55809
Top Auger Tube 1
4 55812
550X Top Auger Tube 1
5 55810
Hinge Pin 1
6 55404
Hinge Pin Stop 1
7 50466
Sleeve
8 55811
Top Auger ( 127
7
8
")
1
8 55813
550X Top Auger (151
7
8
")
1
9 50381
5
8
" x 3
1
2
" Bolt w/ Locknut
1
10 50141
Top Stub Shaft 1
11 50135
Top Auger Spring 1
12 50128
Bearing Hanger 1
13 50629
2" Bearing 1
Item Part No. Description Qty.
1 51132 Indicator Flag 1
2 55808
Indicator Rod 1
3 55806
Bottom Auger Tube 1
4 55113
Front Auger Mounting Rail 1
5 55114
Top Auger Mounting Rail 1
6 55115
Rear Auger Mount Rail 1
7 55807
Inside Door 1
8 51223
Gearbox 1
9 55813
Bottom Auger (76
3
4
")
1
10 50469
Sleeve 1
11 50128
Bearing Hanger 1
12 50629
2" Bearing 1
13 50630
Pointed Shaft 1
14 51630
Hydraulic Cylinder (2
1
2
" x 30")
1
15 55401
35" Hydraulic Hose 2
16 50410
Hydraulic 90° Fitting 2
17 51412
1" Cylinder Pin 2
18 50835
Slide Rails 2
19 50836
Cylinder Anchor 1
20 50381
5
8
" x 3
1
2
" Bolt w/ Locknut
1
Item
Part No. Description Qty.
14 50451 Top Auger Idler Washer 1
15 50452
Castle Nut (1
1
4
" x 12)
1
16 50458
Cotter Pin (
3
16
" x 13")
1
17 51621
Hydraulic Cylinder (3" x 20") 1
18 50410
Hydraulic 90° Fitting 2
19 51419
Restrictor Fitting 1
20 55405
20' (240") Hydraulic Hose 1
21 51412
1" Cylinder Pin 2
22 55404
18' (216") Hydraulic Hose 1
23 55182
Adjustable Spout Lower 1
24 51183
Hydraulic Cylinder (1" x 8") 1
25 55184
Hydraulic Hose 30' 1
26 55185
Hydraulic Hose 29' 1
27 50837
Adjustable Discharge Head 1
28 55646
Adjustable Spout Rubber 1
1
23
4
5
6
8
10
11
12
13
14
15
17
18
19
16
21
20
22
7
9
1
2
4
5
6
3
7
8
9
17
11
12
13
15
16
14
10
18
19
20
27
28
26
25
24
23
Item Part No. Description Qty.
1 55815 Auger Spout Rubber 1
2 55028
Discharge Head 1
2 55179
550X Discharge Head
3 50180 Flange Clamp 1
4 55809
Top Auger Tube 1
4 55812
550X Top Auger Tube 1
5 55810
Hinge Pin 1
6 55404
Hinge Pin Stop 1
7 50466
Sleeve
8 55811
Top Auger ( 127
7
8
")
1
8 55813
550X Top Auger (151
7
8
")
1
9 50381 5
8
" x 3
1
2
" Bolt w/ Locknut
1
10 50141
Top Stub Shaft 1
11 50135
Top Auger Spring 1
12 50128
Bearing Hanger 1
13 50629
2" Bearing 1
Item Part No. Description Qty.
1 51132 Indicator Flag 1
2 55808
Indicator Rod 1
3 55806
Bottom Auger Tube 1
4 55113
Front Auger Mounting Rail 1
5 55114
Top Auger Mounting Rail 1
6 55115
Rear Auger Mount Rail 1
7 55807
Inside Door 1
8 51223
Gearbox 1
9 55813
Bottom Auger (76
3
4
")
1
10 50469
Sleeve 1
11 50128
Bearing Hanger 1
12 50629
2" Bearing 1
13 50630
Pointed Shaft 1
14 51630
Hydraulic Cylinder (2
1
2
" x 30")
1
15 55401
35" Hydraulic Hose 2
16 50410
Hydraulic 90° Fitting 2
17 51412
1" Cylinder Pin 2
18 50835
Slide Rails 2
19 50836
Cylinder Anchor 1
20 50381 5
8
" x 3
1
2
" Bolt w/ Locknut
1
Item
Part No. Description Qty.
14 50451 Top Auger Idler Washer 1
15 50452
Castle Nut (1
1
4
" x 12)
1
16 50458
Cotter Pin (
3
16
" x 13")
1
17 51621
Hydraulic Cylinder (3" x 20") 1
18 50410
Hydraulic 90° Fitting 2
19 51419
Restrictor Fitting 1
20 55405
20' (240") Hydraulic Hose 1
21 51412
1" Cylinder Pin 2
22 55404
18' (216") Hydraulic Hose 1
23 55182
Adjustable Spout Lower 1
24 51183
Hydraulic Cylinder (1" x 8") 1
25 55184
Hydraulic Hose 30' 1
26 55185
Hydraulic Hose 29' 1
27 50837
Adjustable Discharge Head 1
28 55646
Adjustable Spout Rubber 1
1
23
4
5
6
8
10
11
12
13
14
15
17
18
19
16
21
20
22
7
9
1
2
4
5
6
3
7
8
9
17
11
12
13
15
16
14
10
18
19
20
27
28
26
25
24
23
Item Part No. Description Qty.
1 55815 Auger Spout Rubber 1
2 55028
Discharge Head 1
2 55179
550X Discharge Head
3 50180 Flange Clamp 1
4 55809
Top Auger Tube 1
4 55812
550X Top Auger Tube 1
5 55810
Hinge Pin 1
6 55404
Hinge Pin Stop 1
7 50466
Sleeve
8 55811
Top Auger ( 127
7
8
")
1
8 55813
550X Top Auger (151
7
8
")
1
9 50381 5
8
" x 3
1
2
" Bolt w/ Locknut
1
10 50141
Top Stub Shaft 1
11 50135
Top Auger Spring 1
12 50128
Bearing Hanger 1
13 50629
2" Bearing 1
Item Part No. Description Qty.
1 51132 Indicator Flag 1
2 55808
Indicator Rod 1
3 55806
Bottom Auger Tube 1
4 55113
Front Auger Mounting Rail 1
5 55114
Top Auger Mounting Rail 1
6 55115
Rear Auger Mount Rail 1
7 55807
Inside Door 1
8 51223
Gearbox 1
9 55813
Bottom Auger (76
3
4
")
1
10 50469
Sleeve 1
11 50128 Bearing Hanger 1
12 50629
2" Bearing 1
13 50630
Pointed Shaft 1
14 51630
Hydraulic Cylinder (2
1
2
" x 30")
1
15 55401
35" Hydraulic Hose 2
16 50410
Hydraulic 90° Fitting 2
17 51412
1" Cylinder Pin 2
18 50835
Slide Rails 2
19 50836
Cylinder Anchor 1
20 50381 5
8
" x 3
1
2
" Bolt w/ Locknut
1
Item
Part No. Description Qty.
14 50451 Top Auger Idler Washer 1
15 50452
Castle Nut (1
1
4
" x 12)
1
16 50458
Cotter Pin (
3
16
" x 13")
1
17 51621
Hydraulic Cylinder (3" x 20") 1
18 50410
Hydraulic 90° Fitting 2
19 51419
Restrictor Fitting 1
20 55405
20' (240") Hydraulic Hose 1
21 51412
1" Cylinder Pin 2
22 55404
18' (216") Hydraulic Hose 1
23 55182
Adjustable Spout Lower 1
24 51183
Hydraulic Cylinder (1" x 8") 1
25 55184
Hydraulic Hose 30' 1
26 55185
Hydraulic Hose 29' 1
27 50837
Adjustable Discharge Head 1
28 55646
Adjustable Spout Rubber 1

550 Extension & Tarp Assemblies
550 Grain CartE-ZTrail.com
7
5
1
2
3
4
6
20
21
18
17
15
14
19
10
9
8
12
7
13
16
11
22
5
Item Part No. Description Qty.
1 56176 Ladder Top Bracket 1
2 56177
Ladder Top Link 2
3 55308
Auger Support 1
4 55463
Rubber Pad 1
5 55833
Window (15" x 20") 2
6 55021
LH Extension 1
7 55020
RH Extension 1
8 55025
Rear Extension 1
9 55022
Front Extension 1
10 51257
Window (12" x 24") 1
11 55818
Tarp Bow 4
Item Part No. Description Qty.
12 50850 Tarp Stop 3
13 4840
U-Joint 1
14 55914
Tarp Handle 1
15 50849
Tarp Handle Holder Cradle
Retainer
1
16 55821
Tarp Handle Flat Bar Bracket 1
17 55820
Tarp Handle Holder Flat Bar 1
18 55850
Replacement Tarp 1
19 55831
Roll Tube 1
20 55007
Latch Plate 1
21 4859
Bungie Cord 1
22 4858
Roll Plug 1
5
1
2
3
4
6
20
21
18
17
15
14
19
10
9
8
12
7
13
16
11
22
5
Item Part No. Description Qty.
1 56176 Ladder Top Bracket 1
2 56177
Ladder Top Link 2
3 55308
Auger Support 1
4 55463
Rubber Pad 1
5 55833
Window (15" x 20") 2
6 55021
LH Extension 1
7 55020
RH Extension 1
8 55025
Rear Extension 1
9 55022
Front Extension 1
10 51257
Window (12" x 24") 1
11 55818
Tarp Bow 4
Item Part No. Description Qty.
12 50850 Tarp Stop 3
13 4840
U-Joint 1
14 55914
Tarp Handle 1
15 50849
Tarp Handle Holder Cradle
Retainer
1
16 55821
Tarp Handle Flat Bar Bracket 1
17 55820
Tarp Handle Holder Flat Bar 1
18 55850
Replacement Tarp 1
19 55831
Roll Tube 1
20 55007
Latch Plate 1
21 4859
Bungie Cord 1
22 4858
Roll Plug 1
5
1
2
3
4
6
20
21
18
17
15
14
19
10
9
8
12
7
13
16
11
22
5
Item Part No. Description Qty.
1 56176 Ladder Top Bracket 1
2 56177
Ladder Top Link 2
3 55308
Auger Support 1
4 55463
Rubber Pad 1
5 55833
Window (15" x 20") 2
6 55021
LH Extension 1
7 55020
RH Extension 1
8 55025
Rear Extension 1
9 55022
Front Extension 1
10 51257
Window (12" x 24") 1
11 55818
Tarp Bow 4
Item Part No. Description Qty.
12 50850 Tarp Stop 3
13 4840
U-Joint 1
14 55914
Tarp Handle 1
15 50849
Tarp Handle Holder Cradle
Retainer
1
16 55821
Tarp Handle Flat Bar Bracket 1
17 55820
Tarp Handle Holder Flat Bar 1
18 55850
Replacement Tarp 1
19 55831
Roll Tube 1
20 55007
Latch Plate 1
21 4859
Bungie Cord 1
22 4858
Roll Plug 1
