E-Z UP Bungalow User manual

2
TABLE OF CONTENTS
Intro.......................................................................................2
Set-up Instructions.....................................................................3
Care and Maintenance.............................................................7
ImportantInformation................................................................7
Take Down Instructions..............................................................8
Accessories.........................................................................10
Warranty and Registration.....................................................11
THANK YOU...
for your purchase of
the Bungalow by
E-Z UP®. For over
20 years, E-Z UP®
customers have been
thrilled with their
E-Z UP®experience.
To ensure your
complete satisfaction, take the time to learn how to operate the
Bungalow®by carefully reviewing these set-up and care instructions.

3

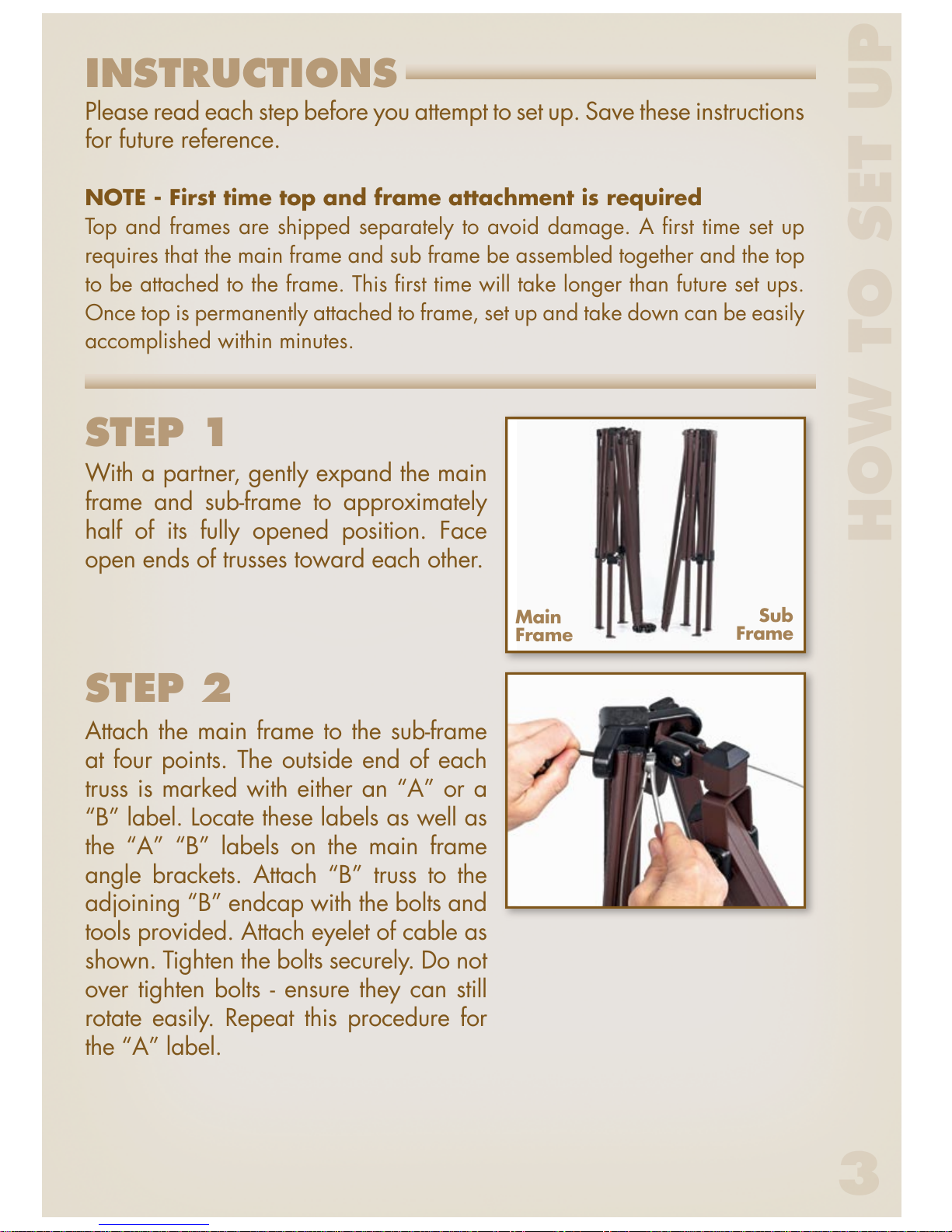

HOW TO SET UP
INSTRUCTIONS
STEP 1
STEP 2
Please read each step before you attempt to set up. Save these instructions
for future reference.
NOTE - First time top and frame attachment is required
Top and frames are shipped separately to avoid damage. A first time set up
requires that the main frame and sub frame be assembled together and the top
to be attached to the frame. This first time will take longer than future set ups.
Once top is permanently attached to frame, set up and take down can be easily
accomplished within minutes.
With a partner, gently expand the main
frame and sub-frame to approximately
half of its fully opened position. Face
open ends of trusses toward each other.
Attach the main frame to the sub-frame
at four points. The outside end of each
truss is marked with either an “A” or a
“B” label. Locate these labels as well as
the “A” “B” labels on the main frame
angle brackets. Attach “B” truss to the
adjoining “B” endcap with the bolts and
tools provided. Attach eyelet of cable as
shown. Tighten the bolts securely. Do not
over tighten bolts - ensure they can still
rotate easily. Repeat this procedure for
the “A” label.
Main
Frame Sub
Frame

4
STEP 3
When attaching part “A” to part
“B”, ensure the cables are attached
as shown.
STEP 4
Use the bolts and tools provided to
connect the part “B” peak assembly to
the part “A” hub in three locations.
STEP 5
Place your Bungalow® by E-Z UP®frame
in the center of area to be shaded. With
one or two partners on opposite sides,
grasp outer legs, slightly lift shelter off
the ground and step backwards stopping
at full arms’ length.
STEP 6
Unfold the fabric top and place it over the
open frame. Align the six corners of the
top over the six corners of the frame.
STEP 7
To secure the top to frame, align grommet
holes on valance with bolts in frame.

5
HOW TO SET UP

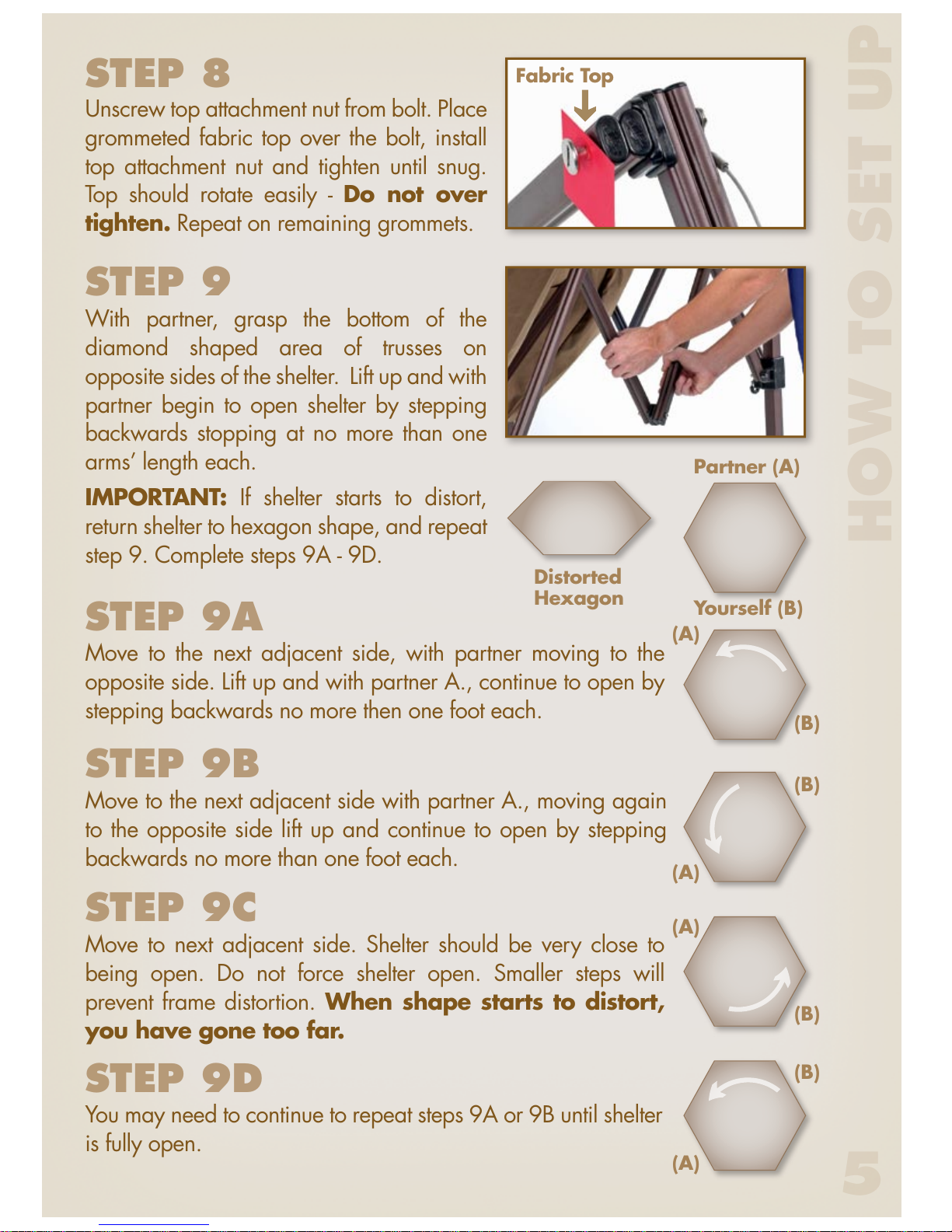

STEP 8
Unscrew top attachment nut from bolt. Place
grommeted fabric top over the bolt, install
top attachment nut and tighten until snug.
Top should rotate easily - Do not over
tighten. Repeat on remaining grommets.
STEP 9
With partner, grasp the bottom of the
diamond shaped area of trusses on
opposite sides of the shelter. Lift up and with
partner begin to open shelter by stepping
backwards stopping at no more than one
arms’ length each.
IMPORTANT: If shelter starts to distort,
return shelter to hexagon shape, and repeat
step 9. Complete steps 9A - 9D.
STEP 9A
Move to the next adjacent side, with partner moving to the
opposite side. Lift up and with partner A., continue to open by
stepping backwards no more then one foot each.
STEP 9B
Move to the next adjacent side with partner A., moving again
to the opposite side lift up and continue to open by stepping
backwards no more than one foot each.
STEP 9C
Move to next adjacent side. Shelter should be very close to
being open. Do not force shelter open. Smaller steps will
prevent frame distortion. When shape starts to distort,
you have gone too far.
STEP 9D
You may need to continue to repeat steps 9A or 9B until shelter
is fully open.
Distorted
Hexagon Yourself (B)
Partner (A)
(A)
(B)
(B)
(A)
(A)
(B)
(B)
(A)
Fabric Top

6

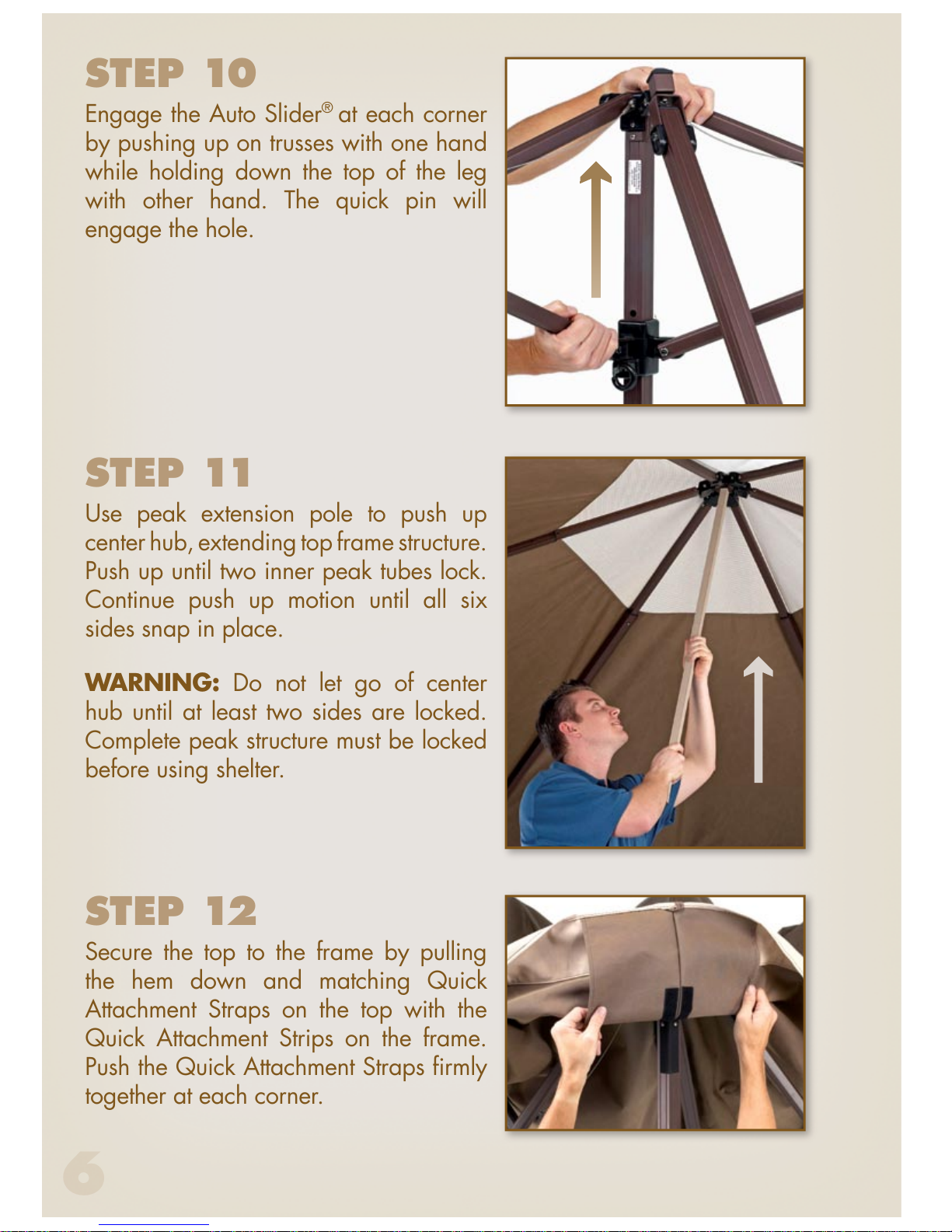

STEP 10
Engage the Auto Slider® at each corner
by pushing up on trusses with one hand
while holding down the top of the leg
with other hand. The quick pin will
engage the hole.
STEP 11
Use peak extension pole to push up
center hub, extending top frame structure.
Push up until two inner peak tubes lock.
Continue push up motion until all six
sides snap in place.
WARNING: Do not let go of center
hub until at least two sides are locked.
Complete peak structure must be locked
before using shelter.
STEP 12
Secure the top to the frame by pulling
the hem down and matching Quick
Attachment Straps on the top with the
Quick Attachment Strips on the frame.
Push the Quick Attachment Straps firmly
together at each corner.

7
HOW TO SET UP
STEP 13
Secure all inner peak tubes with quick
release pins.
STEP 14
Carefully lift up adjacent outer legs and
slide out the inner legs until snap button
locks. Repeat on opposite legs. Be sure
to adjust two legs at a time to avoid
frame damage.
STEP 15
Once the shelter is fully raised to the
desired height setting, secure all legs
with quick release pins.
NOTE: Once top is permanently
attached, only perform STEPS 1
and 9 - 15 to set up.

8

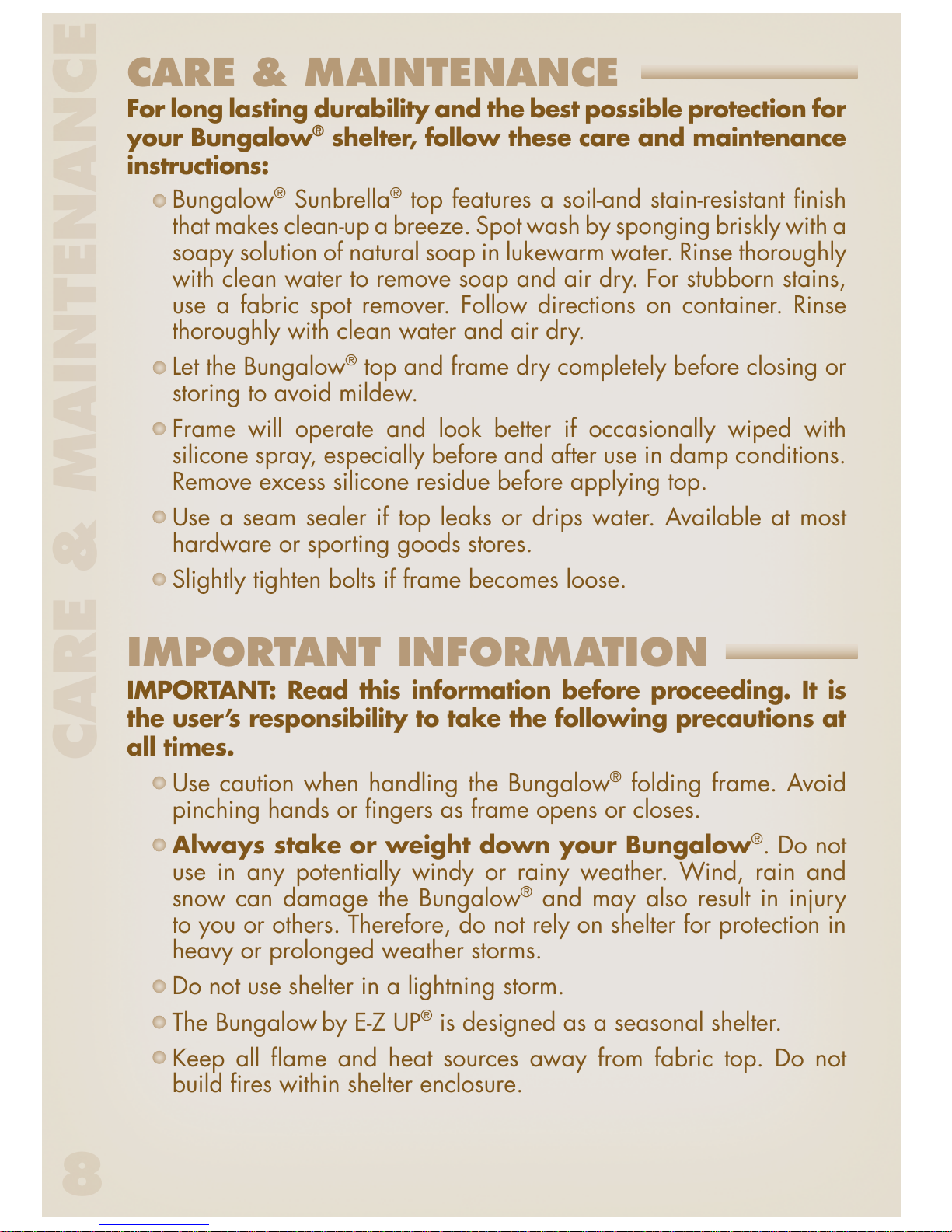

CARE & MAINTENANCE
CARE & MAINTENANCE
For long lasting durability and the best possible protection for
your Bungalow®shelter, follow these care and maintenance
instructions:
Bungalow®Sunbrella®top features a soil-and stain-resistant finish
that makes clean-up a breeze. Spot wash by sponging briskly with a
soapy solution of natural soap in lukewarm water. Rinse thoroughly
with clean water to remove soap and air dry. For stubborn stains,
use a fabric spot remover. Follow directions on container. Rinse
thoroughly with clean water and air dry.
Let the Bungalow®top and frame dry completely before closing or
storing to avoid mildew.
Frame will operate and look better if occasionally wiped with
silicone spray, especially before and after use in damp conditions.
Remove excess silicone residue before applying top.
Use a seam sealer if top leaks or drips water. Available at most
hardware or sporting goods stores.
Slightly tighten bolts if frame becomes loose.
IMPORTANT INFORMATION
IMPORTANT: Read this information before proceeding. It is
the user’s responsibility to take the following precautions at
all times.
Use caution when handling the Bungalow®folding frame. Avoid
pinching hands or fingers as frame opens or closes.
Always stake or weight down your Bungalow®. Do not
use in any potentially windy or rainy weather. Wind, rain and
snow can damage the Bungalow®and may also result in injury
to you or others. Therefore, do not rely on shelter for protection in
heavy or prolonged weather storms.
Do not use shelter in a lightning storm.
The Bungalow by E-Z UP®is designed as a seasonal shelter.
Keep all flame and heat sources away from fabric top. Do not
build fires within shelter enclosure.

9
HOW TO TAKE DOWN
TAKE DOWN INSTRUCTIONS
STEP 1
With partner, disengage quick release
pins. Depress snap button toggle on legs
and telescope inner legs into outer legs.
Repeat on other legs, making sure to do
two legs at a time.
STEP 2
Stand under shelter and locate center
hub. Disengage quick release pins.
While holding center peak pole, release
top frame inner peak beams by pushing
snap buttons one at a time on all top
frame inner peak beams to disengage.
WARNING: After all peak beam
assembly snap buttons are released
GENTLY lower center hub. Center hub
should drop down in an inverted position
and rest near the ground.
STEP 3
Release Auto Slider®at each corner by
first lifting hem of top. With one hand,
push up on truss near slider, release
quick pin by pulling ring.
STEP 4
With one or two partners at opposite
sides of shelter make sure peak beam
assembly snap buttons are disengaged.
Lift shelter up slightly and shake while
stepping toward one another until shelter
is fully closed. Be careful not to pinch
fingers. Store shelter in cover bag.
Snap Button
Quick
Release
Pin

10

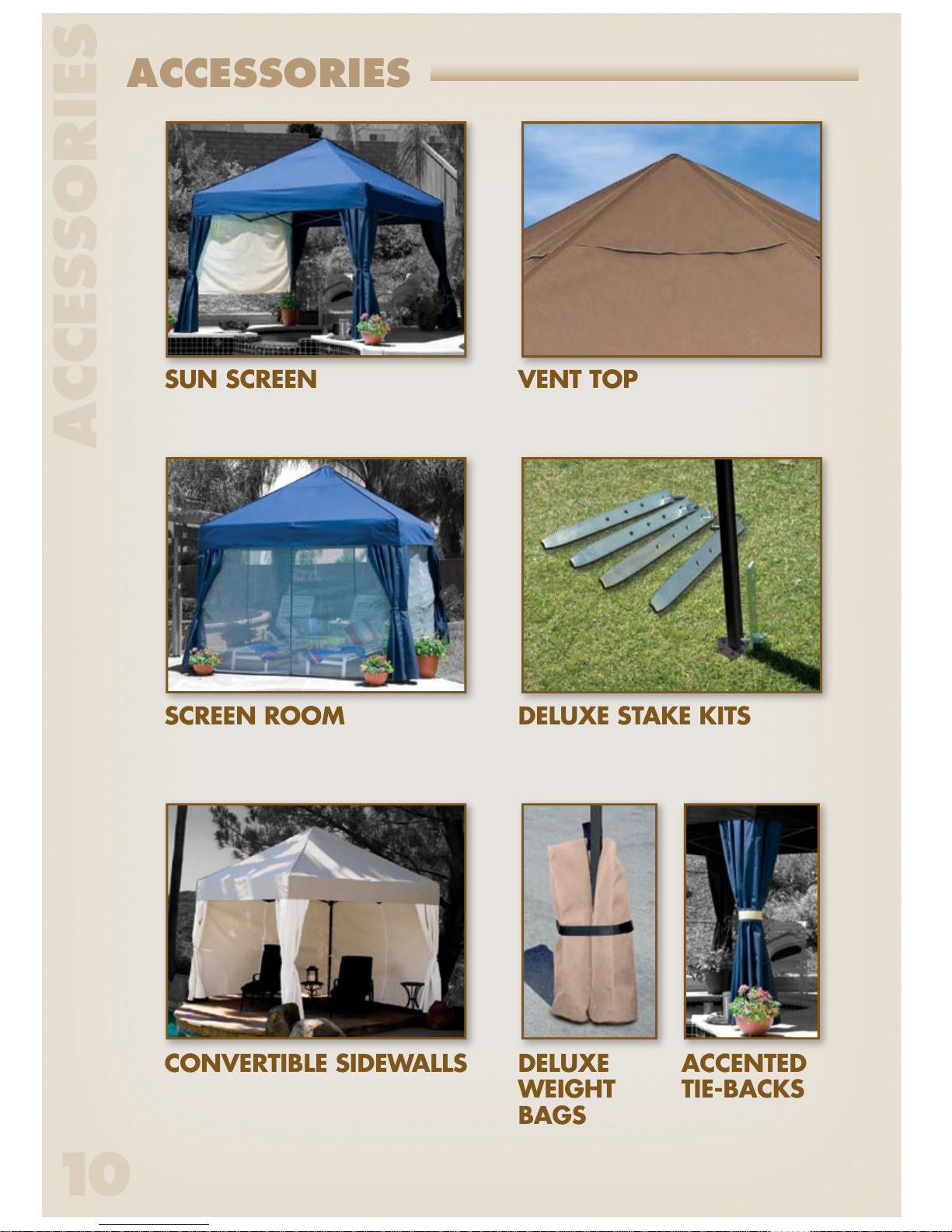

ACCESSORIES
ACCESSORIES
SUN SCREEN VENT TOP
SCREEN ROOM DELUXE STAKE KITS
CONVERTIBLE SIDEWALLS DELUXE
WEIGHT
BAGS
ACCENTED
TIE-BACKS

INSTRUCTIONS FOR
SUN SCREEN ACCESSORY
Step 1. Completely set up
your Bungalow®Pavilion in
the area that you intend to
shade according to the
owner’s manual instruc-
tions.
Step 3. Slip the hooks
over the stainless steel
cable.
Covered under one or more of the following patents: 4,607,656; 4,924,896; 5,244,001; 5,421,356; 5,485,863; 5,490,533; 5,511,572; 5,632,292; 5,632,293; 5,794,546; 5,797,412; 5,813,425; 5,865,127; 5,921,260; 5,934,301; 6,041,800; 6,070,604; 6,076,312; 6,129,102; 6,138,702; 6,192,910; 6,230,729; 6,240,940; 6,431,193; 6,439,251; 6,601,599;
95-704390; 94/2354; 91461; 132167; 95/0693; 95/6140; 95/6141; 84107895; 684,978; 2123096; 190486; 289754; 701077; 2128935; 2949648; 48648; DE 695 10 919 T2; WO96/03561. International Design Registration No. DM/009515 Benelux Design Registration No. 16959-04. Other S and foreign patents pending.
© Copyright 2007 International E-Z P, Inc. SA. All rights reserved. IN.BNGSS.0407
Step 2. Hang the sun
screen walls on the inside
of the trusses.
Fabric Care:
• The sun screen fabric can be cleaned with mild soap (not detergent) and water. Let the fabric dry completely before storing.
Important Information:
• Always stake or weight down your Bungalow® Pavilion. Do not use in any potentially windy or rainy weather. Wind, rain and snow can dam-
age the Bungalow® Pavilion and may also result in injury to you or others. Therefore, do not rely on shelter for protection in heavy or prolonged
weather storms. Do not leave your Bungalow® Pavilion unattended.
• Do not use shelter in a lightning storm. • The Bungalow® Pavilion is designed as a seasonal shelter.
• Keep all flame and heat sources away from the fabric top. Do not build fires within the shelter enclosure.
Step 4. From the inside of
the Bungalow®Pavilion,
wrap the quick attachment
straps around the leg and
secure. These are located
at the midpoint and at the
bottom of the sun screen
wall.
Key Tip: If also installing
a fabric curtain wall or cor-
ner curtain (as shown), the
curtain wall should be
placed on the outside of the
sun screen.
Step 5. Sun screens can be used on more than one side
at a time. Repeat the steps for each side.
For online warranty service, parts and accessories, contact: www.bungalowbyezup.com
International E- UP, Inc.
1601 Iowa Avenue, Riverside, CA 92507
888-474-3583

INSTRUCTIONS FOR
INNER TOP LINER
ACCESSORY
Step 1. Completely set up
your Bungalow®Pavilion in
the area that you intend to
shade a ording to the
owner’s manual instru -
tions.
Step 2. Lo ate the enter
grommet hole of the inner
liner. From the underside of
the liner, slide the grommet
hole over the top atta h-
ment s rew and thread into
the peak hub of the frame.
Do not over-tighten the top
atta hment s rew.
Note: When finished, the
inner liner
should hang
freely from
the peak hub.
At this point,
the sides of
the inner top
liner, that
ontain the
qui k atta h-
ment straps
along the
seam, should
be fa ing out.
Step 3. Lo ate the qui k
atta hment straps along
ea h seam. Atta h one
qui k atta hment strap to
the peak arm. Repeat this
step for ea h peak arm.
Step 5. Conne t ea h valan e side of the inner top liner by
hooking it over the able. Repeat for all sides.
Step 4. Atta h
the hooks to the
orner bra ket.
Repeat this step
for ea h orner.
Covered under one or more of the following patents: 4,607,656; 4,924,896; 5,244,001; 5,421,356; 5,485,863; 5,490,533; 5,511,572; 5,632,292; 5,632,293; 5,794,546; 5,797,412; 5,813,425; 5,865,127; 5,921,260; 5,934,301; 6,041,800; 6,070,604; 6,076,312; 6,129,102; 6,138,702; 6,192,910; 6,230,729; 6,240,940; 6,431,193; 6,439,251; 6,601,599;
95-704390; 94/2354; 91461; 132167; 95/0693; 95/6140; 95/6141; 84107895; 684,978; 2123096; 190486; 289754; 701077; 2128935; 2949648; 48648; DE 695 10 919 2; WO96/03561. International Design Registration No. DM/009515 Benelux Design Registration No. 16959-04. Other US and foreign patents pending.
Sunbrella® is a registered trademark of Glen Raven, Inc. © Copyright 2007 International E-Z UP, Inc. USA. All rights reserved. IN.BNGI L.0407
Important Information:
• Always stake or weight down your Bungalow® Pavilion. Do not use
in any potentially windy or rainy weather. Wind, rain and snow an
damage the Bungalow® Pavilion and may also result in injury to you
or others. Therefore, do not rely on shelter for prote tion in heavy or
prolonged weather storms. Do not leave your Bungalow® Pavilion un-
attended.
• Do not use shelter in a lightning storm.
• The Bungalow® Pavilion is designed as a seasonal shelter.
• Keep all flame and heat sour es away from the fabri top.
Do not build fires within the shelter en losure.
Fabric Care:
• The Bungalow Sunbrella® fabri inner top liner features a soil- and
stain-resistant finish that makes lean-up a breeze. Spot wash by
sponging briskly with a soapy solution of natural soap in lukewarm
water. Rinse thoroughly with lean water to remove soap and air dry.
For stubborn stains, use a fabri spot remover. Follow dire tions on the
ontainer. Rinse thoroughly with lean water and air dry ompletely be-
fore storing.
Prior to Installation Completed Installation
For online warranty servi e, parts and a essories, onta t: www.bungalowbyezup.com
International E-Z UP, In .
1601 Iowa Avenue, Riverside, CA 92507
888-474-3583

For online warranty service, parts and accessories, contact: www.bungalowbyezup.com
International E-Z UP, Inc.
1601 Iowa Avenue, Riverside, CA 92507
888-474-3583
INSTRUCTIONS FOR
INSECT SCREEN ACCESSORY
Step 1. Completely set up
your Bungalow®Pavilion in
the area that you intend to
shade according to the
owner’s manual instruc-
tions.
Step 3. (3a) Align the bot-
tom of the fabric wall “ ”
with the frame leg to ensure
the walls are centered.
(3b) Slip the hook over the
stainless steel cables.
Covered under one or more of the following patents: 4,607,656; 4,924,896; 5,244,001; 5,421,356; 5,485,863; 5,490,533; 5,511,572; 5,632,292; 5,632,293; 5,794,546; 5,797,412; 5,813,425; 5,865,127; 5,921,260; 5,934,301; 6,041,800; 6,070,604; 6,076,312; 6,129,102; 6,138,702; 6,192,910; 6,230,729; 6,240,940; 6,431,193; 6,439,251; 6,601,599;
95-704390; 94/2354; 91461; 132167; 95/0693; 95/6140; 95/6141; 84107895; 684,978; 2123096; 190486; 289754; 701077; 2128935; 2949648; 48648; DE 695 10 919 T2; WO96/03561. International Design Registration No. DM/009515 Benelux Design Registration No. 16959-04. Other S and foreign patents pending.
© Copyright 2007 International E-Z P, Inc. SA. All rights reserved. IN.BNGBS.0407
Step 2. With the fabric
corners still folded back,
hang the insect screen
walls on the outer side of
the trusses. The insect
screen walls will hang be-
tween the fabric valance
and the outer truss.
Fabric Care:
• The insect screen fabric can be cleaned with mild soap (not detergent) and water. Let the fabric dry completely before storing.
Important Information:
• Always stake or weight down your Bungalow® Pavilion. Do not use in any potentially windy or rainy weather. Wind, rain and snow can dam-
age the Bungalow® Pavilion and may also result in injury to you or others. Therefore, do not rely on shelter for protection in heavy or prolonged
weather storms. Do not leave your Bungalow® Pavilion unattended.
• Do not use shelter in a lightning storm. • The Bungalow® Pavilion is designed as a seasonal shelter.
• Keep all flame and heat sources away from the fabric top. Do not build fires within the shelter enclosure.
Step 4. Pull the fabric cor-
ner down over the leg and
match the quick attachment
strips to the frame for a se-
cure fit.
Step 5. From the inside of
the Bungalow®Pavilion,
wrap the quick attachment
straps around the leg and
secure. These can be
found just below the slider,
at the midpoint of the
screen wall and at the bot-
tom of the screen wall.
Key Tip: If also installing
a fabric sidewall or corner
curtain, it should be placed
on the outside of the
screen. The insect screen
includes indexing slits
which allow the quick at-
tachment straps from the
curtain wall to slide through
and also attach to the
frame.
Step 6. Ensure that all
screen walls zip together at
the same time before in-
stalling anchoring devices.
Repeat the steps for all legs
(3a)
(3b)
Note: Hang sidewall or corner cur-
tain according to the instructions.

Covered under one or more of the following patents: 4,607,656; 4,924,896; 5,244,001; 5,421,356; 5,485,863; 5,490,533; 5,511,572; 5,632,292; 5,632,293; 5,794,546;
5,797,412; 5,813,425; 5,865,127; 5,921,260; 5,934,301; 6,041,800; 6,070,604; 6,076,312; 6,129,102; 6,138,702; 6,192,910; 6,230,729; 6,240,940; 6,431,193;
6,439,251; 6,601,599; 95-704390; 94/2354; 91461; 132167; 95/0693; 95/6140; 95/6141; 84107895; 684,978; 2123096; 190486; 289754; 215344; 701077; 2128935;
2949648; 48648; DE 695 10 919 T2; WO96/03561. International Design Registration No. DM/009515 Benelux Design Registration No. 16959-04. Other US
and foreign patents pending.© Copyright 2006 International E-Z UP, Inc. USA. All rights reserved. IN.HDSK.0306
Always stake or weight down your E-Z UP®Instant Shelter®.Take the E-Z UP®down
if heavy winds threaten to blow. Do not leave your E-Z UP®unattended.
What’s in the Box: (4-6) 14” Metal Stakes, (4-6) Quick Release Pins, (1) Storage Case
INTERNATIONAL E-Z UP, INC.
1601 Iowa Avenue, Riverside, California 92507 USA
Voice [phone] • Fax [phone] www.ezup.com
800-45 SHADE
800-4574233
Step 1.
Set up the shelter in desired
location. Determine where
to place the first stake.
Move E-Z UP® leg slightly to
the side, then drive the stake
firmly into the ground leaving
the hole in the stake about
an inch abovethe surface.
Step 3.
Repeat steps at each of the
other legs of the shelter. For
large shelters with six legs,
use stakes on the four outer
legs.
Repeat steps in opposite
direction to take down.
Step 2.
Insert quick release pin into
the hole in the stake and
through the E-Z UP® leg.
Swing the wire catch around
to secure onto the end of the
pin protruding from the leg.
Warning! Do not depend on
stakes to secure shelter in
heavy winds. For safety
sake,take your E-Z UP®
Instant Shelter® down.
IInnssttrruuccttiioonnssffoorr
HHeeaavvyy--DDuuttyySSttaakkeeKKiitt

INSTRUCTIONS FOR
SIDEWALLS /CORNER CURTAIN
ACCESSORIES
© Copyright 2007 International E-Z P, Inc. SA. All rights reserved.
Step 1. Completely set up
your Bungalow®Pavilion in
the area that you intend to
shade according to the
owner’s manual instruc-
tions. Do not, however, pull
the fa ric corners down.
Step 2. With the fa ric
corners still folded ack,
hang the sidewalls or cor-
ner curtains on the outer
side of the trusses. The
sidewall or corner curtain
will hang etween the fa ric
valance and the outer truss.
Step 3. Align the ottom of
the fa ric wall “V” with the
frame leg to ensure the
walls are centered. Slip the
hooks over the stainless
steel ca les.
Step 4. Pull the fa ric
corner down over the leg
and match the quick at-
tachment strips to the
frame for a secure fit.
Step 5. From the inside
of the Bungalow®Pavilion,
wrap the quick attachment
straps around the leg and
secure. These can e
found just elow the slider,
at the midpoint of the wall
and at the ottom of the
wall.
Special Note: For dou-
le layered walls, the quick
attachment strap may
have slipped inside a layer.
Just reposition the straps
y pulling ack through the
indexed slit.
Key Tip:
If also installing an insect
screen, the full sidewall or
corner curtains should e
placed on the outside of
the screen.
Continued to next page

INSTRUCTIONS FOR
SIDEWALLS /CORNER CURTAIN
ACCESSORIES CONT.
Covered under one or more of the following patents: 4,607,656; 4,924,896; 5,244,001; 5,421,356; 5,485,863; 5,490,533; 5,511,572; 5,632,292; 5,632,293; 5,794,546; 5,797,412; 5,813,425; 5,865,127; 5,921,260; 5,934,301; 6,041,800; 6,070,604; 6,076,312; 6,129,102; 6,138,702; 6,192,910; 6,230,729; 6,240,940; 6,431,193; 6,439,251; 6,601,599;
95-704390; 94/2354; 91461; 132167; 95/0693; 95/6140; 95/6141; 84107895; 684,978; 2123096; 190486; 289754; 701077; 2128935; 2949648; 48648; DE 695 10 919 T2; WO96/03561. International Design Registration No. DM/009515 Benelux Design Registration No. 16959-04. Other S and foreign patents pending.
Sunbrella® is a registered trademark of Glen Raven, Inc. © Copyright 2007 International E-Z P, Inc. SA. All rights reserved. IN.BNGSWCC.0407
Fabric Care:
• The Bungalow Sun rella® fa ric curtain walls feature a soil- and stain-resistant finish that makes clean-up a reeze. Spot wash y sponging
riskly with a soapy solution of natural soap in lukewarm water. Rinse thoroughly with clean water to remove soap and air dry. For stu orn
stains, use a fa ric spot remover. Follow directions on the container. Rinse thoroughly with clean water and air dry completely efore storing.
Step 6.
For Sidewalls: Insert the sidewall tie ack
through the elt loop on the outside of the
curtain wall. Pull each side toward the leg
and wrap the tie ack around the fa ric to se-
cure. If walls are to e closed, ensure that all
walls zip together at the same time efore in-
stalling anchoring devices.
For Corner Curtains: Insert the tie ack
through the elt loop on the outside of the
curtain. Pull each side toward the leg and
wrap the tie ack around the fa ric to secure.
Step 7. Repeat the a ove steps for all legs.
Important Information:
• Always stake or weight down your Bungalow® Pavilion. Do not use in any potentially windy or rainy weather. Wind, rain and snow can dam-
age the Bungalow® Pavilion and may also result in injury to you or others. Therefore, do not rely on shelter for protection in heavy or prolonged
weather storms. Do not leave your Bungalow® Pavilion unattended.
• Do not use shelter in a lightning storm.
• The Bungalow® Pavilion is designed as a seasonal shelter.
• Keep all flame and heat sources away from the fa ric top. Do not uild fires within the shelter enclosure.
For online warranty service, parts and accessories, contact: www.bungalowbyezup.com
International E-Z UP, Inc.
1601 Iowa Avenue, Riverside, CA 92507
888-474-3583

For online w rr nty service, p rts nd ccessories, cont ct: www.bungalowbyezup.com
Intern tion l E-Z UP, Inc.
1601 Iow Avenue, Riverside, CA 92507
888-474-3583
INSTRUCTIONS FOR
WEIGHT BAG ACCESSORIES
Step 1. Completely set up your Bung low®
Pvilion in the re th t you intend to sh de
ccording to the owner’s m nu l instructions.
Step 3. St nd the weight b g up nd wr p
the quick tt chment str p round the leg
nd secure g inst the loop end of the str p
on the weight b g by pressing firmly.
Step 4. Att ch the weight b g to e ch leg.
Covered under one or more of the following patents: 4,607,656; 4,924,896; 5,244,001; 5,421,356; 5,485,863; 5,490,533; 5,511,572; 5,632,292; 5,632,293; 5,794,546; 5,797,412; 5,813,425; 5,865,127; 5,921,260; 5,934,301; 6,041,800; 6,070,604; 6,076,312; 6,129,102; 6,138,702; 6,192,910; 6,230,729; 6,240,940; 6,431,193; 6,439,251; 6,601,599;
95-704390; 94/2354; 91461; 132167; 95/0693; 95/6140; 95/6141; 84107895; 684,978; 2123096; 190486; 289754; 701077; 2128935; 2949648; 48648; DE 695 10 919 T2; WO96/03561. International Design Registration No. DM/009515 Benelux Design Registration No. 16959-04. Other S and foreign patents pending.
© Copyright 2007 International E-Z P, Inc. SA. All rights reserved. IN.BNG.WB.0407
Note: If using curt in w lls, ensure th t ll w lls zip together t the s me time before inst lling weight b gs or other nchoring devices.
Step 2. Fill weight b gs with s nd s full s
possible for m ximum efficiency. E ch weight
b g is designed to hold 50 lbs. of s nd.
(2 ) L y b g down next to the leg nd insert
the quick rele se pin through the grommet on
the str p. Continue on through hole in the leg
of the Bung low®P vilion.
(2b) Swing the wire c tch round to sn p
onto the end of the pin protruding from the
leg.
(2 ) (2b)
Fabric Care:
• The weight b g f bric c n be cle ned with mild so p (not detergent) nd w ter once the s nd is removed.
Let the f bric dry completely before storing.
Important Information:
• Alw ys st ke or weight down your Bung low® P vilion. Do not use in ny potenti lly windy or r iny we ther. Wind, r in nd snow c n d m-
ge the Bung low® P vilion nd m y lso result in injury to you or others. Therefore, do not rely on shelter for protection in he vy or prolonged
we ther storms. Do not le ve your Bung low® P vilion un ttended.
• Do not use shelter in lightning storm. • The Bung low® P vilion is designed s se son l shelter.
• Keep ll fl me nd he t sources w y from the f bric top. Do not build fires within the shelter enclosure.

11
WARRANTY & REGISTRATION
10 YEAR WARRANTY*
For long lasting durability and the best possible protection.
INTERNATIONAL E-Z UP, INC., manufacturer of the Bungalow®, warrants
to the original purchaser who provides a dated sales receipt, each part of the
Bungalow® frame to be free from defects in material or workmanship for a
period of ten years after the date of original purchase. *The Sunbrella®fabric
is guaranteed by Glen Raven, Inc. for a period of five years after the date of
original purchase. This warranty applies only for normal and expected uses,
as determined by the manufacturer.
INTERNATIONAL E-Z UP, INC.’s obligation and liability under this warranty
is limited to the repair or replacement (at its option) of the product or its parts,
after its own review and examination.
RETURN ADVISORY - Before returning any part or product to INTERNATIONAL
E-Z UP, INC. or its designated representative, please phone or write to obtain
specific return shipping instructions. All shipping costs must be prepaid, and
INTERNATIONAL E-Z UP, INC. is not responsible for products damaged
in transit.
CONDITIONS - This warranty shall be void as to any product which has been
altered or modified in any manner. This warranty does not apply to damages
caused by wind, rain, or other forces of nature, not to accidental or deliberated
damage of the product, nor to use of the product that does not conform with the
product instructions. This warranty is provided in lieu of all other warranties,
expressed or implied.
PRODUCT REGISTRATION
For fast online registration:
Login: www.bungalowbyezup.com / Click and enter registration button
For fast phone registration:
Call: 1-888-474-3583 / Customer Service - Reference: New Registration
Covered under one or more of the following patents: 4,607,656; 4,924,896; 5,244,001; 5,421,356;
5,485,863; 5,490,533; 5,511,572; 5,632,292; 5,632,293; 5,794,546; 5,797,412; 5,813,425;
5,865,127; 5,921,260; 5,934,301; 6,041,800; 6,070,604; 6,076,312; 6,129,102; 6,138,702;
6,192,910; 6,230,729; 6,240,940; 6,361,057; 6,363,956; 6,374,842; 6,382,224; 6,397,872;
6,412,507; 6,431,193; 6,439,251; 6,470,902; 6,502,597; 6,520,196; 6,601,599; 95704390;
94/2354; 91461; 95/0693; 95/6140; 95/6141; 84107895; 684,978; 701077; 48648; DE
695 10 919 T2; WO96/03561. International Design Registration No. DM/009515 Benelux Design
Registration No. 16959-04. Other US and foreign patents pending. © Copyright 2006 International
E-Z UP, Inc. USA. All rights reserved. Sunbrella is a registered trademark of Glen Raven, Inc.
BNG OM_13&16.0206

AuthenTEAK Outdoor Furniture
1094 Hu Rd
Atlanta, GA 30318
404-525-1995
[email protected]
authenteak.com
