USB 3.2 Gen 1 USB-C Docking Station

2
Product Features
• Supports USB DisplayPort Alternate Mode for connecting a VGA,
DisplayPort or HDMI monitor via a USB-C or Thunderbolt 3 port
• Supports the connection of three monitors at the same time through
DisplayPort MST Mode*
• Supports connection of DVI monitor via HDMI to DVI adapter (see
Optional Accessories)
• Supports connection of Mini DisplayPort monitor via DP to Mini
DisplayPort adapter (see Optional Accessories)
• DisplayPort and HDMI ports support 4K x 2K video resolutions up to
3840 x 2160 @ 30 Hz
• VGA port supports video resolutions up to 1920 x 1200, including 1080p
@ 60 Hz
• Ethernet port supports true 10/100/1000 Mbps network speeds
• USB-A hub ports support data transfer rates up to 5 Gbps
• Dedicated 5V/1.5A USB port provides fast charging power to mobile
devices
• USB-C port supports both data and PD Charging; supports power input
up to 20V 5A (100W)
• USB-C and 4 USB-A ports share a max 12W (5V 2.4A) of power
• 3.5 mm Mini Stereo jack on front of unit for connection of speaker and
microphone
• 3.5 mm Mini Stereo jack on back of unit for connection of speaker
• Automatically resumes operation from hibernation and suspend mode
• IEEE802.3az(EnergyEcientEthernet)compliant
• Supports full duplex and half duplex operations
• SupportsIPv4andIPv6packChecksumOoadEngine(COE)toreduce
CPU loading
• Supports Wake-on LAN
• Plug-and-play operation with no software required for easy, immediate
installation
* See Multi-Monitor Requirements section for details

3
System Requirements
Package Includes
Optional Accessories
• Computer with USB-C or Thunderbolt 3 port that supports USB
DisplayPort Alternate Mode
• DisplayPort, Mini DisplayPort,* VGA, DVI* or HDMI monitor
• Ethernet network with speeds up to 10/100/1000 Mbps
*Requires an adapter. See Optional Accessories
• U442-DOCK4-S or U442-DOCK4-INT
• USB Type-C Cable, M/M (2.6 ft.)
• External Power Supply (Input: 100-240V, 50/60 Hz, 1.8A; Max Output: 20V
3.6A)
• BS1363 UK and CEE 7/16 EU Power Cords (U442-DOCK4-INT Only)
• Owner’s Manual
• N201-Series Cat6 Gigabit Snagless Patch Cables
• P502-Series High-Resolution VGA Cables
• P566-Seires HDMI to DVI Adapter Cables
• P568-Series High-Speed HDMI Cables
• P580-Series DisplayPort Cables
• P583-Series mDP to DP Adapter Cables
• U322-Series USB A/B Device Cables
• U326-Series USB Micro-B Device Cables
• U420-003-G2-5A USB 3.2 Gen 2 USB-C M/M Cable (3 ft.)

4
Product Overview

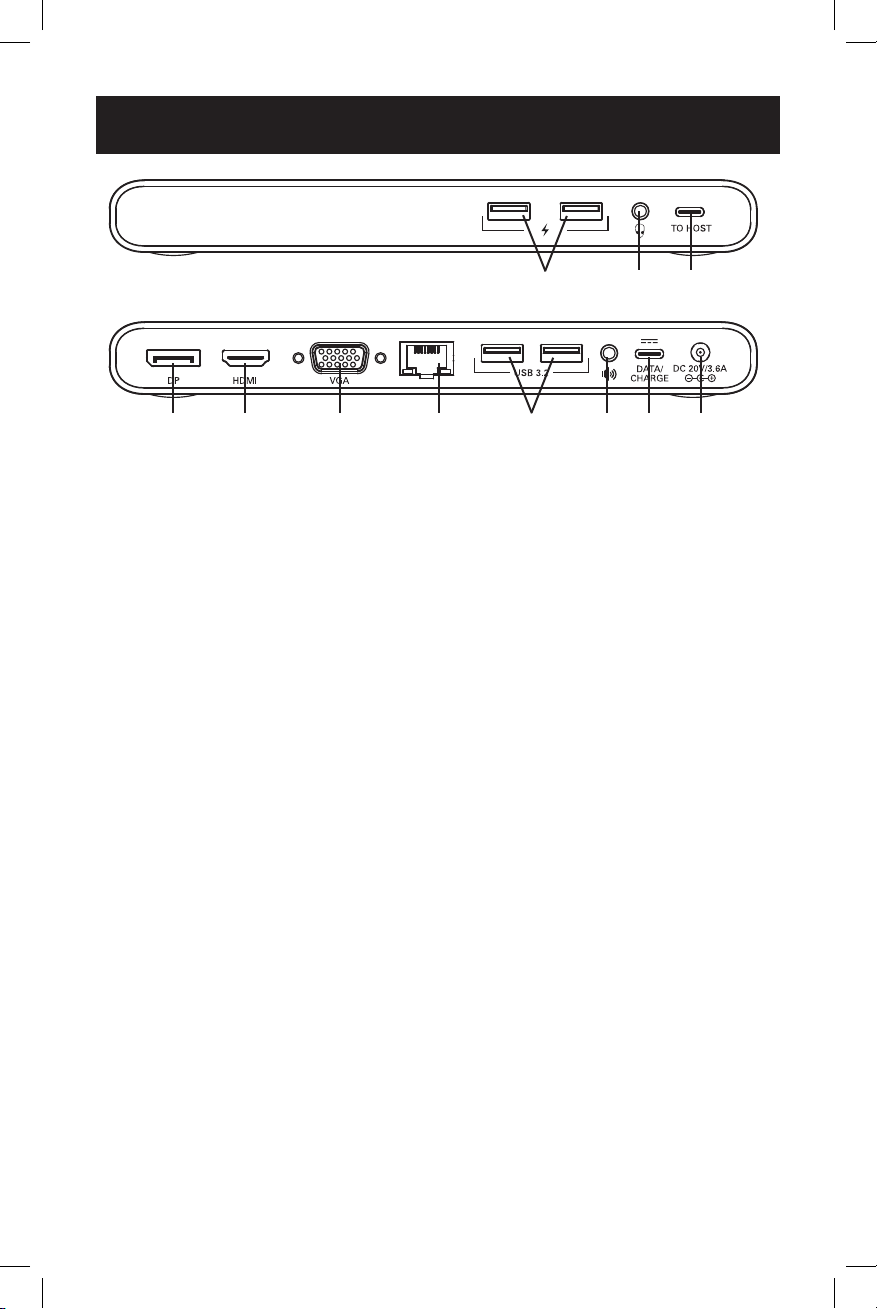

1USB-A 3.2 Ports (Female) – Connect up to four USB peripherals*
23.5 mm Mini Stereo Audio Input (Female) – Connect headphones or
a microphone
3USB-C Host Port (Female) – Connect your USB Type-C enabled laptop
or computer
4DC Power Input (Female) – Connect included power supply for
external power
5USB-C Charging and Data Port (Female) – Connect your device to its
USB-C PD charger for charging, or connect a USB-C device
63.5 mm Mini Stereo Audio Output (Female) – Connect speakers or
headphones
7RJ45 Port (Female) – Connect to a 10/100/1000 Mbps network
8VGA Port (Female) – Connect a VGA monitor
9HDMI Port (Female) – Connect a HDMI monitor
JDisplayPort Port (Female) – Connect a DisplayPort monitor
*12W of power is dedicated to the USB-A and USB Type-C hub ports when a USB
charger is connected to the USB-C charging port. The USB-A dedicated charging port
supports 5V 1.5A (7.5W). When maxing out one port’s power, the other ports’ power
is reduced. All ports will not be able to provide full power simultaneously, meaning
external power may be required for some connected peripherals.
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
J
J

5
Installation
Notes:
1) Supports the connection of three monitors at the same time through DisplayPort
MST Mode.*
2) ToensureproperfunctionoftheveUSB(4USB-Aand1USB-C)hubports,make
suretoplugintheincludedexternalpowersupplyorthehostdevice’sPDcharging
power supply to the unit.
3) Whentheincluded72WpoweradapterisconnectedtotheDCport,itsupplies
powertochargethehostPCrst(upto60W)withtherestofthepowerbeing
suppliedtothedock.
4) WhenthePDchargingpoweradapterisconnected,15Woftotalpowerwillbe
reservedrsttoguaranteethefunctioningoftheproduct.Therestofthepowerwill
beusedtochargethehostPC(thepowerthatthehostPCcangetdependsonthe
result of PD protocol negotiation).
5) WhentheDCportisconnectedpriortotheType-CPDChargingport,thedocking
andhostPCarepoweredfromtheDCport,withtheType-Cportasanalternative
power source.
6) WhentheType-CPDChargingportisconnected(withaPDpoweradapter)priorto
theDCport,thedockingandhostPCarepoweredfromtheType-CportwiththeDC
portasanalternativepowersource.
7) Iftheactivepowersource(powersourcethatissupplyingpower)isunplugged,the
alternativepowerportwillbeswitchedonautomaticallytobetheactivepower
source.Inthiscase,theconnecteddeviceswillgetdisconnectedforafewseconds
and then reconnect automatically.
8) See Optional Accessoriessectionforsuggestedcables.
9) WhentheunitisconnectedtotheUSB-Cportonyourcomputerandtoanetwork
viaCat5e/6cabling,anetworkconnectionwillbeautomaticallyestablished.Ifno
connectionismade,youcanmanuallyestablishonebygoingtoyourcomputer’s
networksettingspage.Forexample,onaMac,youwouldnavigatetotheNetwork
sectionfoundinSystemPreferences,clickthe“AssistMe”buttontogettotheNetwork
SetupAssistant,thenfollowthepromptstoestablishaconnection.
* See Multi-Monitor Requirements section for details.
1. Connect the included power supply between the unit and a power
source and/or the included USB Type-C cable between the unit and a PD
charging adapter (not included).
Note:TheUSBhubportsmaygointoovercurrentprotectionifhigh-poweredUSB
peripheralsareattachedwithouttheexternalpoweradapterbeingconnected.The
USBType-CPDChargingportcanalsobeusedfordatatransfer.

6
Installation
2. Connect a USB Type-C enabled laptop or computer to the unit’s USB
Type-C host port using a USB Type-C cable.
3. Connect a 3.5 mm Mini Stereo cable to the back of the unit to connect a
speaker.
4. Connect up to four USB devices to the dock’s USB-A hub ports.
5. Connect the adapter’s RJ45 port to a network using a UTP cable.
6. Connect the dock’s VGA port to the VGA port on a monitor using a VGA
cable.
OR
7. Connect the dock’s HDMI port to the HDMI port on a monitor using a
HDMI cable.
OR
8. Connect the dock’s DisplayPort port to the DisplayPort port on a monitor
using a DisplayPort cable.
9. Connect a 3.5 mm Mini Stereo cable to the front of the unit to connect a
microphone or headphones.

7
Multi Monitor Requirements
The U442-DOCK4-S and U442-DOCK4-INT support the connection of three
monitors at the same time through DisplayPort Multi-Stream Transport
(MST) mode. Below are limitations that must be taken into account when
connecting multiple monitors at the same time.
Note:Ifatriplemonitorinstallationisdesired,itisimportanttoconnectallthree
displayoutputsbeforeconnectingthepowersupplyandpoweringtheunit.Ifonlytwo
ofthethreeconnecteddisplaysareilluminating,thepowermustbecycledbyremoving
powerfromtheunitwiththethreedisplaysstillconnectedandre-connectingthepower.
Does the Source Computer Support DisplayPort MST
Mode?
When connecting to a USB-C source that supports DisplayPort MST mode,
the EDID information of the two or three connected monitors will be read by
the computer and appear as separate displays that can be shown in mirror
mode or extended mode. When connected in MST mode, the computer
graphics card will have a total bandwidth of 10.8 Gbps for all video ports.
When connecting to a USB-C source that does not support DisplayPort
MST mode, Single-Stream Transport (SST) mode is used instead. In SST
mode,onlytheEDIDoftherstconnectedmonitorisreadbythecomputer,
forcing the connected monitors to display in mirror mode. The default
resolutionoftherstmonitorwillthenbesenttothesecondmonitorand/
or third monitor, with all monitors displaying the same resolution. If the
second monitor is not capable of supporting the same resolution as the
rst,novideowilldisplayonthatmonitor.Beforeconnectingthesecond
monitor,therstmonitor’sresolutionmustbechangedtothesecond
monitor’s resolution in order for video to be displayed.
Note: Thefollowingtabledepictsthemaximumresolutionachievedoneachvideoport,
basedontheconnectedmonitors.MacdoesnotsupportDisplayPortMST;therefore,
multiple monitor setups are not guaranteed.

8
Multi Monitor Requirements
Windows Source (Single display)
VGA HDMI DisplayPort
1920 x 1200 @ 60 Hz * *
* 3840 x 2160 @ 30 Hz *
* * 3840 x 2160 @ 30 Hz
Windows Source (Dual display)
VGA HDMI DisplayPort
1920 x 1200 @ 60 Hz 1920 x 1080 @ 60 Hz *
1920 x 1200 @ 60 Hz * 1920 x 1080 @ 60 Hz
* 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
Windows Source (Triple display)
VGA HDMI DisplayPort
1) Supports 3 displays to work simultaneously under MST mode,
3 videos share max 10.8 Gbps bandwidth (e.g., dual 1080p/60 Hz,
or 1 x 1080p @ 60 Hz + dual 720p @ 60 Hz).
2) Some host PCs only support output of 3 video streams/monitors.
Toensuretheoutputofthe3displays,turnothescreenofthehostPC.
* Port not in use.

9
Specications
Connectors-Input
DC Port DC Power (Female)
USB PD Charging and Data USB-C (Female)
Connectors-Output
USB-A (4x) USB 3.2 Gen 1 (Female)
USB-C (1x) USB 3.2 Gen 1 (Female)
Ethernet RJ45 (Female)
VGA VGA (Female)
HDMI HDMI (Female)
DisplayPort DisplayPort (Female)
Audio Port 3.5 mm Mini Stereo Audio (Female), x2
Environmental
Operating Temperature 32 to 113°F (0 to 45°C)
Operating Humidity 10% to 90% RH, Non-Condensing
Storage Temperature 14 to 158°F (-10 to 70°C)
Storage Humidity 10% to 90% RH, Non-Condensing
Power Requirements
USB-C Charging Port Supports up to 20V 5A (100W) Input
DC Port Supports up to 20V 3.6A (72W) Input
Power Supply Specs
Power Input 100-240V, 50/60 Hz, 1.8A
Power Output 20V 3.6A (72W)

10
3-YEAR LIMITED WARRANTY
We warrant our products to be free from defects in materials and workmanship for a period
of three (3) years from the date of initial purchase. Our obligation under this warranty is
limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.
Eaton.com/support/product-returns before sending any equipment back for repair. This
warranty does not apply to equipment which has been damaged by accident, negligence or
misapplicationorhasbeenalteredormodiedinanyway.
EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states
do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s)
or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS
PRODUCT,EVENIFADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGE.Specically,wearenot
liableforanycosts,suchaslostprotsorrevenue,lossofequipment,lossofuseofequipment,
loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
Regulatory Compliance Identication Numbers
Forthepurposeofregulatorycompliancecerticationsandidentication,yourproducthas
been assigned a unique series number. The series number can be found on the product
nameplate label, along with all required approval markings and information. When requesting
compliance information for this product, always refer to the series number. The series number
should not be confused with the marking name or model number of the product.
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turningtheequipmentoandon,theuserisencouragedtotrytocorrecttheinterferenceby
one or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connecttheequipmentintoanoutletonacircuitdierentfromthattowhichthereceiveris
connected.
· Consult the dealer or an experienced radio/TV technician for help.
AnychangesormodicationstothisequipmentnotexpresslyapprovedbyEatoncouldvoid
the user’s authority to operate this equipment.
Warranty

11
Warranty
WEEE Compliance Information for Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing
regulations, when customers buy new electrical and electronic equipment from Eaton,
they are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies
depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste
Eatonhasapolicyofcontinuousimprovement.Specicationsaresubjecttochangewithout
notice.Photosandillustrationsmaydierslightlyfromactualproducts.
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
© 2023 Eaton
All Rights Reserved
Publication No. 23-07-755 / 93-3DBD_RevB
August 2023
Eaton is a registered trademark.
All trademarks are property
of their respective owners.

12
Manual del Propietario
Español 12
Français 23
Deutsch 34
Italiano 45
El producto comprado
puede diferir de la imagen.
Modelo:
U442-DOCK4-S
U442-DOCK4-INT
Estación de Conexión USB 3.2 Gen 1
USB C

13
Manual del Propietario
Características del Producto
• Soporta USB DisplayPort de Modo Alterno para conectar un monitor VGA,
HDMI o DisplayPort mediante un puerto USB C o Thunderbolt 3
• Soporta la conexión de tres monitores al mismo tiempo mediante el
Modo DisplayPort MST*
• Soporta la conexión de un monitor DVI mediante un adaptador HDMI a
DVI (vea Accesorios Opcionales)
• Soporta la conexión de un monitor DisplayPort mediante adaptador DP a
Mini DisplayPort (vea Accesorios Opcionales)
• Los puertos DisplayPort y HDMI soportan resoluciones de video 4K x 2K
video de hasta 3840 x 2160 @ 30 Hz
• El puerto VGA soporta resoluciones de video hasta 1920 x 1200,
incluyendo 1080p @60 Hz
• El puerto Ethernet soporta velocidades reales de red de 10Mbos /
100Mbps / 1000Mbps
• Los puertos del Hub USB A soportan tasas de transferencia de datos
hasta 5 Gbps
• Un puerto USB dedicado de 5V / 1.5A proporciona carga rápida para
dispositivos móviles
• Puerto USB C soporta datos y carga PD; soporta alimentación hasta
20V 5A (100W)
• 4 puertos USB A y 1 Type C comparten un máximo de 12W (5V 2.4A) de
potencia
• Conector Mini Estéreo de 3.5 mm en el frente de la unidad para la
conexión de bocinas y micrófono
• Conector Mini Estéreo de 3.5 mm en la parte posterior de la unidad para
la conexión de bocinas y micrófono
• Restablece automáticamente la operación desde el modo de hibernación
y suspensión
• CompatibleconIEEE802.3az(EthernetEcienteconlaEnergía)
• Soporta operaciones dúplex y semi-dúplex
• SoportaChecksumOoadEngine[COE]demóduloIPv4eIPv6para
reducir la carga del CPU
• Soporta Wake on LAN
• Conectar y Usar—No requiere software ni controladores
* Para detalles, consulte la sección de Requerimientos para Múltiples Monitores

14
Requisitos del Sistema
El Paquete Incluye
Accesorios Opcionales
• Computadora con puerto USB C o Thunderbolt 3 que soporte USB
DisplayPort Modo Alterno
• Monitor DisplayPort, Mini DisplayPort,* VGA, DVI* o HDMI
• Red Ethernet con velocidades hasta 10Mbps / 100Mbps / 1000Mbps
*Requiere un adaptador. Vea Accesorios Opcionales
• U442-DOCK4-S o U442-DOCK4-INT
• CableUSBTypeC,M/M,80cm[2.6pies]
• Fuente de Alimentación Externa (Entrada: 100V ~ 240V, 50Hz / 60Hz, 1.8A
Salida Máxima: 20V 3.6A)
• Cables de alimentación BS1363 para Reino Unido y CEE 7/16 para UE
(solo U442-DOCK4-INT)
• Manual del Propietario
• Cables Patch Snagless Cat6 Gigabit Serie N201
• Cables VGA de Alta Resolución P502
• Cables adaptadores de HDMI a DVI de la serie P566
• Cables HDMI de Alta Velocidad Serie P568
• Cables DisplayPort de la Serie P580
• Cables Adaptadores mDP a DP de la Serie P583
• Cables para Dispositivo USB 3.0 A/B Serie U322
• Cables para Dispositivo USB 3.0 Micro-B Serie U326
• CableUSB3.1Gen2USBCM/Mde91cm[3pies]U420-003-G2-5A

15
Vista General del Producto
1Puertos USB A 3.0 (Hembra) – Conecte hasta cuatro periféricos USB*
2Puerto de Entrada para Audio Mini Estéreo de 3.5 mm (Hembra)
–Conecteaudífonosounmicrófono
3Puerto de Servidor USB C (Hembra) – Conecte su laptop o
computadora equipada con USB Type C
4Entrada de Alimentación CD (Hembra) – Conecte la fuente de
alimentación externa incluida
5Puerto USB C para Carga y Datos (Hembra) – Conecte su dispositivo
a su cargador USB C PD para cargar o conecte un dispositivo USB C
6Puerto de Salida para Audio Mini Estéreo de 3.5 mm (Hembra) –
Conectebocinasoaudífonos
7Puerto RJ45 (Hembra) – Conecte a una red 10Mbps / 100Mbps /
1000Mbps
8Puerto VGA (Hembra) – Conecte un monitor VGA
9Puerto HDMI (Hembra) – Conecte un monitor HDMI
JPuerto DisplayPort (Hembra) – Conecte un monitor DisplayPort
*12W de potencia están dedicados a los puertos de hub USB A y USB Type C
cuando se conecta un cargador USB al puerto de carga USB C. Los puertos de carga
USB A 3.0 soportan cada uno 5V 1.5A (7.5W). Al maximizar la salida de potencia
de un puerto, se reduce la potencia del otro puerto. Todos los puertos no podrán
proporcionarpotenciaplenaalmismotiempo,loquesignicaquepuedeser
necesaria alimentación externa para algunos periféricos conectados.
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
J
J

16
Instalación
Notas:
1) Soporta la conexión de tres monitores al mismo tiempo mediante el Modo DisplayPort
MST.*
2)ParagarantizarelcorrectofuncionamientodeloscincopuertosdehubUSB(4USBAy1USB
C),asegúresedeconectarlafuentedealimentaciónexternaolaalimentacióndecargaPDdel
dispositivoalaunidad.
3)Cuandoeladaptadordecorrientede72WincluidoseconectaalpuertodeCD,suministra
energíaparacargarprimerolaPCAntrión(hasta60W)conelrestodelapotencia
suministrada a la unidad de conexión.
4)CuandoeladaptadordecorrientePDestéconectado,sereservaránprimero15Wdepotencia
totalparagarantizarelfuncionamientodelproducto.Elrestodelapotenciaseutilizarápara
cargarlaPCAntrión(lapotenciaquelaPCantriónpuedeconseguirdependedelresultado
de la negociación del Protocolo de PD).
5)CuandoseconectaelpuertodeCDantesdelpuertodecargadePDTypeC,launidadde
conexiónylaPCantriónsonalimentadosdesdeelpuertodeCD,conelpuertoTypeCcomo
fuentealternativadeenergía.
6)CuandoseconectaelpuertodecargadePDTypeC(conunadaptadordecorrientePD)
antesdelpuertodeCD,launidaddeconexiónylaPCantriónsonalimentadosdesdeel
puertoTypeC,conelpuertodeCDcomofuentealternativadeenergía.
7)Sisedesconectalafuentedealimentaciónactiva(Lafuentedealimentaciónqueestá
suministrandoenergía),elpuertoalternativodealimentaciónseactivaráautomáticamente
paraserlafuentedealimentaciónactiva.Enestecaso,losdispositivosconectadosse
desconectaránporunossegundosyluegosevuelvenaconectarautomáticamente.
8)Paraverloscablessugeridos,consultelaseccióndeAccesorios Opcionales.
9)CuandolaunidadestéconectadaalpuertoUSBCensucomputadorayaunared
mediantecableadoCat5eoCat6,seestableceráautomáticamenteunaconexióndered.
Sinoserealizalaconexión,sepuedeestablecerunamanualmenteyendoalapáginade
conguracióndereddesucomputadora.Porejemplo,enunaMac,necesitadesplazarse
alasecciónderedenpreferenciasdelsistema,hacerclickenelbotón“Ayúdame”para
llegaralasistentedeconguraciónderedyseguirlasinstruccionesparaestableceruna
conexión.
*Paradetalles,consultelaseccióndeRequerimientos para Múltiples Monitores.
1. Conectelafuentedealimentaciónentrelaunidadyunafuentedeenergíay/o
el cable USB Type C entre la unidad y un adaptador de carga PD (no incluido).
Nota:LospuertosdelhubUSBpuedeniraproteccióncontrasobrecorrientesi
seconectanperiféricosUSBdealtapotenciasinqueseconecteeladaptadorde
alimentaciónexterno.ElpuertodeCargaPDUSBTypeCpuedeusarsetambiénpara
transferencia de datos.

17
Instalación
2. Conecte una laptop o computadora equipada con USB Type C al puerto host
USB Type C de la unidad usando un cable USB Type C.
3. Para conectar una bocina, conecte un cable Mini Estéreo de 3.5 mm a la parte
posterior de la unidad.
4. Conecte hasta cuatro dispositivos USB a los puertos de hub USB A de la estación
de conexión.
5. Conecte el puerto RJ45 del adaptador a una red mediante un cable UTP.
6. Conecte el puerto VGA de la estación de conexión al puerto VGA en un
monitor usando un cable VGA.
O
7. Conecte el puerto HDMI de la estación de conexión al puerto HDMI en un
monitor usando un cable HDMI.
O
8. Conecte el puerto DisplayPort de la estación de conexión al puerto
DisplayPort en un monitor usando un cable HDMI.
9. Paraconectarunmicrófonooaudífonos,conecteuncableMiniEstéreode
3.5 mm a la parte anterior de la unidad.

18
Requerimientos para Múltiples Monitores
U442-DOCK4-S y U442-DOCK4-INT soporta la conexión de tres monitores al
mismotiempoatravésdelmodoDisplayPortMulti-StreamTransport[MST].
A continuación se presentan limitaciones que deben tenerse en cuenta al
conectar a varios monitores al mismo tiempo.
Nota: Sisedeseaunainstalacióndemonitortriple,esimportanteconectarlastres
salidas de pantalla antes de conectar la fuente de alimentación y encender la unidad. Si
soloseiluminandosdelastrespantallasconectadas,sedebereiniciarlaalimentación
desconectandolaalimentacióndelaunidadconlastrespantallasaúnconectadasy
volviendoaconectarlaalimentación.
¿Es Compatible la Computadora Fuente con el Modo
DisplayPort MST?
Al conectar a una fuente USB C que soporte el Modo DisplayPort MST, la
informacióndeEDIDdelosdosotresmonitoresconectadosseráleída
por la computadora y aparecerá como pantallas separadas que pueden
mostrarse en modo espejo o extendido. Cuando esté conectada en modo
MST,latarjetagrácadecomputadoratendráunanchodebandatotalde
10.8 Gbps para todos los puertos de video.
Cuando se conecta a una fuente USB C que no soporte modo DisplayPort
MST,seutilizaensulugarelmodoSingleStreamTransport[SST].Enel
mododeSST,soloelEDIDdelmonitorconectadoprimeroesleídoporla
computadora, obligando a los monitores conectados a mostrarse en modo
espejo. La resolución predeterminada del primer monitor se enviará al
segundo monitor y/o tercer monitor, con todos los monitores mostrando la
misma resolución. Si el segundo monitor no es capaz de soportar la misma
resolución que el primero, no se mostrará video en ese monitor. Antes de
conectar el segundo monitor, la resolución del primero debe cambiarse a la
resolución del segundo monitor para que el video se muestre.
Nota:Lasiguientetablamuestralaresoluciónmáximaalcanzadaencadapuertode
video,enbasealosmonitoresconectados.MacnosoportaDisplayPortMST;porlo
tanto,lasconguracionesdemúltiplesmonitoresnoestángarantizadas.

19
Multi Monitor Requirements
Fuente con Windows (Una pantalla)
VGA HDMI DisplayPort
1920 x 1200 @ 60 Hz * *
* 3840 x 2160 @ 30 Hz *
* * 3840 x 2160 @ 30 Hz
Fuente con Windows (Dos Pantallas)
VGA HDMI DisplayPort
1920 x 1200 @ 60 Hz 1920 x 1080 @ 60 Hz *
1920 x 1200 @ 60 Hz * 1920 x 1080 @ 60 Hz
* 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
Fuente con Windows (Tres Pantalla)
VGA HDMI DisplayPort
1) Soporta 3 pantallas para trabajar simultáneamente bajo el modo MST,
3 videos comparten un ancho de banda Máximo de 10.8 Gbps (por ejemplo, dos
1080p @ 60 Hz,
o 1 x 1080p @ 60 Hz + dos 720p @ 60 Hz).
2)AlgunasPCantriónsolosoportansalidade3ujosdevideo/monitores.
Paraasegurarlasalidadelas3pantallas,apaguelapantalladelaPCantrión.
*Puertoquenoestáenuso

20
Especicaciones
Conectores-Entrada
Puerto de CD Alimentación de CD (Hembra)
USB Datos y Carga PD USB C (Hembra)
Conectores-Salida
USB A USB 3.0 A (Hembra), x4
USB C USB 3.0 Type C (Hembra), x1
Ethernet RJ45 (Hembra)
VGA VGA (Hembra)
HDMI HDMI (Hembra)
DisplayPort DisplayPort (Hembra)
Puerto de Audio Audio Mini Estéreo de 3.5 mm (Hembra), x2
Ambiental
Temperatura de Operación 0ºCa45°C[32ºFa113°F]
Humedad de Operación De 10 % a 90 % de HR, Sin Condensación
Temperatura de Almacenamiento -10ºCa70ºC[14ºFa158ºF]
Humedad de Almacenamiento De 10% a 90% de HR, Sin Condensación
Requerimientos de Energía
Puerto de Carga USB C Soporta Entrada de Hasta 20V 5A (100W)
Puerto de CD Soporta Entrada de hasta 20V 3.6A (72W)
Especicaciones de Suministro de Energía
EntradadeEnergía 100V ~ 240V, 50Hz / 60Hz, 1.8A
SalidadeEnergía 20V 3.6A (72W)
