Instruction Leaflet
Montageanweisung
Notice d’installation
Instrucciones de montaje
Istruzioni per il montaggio
安装说明
Инструкция по монтажу
03/12 IL01208010Z
(AWA1230-2048, AWA1230-2656)
NZM3(-4)-XKSA
Terminal cover for NZM3(-4) Molded Case Circuit Breakers and Switches
-NA
-CNA
(UL/CSA models)

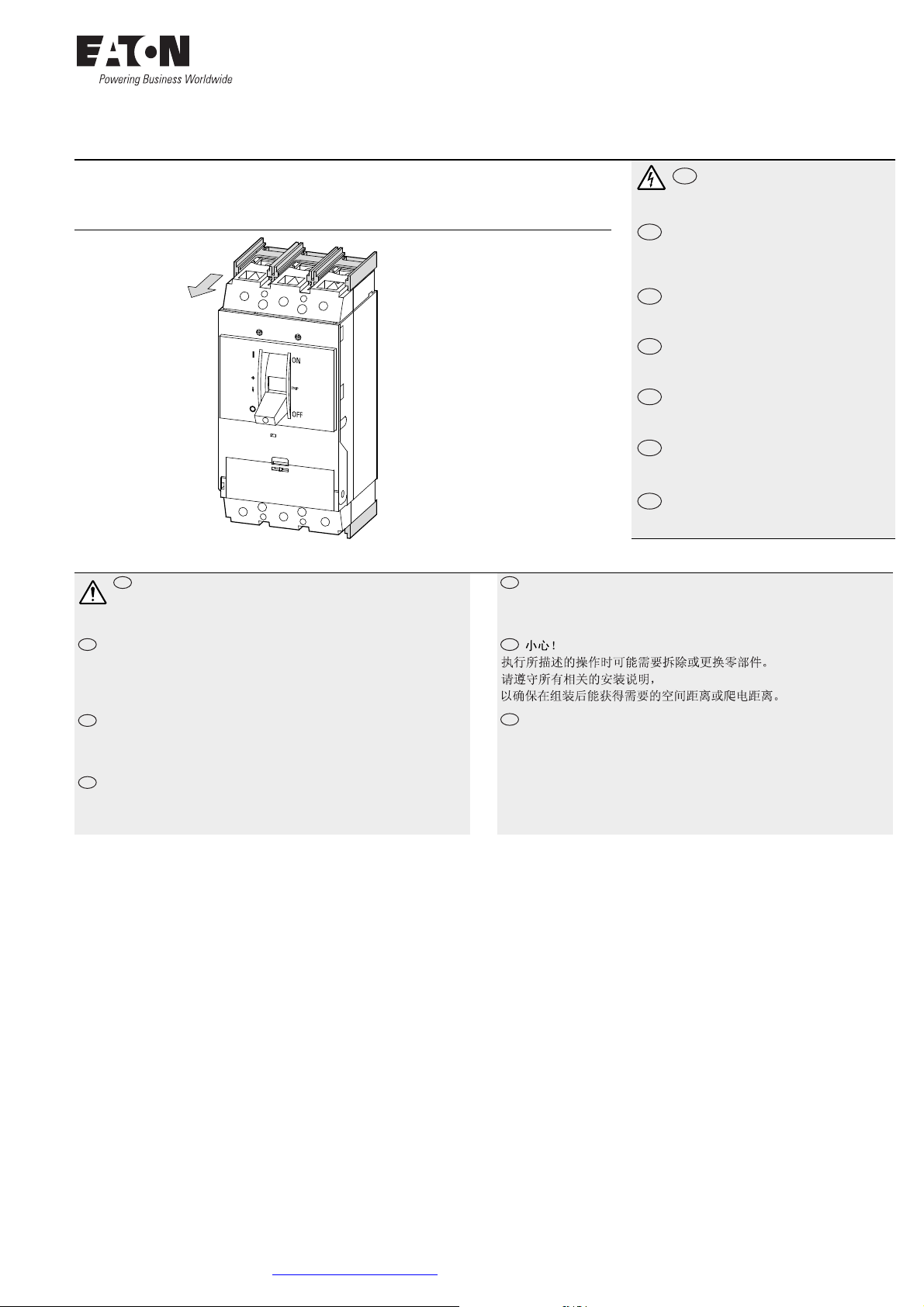

The barrier (shown shaded in the diagrams)
is held tightly into grooves on top and
bottom sides of the breaker or switch and
must be removed in order to mount the
NZM3(-4)-XKSA terminal cover.
To remove:
From the back of the device, use thumb
pressure to push, or an appropriate tool to
gently tap each side of the barrier to help
slide it out.
Caution!
The removal or exchange of parts during mounting may become necessary.
Refer to installation instructions for proper assembly and to maintain electrical
clearances.
Attenzione!
Per l’esecuzione degli interventi descritti potrebbe essere necessaria la rimozione o
sostituzione di alcuni pezzi. Attenersi alle istruzioni d’installazione per garantire dopo
l’assemblaggio le vie di dispersione necessarie.
Vorsicht!
Für die Durchführung der beschriebenen Arbeiten kann das Entfernen oder
der Austausch von Teilen notwendig sein.
Bitte alle Installations-Anweisungen beachten, um die erforderlichen Luft- und
Kriechstrecken nach dem Zusammenbau zu gewährleisten.
Attention !
L’enlèvement où l’échange de certaines pièces pendant le montage est parfois
nécessaire. Consultez l’instruction d’assemblage pour assurer une installation
conforme aux normes.
Осторожно!
При проведении описанных процедур может возникнуть необходимость
демонтировать или заменить детали. Для обеспечения надлежащих
зазоров и вывода тока утечки, соблюдайте все инструкции по монтажу.
¡Atención!
Con el fin de llevar a cabo los trabajos descritos, puede ser necesario eliminar
o cambiar alguna pieza. Le rogamos tenga en cuenta todas las instrucciones de
instalación para así garantizar las líneas de fuga y efluvio necesarias tras el montaje.
push
en
it
de
zh
fr
ru
es
