Eaton XV300 Series User manual

Manual 04/19 MN048017EN

XV300 Manual


Imprint
All Proprietary names and product designations are brand names or trademarks registered to the
relevant title holders.
Break-Down Service
Please contact your local office:
http://www.eaton.eu/aftersales
or the After Sales Service
Hotline After Sales Service:
[phone] (de,en)
[e-mail]

Original Operating Instructions
is the German-language edition of this document

Publication date
04/2019 3rd Edition, Version 03.0
Copyright
© 2015 by Eaton Industries GmbH, 53105 Bonn
Author: Electrical Sector, Business Unit Industrial Automation
Editor:
Eaton Industries GmbH, Hein-Moeller-Straße 7-11, D-53115 Bonn
Eaton Automation GmbH, Spinnereistrasse 8-14 , CH-9008 St. Gallen

All rights reserved, also for the translation.
No part of this manual may be reproduced, stored in a retrieval system, or transmitted in any
form or by any means, electronic, mechanical, photocopying, micro-filming, recording or oth-
erwise, without the prior written permission of Eaton Industries GmbH, Bonn or Eaton Auto-
mation GmbH, St. Gallen.
Subject to alteration.

Before commencing the installation
I
lInstallation, electrotechnical expertise
lDisconnect the power supply of the device.
lEnsure that devices cannot be accidentally ret-
riggered
lVerify isolation from the supply
lGround and short-circuit.
lCover or enclose neighbouring units that are live.
lFollow the engineering instructions (IL) of the device
concerned.
lOnly suitably qualified personnel in accordance with
EN 50110-1/-2 (VDE 0105 part 100) may work on this
device/system.
lBefore installation and before touching the device
ensure that you are free of electrostatic charge.
lThe functional earth (FE) must be connected to the
protective earth (PE) or to the potential equalizing. The
system installer is responsible for implementing this
connection.
lConnecting cables and signal lines should be installed
so that inductive or capacitive interference does not
impair the automation functions.
lInstall automation devices and related operating ele-
ments in such a way that they are well protected
against unintentional operation.
lSuitable safety hardware and software measures
should be implemented for the I/O interface so that a
line or wire breakage on the signal side does not res-
ult in undefined states in the automation devices.
lDeviations of the mains voltage from the nominal
value must not exceed the tolerance limits given in
the specifications, otherwise this may cause mal-
function and dangerous operation.
lEmergency-Stop devices complying with IEC/EN
60204-1 must be effective in all operating modes of
the automation devices. Unlatching the emergency
switching off devices must not cause restart.
lBuilt-in devices for enclosures or cabinets must only
be run and operated in an installed state, desk-top
devices or portable devices only when the housing is
closed.
lMeasures should be taken to ensure the proper
restart of programs interrupted after a voltage dip or
failure. This should not cause dangerous operating
states even for a short time. If necessary, emergency
switching off devices should be implemented.
lWherever faults in the automation system may cause
damage to persons or property, external measures
must be implemented to ensure a safe operating
state in the event of a fault or malfunction (for
example, by means of separate limit switches, mech-
anical interlocks, etc.).
DANGER!
Dangerous Electrical Voltage!

Table of Content
XV300 Manual 1
Imprint 2
Before commencing the installation 3
Table of Content 5
0.1 About this documentation 9
0.1.1 List of revisions 9
0.1.2 Target group 10
0.1.3 Legal Disclaimer 11
0.1.4 Device designations and abbreviations 11
0.1.5 Writing conventions 11
0.1.5.1 Hazard warnings 12
0.1.5.2 Documents with additional information 13
1. Description 14
1.1 Function 14
1.1.1 Features 14
1.1.2 Options 14
1.1.3 Notes 15
1.1.3.1 SmartWire-DT 15
1.1.3.2 XN300 15
1.2 Use as intended 16
1.3 Device models - versions and part nos. 17
1.3.1 Basic features 17
1.3.2 Device variants 17
1.3.3 Optional features 17
1.4 Operating and Indication elements 20
1.4.1 Overview 20
1.5 Interfaces to peripheral devices 21
1.6 How to interpret the Part number 22
1.7 Accessory devices 23
1.8 Indication label 24
1.9 Support 24
XV30004/19 MN048017ENwww.eaton.eu 5

1.10 Conditions for Underwriters Laboratories Inc. (UL) listing 25
1.11 Marine approvals 26
2. Safety regulations 27
2.1 Basics 27
2.2 Mandatory requirements, personnel requirements 27
2.2.1 Occupational safety 27
2.2.2 Personnel qualifications 27
2.2.3 Device documentation 27
2.2.4 Installation, maintenance, and disposal 28
2.2.5 Prerequisites for proper operation 28
2.3 Device-specific Hazards 30
3. Installation 35
3.1 Prerequisites for the Area of application 35
3.1.1 Installation position 35
3.1.1.1 Temperatures 35
3.1.1.2 Aeration and de-aeration 36
3.1.1.3 Criteria for the Installation position 37
3.1.2 Technical conditions for acceptance by Underwriters Lab-
oratories Inc. (UL) 39
3.1.3 Conditions for Marine approvals 40
3.1.3.1 Radio interference suppression filter for the 24 V DC supply 40
3.2 Unpacking and checking the equipment supplied 41
3.3 Mounting 42
3.3.1 Fixing and Sealing 42
3.3.2 Front mounting XV-303 42
3.3.3 Rear (panel) mounting Rear (panel) mounting XV-313 46
3.4 Preparing the device for operation 48
3.4.1 Functional earthing XV300 51
3.4.2 Power supply - electrical connection 52
4. Commissioning 54
4.1 Initial Commissioning 54
4.2 Running the XV300 54
6XV30004/19 MN048017ENwww.eaton.eu

5. External connections 56
5.1 Layout of interfaces 57
5.1.0.1 Optional Interfaces 57
5.2 SD card 58
5.3 USB interfaces 59
5.3.1 USB Host 59
5.3.2 USB device 59
5.4 Ethernet 1, Ethernet 2 60
5.5 Serial interfaces for communication with PLCs or devices 61
5.5.1 COM1 RS-232 61
5.5.1.1 Wiring 61
5.5.2 COM2 RS-485 62
5.5.2.1 Wiring 62
5.5.2.2 RS-485 topology 63
5.6 CAN1 interface for protocols CANopen and J1939 64
5.6.0.1 Wiring 64
5.6.0.2 CAN-Bus-topology 65
5.7 PROFIBUS interface 66
5.7.0.1 Wiring 66
5.7.0.2 Profibus topology 67
5.8 XV300 multi touch display as SmartWire-DT coordinator 68
5.8.1 SmartWire-DT powered via POW/AUX 68
5.8.1.1 SWD power supply voltages 69
5.8.2 SmartWire-DT interface 70
5.8.2.1 Commissioning the SmartWire-DT network 71
6. Faults 74
7. Maintenance 75
7.1 Cleaning and maintenance 75
7.1.1 Capacitive multi-touch technology (PCT) 75
7.1.2 Battery 75
7.2 Repairs 75
7.3 Storage, transport and disposal 76
7.3.1 Storage and transport 76
XV30004/19 MN048017ENwww.eaton.eu 7

7.3.2 Disposal 77
Appendix 79
A.1 Technical data 80
A.1.1 Data Sheets 80
A.1.2 Specifications: Dimensions and Weight 80
A.1.2.1 Mounting surrounds for rear (panel) mounting 87
A.1.3 General data 88
A.1.4 Specifications: Interfaces 90
A.1.4.1 Front mounting 90
A.1.4.2 Front mounting with SmartWire-DT connection 93
A.1.4.3 Rear (panel) mounting 96
A.1.4.4 Rear (panel) mounting with SmartWire-DT connection 98
A.1.5 Information on the power supply 100
A.1.6 Approvals and declarations 102
A.2 Further reading 104
Alphabetical index 107
List of figures 111
List of tables 112
Glossary 113
8XV30004/19 MN048017ENwww.eaton.eu

0.1 About this documentation
0.1 About this documentation
This Manual contains all the information you will need in order to use the XV300 safely
and effectively.
The Manual XV300 manual is considered an integral part of the devices and must
always be readily available in the device's close proximity so that users have access
to it.
This Manual describes all of the devices' lifecycle stages: transportation, installation,
commissioning, operation, maintenance, storage, and disposal.
It assumes you have electrical engineering knowledge and skills.
It does not, however, go over the corresponding operating system or application soft-
ware.
Make sure to always use the latest documentation for your device.
Manual XV300 MN048017EN
The latest version of this documentation, as well as additional references, is available
for download on the Internet. → Section "Further reading", page 104
http://www.eaton.eu/doc
Please send any comments, recommendations, or suggestions regarding this doc-
ument to: [e-mail]
0.1.1 List of revisions
The following significant amendments have been introduced since previous issues:
Publication
date Page Keyword New Modification Deleted
07/2015  New edition   
09/2015  ATEX accreditation, ✓ 
XV-313 Expansions ✓ 
12/2015  Information on UL and battery
added
✓ 
08/2016  Information on the shipping clas-
sification
✓ 
04/2017  XV-313 expansions
XV-303-15-.. added
✓ 
06/2017 41 Information on gasket corrected
and specified
✓✓ 
04/2019  new version XV-313-..-...-A11-..
implemented
✓ 
XV30004/19 MN048017ENwww.eaton.eu 9

0.1 About this documentation
0.1.2 Target group
This Manual is intended for electricians and electrical engineers, as well as for the
people who will be in charge of performing the electrical installation and people who
will be using the XV300 as an operating and monitoring device or as an integrated oper-
ating and control device in their own applications.

CAUTION
Installation requires qualified electrician
Follow the safety instructions for the XV300!
The section on safety instructions must be read and understood by
everyone who will be working with the HMI panel before the actual
work is performed.
WARNING
Incomplete operator manual copies
Working with individual pages taken out from the operator manual
may lead to bodily injury and property damage due to missing safety
information.
Always work with the current and complete documentation.
10 XV30004/19 MN048017ENwww.eaton.eu

0.1 About this documentation
0.1.3 Legal Disclaimer
All the information in this manual has been prepared to the best of our knowledge and in
accordance with the state of the art. However, this does not exclude the possibility of
there being errors or inaccuracies. We assume no liability for the correctness and com-
pleteness of this information. In particular, this information does not guarantee any par-
ticular properties.
Do not use the XV300 before reading and understanding this manual.
It is assumed that the user of this manual is thoroughly familiar with the information
found in the manuals for incorporating the XV300 into automation processes.
Hazards posed by the XV300 cannot be eliminated if the safety instructions are not
observed – especially if the XV300 is commissioned and maintained by unqualified per-
sonnel and/or the XV300 is used improperly. Eaton assumes no liability for any dam-
ages resulting from cases such as these.
0.1.4 Device designations and abbreviations
The following general terms are used throughout this manual:
Brief description Explanation
XV300 Product family with function code
HMI panel Family
XV300 Used to refer to all the devices in the product family
XV-303 Used to refer to all front mounting devices as a group
XV-313 Used to refer to all rear (panel) mounting devices as a group
SmartWire-DT SmartWire-DT
For the exact designation for your XV300, please refer to the→ "Indication
label", page 24.
0.1.5 Writing conventions
Award Description
Bold text Used for all graphical user interface elements
Monospaced
Font format code
Used for all elements at the file level
Text Used for the button labels
Menu path\submenu\...\item Path information for software windows and menu
pages
Menu/command Used for commands found in the menu bar's menus
<name> Angle brackets are used to indicate variable values
that you must replace with your own values
Table 1: Format conventions used throughout this manual
XV30004/19 MN048017ENwww.eaton.eu 11

0.1 About this documentation
0.1.5.1 Hazard warnings
Danger! Risk of personal injury.
DANGER
Warns of hazardous situations that result in serious injury or death.
WARNING
Warns of the possibility of hazardous situations that could result in ser-
ious injury or even death.
GEFAHR!
Gefährliche elektrische Spannung!
CAUTION
Warns of the possibility of hazardous situations that can cause injury.
Property damage warning
ACHTUNG
warnt vor möglichen Sachschäden.
Prohibited use
Prohibited uses, actions, etc.
Explanation
Bids
Bid
Explanation
Notes
Weist auf nützliche Tipps hin.
Indicates instructions to be followed
12 XV30004/19 MN048017ENwww.eaton.eu

0.1 About this documentation
Additional information, background information,
information worth knowing, useful additional information
0.1.5.2 Documents with additional information
Manuals, for example. These will be listed with the corresponding title and Eaton num-
ber after the icon.
Publication title For identifying the Eaton publication code
External Internet addresses. These will be shown after the icon.
Destination Address
XV30004/19 MN048017ENwww.eaton.eu 13

1. Description
1.1 Function
1. Description
1.1 Function
XV300 can be used as control and monitoring devices featuring PLC functionalities.
HMI panel feature an industrial high-resolution display with capacitive multi-touch tech-
nology. This, combined with a highly precise and intuitive gesture-based user interface,
enables operators to start working right away. Their unmatched system performance
with a powerful graphics processing unit powers a state-of-the-art user interface.
With their compact and sleek design – featuring a heavy-duty, flat, anti-glare glass
panel – XV300 multi touch display are ideal for industrial applications in harsh envir-
onments.
1.1.1 Features
lSleek design with capacitive multi-touch technology (PCT)
lHeavy-duty, anti-glare tempered glass; easy to clean
lRequires very little space; can also be used in portrait mode
lXV-303 model for front mounting and XV-313 model for rear (panel) mounting
lDisplay sizes 7.0“ and 10.1“ with a 1024 x 600 Pixel resolution,
Display size 15.6" with a 1366 x 768 Pixel resolution
lPowerful CPU: 800 MHz ARM Cortex-A9
l1 GB internal memory and 128 kB non-volatile data memory
lThe unit's memory can be expanded with SD cards (accessories)
SD card slot for SD / SDHC memory cards
lWindows Embedded Compact 7 operating system
lComprehensive basic configuration with integrated interfaces
1.1.2 Options
ladditional integrated interfaces:
e.g.: 2. Ethernet, 1x Profibus and /or 1x SmartWire-DT
14 XV30004/19 MN048017ENwww.eaton.eu

1. Description
1.1 Function
1.1.3 Notes
1.1.3.1 SmartWire-DT
XV-3.3-..-.E.-...-..,
Units featuring the optional SmartWire-DT interface can be used as SmartWire-DT
coordinators for Lean Automation.
SmartWire-DT can prove to be invaluable when implementing Lean
Automation concept, which, as part of the company's Lean Solution
approach, offers several significant advantages.
More specifically, SmartWire-DT integrates the I/O level directly into
the switchgear being used, enabling a PLC to use SmartWire-DT to
directly access digital and analog data from control circuit devices all
the way to circuit-breakers.
This eliminates the need for a separate gateway and I/O layer. redu-
cing the number of components and engineering work and enabling
users to create flexible, yet streamlined automation solutions.
Eaton calls this concept "Lean Automation" and uses it to provide
users in the machine building and plant engineering industries with
unparalleled freedom so that they can design creative and profitable
solutions.
1.1.3.2 XN300
The ultra-compact XN300 modular slice card I/O system, which features a plug-in con-
nection system, complements the XV series with application-oriented functions that are
ideal for optimized system solutions.
XV30004/19 MN048017ENwww.eaton.eu 15

1. Description
1.2 Use as intended
1.2 Use as intended
XV300 are primarily intended for use in machine and system building applications.
They are intended exclusively for monitoring, operating, and controlling machines and
systems.
Any other use must be discussed and agreed upon with the manufacturer in advance.
The XV300 multi touch display are approved for use in closed spaces.
Bid
The HMI panel must be used only in locations for which the XV300 is
approved. Make sure to read and follow the information and labels on
the nameplate for the HMI panel, as well as section Approvals and
declarations in the appendix.

Prohibited uses, actions, etc.
It is strictly prohibited to use the device in order to implement safety-rel-
evant functions (in the sense of personal and machine protection).
16 XV30004/19 MN048017ENwww.eaton.eu

1. Description
1.3 Device models - versions and part nos.
1.3 Device models - versions and part nos.
1.3.1 Basic features
All XV are equipped with:
- the operating system Windows Embedded Compact 7 pro
- an industrial capacitive multitouch display, PCT
- a SD/SDHC memory card slot.
Every HMI panel comes with the following integrated interfaces as standard:
lOne Ethernet port (10/100 Mbit/s) for use as a communication or field bus interface
lOne USB 2.0 host port for memory and other accessories, full power (500 mA)
lOne USB device 2.0,
lOne standard RS-232 (COM1) port for communicating with PLCs or devices
lOne standard RS-485 (COM2) port for communicating with PLCs or devices
lOne standard CAN interface for the CANopen protocol, J1939 protocol
1.3.2 Device variants
One of the main differences between the various device models is the specific mount-
ing method that must be used when installing the devices in an enclosure.
lFront mounting, in which the device is inserted into the enclosure from the front
lRear mounting, which provides a flush alignment with the enclosure's surface
1.3.3 Optional features
The following individual options are available in order to ensure that the unit will best
meet the needs of the application at hand:
lThree widescreen display sizes: 7.0", 10.1"or 15.6" widescreen
lDevice bundles with visualization software and/or control software licenses.
Additional integrated interfaces
lSecond Ethernet port (10/100 Mbit/s) for use as a communication interface
lPROFIBUS-DP, universal field bus interface for all typical protocols
lSmartWire-DT for an efficient use of SmartWire-DT technology and its com-
prehensive features
XV30004/19 MN048017ENwww.eaton.eu 17

1. Description
1.3 Device models - versions and part nos.

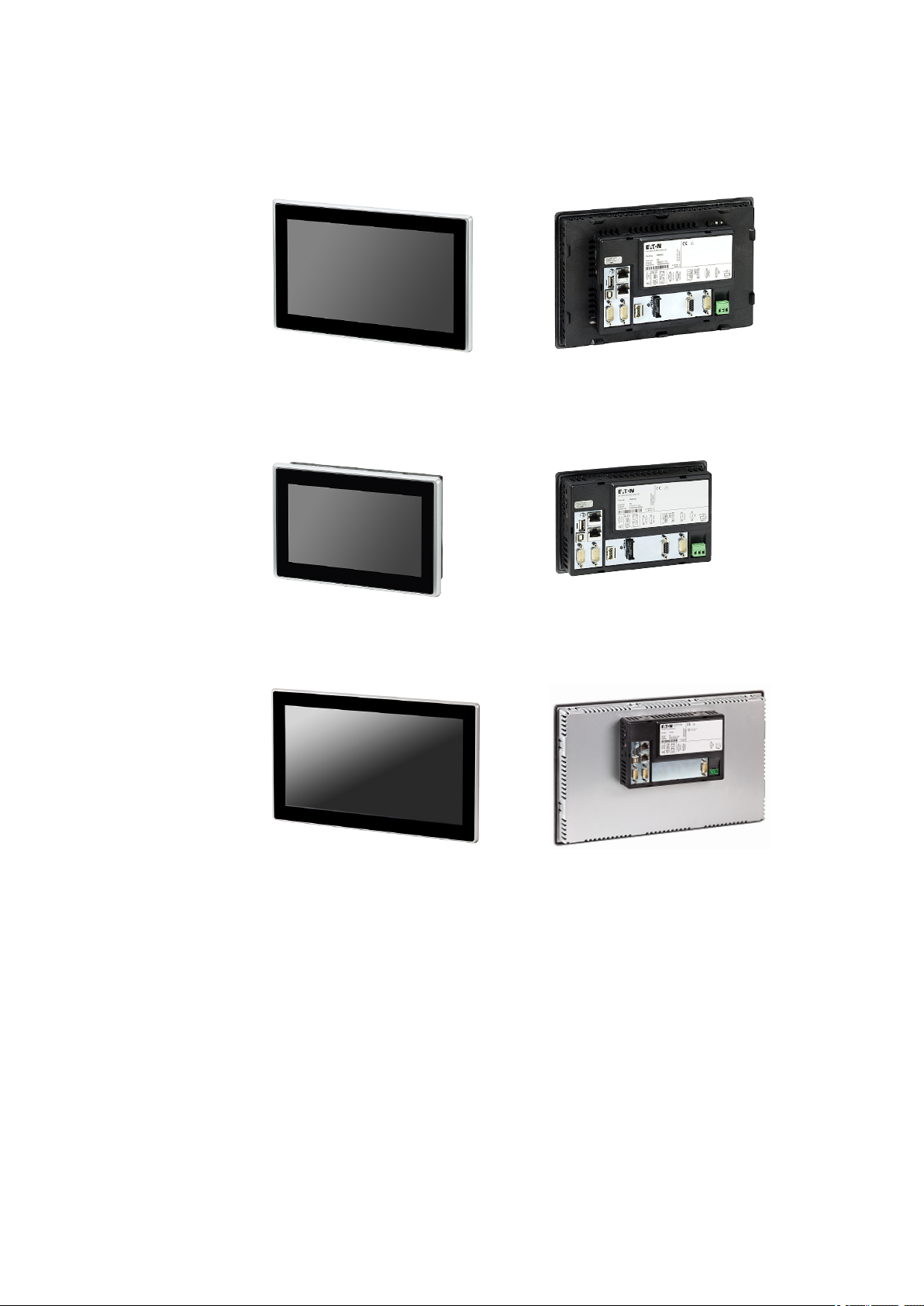

Figure 1: Front with plastic frame Figure 2:
Service side with optional interfaces
XV-303-10-.. XV-303-10-CE2-A00-1C

Figure 3: Front with plastic frame Figure 4: Service side with optional interfaces
XV-303-70-.. XV-303-70-CE2-A00-1C

Figure 5: Front side with aluminum frame Figure 6: Service side with optional interfaces
XV-303-15-.. XV-303-15-C00-A00-1C
Table 2: Enclosure versions for front mounting

18 XV30004/19 MN048017ENwww.eaton.eu

1. Description
1.3 Device models - versions and part nos.
Figure 7: Front side with aluminum mounting frame Figure 8: Service side with optional interfaces

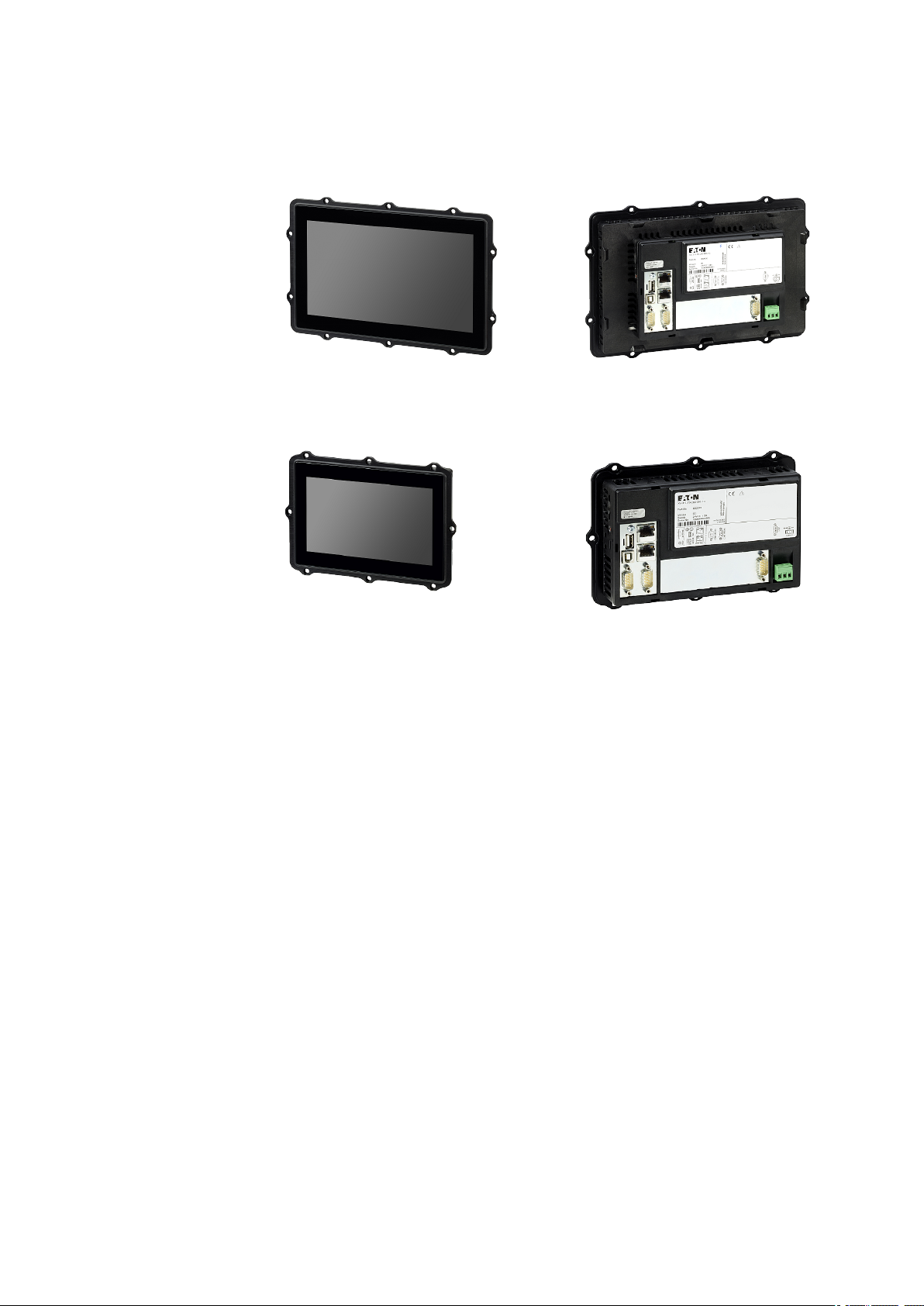

XV-313-10-.. XV-313-10-...

Figure 9: Front side with aluminum mounting frame Figure 10: Service side with optional interfaces
XV-313-70-.. XV-313-70-...
Table 3: Enclosure versions for rear (panel) mounting
XV30004/19 MN048017ENwww.eaton.eu 19

1. Description
1.4 Operating and Indication elements
1.4 Operating and Indication elements
1.4.1 Overview
Operator control and display ele-
ments 
Front XV-303 Front XV-313
Service side with optional interfaces XV-303 Service side with optional interfaces XV-313
①
Display, Touch sensor Display of HMI device
Detects when the controls shown on the display are being
actuated.
Operation based on touch gestures.
②
SD card slot Slot for SD card
③
CTRL button The specific function depends on the software being used
20 XV30004/19 MN048017ENwww.eaton.eu
