QUICK INSTALL

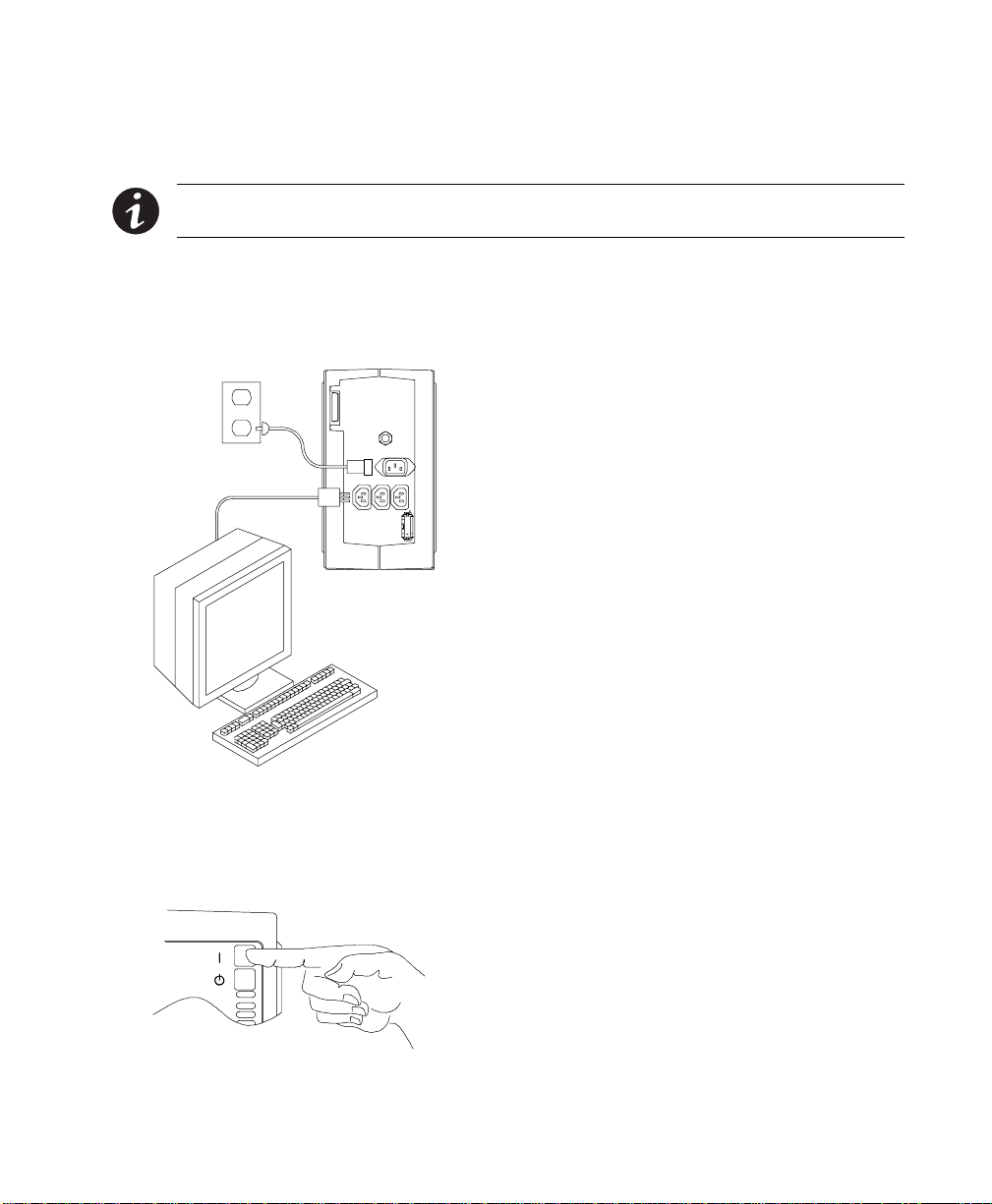

120V Model Installation
1If you are connecting the UPS to an AS/400, the QUPSDLYTIM system value for the UPS
Monitoring feature should be set. See “UPS Monitoring” on page 54 for instructions.
2
3For the AS/400 interface, plug the AS/400 communications cable into the serial port on the
UPS rear panel. Plug the other end of the cable into the connector, located on the back of
the system unit, labeled “UPS” (AS/400 Models 2xx/4xx/170).
4

Quick Install

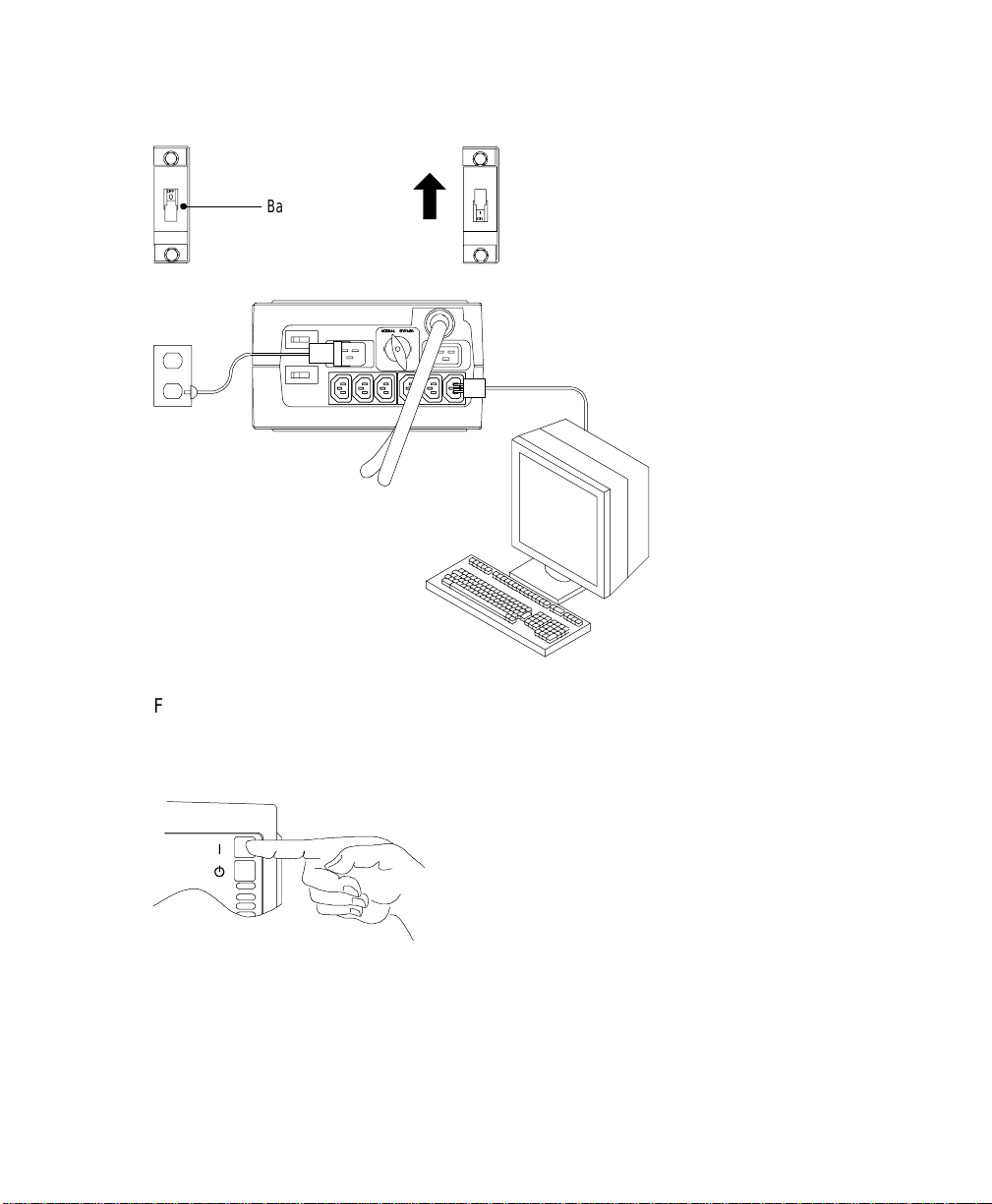

230V Model Installation
NOTE For 208, 220,or 240V models,followthe instructionsfor changing the output voltage on
page 39.
1If you are connecting the UPS to an AS/400, the QUPSDLYTIM system value for the UPS
Monitoring feature should be set. See “UPS Monitoring” on page 54 for instructions.
2
3For the AS/400 interface, plug the AS/400 communications cable into the serial port on the
UPS rear panel. Plug the other end of the cable into the connector, located on the back of
the system unit, labeled “UPS” (AS/400 Models 2xx/4xx/170).
4

Quick Install

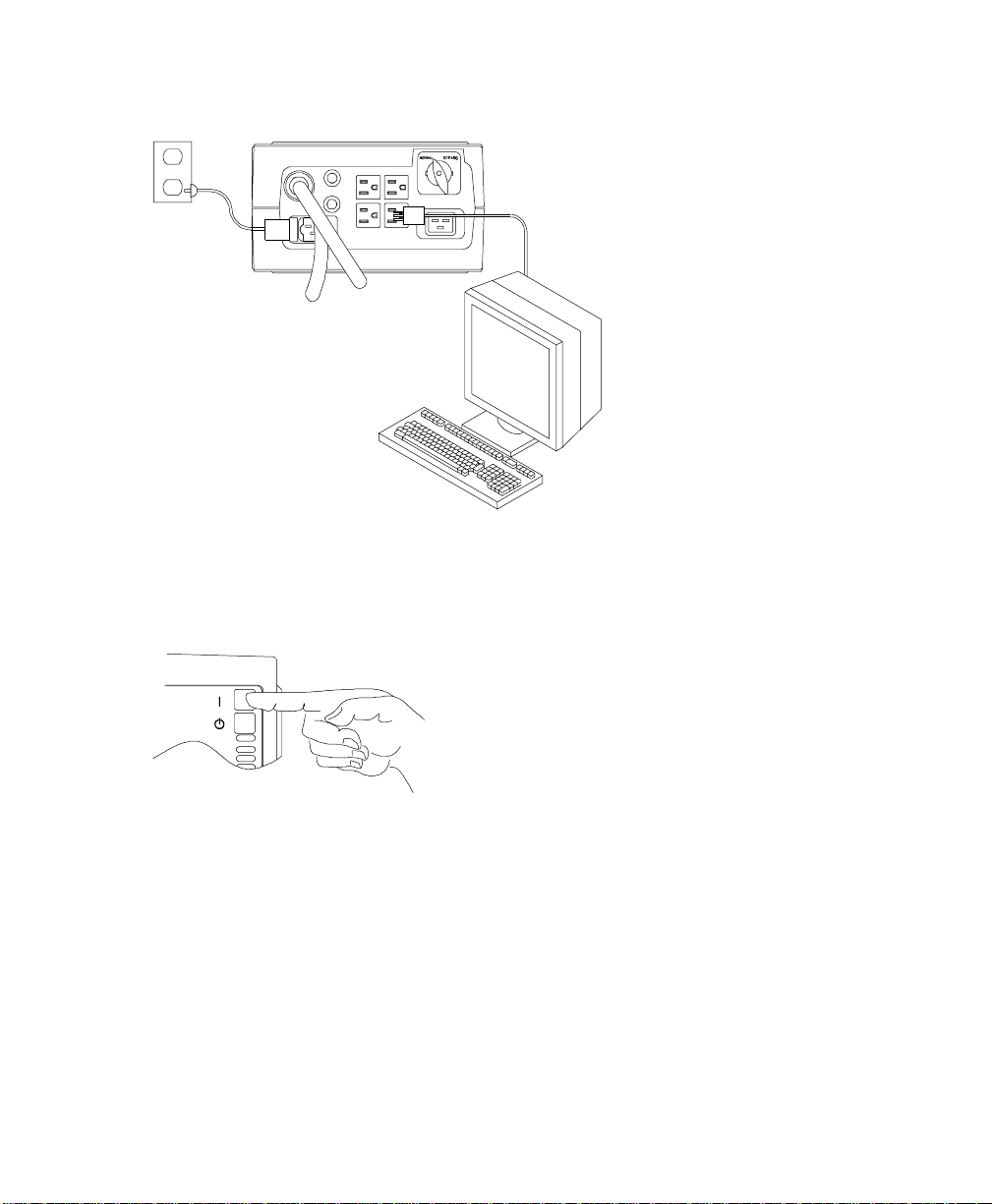

UPS with Optional 120V PPDM Installation
1If you are connecting the UPS to an AS/400, the QUPSDLYTIM system value for the UPS
Monitoring feature should be set. See “UPS Monitoring” on page 54 for instructions.
2
Battery
Cabinet
UPS
Cabinet
PowerPass
Distribution
Module
(PPDM)
3
Bypass Switch
(NORMAL Position)
4
21
Battery
Breaker
I
O
ON
OFF
I
O
ON
OFF
,

Quick Install
5
6For the AS/400 interface, plug the AS/400 communications cable into the serial port on the
UPS rear panel. Plug the other end of the cable into the connector, located on the back of
the system unit, labeled “UPS” (AS/400 Models 600 and S10).
7

Quick Install
UPS with Optional 230V PPDM Installation
NOTE For 208, 220,or 240V models,followthe instructionsfor changing the output voltage on
page 47.
1If you are connecting the UPS to an AS/400, the QUPSDLYTIM system value for the UPS
Monitoring feature should be set. See “UPS Monitoring” on page 54 for instructions.
2
Battery
Cabinet
UPS
Cabinet
PowerPass
Distribution
Module
(PPDM)
3
Bypass Switch
(NORMAL Position)

Quick Install
4
21
Battery
Breaker
I
O
ON
OFF
I
O
ON
OFF
,
5
6For the AS/400 interface, plug the AS/400 communications cable into the serial port on the
UPS rear panel. Plug the other end of the cable into the connector, located on the back of
the system unit, labeled “UPS” (AS/400 Models 600 and S10).
7

i
Powerware®Prestige Series Installation and Operator’s ManualforIBMApplications (650VA- 1500VA)Uncontrolled Copy
TABLE OF CONTENTS
1 Introduction 1....................................................
UPS Model and BatteryConfigurations 2..............................................
Load Requirements 2.........................................................
Approximate Battery Times 3....................................................
Prestige Product Models 5.....................................................
Special Symbols 7..............................................................
2 Safety Warnings 9.................................................
3 Installation 35.....................................................
Unpacking and Inspection 35.......................................................
UPS and Battery Cabinet Storage 35...............................................
Selecting an Installation Option 36...................................................
UPS and Battery Cabinet Installation 36...............................................
UPS Startup for 120V Models 38..................................................
UPS Startup for 208V-240V Models 39..............................................
UPS with OptionalPPDM Installation 41...............................................
UPS with PPDM Startup for 120V Models 46.........................................
UPS with PPDM Startup for 208V-240V Models 47.....................................
Troubleshooting Tips 48...........................................................
4 UPS Operation 49..................................................
UPS Front Panel 49..............................................................
Operating Modes 50.............................................................
NormalMode 50.............................................................
Bypass Mode 51.............................................................
BatteryMode 51.............................................................
Diagnostics 52.................................................................
Battery Test on Demand 52......................................................
BatteryStart 53................................................................
UPSShutdown 53...............................................................
Changing the Output Voltage 53.....................................................
UPSMonitoring 54..............................................................
Using the PPDM 55..............................................................
Disconnecting the UPS 55.......................................................
Reconnecting the UPS 58.......................................................

Table of Contents
ii Powerware®Prestige Series Installation and Operator’s ManualforIBMApplications (650VA- 1500VA)Uncontrolled Copy
5 Communication 59.................................................
InitialCommunicationsSettings 59...................................................
Front PanelCommunications Access 60...............................................
UPSSerialCommunicationsMenu 62.................................................
Power Management Software 65....................................................
UPS Communications Interface Port 66................................................
Communications Mode Reference Chart 67.............................................
6 Specifications 69..................................................
Prestige UPS ModelSpecifications 69................................................
Prestige UPS Physical Specifications 69...............................................
Prestige UPS TechnicalSpecifications 70..............................................
Part Numbers 71................................................................
Base Equipment 71...........................................................
Standard Accessories 71........................................................
OptionalAccessories 71........................................................
Manuals 71.................................................................
7 Troubleshooting 73.................................................
Resetting the UPS 75............................................................
Silencing the Alarm 75...........................................................
8 AS/400 Service 77..................................................
Index 83.........................................................

1
Powerware®Prestige Series Installation and Operator’s ManualforIBMApplications (650VA- 1500VA)Uncontrolled Copy
CHAPTER 1
INTRODUCTION
Congratulations on the purchase of your Powerware
9
Prestige Series
uninterruptible power system (UPS). The Prestige UPS meets the
toughest measures of superior design and manufacturing, including
ISO 9001. You now own the most reliable power protection available.
The Prestige provides a steady, well-regulated power supply for your
computing and communications equipment, while protecting it from the
frequent irregularities that are inherent in commercially available power.
Voltage spikes, power surges, brownouts, and power failures have the
potential to corrupt critical data, destroy unsaved work sessions, and in
some instances, damage expensive hardware.
With the Prestige, you can safely eliminate the effects of electrical line
disturbances and guard the integrity of your systems and equipment.
The optional PowerPass
9
Distribution Module (PPDM) has a
Maintenance Bypass feature that supplies power to your equipment even
when the UPS electronics are removed for maintenance orupgrades.
Figure 1 shows the Prestige UPS.

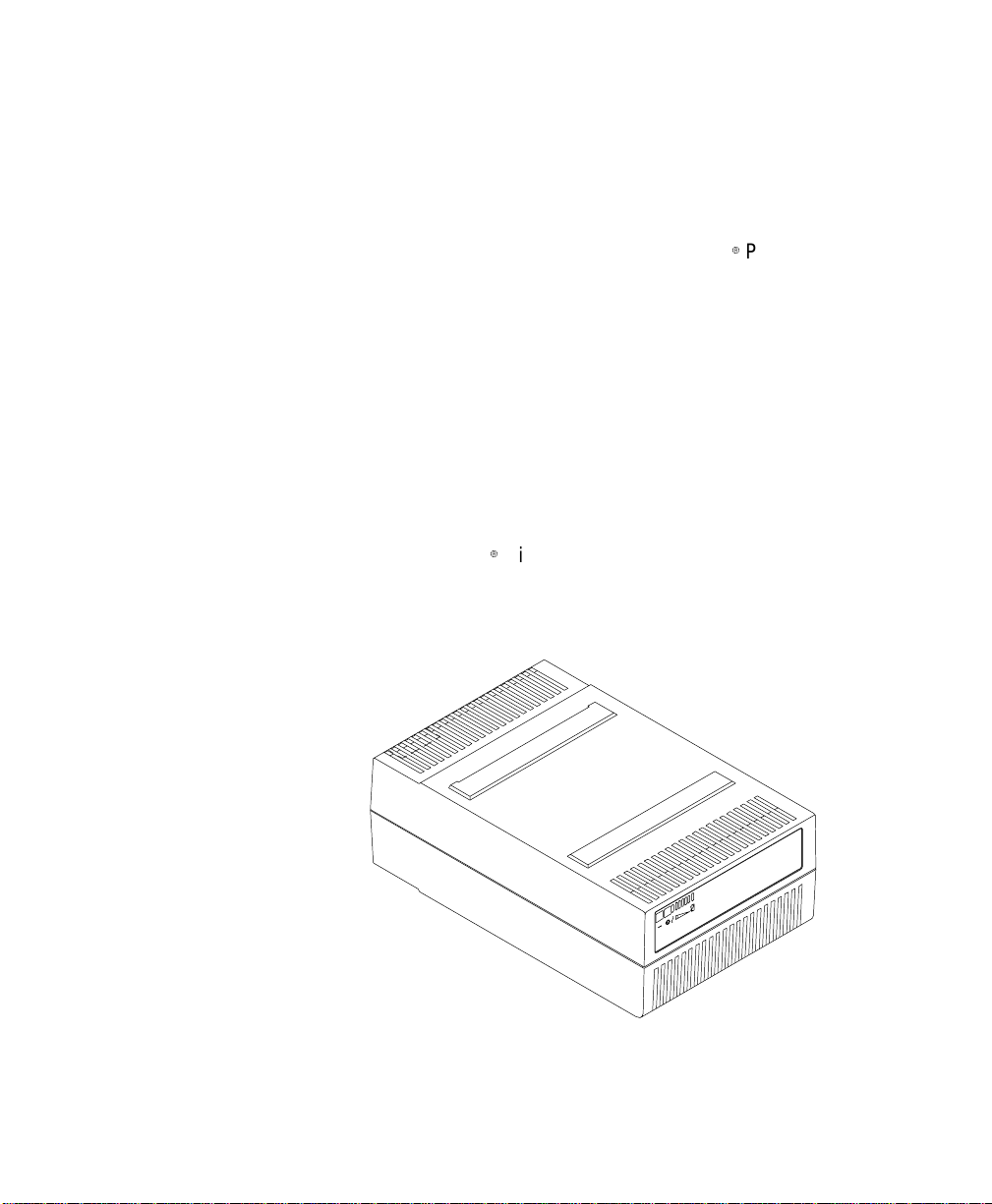

Figure1.PrestigeUPS

Introduction
2Powerware®Prestige Series Installation and Operator’s ManualforIBMApplications (650VA- 1500VA)Uncontrolled Copy
UPS Model and Battery Configurations
This UPS is designed to work with single-phase, three-wire, AC power
sources. There are two important considerations whenselecting the UPS
model and battery configuration to properly safeguard your equipment:
:
Load requirements
:
Battery times
Load Requirements
The load is the equipment to be protected by the UPS.Select the UPS
model that meets the power consumption requirements of the load in
volt-amperes (VA). The total load VA should not exceed the UPS VA
rating. To determine the total load requirements:
1. Obtain the load ratings from either the nameplate or operator’s
manual of the equipment to be protected by the UPS. The
ratings are listed in either watts (W), amperes or amperes
max (A), or volt-amperes.
2. If the rating is in watts, multiply by 1.4 to obtain the VA
requirement (this is the typical relationship between watts and
volt-ampere ratings in most computing equipment). However,
in some new computing equipment, the power supply is
power-factor corrected and the watts rating equals the VA
requirement. Check with the manufacturer to determine
applicability.
If the rating is in amperes or amperes max, multiply by the
input voltage to obtain the VA requirement.
NOTE Forthe load ratingsof AS/400modelsandattachable devices,see Chapter 9of
“AS/400 PhysicalPlanning Reference,” SC41-5109.

Introduction
3
Powerware®Prestige Series Installation and Operator’s ManualforIBMApplications (650VA- 1500VA)Uncontrolled Copy
3. Add all of the resultant VA ratings together to obtain the total
load requirements of the equipment to be protected (see
Figure 2). If the load consists of the power-factor corrected
supplies, it is recommended to use total watts for the load
requirements.
COMPUTER MONITOR EXTERNAL
MODEM
100 WATTS x 1.4 = 140 VA 2AMPERESx120=240VA 50 VA
140 VA + 240 VA + 50 VA = 430 VA (Total Load Requirements)
100WATTS 2AMPS 50VA
or 1 AMPERE x 240 = 240 VA
Figure 2. Volt-Amperes Calculation Example
If the total load requirements of the equipment exceeds the capacity of
the UPS, you must either reduce the number of pieces of equipment, or
use a UPS with a larger load capacity.
When deciding on which pieces of equipment to remove from the UPS,
select equipment that has a lower priority for power protection.
Computers, monitors, and modems typically have a higher priority
because they could be processing or transmitting data when a power
outage occurs.
Approximate Battery Times
During a power failure, the UPS battery supplies power to your
equipment, providing time to complete computing activities prior to
UPS shutdown. The duration of this time period is directly related to the
UPS battery configuration. By adding battery cabinets (EXT models
only), you can customize the UPS to provide enough battery time for
normal processing activities.

Introduction
4Powerware®Prestige Series Installation and Operator’s ManualforIBMApplications (650VA- 1500VA)Uncontrolled Copy
To prepare for a power outage at your installation, ensure that you have
sufficient battery time available. To do this, take a few minutes to
determine your approximate battery time by completing the following
steps:
Load Battery Time
L
o
a
d
Requirements
(VA) UPS Model BatteryCabinets TotalBattery Time Minutes
(Approximate)
Figure 3. Determining Approximate Battery Time
1. See “Load Requirements” on page 2 for assistance in
determining the total load requirements for your UPS. Round
this number up to the next Load (VA) entry in the “Prestige
Product Models” table on page 5, and enter the number in
Figure 3.
2. If you have installed battery cabinets, skip to Step 3.
If you do not have any battery cabinets, enter your UPS Model
number in Figure 3 (for example, 650, 650 EXT, 1250 EXT,
1500 EXT). Find the appropriate Load (VA) and UPS Model in
the “Prestige Product Models” table on page 5. The
intersection of these two parameters shows the approximate
number of minutes of battery time your UPS Model will have at
full load (enter this number in Figure 3, Total Battery Time
Minutes).
3. In Figure 3, enter the number of battery cabinets that you
have installed. Find the intersection point of the appropriate
Load (VA) and number of battery cabinets in the “Prestige with
Additional Battery Cabinets” table on page 6. Enter this
number in Figure 3, Total Battery Time Minutes.
If changes take place in your installation, such as different load
parameters or changes to battery cabinet configuration, take time to
reevaluate your approximate battery time availability.
NOTE Fordetailedinformationregardingcalculationof9910UPSbatterycapacityand
run time for your load, reference: “AS/400 Physical Planning,” SA41-5109, “AS/400
Advanced Series Backup and Recovery - Advanced,” SC41-4305 (see Chapter 10),or
AS/400e series Backup and Recovery,”SC41-5304 (see Chapter 37).

Introduction
5
Powerware®Prestige Series Installation and Operator’s ManualforIBMApplications (650VA- 1500VA)Uncontrolled Copy
Prestige Product Models
Load Prestige ProductModelswith Internal Battery
(Approximate Battery Time in Minutes)
(VA)
a
t
Load
(
W
)
120V Models
a
t
.7PF*
(
W
)
650 650
EXT 1250 EXT 1500 EXT
200 140 48 68 68 68
400 280 23 32 32 32
600 420 14 20 20 20
800 560 14 14
1000 700 11 11
1250 875 8 8
1500 1050 6
208V-240V Models
200 140 56 56 55
400 280 29 29 27
600 420 19 19 18
800 560 13 13
1000 700 10 10
1250 875 8 8
1500 1050 6
* Typical Power Factor (PF)
NOTE The EXT Models have “P2” in the rating label model number.

Introduction
6Powerware®Prestige Series Installation and Operator’s ManualforIBMApplications (650VA- 1500VA)Uncontrolled Copy
Prestige with Additional Battery Cabinets
Load
(
V
A
)
L
o
a
d
Battery Cabinet Configurations for EXT Models
(Approximate Battery Time in Minutes)
(
V
A
)
at
*
L
oa
d
(W) 120V EXT Models
.7PF*
(
)
1Cabinet 2Cabinets 3 Cabinets 4Cabinets
200 140 240 404 570 737
400 280 128 220 311 402
600 420 81 152 215 277
800 560 57 110 162 210
1000 700 43 83 127 168
1250 875 33 62 95 131
1500 1050 25 48 74 101
208V-240V EXT Models
200 140 203 346 491 637
400 280 117 201 285 371
600 420 76 141 200 260
800 560 55 105 153 199
1000 700 42 81 124 161
1250 875 32 61 94 129
1500 1050 25 49 74 102
* Typical Power Factor (PF)
NOTE The EXT Models have “P2” in the rating label model number.
NOTE For AS/400 usage,see “Base Equipment” on page 71.

Introduction
7
Powerware®Prestige Series Installation and Operator’s ManualforIBMApplications (650VA- 1500VA)Uncontrolled Copy
Special Symbols
The following common symbols may be found on the UPS:
LOAD ON - Press the button with this symbol to energize the
output receptacles (Output On).
LOAD OFF - Press the button with this symbol to de-energize
the output receptacles (Output Off).
SAFETY EARTHING TERMINAL - Indicates the primary safety
ground.
RISK OF ELECTRIC SHOCK - Indicates that a risk of electric
shock is present and the associated warning should be
observed.
CAUTION: REFER TO OPERATOR’S MANUAL - Refer to your
operator’s manual for additional information.
This symbol indicates that the UPS batteries should not be
discarded in the trash. The UPS contains sealed lead
batteries and must be disposed of properly. For battery
replacement or removal, see Chapter 8, “AS/400 Service” on
page 77 for assistance.

Introduction
8Powerware®Prestige Series Installation and Operator’s ManualforIBMApplications (650VA- 1500VA)Uncontrolled Copy
Thispage intentionally left blank.
