E108-GN01-TB User Manual
Test Kit for GK9501 Positioning Module

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN01-TB User Manual
Copyright ©2012–2020 Chengdu Ebyte Electronic Technology Co., Ltd.
2
Contents
1.OVERVIEW...................................................................................................................................... 3
1.1 INTRODUCTION.............................................................................................................................................................. 3
1.2 FEATURES:.....................................................................................................................................................................3
1.3 APPLICATIONS............................................................................................................................................................... 3
2.0 QUICK START.............................................................................................................................. 4
3.0 PARAMETERS.............................................................................................................................. 6
3.1 GPS PARAMETERS.........................................................................................................................................................6
3.2 BASIC PARAMETERS...................................................................................................................................................... 6
4.0MECHANICAL DIMENSION DRAWING AND LABEL DEFINITION................................ 8
5.0 WORKING MODE........................................................................................................................ 9
6.0 RELATED MODELS.................................................................................................................... 9
ABOUT US........................................................................................................................................... 9

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN01-TB User Manual
Copyright ©2012–2020 Chengdu Ebyte Electronic Technology Co., Ltd.
3
1.Overview
1.1 Introduction
E108-GN01-TB is a GPS positioning test kit based on E108-GN01, which can greatly reduce the user's
development cycle and supports BDS / GPS / GLONASS / GALILEO / QZSS / SBAS. For more information about
E108-GN01, please visit the official website to download related materials: http://www.ebyte.com/en/
1.2 Features:
Support BDS / GPS / GLONASS / GALILEO / QZSS / SBAS multi-system joint positioning and single-system
independent positioning;
D-GNSS differential positioning, A-GNSS assisted positioning, ephemeris prediction, DR integrated navigation
application, the fastest data update rate of 10Hz;
32-bit application processor with a maximum frequency of 133MHz, supporting dynamic frequency adjustment;
Support PPS output;
Built-in reset controller;
Support UART, SPI, I2C, GPIO;
RTC: Support 32.768 KHz ± 20 ppm crystal oscillator, 1.1V RTC clock output, support external signal wake-up;
Output format: Support NMEA0183 V4.1 and previous versions, the maximum fixed update frequency can reach
10Hz;
High sensitivity: capture cold start -149dBm, hot start -162dBm, tracking -166dBm;
Ultra-low power consumption: capture 30mA, track 20mA ;
1.3 Applications
Vehicle positioning and navigation equipment;
Wearable devices, such as GPS trackers, etc .;
UAV positioning, industrial computers, etc .;
Industrial equipment that requires GNSS positioning or navigation.

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN01-TB User Manual
Copyright ©2012–2020 Chengdu Ebyte Electronic Technology Co., Ltd.
4
2.0 Quick Start
This chapter is based on testing of E108-GN01.
1. First, the user needs to connect the GPS antenna, connect the computer with a USB cable, and then press the switch
button to turn on.
2. The user needs to short-circuit the RF_POWER two pins of the active antenna with jumpers.
3. User can open the serial port assistant to view the data sent by the serial port, or you can use our naviTrack to view.
When the baud rate is set to 9600 bps, the data will always be reported after closing the serial port. The common
output format is as follows:
GGA: time, location, number of satellites;
GSA: GPS receiver operation mode, satellite used for positioning, DOP value, positioning status;
GSV: visible GPS satellite information, elevation angle, azimuth angle, signal-to-noise ratio;

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN01-TB User Manual
Copyright ©2012–2020 Chengdu Ebyte Electronic Technology Co., Ltd.
5
RMC: time, date, position, speed;
VTG: ground speed information;
For detailed meaning, please refer to the third section NMEA0183 protocol;

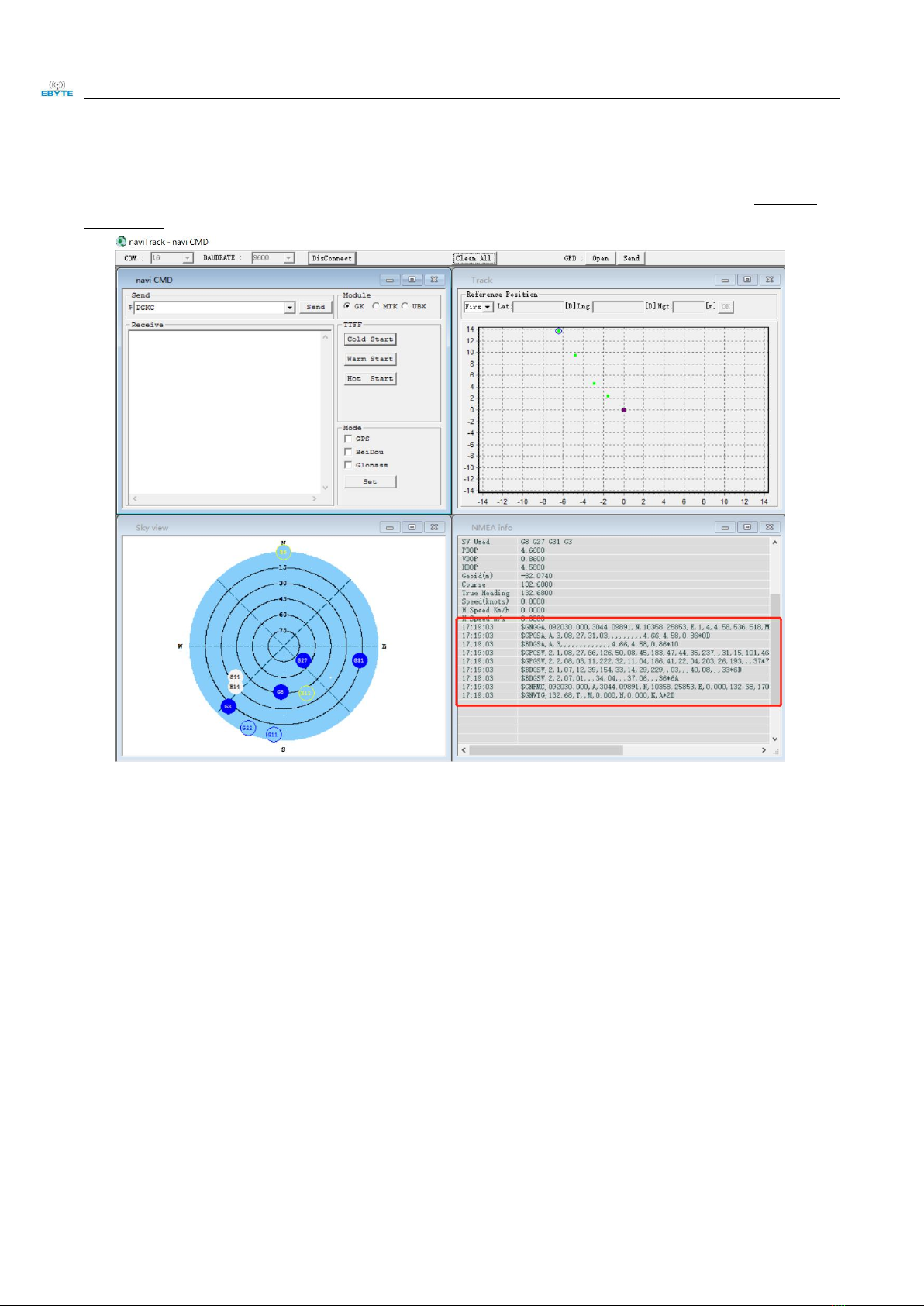

For ease of use, we recommend using the dedicated tool TaviTrack for debugging. For details, see the "naviTrack
User Manual".
1. Run naviTrack as administrator, run the above page;
2. Select the corresponding com port and click connect. After the connection is successful, you can see the reported
data in the NMEA window.
3. For the detailed meaning, please refer to the description in the third section NMEA0183 protocol;
4. After successful positioning, you can get the latitude and longitude information in the $ GPRMC field reported
by the serial port. For more detailed tool usage information, please refer to the manual in the toolkit.
5. Notice: Please refer to the corresponding user manual for the detailed software guide and software functions of
the E108-GN01 module.

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN01-TB User Manual
Copyright ©2012–2020 Chengdu Ebyte Electronic Technology Co., Ltd.
6
3.0 Parameters
3.1 GPS Parameters
Category
Index item
Typical value
Unit
Positioning time
(test condition 1)
Cold start
27.5
S
Hot Start
＜1
S
Recapture
＜1
S
A-GNSS
＜10
S
Sensitivity
(Test Condition 2)
Cold start
-148
dBm
Hot Start
-162
dBm
Recapture
-164
dBm
track
-166
dBm
Accuracy
(Test Condition 3)
Horizontal positioning
accuracy
2.5
m
High positioning accuracy
3.5
m
Speed positioning accuracy
0.1
m/s
Timing accuracy
30
ns
Power consumption (test
condition 4)
Capture current
30
mA
Tracking current
20
mA
Operating temperature
--
-35℃--85℃
--
storage temperature
--
-55℃--100℃
--
humidity
--
5%--95%RH
(No condensation)
--
Note: The above result is GPS / Beidou dual mode working mode
[Test Condition 1]: The number of receiving satellites is greater than 6, the signal strength of all satellites is -130dBm,
the average value is measured 10 times, and the positioning error is within 10 meters.
[Test condition 2]: Received signal strength value under the condition that the external LNA noise coefficient is 0.8, the
number of receiving satellites is greater than 6, and it is locked within five minutes or without loss of lock
[Test Condition 3]: Open and unobstructed environment, continuous 24 hours startup test, 50% CEP.
[Test Condition 4]: The number of receiving satellites is greater than 6, and the signal strength of all satellites is
-130dBm.
3.2 Basic Parameters
Category
Description
letter of agreement
Support NMEA0183 V4.1 and previous versions, the maximum fixed
update frequency can reach 10Hz
Supported positioning
system
BDS / GPS / GLONASS / GALILEO / QZSS / SBAS
Support peripheral
interface
UART (TXD / RXD) or GPIO
Low power consumption
support

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN01-TB User Manual
Copyright ©2012–2020 Chengdu Ebyte Electronic Technology Co., Ltd.
7
Ultra low power
consumption
support
Periodic low power
consumption
support
Direct low power
consumption
support
Parameter setting software
support
Certification
Pending
Module size
53 * 33 * 13.5mm (L * W * H)
Package interface
Half hole (SMT surface mount)
power supply
VCC
5.0V
Serial port
Communication level
2.8V
Baud rate (bps)
9600 (default), 115200 (customizable)
Data bit
8bit
Stop bit
1
Check Digit
None

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN01-TB User Manual
Copyright ©2012–2020 Chengdu Ebyte Electronic Technology Co., Ltd.
8

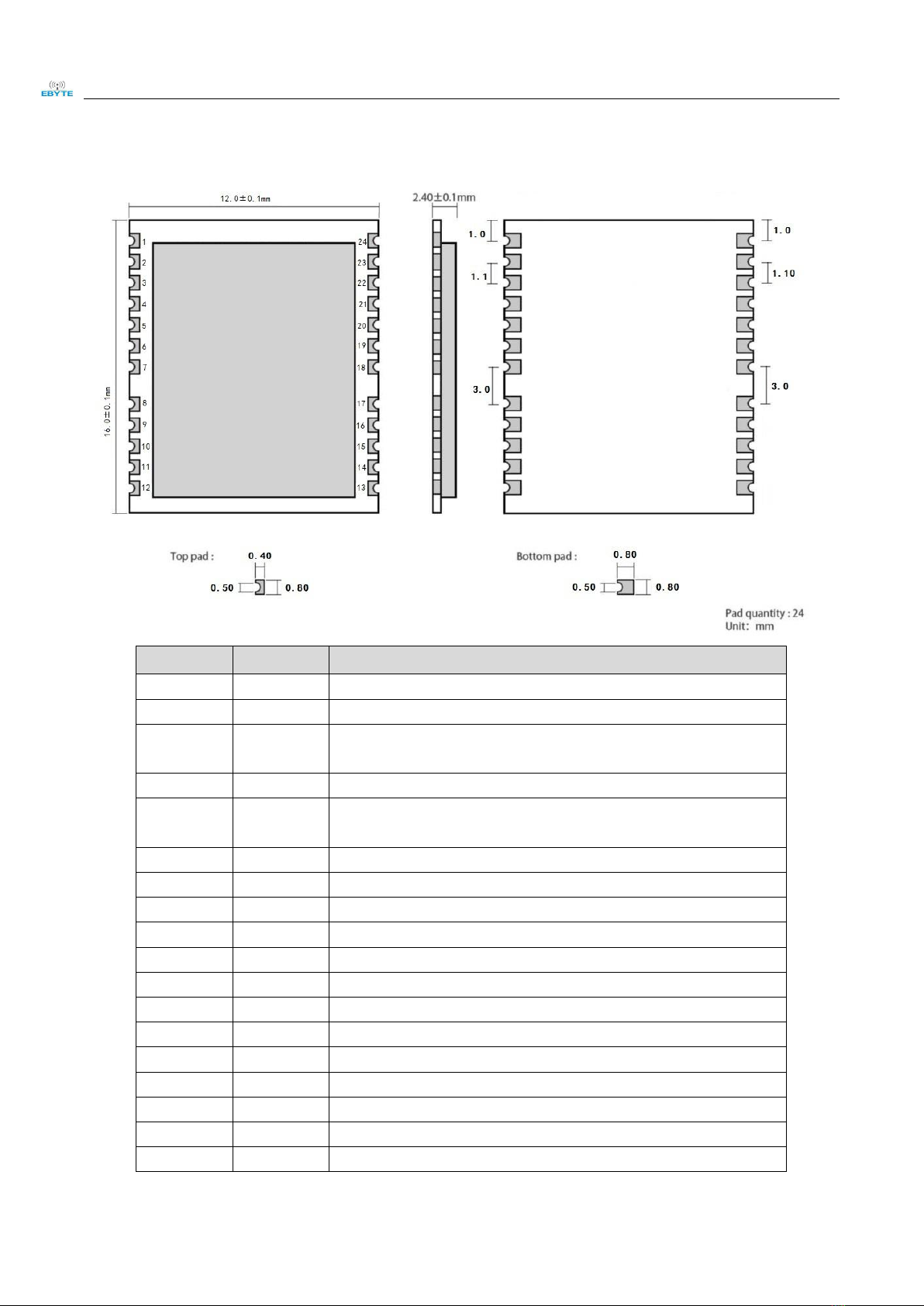

4.0Mechanical dimension drawing and label definition
Pin number
Pin Name
Pin description
1
NC
Reserved pin
2
NC
Reserved pin
3
1PPS
Positioning indicator, square wave will be output after successful
positioning
4
EINT3
External interrupt 3, default: pull-down, 8 mA drive current
5
FORCE_O
N
Sleep wake-up pin, pulled high when the module enters ultra-low
power consumption
6
EINT0
This pin exits the ultra-low power mode (this pin
7
NC
Voltage is 1.1V, if the control pin level is not 1.1V, need
8
RSTN
Partial pressure processing)
9
VCC_RF
External interrupt 0, default: pull-down, 8 mA drive current
10
GND
Reserved pin
11
RF_IN
The reset pin is pulled high by default and reset by pulling low.
12
GND
RF power output, used to power the active antenna (this RF
13
GND
The output power supply voltage is equal to VCC)
14
NC
Module ground
15
NC
RF input
16
RSTN
Module ground
17
EINT1
Module ground
18
TX1
Reserved pin

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN01-TB User Manual
Copyright ©2012–2020 Chengdu Ebyte Electronic Technology Co., Ltd.
9
19
RX1
Reserved pin
20
TXD
The reset pin is pulled high by default and reset by pulling low.
21
RXD
External interrupt 1, default: pull-down, 8 mA drive current
22
VBKP
UART1 output (reserved, 2.8V level)
23
VCC
UART1 input (reserved, 2.8V level)
24
GND
UART output (AT port, 2.8V level)
5.0 Working Mode
1. For the command format, Please refer to "GK9501 Input and Output Format"
2. For AGPS setting, please refer to "Goke AGPS User Manual".
6.0 Related models
Product model
model Chip
Support satellite
Package
form
Product size
mm
communication
interface
E108-GN01-V1.0
GK9501
BDS/GPS/GLONASS/GAL
ILEO/QZSS/SBAS
SMD
16*12*2.4
UART/GPIO
