Echo CH8540 User manual

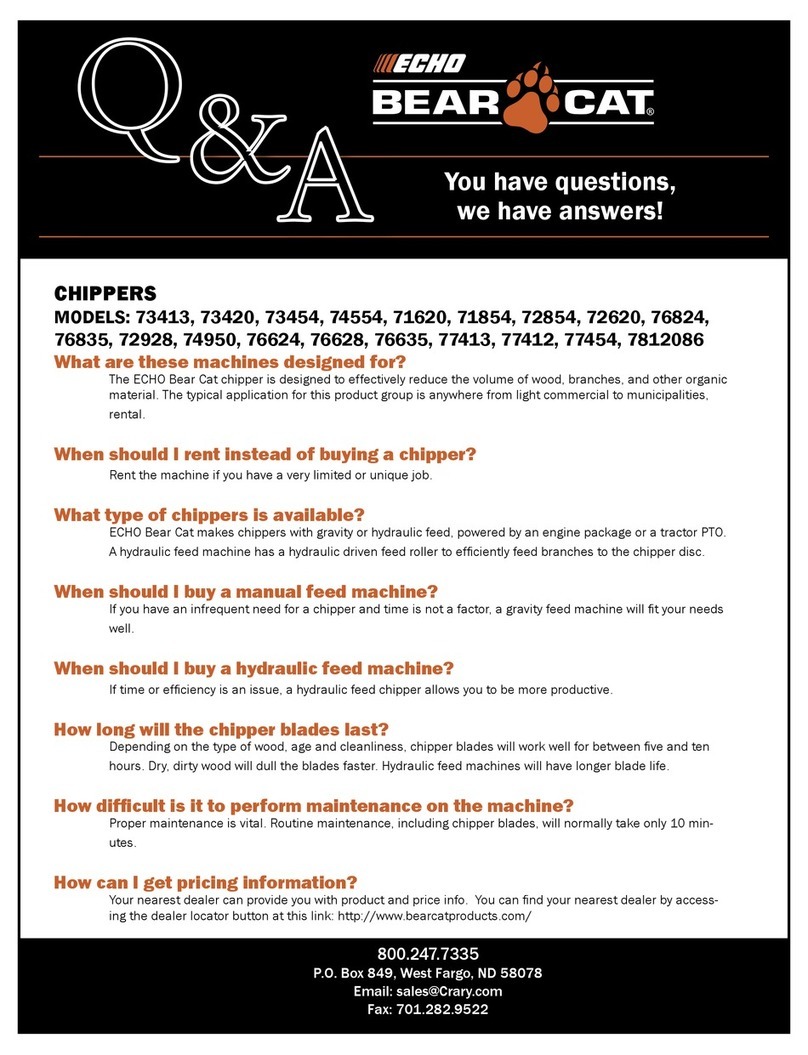

GETTING THE MOST FROM YOUR TRACTOR!
8 & 9" PTO CHIPPERS!

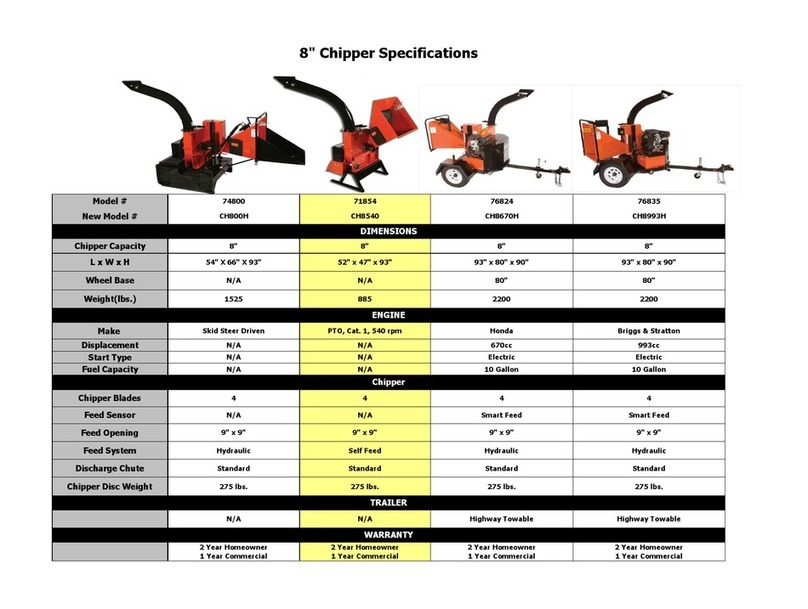

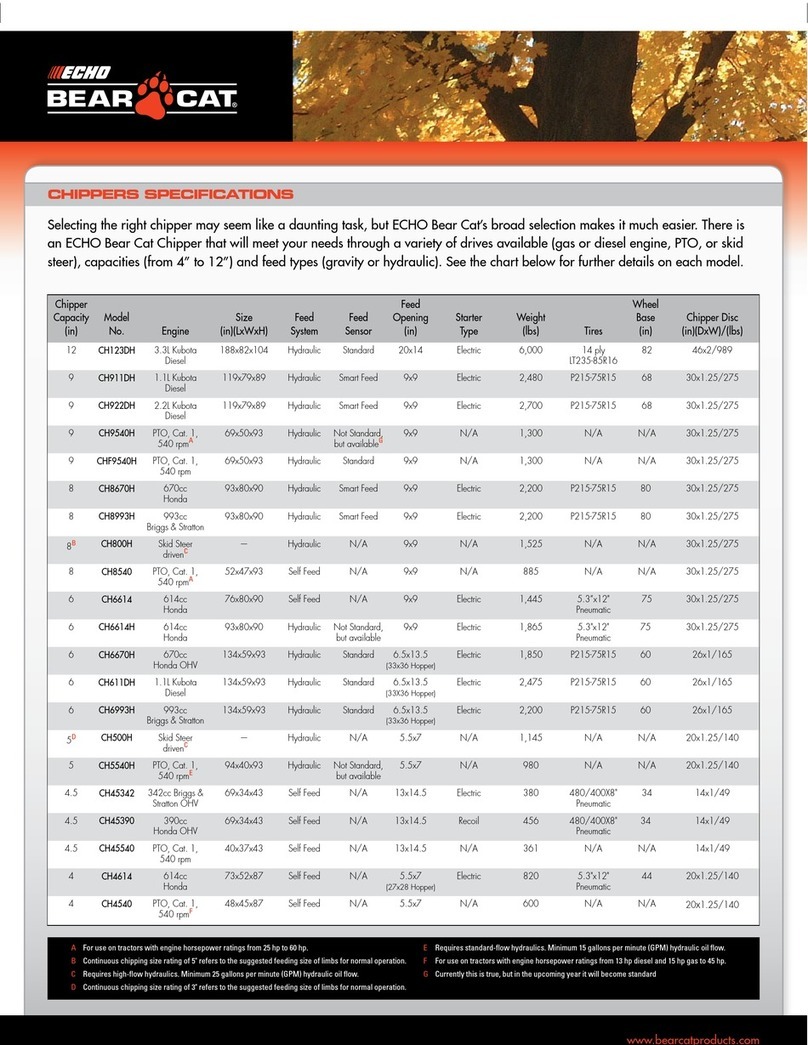

Model Engine Size Chipper Feed Feed Weight 3 Point PTO
(LxWxH) Capacity System Opening (Lbs.) Hitch
CH8540 PTO 52"x47"x93" 8" manual feed 9"x9" 885 Cat. 1 540 rpm
(71854)
CH9540H PTO 69"x50"x93" 9" hydraulic 9"x9" 1300 Cat. 1 540 rpm
(72854)
Option:
74898-00 Auto-Feed Kit for Model 72854
* For Use on Tractors with Engine Horsepower Ratings from 25 to 60 hp
Model CH8540 (71854)
Model CH9540H (72854) has the capacity
you need with a powerful hydraulic feeding
system. The hydraulic feed system makes
chipping much easier by helping guide
branches into the chipper housing.
Four reversible chipper blades mounted
on a dynamically balanced disc weigh in at
275 lbs. [125kg] Maintenance and service
is quick and easy with a hinged disc cover.
Find a dealer near you!
Call us at 800.247.7335 or
Log onto www.BearCatProducts.com
P.O. Box 849, West Fargo, ND 58078
Email: [email protected]
Fax: [phone]

8 & 9" PTO Chipper Specs
Models CH8540 (71854), CH9540H (72854)
76cm [30"] DIAMETER DISC
1.25" [76cm] diameter by 1.25" [3.2cm] thick rotor disc
that weighs 275 lbs. [125kg]. Machined to balance. Disc
turns at 1500 RPM. .75" [4.45cm] diameter rotor shaft.
FOUR CHIPPING BLADES
4 - Reversible Chipper Blades, heat treated chip-
per steal with a chrome content
HYDRAULIC FEED SYSTEM
Standard only on model CH9540H (72854)
White 45 cu. in. [737cc] hyd motor, 10-micron spin on lter. Self-con-
tained system with innite speed settings, dedicated neutral and full
reverse, pump output. 25 liters/min [6.6 gal per min.] and 4HP with
maximum pressure and maximum ow. Feed system operates under
[1750 PSI [119atm], 3 gal. [11.4 liter] tank capacity.
Single 15" [38cm] diameter top feed roller. Feed rate is
0 - 150 FPM [0-45 meters/min.].
FEED SYSTEM
15" diameter
45 degree chipping blade edge angle pulls the logs and limbs.
Infeed hopper opening is 9"x9" [23cm x 23cm].
Drop-down feed tray with locking safety pin.
EASY ACCESS
The rotor is accessible through the hinged disc cov-
er, which exposes one half of the disc for easy access
to the chipping blades and for easy clean out.
HEAVY-DUTY CONSTRUCTION
9"x9" [.95cm] thick steel face plate on the disc housing; .25"
[6.35mm] thick steel on the wrap around with welded construction.
INTEGRATED BLOWER
Put the chips where you want them with the dedicated blower. 360°
rotatable, 8" [20cm] diameter steel tubing with adjustable spout
cap allows you to put the chips where you want them the rst time.
TRIPLE-BANDED BELT DRIVE FOR
BETTER TRANSFER OF POWER
TELESCOPING TONGUE
Adjustable length and height. The length may be adjusted
up to 45 cm [18"] with 4 pin settings on the pintle hitch.
5cm [2"] coupler hitch available as an accessory.
DIMENSIONS:
Model 71854 – Length 52" • Width 47" • Height 93"
Model 72854 – Length69" • Width 50" • Height 93"
360 DEGREE ROTATIONAL BED
The 360 Degree, 8" discharge chute gives
accurate control over the ow of chips
WEIGHTS
Model CH8540 (71854) – 885 lbs
Model CH9540H (72854) – 1300 lbs
SAFETY
• Safety chains standard
• Meets all applicable ISO and CE safety standards.
