Ecler Compact 8 User manual

COMPACT 8
SERVICE MANUAL

SERVICE MANUAL COMPACT 8
INDEX
-BLOCK DIAGRAM

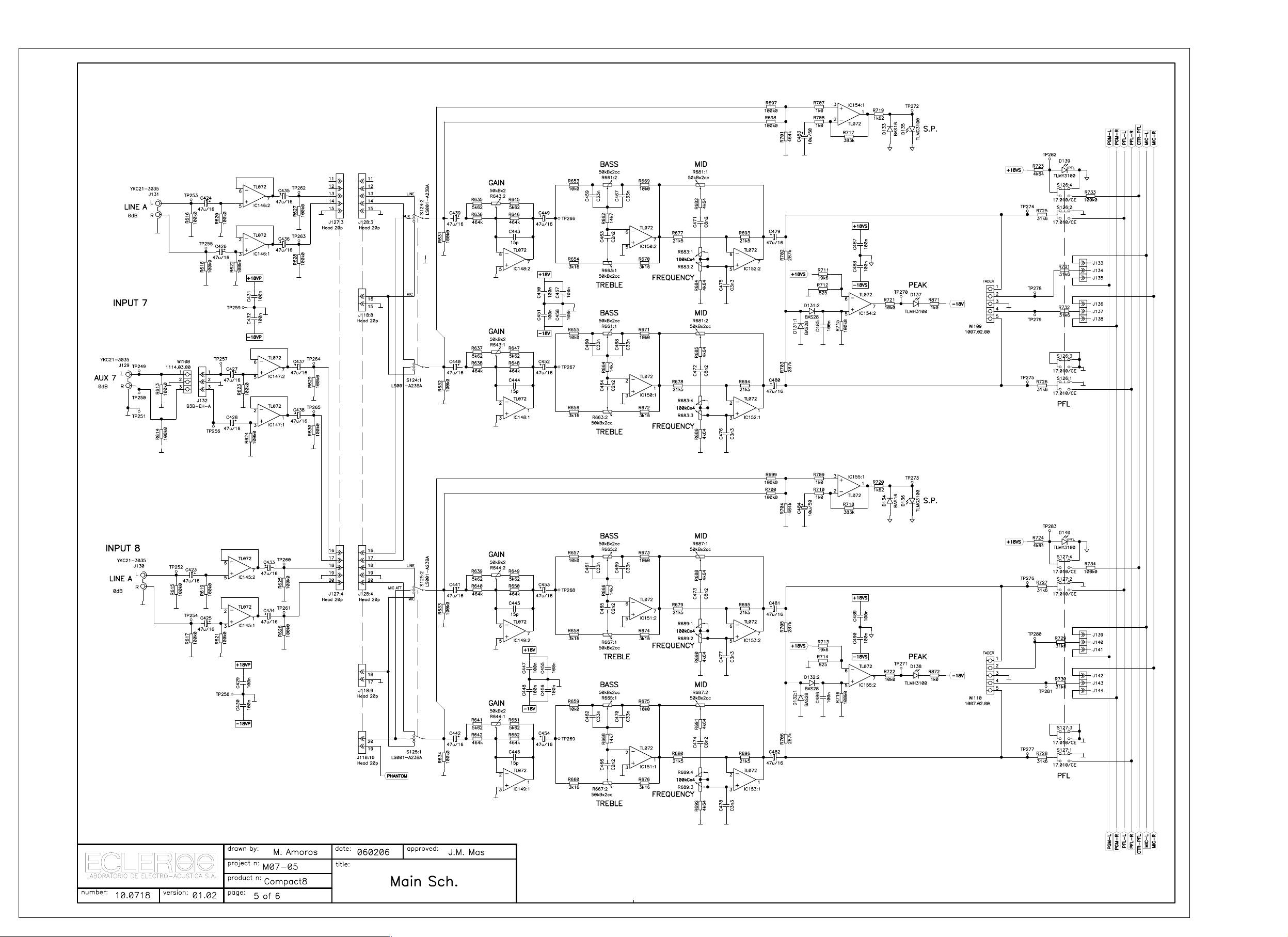

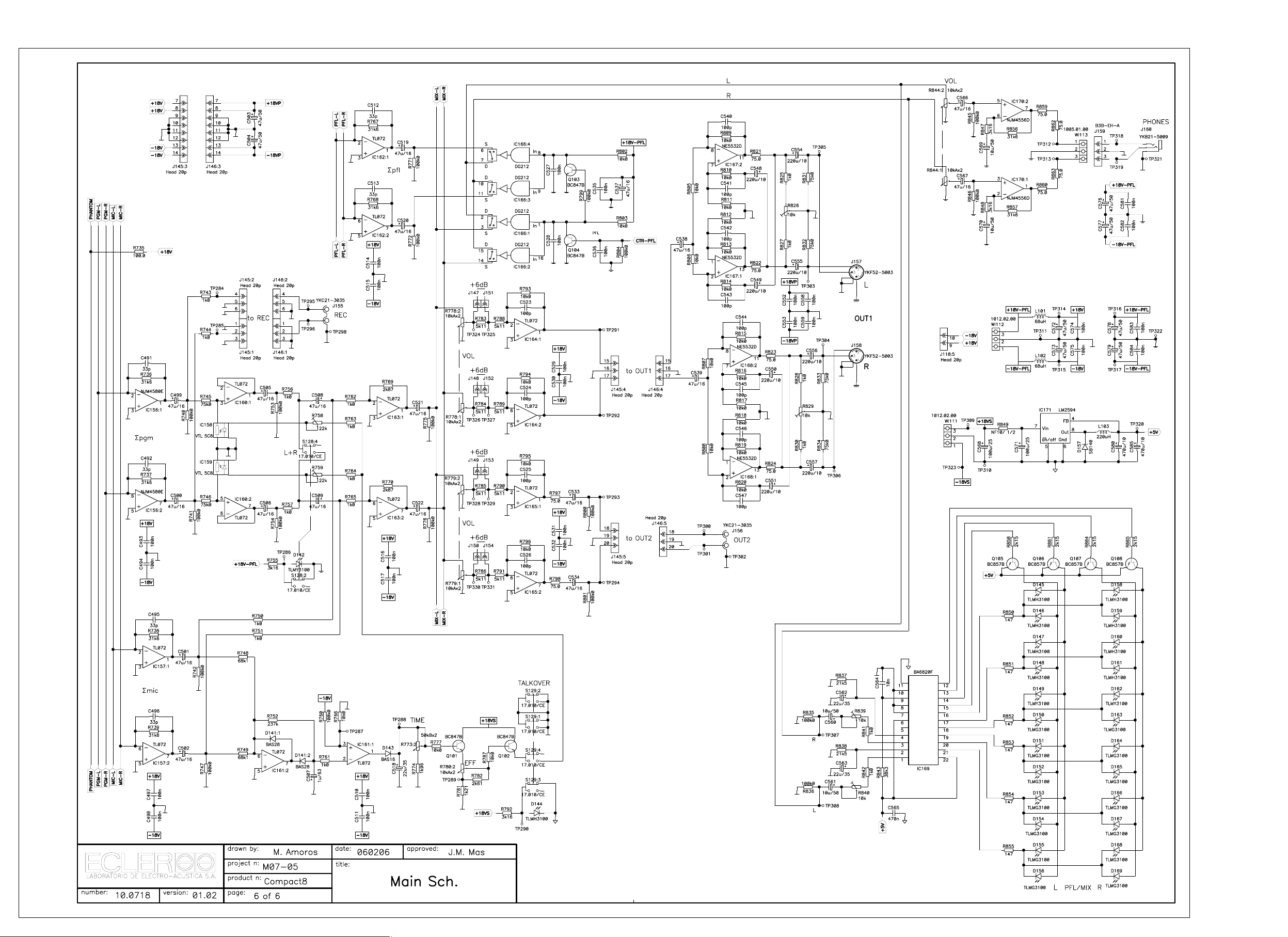

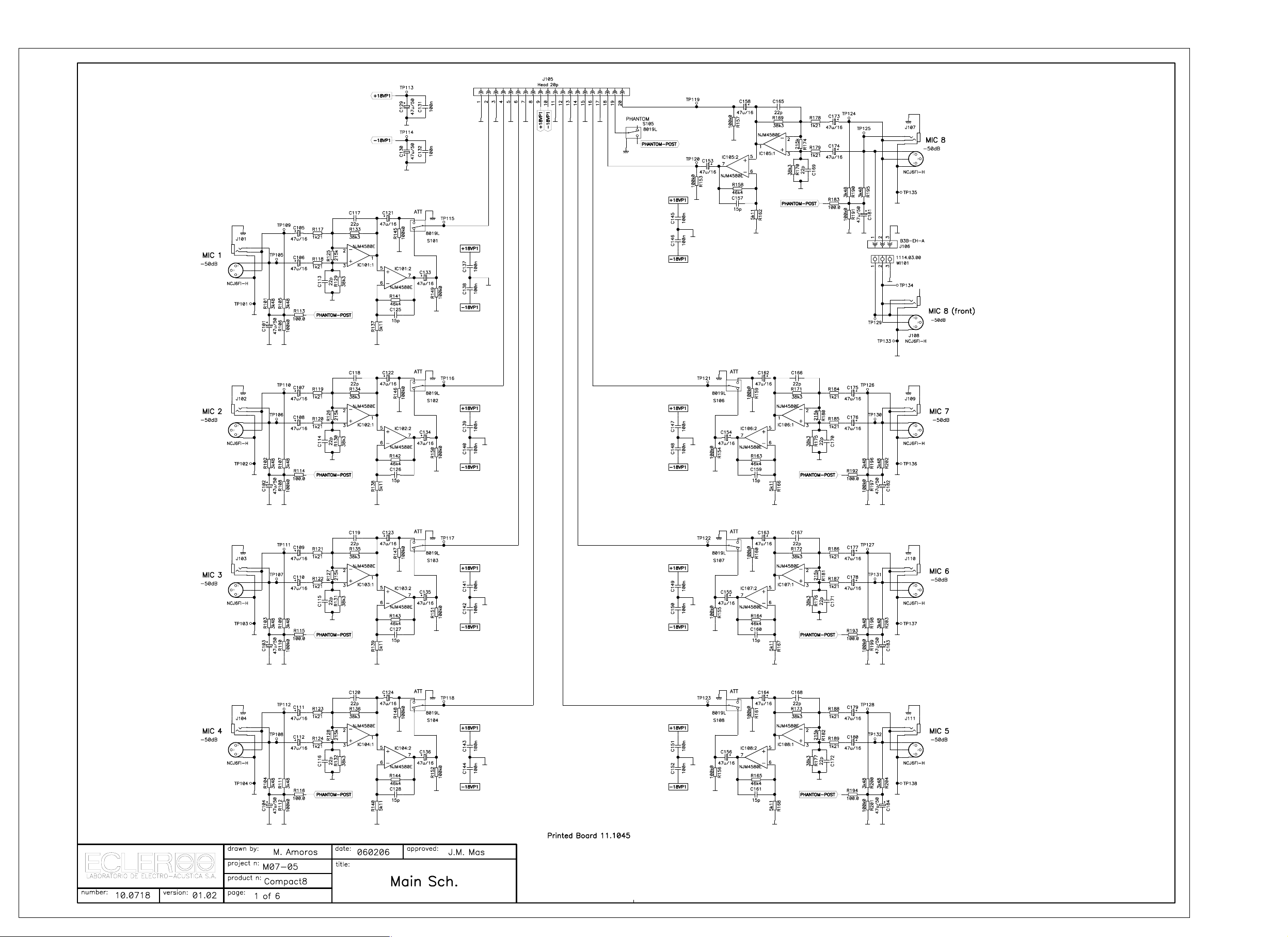

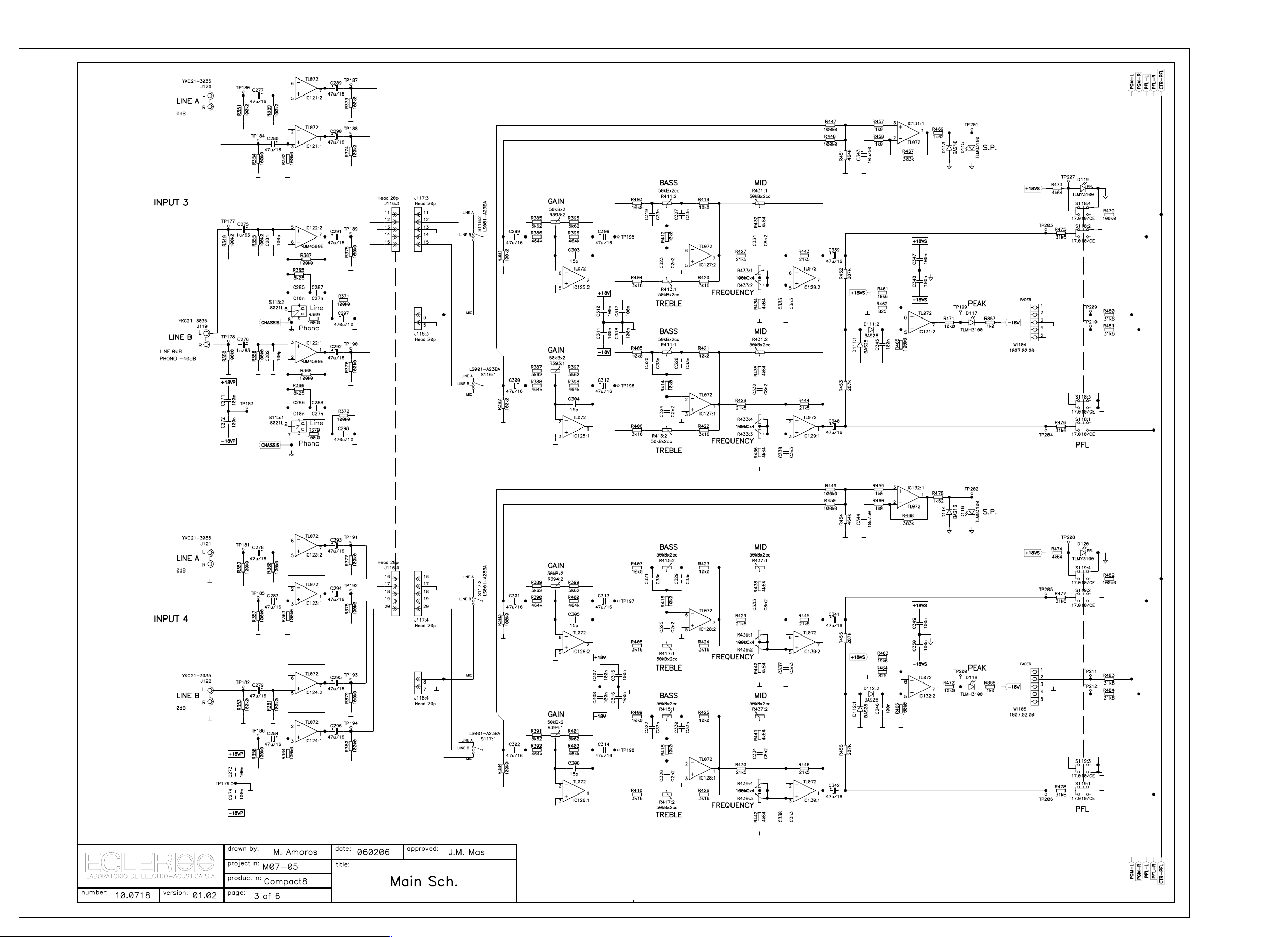

-SCHEMATICS

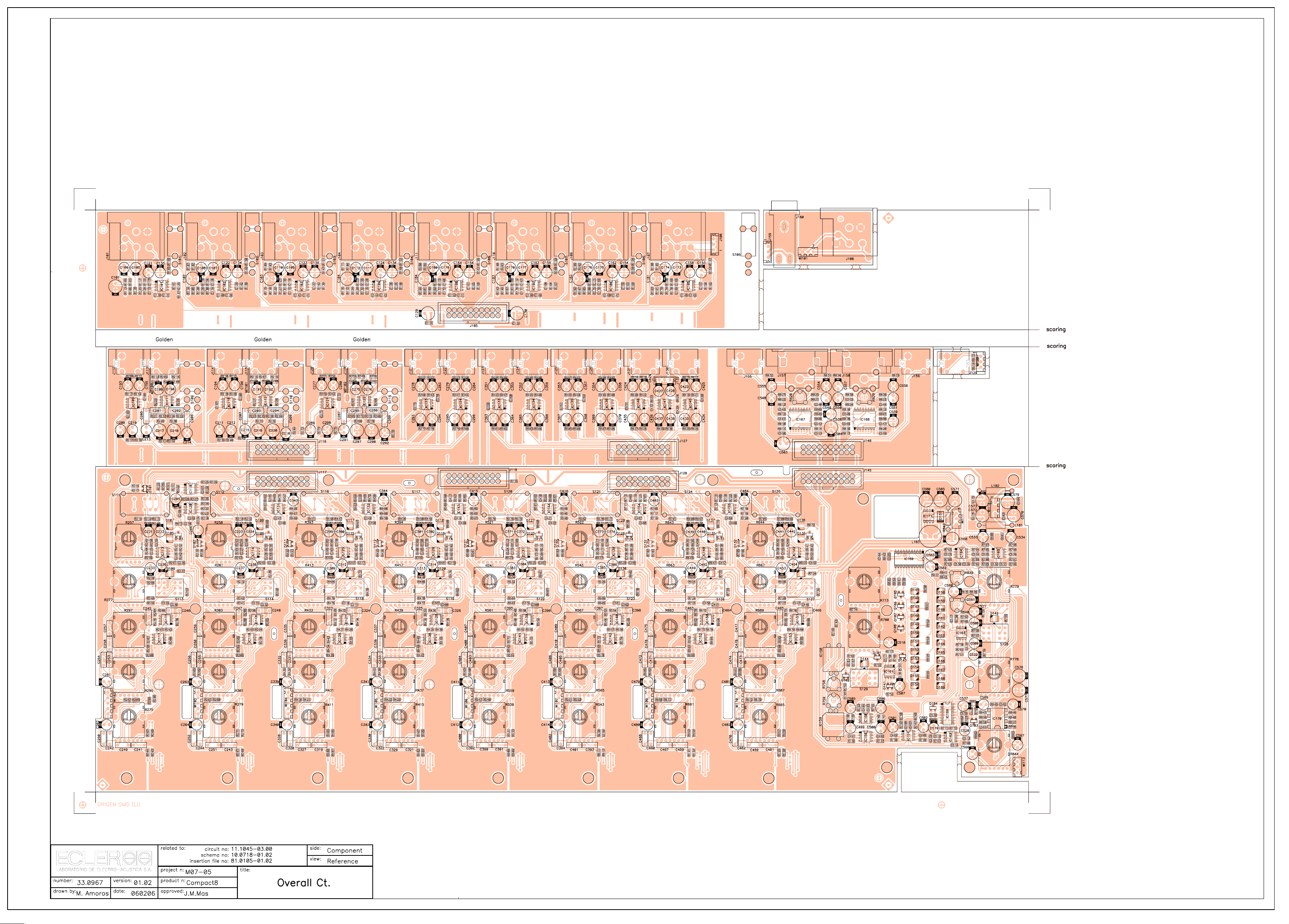

-COMPONENTS LOCATION SCHEMA
-TESTING AND QUALITY CONTROL
-TECHNICAL CHARACTERISTICS
-WIRING DIAGRAM
-CONFIGURATION DIAGRAM
-MECHANICAL DIAGRAM
-PACKING DIAGRAM

PARTS LIST:
PRINTED CIRCUIT 11.1045.03.00
Code
Description
Reference
FCCE25047000
47u/50
C101
FCCE25047000
47u/50
C102
FCCE25047000
47u/50
C103
FCCE25047000
47u/50
C104
FCCE10000000
47u/16
C105
FCCE10000000
47u/16
C106
FCCE10000000
47u/16
C107
FCCE10000000
47u/16
C108
FCCE10000000
47u/16
C109
FCCE10000000
47u/16
C110
FCCE10000000
47u/16
C111
FCCE10000000
47u/16
C112
FCXCD1220000
22p
C113
FCXCD1220000
22p
C114
FCXCD1220000
22p
C115
FCXCD1220000
22p
C116
FCXCD1220000
22p
C117
FCXCD1220000
22p
C118
FCXCD1220000
22p
C119
FCXCD1220000
22p
C120
FCCE10000000
47u/16
C121
FCCE10000000
47u/16
C122
FCCE10000000
47u/16
C123
FCCE10000000
47u/16
C124
FCXCD1150000
15p
C125
FCXCD1150000
15p
C126
FCXCD1150000
15p
C127
FCXCD1150000
15p
C128
FCCE25047000
47u/50
C129
FCCE25047000
47u/50
C130
FCXCD4100000
100n
C131
FCXCD4100000
100n
C132
FCCE10000000
47u/16
C133
FCCE10000000
47u/16
C134
FCCE10000000
47u/16
C135
FCCE10000000
47u/16
C136
FCXCD4100000
100n
C137
FCXCD4100000
100n
C138
FCXCD4100000
100n
C139
FCXCD4100000
100n
C140
FCXCD4100000
100n
C141
FCXCD4100000
100n
C142
FCXCD4100000
100n
C143
FCXCD4100000
100n
C144
FCXCD4100000
100n
C145
FCXCD4100000
100n
C146
FCXCD4100000
100n
C147
FCXCD4100000
100n
C148
FCXCD4100000
100n
C149
FCXCD4100000
100n
C150
FCXCD4100000
100n
C151
FCXCD4100000
100n
C152
FCCE10000000
47u/16
C153
FCCE10000000
47u/16
C154
FCCE10000000
47u/16
C155
FCCE10000000
47u/16
C156
40-0161-0101 M07-05 COMPACT 8.xls 1 of 28

PARTS LIST:
PRINTED CIRCUIT 11.1045.03.00
Code
Description
Reference
FCXCD1150000
15p
C157
FCCE10000000
47u/16
C158
FCXCD1150000
15p
C159
FCXCD1150000
15p
C160
FCXCD1150000
15p
C161
FCCE10000000
47u/16
C162
FCCE10000000
47u/16
C163
FCCE10000000
47u/16
C164
FCXCD1220000
22p
C165
FCXCD1220000
22p
C166
FCXCD1220000
22p
C167
FCXCD1220000
22p
C168
FCXCD1220000
22p
C169
FCXCD1220000
22p
C170
FCXCD1220000
22p
C171
FCXCD1220000
22p
C172
FCCE10000000
47u/16
C173
FCCE10000000
47u/16
C174
FCCE10000000
47u/16
C175
FCCE10000000
47u/16
C176
FCCE10000000
47u/16
C177
FCCE10000000
47u/16
C178
FCCE10000000
47u/16
C179
FCCE10000000
47u/16
C180
FCCE25047000
47u/50
C181
FCCE25047000
47u/50
C182
FCCE25047000
47u/50
C183
FCCE25047000
47u/50
C184
FCXCD4100000
100n
C185
FCXCD4100000
100n
C186
FCXCD4100000
100n
C187
FCXCD4100000
100n
C188
FCCE30001000
1u/63
C189
FCCE30001000
1u/63
C190
FCCE30001000
1u/63
C191
FCCE30001000
1u/63
C192
FCCE10000000
47u/16
C193
FCCE10000000
47u/16
C194
FCCE10000000
47u/16
C195
FCCE10000000
47u/16
C196
FCXCD2100000
100p
C197
FCXCD2100000
100p
C198
FCXCD2100000
100p
C199
FCXCD2100000
100p
C200
FCCDK1010000
C10n
C201
FCCDK1010000
C10n
C202
FCCDK1010000
C10n
C203
FCCDK1010000
C10n
C204
FCCDK5027000
C27n
C205
FCCDK5027000
C27n
C206
FCCDK5027000
C27n
C207
FCCDK5027000
C27n
C208
FCCE10000000
47u/16
C209
FCCE10000000
47u/16
C210
FCCE10000000
47u/16
C211
FCCE10000000
47u/16
C212
40-0161-0101 M07-05 COMPACT 8.xls 2 of 28

PARTS LIST:
PRINTED CIRCUIT 11.1045.03.00
Code
Description
Reference
FCCE10000000
47u/16
C213
FCCE10000000
47u/16
C214
FCCE10000000
47u/16
C215
FCCE10000000
47u/16
C216
FCCE03000000
470u/10
C217
FCCE03000000
470u/10
C218
FCCE03000000
470u/10
C219
FCCE03000000
470u/10
C220
FCCE10000000
47u/16
C221
FCCE10000000
47u/16
C222
FCCE10000000
47u/16
C223
FCCE10000000
47u/16
C224
FCXCD1150000
15p
C225
FCXCD1150000
15p
C226
FCXCD1150000
15p
C227
FCXCD1150000
15p
C228
FCXCD4100000
100n
C229
FCXCD4100000
100n
C230
FCXCD4100000
100n
C231
FCXCD4100000
100n
C232
FCCE10000000
47u/16
C233
FCXCD4100000
100n
C234
FCXCD4100000
100n
C235
FCCE10000000
47u/16
C236
FCCE10000000
47u/16
C237
FCCE10000000
47u/16
C238
FCXCD4100000
100n
C239
FCXCD4100000
100n
C240
FCCDK1033000
C33n
C241
FCCDK1033000
C33n
C242
FCCDK1033000
C33n
C243
FCCDK1033000
C33n
C244
FCCDK1002200
C2n2
C245
FCCDK1002200
C2n2
C246
FCCDK1002200
C2n2
C247
FCCDK1002200
C2n2
C248
FCCDK1033000
C33n
C249
FCCDK1033000
C33n
C250
FCCDK1033000
C33n
C251
FCCDK1033000
C33n
C252
FCCDK1008200
C8n2
C253
FCCDK1008200
C8n2
C254
FCCDK1008200
C8n2
C255
FCCDK1008200
C8n2
C256
FCCDK1003300
C3n3
C257
FCCDK1003300
C3n3
C258
FCCDK1003300
C3n3
C259
FCCDK1003300
C3n3
C260
FCCE10000000
47u/16
C261
FCCE10000000
47u/16
C262
FCCE10000000
47u/16
C263
FCCE10000000
47u/16
C264
FCCE25010000
10u/50
C265
FCCE25010000
10u/50
C266
FCXCD4100000
100n
C267
FCXCD4100000
100n
C268
40-0161-0101 M07-05 COMPACT 8.xls 3 of 28

PARTS LIST:
PRINTED CIRCUIT 11.1045.03.00
Code
Description
Reference
FCXCD4100000
100n
C269
FCXCD4100000
100n
C270
FCXCD4100000
100n
C271
FCXCD4100000
100n
C272
FCXCD4100000
100n
C273
FCXCD4100000
100n
C274
FCCE30001000
1u/63
C275
FCCE30001000
1u/63
C276
FCCE10000000
47u/16
C277
FCCE10000000
47u/16
C278
FCCE10000000
47u/16
C279
FCCE10000000
47u/16
C280
FCXCD2100000
100p
C281
FCXCD2100000
100p
C282
FCCE10000000
47u/16
C283
FCCE10000000
47u/16
C284
FCCDK1010000
C10n
C285
FCCDK1010000
C10n
C286
FCCDK5027000
C27n
C287
FCCDK5027000
C27n
C288
FCCE10000000
47u/16
C289
FCCE10000000
47u/16
C290
FCCE10000000
47u/16
C291
FCCE10000000
47u/16
C292
FCCE10000000
47u/16
C293
FCCE10000000
47u/16
C294
FCCE10000000
47u/16
C295
FCCE10000000
47u/16
C296
FCCE03000000
470u/10
C297
FCCE03000000
470u/10
C298
FCCE10000000
47u/16
C299
FCCE10000000
47u/16
C300
FCCE10000000
47u/16
C301
FCCE10000000
47u/16
C302
FCXCD1150000
15p
C303
FCXCD1150000
15p
C304
FCXCD1150000
15p
C305
FCXCD1150000
15p
C306
FCXCD4100000
100n
C307
FCXCD4100000
100n
C308
FCCE10000000
47u/16
C309
FCXCD4100000
100n
C310
FCXCD4100000
100n
C311
FCCE10000000
47u/16
C312
FCCE10000000
47u/16
C313
FCCE10000000
47u/16
C314
FCXCD4100000
100n
C315
FCXCD4100000
100n
C316
FCXCD4100000
100n
C317
FCXCD4100000
100n
C318
FCCDK1033000
C33n
C319
FCCDK1033000
C33n
C320
FCCDK1033000
C33n
C321
FCCDK1033000
C33n
C322
FCCDK1002200
C2n2
C323
FCCDK1002200
C2n2
C324
40-0161-0101 M07-05 COMPACT 8.xls 4 of 28

PARTS LIST:
PRINTED CIRCUIT 11.1045.03.00
Code
Description
Reference
FCCDK1002200
C2n2
C325
FCCDK1002200
C2n2
C326
FCCDK1033000
C33n
C327
FCCDK1033000
C33n
C328
FCCDK1033000
C33n
C329
FCCDK1033000
C33n
C330
FCCDK1008200
C8n2
C331
FCCDK1008200
C8n2
C332
FCCDK1008200
C8n2
C333
FCCDK1008200
C8n2
C334
FCCDK1003300
C3n3
C335
FCCDK1003300
C3n3
C336
FCCDK1003300
C3n3
C337
FCCDK1003300
C3n3
C338
FCCE10000000
47u/16
C339
FCCE10000000
47u/16
C340
FCCE10000000
47u/16
C341
FCCE10000000
47u/16
C342
FCCE25010000
10u/50
C343
FCCE25010000
10u/50
C344
FCXCD4100000
100n
C345
FCXCD4100000
100n
C346
FCXCD4100000
100n
C347
FCXCD4100000
100n
C348
FCXCD4100000
100n
C349
FCXCD4100000
100n
C350
FCCE10000000
47u/16
C351
FCCE10000000
47u/16
C352
FCCE10000000
47u/16
C353
FCCE10000000
47u/16
C354
FCCE10000000
47u/16
C355
FCCE10000000
47u/16
C356
FCCE10000000
47u/16
C357
FCCE10000000
47u/16
C358
FCXCD4100000
100n
C359
FCXCD4100000
100n
C360
FCXCD4100000
100n
C361
FCXCD4100000
100n
C362
FCCE10000000
47u/16
C363
FCCE10000000
47u/16
C364
FCCE10000000
47u/16
C365
FCCE10000000
47u/16
C366
FCCE10000000
47u/16
C367
FCCE10000000
47u/16
C368
FCCE10000000
47u/16
C369
FCCE10000000
47u/16
C370
FCCE10000000
47u/16
C371
FCCE10000000
47u/16
C372
FCCE10000000
47u/16
C373
FCCE10000000
47u/16
C374
FCXCD1150000
15p
C375
FCXCD1150000
15p
C376
FCXCD1150000
15p
C377
FCXCD1150000
15p
C378
FCXCD4100000
100n
C379
FCXCD4100000
100n
C380
40-0161-0101 M07-05 COMPACT 8.xls 5 of 28

PARTS LIST:
PRINTED CIRCUIT 11.1045.03.00
Code
Description
Reference
FCXCD4100000
100n
C381
FCXCD4100000
100n
C382
FCCE10000000
47u/16
C383
FCCE10000000
47u/16
C384
FCCE10000000
47u/16
C385
FCCE10000000
47u/16
C386
FCXCD4100000
100n
C387
FCXCD4100000
100n
C388
FCXCD4100000
100n
C389
FCXCD4100000
100n
C390
FCCDK1033000
C33n
C391
FCCDK1033000
C33n
C392
FCCDK1033000
C33n
C393
FCCDK1033000
C33n
C394
FCCDK1002200
C2n2
C395
FCCDK1002200
C2n2
C396
FCCDK1002200
C2n2
C397
FCCDK1002200
C2n2
C398
FCCDK1033000
C33n
C399
FCCDK1033000
C33n
C400
FCCDK1033000
C33n
C401
FCCDK1033000
C33n
C402
FCCDK1008200
C8n2
C403
FCCDK1008200
C8n2
C404
FCCDK1008200
C8n2
C405
FCCDK1008200
C8n2
C406
FCCDK1003300
C3n3
C407
FCCDK1003300
C3n3
C408
FCCDK1003300
C3n3
C409
FCCDK1003300
C3n3
C410
FCCE10000000
47u/16
C411
FCCE10000000
47u/16
C412
FCCE10000000
47u/16
C413
FCCE10000000
47u/16
C414
FCCE25010000
10u/50
C415
FCCE25010000
10u/50
C416
FCXCD4100000
100n
C417
FCXCD4100000
100n
C418
FCXCD4100000
100n
C419
FCXCD4100000
100n
C420
FCXCD4100000
100n
C421
FCXCD4100000
100n
C422
FCCE10000000
47u/16
C423
FCCE10000000
47u/16
C424
FCCE10000000
47u/16
C425
FCCE10000000
47u/16
C426
FCCE10000000
47u/16
C427
FCCE10000000
47u/16
C428
FCXCD4100000
100n
C429
FCXCD4100000
100n
C430
FCXCD4100000
100n
C431
FCXCD4100000
100n
C432
FCCE10000000
47u/16
C433
FCCE10000000
47u/16
C434
FCCE10000000
47u/16
C435
FCCE10000000
47u/16
C436
40-0161-0101 M07-05 COMPACT 8.xls 6 of 28

PARTS LIST:
PRINTED CIRCUIT 11.1045.03.00
Code
Description
Reference
FCCE10000000
47u/16
C437
FCCE10000000
47u/16
C438
FCCE10000000
47u/16
C439
FCCE10000000
47u/16
C440
FCCE10000000
47u/16
C441
FCCE10000000
47u/16
C442
FCXCD1150000
15p
C443
FCXCD1150000
15p
C444
FCXCD1150000
15p
C445
FCXCD1150000
15p
C446
FCXCD4100000
100n
C447
FCXCD4100000
100n
C448
FCCE10000000
47u/16
C449
FCXCD4100000
100n
C450
FCXCD4100000
100n
C451
FCCE10000000
47u/16
C452
FCCE10000000
47u/16
C453
FCCE10000000
47u/16
C454
FCXCD4100000
100n
C455
FCXCD4100000
100n
C456
FCXCD4100000
100n
C457
FCXCD4100000
100n
C458
FCCDK1033000
C33n
C459
FCCDK1033000
C33n
C460
FCCDK1033000
C33n
C461
FCCDK1033000
C33n
C462
FCCDK1002200
C2n2
C463
FCCDK1002200
C2n2
C464
FCCDK1002200
C2n2
C465
FCCDK1002200
C2n2
C466
FCCDK1033000
C33n
C467
FCCDK1033000
C33n
C468
FCCDK1033000
C33n
C469
FCCDK1033000
C33n
C470
FCCDK1008200
C8n2
C471
FCCDK1008200
C8n2
C472
FCCDK1008200
C8n2
C473
FCCDK1008200
C8n2
C474
FCCDK1003300
C3n3
C475
FCCDK1003300
C3n3
C476
FCCDK1003300
C3n3
C477
FCCDK1003300
C3n3
C478
FCCE10000000
47u/16
C479
FCCE10000000
47u/16
C480
FCCE10000000
47u/16
C481
FCCE10000000
47u/16
C482
FCCE25010000
10u/50
C483
FCCE25010000
10u/50
C484
FCXCD4100000
100n
C485
FCXCD4100000
100n
C486
FCXCD4100000
100n
C487
FCXCD4100000
100n
C488
FCXCD4100000
100n
C489
FCXCD4100000
100n
C490
FCXCD1330000
33p
C491
FCXCD1330000
33p
C492
40-0161-0101 M07-05 COMPACT 8.xls 7 of 28

PARTS LIST:
PRINTED CIRCUIT 11.1045.03.00
Code
Description
Reference
FCXCD4100000
100n
C493
FCXCD4100000
100n
C494
FCXCD1330000
33p
C495
FCXCD1330000
33p
C496
FCXCD4100000
100n
C497
FCXCD4100000
100n
C498
FCCE10000000
47u/16
C499
FCCE10000000
47u/16
C500
FCCE10000000
47u/16
C501
FCCE10000000
47u/16
C502
FCCE25047000
47u/50
C503
FCCE25047000
47u/50
C504
FCCE10000000
47u/16
C505
FCCE10000000
47u/16
C506
FCCE30001000
1u/63
C507
FCCE10000000
47u/16
C508
FCCE10000000
47u/16
C509
FCXCD4100000
100n
C510
FCXCD4100000
100n
C511
FCXCD1330000
33p
C512
FCXCD1330000
33p
C513
FCXCD4100000
100n
C514
FCXCD4100000
100n
C515
FCXCD4100000
100n
C516
FCXCD4100000
100n
C517
FCCE20022000
22u/35
C518
FCCE10000000
47u/16
C519
FCCE10000000
47u/16
C520
FCCE10000000
47u/16
C521
FCCE10000000
47u/16
C522
FCXCD2100000
100p
C523
FCXCD2100000
100p
C524
FCXCD2100000
100p
C525
FCXCD2100000
100p
C526
FCXCD4100000
100n
C527
FCXCD4100000
100n
C528
FCXCD4100000
100n
C529
FCXCD4100000
100n
C530
FCXCD4100000
100n
C531
FCXCD4100000
100n
C532
FCCE10000000
47u/16
C533
FCCE10000000
47u/16
C534
FCXCD4100000
100n
C535
FCXCD4100000
100n
C536
FCCE10000000
47u/16
C537
FCCE10000000
47u/16
C538
FCCE10000000
47u/16
C539
FCXCD2100000
100p
C540
FCXCD2100000
100p
C541
FCXCD2100000
100p
C542
FCXCD2100000
100p
C543
FCXCD2100000
100p
C544
FCXCD2100000
100p
C545
FCXCD2100000
100p
C546
FCXCD2100000
100p
C547
FCCE05000000
220u/10
C548
40-0161-0101 M07-05 COMPACT 8.xls 8 of 28

PARTS LIST:
PRINTED CIRCUIT 11.1045.03.00
Code
Description
Reference
FCCE05000000
220u/10
C549
FCCE05000000
220u/10
C550
FCCE05000000
220u/10
C551
FCXCD4100000
100n
C552
FCXCD4100000
100n
C553
FCCE05000000
220u/10
C554
FCCE05000000
220u/10
C555
FCCE05000000
220u/10
C556
FCCE05000000
220u/10
C557
FCXCD4100000
100n
C558
FCXCD4100000
100n
C559
FCCE25010000
10u/50
C560
FCCE25010000
10u/50
C561
FCCE20022000
22u/35
C562
FCCE20022000
22u/35
C563
FCXCD4010000
10n
C564
FCXCD4470000
470n
C565
FCCE10000000
47u/16
C566
FCCE10000000
47u/16
C567
FCCE15100000
100u/25
C568
FCCE25010000
10u/50
C569
FCCE25010000
10u/50
C570
FCCE15100000
100u/25
C571
FCCE25047000
47u/50
C572
FCCE25047000
47u/50
C573
FCXCD4100000
100n
C574
FCXCD4100000
100n
C575
FCCE25047000
47u/50
C576
FCCE25047000
47u/50
C577
FCCE25047000
47u/50
C578
FCCE25047000
47u/50
C579
FCCE03000000
470u/10
C580
FCXCD4100000
100n
C581
FCXCD4100000
100n
C582
FCXCD4100000
100n
C583
FCXCD4100000
100n
C584
FCCE03000000
470u/10
C585
FCCI01045000
Printed Board 11.1045
CI101
FCXDDBAS2800
BAS28
D101
FCXDDBAS2800
BAS28
D102
FCXDDBAS1600
BAS16
D103
FCXDDBAS1600
BAS16
D104
FCLEDSMD3000
TLMG3100
D105
FCLEDSMD3000
TLMG3100
D106
FCLEDSMD2000
TLMH3100
D107
FCLEDSMD2000
TLMH3100
D108
FCLEDSMD2500
TLMY3100
D109
FCLEDSMD2500
TLMY3100
D110
FCXDDBAS2800
BAS28
D111
FCXDDBAS2800
BAS28
D112
FCXDDBAS1600
BAS16
D113
FCXDDBAS1600
BAS16
D114
FCLEDSMD3000
TLMG3100
D115
FCLEDSMD3000
TLMG3100
D116
FCLEDSMD2000
TLMH3100
D117
FCLEDSMD2000
TLMH3100
D118
40-0161-0101 M07-05 COMPACT 8.xls 9 of 28
