Ecler HAK380 User manual

HAK380
SERVICE MANUAL

SERVICE MANUAL HAK380
INDEX

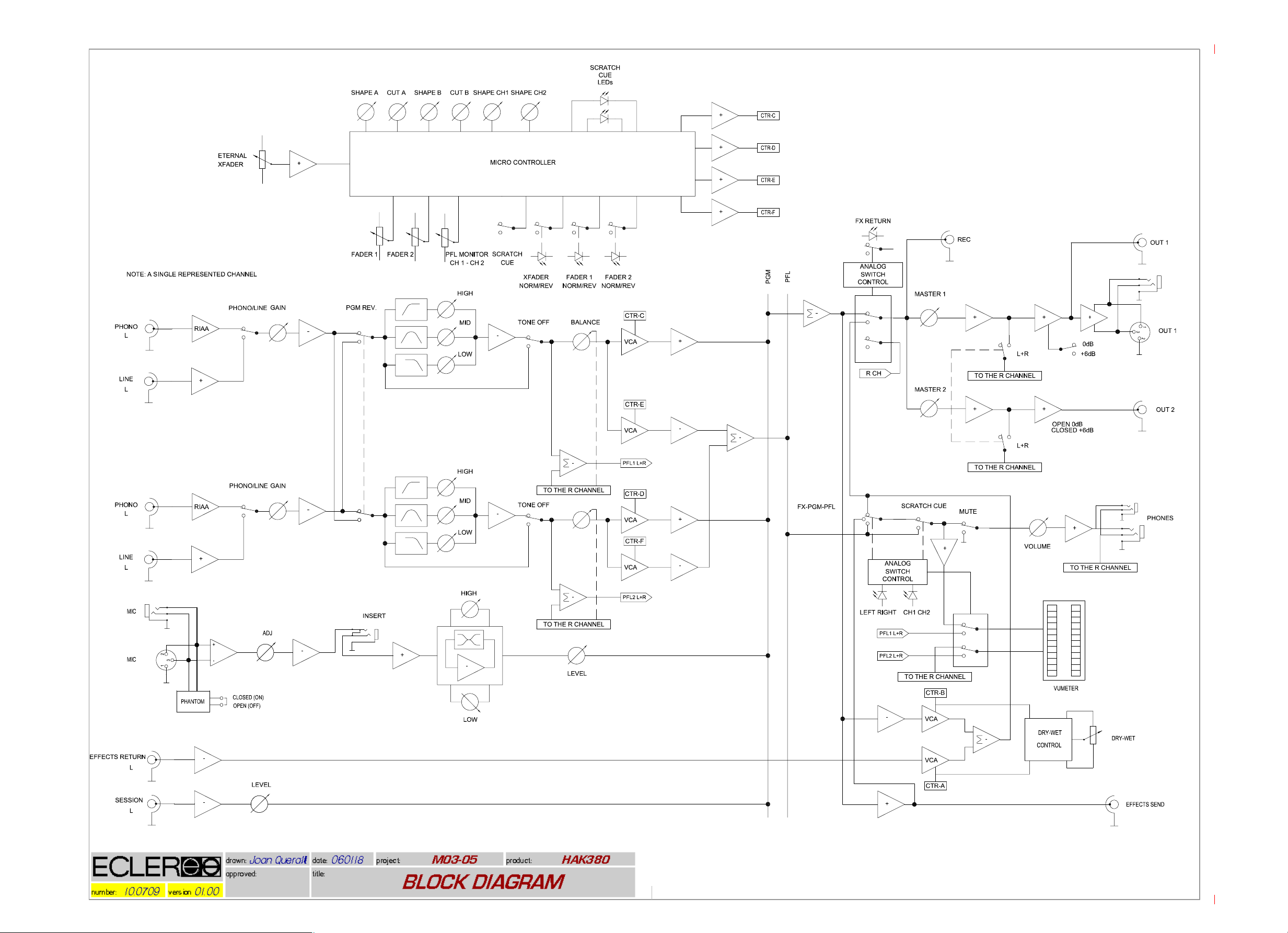

-BLOCK DIAGRAM

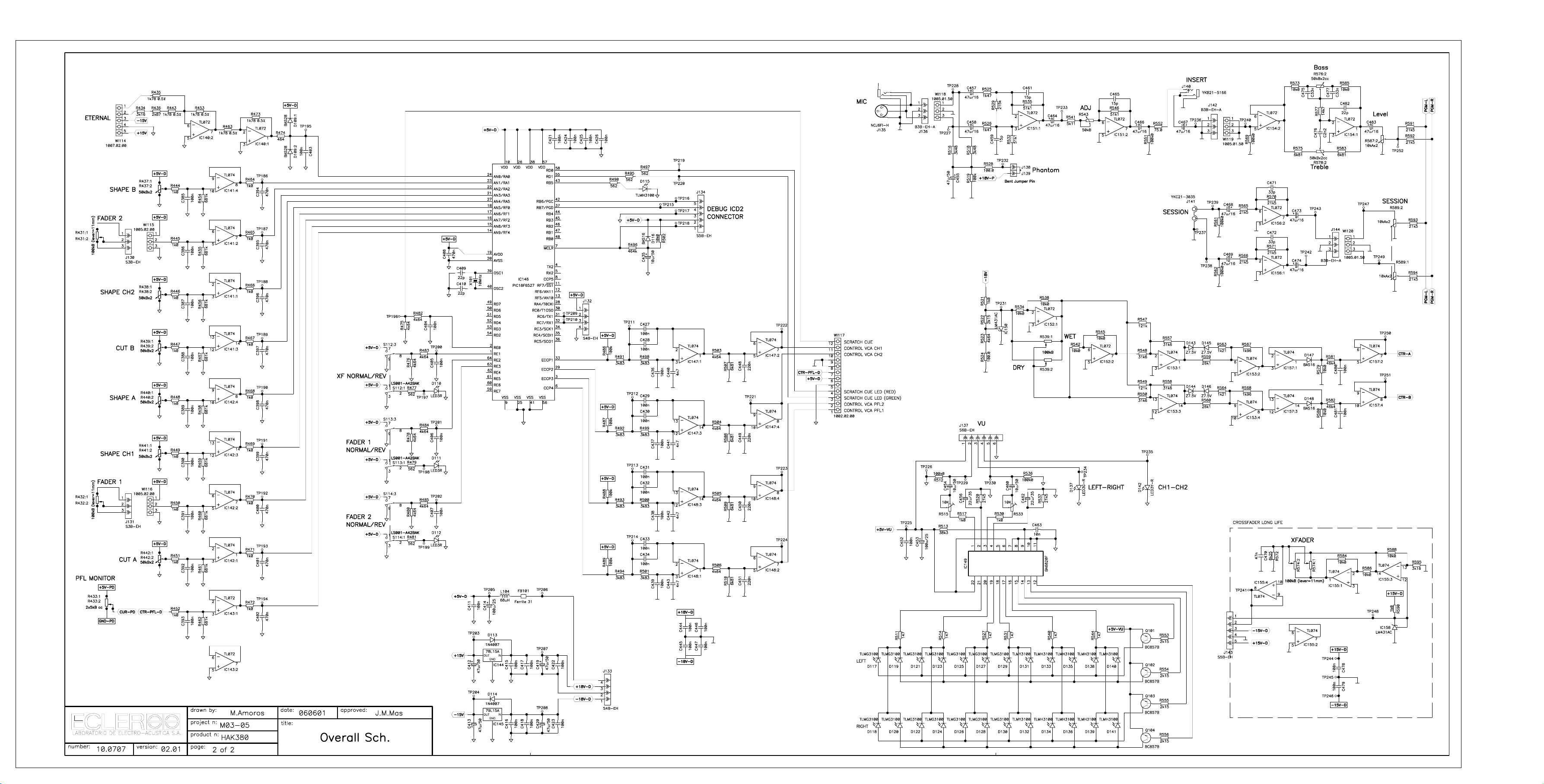

-SCHEMATICS

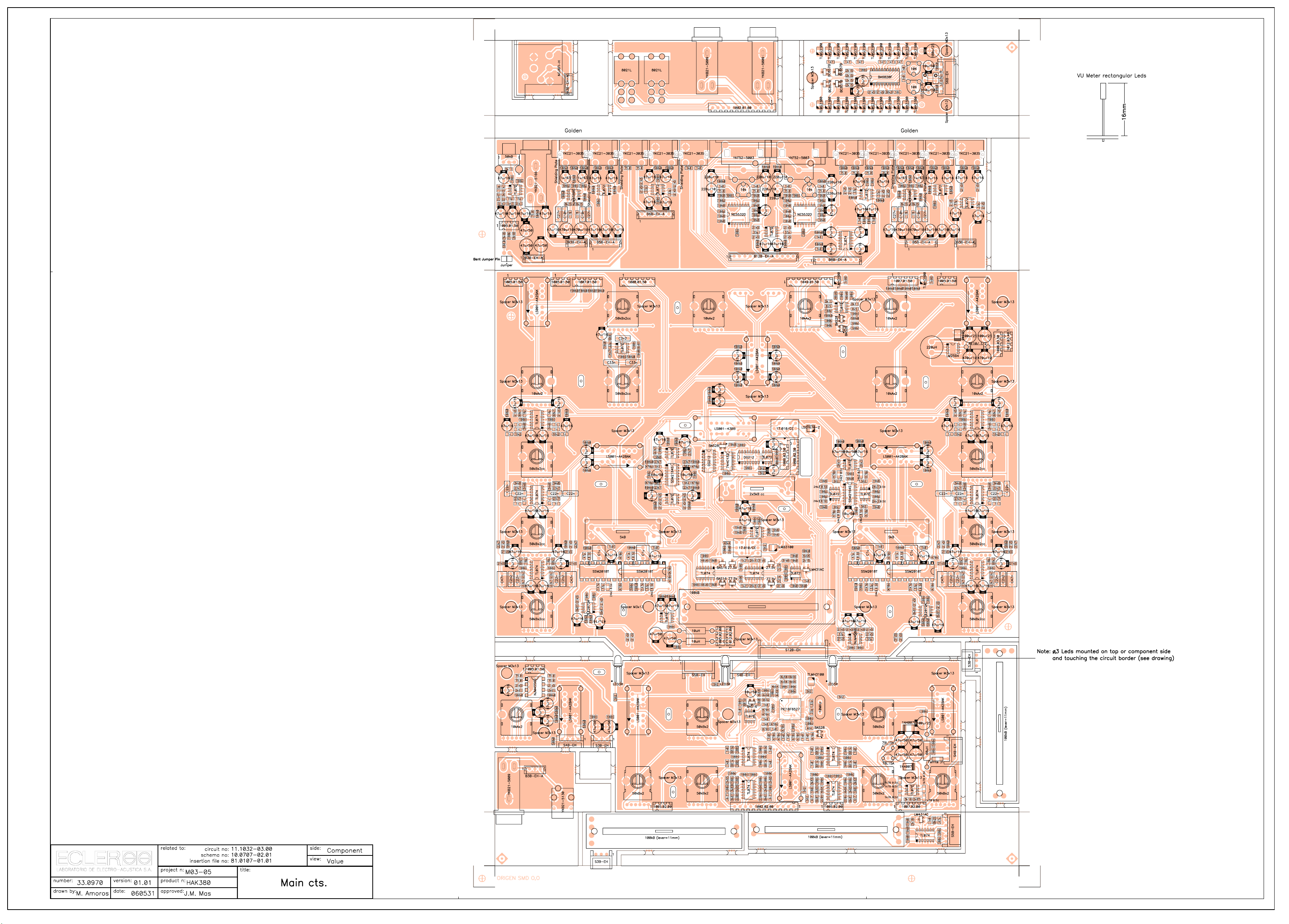

-COMPONENTS LOCATION SCHEMA
-TESTING AND QUALITY CONTROL
-TECHNICAL CHARACTERISTICS
-WIRING DIAGRAM
-CONFIGURATION DIAGRAM
-MECHANICAL DIAGRAM
-PACKING DIAGRAM

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCXCD4100000
100n
C101
FCXCD4100000
100n
C102
FCXCD4100000
100n
C103
FCXCD4100000
100n
C104
FCXCD4100000
100n
C105
FCXCD4100000
100n
C106
FCCE30001000
1u/63
C107
FCCE30001000
1u/63
C108
FCCE30001000
1u/63
C109
FCCE30001000
1u/63
C110
FCXCD4100000
100n
C111
FCXCD4100000
100n
C112
FCXCD2100000
100p
C113
FCXCD2100000
100p
C114
FCXCD2100000
100p
C115
FCXCD2100000
100p
C116
FCCE10000000
47u/16
C117
FCCE10000000
47u/16
C118
FCCE03000000
470u/10
C119
FCCE03000000
470u/10
C120
FCCE03000000
470u/10
C121
FCCE03000000
470u/10
C122
FCCE10000000
47u/16
C123
FCCE10000000
47u/16
C124
FCXCD4100000
100n
C125
FCXCD4100000
100n
C126
FCCDK1010000
C10n
C127
FCCDK1010000
C10n
C128
FCCDK1010000
C10n
C129
FCCDK1010000
C10n
C130
FCXCD4100000
100n
C131
FCXCD4100000
100n
C132
FCCDK5027000
C27n
C133
FCCDK5027000
C27n
C134
FCCDK5027000
C27n
C135
FCCDK5027000
C27n
C136
FCXCD4100000
100n
C137
FCXCD4100000
100n
C138
FCCE10000000
47u/16
C139
FCCE10000000
47u/16
C140
FCCE10000000
47u/16
C141
FCCE10000000
47u/16
C142
FCCE10000000
47u/16
C143
FCCE10000000
47u/16
C144
FCCE10000000
47u/16
C145
FCCE10000000
47u/16
C146
FCCE25047000
47u/50
C147
FCCE25047000
47u/50
C148
FCCE10000000
47u/16
C149
FCCE10000000
47u/16
C150
FCCE10000000
47u/16
C151
FCCE10000000
47u/16
C152
FCXCD1100000
10p
C153
FCXCD1100000
10p
C154
FCXCD1100000
10p
C155
FCXCD1100000
10p
C156
40-0158-0101 M03-05 HAK380.xls 1 of 20

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCCE10000000
47u/16
C157
FCCE10000000
47u/16
C158
FCCE10000000
47u/16
C159
FCCE10000000
47u/16
C160
FCCE10000000
47u/16
C161
FCCE10000000
47u/16
C162
FCCE10000000
47u/16
C163
FCCE10000000
47u/16
C164
FCCDK1002200
C2n2
C165
FCCDK1002200
C2n2
C166
FCCDK1002200
C2n2
C167
FCCDK1002200
C2n2
C168
FCXCD4001000
1n
C169
FCCDK1022000
C22n
C170
FCXCD4001000
1n
C171
FCCDK1022000
C22n
C172
FCXCD4001000
1n
C173
FCCDK1022000
C22n
C174
FCXCD4001000
1n
C175
FCCDK1022000
C22n
C176
FCCDK1047100
C47n
C177
FCCDK1047100
C47n
C178
FCCDK1047100
C47n
C179
FCCDK1047100
C47n
C180
FCCDK1022000
C22n
C181
FCCDK1022000
C22n
C182
FCCDK1022000
C22n
C183
FCCDK1022000
C22n
C184
FCXCD4001000
1n
C185
FCXCD4001000
1n
C186
FCXCD4001000
1n
C187
FCXCD4001000
1n
C188
FCXCD4001000
1n
C189
FCCDK1022000
C22n
C190
FCXCD4001000
1n
C191
FCXCD4001000
1n
C192
FCCDK1022000
C22n
C193
FCXCD4001000
1n
C194
FCCDK1022000
C22n
C195
FCCDK1022000
C22n
C196
FCXCD4001000
1n
C197
FCXCD4001000
1n
C198
FCXCD4001000
1n
C199
FCXCD4001000
1n
C200
FCCE25047000
47u/50
C201
FCCE25047000
47u/50
C202
FCXCD4001000
1n
C203
FCXCD4001000
1n
C204
FCXCD4001000
1n
C205
FCXCD4001000
1n
C206
FCXCD4100000
100n
C207
FCXCD4100000
100n
C208
FCXCD4100000
100n
C209
FCXCD4100000
100n
C210
FCCE10000000
47u/16
C211
FCCE10000000
47u/16
C212
40-0158-0101 M03-05 HAK380.xls 2 of 20

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCCE10000000
47u/16
C213
FCCE10000000
47u/16
C214
FCCE10000000
47u/16
C215
FCCE10000000
47u/16
C216
FCCE10000000
47u/16
C217
FCCE10000000
47u/16
C218
FCCE10000000
47u/16
C219
FCCE10000000
47u/16
C220
FCCE10000000
47u/16
C221
FCXCD4100000
100n
C222
FCXCD4100000
100n
C223
FCCE10000000
47u/16
C224
FCCE10000000
47u/16
C225
FCCE10000000
47u/16
C226
FCCE10000000
47u/16
C227
FCCE10000000
47u/16
C228
FCXCD4100000
100n
C229
FCXCD4100000
100n
C230
FCXCD4100000
100n
C231
FCXCD4100000
100n
C232
FCCE10000000
47u/16
C233
FCCE10000000
47u/16
C234
FCCE10000000
47u/16
C235
FCCE10000000
47u/16
C236
FCXCD4100000
100n
C237
FCXCD4100000
100n
C238
FCXCD4100000
100n
C239
FCXCD4100000
100n
C240
FCXCD1100000
10p
C241
FCXCD1100000
10p
C242
FCXCD1100000
10p
C243
FCXCD1100000
10p
C244
FCXCD4100000
100n
C245
FCXCD4100000
100n
C246
FCCE10000000
47u/16
C247
FCCE10000000
47u/16
C248
FCCE10000000
47u/16
C249
FCCE10000000
47u/16
C250
FCXCD4100000
100n
C251
FCXCD4100000
100n
C252
FCCE10000000
47u/16
C253
FCCE10000000
47u/16
C254
FCXCD4100000
100n
C255
FCXCD4100000
100n
C256
FCXCD4100000
100n
C257
FCXCD4100000
100n
C258
FCXCD4100000
100n
C259
FCXCD4100000
100n
C260
FCCE10000000
47u/16
C261
FCCE10000000
47u/16
C262
FCCE10000000
47u/16
C263
FCCDK2001000
C1u
C264
FCCE10000000
47u/16
C265
FCCDK2001000
C1u
C266
FCCDK2001000
C1u
C267
FCCDK2001000
C1u
C268
40-0158-0101 M03-05 HAK380.xls 3 of 20

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCXCD1470000
47p
C269
FCXCD4470000
470n
C270
FCXCD1470000
47p
C271
FCXCD4470000
470n
C272
FCXCD1470000
47p
C273
FCXCD1470000
47p
C274
FCXCD4470000
470n
C275
FCXCD4470000
470n
C276
FCXCD4470000
470n
C277
FCXCD4470000
470n
C278
FCXCD4470000
470n
C279
FCXCD4470000
470n
C280
FCXCD1330000
33p
C281
FCXCD1330000
33p
C282
FCXCD1330000
33p
C283
FCCE15100000
100u/25
C284
FCXCD4100000
100n
C285
FCXCD1330000
33p
C286
FCXCD4100000
100n
C287
FCCE15100000
100u/25
C288
FCCE10000000
47u/16
C289
FCCE10000000
47u/16
C290
FCCE10000000
47u/16
C291
FCCE10000000
47u/16
C292
FCXCD2470000
470p
C293
FCXCD2470000
470p
C294
FCCE25010000
10u/50
C295
FCXCD4100000
100n
C296
FCXCD2470000
470p
C297
FCXCD2470000
470p
C298
FCCE03000000
470u/10
C299
FCCE03000000
470u/10
C300
FCCE25010000
10u/50
C301
FCXCD4100000
100n
C302
FCXCD2100000
100p
C303
FCXCD2100000
100p
C304
FCXCD2100000
100p
C305
FCXCD2100000
100p
C306
FCCE10000000
47u/16
C307
FCCE10000000
47u/16
C308
FCXCD1330000
33p
C309
FCXCD1330000
33p
C310
FCCE10000000
47u/16
C311
FCCE10000000
47u/16
C312
FCXCD4100000
100n
C313
FCCE10000000
47u/16
C314
FCCE10000000
47u/16
C315
FCXCD4100000
100n
C316
FCCE10000000
47u/16
C317
FCCE10000000
47u/16
C318
FCCE10000000
47u/16
C319
FCCE10000000
47u/16
C320
FCXCD1330000
33p
C321
FCXCD1330000
33p
C322
FCCE10000000
47u/16
C323
FCCE10000000
47u/16
C324
40-0158-0101 M03-05 HAK380.xls 4 of 20

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCCE10000000
47u/16
C325
FCCE10000000
47u/16
C326
FCCE10000000
47u/16
C327
FCCE10000000
47u/16
C328
FCCE10000000
47u/16
C329
FCCE10000000
47u/16
C330
FCCE10000000
47u/16
C331
FCCE10000000
47u/16
C332
FCXCD1330000
33p
C333
FCXCD1330000
33p
C334
FCCE10000000
47u/16
C335
FCCE10000000
47u/16
C336
FCCE10000000
47u/16
C337
FCCE10000000
47u/16
C338
FCXCD2470000
470p
C339
FCXCD2470000
470p
C340
FCXCD2470000
470p
C341
FCXCD2470000
470p
C342
FCXCD2100000
100p
C343
FCXCD2100000
100p
C344
FCXCD2100000
100p
C345
FCXCD2100000
100p
C346
FCXCD2100000
100p
C347
FCXCD2100000
100p
C348
FCXCD2100000
100p
C349
FCXCD2100000
100p
C350
FCXCD1330000
33p
C351
FCXCD1330000
33p
C352
FCCE05000000
220u/10
C353
FCCE05000000
220u/10
C354
FCCE05000000
220u/10
C355
FCCE05000000
220u/10
C356
FCCE10000000
47u/16
C357
FCCE10000000
47u/16
C358
FCCE05000000
220u/10
C359
FCCE05000000
220u/10
C360
FCCE05000000
220u/10
C361
FCCE05000000
220u/10
C362
FCXCD2100000
100p
C363
FCXCD2100000
100p
C364
FCCE10000000
47u/16
C365
FCCE10000000
47u/16
C366
FCCE25010000
10u/50
C367
FCXCD4100000
100n
C368
FCCE10000000
47u/16
C369
FCCE10000000
47u/16
C370
FCCE25010000
10u/50
C371
FCXCD4100000
100n
C372
FCCE10000000
47u/16
C373
FCCE10000000
47u/16
C374
FCCE10000000
47u/16
C375
FCCE10000000
47u/16
C376
FCCE25047000
47u/50
C377
FCCE25047000
47u/50
C378
FCXCD4100000
100n
C379
FCXCD4100000
100n
C380
40-0158-0101 M03-05 HAK380.xls 5 of 20

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCXCD4100000
100n
C381
FCXCD4100000
100n
C382
FCXCD4100000
100n
C383
FCXCD4100000
100n
C384
FCXCD4100000
100n
C385
FCXCD4100000
100n
C386
FCXCD4100000
100n
C387
FCXCD4100000
100n
C388
FCXCD4100000
100n
C389
FCXCD4100000
100n
C390
FCXCD4100000
100n
C391
FCXCD4100000
100n
C392
FCXCD4100000
100n
C393
FCXCD4470000
470n
C394
FCXCD4470000
470n
C395
FCXCD4470000
470n
C396
FCXCD4470000
470n
C397
FCXCD4470000
470n
C398
FCXCD4470000
470n
C399
FCXCD4470000
470n
C400
FCXCD4470000
470n
C401
FCXCD4470000
470n
C402
FCXCD4100000
100n
C403
FCXCD4100000
100n
C404
FCXCD4100000
100n
C405
FCXCD4100000
100n
C406
FCXCD4100000
100n
C407
FCXCD4470000
470n
C408
FCXCD1220000
22p
C409
FCXCD1220000
22p
C410
FCXCD4100000
100n
C411
FCCE25047000
47u/50
C412
FCCE25047000
47u/50
C413
FCCE15100000
100u/25
C414
FCXCD4100000
100n
C415
FCXCD4100000
100n
C416
FCXCD4100000
100n
C417
FCXCD4100000
100n
C418
FCCE25047000
47u/50
C419
FCCE25047000
47u/50
C420
FCXCD4100000
100n
C421
FCXCD4100000
100n
C422
FCXCD4100000
100n
C423
FCXCD4100000
100n
C424
FCXCD4100000
100n
C425
FCXCD4100000
100n
C426
FCXCD4100000
100n
C427
FCXCD4100000
100n
C428
FCXCD4100000
100n
C429
FCXCD4100000
100n
C430
FCXCD4100000
100n
C431
FCXCD4100000
100n
C432
FCXCD4100000
100n
C433
FCXCD4100000
100n
C434
FCCE25010000
10u/50
C435
FCXCD4100000
100n
C436
40-0158-0101 M03-05 HAK380.xls 6 of 20

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCXCD4100000
100n
C437
FCXCD4100000
100n
C438
FCXCD4100000
100n
C439
FCXCD4004700
4n7
C440
FCXCD4004700
4n7
C441
FCXCD4004700
4n7
C442
FCXCD4004700
4n7
C443
FCXCD4100000
100n
C444
FCXCD4100000
100n
C445
FCXCD4100000
100n
C446
FCXCD4100000
100n
C447
FCXCD4220000
220n
C448
FCXCD4220000
220n
C449
FCXCD4220000
220n
C450
FCXCD4220000
220n
C451
FCXCD4100000
100n
C452
FCCE15100000
100u/25
C453
FCCE25010000
10u/50
C454
FCCE25047000
47u/50
C455
FCCE20022000
22u/35
C456
FCCE10000000
47u/16
C457
FCCE10000000
47u/16
C458
FCXCD1150000
15p
C459
FCCE25010000
10u/50
C460
FCXCD1150000
15p
C461
FCCE20022000
22u/35
C462
FCXCD4010000
10n
C463
FCCE10000000
47u/16
C464
FCXCD1150000
15p
C465
FCCE10000000
47u/16
C466
FCCE10000000
47u/16
C467
FCCE10000000
47u/16
C468
FCCE10000000
47u/16
C469
FCXCD4047000
47n
C470
FCXCD1330000
33p
C471
FCXCD1330000
33p
C472
FCCE10000000
47u/16
C473
FCCE10000000
47u/16
C474
FCCDK1033000
C33n
C475
FCCDK1002200
C2n2
C476
FCCDK1033000
C33n
C477
FCXCD4100000
100n
C478
FCXCD4100000
100n
C479
FCXCD4100000
100n
C480
FCXCD4100000
100n
C481
FCXCD1220000
22p
C482
FCCE10000000
47u/16
C483
FCCI01032000
Printed Board 11.1032
CI101
FCXDDSB14000
SB140
D101
FCLEDSMD1000
TLMKE340
D102
FCLEDSMD3500
TLMB3100
D103
FCXDDBAS2800
BAS28
D104
FCXDDBAS2800
BAS28
D105
FCXDDBAS2800
BAS28
D106
FCLEDSMD2000
TLMH3100
D107
FCLEDSMD2000
TLMH3100
D108
40-0158-0101 M03-05 HAK380.xls 7 of 20

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCXDDBAS2800
BAS28
D109
FCLED300RO00
LED3R
D110
FCLED300RO00
LED3R
D111
FCLED300RO00
LED3R
D112
FCXDD4007000
1N4007
D113
FCXDD4007000
1N4007
D114
FCLEDSMD2000
TLMH3100
D115
FCXDDBAS1600
BAS16
D116
FCLEDSMD3000
TLMG3100
D117
FCLEDSMD3000
TLMG3100
D118
FCLEDSMD3000
TLMG3100
D119
FCLEDSMD3000
TLMG3100
D120
FCLEDSMD3000
TLMG3100
D121
FCLEDSMD3000
TLMG3100
D122
FCLEDSMD3000
TLMG3100
D123
FCLEDSMD3000
TLMG3100
D124
FCLEDSMD3000
TLMG3100
D125
FCLEDSMD3000
TLMG3100
D126
FCLEDSMD3000
TLMG3100
D127
FCLEDSMD3000
TLMG3100
D128
FCLEDSMD3000
TLMG3100
D129
FCLEDSMD3000
TLMG3100
D130
FCLEDSMD2500
TLMY3100
D131
FCLEDSMD2500
TLMY3100
D132
FCLEDSMD2000
TLMH3100
D133
FCLEDSMD2000
TLMH3100
D134
FCLEDSMD2000
TLMH3100
D135
FCLEDSMD2000
TLMH3100
D136
FCLEDRVE0000
LED3G-R
D137
FCLEDSMD2000
TLMH3100
D138
FCLEDSMD2000
TLMH3100
D139
FCLEDSMD2000
TLMH3100
D140
FCLEDSMD2000
TLMH3100
D141
FCLEDRAM0000
LED3Y-R
D142
FCXZ00007500
Z7.5V
D143
FCXZ00007500
Z7.5V
D144
FCXZ00007500
Z7.5V
D145
FCXZ00007500
Z7.5V
D146
FCXDDBAS1600
BAS16
D147
FCXDDBAS1600
BAS16
D148
FCXFER010000
Ferrite 31
FB101
FCIC4580E000
NJM4580E
IC101
FCIC07201000
TL072
IC102
FCIC4580E000
NJM4580E
IC103
FCIC07201000
TL072
IC104
FCIC07401000
TL074
IC105
FCIC07401000
TL074
IC106
FCIC07401000
TL074
IC107
FCIC07401000
TL074
IC108
FCIC07401000
TL074
IC109
FCIC07401000
TL074
IC110
FCIC07201000
TL072
IC111
FCIC20180000
SSM2018T
IC112
FCIC20180000
SSM2018T
IC113
FCIC20180000
SSM2018T
IC114
FCIC20180000
SSM2018T
IC115
40-0158-0101 M03-05 HAK380.xls 8 of 20

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCIC20722000
TLE2072A
IC116
FCIC20722000
TLE2072A
IC117
FCIC25941000
LM2594
IC118
FCIC21641000
SSM2164S
IC119
FCIC07201000
TL072
IC120
FCIC07201000
TL072
IC121
FCIC07201000
TL072
IC122
FCIC4580E000
NJM4580E
IC123
FCIC07201000
TL072
IC124
FCIC74132000
74HC132
IC125
FCIC21201000
DG212
IC126
FCIC07201000
TL072
IC127
FCIC07401000
TL074
IC128
FCIC07201000
TL072
IC129
FCIC07201000
TL072
IC130
FCIC55321000
NE5532D
IC131
FCIC55321000
NE5532D
IC132
FCIC21641000
SSM2164S
IC133
FCIC07201000
TL072
IC134
FCIC07201000
TL072
IC135
FCIC21201000
DG212
IC136
FCIC45560000
NJM4556D
IC137
FCIC07201000
TL072
IC138
FCIC07201000
TL072
IC139
FCIC07201000
TL072
IC140
FCIC07401000
TL074
IC141
FCIC07401000
TL074
IC142
FCIC07201000
TL072
IC143
FCREG78L1500
78L15A
IC144
FCREG79L1500
79L15A
IC145
FCIC18F65270
PIC18F6527
IC146
FCIC07401000
TL074
IC147
FCIC07401000
TL074
IC148
FCIC68200000
BA6820F
IC149
FCIC43101000
LM431AC
IC150
FCIC07201000
TL072
IC151
FCIC07201000
TL072
IC152
FCIC07401000
TL074
IC153
FCIC07201000
TL072
IC154
FCIC07401000
TL074
IC155
FCIC07201000
TL072
IC156
FCIC07401000
TL074
IC157
FCIC43101000
LM431AC
IC158
FRBASR060100
YKC21-3035
J101
FCBASR060000
YKC21-3035
J102
FRBASR060100
YKC21-3035
J103
FCBASR060000
YKC21-3035
J104
FCCTM0005000
B5B-EH-A
J105
FCCTM0003000
B3B-EH-A
J106
FCCTM0005000
B5B-EH-A
J107
FCCTM1012000
S12B-EH
J108
FCCTM0006000
B6B-EH-A
J109
FCBASR060000
YKC21-3035
J110
FCCTM0008000
B8B-EH-A
J111
FCBASR060000
YKC21-3035
J112
FCBASR060000
YKC21-3035
J113
40-0158-0101 M03-05 HAK380.xls 9 of 20

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCBASX100000
YKF52-5003
J118
FCBASX100000
YKF52-5003
J119
FCBASR060000
YKC21-3035
J120
FCBASR060000
YKC21-3035
J121
FCCTM0012000
B12B-EH-A
J122
FCBASJ020000
YKB21-5009
J123
FCBASJ020000
YKB21-5009
J124
FCCTM1004000
S4B-EH
J125
FCCTM1003000
S3B-EH
J126
FCCTM0003000
B3B-EH-A
J127
FCBASJ030000
YKB21-5130
J128
FCBASJ020000
YKB21-5009
J129
FCCTM1003000
S3B-EH
J130
FCCTM1003000
S3B-EH
J131
FCCTM1004000
S4B-EH
J132
FCCTM1004000
S4B-EH
J133
FCCTM1005000
S5B-EH
J134
FCBASX080000
NCJ6FI-H
J135
FCCTM0003000
B3B-EH-A
J136
FCCTM1006000
S6B-EH
J137
FCTERM050000
Bent Jumper Pin
J138
FCTERM050000
Bent Jumper Pin
J139
FCBASJ010000
YKB21-5166
J140
FCBASR060000
YKC21-3035
J141
FCCTM0003000
B3B-EH-A
J142
FCCTM1005000
S5B-EH
J143
FCCTM0003000
B3B-EH-A
J144
FCCHK0010000
10uH
L101
FCCHK0010000
10uH
L102
FCIND0040000
220uH
L103
FCCHK0068000
68uH
L104
FCMJ00010000
Jumper
MJ101
FP0289300000
Shielding Plate
MP101
FP0289300000
Shielding Plate
MP102
FP0289300000
Shielding Plate
MP103
FP0289300000
Shielding Plate
MP104
FP0289300000
Shielding Plate
MP105
FP0289300000
Shielding Plate
MP106
FCXTT0857000
BC857B
Q101
FCXTT0857000
BC857B
Q102
FCXTT0857000
BC857B
Q103
FCXTT0857000
BC857B
Q104
FCXR55100000
100k0
R101
FCXR55100000
100k0
R102
FCXR55100000
100k0
R103
FCXR55100000
100k0
R104
FCXR55100000
100k0
R105
FCXR55100000
100k0
R106
FCXR55100000
100k0
R107
FCXR55100000
100k0
R108
FCXR55100000
100k0
R109
FCXR55100000
100k0
R110
FCXR55100000
100k0
R111
FCXR55100000
100k0
R112
FCXR52178000
178
R113
FCXR52178000
178
R114
40-0158-0101 M03-05 HAK380.xls 10 of 20

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCXR52178000
178
R115
FCXR52178000
178
R116
FCXR55100000
100k0
R117
FCXR55100000
100k0
R118
FCXR55100000
100k0
R119
FCXR55100000
100k0
R120
FCXR53825000
8k25
R121
FCXR53825000
8k25
R122
FCXR53825000
8k25
R123
FCXR53825000
8k25
R124
FCXR55100000
100k0
R125
FCXR55100000
100k0
R126
FCXR55100000
100k0
R127
FCXR55100000
100k0
R128
FCXR55100000
100k0
R129
FCXR55100000
100k0
R130
FCXR55100000
100k0
R131
FCXR55100000
100k0
R132
FCXR55100000
100k0
R133
FCXR55100000
100k0
R134
FCXR55100000
100k0
R135
FCXR55100000
100k0
R136
FCPR21005100
10kAx2
R137
FCPR21005100
10kAx2
R138
FCXR54215000
21k5
R139
FCXR54215000
21k5
R140
FCXR54215000
21k5
R141
FCXR54215000
21k5
R142
FCXR54681000
68k1
R143
FCXR54681000
68k1
R144
FCXR54681000
68k1
R145
FCXR54681000
68k1
R146
FCXR55100000
100k0
R147
FCXR55100000
100k0
R148
FCXR55100000
100k0
R149
FCXR55100000
100k0
R150
FCXR55100000
100k0
R151
FCXR55100000
100k0
R152
FCXR55100000
100k0
R153
FCXR55100000
100k0
R154
FCXR55100000
100k0
R155
FCXR55100000
100k0
R156
FCXR55100000
100k0
R157
FCXR55100000
100k0
R158
FCXR54237000
23k7
R159
FCXR54237000
23k7
R160
FCXR54237000
23k7
R161
FCXR54237000
23k7
R162
FCXR54162000
16k2
R163
FCXR54162000
16k2
R164
FCXR54162000
16k2
R165
FCXR54162000
16k2
R166
FCXR54348000
34k8
R167
FCXR54348000
34k8
R168
FCXR54348000
34k8
R169
FCXR54348000
34k8
R170
40-0158-0101 M03-05 HAK380.xls 11 of 20

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCXR54237000
23k7
R171
FCXR54237000
23k7
R172
FCXR54237000
23k7
R173
FCXR54237000
23k7
R174
FCXR54237000
23k7
R175
FCXR54348000
34k8
R176
FCXR54237000
23k7
R177
FCXR54348000
34k8
R178
FCXR54348000
34k8
R179
FCXR54237000
23k7
R180
FCXR54348000
34k8
R181
FCXR54237000
23k7
R182
FCXR54237000
23k7
R183
FCXR54348000
34k8
R184
FCXR54237000
23k7
R185
FCXR54348000
34k8
R186
FCXR54237000
23k7
R187
FCXR54348000
34k8
R188
FCXR54237000
23k7
R189
FCXR54348000
34k8
R190
FCXR54237000
23k7
R191
FCXR54237000
23k7
R192
FCXR54237000
23k7
R193
FCXR54237000
23k7
R194
FCXR55100000
100k0
R195
FCPR21703100
50kBx2cc
R196
FCPR21703100
50kBx2cc
R197
FCPR21703100
50kBx2cc
R198
FCPR21703100
50kBx2cc
R199
FCPR21703100
50kBx2cc
R200
FCPR21703100
50kBx2cc
R201
FCXR55100000
100k0
R202
FCXR55100000
100k0
R203
FCXR54215000
21k5
R204
FCXR54215000
21k5
R205
FCXR54215000
21k5
R206
FCXR54215000
21k5
R207
FCXR54215000
21k5
R208
FCXR54215000
21k5
R209
FCXR54215000
21k5
R210
FCXR54215000
21k5
R211
FCXR54215000
21k5
R212
FCXR54215000
21k5
R213
FCXR54215000
21k5
R214
FCXR54215000
21k5
R215
FCXR55100000
100k0
R216
FCXR54196000
19k6
R217
FCXR54196000
19k6
R218
FCXR54196000
19k6
R219
FCXR54196000
19k6
R220
FCXR54681000
68k1
R221
FCXR54681000
68k1
R222
FCXR54681000
68k1
R223
FCXR54681000
68k1
R224
FCXR54100000
10k0
R225
FCXR54100000
10k0
R226
40-0158-0101 M03-05 HAK380.xls 12 of 20

PARTS LIST: PRINTED CIRCUIT 11.1032.03.00
Code
Description
Reference
FCXR55100000
100k0
R227
FCXR55100000
100k0
R228
FCXR55100000
100k0
R229
FCXR55100000
100k0
R230
FCXR55100000
100k0
R231
FCXR55100000
100k0
R232
FCPD02002000
5kB
R233
FCXR53100000
1k0
R234
FCPD02002000
5kB
R235
FCXR53100000
1k0
R236
FCXR55100000
100k0
R237
FCXR53100000
1k0
R238
FCXR53100000
1k0
R239
FCXR55100000
100k0
R240
FCXR55100000
100k0
R241
FCXR55100000
100k0
R242
FCXR64243000
24k3 0.5%
R243
FCXR64243000
24k3 0.5%
R244
FCXR64243000
24k3 0.5%
R245
FCXR64243000
24k3 0.5%
R246
FCXR55147000
147k
R247
FCXR52100000
100.0
R248
FCXR55147000
147k
R249
FCXR55147000
147k
R250
FCXR55147000
147k
R251
FCXR64243000
24k3 0.5%
R252
FCXR52100000
100.0
R253
FCXR54215000
21k5
R254
FCXR64243000
24k3 0.5%
R255
FCXR64243000
24k3 0.5%
R256
FCXR54215000
21k5
R257
FCXR53681000
6k81
R258
FCXR64243000
24k3 0.5%
R259
FCXR54215000
21k5
R260
FCRF22100000
NF10/ 1/2
R261
FCXR54215000
21k5
R262
FCXR53681000
6k81
R263
FCXR53681000
6k81
R264
FCXR53681000
6k81
R265
FCXR55100000
100k0
R266
FCXR55100000
100k0
R267
FCXR55100000
100k0
R268
FCXR64243000
24k3 0.5%
R269
FCXR55100000
100k0
R270
FCXR64243000
24k3 0.5%
R271
FCXR52562000
562
R272
FCXR64243000
24k3 0.5%
R273
FCXR64243000
24k3 0.5%
R274
FCXR52562000
562
R275
FCXR52562000
562
R276
FCXR52562000
562
R277
FCXR54100000
10k0
R278
FCXR64243000
24k3 0.5%
R279
FCXR64243000
24k3 0.5%
R280
FCXR64243000
24k3 0.5%
R281
FCXR64243000
24k3 0.5%
R282
40-0158-0101 M03-05 HAK380.xls 13 of 20
