Ecler HAK320 User manual

HAK320
SERVICE MANUAL

SERVICE MANUAL HAK320
INDEX
-BLOCK DIAGRAM
-SCHEMATICS
-COMPONENTS LOCATION SCHEMA

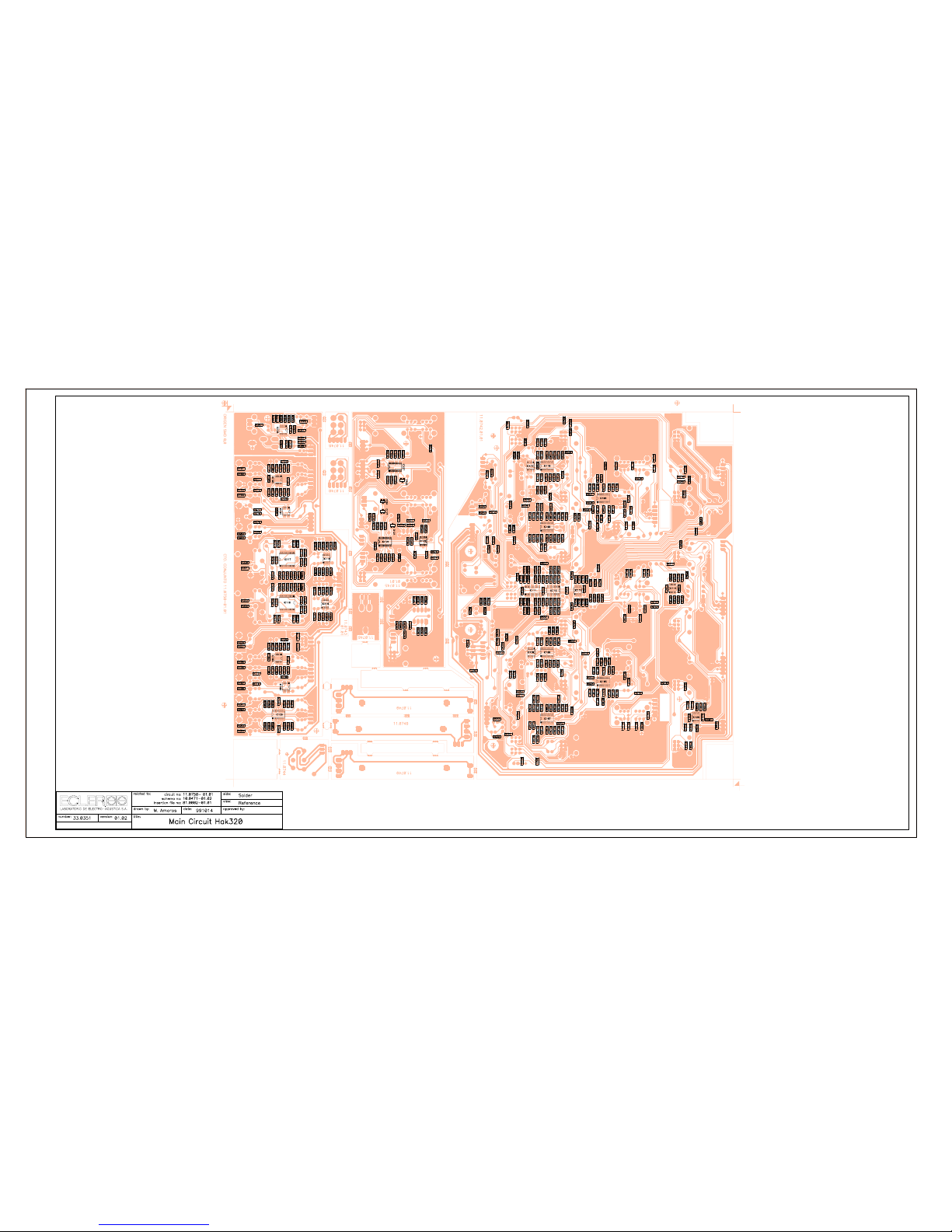

Main circuit
VU-meter circuit
-TESTING AND QUALITY CONTROL
-TECHNICAL CHARACTERISTICS
-WIRING DIAGRAM
-CONFIGURATION DIAGRAM
-MECHANICAL DIAGRAM
-PACKING DIAGRAM

PARTS LIST: PRINTED CIRCUIT 11.0750.01.02 REV:
MODEL: HAK320 DRW.Nº 33.0350 and 352 REPLACES:
DATE: 000523 SHEET 1 OF 16 REPLACED BY:
REFERENCE VALUE CODE
C101 100n FCXCN41000
C102 100n FCXCN41000
C103 100n FCXCN41000
C104 100n FCXCN41000
C105 1u/63 FCCE300010
C106 1u/63 FCCE300010
C107 47u/16 FCCE100000
C108 47u/16 FCCE100000
C109 1u/63 FCCE300010
C110 1u/63 FCCE300010
C111 47u/16 FCCE100000
C112 47u/16 FCCE100000
C113 470u/10 FCCE030000
C114 470u/10 FCCE030000
C115 470u/10 FCCE030000
C116 470u/10 FCCE030000
C117 100p FCXCN21000
C118 100p FCXCN21000
C119 100p FCXCN21000
C120 100p FCXCN21000
C121 10n FCXCN40100
C122 10n FCXCN40100
C123 10n FCXCN40100
C124 10n FCXCN40100
C125 33n FCXCN40330
C126 33n FCXCN40330
C127 47u/16 FCCE100000
C128 47u/16 FCCE100000
C129 33n FCXCN40330
C130 33n FCXCN40330
C131 47u/16 FCCE100000
C132 47u/16 FCCE100000
C133 100n FCXCN41000
C134 100n FCXCN41000
C135 47u/16 FCCE100000
C136 47u/16 FCCE100000
C137 47u/50 FCCE250470
C138 47u/50 FCCE250470
C139 47u/16 FCCE100000
C140 47u/16 FCCE100000
C141 47u/16 FCCE100010
C142 47u/16 FCCE100000
C143 47u/16 FCCE100000
C144 47u/16 FCCE100000
C145 12p FCXCN11200
C146 12p FCXCN11200
C147 12p FCXCN11200
C148 12p FCXCN11200
C149 47u/16 FCCE100010
C150 47u/16 FCCE100010
C151 47u/16 FCCE100010
C152 47u/16 FCCE100010
C153 47u/16 FCCE100010
C154 47u/16 FCCE100010
C155 47u/16 FCCE100010
C156 47u/16 FCCE100010
C157 2n2 FCXCN40022
C158 2n2 FCXCN40022

PARTS LIST: PRINTED CIRCUIT 11.0750.01.02 REV:
MODEL: HAK320 DRW.Nº 33.0350 and 352 REPLACES:
DATE: 000523 SHEET 2OF 16 REPLACED BY:
REFERENCE VALUE CODE
C159 2n2 FCXCN40022
C160 2n2 FCXCN40022
C161 1n FCXCN40010
C162 22n FCXCN40220
C163 1n FCXCN40010
C164 22n FCXCN40220
C165 1n FCXCN40010
C166 22n FCXCN40220
C167 1n FCXCN40010
C168 22n FCXCN40220
C169 47n FCXCN40470
C170 47n FCXCN40470
C171 47n FCXCN40470
C172 47n FCXCN40470
C173 1n FCXCN40010
C174 22n FCXCN40220
C175 1n FCXCN40010
C176 22n FCXCN40220
C177 1n FCXCN40010
C178 22n FCXCN40220
C179 1n FCXCN40010
C180 22n FCXCN40220
C181 1n FCXCN40010
C182 22n FCXCN40220
C183 1n FCXCN40010
C184 22n FCXCN40220
C185 1n FCXCN40010
C186 22n FCXCN40220
C187 1n FCXCN40010
C188 22n FCXCN40220
C189 1n FCXCN40010
C190 1n FCXCN40010
C191 1n FCXCN40010
C192 1n FCXCN40010
C193 1n FCXCN40010
C194 1n FCXCN40010
C195 1n FCXCN40010
C196 1n FCXCN40010
C197 47u/16 FCCE100010
C198 47u/16 FCCE100010
C199 47u/16 FCCE100010
C200 47u/16 FCCE100010
C201 47u/16 FCCE100010
C202 47u/16 FCCE100010
C203 47u/16 FCCE100010
C204 47u/16 FCCE100010
C205 47u/16 FCCE100010
C206 47u/16 FCCE100010
C207 47u/16 FCCE100010
C208 47u/16 FCCE100010
C209 47u/16 FCCE100010
C210 47u/16 FCCE100010
C211 47u/16 FCCE100010
C212 47u/16 FCCE100010
C213 47u/16 FCCE100010
C214 47u/16 FCCE100010
C215 47u/16 FCCE100010
C216 47u/16 FCCE100010

PARTS LIST: PRINTED CIRCUIT 11.0750.01.02 REV:
MODEL: HAK320 DRW.Nº 33.0350 and 352 REPLACES:
DATE: 000523 SHEET 3OF 16 REPLACED BY:
REFERENCE VALUE CODE
C217 47u/16 FCCE100010
C218 47u/16 FCCE100010
C219 47u/16 FCCE100010
C220 47u/16 FCCE100010
C221 47u/16 FCCE100010
C222 47u/16 FCCE100010
C223 47u/16 FCCE100010
C224 47u/16 FCCE100010
C225 47u/16 FCCE100010
C226 47u/16 FCCE100010
C227 47u/16 FCCE100010
C228 47u/16 FCCE100010
C229 10u/50 FCCE250110
C230 100n FCXCN41000
C231 470p FCXCN24700
C232 470p FCXCN24700
C233 470p FCXCN24700
C234 470p FCXCN24700
C235 10u/50 FCCE250110
C236 100n FCXCN41000
C237 82p FCXCN18200
C238 82p FCXCN18200
C239 82p FCXCN18200
C240 82p FCXCN18200
C241 47u/16 FCCE100010
C242 47u/16 FCCE100010
C243 47u/16 FCCE100010
C244 47u/16 FCCE100010
C245 33p FCXCN13300
C246 33p FCXCN13300
C247 33p FCXCN13300
C248 33p FCXCN13300
C249 47u/16 FCCE100010
C250 47u/16 FCCE100010
C251 47u/16 FCCE100010
C252 47u/16 FCCE100010
C253 47u/16 FCCE100000
C254 47u/16 FCCE100000
C255 100n FCXCN41000
C256 100n FCXCN41000
C257 100n FCXCN41000
C258 100n FCXCN41000
C259 100n FCXCN41000
C260 100n FCXCN41000
C261 33p FCXCN13300
C262 33p FCXCN13300
C263 47u/16 FCCE100000
C264 47u/16 FCCE100000
C265 47u/16 FCCE100010
C266 47u/16 FCCE100000
C267 100p FCXCN21000
C268 100p FCXCN21000
C269 100p FCXCN21000
C270 100p FCXCN21000
C271 100p FCXCN21000
C272 100p FCXCN21000
C273 100p FCXCN21000
C274 100p FCXCN21000

PARTS LIST: PRINTED CIRCUIT 11.0750.01.02 REV:
MODEL: HAK320 DRW.Nº 33.0350 and 352 REPLACES:
DATE: 000523 SHEET 4OF 16 REPLACED BY:
REFERENCE VALUE CODE
C275 33p FCXCN13300
C276 33p FCXCN13300
C277 220u/10 FCCE050000
C278 220u/10 FCCE050000
C279 220u/10 FCCE050000
C280 220u/10 FCCE050000
C281 47u/16 FCCE100000
C282 47u/16 FCCE100000
C283 220u/10 FCCE050000
C284 220u/10 FCCE050000
C285 220u/10 FCCE050000
C286 220u/10 FCCE050000
C287 47u/16 FCCE100010
C288 47u/16 FCCE100010
C289 100n FCXCN41000
C290 100n FCXCN41000
C291 47u/50 FCCE250470
C292 47u/50 FCCE250470
C293 100n FCXCN41000
C294 100n FCXCN41000
C295 100n FCXCN41000
C296 100n FCXCN41000
C297 100n FCXCN41000
C298 100n FCXCN41000
C301 100n FCXCN41000
C302 100n FCXCN41000
C307 100n FCXCN41000
C308 100n FCXCN41000
C311 100n FCXCN41000
C312 100n FCXCN41000
C313 47u/16 FCCE100000
C314 47u/16 FCCE100000
C315 100n FCXCN41000
C316 100n FCXCN41000
C317 15p FCXCN11500
C318 100n FCXCN41000
C319 15p FCXCN11500
C322 47u/16 FCCE100000
C323 100n FCXCN41000
C326 100n FCXCN41000
C329 47u/50 FCCE250470
C330 47u/50 FCCE250470
C331 100n FCXCN41000
C332 100n FCXCN41000
C333 15p FCXCN11500
C334 100n FCXCN41000
C335 100n FCXCN41000
C336 100n FCXCN41000
C337 47u/16 FCCE100000
C338 100n FCXCN41000
C339 100n FCXCN41000
C340 100n FCXCN41000
C343 47u/16 FCCE100000
C344 47u/16 FCCE100000
C345 47u/16 FCCE100000
C346 100n FCXCN41000
C347 47u/16 FCCE100000
C348 47u/16 FCCE100000

PARTS LIST: PRINTED CIRCUIT 11.0750.01.02 REV:
MODEL: HAK320 DRW.Nº 33.0350 and 352 REPLACES:
DATE: 000523 SHEET 5OF 16 REPLACED BY:
REFERENCE VALUE CODE
C349 100n FCXCN41000
C350 33n FCXCN40330
C351 33p FCXCN13300
C352 33p FCXCN13300
C353 33p FCXCN13300
C354 33p FCXCN13300
C355 2n2 FCXCN40022
C356 33n FCXCN40330
C357 47u/16 FCCE100000
C358 47u/16 FCCE100000
C359 47u/16 FCCE100000
C360 47u/16 FCCE100000
C361 22p FCXCN12200
C362 47u/16 FCCE100010
C363 100n FCXCN41000
C364 100n FCXCN41000
C365 100n FCXCN41000
C366 100n FCXCN41000
C367 100n FCXCN41000
C368 100n FCXCN41000
C369 100n FCXCN41000
C370 100n FCXCN41000
C371 47u/16 FCCE100010
C372 47u/16 FCCE100010
C373 47u/16 FCCE100010
C374 47u/16 FCCE100010
D101 LED3G FCLED300VE
D102 LED3G FCLED300VE
D104 Z7.5V FCXZ000075
D117 Z7.5V FCXZ000075
D121 BAS16 FCXDDBAS16
D122 BAS16 FCXDDBAS16
IC101 TL072 FCIC072010
IC102 TL072 FCIC072010
IC103 NE5532A FCIC553220
IC104 NE5532A FCIC553220
IC105 TL074 FCIC074010
IC106 TL074 FCIC074010
IC107 TL074 FCIC074010
IC108 TL074 FCIC074010
IC109 TL074 FCIC074010
IC110 TL074 FCIC074010
IC111 SSM2164S FCIC216410
IC112 TL074 FCIC074010
IC114 TL072 FCIC072010
IC115 NE5532A FCIC553220
IC116 TL072 FCIC072010
IC117 NE5532D FCIC553210
IC118 NE5532D FCIC553210
IC119 TL072 FCIC072010
IC120 NJM4556D FCIC455600
IC121 TL431A FCIC431000
IC122 TL072 FCIC072010
IC124 TL072 FCIC072010
IC125 TL074 FCIC074010
IC127 TL074 FCIC074010
IC128 TL072 FCIC072010
IC129 TL074 FCIC074010

PARTS LIST: PRINTED CIRCUIT 11.0750.01.02 REV:
MODEL: HAK320 DRW.Nº 33.0350 and 352 REPLACES:
DATE: 000523 SHEET 6OF 16 REPLACED BY:
REFERENCE VALUE CODE
IC130 TL072 FCIC072010
IC131 TL072 FCIC072010
J101 YKB21-3035 FCBASR0601
J102 YKB21-3035 FCBASR0600
J103 YKB21-3035 FCBASR0601
J104 YKB21-3035 FCBASR0600
J105 B5B-EH-A FCCTM00050
J106 B3B-EH-A FCCTM00030
J107 B5B-EH-A FCCTM00050
J114 B5B-EH-A FCCTM00050
J116 B5B-EH-A FCCTM00050
J117 JUMPER PIN FCTERM0100
J118 JUMPER PIN FCTERM0100
J119 JUMPER PIN FCTERM0100
J120 JUMPER PIN FCTERM0100
J121 YKB21-3035 FCBASR0600
J122 YKB21-3035 FCBASR0600
J123 JUMPER PIN FCTERM0100
J124 JUMPER PIN FCTERM0100
J125 JUMPER PIN FCTERM0100
J126 JUMPER PIN FCTERM0100
J128 S3B-EH FCCTM10030
J129 YKB21-3035 FCBASR0600
J130 YKF52-5003 FCBASX1000
J131 YKF52-5003 FCBASX1000
J134 B3B-EH-A FCCTM00030
J135 NCJ6FI-H FCBASX0800
J137 B3B-EH-A FCCTM00030
J142 S5B-EH FCCTM10050
J145 YKB21-5166 FCBASJ0100
J146 B3B-EH-A FCCTM00030
J147 S5B-EH FCCTM10050
J148 YKB21-3035 FCBASR0600
J149 YKB21-3035 FCBASR0600
J152 B5B-EH-A FCCTM00050
J154 S5B-EH FCCTM10050
J160 S3B-EH FCCTM10030
J161 S3B-EH FCCTM10030
J162 S3B-EH FCCTM10030
R101 100K0 FCXR151000
R102 100K0 FCXR151000
R103 100K0 FCXR151000
R104 100K0 FCXR151000
R105 100K0 FCXR151000
R106 100K0 FCXR151000
R107 100K0 FCXR151000
R108 100K0 FCXR151000
R109 100K0 FCXR151000
R110 100K0 FCXR151000
R111 100K0 FCXR151000
R112 100K0 FCXR151000
R113 100K0 FCXR151000
R114 100K0 FCXR151000
R115 100K0 FCXR151000
R116 100K0 FCXR151000
R117 150.0 FCXR121500
R118 150.0 FCXR121500
R119 150.0 FCXR121500

PARTS LIST: PRINTED CIRCUIT 11.0750.01.02 REV:
MODEL: HAK320 DRW.Nº 33.0350 and 352 REPLACES:
DATE: 000523 SHEET 7OF 16 REPLACED BY:
REFERENCE VALUE CODE
R120 150.0 FCXR121500
R121 7K87 FCXR137870
R122 7K87 FCXR137870
R123 7K87 FCXR137870
R124 7K87 FCXR137870
R125 97K6 FCXR149760
R126 97K6 FCXR149760
R127 97K6 FCXR149760
R128 97K6 FCXR149760
R129 100K0 FCXR151000
R130 100K0 FCXR151000
R131 100K0 FCXR151000
R132 100K0 FCXR151000
R133 100K0 FCXR151000
R134 100K0 FCXR151000
R135 100K0 FCXR151000
R136 100K0 FCXR151000
R137 10kA FCPR210060
R138 10kA FCPR210060
R139 21K5 FCXR142150
R140 21K5 FCXR142150
R141 21K5 FCXR142150
R142 21K5 FCXR142150
R143 68K1 FCXR146810
R144 68K1 FCXR146810
R145 68K1 FCXR146810
R146 68K1 FCXR146810
R147 100K0 FCXR151000
R148 100K0 FCXR151000
R149 100K0 FCXR151000
R150 100K0 FCXR151000
R151 100K0 FCXR151000
R152 100K0 FCXR151000
R153 100K0 FCXR151000
R154 100K0 FCXR151000
R155 100K0 FCXR151000
R156 100K0 FCXR151000
R157 100K0 FCXR151000
R158 100K0 FCXR151000
R159 24K3 FCXR142430
R160 24K3 FCXR142430
R161 24K3 FCXR142430
R162 24K3 FCXR142430
R163 16K2 FCXR141620
R164 16K2 FCXR141620
R165 16K2 FCXR141620
R166 16K2 FCXR141620
R167 36K5 FCXR143650
R168 24K3 FCXR142430
R169 36K5 FCXR143650
R170 24K3 FCXR142430
R171 36K5 FCXR143650
R172 24K3 FCXR142430
R173 36K5 FCXR143650
R174 24K3 FCXR142430
R175 36K5 FCXR143650
R176 24K3 FCXR142430
R177 36K5 FCXR143650

PARTS LIST: PRINTED CIRCUIT 11.0750.01.02 REV:
MODEL: HAK320 DRW.Nº 33.0350 and 352 REPLACES:
DATE: 000523 SHEET 8OF 16 REPLACED BY:
REFERENCE VALUE CODE
R178 24K3 FCXR142430
R179 36K5 FCXR143650
R180 24K3 FCXR142430
R181 36K5 FCXR143650
R182 24K3 FCXR142430
R183 24K3 FCXR142430
R184 36K5 FCXR143650
R185 24K3 FCXR142430
R186 36K5 FCXR143650
R187 24K3 FCXR142430
R188 36K5 FCXR143650
R189 24K3 FCXR142430
R190 36K5 FCXR143650
R191 24K3 FCXR142430
R192 24K3 FCXR142430
R193 24K3 FCXR142430
R194 24K3 FCXR142430
R195 50kB FCPR217040
R196 50kB FCPR217040
R197 50kB FCPR217040
R198 50kB FCPR217040
R199 50kB FCPR217040
R200 50kB FCPR217040
R201 21K5 FCXR142150
R202 21K5 FCXR142150
R203 21K5 FCXR142150
R204 21K5 FCXR142150
R205 21K5 FCXR142150
R206 21K5 FCXR142150
R207 21K5 FCXR142150
R208 21K5 FCXR142150
R209 21K5 FCXR142150
R210 21K5 FCXR142150
R211 21K5 FCXR142150
R212 21K5 FCXR142150
R213 90K9 FCXR149090
R214 90K9 FCXR149090
R215 90K9 FCXR149090
R216 90K9 FCXR149090
R217 10K0 FCXR141000
R218 10K0 FCXR141000
R219 10K0 FCXR141000
R220 10K0 FCXR141000
R221 5kB FCPD020010
R222 5kB FCPD020010
R223 5kB FCPD020010
R224 1K0 FCXR131000
R225 1K0 FCXR131000
R226 1K0 FCXR131000
R227 1K0 FCXR131000
R228 10K0 FCXR141000
R229 10K0 FCXR141000
R230 100K0 FCXR151000
R231 100K0 FCXR151000
R232 100K0 FCXR151000
R233 100K0 FCXR151000
R234 100K0 FCXR151000
R235 100K0 FCXR151000

PARTS LIST: PRINTED CIRCUIT 11.0750.01.02 REV:
MODEL: HAK320 DRW.Nº 33.0350 and 352 REPLACES:
DATE: 000523 SHEET 9OF 16 REPLACED BY:
REFERENCE VALUE CODE
R236 100K0 FCXR151000
R237 100K0 FCXR151000
R238 100K0 FCXR151000
R239 100K0 FCXR151000
R240 100K0 FCXR151000
R241 100K0 FCXR151000
R242 24K3 FCXR142430
R243 24K3 FCXR142430
R244 24K3 FCXR142430
R245 24K3 FCXR142430
R246 560 FCXR025600
R247 560 FCXR025600
R248 560 FCXR025600
R249 560 FCXR025600
R250 10K0 FCXR141000
R251 24K3 FCXR142430
R252 24K3 FCXR142430
R253 24K3 FCXR142430
R254 24K3 FCXR142430
R255 4K7 FCXR034700
R256 4K7 FCXR034700
R257 100K0 FCXR151000
R258 100K0 FCXR151000
R259 100K0 FCXR151000
R260 100K0 FCXR151000
R261 21K5 FCXR142150
R262 21K5 FCXR142150
R263 21K5 FCXR142150
R264 21K5 FCXR142150
R265 21K5 FCXR142150
R266 21K5 FCXR142150
R267 21K5 FCXR142150
R268 21K5 FCXR142150
R269 21K5 FCXR142150
R270 21K5 FCXR142150
R271 21K5 FCXR142150
R272 21K5 FCXR142150
R273 10kA FCPR210060
R274 10kA FCPR210060
R275 100K0 FCXR151000
R276 100K0 FCXR151000
R277 1K0 FCXR131000
R278 1K0 FCXR131000
R279 75 FCXR017500
R280 75 FCXR017500
R281 100K0 FCXR151000
R282 100K0 FCXR151000
R283 100K0 FCXR151000
R284 100K0 FCXR151000
R285 21K5 FCXR142150
R286 21K5 FCXR142150
R287 21K5 FCXR142150
R288 21K5 FCXR142150
R289 10K0 FCXR141000
R290 10K0 FCXR141000
R291 10K0 FCXR141000
R292 10K0 FCXR141000
R293 100K0 FCXR151000

PARTS LIST: PRINTED CIRCUIT 11.0750.01.02 REV:
MODEL: HAK320 DRW.Nº 33.0350 and 352 REPLACES:
DATE: 000523 SHEET 10OF 16 REPLACED BY:
REFERENCE VALUE CODE
R294 100K0 FCXR151000
R295 100K0 FCXR151000
R296 100K0 FCXR151000
R297 10K0 FCXR141000
R298 10K0 FCXR141000
R299 10K0 FCXR141000
R300 10K0 FCXR141000
R301 21K5 FCXR142150
R302 21K5 FCXR142150
R303 10K0 FCXR141000
R304 10K0 FCXR141000
R305 10K0 FCXR141000
R306 10K0 FCXR141000
R307 10K0 FCXR141000
R308 10K0 FCXR141000
R309 10K0 FCXR141000
R310 10K0 FCXR141000
R311 21K5 FCXR142150
R312 21K5 FCXR142150
R313 75 FCXR017500
R314 75 FCXR017500
R315 75 FCXR017500
R316 75 FCXR017500
R317 1K0 FCXR131000
R318 10k FCRJC51000
R319 1K0 FCXR131000
R320 1K0 FCXR131000
R321 10k FCRJC51000
R322 1K0 FCXR131000
R323 75 FCXR017500
R324 75 FCXR017500
R325 10kA FCPR210060
R326 100K0 FCXR151000
R327 100K0 FCXR151000
R328 560 FCXR025600
R329 560 FCXR025600
R330 100K0 FCXR151000
R331 100K0 FCXR151000
R332 100K0 FCXR151000
R333 100K0 FCXR151000
R334 22K1 FCXR142210
R335 22K1 FCXR142210
R336 120 FCXR021200
R337 120 FCXR021200
R338 205 FCXR122050
R339 680 FCXR026800
R340 6k19 FCXR136190
R341 2K21 FCXR132210
R342 51K1 FCXR145110
R343 22K6 FCXR142260
R344 10K0 FCXR141000
R345 10K0 FCXR141000
R351 100K0 FCXR151000
R352 100K0 FCXR151000
R353 1K54 FCXR131540
R354 1K54 FCXR131540
R355 51K1 FCXR145110
R356 226K FCXR152260

PARTS LIST: PRINTED CIRCUIT 11.0750.01.02 REV:
MODEL: HAK320 DRW.Nº 33.0350 and 352 REPLACES:
DATE: 000523 SHEET 11OF 16 REPLACED BY:
REFERENCE VALUE CODE
R362 500kD FCPR120040
R363 51K1 FCXR145110
R364 1K54 FCXR131540
R365 1K27 FCXR131270
R366 4K32 FCXR134320
R367 5K11 FCXR135110
R373 2K0 FCXR132000
R374 10K0 FCXR141000
R375 10K0 FCXR141000
R376 50kB FCPR117030
R379 51K1 FCXR145110
R386 100K0 FCXR151000
R387 75 FCXR017500
R388 10K0 FCXR141000
R389 10K0 FCXR141000
R390 100K0 FCXR151000
R391 100K0 FCXR151000
R392 100K0 FCXR151000
R393 100K0 FCXR151000
R394 100K0 FCXR151000
R395 21K5 FCXR142150
R396 21K5 FCXR142150
R397 21K5 FCXR142150
R398 21K5 FCXR142150
R399 1K0 FCXR131000
R400 1K0 FCXR131000
R401 10K0 FCXR141000
R402 6K8 FCXR036800
R403 21K5 FCXR142150
R404 21K5 FCXR142150
R405 21K5 FCXR142150
R406 21K5 FCXR142150
R407 50kB FCPR217040
R408 15K FCXR041500
R409 50kB FCPR217040
R410 6K8 FCXR036800
R411 10K0 FCXR141000
R412 50kB FCPR217040
R413 50kB FCPR217040
R414 10kA FCPR210060
R415 47K5 FCXR144750
R416 47K5 FCXR144750
R417 10kA FCPR210060
R418 21K5 FCXR142150
R419 21K5 FCXR142150
R420 21K5 FCXR142150
R421 21K5 FCXR142150
R422 21K5 FCXR142150
R423 21K5 FCXR142150
R426 1K54 FCXR131540
R427 1K54 FCXR131540
R428 100K0 FCXR151000
R429 100K0 FCXR151000
R500 0 ohm FCXR000000
R501 0 ohm FCXR000000
R502 0 ohm FCXR000000
R503 0 ohm FCXR000000
R504 0 ohm FCXR000000
