Ecoflam MAX GAS 170 P User manual

Technical data
Dati tecnici
Données techniques
Datos técnicos
Технические характеристики
Operating instructions
Istruzioni per l’uso
Notice d’emploi
Manual de uso
Руководство по эксплуатации
Electric diagrams
Schemi elettrico
Schémas électrique
Esquemas eléctrico
Электрические схемы
Spare parts list
Parti ricambi
Pièces de rechange
Piezas de recambio
Запчасти
GAS BURNERS
EN
IT
FR
ES
RU
MAX GAS 170 P
MAX GAS 250 P
MAX GAS 170 LN P TC SGT 230-50 TW 3142749
MAX GAS 170 LN P TL SGT 230-50 TW 3142750
MAX GAS 250 LN P TC SGT 230-50 TW 3142751
MAX GAS 250 LN P TL SGT 230-50 TW 3142752
www.ecoflamburners.com
10-03-2022

www.ecoflam-burners.com 420010372902
EN
IT
FR
ES
RU
2
Overview - Index of contents / Panoramica - Indice dei contenuti / Vue d'ensemble - Table des matières
Descripción - Sumario / Обзор - Содержание
Conformity declaration
Dichiarazione di conformità
Déclaration de conformite
Declaración de conformidad
Сертификат соответствия
EN
IT
FR
ES
RU
3
Technical data
Dati tecnici
Données techniques
Datos técnicos
Технические характеристики
EN
IT
FR
ES
RU
4
Working diagrams
Campi di lavoro
Domaine de fonctionnement
Ámbito de funcionamiento
Рабочий диапазон
EN
IT
FR
ES
RU
5
Dimensions
Dimensioni
Dimensions
Dimensiones
Размеры
EN
IT
FR
ES
RU
6
Operating instructions for authorised specialists EN 7 - 16
Istruzione per l’uso per il personale qualificato IT 17 - 26
Notice d’emploi pour l’installateur spécialiste FR 27 - 36
Instrucciones de montaje para el instalador especialista ES 37 - 46
Инструкция по эксплутации для
квалифицированных специалистов RU 47 - 56
Gas pressure diagrams
Diagrammi di pressione gas
Diagrammes de pression de gaz
Diagramas de presión de gas
Диаграммы давления газа
EN
IT
FR
ES
RU
57 - 58
Electric diagrams
Schemi elettrico
Schémas électrique
Esquemas eléctrico
Электрические схемы
EN
IT
FR
ES
RU
59
Spare parts list
Parti di ricambio
Pièces de rechange
Piezas de recambio
Запчасти
EN
IT
FR
ES
RU
60 - 62

3
www.ecoflam-burners.com
420010372902
EN
IT
FR
ES
RU

 





  
ϰϮϬϬϯϬϬϱϮϯϬϬZĞǀͲ

ECOFLAM BRUCIATORI S.p.A.
Sede operativa:
Via Roma, 64 - 31023 Resana (TV), Italy
Tel.: [phone]
Fax. [phone]
www.ecoflam-burners.com
Sede legale:
Viale Aristide Merloni, 45 - 60044 Fabriano (AN)
P.IVA e CF 00879740264
Società soggetta alla direzione e al coordinamento di Ariston Thermo S.p.A., Viale A. Merloni, 45 - 60044 Fabriano (AN)
DICHIARAZIONE DI CONFORMITÁ
DECLARATION OF CONFORMITY
La scrivente ditta
The writing company
ECOFLAM BRUCIATORI S.p.A.
Con sede in: Via Roma, 64 - 31023 Resana (TV) - Italy
Address: Via Roma, 64 - 31023 Resana (TV) - Italy
DICHIARA
DECLARE
Sotto la propria responsabilità, che tutti i propri bruciatori di gas della serie MAX GAS … sono conformi alle
seguenti Direttive, Regolamenti e Normative Europee:
Under their sole responsibility that all the gas burners MAX GAS … series comply with requirements included
in the following European Directives, Regulations and Standards:
2014/35/UE “Direttiva Bassa Tensione” (Low Voltage Directive)
2014/30/UE “Direttiva EMC” (EMC Directive)
(EU) 2016/426 “Regolamento Apparecchi a Gas” (Gas Appliance Regulation)
2006/42/EC ‘’Direttiva Macchine’’ (Machine Directive)
2011/65/UE ‘’Direttiva RoHS2’’ (RoHS2 Directive) + 2015/863/UE (Delegated Directive)
EN 676: 2003 + A2: 2008 + AC: 2008
EN 50156-1: 2015
EN 55014-1: 2016
EN 55014-2: 2015
EN 60335-1: 2012 + A11: 2014
EN 60335-2-102: 2016
EN 61000-6-2: 2016
EN 61000-6-3: 2007 + A1: 2010
L’organismo notificato DVGW CERT GmbH - Josef-Wirmer Straße 1-3 D-53123 Bonn - Deutschland è stato
incaricato di effettuare la sorveglianza sui prodotti sopra citati riportati nel certificato di esame di tipo EU Nr.
0085BR0335 valevole fino al 01/08/2028.
The notified body DVGW CERT GmbH - Josef-Wirmer Straße 1-3 D-53123 Bonn - Deutschland was
commissioned to carry out the surveillance on the aforementioned products listed in the EU type examination
certificate No. 0085BR0335 valid until 01/08/2028.
Questo documento sostituisce integralmente tutte le analoghe dichiarazioni precedentemente emesse.
This document replaces all the analogous previously issued declarations.
Date/Authorized Signature June, 2020 / Mr. Giuliano Conticini
Title of Signatory Managing Director
Overview - Conformity declaration / Panoramica - Dichiarazione di conformità / Vue d'ensemble -
Déclaration de conformite / Descripción - Declaración de conformidad / Обзор - Сертификат соответствия

4 www.ecoflam-burners.com 420010372902
EN
IT
FR
ES
RU
Technical data - Dati tecnici - Données techniques - Datos técnicos - Технические характеристики MAX GAS 170 P MAX GAS 250 P
Burner output max/min kW - kcal/h
Potenza bruciatore max/min kW - kcal/h
Puissance du brûleur max/min kW - kcal/h
Potencia del quemador máx/mín kW - kcal/h
Мощность горелки макс./мин., кВт - ккал/ч
175 55 240 55
150.860 47.410 206.900 47.410
Operation 1 stage
Funzionamento 1 stadio
Fonctionnement 1 allure
Funcionamiento 1 etapa
Moдифиkaция 1 ступень 1 1
Regulating ratio Rapporto di regolazione Rapport de régulation Relación de regulación Коэффициент
регулирования 1:1
Fuel Combustibile Fuel Combustible Топливо
Natural Gas (L.C.V. 8.570 kcal/Nm3), LPG (L.C.V. 22.260 kcal/Nm3)
(G20) Hu = 10,35 kWh/m3- (G25) Hu = 8,83 kWh/m3
(G31) Hu = 25,89 kWh/m3
Emission class Classe di emissione Classe d’émission Tipo de emisión Класс выделения
загрязняющих веществ Standard Class 3 - GAS EN676 (<80mg/kWh)
Control box Apparecchiatura di
controllo Coffret de sécurité Cajetín de seguridad Блок управления и
безопасности ARISTON E-BCU GAS
Gas train Rampa gas Rampe gaz Rampa de gas Газовая рампа GAS TRAIN TABLE - DIFFERENT MODELS / CONFIGUATIONS
Gas connection Allacciamento gas Raccordement gaz Conexión de gas Подсоединение газа Rp 20 1/2” - Rp 40 1”1/2 Rp 20 1/2” - Rp 40 1”1/2
Gas input pressure Pressione di ingresso gas Pression d’entrée du gaz Presión de entrada
del gas Давление газа на входе 12-360 mbar (SEE GAS TRAIN MATCHING TABLE)
LPG input pressure Pressione di ingresso
LPG
Pression d’entrée du gaz propane
Presión de entrada LPG Давление LPG на входе 16-360 mbar (SEE GAS TRAIN MATCHING TABLE)
Air regulation Air flap
Regolazione aria Serranda dell'aria
Réglage de l’air Volet d’air
Ajuste del aire Válvula de aire
Настройка подачи воздуха Воздушная заслонка --
Flame monitor Rivelatore di fiamma Surveillance de flamme Vigilancia de llama Контроль пламени ionization ionization Ignition transformer Trasformatore
d'accensione Allumeur Encendedor Устройство розжига danfoss / cofi danfoss / cofi
Electric motor rpm - watt
Motore elettrico giri motore - watt
Moteur rpm - watt
Motor rpm - watt
Электродвигатель об/мин - watt
2800 rpm 2800 rpm
200 W 200 W
Voltage Tensione Tension Tensión Напряжение 230 V / 50 Hz
Power consumption (operation)
Potenza elettrica assorbita (Esercizio)
Puissance électrique absorbée (en service)
Potencia eléctrica absorbida (en funcionamiento)
Потребляемая электрическая мощность: (при работе)
380 W 400 W
Weight Peso Poids Peso Приблизительный вес 11,5 kg 11,5 kg Protection level Classe di protezione Indice de protection Índice de protección Класс электрозащиты IP40 Sound pressure level dB(A)
Livello pressione sonora dB(A)
Niveau presion acoustique dB(A)
Nivel de presion acústico dB(A) Уровень шума, dB(A) 70 70
Ambient temp. for storage
Temperatura ambiente di stoccaggio
Température ambiante de stockage
Temperatura ambiente de almacenamiento Температура хранения -20°…+70° C
Temperature for use Temperatura
d’utilizzazione Température d’utilisation Temperatura ambiente
de utilización Рабочая температура -10°…+60° C
Overview / Panoramica / Vue d'ensemble / Descripción / Обзор

5
www.ecoflam-burners.com
420010372902
EN
IT
FR
ES
RU
Working diagram The working diagram shows burner output as a function of combustion chamber pressure. It corresponds to the maximum values specified by EN 676 measured at the test fire tube. The efficiency rating of the boiler should be taken into account when selecting a burner. Calculation of burner output: QF = QN
ηK
QF = Burner output (kW) QN = Rated boiler output (kW) ηK= Boiler efficiency (%)
Curva Il campo di attività indica la potenza del bruciatore in funzione della pressione della camera di combustione. Corrisponde ai valori massimi previsti dalla norma EN 676 misurati sul tubo della fiamma di controllo. In occasione della scelta del bruciatore si deve tenere conto del rendimento energetico della caldaia. Calcolo della potenza della caldaia: QF = QN
ηK
QF= potenza della caldaia (kW) QN= potenza nominale della caldaia (kW) ηK= rendimento energetico
della caldaia (%)
Domaine de fonctionnement Le domaine de fonctionnement correspond aux valeurs mesurées lors de l’homologation. Elle correspond aux valeurs max mesurées sur tunnel d’essai d’après l’EN 676. Pour le choix du brûleur, tenir compte du rendement de la chaudière. Calcul de la puissance calorifique: QF = QN
ηK
QF= Puissance calorifique (kW) QN= Puissance nominale chaudière (kW) ηK= Rendement chaudière (%)
Ámbito de funcionamiento El ámbito de funcionamiento corresponde a los valores registrados en el momento de la homologación. Corresponde a los valores máx medidos en el túnel de ensayo según la EN 676. Para la elección del quemador, se ha de tener en cuenta el rendimiento de la caldera. Cálculo de la potencia calorífica: QF = QN
ηK
QF = Potencia calorífica (kW) QN = Potencia nominal de la caldera (kW) ηK = Rendimiento de la
caldera (%)
Рабочий диапазон Рабочий диапазон показывает производительность горелки в зависимости от давления в топочной камере. Он соответствует максимальным значениям согласно EN 676, измеренным в контрольной топочной камере. При выборе горелки необходимо учитывать КПД котла. Расчет тепловой мощности: QF = QN
ηK
QF = Тепловая мощность, кВт QN= Номинальная мощность котла, кВт ηK= КПД котла, %
Overview - Working diagrams / Panoramica - Curve / Vue d'ensemble - Domaine de fonctionnement / Descripción - Ámbito de funcionamiento / Обзор - Рабочий диапазон
kW
60 80 100 120 140 160 180 200 220 240 260 28040
1
2
3 4 5 6
mbar
0
MAX GAS 170 P
MAX GAS 250 P
50 75 100 125 150 175 200 225 kcal/h
x 1000
25

6 www.ecoflam-burners.com 420010372902
EN
IT
FR
ES
RU
Overview - Dimensions / Panoramica - Dimensioni / Vue d'ensemble - Dimensions / Descripción - Dimensiones / Обзор - Размеры
X
Y
Z
Packaging
MAX GAS 170-250 P
GAS TRAIN DIMENSIONS: refer to GT manual
Ø r
RrSr
MAX GAS 170-250
Model AB C D D1 E F G I L MNO P
MAX GAS 170 P 392 202 190 180 280 280 125 201 106/130 106/130 M8 73 110 104 MAX GAS 250 P 392 202 190 180 280 280 125 201 106/130 106/130 M8 73 110 104
Model Ø a Ø b Ø c d°..
MAX GAS 170 P 135 153 190 45° MAX GAS 250 P 135 153 190 45°
CB
A
P
G
F
E
D-D1
MI
L
N
O
d..°
Ø a Ø b
Ø c
M
11
Boiler plate drilling
Model XY Z kg
MAX GAS 170 P 380 500 680 14,5 MAX GAS 250 P 380 500 680 14,5

7
www.ecoflam-burners.com
EN
420010372902
Contents - Index - General warnings
Overview Conformity declaration 3
Technical data 4
Working diagrams 5
Dimensions 6
Contents Index 7
General warnings 7
Burner description 8
Function General safety functions 9
E-BCU GAS control and safety unit 10
Installation Burner assembly 11
Electrical connection 12
Checks before commissioning 12
Start up Adjusting burner output 13
Air pressure switch adjustment - setting gas pressostat 14
Service Maintenance 15
Troubleshooting 16
Overview Gas pressure diagrams 57-58
Electrical diagrams 59
Spare parts list 60-61
Important notes
Ecoflam burners have been designed and
built in compliance with all current
regulations and directives.
All burners comply to the safety
and energy saving operation
regulations within the standard
of their respective performance
range.
The burner must not operate out-
side the working range.
The quality is guaranteed by a quality and
management system certified in
accordance with ISO 9001:2008.
MAX GAS burners are designed
for the low-pollutant combustion of natural
gas and Liquefied Petroleum Gas.
I bruciatori sono conformi alla norma EN
676. Assembly and commissioning
must be carried out only by
authorised specialists and all
applicable guidelines and
directives must be observed.
Packaging and handling
Move the burner still in its packaging using
a trolley or forklift, taking care not to drop it
and elevating it no more than 20cm from
ground level. After having removed the
packaging, check that the contents are in
good condition and correspond with what
was ordered. If in doubt, contact the
manufacturer.
The burner must be installed by a
qualified individual.
If the weight and dimensions do not allow
for manual lifting, ask another operator for
help or use a forklift, harness the burner
using belts if no eyebolts are available.
Use the accessories provided
(flange, gasket, pins and nuts) to
install the burner onto the boiler,
taking care not to damage the isolating
gasket.
Installation location
Install the burner, after carefully clean
around the intended area.
correctly dispose of all residual
packaging,separating the various
types of material
The burner must not be operated in
rooms containing aggressive
vapours (e.g. spray,
perchloroethylene, hydrocarbon
tetrachloride, solvent, etc.) or tending to
heavy dust formation or high air humidity.
Adequate ventilation must be provided at
the place of installation of the furnace
system to ensure a reliable supply with
combustion air.
We can accept no warranty
liability whatsoever for loss,
damage or injury caused by any
of the following:
- Inappropriate use.
- Incorrect assembly or repair by the
customer or any third party, including the
fitting of non-original parts.
Provision of the system and the
operating instructions
The firing system manufacturer must
supply the operator of the system with
operating and maintenance instructions on
or before final delivery. These instructions
should be displayed in a prominent
location at the point of installation of the
heat generator, and should include the
address and telephone number of the
nearest customer service centre.
WARNING
WARNING
DANGER
Introduction
The instruction manual supplied with the
burner:
- offers important indications and
instructions relating to the installation
safety, start-up, use and maintenance of
the burner.
- is designed for use by qualified
personnel.
Symbols used in the manual
Maximum danger.
This symbol indicates operations
which cause serious injury, death or
long-term health risks, if not carried
out correctly.
Warning. This symbol indicates
operations which may cause
serious injury, death or long-term
health risks, if not carried out correctly.
Caution. This symbol indicates
operations which may cause
damage to the machine and/or
injury to people, if not carried out
correctly.
Danger: live components
Danger: flammable material
Danger: burning
Danger: crushing of limbs
Obligation to assemble the cover and
all the safety and protection devices.
DANGER
WARNING
CAUTION
Environmental protection
This symbol gives indications for
the use of the machine with respect
for the environment.
Important information
This symbol indicates important
information that you must bear in
mind.
WARNING
WARNING
CAUTION
WARNING

8 www.ecoflam-burners.com
EN
420010372902
Contents - Burner description
3
Y
M1
F6
16
113 103B
5
8
A1
10
MAX GAS 170 LN P TC TW
MAX GAS Gas
NAME
MAX GAS 170175 kW
MODEL
LN L N Class 3 GAS EN676 (<80 mg/kWh)
EMISSION
P1 stage
OPERATION TYPE
TC Short head
TL Long head
OPERATION TYPE
Natural gas
LPG LPG
FUEL
TW Ariston E-BCU
CONTROL BOX
Technical label
Tampering, removal or absence of plate
burner or anything that not allow the
secure identification of the burner make
difficult for any installation and
maintenance activity.
Notes for the operator
The system should be inspected by a
specialist at least once a year. It is
advisable to take out a maintenance
contract to guarantee regular servicing.
Burner description
MAX GAS are single-stage, fully
automatic, monoblock type burners.
Burner head is designed to get the lowest
emissions in terms of NOx and unburnt
particles in order to maximize the heat
generator efficiency. Emissions can be
different respect to the ones recorded in
the lab because they depends a lot on the
generator on which the burner is fit.
The installer must comply with compulsory
rules. Avoid for instance dangerous
atmosphere or not ventilated rooms.

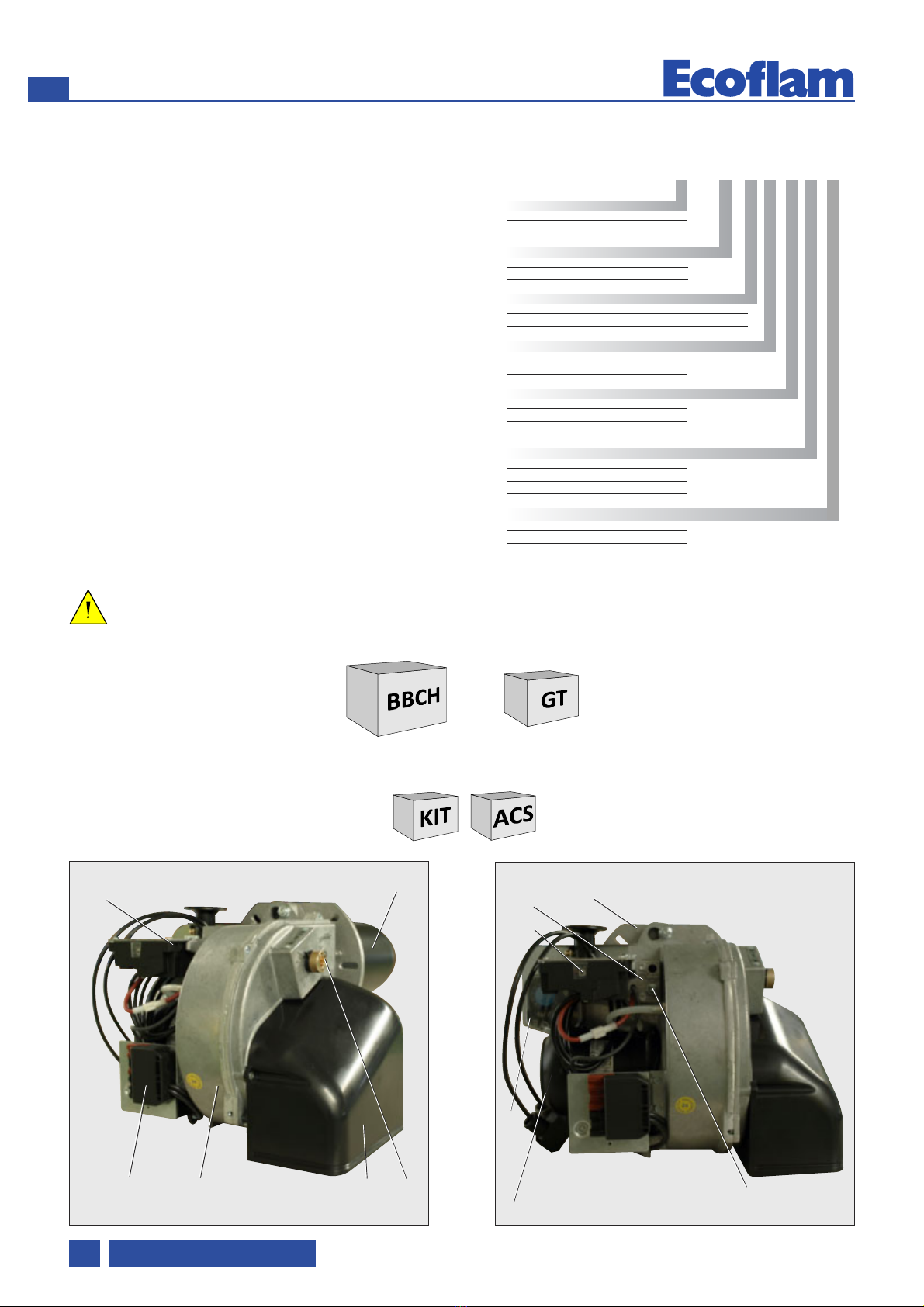

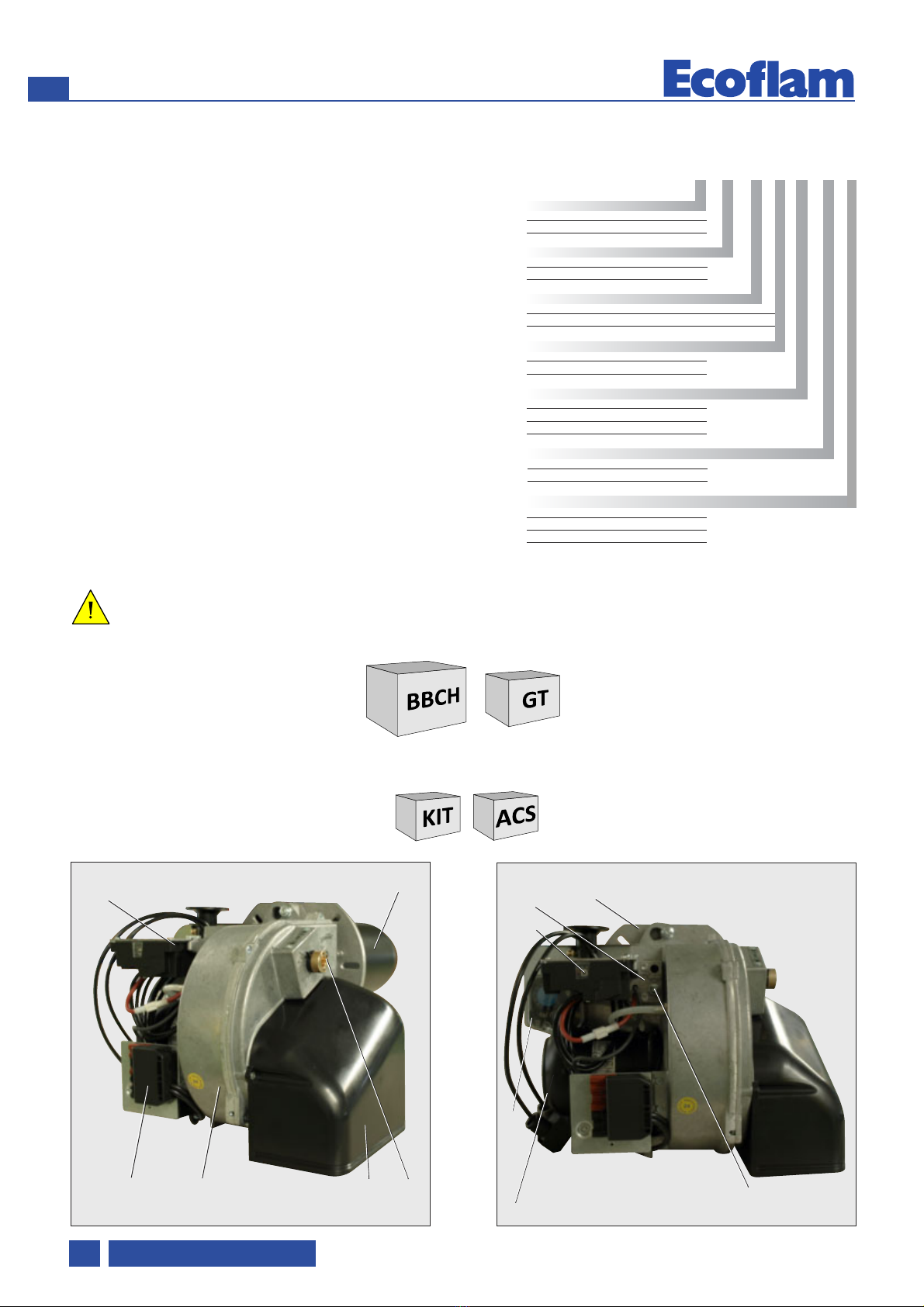

Scope of delivery
The burner is delivered in a modular system
of packagings i.e. separate set/box:
BBCH: Burner Body with Combustion Head
with flange.
- 1 bag including :
- multilanguage technical manual.
- wieland plug.
- screws, nuts and washer.
GT: separate Gas Train
KIT & ACS are managed and delivered separately
KIT & ACS delivered separately
A1 E-BCU Gas control unit
F6 Air pressure switch
M1 Electric motor
T1 Ignition transformer
Y Graduated rod for head adjustment
3 Air regulation in the burner head
5 Housing
8 Blast tube
10 Wieland socket
15 Burner flange
16 Reset key
103B Air regulation
113 Air intake
For any other use, the authorization of Ecoflam is required.
WARNING
15

9
www.ecoflam-burners.com
EN
420010372902
Function - General safety functions
Description of functions
When the system is switched on for the
first time, after a power failure or safety
shutdown, after a lack of gas or after the
system has been out of operation for 24
hours, the pre-ventilation period of 24
seconds begins.
During pre-purge period:
- blower pressure is monitored
- the combustion chamber is monitored for
flame signals.
At the end of the pre-purge period:
- ignition is switched on.
- main and safety valve are opened.
- burner starts.
Monitoring
The flame is monitored by an ionisation
probe. The probe is insulated and
fitted to the gas head and is routed
through the flame disc into the flame
zone. The probe must not have any
electrical contact with earthed parts.
The burner switches to lock-out if a short
circuit occurs between the probe and
the burner earth. During burner operation,
an ionised zone is produced in the gas
flame through which a rectified current
flows from the probe to the burner head.
The ionisation current must be at least 1,5
μA.
Safety functions
- If no flame is produced when the burner
is started (gas release), the burner will be
switched off at the end of the safety
period, lasting no more than 3 seconds,
and the gas valve will close.
- If the flame goes out during operation,
the gas supply is interrupted within one
second. A restart takes place. Once the
burner starts, operation is continued.
Otherwise, a safety lock-out occours.
- If there is a lack of air during reventilation
or operation, a safety lock-out occours.
- If there is a lack of gas, the burner does
not begin operation or switches off.
A waiting time of 2 minutes follows. This is
followed by a further start attempt. If there
is still no gas pressure, a further waiting
time of 2 minutes follows. The waiting time
can only be reset by interrupting the
power supply to the burner.
Waiting times: 3 x 2 min, then 1 hour.
In the event of controller shutdown
- Controller thermostat interrupts heat
request.
- Gas solenoid valves close.
- Flame goes out.
- Burner motor switches off.
- Burner is ready for operation.
1108106
119
Y12104 F4119.1119 pBr Y13
119.2
F6
F4 Minimum gas pressure switch
F6 Air pressure switch
Y13 Main solenoid valve
Y12 Safety solenoid valve
1 Thermally-triggered safety shut-off valve (installation by installer)
104 Gas pressure regulator
106 Filter
108 Gas ball valve (installation by installer)
119pBr Measuring point for gas outlet pressure
119.1 Measuring point for gas pressure in valve space
119.2 Air pressure measuring point

10 www.ecoflam-burners.com
EN
420010372902

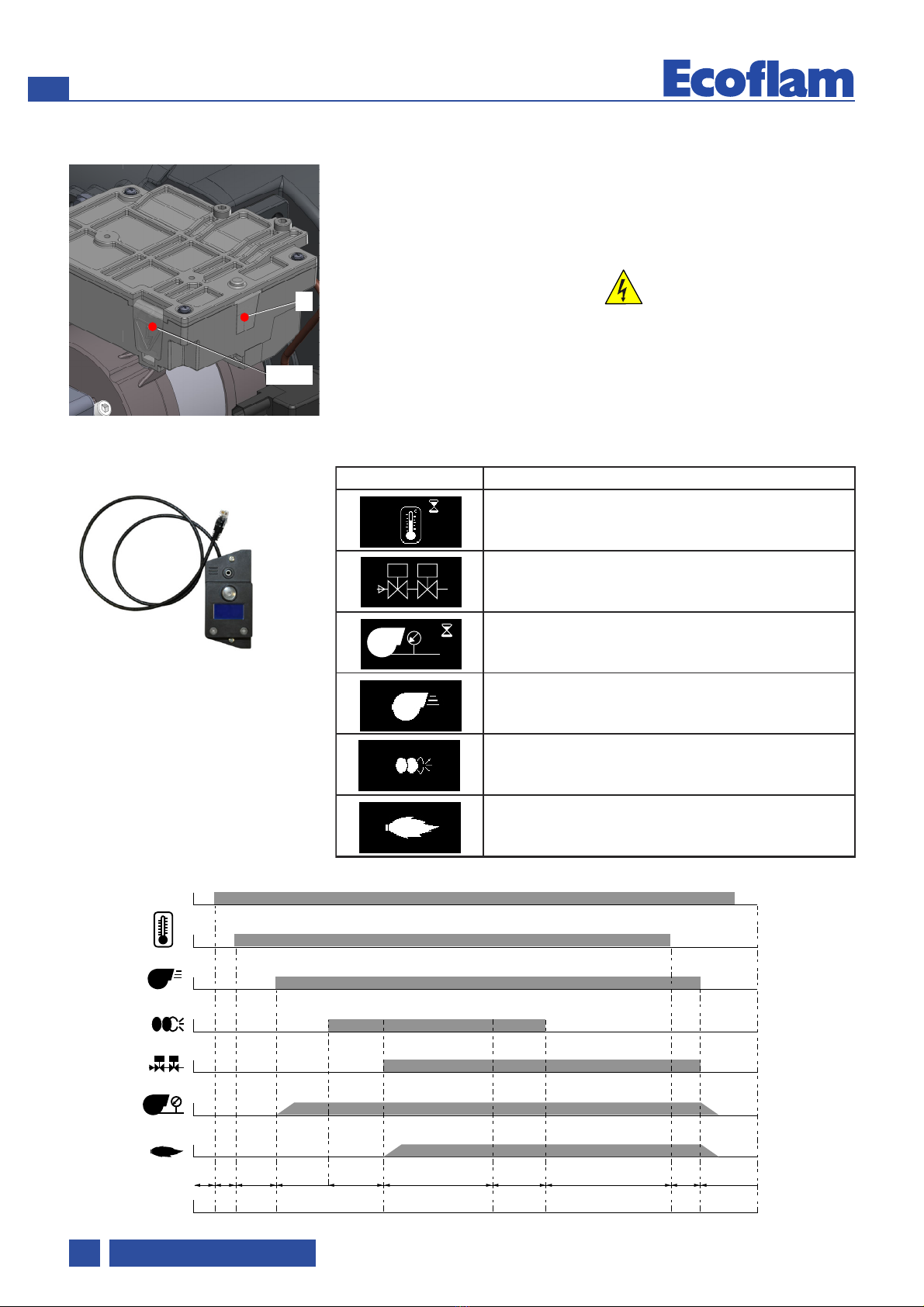

The E-BCU GAS fuel gas/LPG control and
safety unit controls and monitors the
forced draught burner. The
microprocessor-controlled program
sequence ensures maximum stability of
time periods, regardless of fluctuations in
the power supply or ambient temperature.
The design of the automatic combustion
control unit protects it from the effects of
brownouts. Whenever the supply voltage
drops below its rated minimum level (170
V), the control unit shuts down - even in
the absence of a malfunction signal. The
control unit switches itself back on again
once the voltage has exceeded the 178 V.
R - Reset button + lock-out led.
RJ45 - Connector for PC interface
(diagnostic, separate item).
Function - E-BCU GAS control and safety unit
KIT E-BCU
DIAGNOSTIC TOOL
(not supplied)
LINE
1
Max 5s 33s 3s
25s
5s --- -< 1s
23 4 4’ 5 6 7 8 9
C
Locking and unlocking the system
The control unit can be locked (switched
to malfunction) and unlocked (malfunction
cleared) by pressing the R reset button,
provided the system is connected to the
mains power supply.
Always disconnect the
power supply before installing
or removing the control unit
Do not attempt to open or carry
out repairs on the control unit.
Symbol Designation
Waiting for heat request
Fuel valve
Waiting for air pressure switch during burner start
Burner motor on
Ignition transformer on
Flame present
24s
R
RJ45
DANGER

11
www.ecoflam-burners.com
EN
420010372902
Installation - Burner assembly
Burner assembly

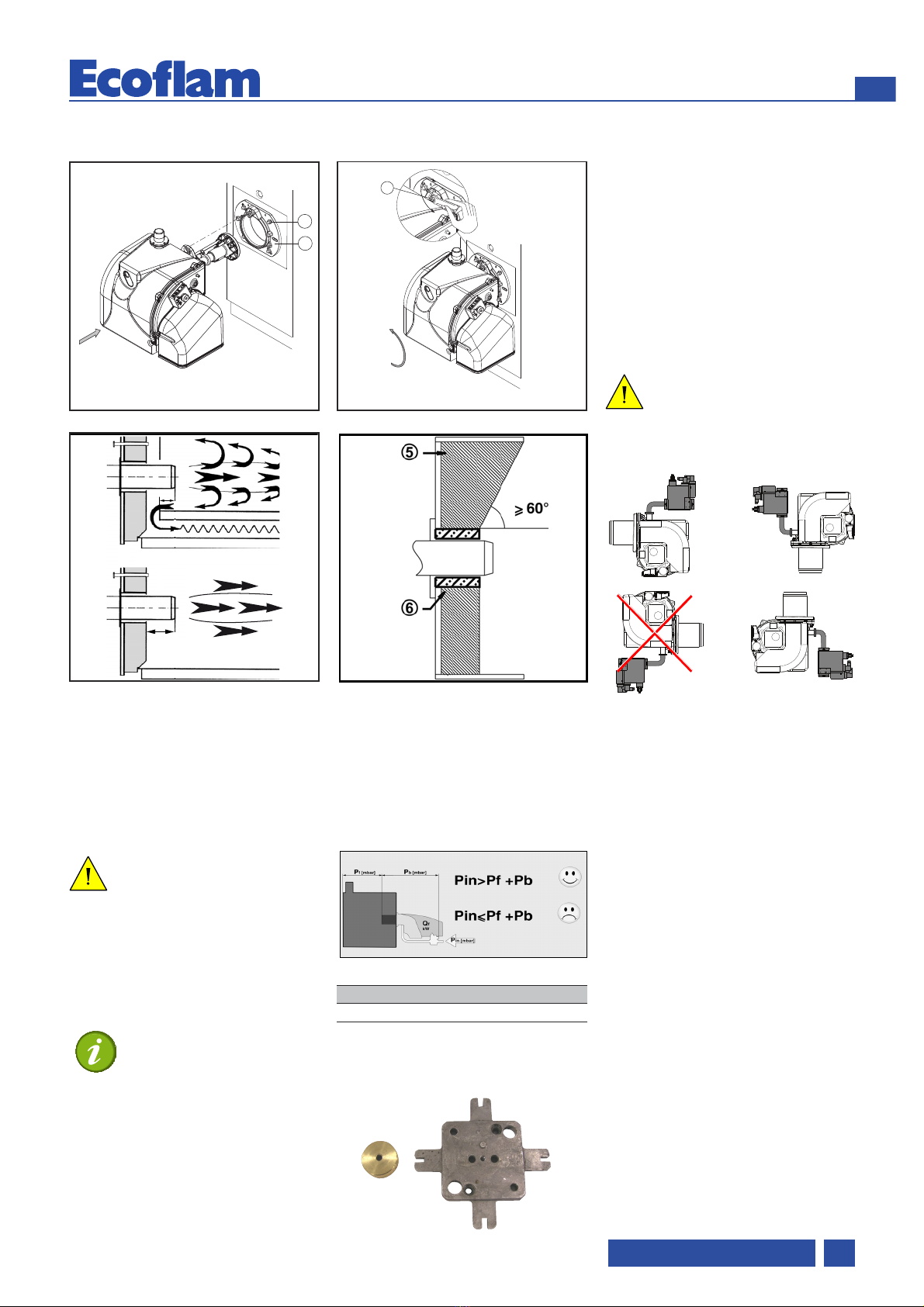

The burner is fixed by mean of connecting
flange and therefore to the boiler.
Installation:
• fix the flange 3to the boiler with
the screws 4
• turn the burner slightly, guide it into
the flange and secure using screw 5
Removal:
• loosen screw 5
• turn the burner out and pull it out of
the flange
Install the burner on the
boiler according to the
installation position shown in.
Installation 3 is forbidden for
safety reason.
For operation with Liquefied Petroleum
Gas, it is necessary to order the kit and
follow the instructions given in the
specific manual.
LPG TRANSFORMATION
KITLPG-MAXGAS...
LPG
3
4
–
+
5
Burner blast tube insertion depth and
brickwork
Unless otherwise specified by the boiler
manufacturer, heat generators without a
cooled front wall require brickwork or
insulation 5 as shown in the illustration.
The brickwork must not protrude beyond
the leading edge of the blast tube, and
should have a minimum conical angle of
60°. Gap 6 must be filled with an elastic,
non-combustible insulation material. For
boilers with reverse firing, the minimum
burner tube insertion depth A as specified
in the boiler manufacturer’s instructions
must be observed.
On boilers the blast tube insertion depth
should be observed as per the boiler
manufacturer's instructions.
Reverse flame boiler :
A = 50-100 mm.
Three pass boilers :
A1 = 50-100 mm.
Exhaust system
To avoid unfavourable noise emissions,
right-angled connectors should not be
used on the flue gas side of the boiler.
A
A1
General regulations applying to the
gas connection
• The gas train must only be connected
to the gas mains by a recognised
specialist.
• The cross-section of the gas line should
be of a size designed to guarantee that the
gas flow pressure does not drop below the
Gas lines
When installing the gas lines and gas train,
the general EN676 directives and
guidelines must be observed.
EN676 compulsory kit and accessories in
order to comply to the safety regulations.
Additional accessories and kits shall be
installed by the installer in accordance to
the local safety regulations and codes of
practise.
Upon the installer responsibility
it is mandatory to install
additional support(s) in order to
not overload the burner body
with the dead load of full gas train,
accessories, piping and so on.
The burner body can stand just the gas
valve and the piping between the gas
valve and the body.
LEGEND
Pf: Back pressure of furnace
Pb: Pressure of burner (combustion head
+ complete gas train)
Pin: Minimum inlet pressure
Installing the gas train
The gas train is supplied
separately, for fitting refer to the
instructions in the gas train
manual.
CAUTION
specified level.
• A manual shut-off valve (not supplied)
must be fitted upstream of the gas train.
DANGER
OK
12
34
OK
OK

12 www.ecoflam-burners.com
EN
420010372902
Installation - Electrical connection - Checks before commissioning
Electrical connection
The electrical installation and connection
work must only be carried out by an
authorised electrical specialist.
All applicable rules and regulations must
be observed.
The electrical installation should include a
type A circuit breaker.
The applicable guidelines and
directives must be observed, as
well as the electrical circuit
diagram supplied with the
burner!
• Check to ensure that the power supply
voltage is as specified in the electric
diagram and in data plate.
• Burner fuse: 5 A.
Electrical connection (plug-in)
It must be possible to disconnect the
burner from the mains using an
omnipolar shutdown device complying
with the standards in force. The burner
and heat generator (boiler) are connected
by a 7-pin connector (fig.1).
Connecting the gas train
Connect the gas train to the plugs on the
burner.
Checks before commissioning
The following must be checked before
initial commissioning:
• That the burner is assembled in
accordance with the instructions given
here.
• That the burner is pre-set in accordance
with the values in the adjustment table.
• Setting the combustion components.
• The heat generator must be ready for
operation, and the operating regulations
for the heat generator must be observed.
• All electrical connections must be correct.
• The heat generator and heating system
must be filled with water and the
circulating pumps must be in operation.
• The thermostats, pressure regulator, low
water detectors and any other safety or
limiting devices that might be fitted must
be connected and operational.
• The exhaust gas duct must be
unobstructed and the secondary air
system, if available, must be operational.
• An adequate supply of fresh air must be
guaranteed.
• The heat request must be available.
• Sufficient gas pressure must be
available.
• The fuel supply lines must be assembled
correctly, checked for leaks and bled.
• A standard-compliant measuring point
must be available, the exhaust gas duct up
to the measuring point must be free of
leaks to prevent anomalies in the
measurement results.

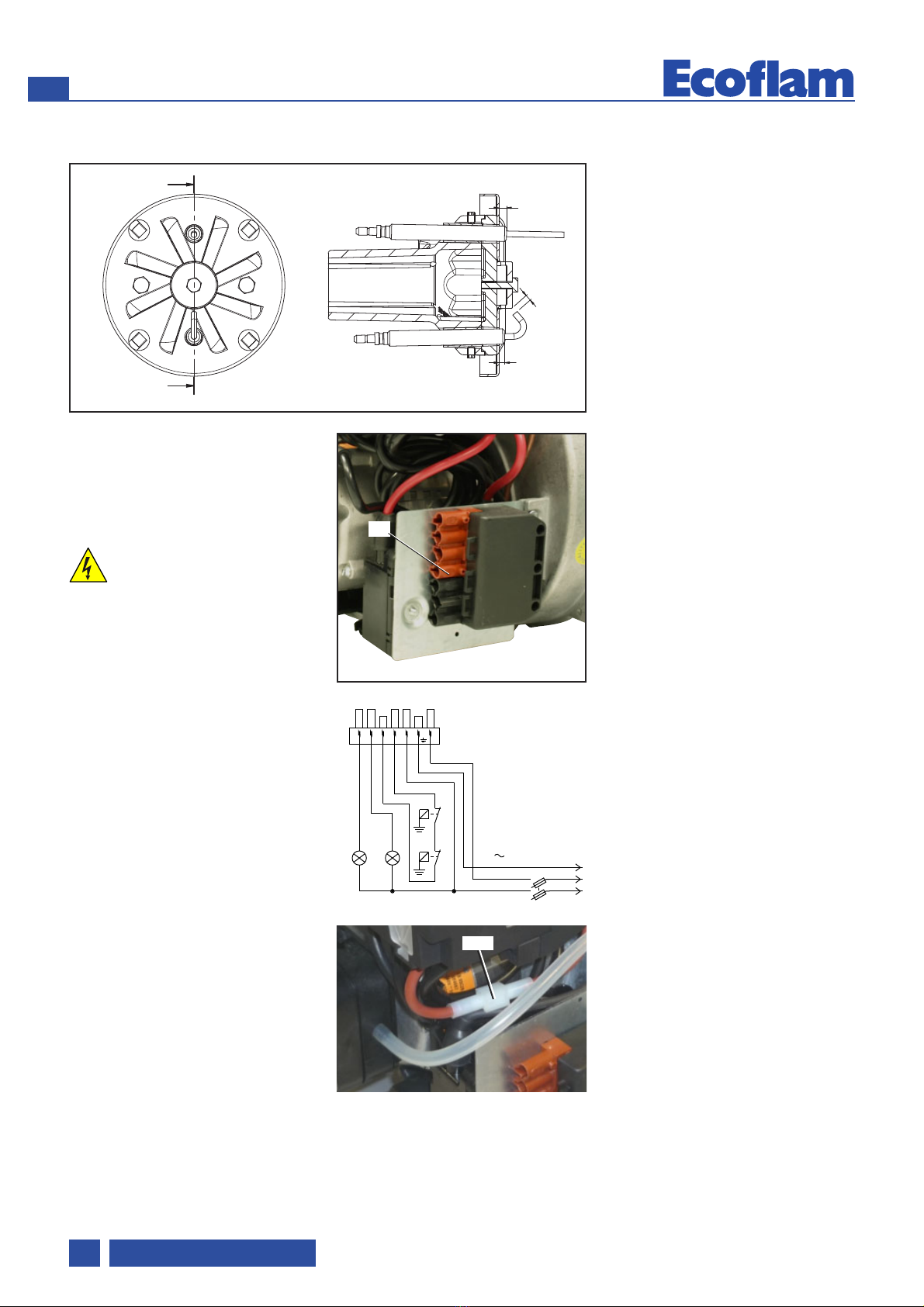

1
Position of electrodes
Setting the ionisation probe and
ignition electrode: see diagram
Always check the position of the
electrodes after service or substitution
or assembly of LPG kit as wrong position
might cause ignition problem.
Ionisation current measurement
To measure the ionisation current,
disconnect connector B10 and connect
a multimeter with a measuring range of
0-100 μA.
The ionisation current must be at least 1,5
μA.It is also possible to read the ionisation
current on the display of the E-BCU
diagnostic tool.
A
ASez. A-A
3
4
3
B10
Input Voltage
TP
STSHLBHLF
Q
L
N
PE
TP
STC
S3B4 T2 NT1 L1
DANGER

13
www.ecoflam-burners.com
EN
420010372902

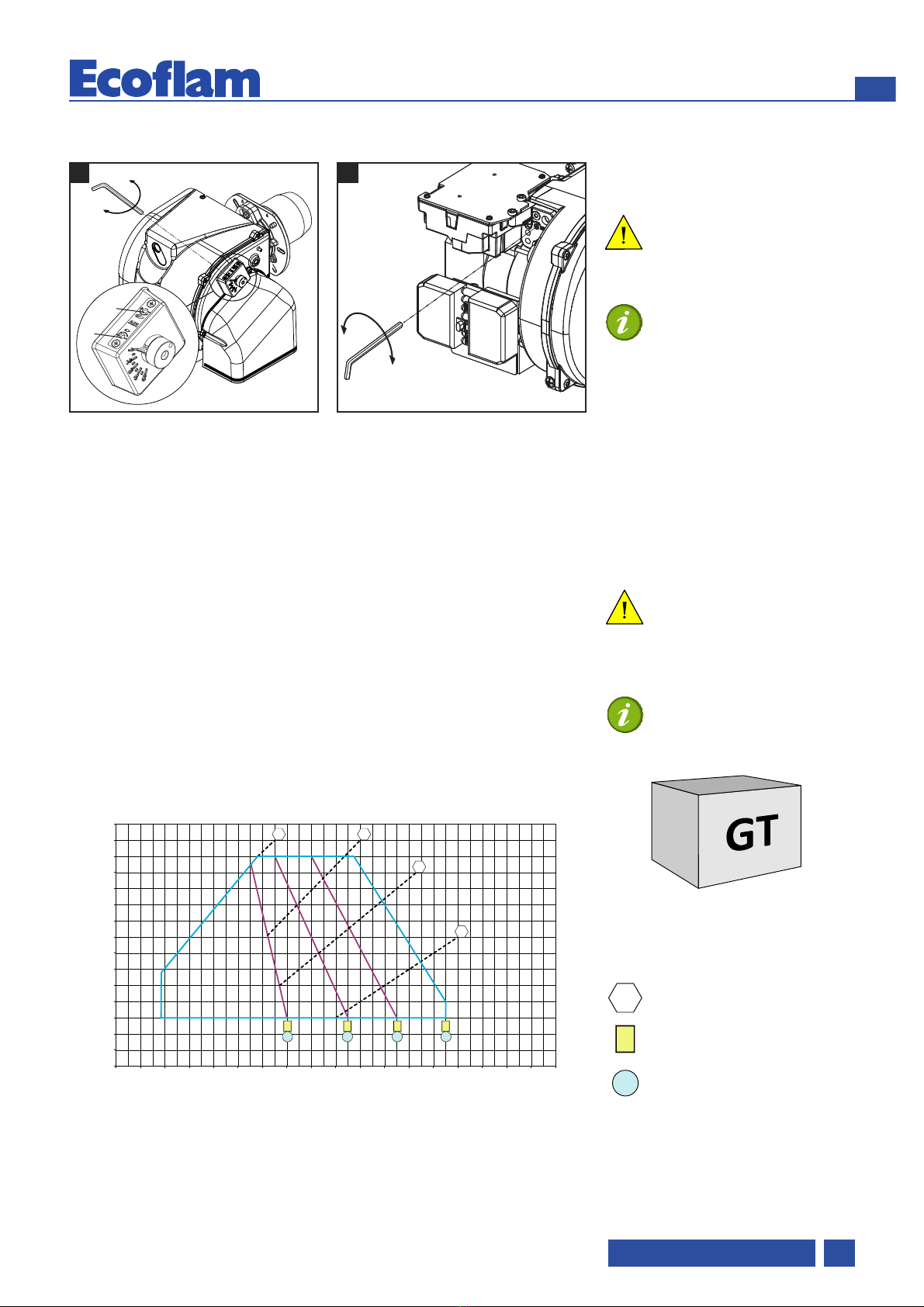

Start up - Adjusting burner output
Gas pressure diagrams in appendix
Minimum gas pressure required are
indicated in the diagrams in the appendix.
These values have been determined in
our test labs and are useful for the first
switch-on as final setting must be done
using a combustion analyzer.
How to read and adjust the values:
- determine the output required
- determine the combustion chamber back-
pressure
- read the minimum gas pressure required
in the diagrams in appendix.
Air damper setting (A).
To act on the screw A in figure:
• to increase output, turn screwdriver
counterclockwise.
• to reduce output, turn screwdriver
clockwise.
Note: screw B not used.
Firing head setting (B).
To act on the screw in figure:
• turn Allen key till you reach the
requested value (index 0-4,5).
A
B
+
-
A
pressure in the combustion chamber (mbar)
output (kW)
+
-
+
-
B
-1,5
-1,0
-0,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
5,5
6,0
40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220
9,5 9
8,5
8
01 2 3
5 5 5 5
MAX GAS 170 P NATURAL GAS
Optimising combustion values
The factory setting shall be modified
according to the output requeired.
N.B. observe the minimum required
flue gas temperature specified by
the boiler manufacturer and the
requirements demanded of ue gas ducts
for avoiding condensation.
Warning: Recording of initial
commissioning data is recom-
mended.
WARNING
head gas pressure (on elbow) (mbar)
head position
air damper position
Risk of air blast!
Continuously check CO, CO2and
soot emissions when adjusting the
output of the burner. Optimise combustion
values in the event of CO formation. CO
must not exceed 50 ppm.
DANGER
Adjustment of gas solenoid valve
Refer to the gas train manual for
the gas setting of the gas train
selected.

14 www.ecoflam-burners.com
EN
420010372902
Start up - Air pressure switch adjustment - Setting gas pressostat
Operating check
Flame monitoring must be checked
for safety as part of initial
commissioning and also after servicing or
if the system has been out of operation for
any significant period of time.
- Start attempt with gas ball valve closed:
the automatic combustion control unit must
switch to gas shortage or malfunction after
the end of the safety period.
Air pressure switch calibration
The air pressure switch is provided for
monitoring the pressure of the
combustion air fan.
Unscrew screws A and B and remove
cover C. After the air and gas setting you
have to calibrate the air switch with the
burner working on the low flame by slowly
turning the relative knob clockwise until the
burner locks out. Read the value and then
decrease it by 15%.
WARNING: the air pressure switch
shall prevent the air pressure to go
below 85% from the adjustment
value in order to prevent the CO in the
fumes to exceed 1% (10000 ppm).
Min gas pressure switch
The gas pressure switch has the function
to check that the gas pressure before the
gas valve does have the minimum
pressure to make the burner running
correctly. Unscrew off and remove cover
M. - Set knob N to a value equal to 60% of
gas nominal feed pressure (i.e. for natural
gas nom. pressure = 20 mbar, set knob to
a value of 12 mbar; for LPG nom. pressure
of G30/G31- 30/37 mbar, set knob to a
value of 18 mbar). Screw up cover M.
0,4
0,6
0,9
3,0
1,5
2,1
1,8
2,4
2,7
1,2
A
B
CD
2,5
5
10
15
50
25
35
30
40
45
20
I
L
MN
WARNING
CAUTION
Recording commissioning data
Test n°1 n°2 n°3 n°4
Date
Model
Type gas
Gas calorific value
Gas inlet pressure mbar
Adjustment gas pressure
Volumetric gas flow rate Nm3/h
Burner output min kW
Burner output max kW
Flue gas temperature C°
Air temperature C°
CO2 %
CO ppm
NOx ppm
Performance %
Corrective action
Operator name
Company
WARNING

15
www.ecoflam-burners.com
EN
420010372902

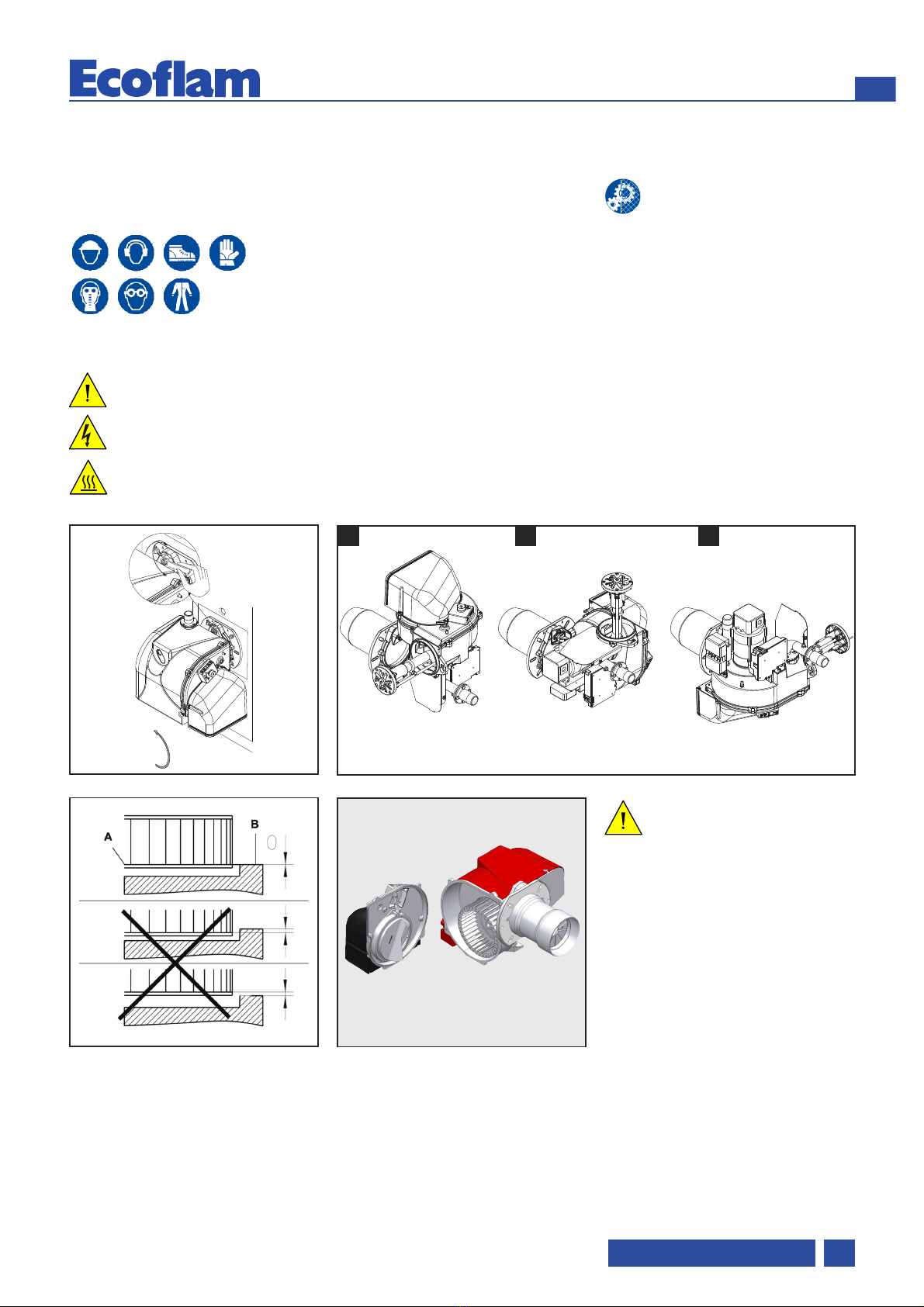

Fan assembly
Observe the positioning diagram above
when replacing the motor and blower
wheel. The inside flange A of the blower
wheel must be fitted at the same level as
the equipment plate B. Insert a straight
edge between the wing of the blower wheel
and set Aand Bto the same height, tighten
the set screw on the blower wheel
(maintenance position 1).
1 2 3
–
+
2
3
Service - Maintenance
Burner and boiler servicing must only
be carried out by qualified personell.
The system operator is advised to take
out a service contract to guarantee
regular servicing.
The operator is obliged to use the
equipment necessary during mainte-
nance.
Attention
• Disconnect the electrical supply
before carrying out any
maintenance or cleaning work.
• The blast tube and firing head
may be hot.
Checking the exhaust gas temperature
• Check the flue gas temperature at
regular intervals.
• Clean the boiler if the flue gas
temperature is more than 30°C above
the value measured at the time of
commissioning.
• To simplify the check, use a flue gas
temperature indicator.
Burner maintenance positions
• After removing the screws 5 turn the
burner and pull it out of the flange. It is
possible to fix the burner in three positions
for maintenance.
Position 1
Maintenance line air
(cleaning/substitution fan)
Position 2
Burner head maintenance.
Position 3
Maintenance components.
Once the maintenance, cleaning
or checking operations have
been completed, reassemble the
cover and all the safety and protection
devices of the burner.
WARNING
DANGER
Maintenance on the burner
• Check gas supply components (tubes,
lines) and their connections for leaks
or signs of wear, replace if necessary.
• Check electrical connections and
connection cables for damage,
replace if necessary.
• Check gas filter, clean or replace as
necessary.
• Clean fan wheel and housing and
check for damage.
• Check and clean the mixing unit.
• Check ignition electrodes block,
readjust or replace as necessary.
• Start burner, check flue gas data,
correct burner settings if necessary.
• Check the setting for air pressure
switch and gas pressostat.
• Check the gas train settings.
• Carry out an operating check.
WARNING

16 www.ecoflam-burners.com
EN
420010372902
Symbol fault Fault Cause Remedy
No heat request Thermostats defective or
incorrectly adjusted
Adjust the thermostats, replace if
necessary.
Sullply voltage lower than minimum
allowed value
Drop in supply voltage or
power failure.
Control unit malfunction
Check the cause of the fall in voltage or the
power failure
Replace the control unit.
Burner starts briefly when switched on,
switches off and the red LED lights up
Control unit was
deliberately shut down Unlock the unit
Burner does not start
Air pressure switch: not in rest position
Incorrect adjustment
Contact is welded
Readjust the pressure switch
Replace the pressure switch
Burner does not start
Low gas pressure
Insufficient gas pressure
Gas pressostat wrongly set or defective
Check gas lines
Clean the filter
Check the gas pressostat or replace the
compact gas unit
Burner blower starts up
Burner does not start
Air pressure switch: the contact does
not close
Check the pressure transmitter (foreign
bodies) and wiring
Burner blower starts up
Burner does not start
Flaring during pre-ventilation or pre-
ignition
Check the valve
Check flame monitoring
The burner starts, the ignition
switches on, then failure
No flame at the end of the safety period
Gas throughput set incorrectly
Faulty flame monitoring circuit
No ignition arc
Electrode(s) short-circuited
Ignition cable damaged or defective
Ignition transformer defective
Automatic combustion control unit
Solenoid valves do not open
Valves jamming
Adjust the gas throughput
Check the condition and position of the
ionisation sensor in relation to earth
Check the condition and connections of the
ionisation ci rcuit (cable(s) and
measurement bridges)
Adjust, clean or replace electrode(s)
Connect or replace the cable(s)
Replace the transformer
Replace the control unit
Check the cabling between the control
unit and external components
Replace the compact gas unit
Replace the valves
Flame extinguishing
during operation
Air pressure switch: contact opens
during startup or during operation
Flame failure during operation
Adjust or replace the pressure switch
Check the ionisation sensor circuit
Check or replace the automatic
combustion control unit
Service - Troubleshooting
Fault diagnosis and repair
In the event of a malfunction, first check
that the prerequisites for correct
operation are fullfilled:
1. Is the system connected to the
power supply?
2. Is there any gas pressure?
3. Is the gas shut-off valve open?
4. Are all control and safety devices,
such as the boiler thermostat, low water
level detector, limit switch, etc. adjusted
correctly?
If the malfunction persists, use the
following table. It is not permitted to repair
any components relevant to safety.
These components must be
replaced by parts with the same
order number.
Only use original spare parts.
In the event the burner stops, in
order to preventany damage to
the installation, do not unblock
the burner more than twice in a
row. If the burner locks for a third time,
contact the customer service.
NB: after each operation:
• under normal operating conditions
(doors closed, hood fitted, etc.), check
combustion and check the individual
lines for leaks.
• Record the results in the relevant
documents.
E-BCU diagnostic
tool must be used
to read the faults
by service
personell.
WARNING
DANGER
WARNING

17
www.ecoflam-burners.com
IT
420010372902
Panoramica Dichiarazione di conformità 3
Dati tecnici 4
Curve di lavoro 5
Dimensioni d’ingombro 6
Contenuti generali Indice 17
Avvertenze generali 17
Descrizione del bruciatore 18
Funzione Funzioni generali di sicurezza 19
Programmatore di comando e sicurezza E-BCU GAS 20
Installazione Montaggio del bruciatore 21
Connessione elettrica 22
Controlli da eseguire prima della messa in funzione 22
Messa in funzione Regolazione del bruciatore 23
Regolazione dei pressostati aria e gas 24
Assistenza Manutenzione 25
Possibili inconvenienti 26
Panoramica Diagramma di pre-taratura 57-58
Schemi elettrici 59
Parti di ricambio 60-61
Contenuti generali - Indice - Avvertenze generali
Avvertenze importanti
I bruciatori Ecoflam sono stati progettati e
costruiti nel rispetto delle normative e
direttive correnti.
Tutti i bruciatori rispondono
alle normative sulla sicurezza
e sul risparmio energetico nel
limite del campo di lavoro
dichiarato.
Il bruciatore non deve
funzionare fuori del campo di
lavoro.
La qualità del prodotto è garantita dal
sistema di certificazione in base alla
norma ISO 9001:2008.
I bruciatori MAX GAS sono progettati per
la combustione di gas naturale e di gas
propano, con basse emissioni inquinanti.
I bruciatori sono conformi alla norma EN
676. Montaggio, messa in funzione e
manutenzione devono essere
eseguiti esclusivamente da
personale tecnico autorizzato,
nel rispetto delle direttive e delle
prescrizioni in vigore.
Imballo e movimentazione
Movimentare il bruciatore ancora imballato
con un carrello o un elevatore facendo
attenzione a non farlo cadere tenendosi a
non più di 20 cm da terra. Dopo aver tolto
l’imballo, controllare che il contenuto sia
integro e corrisponda al prodotto ordinato.
In caso di dubbi, contattare il produttore.
L’installazione del bruciatore
deve essere effettuata
da personale abilitato.
Se le dimensioni e il peso non consentono
un sollevamento manuale, farsi aiutare da
un altro operatore, od utilizzare un
sollevatore imbracando il bruciatore con
delle fasce se non disponibili i golfari.
Usare gli accessori in dotazione
(flangia ,guarnizione, perni e dadi)
per installare il bruciatore alla
caldaia facendo attenzione a non
danneggiare la guarnizione isolante.
Luogo di installazione
Installare il bruciatore dopo avere
effettuato la pulizia intorno all’area
destinata.
Smaltire correttamente tutti i
residui dell’imballo differenziando le
vari tipologie di materiali.
Il bruciatore non dev'essere messo
in funzione in locali in cui siano
presenti vapori aggressivi (ad es.
lacca per capelli, percloroetilene,
tetracloruro di carbonio), notevole
accumulo di polvere o forte umidità
dell'aria (ad es. lavanderie). Una adeguata
ventilazione deve essere fornita nel locale
dell’installazione in modo da garantire le
condizioni per una buona combustione.
Si esclude qualsivoglia
responsabilità per eventuali
danni derivanti dalle seguenti
cause:
- utilizzo non conforme.
- montaggio difettoso e/o riparazione a
cura dell'acquirente o terzi, ivi inclusa
l'applicazione di elementi di origine
estranea.
Consegna e istruzioni per l'uso
Il costruttore dell'impianto di combustione
è tenuto a consegnare al gestore del-
l'impianto, al più tardi all'atto della con-
segna dello stesso, le istruzioni per l'uso e
la manutenzione. Queste istruzioni devono
essere appese nel locale di installazione
del generatore termico in modo ben visi-
bile. Devono essere indicati l'indirizzo ed il
numero telefonico del punto di assistenza
più vicino.
WARNING
WARNING
DANGER
ATTENZIONE
Introduzione
Il manuale di istruzione è fornito con il
bruciatore:
- fornisce importanti indicazioni ed
avvertenze sulla sicurezza
nell’installazione, la messa in funzione,
l’uso e la manutenzione del bruciatore.
- è progettato per essere utilizzato da
personale qualificato.
Simbologia utilizzata nel manuale
Pericolo massimo, indica
operazioni che possono causare
lesioni gravi, morte o rischi per la
salute a lungo termine, se non
eseguite correttamente.
Attenzione, indica operazioni che
possono causare lesioni gravi,
morte o rischi per la salute a lungo
termine, se non eseguite
correttamente.
Cautela, indica operazioni che
possono causare danni alla
macchina e/o lesioni alle persone,
se non eseguite correttamente.
Pericolo: componenti in
tensione.
Pericolo : materiale infiammabile.
Pericolo: ustioni.
Pericolo: schiacciamento degli
arti.
Obbligo di montare le coperture, e tutti i
dispositivi di sicurezza e protezione.
DANGER
WARNING
CAUTION
Protezione ambientale
Questo simbolo fornisce indicazioni
per l'uso della macchina nel rispetto
dell'ambiente.
Informazioni importanti
Questo simbolo indica
informazioni importanti che è
necessario tenere a mente.
WARNING
WARNING
CAUTION

18 www.ecoflam-burners.com
IT
420010372902
3
Y
M1
F6
16
113 103B
5
8
A1
10
15
Contenuti generali - Descrizione del bruciatore
Targa dati
La manomissione, l’asportazione, la
mancanza della targhetta del bruciatore o
quant’altro, non permettono la sicura
identificazione del bruciatore e rendono
difficoltosa qualsiasi operazione di
installazione e manutenzione.
Avvertenza per il gestore
L'impianto dev'essere controllato almeno
una volta l'anno da un tecnico specia-
lizzato. Al fine di garantire un'esecuzione
regolare, si suggerisce di stipulare un
contratto per la manutenzione
dell'impianto.
Descrizione del bruciatore
I bruciatori MAX GAS sono bruciatori
monostadio completamente automatici La
geometria della testa di combustione
permette di ottenere bassi livelli di NOx e
di incombusti, massimizzando quindi il
rendimento del generatore. Le emissioni
possono essere diverse da quelle
riscontrate nel laboratorio di prova in
quanto dipendono molto dal generatore sul
quale il bruciatore è installato.
L’installatore deve rispettare le normative
vigenti. Per esempio sono da evitare locali
con atmosfere pericolose o non ventilate.
Imballaggio
Il bruciatore è consegnato con un sistema
modulare di imballo (scatole separate):
BBCH: Brucitore completo con testa di
combustione e flangia.
- 1 sacchetto : - manuale tecnico in multilingue.
- spina wieland.
- viti, dadi e rosette.
GT: Rampa Gas separata
KIT & ACS ordinabili e consegnati separatamente
KIT & ACS ordinabili e
consegnati separatamente
A1 E_BCU GAS programmatore di comando
e sicurezza gas
F6 Pressostato aria
M1 Motore elettrico
T1 Trasformatore d'accensione
Y Asta graduata per regolazione testa
3 Regolazione dell'aria nella testa di
combustione
5 Fusione
8 Boccaglio
10 Presa Wieland
15 Flangia bruciatore
16 Pulsante Reset
103B Regolazione dell’aria
113 Cuffia aria
Per ogni altro utilizzo e necessaria l'autorizzazione della Ecoflam.
WARNING
MAX GAS 170 LN P TC TW
MAX GAS Gas
NOME
MAX GAS 170175 kW
MODELLO
LN L N Classe 3 GAS EN676 (<80 mg/kWh)
EMISSIONI
P1 stadio
TIPO DI FUNZIONAMENTO
TC Testa corta
TL Testa lunga
TIPO TESTA
Gas Naturale
LPG Gas Propano
APPARECCHIATURA DI CONTROLLO
TW Ariston E-BCU
COMBUSTIBILE

19
www.ecoflam-burners.com
IT
420010372902
1108106
119
Y12104 F4119.1119 pBr Y13
119.2
F6
Funzione - Funzioni generali di sicurezza
Descrizione del funzionamento
Alla prima messa sotto tensione, dopo
un'interruzione di corrente e una fase di
messa in sicurezza, dopo un'interruzione
di gas o dopo un arresto di 24 ore,
comincia un tempo di preventilazione di
24 sec.
Durante il tempo di preventilazione:
- la pressione dell'aria viene monitorata.
- controllo della presenza di eventuali
segnali di fiamma anomali.
Al termine del tempo di preventilazione
- l'accensione e inserita.
- l'elettrovalvola principale e di sicurezza e
aperta.
- il bruciatore si avvia.
Sorveglianza
La fiamma viene monitorata da una sonda
di ionizzazione. La sonda e montata in
modo isolato sulla testa del gas ed e
diretta attraverso il disco fiamma nella
zona della fiamma. La sonda non deve
avere alcun contatto elettrico con
componenti messi a terra. Se compare un
cortocircuito tra la sonda e la massa del
bruciatore, il bruciatore entra in stato di
anomalia. Durante il funzionamento, nella
fiamma del gas si crea una zona
ionizzata, attraverso la quale circola una
corrente raddrizzata dalla sonda verso il
boccaglio. La corrente di ionizzazione
deve essere superiore a 1,5 μA.
Funzioni di sicurezza
- Se all'avvio del bruciatore (rilascio del
gas) non si forma la fiamma, il bruciatore
viene arrestato al termine di un intervallo
di sicurezza di max. 3 secondi, la valvola
del gas si
chiude.
- In caso di anomalia della fiamma
durante il funzionamento, l'alimentazione
del gas si interrompe nella frazione di un
secondo. Viene avviata una nuova messa
in funzione. Se il bruciatore si avvia, il
ciclo di funzionamento prosegue. In caso
contrario si instaura una fase di messa in
sicurezza.
- In caso di mancanza d'aria durante la
preventilazione o il funzionamento, si
instaura una fase di messa in sicurezza.
- In caso di mancanza di gas, il bruciatore
non si mette in funzione e/o si arresta.
Segue un tempo di attesa di 2 minuti al
termine del quale avviene un nuovo
tentativo di avvio. Se la mancanza di
pressione del gas perdura, si avvia un
nuovo tempo di attesa di 2 minuti.In
questo caso, il tempo di attesa puo essere
interrotto esclusivamente dallo
spegnimento del bruciatore. Tempo di
attesa: 3 x 2 min., poi 1 ora.
Arresto di regolazione
- Il termostato di regolazione interrompe la
richiesta di riscaldamento.
- Le valvole gas si chiudono.
- La fiamma si spegne.
- Il motore del ventilatore si ferma
- Il bruciatore e pronto per il
sucessivo funzionamento.
F4 Pressostato gas minima
F6 Pressostato aria
Y13 Elettrovalvola gas
Y12 Elettrovalvola gas di sicurezza
1Valvola di sicurezza ad azionamento termico (deve essere
montata dall'installatore)
104 Regolatore di pressione gas
106 Filtro
108 Valvola di arresto del gas (deve essere montata
dall'installatore)
119pBr Punto di misurazione della pressione del gas all'uscita
della valvola
119.1 Punto di misurazione della pressione del gas tra le valvole
119.2 Punto di misurazione della pressione dell'aria

20 www.ecoflam-burners.com
IT
420010372902
Simbolo Descrizione
Aspetta una richiesta di calore
Valvole gas
Aspetta il pressostato aria all'avvio del bruciatore
Motore acceso
Trasformatore di accensione acceso
Fiamma presente
R - Pulsante di reset + led
segnalazione blocco.
RJ45 - Connettore per collegamento
PC(diagnostica, fornita
separatamente).
Funzione - Programmatore di comando e sicurezza E-BCU GAS
KIT E-BCU
tool diagnostico
(non incluso)
LINE
1
Max 5s 33s 3s
25s
5s --- -< 1s
23 4 4’ 5 6 7 8 9
C
24s
Il programmatore di comando e sicurezza
gas E-BCU GAS comanda e sorveglia il
bruciatore ad aria soffiata. Grazie al pro-
gramma gestito dal microprocessore, si
ottengono tempi estremamente stabili, in-
dipendentemente dalle oscillazioni della
tensione di rete o della temperatura am-
biente. Il programmatore di comando e si-
curezza e progettato per essere sicuro in
caso di sottotensione. Se la tensione di
rete scende al di sotto del valore minimo
richiesto (170 V), il programmatore di co-
mando si disattiva senza alcun segnale
d'errore. Non appena la tensione supera i
178 V, il programmatore si riavvia automa-
ticamente.
Blocco e sblocco
Il programmatore di comando puo essere
bloccato (portato in condizione di anoma-
lia) e sbloccato (rimozione anomalia) me-
diante il pulsante R a condizione che nel
programmatore di comando sia presente
tensione di rete.
Prima del montaggio o dello
smontaggio del programmatore
di comando l'apparecchio
dev'essere a tensione nulla.
Il programmatore di comando
non dev'essere aperto nè
riparato.
R
RJ45
DANGER
