Ecoflam Multiflam 500.1 PR User manual

GASTEC
LB1292
01.10.2003
Multiflam 500.1 PR
Multiflam 600.1 PR
Heavy oil / Natural Gas 500 mbar
MODEL
techniques for energy saving
GAS / HEAVY-OIL DUAL BURNERS

pag.2
tecniche per il risparmio energetico
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
Models MULTIFLAM 500.1 PR MULTIFLAM 600.1 PR
Thermal power max. kW 5000 5800
kcal/h 4.310.000 5.000.000
Thermal power min. kW 1200 1500
kcal/h 1.034.500 1.290.000
Max. capacity (Natural Gas) Nm3/ h 500 580
Min. capacity (Natural Gas) Nm3/ h 120 150
Gas pressure mbar 500 500
Max. heavy oil flow rate kg/h 440 510
Min. heavy oil flow rate kg/h 105 132
Voltage 50 Hz V 230/400 230/400
Motor kW 11 15
Rpm N° 2800 2800
Fuels:Nat. Gas LHV = 35,9 Mj/Nm3= 8.570 kcal/Nm3; Heavy oil 9.800 kcal/kg max. viscosity 50° E a 50° C
mbar
1500 2000 2500 3000 3500 4000 4500 5000 5500
10
12
14
16
1000
18
20
22
-2
-4 kW
6000
0
2
4
6
8
500
MULTIFLAM 500.1
MULTIFLAM 600.1
WORKING FIELDS
Burner output
Backpressure in combustion chamber
ED-D1
F
G
C
BA
I
L
M
H
1068
600
SUNTEC
SUNTEC
SUNTEC
0
12
0- STOP
1- GASOLIO
2- GAS 0
AUTO
OVERALL DIMENSIONS
MODELS ABCDD1EFGHI LM
Multiflam 500.1 1426 543 883 375 575 910 320 600 400 330 330 M16
Multiflam 600.1 1426 543 883 375 575 910 320 600 400 330 330 M16
D= Short head
D1= Long head

pag.3
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
CONNECTION TO THE GAS PIPELINE
Once connected the burner to the gas pipeline, it is necessary to control that this last is perfectly sealed. Also verify that the
chimney is not obstructed. Open the gas cock and carefully bleed the piping through the pressure gauge connector, then check
the pressure value trough a suitable gauge. Power on the system and adjust the thermostats to the desired temperature. When
thermostats close, the sealing control device runs a seal test of valves; at the end of the test the burner will be enabled to run the
start-up sequence.
ELECTRICAL CONNECTIONS
All burner motors are tested at 400 V 3phase at 50 Hz, whilst auxiliaries are tested at 230V 1phase at 50 Hz.
Should it be necessary to power the burners at 230V/50Hz 3phase without neutral, carry out the necessary modifications accor-
ding to the burner’s wiring diagram, and check that the thermal relay is within the absorption field of the motor.
BURNER START-UP
Before starting the burner, make sure it is mounted correctly. Then check connections are correct according to the
diagram and piping is appropriate to the system. Before connecting the burner to the electricity supply, make sure
voltage corresponds to burner plate data. The connection diagram and start-up cycle are shown separately. For
wiring from control box to burner, see the enclosed connection diagram. Pay particular attention to neutral and
phase connections : never exchange them!. Vent air and impurities of gas pipe. Check gas pressure conforms to the
limits stated on the burner plate when connecting a master gauge to the test port provided
on the burner. Blower motor starts and pre-purging begins. Since pre-purging has to be car-
ried out with the max. air delivery, the burner control circuit turns the air damper to the
max. delivery position by the air servocontrol in approximately 30 seconds time. When the
servocontrol is fully open, a signal to the electronic control unit starts the 66 seconds pre-
purge cycle. At the end of the prepurging time, the air servocontrol gets to the Low Flame
position so that burner ignition is ensured at min. output. Simultaneously the ignition transformer receives voltage
and after 3 seconds (pre-ignition) opens the pilot gas valve. Fuel flows to the combustion head and ignites. Two
seconds after pilot gas valves have opened, the ignition transformer is excluded from the circuit. In case of no igni-
tion the burner goes to lock-out within two seconds. After 6 sec. open the working gas valve, governed by the gas
firing butterfly valve.Now the burner is operating at the min. firing rate (about 30% of the max. firing rate). The air
servocontrol runs at the Low Flame position and in case the temperature control has to be set at the max. output it
goes to a fully open position of air damper and butterfly valve. During the burner-off periods the air damper closes
up fully.
0
12
0 - STOP
1 - GASOLIO
2 - GAS
ADJUSTING THE COMBUSTION PROCESS
IMPORTANT: to obtain the right adjustment of the combustion and thermal capacity it is important to analyze
the reducts of combustion with the aid of suitable instruments. The combustion and thermal capacity adjustment is
done simultaneously, together with the analysis of the products of combustion, making sure that the measured
values are suitable and that they comply with current safety standards. On this matter, please refer to the table and
figure below. THESE OPERATIONS MUST BE DONE BY PROFESSIONALLY-QUALIFIED TECHNICIANS.
NOTE: ALL SAFETY DEVICES (AIR PRESSURE SWITCH, MINIMUM GAS PRESSURE SWITCH, GAS
SOLENOID VALVES AND GAS GOVERNOR) SHALL BE DULY SEALED AFTER CALIBRATION AND
BURNER START UP BY ECOFLAM’S TECHNICIANS.
Heavy oil

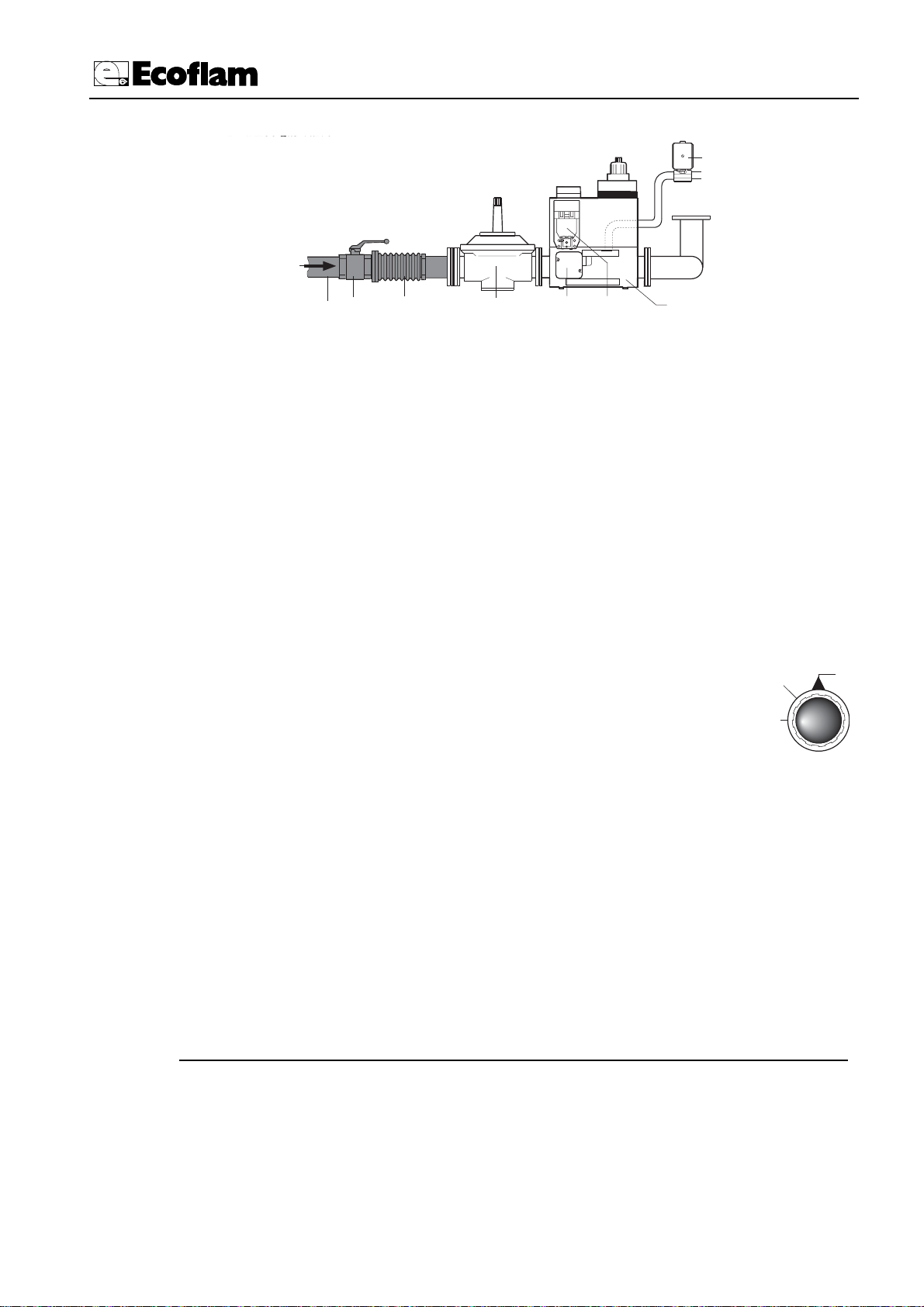

GAS TRAIN INSTALLATION
Max. pressure 50 mbar
4
4
Pilot
gas
valve
5 - Gas governor and filter (Optional)
6 - Min. gas pressure switch
7 - Leakage control device (Optional)
8 - Gas valve
1235678
1 - Main gas pipe
2 - Ball valve
3 - Antivibration coupling
4 - Pilot gas valve
5 - Gas governor and filter
6 - Gas pressure switch
7 - Leakage control
8 - Working gas valve

pag.4
tecniche per il risparmio energetico
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
The control box starts the burner
fan, to carry out the prepurging of
the combustion chamber, and
cheks the vent air pressure through
the air pressure switch. At the end
of prepurging, the ignition tran-
sformer cuts-in and generates a
spark between the electrodes. At
the same time the two gas valves
open (Vs safety valve and Vl working valve). The total safety, in case of missed ignition or casual burner's flame-out,
is granted by a ionisation probe which cuts-in and sets the burner shutdown within the safety time. In case of gas
lack or a major pressure drop, the minimum air pressure switch shuts down the burner.

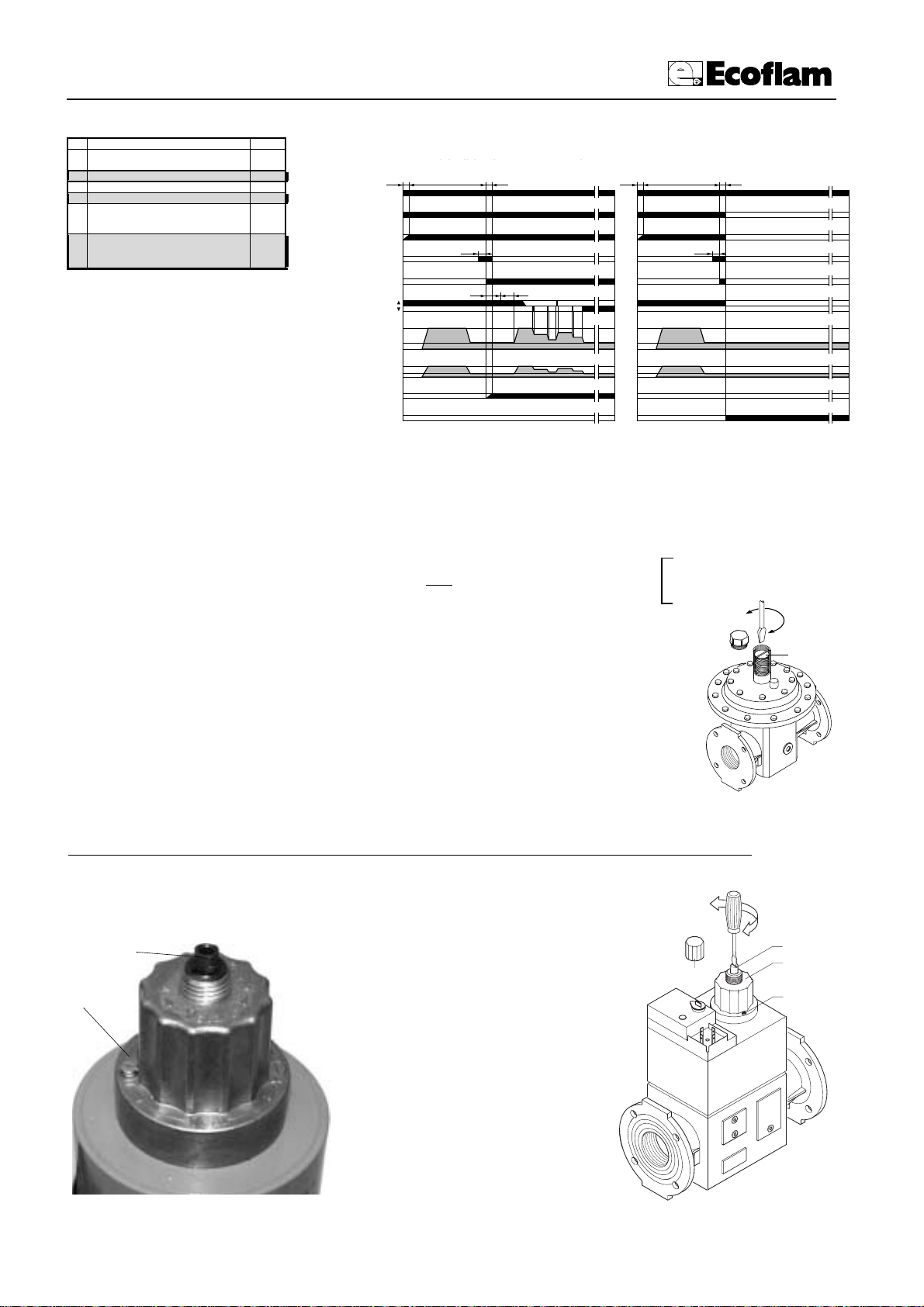

LANDIS & STAEFA, Model LFL1.622 OPERATING CYCLE
Ref. Description
t1 Duration Waiting time for confirmation
t2 of air pressure
t3 Preventilation time
t4 Safety time
t5 Pressurizing time
Time for enabling operation of the
main gas valve on minimum capacity
t6 Time for enabling operation of the
main gas valve on maximum capacity
Duration
8”
66”
2”
4”
10”
10”
Rivelazione
di fiamma
Spia di blocco
Valvola gas
Serranda aria
Serranda gas
Trasformatore
di accensione
Pressostato aria
Motore ventilatore
Pressostato gas
0
min
100%
t1 t2
t4
t3
t6t5
Ciclo di funzionamento normale Ciclo di funzionamento
in mancanza di fiamma all'accensione
t1 t2
t4
t3
Consenso
min./max. potenza
Gas manostat
Fan motor
Air Switch
Ignition transformer
Gas valve
Min/max capacity
enabling device
Air damper
Gas damper
Flame detector
Cut-out pilot lamp
Normal operating cycle Operating cycle in the event of
ignition failureNormal operating cycle
ADJUSTING THE PRESSURE REGULATOR
The pressure regulator, complete with its incorporated filter, must be installed to avoid conta-
minants reaching the gas valve. It is important to ensure certain conditions: The pressure of the
gas must not exceed the established maximum pressure. To increase the pressure of the gas sup-
ply, tighten screw C; to reduce the pressure, loosen screw C. After making any adjustments, put
the cap back in place.
+
–
C

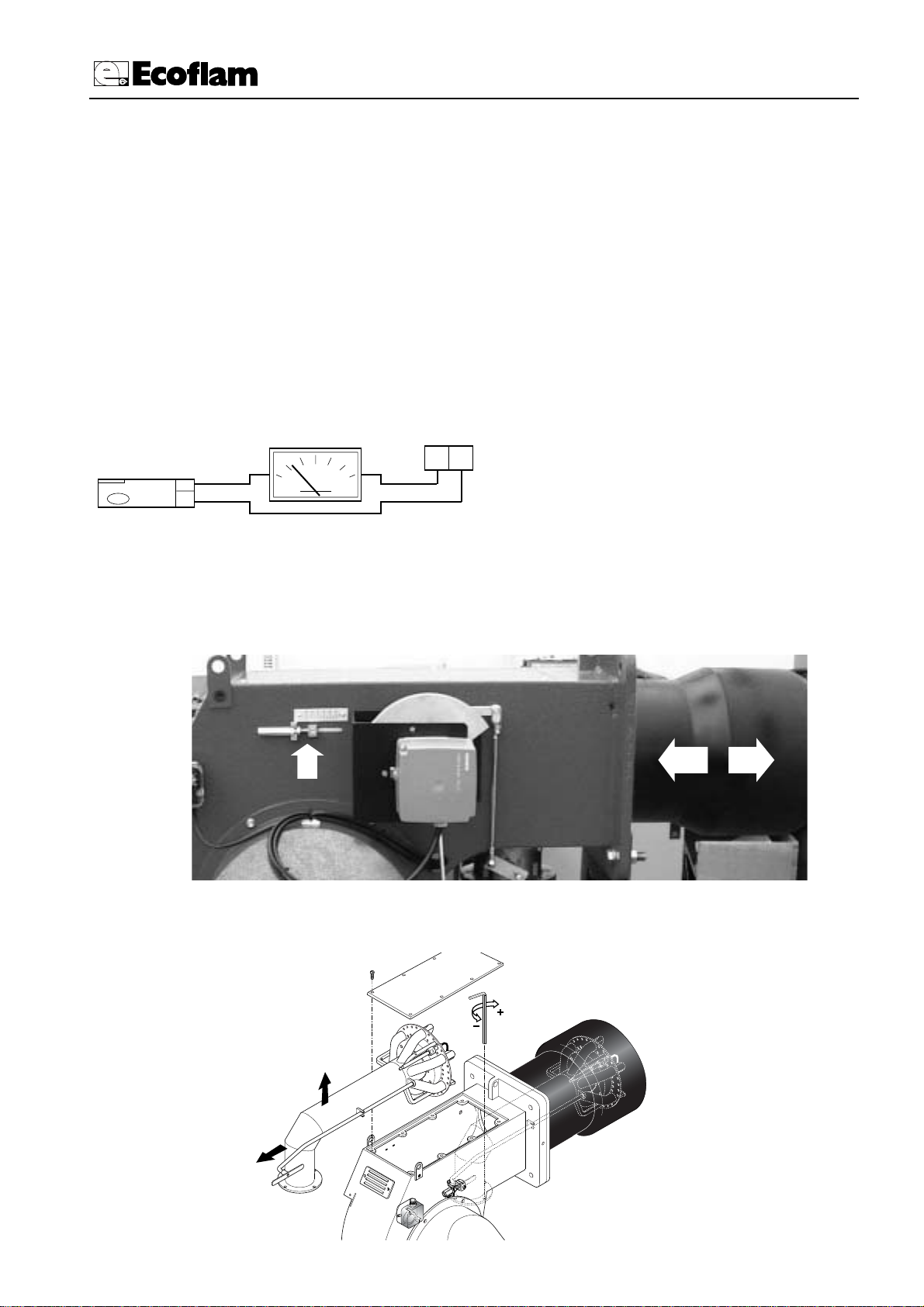

CALCULATING THE BURNER CAPACITY
To calculate the burner's capacity in kW, proceed as follows: Check the gas flow rate (in liters)
on the counter and the time of the reading in seconds.
Proceed with the calculation using the following formula: x f = kW
e
sec
e=Litres gas
sec = Time in second
G20 = 34,02
G30 = 116
G31 = 88
f

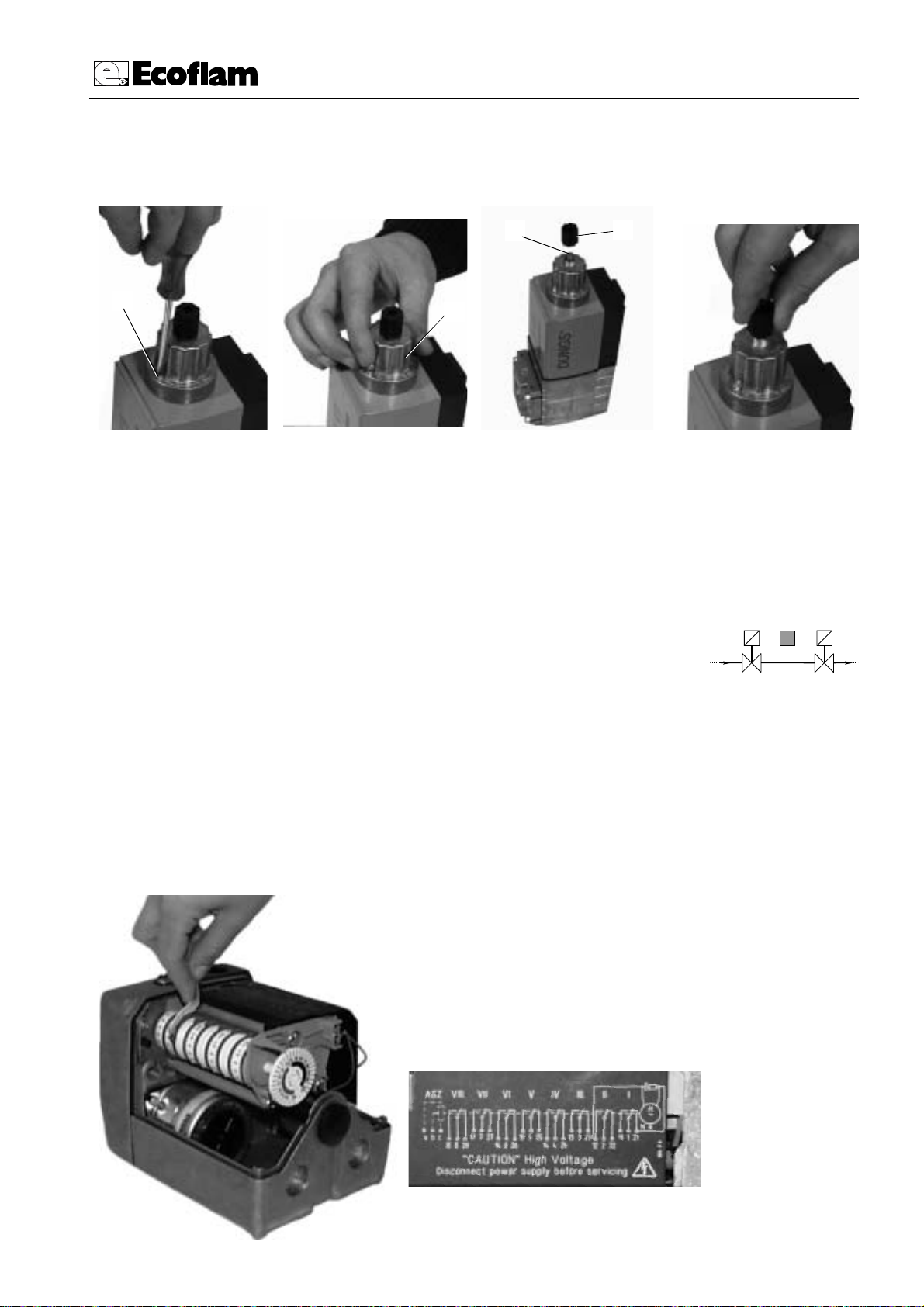

ADJUSTMENT OF GAS SOLENOID VALVES
The ignition flow rate is carefully adjusted. during test phase to 1/3 of the maximum flow rate (according to specifications).
Operations for eventual further adjustment must be carried out by skilled personnel authorized by ECOFLAM.
DUNGS DMV-DLE
To adjustment gas output, loosen the screw R and turn the knob P as required. To
reduce output, turn knob clockwise, to
increase it turn knob counterclockwise.
Tighten the screw R. For fast opening
adjustment, remove the cap T and
insert it in the pin Q with its groove
up. To reduce firing output screw it up,
to increase, unscrew it.
Q
R
+
–P
R
Q
T

pag.5
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
LANDIS & STAEFA SQM 50.381A2 AIR DAMPER MOTOR
Remove cover to gain access to the adjusting cams.The cams are to be adjusted through the suitable key provided
for. Description:
R
QT
P
DUNGS SV-DLE
To adjustment gas output, loosen the screw R and turn the knob P as required. To reduce output, turn knob
clockwise, to increase it turn knob counterclockwise. Tighten the screw R. For fast opening adjustment, remove the
cap T and insert it in the pin Q with its groove up. To reduce firing output screw it up, to increase, unscrew it.
LEAKAGE CONTROL DEVICE DUNGS VPS 504-VDK 200
When the thermostats are closed, the gas leakage control device checks the valve seals by pressurizing the circuit
between the two gas valves. When test pressure is reached the device remains in stand-by for about 25 seconds. At
the end of the test the yellow pilot light on the control device lights up and the burner is enabled to carry out the
start-up cycle. If the seal on one of the valves is faulty and this causes a drop in test pressure, the device puts the
system into the safety condition and the red pilot right on the device lights up. The flame
control device starts the burner fan to carry out prewashing of the combustion
chamber,checking fan air pressure via the air pressure switch. After preventilation the ignition
transformer starts operating, generating a spark between the electrodes and simultaneously the
gas valves open (safety gas valve VS and first stage operating valve VL). If the flame does not
ignite or goes out, total safety is ensured by an ionization detection probe. The safety time
limit in the event of no flame is less than 2 seconds at start-up and less than 1 during operation. In the event of no
gas being supplied or of a considerable drop in pressure the minimum gas pressure switch interrupts burner opera-
tion. About 20/30 seconds after ignition the flame control device commands operation of the second stage via the
gas valve and air servocontrol, thus taking the burner to maximum power.
VLVS
DISPOSITIVO
CONTROLLO
TENUTA
LEAKAGE
CONTROL
DEVICE
I-High flame operating opening position adjusting cam (Heavy-Oil /Gas)
II -Ignition flame opening position adjusting cam (Gas).
III -Low flame operating opening position adjusting cam (Gas)
IV -Ignition flame opening position adjusting cam(Heavy-Oil)
V-Low flame operating opening position adjusting cam (Heavy-Oil)
VI -Not used cam
VII -Not used cam
VIII -Not used cam
Manual change

pag.6
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
tecniche per il risparmio energetico
ADJUSTMENT OF GAS MINIMUM PRESSURE SWITCH
Unscrew off and remove cover M. - Set regulator N to a value equal to 60% of gas nominal feed
pressure (i.e. for nat. gas nom. pressure = 20 mbar, set regulator to a value of 12 mbar; for L.P.G.
nom. pressure of G30/G31- 30/37 mbar, set regulator to a value of 18 mbar).Screw up cover M
ADJUSTMENT OF THE AIR PRESSURE SWITCH
Unscrew screws A and B and remove cover C.- Set the pressure switch to the minimum by
turning regulator D to position 1.
- Start the burner and keep in low flame running, while checking that combustion is cor-
rect. Through a small cardboard, progressively obstruct the air intake until to obtain a
CO2 increase of 0,5÷0,8% or else, if a pressure gauge is available, connected to pressure
port E, until reaching a pressure drop of 1 mbar (10 mm of W.G.). - Slowly increase the
adjustment value of the air pressure switch until to have the burner lockout. Remove the
obstruction from the air intake, screw on the cover C and start the burner by pressing the
control box rearm button.
Note: The pressure measured at pressure port E must be within the limits of the pressu-
re switch working range. If not, loose the locking nut of screw F and gradually turn the
same: clockwise to reduce the pressure; counterclockwise to increase. At the end tighten the
locking nut.
2,5
5
10
15
50
25
35
30
40
45
20
0,4
0,6
0,9
3,0
1,5
2,1
1,8
2,4
2,7
1,2
I
L
MN
A
B
CD
E
F
GH
Gas pressure
switch
Air pressure
switch
+--
Part. 1
Part. 2
Part. 3
-+ -
COMMUTATORE
0
AUTO
0 = bloccaggio degli apparati per il
funzionamento in una posizione intermadia
= funzionamento alla massima potenza
= funzionamento alla minima potenza
AUTO = funzionamento automatico
AIR ADJUSTMENT
operating elements locked in an intermediate
position
operation on maximum capacity
operation on minimum capacity
automatic operation
SELECTOR
ADJUSTING THE MINIMUM CAPACITY OF THE BURNER – AIR and GAS
Position the selector placed on the control panel on position 2 and proceed as follows:
Adjust the minimum gas flow rate using a suitable wrench, turn the butterfly valve until you reach the correct gas
flow, as established by analyzing the combustion process.
ADJUSTING THE MAXIMUM CAPACITY OF THE GAS
Position the selector, situated on the control panel, on position 1 and proceed as follows:
Adjusting the maximum gas flow rate (see figure on solenoid valve adjustments) or adjust the gas pressure in the
governor.

pag.7
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
REMOVING THE FIRING HEAD
+
-
SETTING THE FIRING HEAD
ADJUSTING THE MAXIMUM AIR FLOW RATE
Adjusting the maximum air flow rate (see figure, detail 2). Loosen the nut holding the air damper transmission rod;
The correct air flow as established by analyzing the combustion process.
ADJUSTING THE INTERMEDIATE BURNER CAPACITY
Using the selector, start the servomotor (closing or opening) and position on 0 to stop the stroke; the adjustment is
made as outlined below. Repeat the operation for the other cam points.
Adjustment the intermediate gas flow rates (see figure, detail 3):
- using a suitable Allen wrench, change the position of the cam guide blade; if you screw it down, the flow rate is
reduced; if you unscrew it, the flow rate increases.
The ionization current is checked by inserting a
microammeter with an end of scale of 50 µA (d.c.)
in series with the ionization probe.
A faulty position of the electrode can lead to a
reduction in the ionization current and cause a
safety cut-out of the burner due to a flame detec-
tion failure. In this case, check the position of the
electrode, its electric connection and the earthing of the burner. The ionization current is normally > 20 µA.
IONIZATION CURRENT
22 23
LANDIS
LFL 1.622
Fotocellula
min 70 µA
Microamperometro
fondo scala 1000 µA
PHOTORESISTOR
Microamperometer
full scale 1000 µA

pag.8
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
tecniche per il risparmio energetico
CHECKS TO BE MADE TO ENSURE A PROPER INSTALLATION:
Before proceeding with the filling of the fuel system and subsequent burner start up, it is advisable to carry
out the following checks:
- Power line must be adequate to system’s adsorbed load
- Fuses must be adequate to the system’s load
- Boiler’s thermostats must have been properly connected
- Voltage and frequency must be within the specified limits
- Fuel type must be the one specified by the burner manufacturer
- Feed piping section must be adequate to the requested fuel flow rate
- Filters, cocks as well as fittings must have been properly installed
- Blast tube length must be the one specified by the boiler manufacturer
- Nozzle’s flow rate of the burner must be adequate to boiler’s output
MODULATING OPERATION
With the bumer in the start position and the appliance thermostats enabled, power is delivered to the resi-
stances (G) of the preheater and heating cartridges for the pumps and the fuel supply line to the head (O).
When the preheater thermostat reaches the set value, (usually a minimum of about 90°C is necessary to
guarantee a good level of circulation) the pump start-up is enabled (set point on out
1, if using the GEFRAN 200 thermoregulating device).
If the preheating system of the tank is also equipped for a fluid exchanger (hot water,
steam, diathermic oil) the thermostat may enable a contact in the terminal block for
any stop-start of the fluid electrovalve.
This is not a standard solution as the heated fluid is normally always connected. The pump starts to send
oil (the head has already been heated by its cartridge (O) and therefore has no residue of cold dense oil)
which flows from the tank to the head and then to the return line of the ring.
When the head thermostat reaches the set value (usually about 70-30°C the cycle starts properly and the
control programmer enables start-up. The servomotor sets itself at minimum (see chapter on regulation)
acting on the air and fùel via the pressure regulator on the return.
The electromagnet (A) opens the nozzle (Q) in the followmg condition :
-sparks from the ignition electrodes are generated by the transformer also governed by the burner
control device.
If the cell fails to detect the flame the burner shuts down (with the cyclic control programmer cutting in).
Once ignition has taken place and after the flame stabilisation period, the system starts operating in modu-
lating mode (see chapter 7).
-Before start-up make sure that the pump and delivery pipes are completely filled with hot fuel oil; the
absence of fuel oil can cause pump seizure.
-If there is a block, a specific waring light on the programmer and on the burner front control board
lights up and this signal is usually sent to the main control board of the equipment using the burner,
setting off a buzzer and warning light.
-Afew blocks are normal on first starting up (up to about 4); to release press the button on the
programmer (also found on the front of the bumer control board) for repeating the start cycle. Should
they continue to occur seek the help of a specialised technician.
N.B. The position of the programmer at the time of the block is memorised to supply an indication of the
cause of this block (see detailed instructions attached to Chapter 10).
0
12
0 - STOP
1 - GASOLIO
2 - GAS
Light oil

pag.9
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
PRIMING AND ADJUSTMENT OF OIL PUMP
1-Suction
2-Return
3-Bleed and pressure gauge port
4-Vacuum gauge port
5-Pressure adjustment
6-Nozzle outlet
7-Heating element pump
230V 50Hz
WARNING: For a correct working of the pump, verify what follows:
Pump : SUNTEC TA..C40105
Oil temperature at the pump: Max. 140 °C
Maximum allowable pressures: Max. 5 bar on inlet
PUMP’S PRESSURE / OIL TEMPERATURE DIAGRAM
Pump inlet pressure:the vaporisation of light fraction of heated heavy oil causes premature pump wear, to
avoid this, use the inlet pressures shown in the graph.
1
2
3
4
5
0
6
50 100 150
bar
Oil temperature
C°
Pump inlet pressure

pag.10
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
TYPE OF INSTALLATION
The burner must be supplied with oil heaving a min. temperature at the pump ( 50° C ).
Drawing for fluid fuel oil up to 50°E at 50°C
Hot water
Drawing for heavy fuel oil up to 50°E at 50°C
Hot
water
Return
hot water pipe
hot water pipe
oil pipe oil pipe
heating cable insulation
section
1 - Burner
2 - Tank
3 - Heater
4 - Safety/operation thermostat
5 - Level switch
6 -
7 - Filter
8 - Load pumps
9 - Holding basin
1-Burner
2-Tank
3-Heater
4-Safety/operation thermostat
5-Level switch
6-Self cleaning filter
7-Heating coil
8-Load pumps
9-Ring pumps
10 - Regulator
11 - Heating cable

pag.11
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving

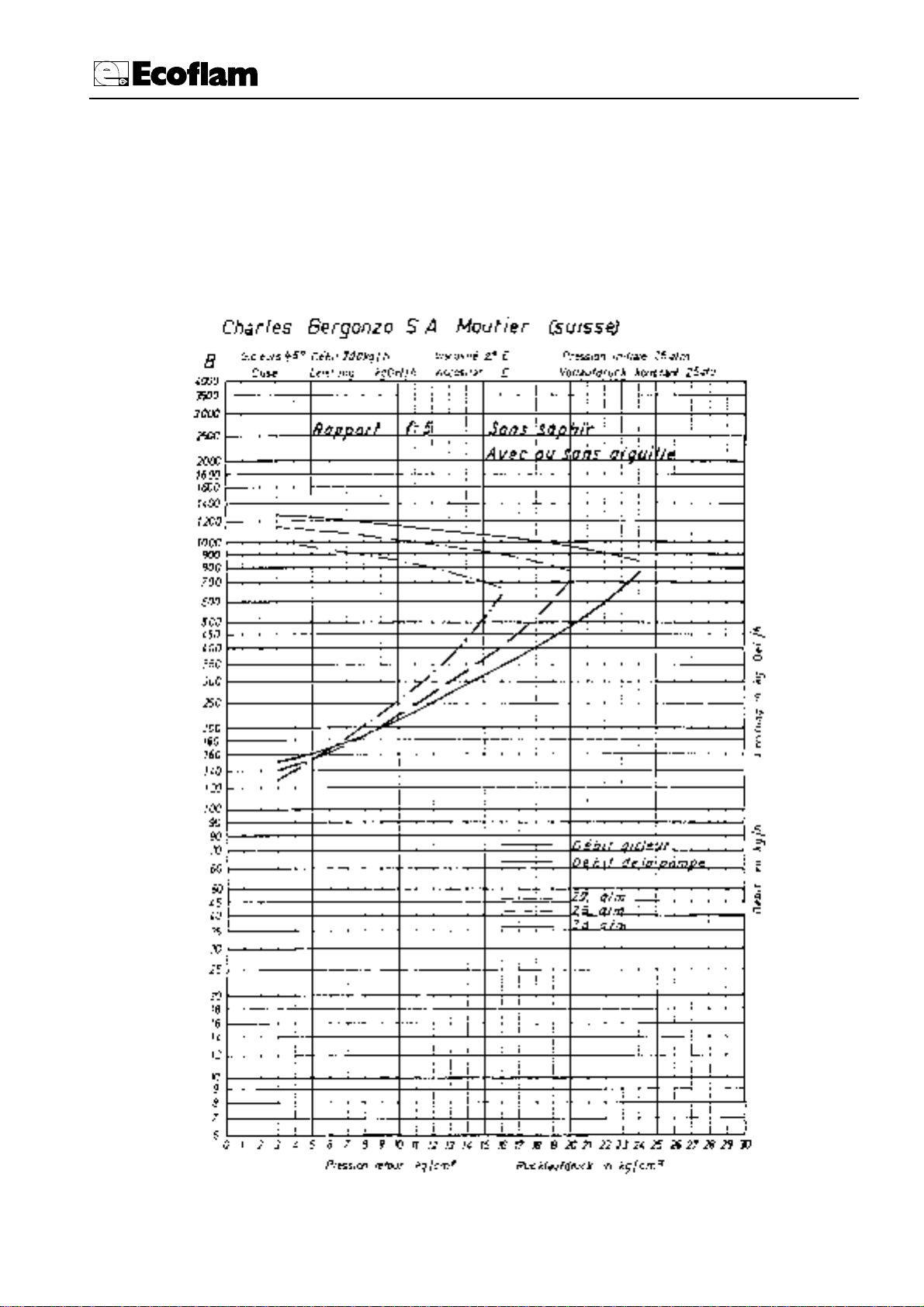

OIL DELIVERY ADJUSTMENT
The diagram illustrates the fuel feeding system of these type of burners, which incorporates a by-pass nozz-
le with oil flow regulation on its return pipe. The oil supply is varied by acting on the nozzle through the
pressure in the return line. Max. oil supply is therefore reached when the pressure in the pump line is
about 30 bar and the return line is fully closed; min. oil supply when the return line is fully open(see also
diagram BERGONZO). Relevant pressure readings in the return line are as follows (return oil pressure has
to be measured on “M” pressure gauge): - max. oil supply : 20 to 30 bar in the pump.
- min. oil supply : 3 to 24 bar in the return.

pag.12
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
I
H
E
G
N
A
D
F
QO
P

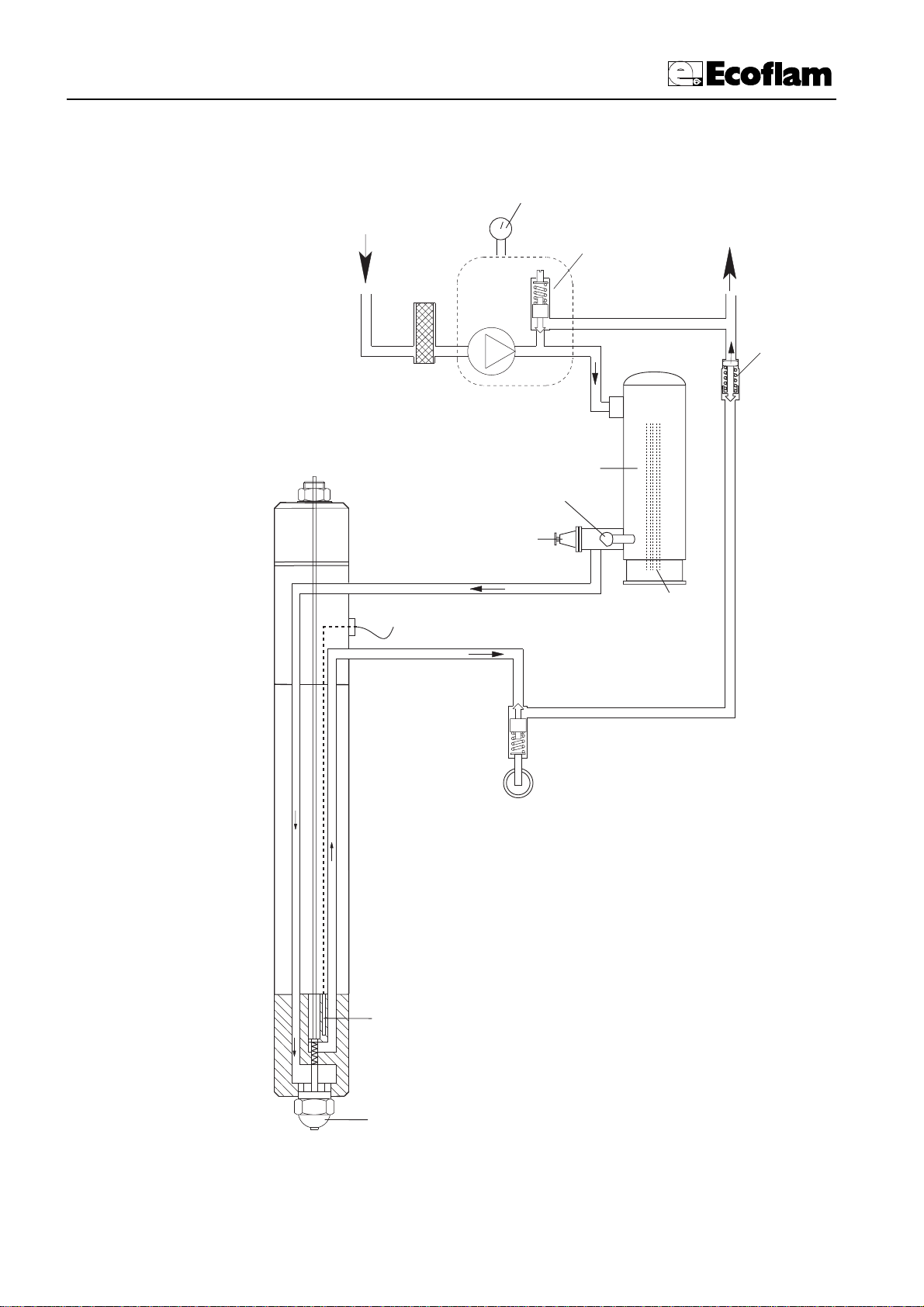

PRE - PURGING PHASE
LEGEND : ASolenoid valve (N.C.) DRegulator ETank FAnti - gas valve GResistance of the preheather HPipe filter IOil pump NManometr OResistance of combustion head POil temperature sensor QOil nozzle

pag.13
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
ADJUSTMENT OF FUEL TEMPERATURE
Increase key
Decrease key
“Function” key
Display
The display shows oil temperature.
The 4 leds are related to the following functions:
Out 1: pump start
Out 2: stage 1st resistance (1/4 of the power)
Out 3: stage 2nd resistance (1/2 of the power)
Out 4: stage 3rd resistance (1/4 of the power)
- The temperatures are already properly Factory setted :
Out 1(90°)- Out 2(115°)- Out 3(118°)- Out 4(120°).
- To modify factory temperature setting act as follows:
- press key “F”
- the led Out 1 starts to flash, if You need to modify minimum oil temperature press increase or decrease
button, after confirm the new value pressing again “F”
- if You need to modify an other temperature press again “F” untill You the relevant led flashes.
Please take care: if key “F” is pressed for a too long time, You enter in “configuration level” phase1, (see
“CF1” on the display); these parameters are Factory setted and they have not to be modified: if You enter
this function – You see “CF1” flashing on the display – wait 10 seconds untill the regulator automatically
goes out from “configuration level”.
POSITION OF IGNITION ELECTRODES
For a correct burner ignition, carefully respect the dimensions shown by the picture
5 ÷ 6 mm
3 ÷ 4 mm

pag.14
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
MAINTENANCE
YEARLY CHECKS
The burner’s periodical check (firing head, electrodes etc.) must be carried out by authorised personnel one or two times per
year, depending on the utilisation. Before going on with the maintenance controls of the burner, it should be advisable to check
its general conditions, according to the following steps:
Unplug the burner; close the fuel cock; shut down the gas supply; remove burner’s cover and clean the fan and air intake; clean
the firing head and check the electrode’s position; reassemble all the parts; check the connection’s sealing; check the chimney;
start the burner and check the combustion flue (CO2 = 9.5 ÷ 9.8; O = lower than 75 ppm).
BEFORE EVERY INTERVENTION CHECK:
The electric system is duly powered and the burner is plugged in.
The gas pressure must be the suitable one and the gas cock open.
The control devices must be properly connected.
When all the above conditions are met, start the burner by pressing the lockout enable pushbutton.
Check the burner’s cycle.
THE BURNER DOES NOT START:
Check the ON/OFF switch, the thermostats, the motor and the gas pressure.
The master switch is in position “0”. Fuses are blown out.
The control box is faulty.
THE BURNER RUNS THE PREPURGING AND SWITCHES TO LOCKOUT AT THE END OF CYCLE:
Check the fan and the air pressure.
Check the air pressure switch.
Control box faulty. Ignition transformer faulty.
Check the ignition cable. Electrodes are dirty or in wrong position.
Nozzles are clogged or worn. Filters are clogged. Light-oil pressure is too low.
Combustion air’s flow rate too high related to nozzle output.
THE BURNER RUNS THE PREPURGING BUT DOES NOT IGNITE:
Check the position of the electrodes; check the ignition cable;
Check the ignition transformer;
Check the control box.
THE BURNERS IGNITES BUT SWITCHES TO LOCKOUT AFTER THE SAFETY TIME:
Check phase and neutral for a correct connection.
Check gas solenoid valve.
Check the position of ionisation probe and its connection.
Check the control box.
Check nozzles (clogged or worn).
The photoresistor does not detect the flame.
The filters are clogged. Light-oil pressure too low.
Combustion air’s flow rate too high related to nozzle output.
A - main switch I/0
B - operating lamps (orange=light-oil; green= gas)
C - Selector switch:
0 = Loking of devoices for operating at intermediate outputs
= Operation at max. output
= Operation at min. output
AUTO = Automatic operation
D - ON/OFF switch
E - Fuse holder
F - Selector:
0 = STOP
1 = Light-oil operation
2 = Gas operation
3funzionamento automatico
A
B
C
D
E
F
0
12
0 - STOP
1 - GASOLIO
2 - GAS 0
AUTO
DESCRIPTION OF CONTROL PANEL
Heavy

pag.15
LB1292 MULTIFLAM 500.1 PR - 600.1 PR
techniques for energy saving
THE BURNERS IGNITES BUT SWITCHES TO LOCKOUT AFTER FEW MOMENTS:
Check gas governor and gas filter.
Check gas pressure through a manometer.
Check ionization value (min. 70 µA).
THE BURNER DOES NOT SWITCHES TO HIGH FLAME:
Manual selector switch in wrong position.
Faulty control box. High flame solenoid valve’s coils faulty.
Air damper’s jacket faulty or wrongly adjusted.

La ECOFLAM S.p.A si riserva il diritto di apportare ai prodotti quelle modifiche che riterrà necessarie o
utili, senza pregiudicarne le caratteristiche principali.
Ecoflam S.p.A.
via Roma, 64 - 31023 RESANA (TV) - Italy - tel. [phone] r.a.
telefax 0423/715444 (Italy 480009 - Export 480873, 715538).
http://www.ecoflam.it - e-mail: [email protected]
ECOFLAM S.p.A. reserves the right to make any adjustments, without prior notice, which it considers necessary or useful
to its products, without affecting their main features.
