About the Manual
The manual consists of the following:
Chapter 1
Introducing the Mainboard Describes features of the mainboard,
and provides a shipping checklist.
Go to ⇒page 1
Chapter 2
Installing the Mainboard Describes installation of mainboard
components.
Go to ⇒page 6
Chapter 3
Using BIOS Provides information on using the BIOS
Setup Utility.
Go to ⇒page 24
Chapter 4
Using the Mainboard Software Describes the mainboard software.
Go to ⇒page 45
iii
T
TA
AB
BL
LE
E
O
OF
F
C
CO
ON
NT
TE
EN
NT
TS
S
Preface i
Features and Packing List Translations 錯誤! 尚未定義書籤。
CHAPTER 1 1
Introducing the Mainboard 1
Introduction............................................................................................................1
Checklist.................................................................................................................1
Standard Items ...................................................................................................1
Features..................................................................................................................2
Choosing a Computer Case................................................................................3
Mainboard Components.......................................................................................4
CHAPTER 2 6
Installing the Mainboard 6
Safety Precautions................................................................................................6
Quick Guide...........................................................................................................6
Installing the Mainboard in a Case.....................................................................7
Checking Jumper Settings...................................................................................7
Setting Jumpers .................................................................................................7
Checking Jumper Settings.................................................................................8
Jumper Settings.................................................................................................8
Connecting Case Components.........................................................................10
The Panel Connectors......................................................................................11
Installing Hardware.............................................................................................12
Installing the Processor...................................................................................12
InstallingMemoryModules............................................................................15
Installing a Hard Disk Drive/CD-ROM ..........................................................16
Installing a Floppy Diskette Drive ..................................................................17
InstallingAdd-on Cards..................................................................................18
Connecting Optional Devices..........................................................................20
ConnectingI/ODevices.....................................................................................22
External Connector Color Coding...................................................................23
CHAPTER 3 24
Using BIOS 24
About the Setup Utility........................................................................................24
TheStandard Configuration............................................................................24
Entering the Setup Utility................................................................................25
Updating the BIOS..........................................................................................25
Using BIOS..........................................................................................................26
Standard CMOS Features................................................................................27
Advanced BIOS Setup Option........................................................................29
iv
Advanced Chipset Features Option.................................................................31
IntegratedPeripheralsOption..........................................................................33
Power Management Setup Option...................................................................37
PNP/PCI Configuration Option.......................................................................40
PC Health Status Option..................................................................................41
Frequency/Voltage Control..............................................................................42
LoadFail-Safe Defaults Option......................................................................43
Load Optimized Defaults Option....................................................................43
Set Password Option.......................................................................................43
Save & Exit Setup Option...............................................................................44
Exit Without Saving........................................................................................44
CHAPTER 4 45
Using the Mainboard Software 45
About the Software CD-ROM............................................................................45
Auto-installing under Windows 98....................................................................45
Running Setup.................................................................................................46
Manual Installation..............................................................................................48
Utility Software Reference.................................................................................48
1
C
Ch
ha
ap
pt
te
er
r
1
1
Introducing the Mainboard
I
In
nt
tr
ro
od
du
uc
ct
ti
io
on
n
Congratulations on purchasing the L4IBME mainboard. The L4IBME main-
board is a quality, high performance, function-enhanced mainboard based on
Intel/P4 Willamette/Northwoodprocessors.
The board offers outstanding I/O capabilities, with Ultra-DMA 33/66 bus, a
floppy controller, two serial port connectors, an EPP/ECP capable parallel port
connector, two USB connectors, a LAN connector and more. The three PCI
local bus slots and one CNR slot provides outstanding expandability for add-
on peripheral cards.
This mainboard uses a 4-layer printed circuit board and measures 244 mm x
224 mm. With system bus speeds up to 400/533MHz data bus bandwidths up
to 3.2GB/s / 4.2GB/s, this mainboard represents the most powerful desktop
and cost-effective integrated solution available today.
The L4IBME incorporates the Intel i82845E (MCH) and the Intel 82801DB
(ICH4) chipsets, which supports 2.5V DDR DRAM, 2X/4X AGP (1.5V only),
AC’ 97 codec and USB 2.0.
C
Ch
he
ec
ck
kl
li
is
st
t
Compare the mainboard’s package contents with the following checklist:
Standard Items
•One mainboard
•One diskette drive ribbon cable
•One IDE drive ribbon cable
•One auto-install software support CD
•One Retention module
•One I/O shield
•This user’s manual
2
F
Fe
ea
at
tu
ur
re
es
s
Processor The L4IBME mainboard uses a mPGA478 Socket that has the
following features:
•Accommodates Intel/P4 Willamette/Northwood 478-pins
CPU
•Supports a system bus (FSB) of 400/533 MHz
•Supports 3.2GB/s / 4.2GB/s data bus bandwidth
Chipset Intel’s innovative i82845E (MCH) and 82801DB (ICH4) chip-
sets are based on an innovative and scalable architecture with
proven reliability and performance. A few of the advanced
features of the chipsets are:
•Support a Single Processor With a Data Transfer-Rate of
400/533MHZ
•Support DDR-SDRAM at 200/266MHz Operation
(DDR200/266)
•Supports AGP 2.0 Including 1X/2X/4X AGP Data Trans-
fers and 2X/4X Fast Write Protocol.
•Maximum DRAM Address Decode Space of 4GB.
•Support for Symmetrical and Asymmetrical DRAM ad-
dressing
•PCI Rev. 2.2, 3.3V (5V Tolerant), 33 MHz Interface Com-
pliant
•PCI to System Memory Data Streaming Up to
132Mbyte/Sec
•2 Channel Ultra ATA/100 Bus Master IDE Controllers.
•Six USB 2.0 Ports for Serial Transfers at 480Mbits /Sec
Max.
•Integrated AC 97 audio that supports full surround sound
with up to six channels
Additional key features include support for an AC 97 link for audio
and modem, hardware monitoring, and ACPI/OnNow power man-
agement.
Memory The mainboard can accommodate 2.5V DDR SDRAM. It ac-
commodates two unbuffered 2.5V 184 pin slots with a DRAM
size of up to 512 MB and total maximum capacity of 2 GB.
AC’ 97 Audio
Codec The AC’ 97 Audio codec is compliant with the AC’ 97 2.2
specification, and supports 18-bit ADC (Analog Digital Con-
verter) and DAC (Digital Analog Converter) resolution as well
as 18-bit stereo full-duplex codec with independent and vari-
able sampling rates.
Expansion
Options The mainboard comes with the following expansion options:
•Three 32-bit PCI slots
•One 4xAGP slot (support 1.5V only)
•Two IDE connectors which support four IDE channels and
a floppy disk drive interface
•One Onboard LAN (optional) chip and LAN port on top of
the USB port
The L4IBME supports Ultra DMA bus mastering with transfer
rates of 33/66/100 MB/sec.
3
Integrated I/O The mainboard has a full set of I/O ports and connectors:
•Two PS/2 ports for mouse and keyboard
•Two serial ports
•One parallel port
•One MIDI/game port
•Two USB ports
•One LAN port (optional)
•Audio jacks for microphone, line-in and line-out
Onboard LAN
(optional) The Realtek RTL8100B is incorporated in the chipset providing
the mainboard with integrated Ethernet PCI LAN capabilities.
BIOS
Firmware This mainboard uses Award BIOS that enables users to con-
figure many system features including the following:
•Power management
•Wake-up alarms
•CPU parameters and memory timing
•CPU and memory timing
The firmware can also be used to set parameters for different
processor clock speeds.
C
Ch
ho
oo
os
si
in
ng
g
a
a
C
Co
om
mp
pu
ut
te
er
r
C
Ca
as
se
e
There are many types of computer cases on the market. The mainboard com-
plies with the specifications for the Micro-ATX system case. Some features on
the mainboard are implemented by cabling connectors on the mainboard to
indicators and switches on the system case. Ensure that your case supports
all the features required. The mainboard can support one or two floppy disk-
ette drives and four enhanced IDE drives. Ensure that your case has sufficient
power and space for all the drives that you intend to install.
Most cases have a choice of I/O templates in the rear panel. Make sure that
the I/O template in the case matches the I/O ports installed on the rear edge
of the mainboard.
This mainboard has a Micro-ATX form factor of 244 mm x 224 mm. Choose a
case that accommodates this form factor.
4
M
Ma
ai
in
nb
bo
oa
ar
rd
d
C
Co
om
mp
po
on
ne
en
nt
ts
s
5

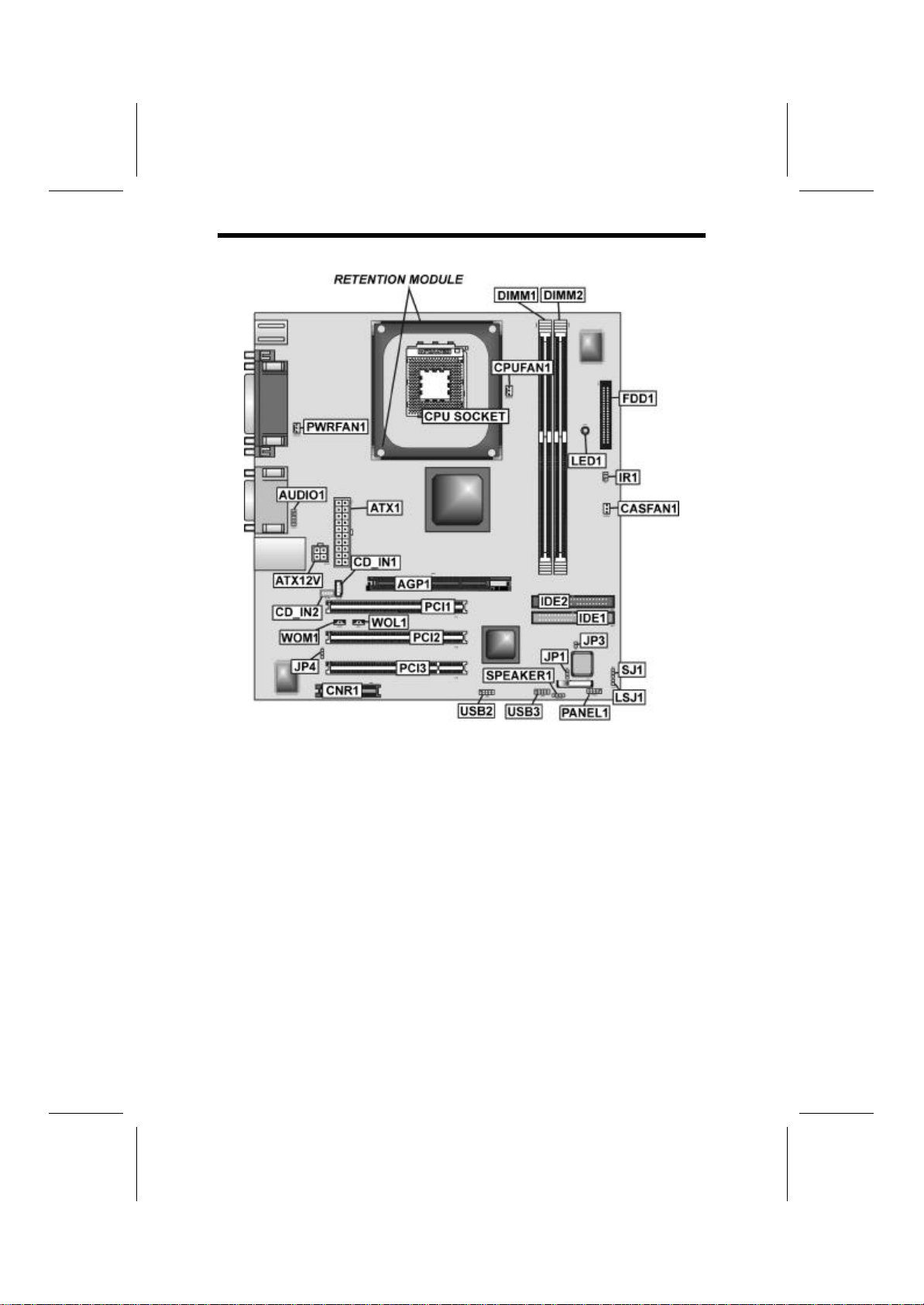

Table of Mainboard Components
Label Component
AGP1 Accelerated Graphics Port
ATX12V Power connector (4 pin)
ATX1 Standard 20-pin ATX power connector
AUDIO1 Front panel MIC/Speaker Out header
BT1 Three volt realtime clock battery
CASFAN1 Case fan connector
CD_IN1 Primary CD-in connector
CD_IN2 Secondary CD-in connector
CNR1 Communications and Networking Riser slot
CPUFAN1 Cooling fan for CPU
CPU Socket CPU socket (mPGA478)
DIMM1~ DIMM2 Two 184-pin DDR sockets
FDD1 Floppy disk drive connector
IDE 1 Primary IDE channel
IDE 2 Secondary IDE channel
IR1 Infrared cable header
JP1 Clear CMOS jumper
JP3 BIOS flash protect jumper
JP4 LAN select onboard LAN
LED1 Memory module LED
LSJ1* Single-color LED header
PANEL1 Panel connector for case switches and LEDs
PCI1 ~ PCI3 Three 32-bit add-on card slots
PWRFAN1 Power fan connector
SJ1 Single color LED header
SPEAKER1 Speaker connector
USB2 / USB3 Connector for front panel USB ports
WOL1 Wake On LAN wakeup connector
WOM1 Wake On Modem wakeup connector
* Reserved for OEM use only
Note: LED1 is usually connected to a light that indicates that the computer is
powered on. Do not install hardware or disconnect power cables while the
LED is on.
This concludes Chapter 1. The next chapter explains how to install the main-
board.
6
C
Ch
ha
ap
pt
te
er
r
2
2
Installing the Mainboard
S
Sa
af
fe
et
ty
y
P
Pr
re
ec
ca
au
ut
ti
io
on
ns
s
Follow these safety precautions when installing the mainboard:
•Wear a grounding strap attached to a grounded device to avoid
damage from static electricity.
•Discharge static electricity by touching the metal case of a safely
grounded object before working on the mainboard.
•Leave components in the static-proof bags they came in.
•Hold all circuit boards by the edges. Do not bend circuit boards.
Q
Qu
ui
ic
ck
k
G
Gu
ui
id
de
e
This Quick Guide suggests the steps you can take to assemble your system
with the mainboards.
The following table provides a reference for installing specific components:
Locating Mainboard Components Go to page 4
Installing the Mainboard in a Case Go to page 7
Setting Jumpers Go to page 7
Installing Case Components Go to page 10
Installing the CPU Go to page 12
Installing Memory Go to page 15
Installing an HDD and CD-ROM Drive Go to page 16
Installing an FDD Go to page 17
Installing Add-on Cards Go to page 18
Connecting Options Go to page 20
Connecting Peripheral (I/O) Devices Go to page 22
7
I
In
ns
st
ta
al
ll
li
in
ng
g
t
th
he
e
M
Ma
ai
in
nb
bo
oa
ar
rd
d
i
in
n
a
a
C
Ca
as
se
e
Refer to the following illustration and instructions for installing the mainboard
in a case:
This illustration shows an ex-
ample of a mainboard being
installed in a tower-type case:
Note: Do not overtighten
the screws as this
can stress the main-
board.
Most system cases have
mounting brackets installed in
the case, which correspond to
the holes in the mainboard.
Place the mainboard over the
mounting brackets and secure
the mainboard onto the mount-
ing brackets with screws.
2. Secure the mainboard with
screwswhereappropriate.
1. Place the mainboard
over the mounting brackets.
Ensure that your case has an I/O template that supports the I/O ports and
expansion slots on your mainboard.
C
Ch
he
ec
ck
ki
in
ng
g
J
Ju
um
mp
pe
er
r
S
Se
et
tt
ti
in
ng
gs
s
This section explains how to set jumpers for correct configuration of the main-
board.
Setting Jumpers
Use the mainboard jumpers to set system configuration options. Jumpers with
more than one pin are numbered. When setting the jumpers, ensure that the
jumper caps are placed on the correct pins.
The illustrations below show a 2-pin jumper.
When the jumper cap is placed on both pins,
the jumper is SHORT. If you remove the
jumper cap, or place the jumper cap on just
one pin, the jumper is OPEN.
This illustration shows a 3-pin
jumper. Pins 1 and 2 are SHORT.
Short Open 123
8
Checking Jumper Settings
The following illustration shows the location of the mainboard jumpers. Pin 1 is
labeled.
Jumper Settings
Jumper Type Description Setting
JP1 3-pin Clear CMOS 1-2: Normal (de-
fault)
2-3: Clear CMOS
JP1
1
JP3 2-pin Flash Protect Open: Flash (De-
fault)
Short: Flash Pro-
tect
JP3
9
JP43-pin LAN Select
On Board LAN 2-3: Disabled
1-2: Enabled JP4
1
JP1 –Enables you to clear the BIOS. Refer to the following in-
structions:
1. Turn the system off.
2. Remove all ATX power connectors (including ATX1).
3. Short pins 1 and 2 on JP1.
4. Return the jumper to the normal setting.
5. Plug in all ATX power connectors.
JP3 –Enables you to prevent the BIOS from being updated
(flashed). Open the jumper if you are going to update your
BIOS. After updating the BIOS, short the jumper to protect
the BIOS from being flashed.
JP4 –Use this jumper to enable or disable built-in LAN network
adapter.
10
C
Co
on
nn
ne
ec
ct
ti
in
ng
g
C
Ca
as
se
e
C
Co
om
mp
po
on
ne
en
nt
ts
s
After you have installed the mainboard into a case, you can begin connecting
the mainboard components. Refer to the following:
1. Connect the Pentium 4
processor auxiliary case
power supply connector
to ATX12V.
2. Connect the standard
power supply connector
to ATX1.
3. Connect the CPU cool-
ing fan cable to
CPUFAN1.
4. Connect the case cool-
ing fan connector to
either CASFAN1.
5. Connect the auxiliary
power supply cooling fan
connector to PWRFAN1.
6. Connect the case
speaker cable to
SPEAKER1.
7. Connect the case LED
cable to SJ1/LSJ1.
Note:When the system is heavily loaded,
you should install, at a minimum, an
ATX12V power supply with a 300W
capacity.
8. Connect the case switches and indicator to PANEL1.
SPEAKER1: Internal speaker pin connections
Pin Signal Name
1
2
3
4
SIGNAL
KEY
Ground
VCC
SJ1: Single color LED header
Pin Signal Name
1
2
3
ACPI LED
ACPI LED
SB5V
ACPI LED function:
S0 S1 S3 S4/S5
SJ1
1
Light Blinking Blinking Dark
11
LSJ1: Single color LED header
Pin Signal Name
1
25 VSB
SUSLED-Y
ACPI LED function:
S0 S1 S3 S4/S5
LSJ1
Dark Dark Light Dark
The Panel Connectors
The panel connector (PANEL1) provides a standard set of switch and LED
connectors commonly found on ATX or micro-ATX cases. Refer to the table
below for information:
PANEL1
Device Pins
Empty 10
N/C 9
Power ON/OFF 6, 8
Reset Switch 5, 7
Green LED
Indicator 2, 4
HDD LED +1, -3
HDD LED
(Pins 1, 3)
2 1
Reset Switch
(Pins 5, 7)
Power Switch
(Pins 6, 8)
Green LED
(Pins 2, 4)
Empty
(Pin 10)
10 9
N/C
(Pin 9)
12
I
In
ns
st
ta
al
ll
li
in
ng
g
H
Ha
ar
rd
dw
wa
ar
re
e
Installing the Processor
Caution: When installing a CPU heatsink and cooling fan make sure that
you DO NOT scratch the mainboard or any of the surface-mountresistors
with the clip of the cooling fan. If the clip of the cooling fan scrapes
across the mainboard, you may cause serious damage to the mainboard
or its components.
On most mainboards, there are small surface-mount resistors near the
processor socket, which may be damaged if the cooling fan is carelessly
installed.
Avoid using cooling fans with sharp edges on the fan casing and the
clips. Also, install the cooling fan in a well-lit work area so that you can
clearly see the mainboard and processor socket.
Before installing the Processor
This mainboard automatically determines the CPU clock frequency and sys-
tem bus frequency for the processor. You may be able to change these
settings by making changes to jumpers on the mainboard, or changing the
settings in the system Setup Utility. We strongly recommend that you do not
overclock processors or other components to run faster than their rated speed.
Warning: Overclocking components can adversely affect the reliability of
the system and introduce errors into your system. Overclocking can per-
manently damage the mainboard by generating excess heat in
components that are run beyond the rated limits.
This mainboard has a mPGA478 socket. When choosing a processor, con-
sider the performance requirements of the system. Performance is based on
the processor design, the clock speed and system bus frequency of the proc-
essor, and the quantity of internal cache memory and external cache memory.
13
CPU Installation Procedure

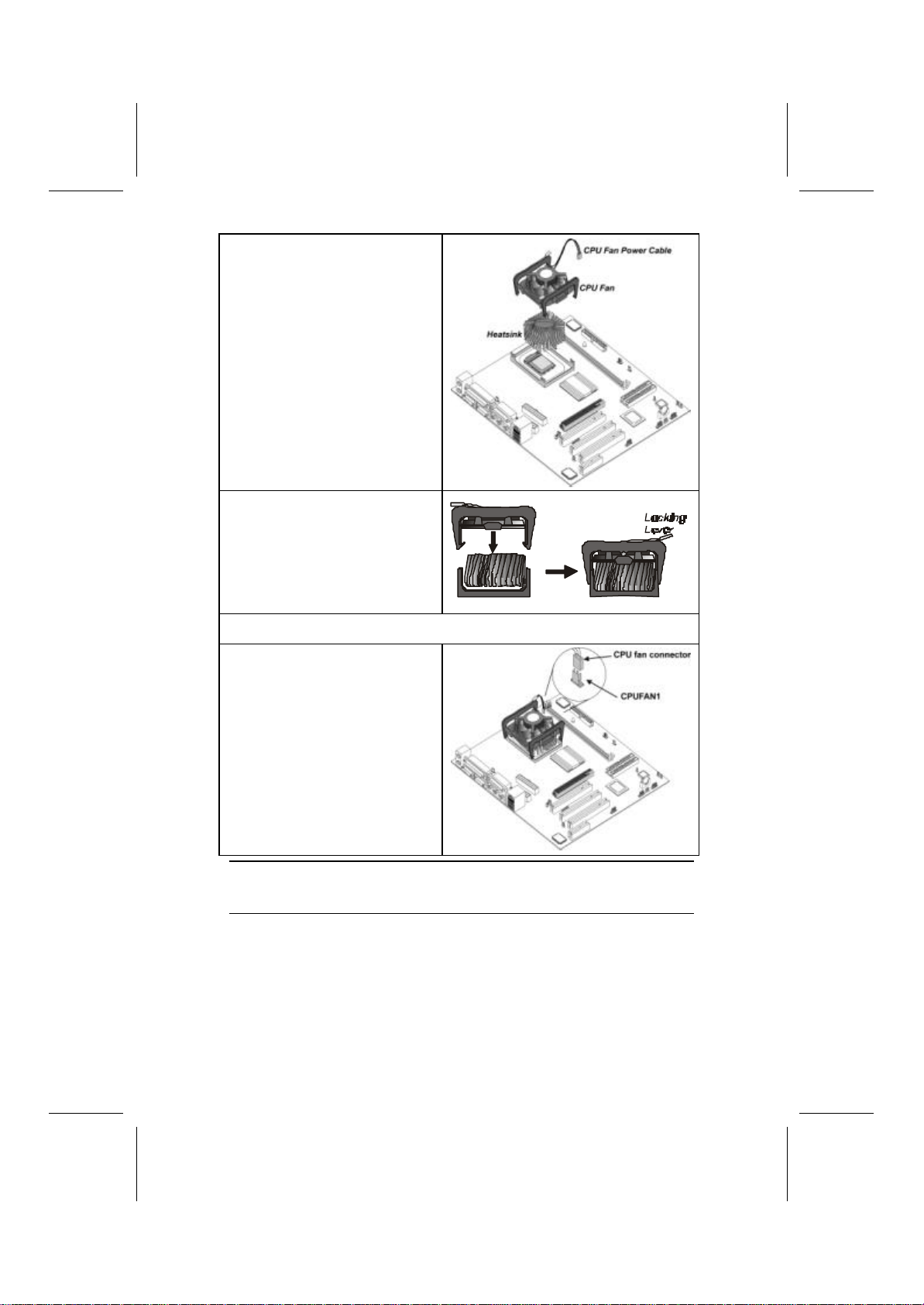

The following illustration shows CPU installation components:
Note: The pin-1 corner is marked with an arrow
Follow these instructions to install the CPU:
1. Install and secure the Retention Module on the mainboard.
2. Pull the CPU socket-locking lever away from the socket to unhook it and raise
the locking lever to the upright position.
3. Match the corner on the
CPU marked with an arrow
with pin-1 on the CPU
socket (the corner with the
pinhole noticeably missing).
Insert the processor into the
socket. Do not use force.
4. Swing the locking lever down and hook it under the latch on the edge of the
socket.
5. Apply thermal grease to the top of the CPU.
6. Lower the heatsink over the CPU.
14
7. Lower the CPU cooling fan onto
the heatsink.
8. Snap the four retention legs of
the cooling fan into place.
Cooling Fan
Retention Module
Heatsink
9. Swing both lock levers on top of the cooling fan to their opposite sides to
secure the cooling fan on top of the heatsink.
10. Connect the CPU Cooling Fan
power cable to the CPUFAN1
connector.
Note:CPU fan and heatsink installation procedures may vary with the type of
CPU fan/heatsink supplied. The form and size of fan/heatsink may also
vary.
15
Installing Memory Modules
This mainboard accommodates two 184-pin 2.5V unbuffered Double Data
Rate (DDR) SDRAM memory modules. The memory chips must be standard
or registered SDRAM (Synchronous Dynamic Random Access Memory).
Installation Procedure
The mainboard accommodates three
memory modules. You must install at
least one module in any of the two
slots. Each module can be installed
with 64 MB to 512 MB of memory.
Total capacity is 2GB.
Refer to the following to install the memory modules.
1. Push the latches on each side of the DIMM slot down.
2. Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
3. Check that the cutouts on the
DIMM module edge connector
match the notches in the DIMM
slot:
4. Install the DIMM module into
the slot and press it firmly down
until it seats correctly. The slot
latches arelevered upwards
and latch on to the edges of the
DIMM.
5. Install any remaining DIMM
modules.
Cutout
Notch
Latch
Latch
16
Installing a Hard Disk Drive/CD-ROM
This section describes how to install IDE devices such as a hard disk drive
and a CD-ROM drive.
About IDE Devices
Your mainboard has a primary and secondary IDE channel interface (IDE1 and
IDE2). An IDE ribbon cable supporting two IDE devices is bundled with the main-
board.
If you want to install more than two IDE devices, get a second IDE cable and
you can add two more devices to the secondary IDE channel.
IDE devices have jumpers or switches that are used to set the IDE device as
MASTER or SLAVE. Refer to the IDE device user’s manual. When installing two
IDE devices on one cable, ensure that one device is set to MASTER and the
other device is set to SLAVE. The documentation of your IDE device explains
how to do this.
About UltraDMA
This mainboard supports UltraDMA 66/100. UDMA is a technology that accel-
erates the performance of devices in the IDE channel. To maximize
performance, install IDE devices that support UDMA and use 80-pin IDE ca-
bles that support UDMA 66/100.
Installing a Hard Disk Drive
1. Install the hard disk drive into the drive cage in your system case.
2. Plug the IDE cable into IDE1
(A):
Note: Ribbon cable connectors
are usually keyed so that they can
only be installed correctly on the
device connector. If the connector
is not keyed, make sure that you
match the pin-1 side of the cable
connector with the pin-1 side of the
device connector. Each connector
has the pin-1 side clearly marked.
The pin-1 side of each ribbon ca-
ble is always marked with a
colored stripe on the cable.
3. Plug an IDE cable connector into the hard disk drive IDE connector (B). It
doesn't matter which connector on the cable you use.
4. Plug a power cable from the case power supply into the power connector on
the hard disk drive (C).
When you first start up your system, the BIOS should automatically detect
your hard disk drive. If it doesn’t, enter the Setup Utility and use the IDE Hard
Disk Auto Detect feature to configure the hard disk drive that you have in-
stalled. SeeIDE HDD Auto-Detection on page28 for more information.
Table of contents
Other ECS Motherboard manuals
