EDAN INSTRUMENTS MT-206 User manual


Assembling Instruction
安装指南
EDAN INSTRUMENTS, INC.
深圳市理邦精密仪器有限公司
Trolley 台车
Manual Ver: 1.2
Release Date: Jan. 2010
Part Number: 01.54.101957-12
MT-206/MT-207

I
Table of Contents
目录
Assembly Instruction..................................................................................1
装配说明 ....................................................................................................9
P/N: 01.54.101957-12

MT-206/MT-207 TrolleyAssembly Instruction
- 1 -
WARNINGS
1 Assembling or disassembling of the Trolley should be performed by service
personnel authorized by the manufacturer.
2 The maximum load of the top splint is 8 kg. Do not put heavy objects on it
or lean on it.
3 The overall check of the Trolley, including the safety check, should be
performed only by qualified personnel once every 6 months, and each
time after fixing up.
4 The Trolley and accessories are to be disposed of according to local
regulations after their useful lives. Alternatively, they can be returned to the
dealer or the manufacturer for recycling or proper disposal.
5 Use a crosshead screw driver to secure all the screws tight when
assembling the Trolley.
CAUTION
When adjusting the stand post, be careful not to trap your fingers.
NOTES:
1 The following figures take M3 for example. The Trolley can also be used
for M3B, M9, M9A, M9B, M8, M8A or M8B monitor by using a proper link
board.
2 Make sure the casters can rotate normally before the setup.
3 Make sure the Trolley is firmly assembled and is in good condition before
applying the monitor to it.

MT-206/MT-207 TrolleyAssembly Instruction
- 2 -

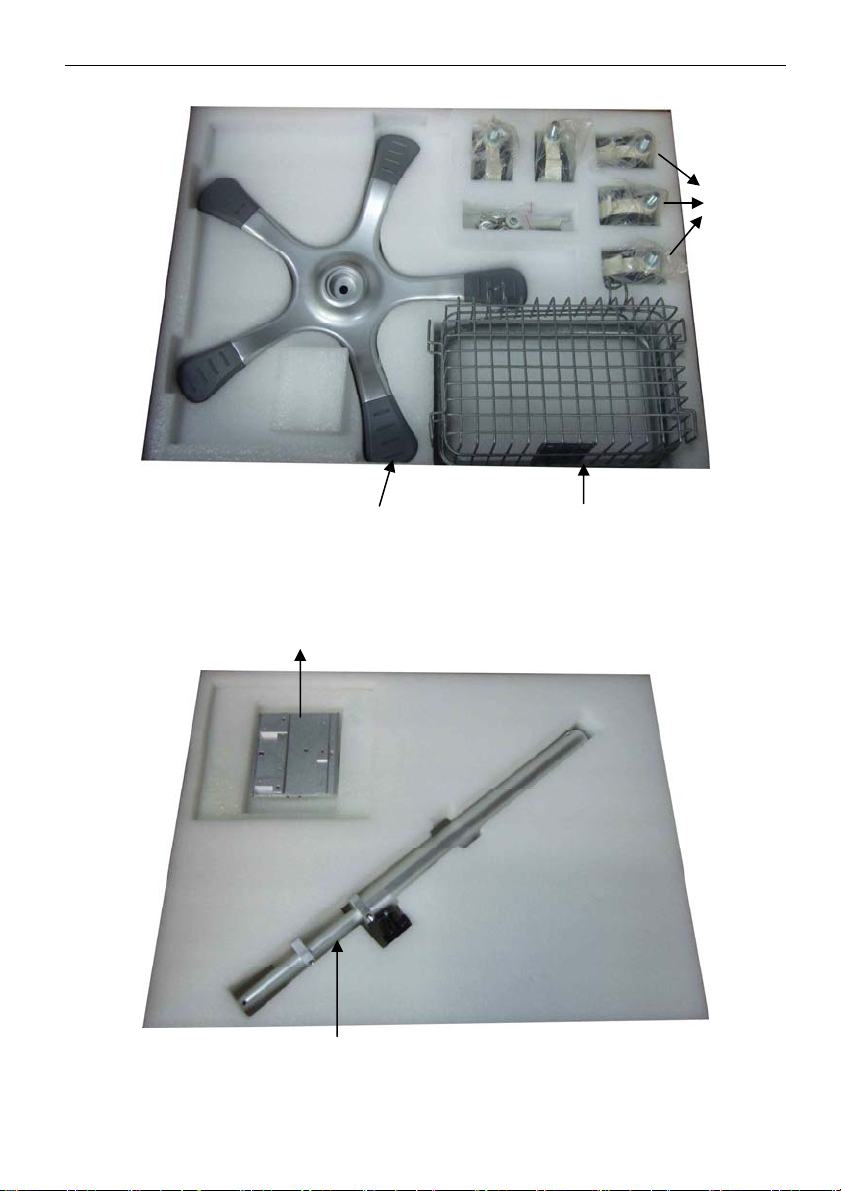

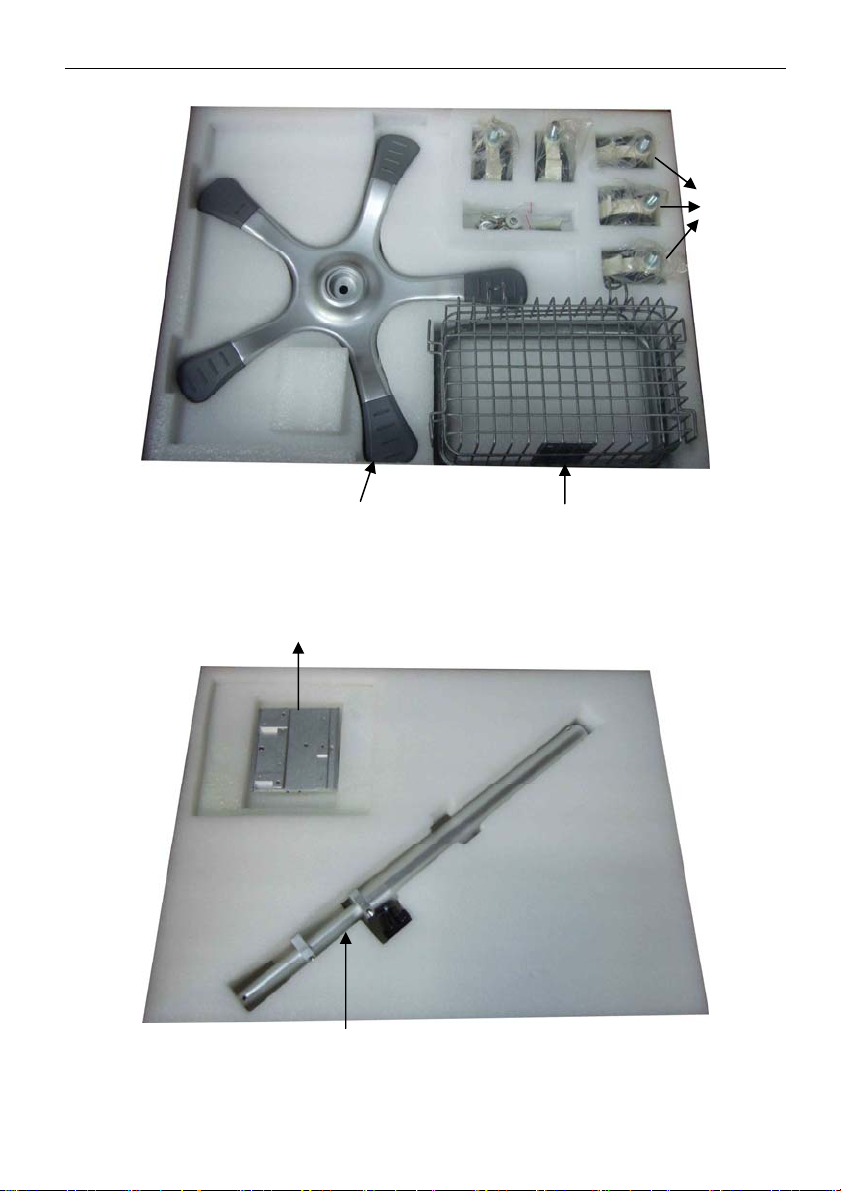

Chassis Handrail basket
Stand post
Top splint and link board
Caster

MT-206/MT-207 TrolleyAssembly Instruction
- 3 -

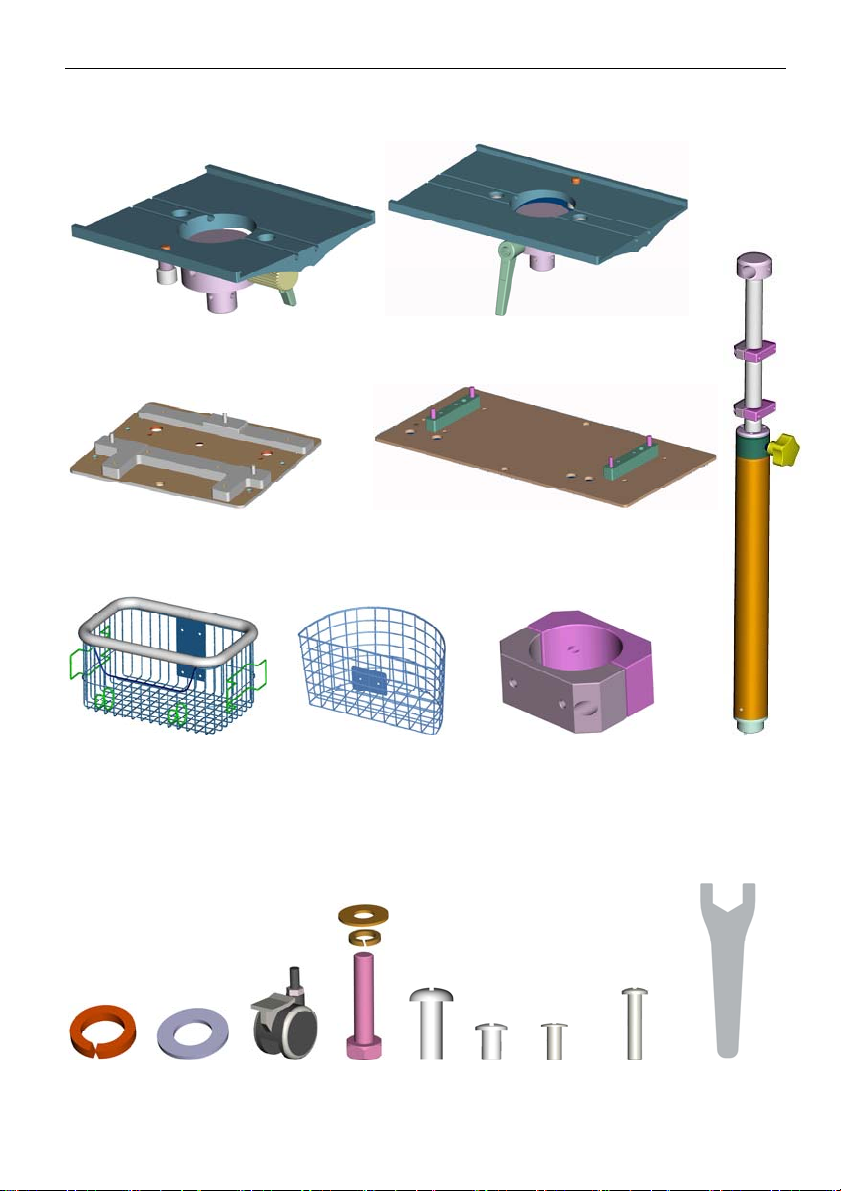

Major Parts
Accessories
M3/M3B top splint assembly M9/M8 series top splint assembly
Handrail basket Lower basket (optional) Basket flange(optional) Stand post
M3/M3B link board assembly M9/M8 series link board assembly
A B C D.E.F G H I (M3) I (M9) J

MT-206/MT-207 TrolleyAssembly Instruction
- 4 -
Accessories:
Item Description Qty. (pcs)
A Ф12 Normal type spring washer 5
B Ф12 Normal type plain washer 5
C 3-inch Medical caster 5
D M10×50 bolt 1
E Ф10 Normal type spring washer 1
F Ф10 Normal type plain washer 1
G M6×25 spacing bolt 1
H Cross recessed pan head screw M5×14 4
I
Cross recessed countersunk head screw M4×25
(only available for MT-207 fixed with M9/ M8
series monitors)
4
Cross recessed pan head screw M3×12
(only available for MT-206 fixed with M3/ M3B
monitors)
3
J 17# normal open spanner 1
NOTE：
1 The I screws used for M3/M3B and M9/M8 series monitors are different.
2 The lower basket and flange should be used at the same time.
3 More screws are provided for standby in the package. Refer to the above
table for the actual numbers of screws required in installation.

MT-206/MT-207 TrolleyAssembly Instruction
- 5 -

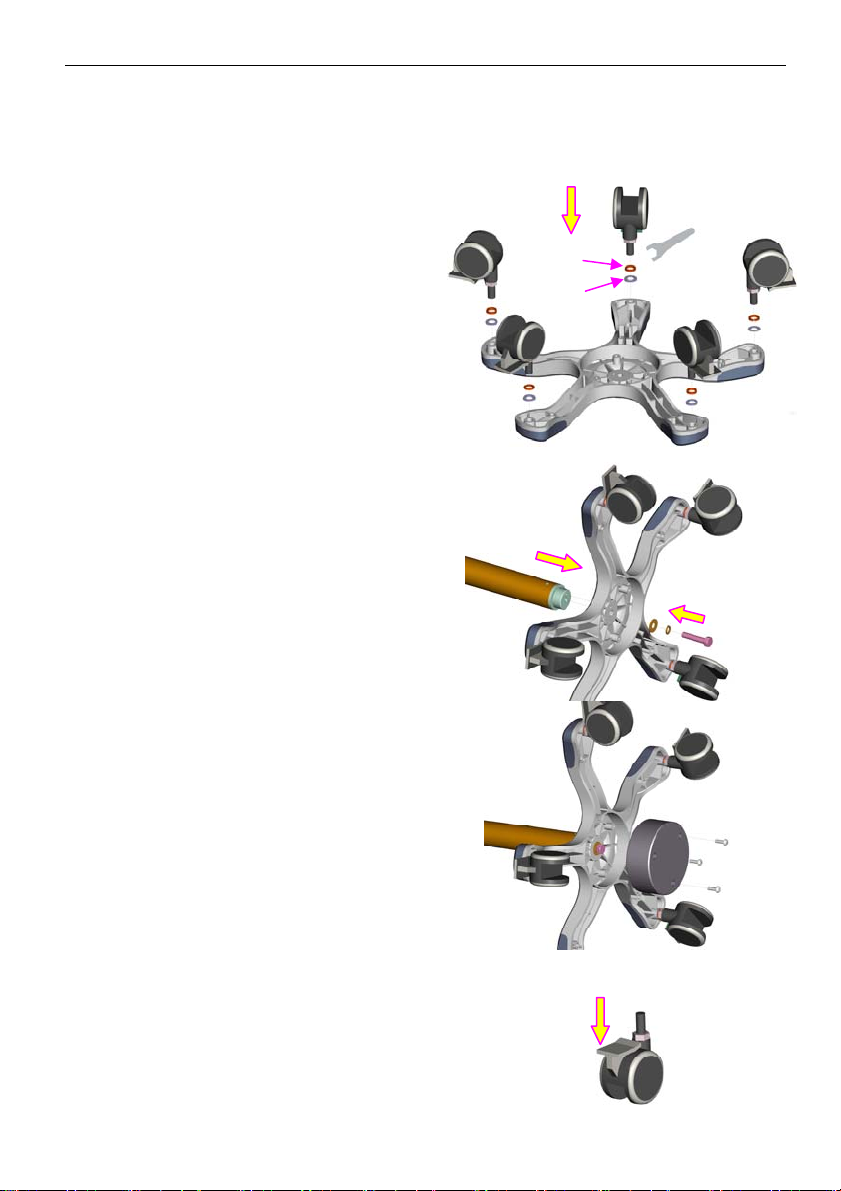

Procedure for Assembling Trolley:
1 Open the package and collate all the
parts with the packing list.
2 Take the chassis assembly out and
upturn it on the packing foam. Put an
A washer and then a B washer on the
bolt for each caster. Tighten the five C
casters to the chassis using the
provided spanner.
3 Tilt the chassis, and insert stand post
assembly into the groove of the
chassis. Make sure they are fixed well.
Install the D bolt, E washer and F
washer, then tighten them from the
center hole in the chassis.
4 For MT-207 Trolley, a balancing
weight is installed on the chassis. You
should take it off first. After installing
the stand post as shown in step3, fix
the balancing weight back to chassis
by using three screws.
NOTE:
The caster has a pedal on it. You can
step on it to stop the Trolley, while push
it up to move the Trolley.
B
A

MT-206/MT-207 TrolleyAssembly Instruction
- 6 -

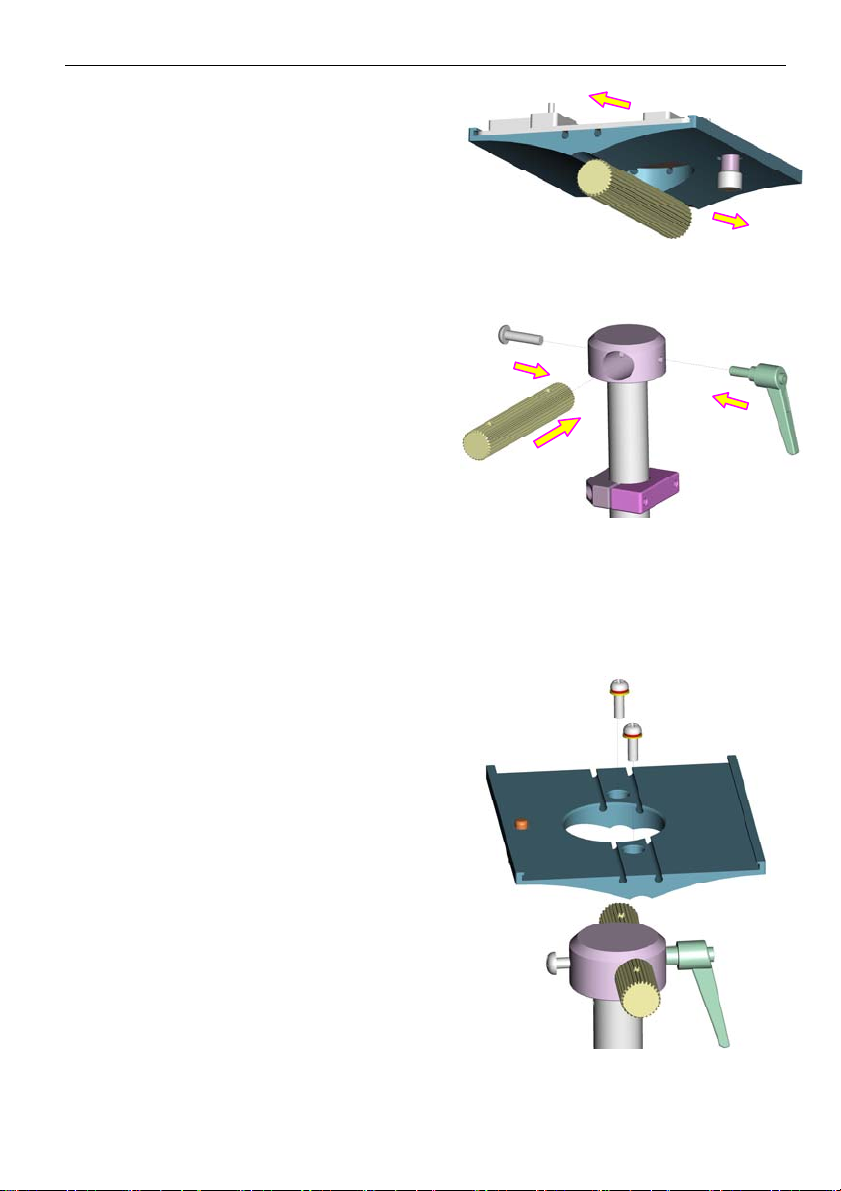

5 The top splint and link board are
assembled together in package. Pull
downwards the pin on the top splint, hold
to slide them apart.
6 Loosen two screws on the top splint to take
off the rotary axis, then pull the rotary axis
through the flange hole of lifter rod.
Insert the L-shape angle adjustment handle
and a G screw into the two holes of flange,
but do not tighten them.
NOTE:
Put the L-shape angle adjustment
handle at the thinner side, while the G
screw on the other side.
7 Put the top splint on the flange of lifter
rod. Make sure it faces the hole of
rotary axis, then fix them well with
two screws taken off in step 6.
Tighten the L-shape angle adjustment
handle and the G screw.
A
ngle adjustment

MT-206/MT-207 TrolleyAssembly Instruction
- 7 -
8 Level the handrail basket at the top two
concave blocks and fix them with four H
screws.
NOTE:
The edge of the handrail basket can be
used as a handle to move the Trolley.
9 The lower basket and its concave are
optional. First, install the concave block
to a proper height of the stand post using
two H screws. Then level the lower basket
at the holes on the concave block and fix
them with two H screws.
The assembly of Trolley is finished.
Fixing the Monitor to the Trolley
1 Upturn the monitor. Align the link board
with the wall-mounting holes & screw
holes. Fix them with three I screws.

MT-206/MT-207 TrolleyAssembly Instruction
- 8 -

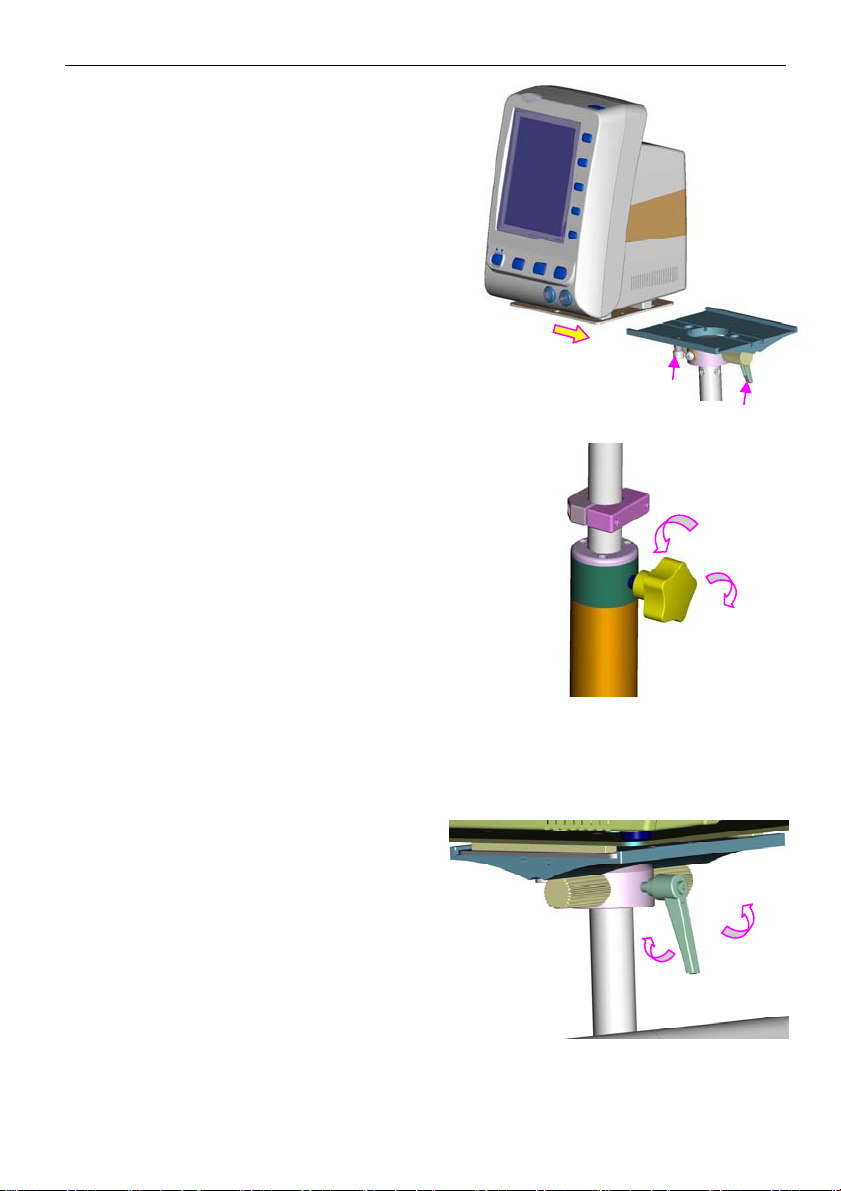

2 Lift the monitor and slide the link board
into the groove of the top splint sideways.
When the board goes halfway, pull down
the pin on the back of the top splint to
allow the board to go through. Keep
pushing the board in until the pin
rebounds and clicks into the hole. The
edges of the Link board and the top splint
should match perfectly at this moment.
Adjusting the height of the Trolley:
WARNING:
For your safety, you’d better take off the
monitor and link board before adjusting
the height of Trolley. Then hold the lifter
rod steadily to avoid hurting yourself.
1 Hold the lifter rod steadily, anticlockwise
rotate the height adjustment handle to
loosen the rod, then adjust the height.
2 After adjusting, clockwise rotate the
handle to tighten the lifter rod.
Adjusting the angle of the top splint:
1 Hold the top splint steadily, anticlockwise
rotate the L-Shape angle adjustment
handle to loosen it. If the handle can not
be rotated for being obstructed by the top
splint, pull it out for about 2mm and
anticlockwise rotate it again. Then adjust
the top splint to a proper angle.
2 After adjusting, clockwise rotate the
handle to tighten it.
Loosen it
Tighten it
Pin
Angle Adjustment
Height Adjustment
Handle
Tighten it
Loosen it

MT-206/MT-207 台车装配指南
- 9 -
警告
1 台车的装配和拆卸应由专业的售后服务人员进行。
2 台车顶托板最大承受重量是 8kg，请勿在上面放置其他重物或直接倚靠。
3 每6个月或者在每次维修后，必须由专业维修人员对台车进行一次全面性
检查，包括安全性检查。
4 本台车和可循环使用部件在有效的生命期限后必须按当地法律规定进行处
理或返回给制造商循环利用。
5 组装台车时请用十字螺丝刀拧紧所有螺钉。
小心
调节立管组件时，请小心不要夹到手。
注意：
1 以下安装步骤图以 M3 为例，台车还可通过不同的螺钉和转接板来安装至
M3B, M9, M9A, M9B, M8, M8A 和M8B 监护仪。
2 安装前请确认脚轮是否转动正常。
3 在将监护仪安装到台车前，要确保台车已经正确且稳固地安装。

MT-206/MT-207 台车装配指南
- 10 -
扶手篮子
立管组件
底盘
顶托板和转接板
脚轮

MT-206/MT-207 台车装配指南
- 11 -
主要部件
附件
M3/M3B 顶托板 M9/M8系列顶托板
扶手篮子 下篮子 (选配) 篮子法兰 (选配) 立管组件
A B C D.E.F G H I(M3) I(M9) J
M3/M3B 转接板 M9/M8系列转接板

MT-206/MT-207 台车装配指南
- 12 -
附件列表：
编号 名称 数量 (个)
A Ф12 标准弹簧垫圈 5
B Ф12 标准平垫圈 5
C 3寸医用脚轮 5
D M10×50 螺栓 1
E Ф10 弹簧垫圈 1
F Ф10 平垫圈 1
G M6×25 限位螺钉 1
H M5×14 十字槽盘头螺钉 4
I M4×25 十字槽沉头螺钉（仅适用于 M9/M8
系列监护仪） 4
M3×12 十字槽盘头螺钉（仅适用于
M3/M3B 监护仪） 3
J 17# 标准开口扳手 1
注意：
1 用在 M3/M3B 和M9/M8 系列的 I螺钉型号是不同的。
2 下篮子和篮子法兰要同时配套使用。
3 每种螺钉都多提供了几颗以备用。安装中实际需要的螺钉数目见上表。

MT-206/MT-207 台车装配指南
- 13 -
组装台车
1 打开纸箱，对照装箱单检查所有部
件；
2 将底盘翻过来平放在纸箱内的珍珠
棉上；在脚轮的螺杆上先放一个 A
垫圈，再放一个 B垫圈，然后用供
的扳手分别把 5个C脚轮锁到底座
上；
3 侧过底座，将立管组件插入底座槽
内，确保立管底部法兰上的凸出部
位对准底座槽内的小凹槽，将 D螺
栓、1个E垫圈和 1个F垫圈装
好，然后从底座底部中轴小孔位置
将向上锁紧。
4 MT-207 台车底盘配有一个配重块，
旋转配重块的 3颗螺钉将其取下。
将立管组件安装至底盘后，再将配
重块重新安装至底盘，用 3颗螺钉
锁紧。
注意：
脚轮上带有制动阀。踩下它可停止移动台
车，将它推上去即可移动台车。
B
A

MT-206/MT-207 台车装配指南
- 14 -
5 顶托板组件和转接板组件是包装在一起
的，将它们分开；稍微向下拉动顶托板
底部的销钉，同时顺着托板边缘凹槽的
方向推动转接板，直到与顶托板分离。
6 松开顶托板组件的上的 2颗螺钉取下旋
转轴，将旋转轴穿过升降杆顶部法兰上
的通孔；
将L形角度调节手柄和 G螺钉分别旋
入法兰上相对的两个螺钉孔，但不拧
紧。
注意：
L形角度调节手柄应位于法兰壁较薄的一
侧，G螺钉位于较厚一侧。
7 把顶托板放到升降杆顶部法兰上，对准
旋转轴的螺钉孔位，并用步骤 6中从顶
托板拆下的 2颗螺钉锁紧；
然后拧紧 L形角度调节手柄和 G螺
钉。

MT-206/MT-207 台车装配指南
- 15 -
8 对准扶手篮子和升降杆上两个凹块
的螺钉孔，用 4颗H螺钉锁紧。
注意：
扶手篮子的边缘即为扶手，可以用来
推动台车。
9 如果选配了下篮子及其凹块，先用
2颗H螺钉将凹块锁到立管的适当
高度上，再对准下篮子和凹块上的
螺钉孔位，并用 2颗H螺钉锁紧。
台车安装完成。
将监护仪安装到台车
1 将监护仪底面朝上，将带有安装孔和螺
钉孔的转接板放置好，用 3颗I螺钉固
定好。

MT-206/MT-207 台车装配指南
- 16 -
2 抬起监护仪，将转接板从侧面对准
顶托板边缘凹槽并推入，推至一半
时用手拉下顶托板背面的销钉，使
转接板组件能顺利插入槽内，继续
推进直至销钉复位，此时转接板和
顶托板边缘应恰好完全对齐。
调节台车高度：
警告：
为安全起见，调节台车高度时，建议
先取下监护仪（带转接板），再扶稳
升降杆，以防手被夹伤或人被砸伤。
1 扶稳升降杆，逆时针旋转调节手柄
松开升降杆，这时可以根据需要调
节升降杆高度。
2 最后顺时针旋转调节手柄，将升降
杆锁紧。
调节顶托板角度：
1 扶稳顶托板，逆时针旋转顶托板下
的L形角度调节手柄以松开螺钉。
如果手柄受到顶托板阻挡而不能转
动，请将它往外拉出约 2mm 再逆
时针旋转，然后调整托盘到适当角
度。
2 调整顶托板到适当角度后，再逆时
针拧紧调节手柄。
销钉
角度调节手柄
松开螺钉
锁紧螺钉
松开螺钉
锁紧螺钉
