Medline MDS400ELB User manual

MDS400ELB, MDS600ELB
BATTERY OPERATED ELECTRIC TOTAL LIFT
LÈVE-PERSONNE ÉLECTRIQUE ALIMENTÉ
PARBATTERIE
ELEVADOR ELÉCTRICO TOTAL LIFT
A BATERÍAS
Not made with natural rubber latex.
Non fabriqué à partir de latex de caoutchouc naturel.
No está hecho con caucho de látex natural.
OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE
MANUAL DEL PROPIETARIO
Ensure the product has been assembled according to the instructions in this manual. All operators should read and understand
the instructions for safe and proper operation of the patient lift.
Assurez-vous que le produit a été assemblé conformément aux instructions du présent manuel. Tous les opérateurs doivent lire et
comprendre les instructions pour garantir le fonctionnement sécuritaire et correct du lève-personne.
Cerciórese de que el producto se haya montado de acuerdo con las instrucciones de este manual. Todos los operadores deben leer
y comprender las instrucciones para el funcionamiento seguro y adecuado del elevador de pacientes.
Before use:
Avant l’utilisation:
Antes de usar:

2 MEDLINE MDS400ELB, MDS600ELB | PIC-00364 (Rev: 10-13-20)
Thank you for choosing Medline!
To better serve you, please record the following information for future use:
Supplier Name:
Supplier Telephone:
Product Serial Number:
Date of Purchase:
Inspect Your Merchandise
Upon receipt of your Medline Lift, verify that it is complete and free from any shipping damage.
Refuse delivery if the packaging appears to be badly damaged. If the merchandise is damaged
or any component is missing, contact the shipping company immediately and file a claim. For
further assistance, contact your local dealer or Medline Industries.
Definitions & Symbols
In this manual the user refers to the patient or resident and may be used interchangeably at
different times. Caregiver refers to the operator or person who is assisting with the transfer.
Symbols used in this manual and their meanings:
Warning! Failure to heed this warning may result in damage to the
product or serious injury to the operator and/or user.
Important instructions follow. Read and understand the instructions in
the manual before using the product.
Note! Important information concerning the product and/or its correct
and proper usage follows.

1-800-MEDLINE (633-5463) |medline.com 3
Safety Instructions
The Medline Series of full body patient lifts reflect innovative state of the art design
to increase user mobility. A Medline Lift will provide years of service if it is properly
maintained as any electric and/or mechanical equipment requires. Please pay careful attention
to the following important information regarding the care, maintenance, and operation of the
patient lift. Carefully read these instructions before assembling the lift, or attempting to lift a
user with the device.
Please Note
• Special care must be taken with users/patients who cannot themselves provide
assistance while being lifted. (i.e. patients who are comatose, spastic, agitated, or
otherwise severely handicapped.)
• The patient lift should be used solely for transferring a user/patient from one utility (beds,
chairs, toilets, etc.) to another. The patient lift should not be used for transporting or moving
any patient from one location to another location.
• During lifting or lowering, whenever possible, always keep the base of the lift in the
widestposition.
• The base of the lift should be closed before moving the lift.
• Do not roll casters over any object while the user/patient is in the sling.
• Do not lock casters during lifting.
• While being lifted in a sling, always keep the user/patient centered over the base and facing
the caregiver operating the lifter.
• Never leave the user/patient unattended during lifting.
• Do not put anything (e.g. cushion, pad, etc.) between the resident and the sling. This may cause
the resident to slide out of the sling and cause injury.
The Medline Lift allows a person to be lifted and transferred safely, with minimum physical
effort provided by the caregiver. Before attempting to lift anyone, please practice operating the
lift. Also prior to actual lifting, explain the lifting procedure to the user/patient.
NEVER EXCEED SAFE WORKING LOAD CAPACITY!

4 MEDLINE MDS400ELB, MDS600ELB | PIC-00364 (Rev: 10-13-20)
Specifications & Options
Specifications of Control Unit
Input Voltage 220-240VAC 50Hz / 110-120VAC 60Hz
Output Voltage 24 VDC
Battery Pack 24 VDC 5AH
Lift Control Handset and Panel
Protection Class IP54
Overload Warning by LCD
Battery Status by LCD
* Medline is committed to continuous improvements of our products therefore the specs,
dimensions, and features listed above are for guidance only and subject to change without
prior notice.
Dimensions & Specifications
Model MDS400ELB MDS600ELB
Safe Working load 400 lb/181 kg 600 lb/272 kg
A Base Length 47.3"/120.1 cm 47.3"/120.1 cm
B Base Ext. Width - Closed 26.4"/67.1 cm 26.4"/67.1 cm
C Base Int. Width - Opened 39.3"/99.8 cm 39.3"/99.8 cm
D Mast Height 51.3"/130.3 cm 51.3"/130.3 cm
E Front Caster Height 4.7"/11.9 cm 4.7"/11.9 cm
F Lifting Height - Lowest 21.9"/55.6 cm 21.5"/54.6 cm
G Lifting Height - Highest 71.3"/181.1 cm 68.8"/174.8 cm
Standard Features
Model MDS400ELB MDS600ELB
1 6-Point Spreader Bar 6-Point Spreader Bar
24"/10.2 cm Rear Caster
with Brake
4"/10.2 cm Rear Caster
with Brake
3 3"/7.6 cm Dual Front Caster 3"/7.6 cm Dual Front Caster
4 Power Control Unit Power Control Unit
5 Reinforced Foot Pedal
Optional Features
Model MDS400ELB MDS600ELB
1 2-Point Spreader Bar 2-Point Spreader Bar
2 Charging Cradle Charging Cradle
3 Digital Scale Digital Scale
4 Additional Battery pack Additional Battery pack
Note: height is including the spreader bar.

1-800-MEDLINE (633-5463) |medline.com 5
Features & Overview
16-point Spreader Bar 5Leg opening pedal 9Mast
2Boom 6Rear caster 10 Actuator
3Control Unit 7Front caster 11 Emergency lowering
4Hand Control 8Base
Prior to assembly, unpack all parts from the shipping carton and check
for any missing parts. Contact you dealer immediately if a part is missing.
* MDS400ELB model shown
Easy Tools Screw Driver
1
2
3

6
7
8
9
10
11
4

6 MEDLINE MDS400ELB, MDS600ELB | PIC-00364 (Rev: 10-13-20)

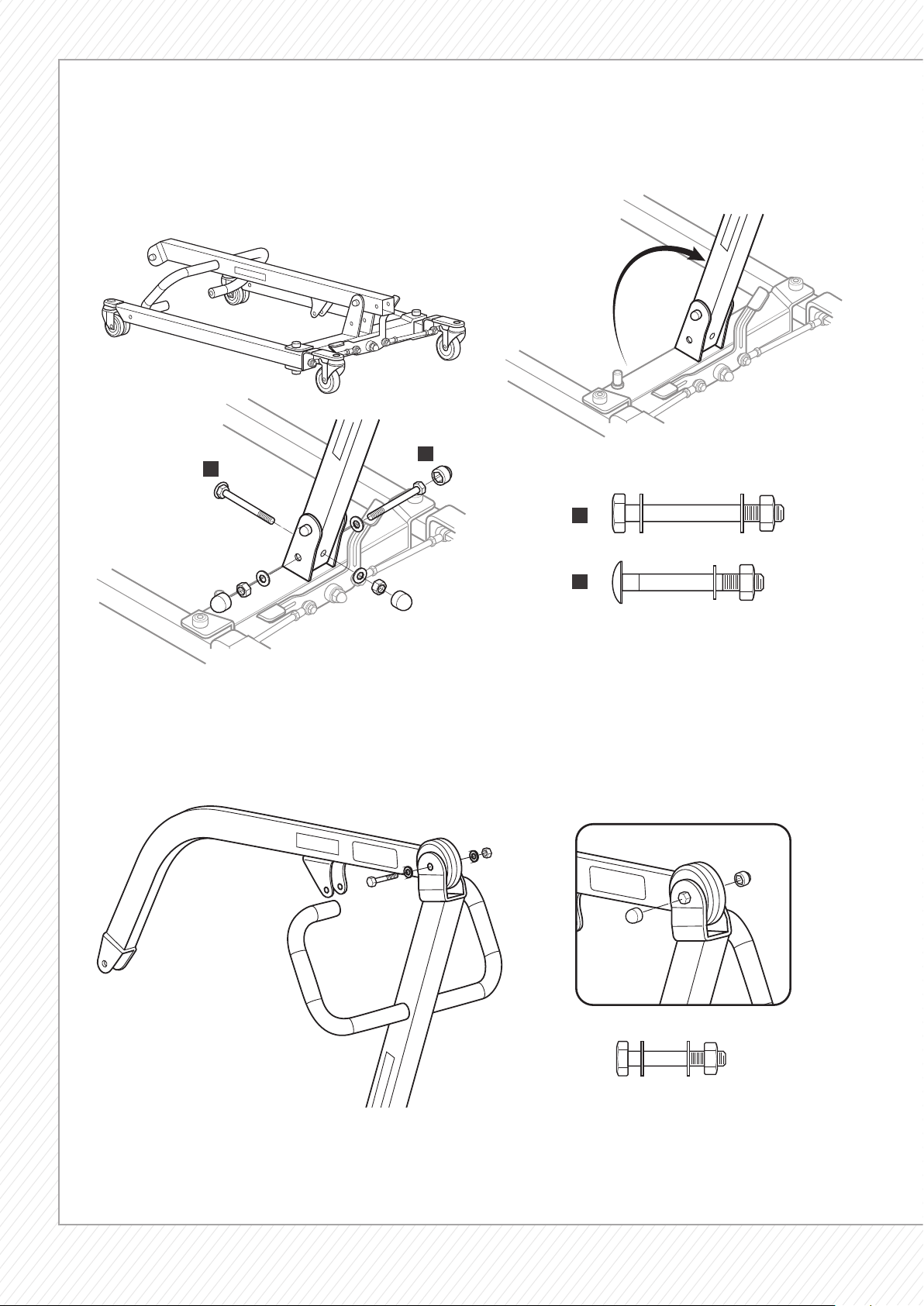

Installation
Step 1: Base and Mast
Step 2: Boom
1
1
2
2
1 2
3

1-800-MEDLINE (633-5463) |medline.com 7

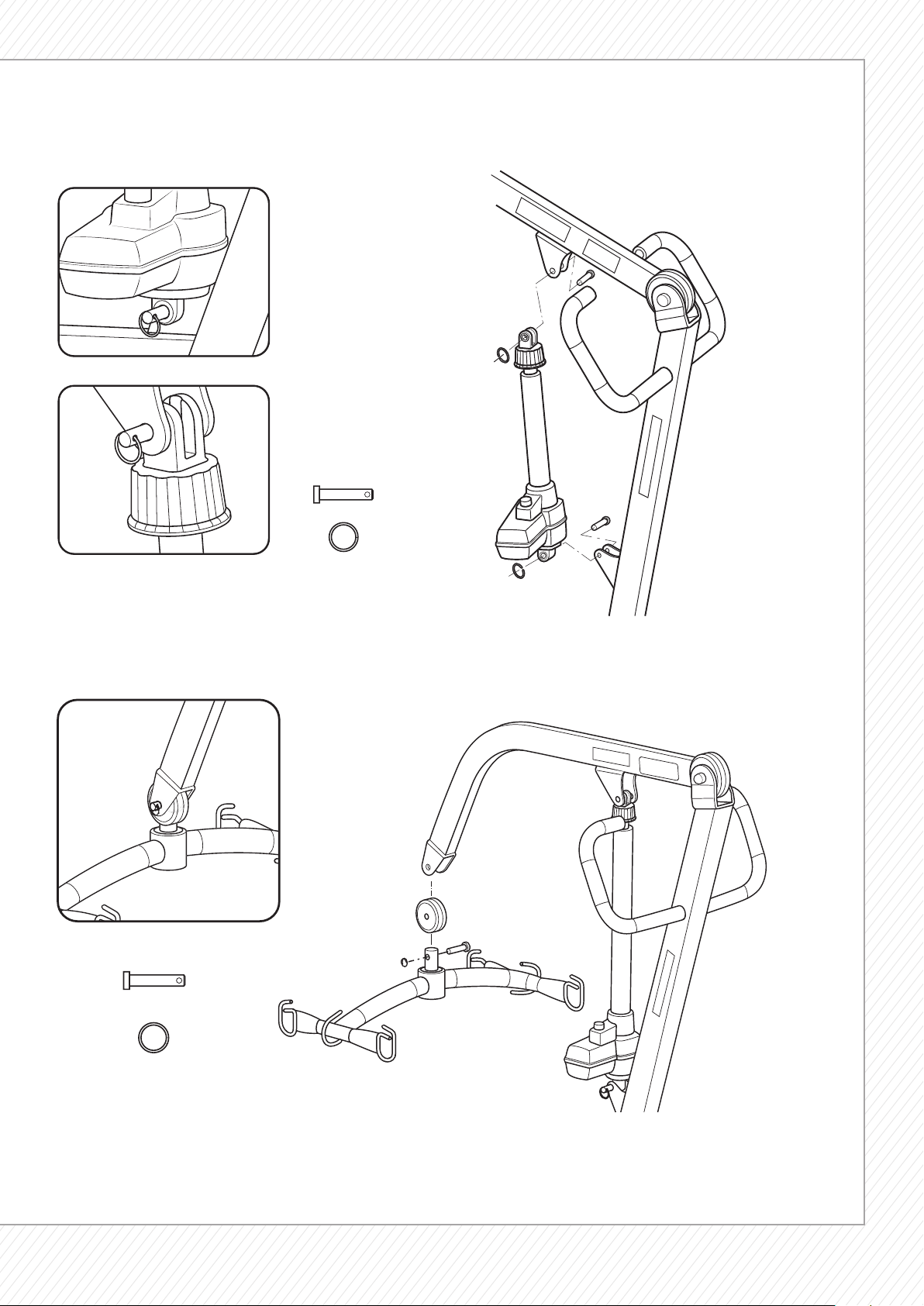

Step 3: Actuator
Step 4: Spreader Bar
1
2

8 MEDLINE MDS400ELB, MDS600ELB | PIC-00364 (Rev: 10-13-20)

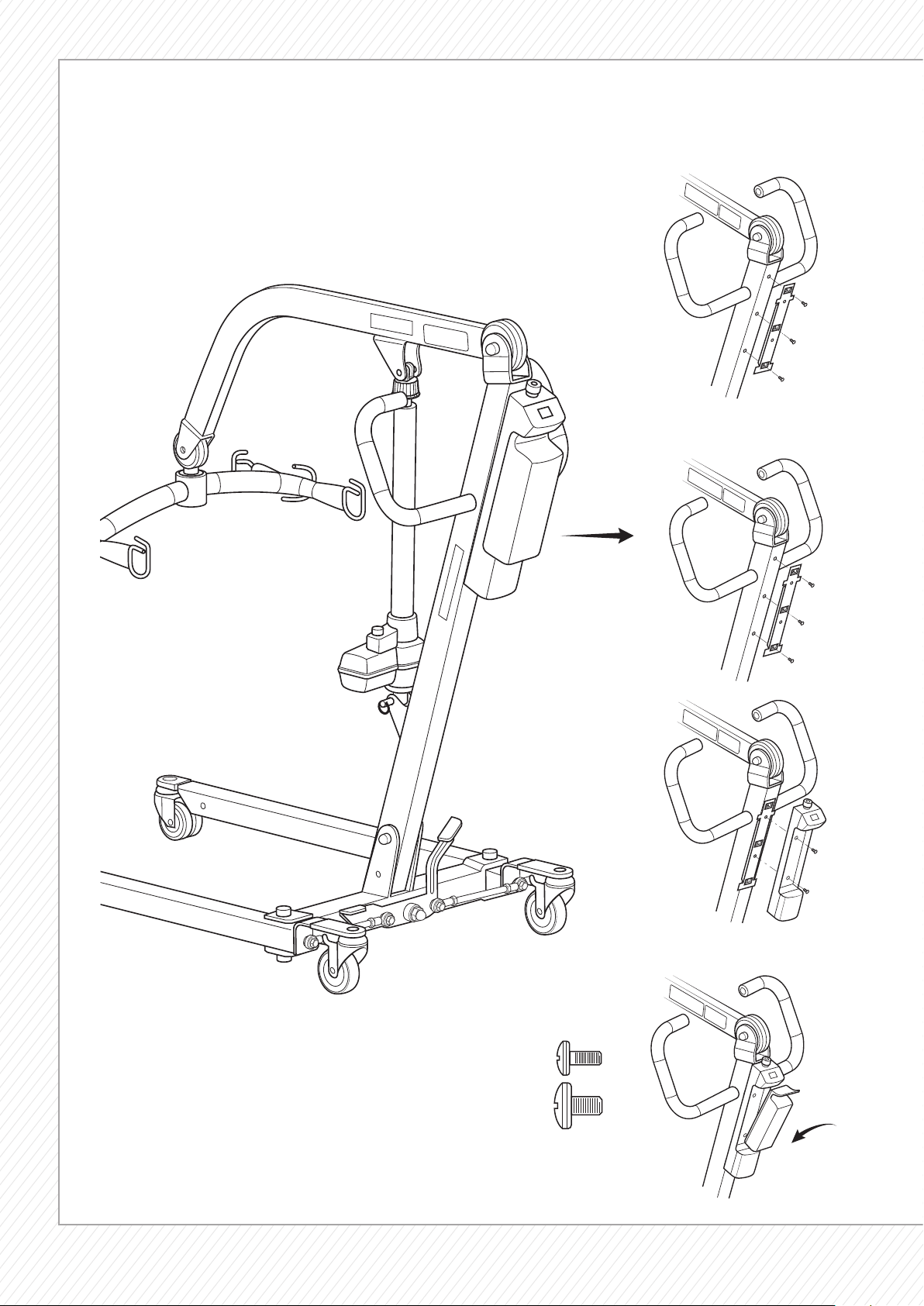

Step 5: Power Control Unit
M5 SCREWS
M4 SCREWS
1 2
3
4
5

1-800-MEDLINE (633-5463) |medline.com 9

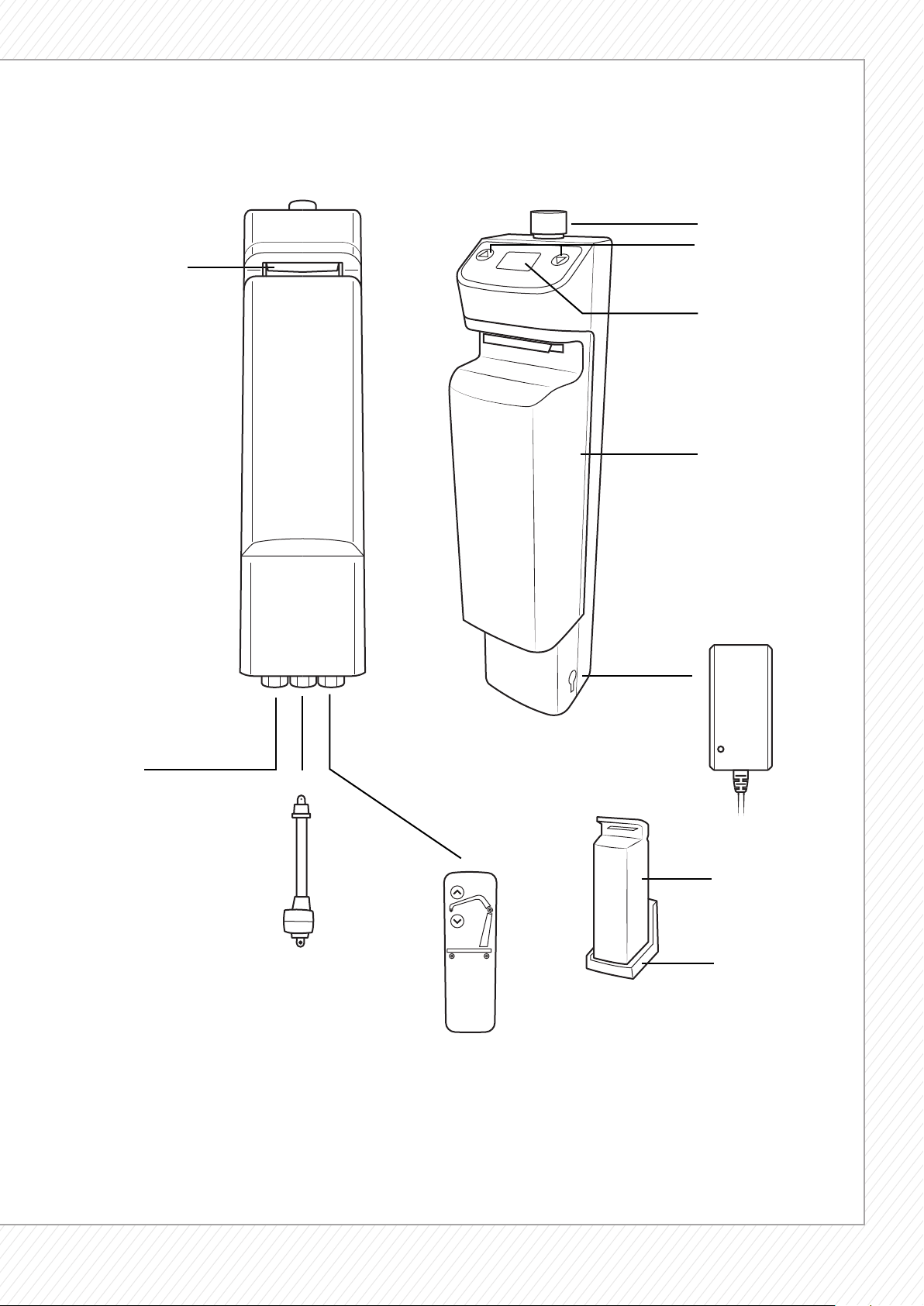

Power Control Unit Overview
Battery Pack
Release Handle
Not Used
DC In
Battery Pack
Charger
Additional
Battery Pack
(Optional)
Charging
Cradle
(Optional)
On/Off Switch
Emergency
Stop Button
Up/Down
Button
LCD Display
Actuator
Hand Control
1. Connect Actuator as shown above.
2. Connect Hand Control as shown above.

10 MEDLINE MDS400ELB, MDS600ELB | PIC-00364 (Rev: 10-13-20)

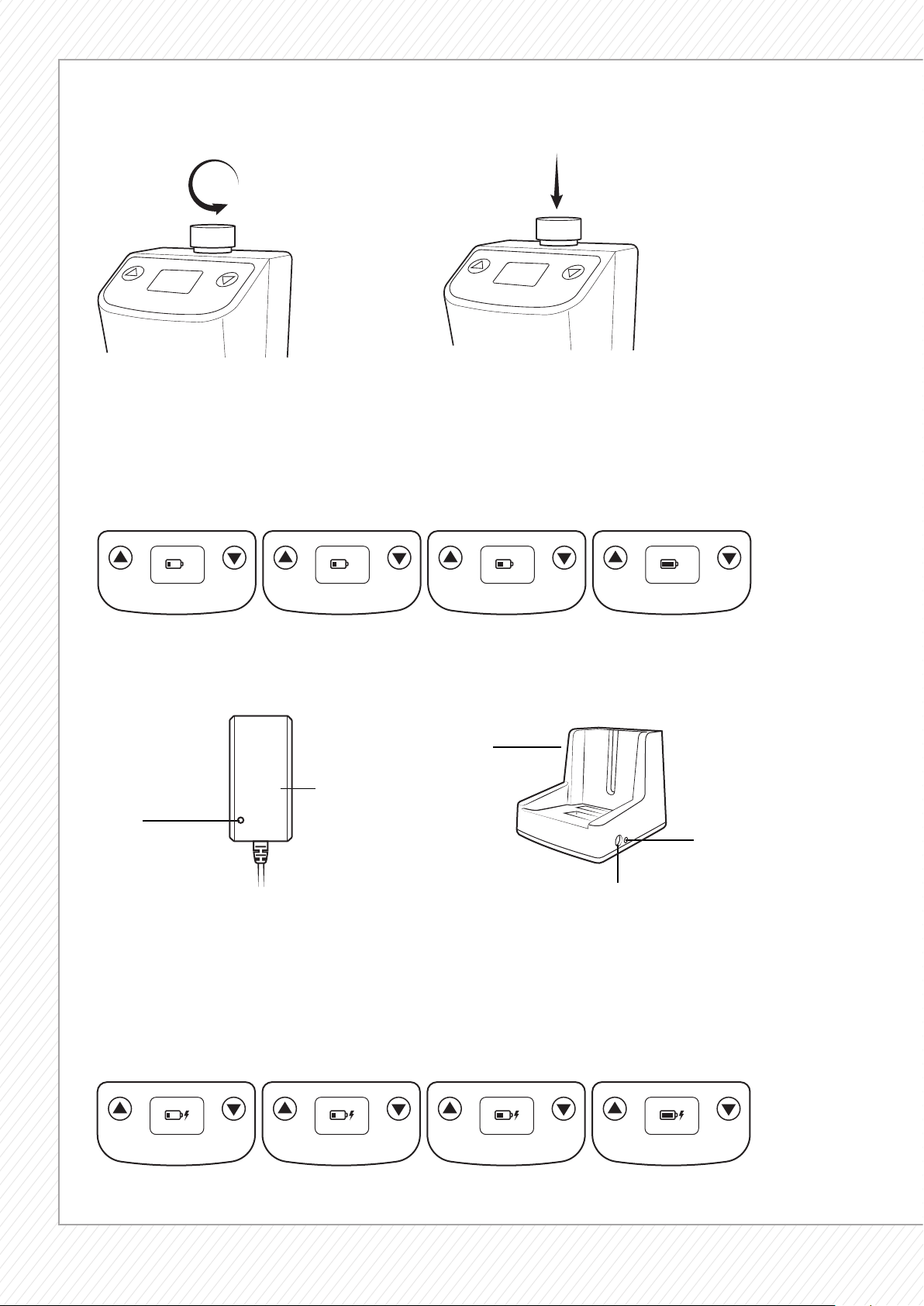

Power: ON / OFF
LCD Display Panel Signs - Power ON
When the power is turned ON, the LCD Display Panel will show one of the four signs below.
• The sign will display for 5 seconds.
• Then the lift will go into standby mode and the sign disappears.
• The lift is ready for use.
Charging: DC Charger or Charging Cradle
LCD Display Panel Signs - Charging
During charging, the LCD Display Panel will show one of the four signs below.
• The DC Charger must be connected.
• The Power must remain ON.
• The battery will not be charged if Power is OFF.
ON OFF
LED
Indicator
* Amber = charging
* Green = charging completed
DC Charger
(included)
LED Indicator
* Green = power connected
* Blank = power disconnected
Charger Plug-in
Charging
Cradle
(Optional)

1-800-MEDLINE (633-5463) |medline.com 11

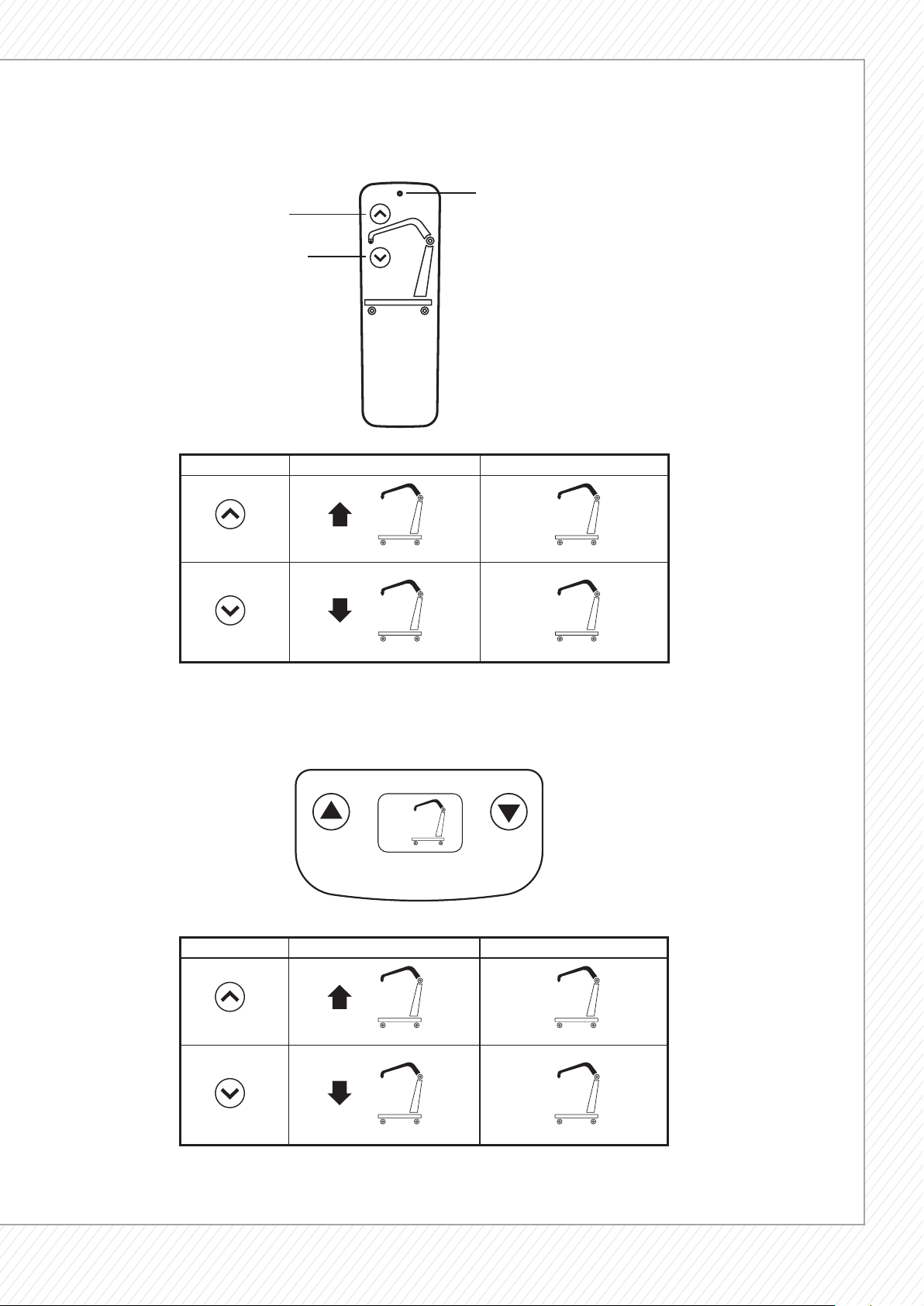

Operating Lift: Using Hand Control
Operating Lift: Using LCD Display Panel
LED Indicator
*Green=Action
*Blank=No Action
Lifting
Lowering
Release ButtonPress ButtonButton
Release ButtonPress ButtonButton

12 MEDLINE MDS400ELB, MDS600ELB | PIC-00364 (Rev: 10-13-20)
Warning! - Battery Low and Charging is Needed
Warning! - Overloaded
Warning! - Charge Battery Immediately
If the battery needs to be charged, the LCD Display
Panel will show a blinking low battery sign shown on
the left either when the lift is turned ON or when a
button on the LCD Display Panel is pressed.
• Lift is still functioning.
• Buzzer will beep every 2 seconds.
• Battery needs to be charged immediately after use.
During lifting if the lift is overloaded, the LCD Display
Panel will show the sign on the left and lifting will be
deactivated immediately.
• The buzzer will beep 3 times.
• Lowering the lift by pressing the DOWN button is
still allowed.
• Lift must be turned OFF and then turned ON before
further Lifting.
If the battery is critically low, the LCD Display Panel
will show the sign on the left either when the lift is
turned ON or when a button on the LCD Display Panel
is pressed.
• Lift operation is deactivated.
• Battery needs to be charged immediately before
further use.
ATTENTION
KG
Overloaded
ATTENTION
Recharge Or Exchange

1-800-MEDLINE (633-5463) |medline.com 13
Operating Instructions
Double check all assemblies for tightness and read operating instructions
carefully prior to use.
Turn the lift “ON” by turning the red “Emergency Stop” button clock-wise.
Turn the lift “OFF” by pressing down the “Emergency Stop” button.
PREPARATION BEFORE LIFTING
• Turn on the power by twisting the RED EMERGENCY STOP BUTTON clock-wise.
• Verify the Lifting and Lowering Functions by pressing either the UP or DOWN
button on the hand control once.
• Position the base of the lift around or under the object.
• Widen the base and disengage the caster brakes.
Do not attempt to transfer a patient without prior approval of the person’s nurse.
Also, do not transfer without having studied the instructions and performed
several practices in operating the product. Together (with the patients doctor,
nurse, or medical attendant) select a sling that is both practical and comfortable.
The sling selected should be one that serves the needs of the patient, while
providing the patient with optimal safety. Never interfere with the lift, unless
instructed by the attendant. Have a doctor, nurse, or medical attendant
(experienced in the use of the Medline Lift) present during the first few times the
lift is used to transfer a new user.

14 MEDLINE MDS400ELB, MDS600ELB | PIC-00364 (Rev: 10-13-20)
Transfer from Bed to Wheelchair
• User/patient should be in the center of the bed.
• Position user onto his/her side by rolling user towards you.
• Roll the sling in approximately half. The handle on the back section should face outward
when the sling is fitted.
• Position the sling under the user/patient so the commode aperture aligns with the base of
the spine and top of the sling close to the neck.
• Roll user onto the opposite side and position him/her on the flat section of the sling. This will
allow you to unroll the remainder of the sling from the other side of the user.
• Once the sling has been positioned centrally, feed the leg sections under the thighs and draw
them up between the thighs.
• Raise the head of the bed if this function is available.
• Move the lift slowly towards the user and position the spreader bar over the user’s/patient’s
chest. Attach loops of the sling to the hooks on Spreader Bar as shown in the Sling Hook-Up
Guide on next page.
• Lift the user above the bed by using the hand control.
• Pull lift away from bed. Position user over the wheelchair or chair then lower the patient onto
the surface.
• Reverse the above procedures when returning the user/patient to bed.
Transfer from Wheelchair to Bed
• Grasp the sling at each corner of the “U” shape of the commode aperture.
• The sling should be fitted with the grab handles on the back section facing outward.
• Help the user lean forward slightly, then slide the sling down between the chair and the
user’s back.
• Position the commode aperture where the buttocks meets the seat.
• Position the sling equally around both sides of the body.
• Draw the leg sections to the front along the length of the user’s thigh.
• Check the sling’s central positioning by comparing the lengths of the leg sections when they
are drawn forward.
• Reposition the sling if the leg sections are not equal in length.
• Feed the leg sections under the thighs.
• From between the legs, gently pull the leg section up the inner thigh. Feed as much material
as possible under and between the thighs. Ensure the leg sections are positioned midway
under the thighs to provide good support and greater comfort.
• Move the lift slowly towards the user and position the spreader bar over the user’s chest.
Attach loops of the sling to the hooks on Spreader Bar as shown in the Sling Hook-Up Guide
on next page.
• Lift patient above the wheelchair by using the hand control.
• Pull lift away from wheelchair. Position patient over bed and lower patient onto bed
• Reverse the above procedures when returning the user/patient to a wheelchair.
•

1-800-MEDLINE (633-5463) |medline.com 15
Sling Hook-Up Guide
For further product information and support, please contact your dealer or visit our
website at: Medline.com/go/safepatienthandling
Hook up A Point 1
Hook up B Point 2
Insert D through C
Hook up D Point 1
Hook up C Point 2
Hook up A Point 1
Hook up B Point 2
Insert D through C
Hook up D Point 5
Hook up C Point 6
Hook up A, C Point 1
Hook up B,D Point 2
Insert F through E
Hook up F Point 1
Hook up E Point 2
Hook up A Point 1
Hook up B Point 2
Hook up C Point 3
Hook up D Point 4
Insert F through E
Hook up F Point 5
Hook up E Point 6
Hook up A, C, E Point 1
Hook up B,D, F Point 2
Insert H through G
Hook up H Point 1
Hook up G Point 2
Hook up A & C Point 1
Hook up B & D Point 2
Hook up E Point 3
Hook up F Point 4
Insert H through G
Hook up H Point 5
Hook up G Point 6
2 Point S-Bar
4 Strap Sling
6 Strap Sling
8 Strap Sling
6 Point S-Bar
1
A
A
A
C
C
D
D
E
G
E
F
H
F
B
B
B
4
6
1
5
2
2
3
C D

16 MEDLINE MDS400ELB, MDS600ELB | PIC-00364 (Rev: 10-13-20)
Maintenance & Inspection
• The operator of the lift shall inspect the Medline Lift before each use. Check all
bolts for tightness. Make sure the base can be easily widened, and that all lift parts
are in place. Make sure that casters can be turned freely, and that caster brakes
can be engaged. Make certain all necessary items (i.e. slings, and wheelchairs, etc.)
are ready for use.
• At least once a month, the lift should be thoroughly inspected by a person qualified
to recognize any signs of wear and tear, and looseness of bolts or parts. Replace
any worn parts immediately.
• To lubricate, put a drop of oil on the following points when the Medline Lift is
placed into service and every month thereafter: Top of Mast, Spreader Hinge, and
Caster Axles. First Received Monthly Every 3 Months
Boom & Spreader Bar
Check connections between boom and
spreader bar for improper connection,
Check connections between boom and
mast for improper connection, looseness
or wear.
Check the boom for bending
and deflection.
Mast
Check the mast for bending or deflection.
Base & Foot Pedal
Check bolts and nuts for looseness.
Check casters and axle bolts for tightness.
Check rubber parts on the casters for
deflection.
Apply grease to caster ball bearings
if needed.
Check welding joints for rust and crack.
Actuator & Control Box
Make sure the control box is firmly affixed
to the mast.
Make sure the actuator is secured to the
boom and mast with pins and key rings.
Make sure actuator plug into control box
is not loose.
Sling & Sling Hardware
Check sling for wear.
Check sling hardware every time
before use.
Lift Cleaning As Needed. As Needed. As Needed.

1-800-MEDLINE (633-5463) |medline.com 17
First Received Monthly Every 3 Months
Boom & Spreader Bar
Check connections between boom and
spreader bar for improper connection,
Check connections between boom and
mast for improper connection, looseness
or wear.
Check the boom for bending
and deflection.
Mast
Check the mast for bending or deflection.
Base & Foot Pedal
Check bolts and nuts for looseness.
Check casters and axle bolts for tightness.
Check rubber parts on the casters for
deflection.
Apply grease to caster ball bearings
if needed.
Check welding joints for rust and crack.
Actuator & Control Box
Make sure the control box is firmly affixed
to the mast.
Make sure the actuator is secured to the
boom and mast with pins and key rings.
Make sure actuator plug into control box
is not loose.
Sling & Sling Hardware
Check sling for wear.
Check sling hardware every time
before use.
Lift Cleaning As Needed. As Needed. As Needed.
Troubleshooting Guide
The following list of encountered problems and solutions will assist you in determining what
may be causing your patient lift not to function as designed. If you have a problem occurring
which is not listed below please contact your dealer or technical support for help. Do not
attempt to repair or replace components or parts on your lift as this may void your warranty or
cause further problems that may result in patient injury. Stop using your lift immediately if it is
not functioning correctly or any warning beeps are heard.
I need to re-charge my batteries often or they fail to hold a charge when I charge them.
• Replace the batteries or battery pack as they are at the end of their life cycle.
• Batteries should be changed every 12-24 months depending on usage.
The actuator will either go up or down but not both.
• Replace your hand control as it is at the end of its life cycle.
• Your control box may be malfunctioning.
There is a grinding sound inside the actuator when lifting.
• Replace your actuator as the internal gears are stripped.
The actuator stops and starts while lifting or lowering.
• Replace the batteries or battery pack as they are at the end of their life cycle.
My lift will not operate even though it shows the batteries are charged.
• Unplug the AC power cord from the control box as the lift will not work when the control box/
charger is connected to AC Power.
• Check to make sure the hand control is properly inserted all the way into the control box port.
• Check to make sure the actuator plug is properly connected and inserted all the way into the
control box.
• Your hand control needs to be replaced as it is at the end of its life cycle.
If there is a problem you could not solve, please contact your dealer or Medline representative.

18 MEDLINE MDS400ELB, MDS600ELB | PIC-00364 (Rev: 10-13-20)
Emergency Lowering Mechanism
Contact your dealer immediately if standard troubleshooting techniques do not correct the
failure. Do not attempt to lift until all failure and safety issues have been resolved.
In case of lift failure, please follow the procedures below to safely lower the user.
The Emergency Lowering Device is located at the top of the actuator shaft. It is intended for
use if the actuator or electronics fail to operate while the patient is suspended in midair. The
device consisting of a plastic collar ring that should be first pulled down and turned clock-wise
continually until the patient has been lowered.
NOTE:
THE EMERGENCY LOWERING DEVICE IS INTENDED FOR USE DURING LIFT FAILURE. THIS
DEVICE WILL ALLOW LOWERING OF PATIENTS ONLY. PLEASE CONTACT YOUR DEALER
IMMEDIATELY IN CASE OF FAILURE.
Pull down and
turn clockwise
to lower

1-800-MEDLINE (633-5463) |medline.com 19
Warranty Policy
Medline offers a limited warranty on all patient lifts, slings and accessories to be free of defects
in workmanship and product performance. This warranty extends only to the original purchaser
and is non-transferrable. All warranty claims must be submitted by the authorized dealer
or distributor who originally sold the product with proper proof of sale and serial number
where applicable. Prior Return Authorization (RA) from Medline is required for all warranty
replacements. Medline reserves the right to repair or replace only defective parts or accessories
in lieu of a complete new patient lift. The repaired or replacement part shall be warranted for a
period equal to the remainder of the warranty period of the defective part.
Medline does not provide advance replacements for warranty claims. For situations where
an end user requires a replacement in advance and before a warranty item can be returned,
dealer or distributor must purchase the replacement at full cost. All freight charges for the
replacement are the sole responsibility of the dealer or distributor. When end user returns
warranty item and item proves to be defective, Medline will issue full credit for the replacement
less freight charges.
Product returned without RA number clearly marked on the package or product returned
later than 30 days after authorization will be refused and returned at sender’s expense. Final
disposition of warranty claims will be determined at the sole discretion of Medline. Warranty
claims will be denied for any of the following: product abuse or misuse, accidental or malicious
damage, improper installation, product used with parts, components or accessories with
quality or specifications incompatible with product, adulterated product, user neglect, failure
to maintain and service product as specified in the owner’s manual or care tag, serial number
removed or defaced, or normal wear and tear.
Medline warrants the following products and components beginning from the purchase invoice
date for the specified time period:
WARRANTY PERIOD PRODUCT COMPONENT
Three (3) Years Patient lift frame and electronic components
One (1) Year Battery
Medline Single Patient Specific slings are designed for limited use with one patient and may not
be laundered. Medline will replace any disposable slings found to have a manufacturing defect.
Normal wear and tear will not be covered under warranty.
This warranty expressly excludes wearable components including but not limited to foam parts
and caster tread. Furthermore, this warranty is void and null for product that has not been
purchased or paid for in full.

20 MEDLINE MDS400ELB, MDS600ELB | PIC-00364 (Rev: 10-13-20)
Merci d’avoir choisi Medline!
Pour mieux vous servir, veuillez consigner les renseignements suivants pour
uneutilisationultérieure:
Nom du fournisseur:
Numéro de téléphone du fournisseur:
Numéro de série du produit:
Date d’achat:
Inspectez votre marchandise
À la réception de votre lève-personneMedline, vérifiez que l’équipement est complet et
qu’il n’a pas été endommagé pendant le transport. Refusez la livraison si l’emballage est
très endommagé. Si la marchandise est endommagée ou s’il manque un composant, faites
une réclamation immédiate auprès du transporteur. Pour obtenir de l’aide supplémentaire,
communiquez avec votre revendeur local ou Medline Industries.
Définitions et symboles
Dans ce manuel, le terme «utilisateur» désigne le patient ou le résident. Ces termes peuvent
être utilisés de façon interchangeable à différents moments. Le terme «soignant» désigne
l’opérateur ou la personne qui aide au transfert du patient.
Symboles utilisés dans ce manuel et significations:
Mise en garde! Le non-respect de cet avertissement peut entraîner des
dommages au produit ou des blessures graves à l’opérateur et/ou à l’utilisateur.
Instructions importantes. Lire et comprendre les instructions du manuel avant
d’utiliser le produit.
Remarque! Renseignements importants concernant le produit et/ou son utilisation
correcte et appropriée.
