EdilKamin Celia Air Tight Plus Quick start guide

EN Installation, use and maintenance page 2
Celia Air Tight Plus
Celia Air Tight Plus C
PELLET STOVE
For all updates visit www.edilkamin.com

2
ENGLISH
The undersigned company, EDILKAMIN S.p.A., with
registered office in Via P. Moscati 8 - 20154 Milan - tax code
and VAT number 00192220192
Hereby declares, under its sole responsibility, that:
The pellet stoves mentioned below comply with EU
Regulation 305/2011 and the harmonised EU standard
EN 14785:2006
PELLET STOVES, bearing the EDILKAMIN brand, called
CELIA AIR TIGHT PLUS C
CELIA AIR TIGHT PLUS
SERIAL NO.: Rating plate
CELIA AIR TIGHT PLUS C/ CELIA AIR TIGHT PLUS
Performance declaration (DoP - EK n° 192)
Moreover, the company hereby declares that:
the CELIA AIR TIGHT PLUS C/ CELIA AIR TIGHT PLUS
wood pellet stoves satisfy the requirements of the following
European directives:
2014/35/EU - Low Voltage Directive
2014/30/EU - Electromagnetic Compatibility Directive
2011/65/EU - RoHS2 Directive on the restriction of the
use of certain hazardous substances in electrical and
electronic equipment
2009/125/EC - Ecodesign
2010/30/EU - Labelling
USER/INSTALLER
The original language of this edition is Italian

3
ENGLISH
Dear Sir/Madam
We thank you for and congratulate you on choosing our
product. Before using it, we would ask you to read this
manual carefully, so that you can make the most of all its
functions in total safety.
This manual is an integral part of the product. We ask you
to keep it for the entire lifetime of the product. If you lose it,
you can request a copy from your dealer or download it from
www.edilkamin.com.
Readers of the manual
This manual is addressed to:
• those who use the product at home (“USER”);
• the technician who will install the product (“INSTALLER”).
The target person of each page is indicated in a band at the
bottom of the page (USER or INSTALLER).
General information
After unpacking the product, check the condition and
completeness of the contents.
In the event of error, immediately contact the retailer where
the purchase was made, providing him with a copy of the
warranty booklet and sales receipt.
The appliance must be installed and operated in compliance
with local and national law and European regulations. For the
installation, and for anything not specifically indicated in the
manual, observe local regulations.
The diagrams provided in this manual are for illustration
purposes only: they do not always strictly refer to your
specific model, and are not binding in any way.
MEANING OF SYMBOLS
In some parts of the manual the following symbols are
used:
INFORMATION:
failure to comply with these requirements
will compromise product use.
PLEASE NOTE:
carefully read and understand the
message in question, since failure to
follow the instructions in it could cause
serious damage to the product and put
the safety of those using it at risk.
OPERATING SEQUENCE:
follow the instructions for the operations
described.
Product identification and warranty.
The product is uniquely identified by a number, the
“counterfoil”, which is indicated on the warranty certificate.
Please keep:
• the warranty certificate accompanying the product
• the purchase receipt given to you by the retailer
• the declaration of conformity given to you by the installer.
The warranty conditions are given in the warranty certificate
accompanying the product.
The warranty, however, covers only demonstrable
manufacturing defects and not, for instance, problems
resulting from improper installation or calibration.
USER/INSTALLER

4
ENGLISH
USER/INSTALLER
SAFETY INFORMATION
• The product is not designed for use by
people, including children, with limited
physical, sensory and mental abilities.
• The appliance is not designed for cooking
purposes.
• The appliance is designed to burn UNI EN
ISO 17225-2 category A1 wood pellets, in
the amounts and manner described in
this manual.
• The appliance is designed for indoor
use and in areas with normal humidity
conditions.
• Keep the product in a dry place out of the
weather.
• For the legal and company warranties,
refer to the warranty certificate inside the
product: specifically, neither Edilkamin nor
the retailer are liable for damage resulting
from incorrect installation or maintenance.
Safety risks may be caused by:
• Installation in non-suitable settings, in
particular those that are subject to fire
risks. DO NOT INSTALL THE PRODUCT
IN AREAS SUBJECT TO THE RISK OF
FIRE.
• Contact with fire and hot parts (e.g. glass
panel and pipes). DO NOT TOUCH HOT
PARTS and, when the stove is switched
off and still hot, always wear the glove.
• Contact with live electrical equipment
(internal). DO NOT ACCESS THE
INTERNAL ELECTRICAL EQUIPMENT
WHILE THE APPLIANCE IS POWERED
ON. Electrocution hazard.
• Use of improper ignition aids (e.g.
alcohol). DO NOT IGNITE OR BOOST
THE FLAME WITH FLUID SPRAYS OR
A FLAME TORCH. Serious risk of burns,
damage and injury.
• Use of fuel other than wood pellets. DO
NOT BURN WASTE MATTER, PLASTIC
OR MATERIALS OTHER THAN WOOD
PELLETS IN THE COMBUSTION
CHAMBER. The product may become
soiled, the flue may catch fire, and
environmental damage may ensue.
• Cleaning the combustion chamber when
hot. DO NOT CLEAN WITH A VACUUM
CLEANER WHEN HOT. You could damage
the vacuum-cleaner and risk the emission
of smoke in the room.
• Cleaning the smoke duct with cleaning
products. DO NOT CLEAN THE PRODUCT
WITH FLAMMABLE PRODUCTS. Risk of
fire or blowback.
• Cleaning the glass pane while hot or
with unsuitable cleaning products. DO
NOT CLEAN HOT GLASS WITH WATER.
ONLY USE RECOMMENDED GLASS
CLEANING PRODUCTS. Risk of cracking
and permanent, irreparable damage to
the glass.
• The storage of flammable materials at
a distance which is less than the safe
distances listed in this manual. DO NOT
PLACE LAUNDRY ON THE APPLIANCE.
DO NOT PLACE DRYING RACKS WITHIN
THE SAFETY CLEARANCE. Keep
flammable fluids away from the appliance.
Fire hazard.
• Blocking the aeration vents and air
intakes in the room. DO NOT BLOCK
THE AERATION VENTS OR FLUE. Risk
of smoke returning into the room with
consequent damage and injury.
• Use of the product as a support or ladder.
DO NOT CLIMB ONTO THE PRODUCT
OR USE IT AS A SUPPORT. Risk of
damage and injury.
• Use of the stove with the combustion
chamber open. DO NOT USE THE
PRODUCT WITH ITS DOOR OPEN.
• Incandescent material may come out
from the open door. DO NOT throw
incandescent material outside the
appliance. Fire hazard.
• Use of water in case of fire. CALL THE
AUTHORITIES if a fire breaks out.
Switch on the product only after complete
installation including coverings. Risk of
electric shock from live device parts.
If you have doubts, please do not take any
action, but contact the retailer or the installer.
For reasonsofsafety,readtheuserinstructions
included in this manual.

5
ENGLISH
USER/INSTALLER

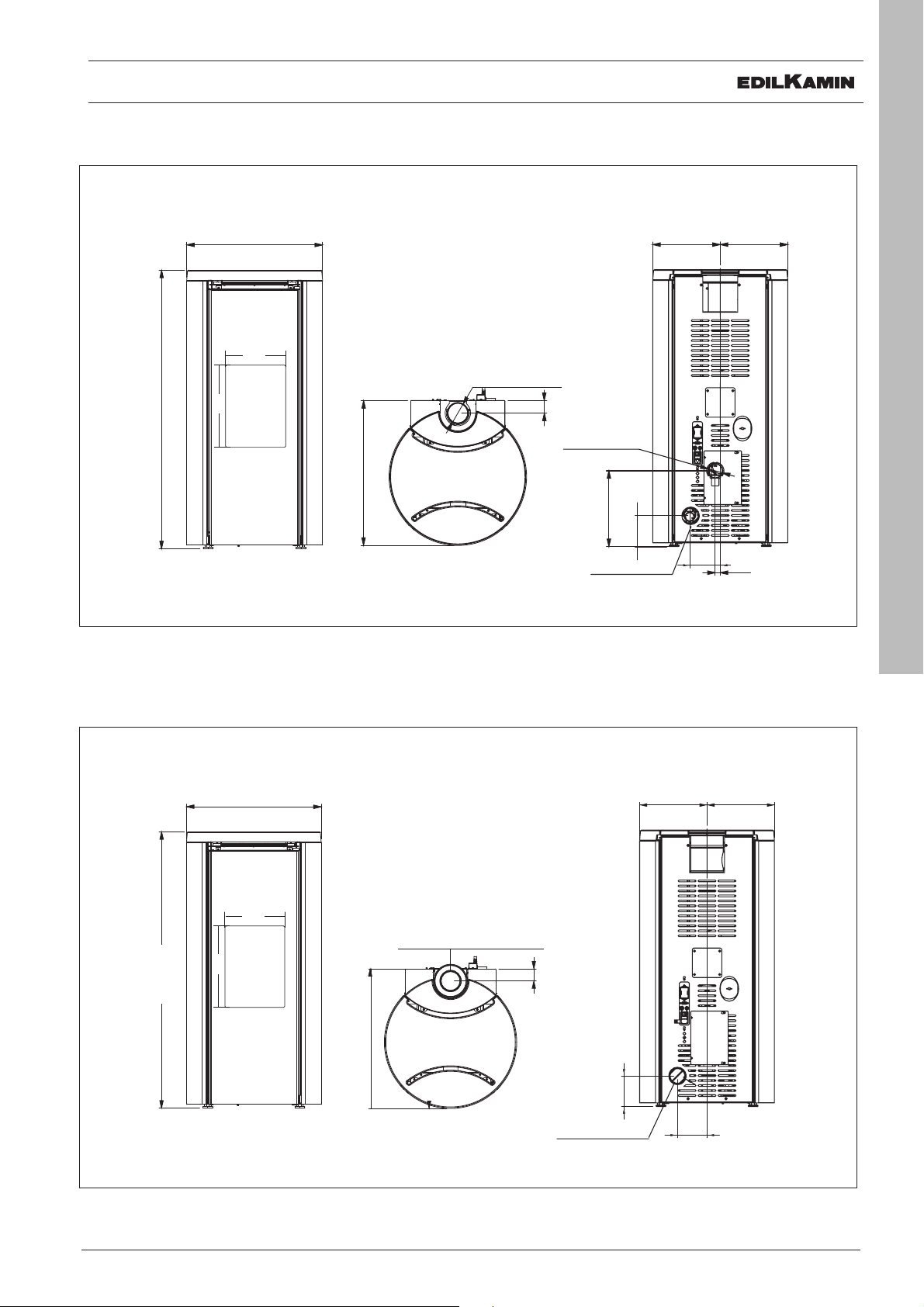

DIMENSIONS
12
18,5
Ø 6 cm
ducting
Ø 6 cm
ducting
Ø 6 cm
air intake
54 27 27
Ø 8 cm
smoke outlet
57
5
111
33
30
2
24
27 27
58,5
5
12
18,5
Ø 8 cm smoke outlet
Ø 13 cm coaxial
54
111
33
24
DIMENSIONS (cm)
Celia Air Tight Plus
Celia Air Tight Plus C

6
ENGLISH
EDILKAMIN s.p.a. Reserves the right to modify the product without notification in the inte-
rests of improvement.
TECHNICAL DATA
USER/INSTALLER
ELECTRICAL SPECIFICATIONS
Power supply 230 Vac +/- 10% 50 Hz
Mean absorbed power 180 W
Reduced absorption Power 50 W
Stand by absorption Power 2 W
Absorbed power on ignition 365 W
Remote control frequency (provided) 2,4 GHz
Protection rating Fuse 4 AT, 250 Vac 5x20
TECHNICAL CHARACTERISTICS in accordance with EN 14785
Celia Air Tight Plus
Celia Air Tight Plus C
Nominal power Reduced power
Available power 9,6 2,7 kW
Efficiency 90,7 89,9 %
CO emissions at 13% O20,001 0,017 %
Fumes temperature 182 119 °C
Fuel consumption** 2,2 0,6 kg/h
Tank capacity 16 kg
Draw 11 10 Pa
Autonomy 7 27 ore
Heatable volume ** 250 m3
Fume duct diameter 8/13 mm
Weight including packaging 145 kg
Energy efficiency class according to UE 2015-
1186 regulation (Class A++/G) A++
TECHNICAL DATA FOR SIZING THE FLUE
which must in any case satisfy the requirements of this sheet and the installation instructions
Nominal power Reduced power
Fumes temperature at smoke outlet 227 143 °C
Minimum draw 0,01 Pa
Fumes 5,5 3 g/s
Typ DIBt CC 50
*A calorific value of 4.8 kW/Kg has been used to calculate consumption.
** The heatable volume is calculated based on the assumption of a heating demand of 33 Kcal/m³ hour.

7
ENGLISH
UNPACKING
UNPACKING AND PREPARATION
Packing employed materials are not toxic or harmful
Packing employed materials are not toxic or harmful
and do not require specific disposal.
and do not require specific disposal.
Storage, disposal or possible recycling must be
Storage, disposal or possible recycling must be
provided by the user in compliance with relative
provided by the user in compliance with relative
applicable laws.
applicable laws.
Each handling operation must be
performed
in vertical position by appropriate means
and in accordance with current safety
regulations.
Do not overturn the packaging.
INSTALLER
INDICATIVE DRAWINGS, NOT ALWAYS REFERRING TO THE SPECIFIC MODEL.
DEFLECTOR

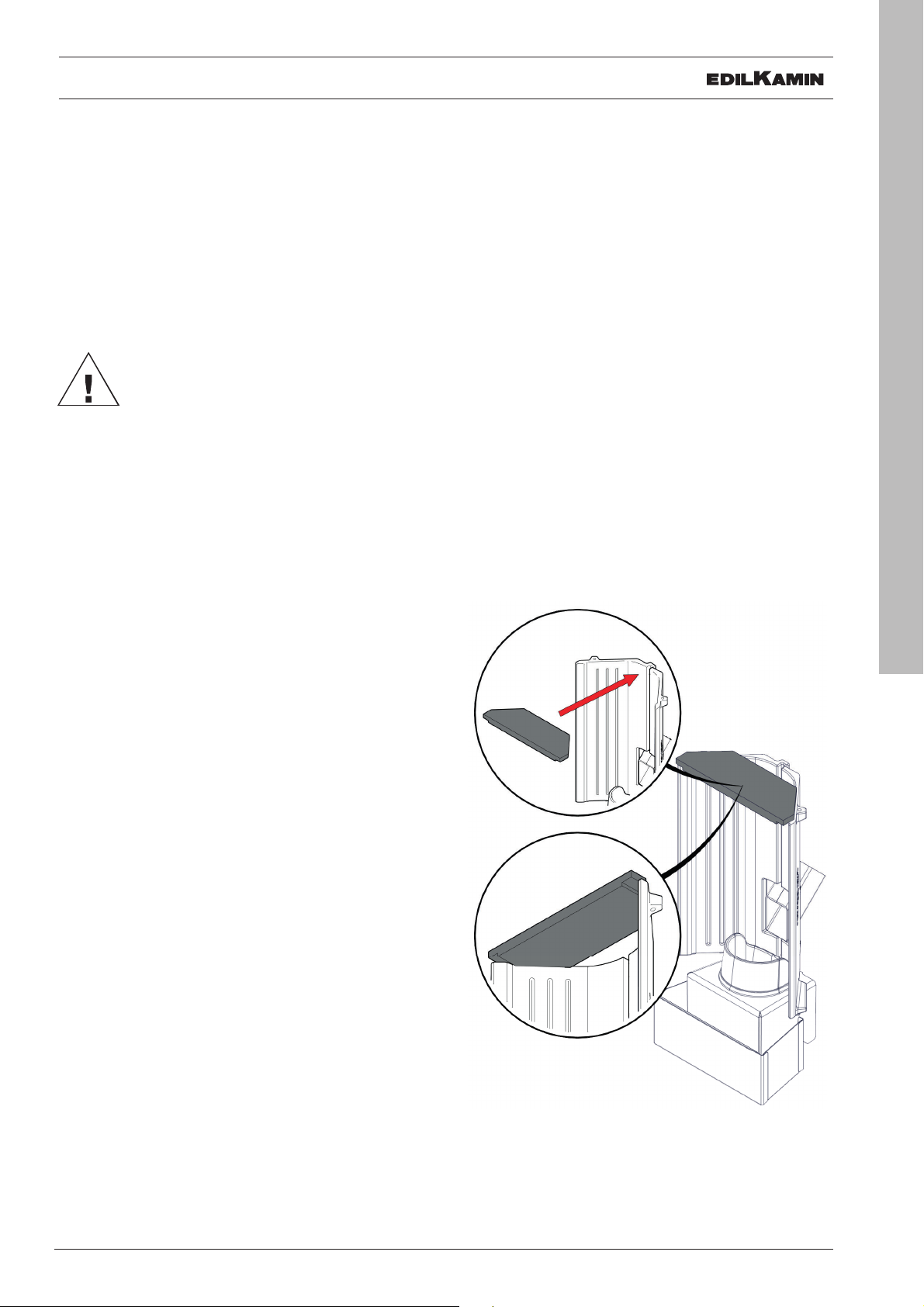

The product is supplied with the deflector not installed:
insert it as shown in the figure.
The deflector is a component subject to wear.
Neither Edilkamin nor the dealer shall be held liable
should this component break, all the more if it breaks
accidentally during handling operations.

8
ENGLISH
UNPACKING
INSTALLER

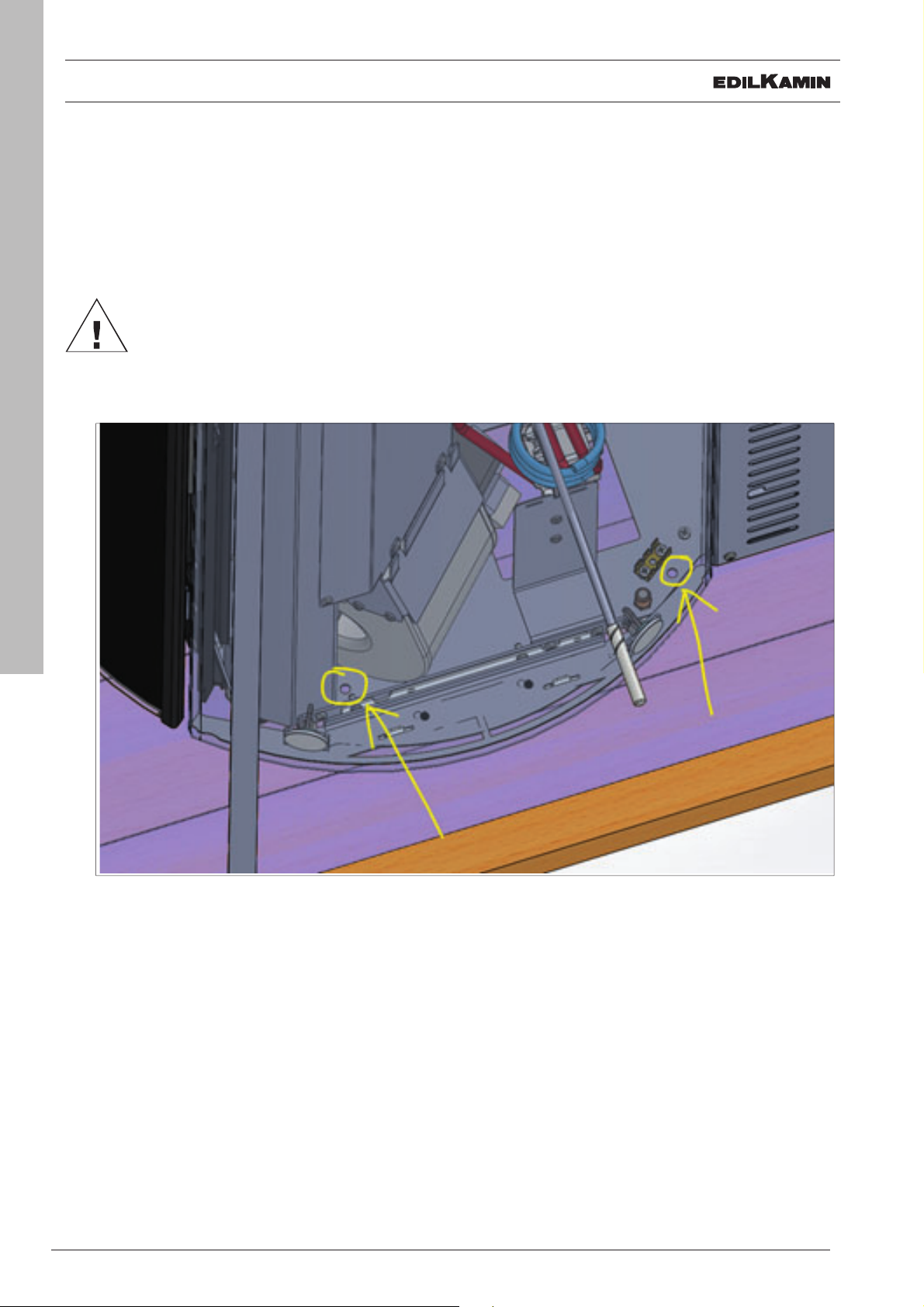

DO NOT REMOVE THE PRODUCT FROM THE PALLET BEFORE OPENING THE DOOR AND LOOSENING
THE SCREWS.
THE DRAWINGS ARE FOR GUIDANCE ONLY, USEFUL FOR THE INSTALLATION, BUT THEY MAY
NOT REFER TO THE SPECIFIC MODEL.
Stoves are delivered with the coatings fitted.
Unscrew and remove them from the top to take the stove off from the pallet.

9
ENGLISH
INSTALLER
REMARKS ON INSTALLATION
REMARKS ON INSTALLATION
Note that:
Note that:
• installation must be carried out by authorised
• installation must be carried out by authorised
technical personnel;
technical personnel;
the appliance must be installed and operated in
the appliance must be installed and operated in
compliance with local and national law and European
compliance with local and national law and European
regulations. The Italian reference standard is UNI
regulations. The Italian reference standard is UNI
10683; in France one must follow the instructions in the
10683; in France one must follow the instructions in the
DTA (Document Technique d’Application Référence
DTA (Document Technique d’Application Référence
Avis Technique), www.cstb.fr
Avis Technique), www.cstb.fr
• if installed in a condominium, the appliance must
• if installed in a condominium, the appliance must
be approved by the administrator;
be approved by the administrator;
• if installed in public premises, check and follow
• if installed in public premises, check and follow
local regulations for this type of installation.
local regulations for this type of installation.
Here are a few general instructions, although these do
Here are a few general instructions, although these do
not obviate the need to comply with local regulations
not obviate the need to comply with local regulations
and do not affect the installer’s liability for the
and do not affect the installer’s liability for the
installation.
installation.
Remember that Rada Air Tight C is sealed, in other
Remember that Rada Air Tight C is sealed, in other
words, if it is installed correctly with the air inlet pipe
words, if it is installed correctly with the air inlet pipe
connected to the outside, it takes the majority of the
connected to the outside, it takes the majority of the
air from the outside. For different countries, check if
air from the outside. For different countries, check if
there are particular installation conditions allowed for
there are particular installation conditions allowed for
sealed stoves.
sealed stoves.
Checking the suitability of the installation
space
• The room must have a volume of at least 30 m3
• The floor must be able to bear the weight of the
product and its accessories* (see the note in the
paragraph on the heat protection)
• Level the appliance
• Pursuant to Standard 10683 rev. 2012 point 6.3, in
Italy you can also install the appliance in bedrooms
or in rooms which already include a product that
takes air from it for combustion, provided that the
air inlet is connected to the outside
• Do not install the product in spaces where there is
a risk of fire or explosion
• In Italy, check the compatibility pursuant to UNI
10683 and UNI 7129 in the presence of gas fired
products.
INSTALLATION
Protection from heat and safety clearances
The surfaces of the building adjacent to the product
must be protected against overheating.
The insulation to be used will depend on the type of
surface in question.
The appliance must be installed in accordance with
the following safety instructions:
- minimum clearance at the sides 10 cm and back of
5 cm from flammable materials
- no flammable materials may be kept closer to the
front of the appliance than 80 cm.
If connected to a wooden or otherwise flammable wall,
the flue must be appropriately insulated.
If installed on a flammable or combustible floor, or
which is not capable of bearing its load*, use steel or
glass plates under the stove to distribute the load.
Contact the retailer for this type of optional.
Positioning the product
The product is designed to operate in all climate
conditions. In special circumstances, such as strong
wind, the safety devices may intervene to switch the
appliance off.
Contact the authorised Edilkamin Technical Assistance
Centre.

10
ENGLISH
INSTALLER
FLUE SYSTEM
FLUE SYSTEM
(fumes duct, flue and chimney pot)
(fumes duct, flue and chimney pot)
This chapter has been drawn up pursuant to European
regulations EN 13384, EN 1443, EN 1856 and EN
1457. The installer must observe both these and any
other local regulations. This manual does not in any
way substitute such regulations.
The product must be connected to a flue system which
ensures that the fumes produced by combustion are
expelled in complete safety.
Before positioning the appliance, the installer must
check that the flue is suitable.
FUMES DUCT, FLUE
FUMES DUCT, FLUE
The fumes duct (which connects the combustion
chamber smoke outlet with the flue) and the flue itself
must, among other regulatory requirements:
• receive the fumes from a single product (the outlets
of multiple appliances may not be conveyed into
a single flue)
• be routed vertically for the most part
• have no downwards sloping sections
• preferably have a circular internal cross section, or
with a ratio of the sides of less than 1.5
• terminate at roof level with a proper chimney pot:
the flue may not discharge directly on the wall
or into an enclosed space, even if the space in
question is open to the sky
• be made of material with rated fire reaction class
A1 as per UNI EN 13501 or analogous national
regulations
• be certified, with a chimney plate if metal
• be of uniform cross section or vary in cross section
only immediately after the outlet, not at some
midpoint of its length.
THE FUMES DUCT
THE FUMES DUCT
• Further to the general prescriptions for the fumes
duct and flue, the fumes duct:
• may not be made of flexible metal material
• must be insulated, if routed through unheated
areas or outdoors
• must not be routed through rooms where the
installation of combustion heat generators is
prohibited or there is risk of fire, or that cannot be
inspected
• must enable the recovery of soot and be open for
inspection
• must have a maximum of 3 bends with a maximum
angle of 90°
• if there is a horizontal section, it can have a
maximum length of no more than 3 metres,
depending on the draw. Note, in any case, that
long sections encourage the accumulation of dirt
and are harder to keep clean.
THE FLUE:
THE FLUE:
Further to the general prescriptions for the smoke duct
and flue, the flue:
• must only be used for discharging fumes
• must be correctly sized to satisfy the requirements
for fume discharging (EN 13384-1)
• should preferably be insulated, in steel with a
circular internal section. If rectangular, the corners
must have a radius of not less than 20 mm, with
aratio of the internal dimensions of <1.5
• must normally be at least 1.5 metres in vertical
length
• must have a constant cross section
• must be waterproof and thermally insulated to
ensure a good draw
• preferably provide a collection chamber for
unburnt residues and condensates
• if pre-existing, must be clean, to prevent fire
hazards
• in general, we recommend fitting a tube inside the
existing masonry chimney if its diameter is greater
than 150 mm.
INSTALLATION
INSTRUCTIONS FOR THE SMOKE
INSTRUCTIONS FOR THE SMOKE
DISCHARGE WITH OR WITHOUT
DISCHARGE WITH OR WITHOUT
CONCENTRIC PIPE
CONCENTRIC PIPE

11
ENGLISH
INTUBATED SYSTEM
INTUBATED SYSTEM:
Further to the general prescriptions for the fumes duct
and flue, the intubated system:
• must operate in negative pressure;
• must be open to inspection;
• must observe local regulations.
THE CHIMNEY POT
THE CHIMNEY POT (In every country and specially
in France, check on the specific waiver conditions)
• must be anti-downdraught
• must have an internal cross section equivalent to
that of the flue and a fumes outlet at least double
that of the interior of the flue
• for dual flues (which should be spaced at least 2
m apart) the chimney pot receiving the fumes from
the solid fuel appliance or that from the higher
storey, must be at least 50 cm higher than the other
• it must extend beyond the back flow zone (in Italy,
refer to UNI 10683 point 6.5.8.)
• it must allow for maintenance of the chimney.
INSTALLATION
INSTALLER

12
ENGLISH
INSTALLATION
INSTALLER
COMBUSTION AIR INTAKE
The inflow of necessary air for combustion, of air for
glass cleaning and heating air renewal must come
from the outside
Sealed stoves can also be installed in
passive houses. In this case, the air inlet
must be a direct air inlet
The stove takes the air from the outside
via the air inlet hole.
Install an air intake with an effective
surface area (net of the mesh or other
protective equipment) at least equal to the
cross section of the air inlet hole.
Connect the air intake to the appliance’s air intake with
a pipe that may also be flexible. Increase the diameter
of the pipe if the pipe is not smooth or if it is necessary
due to load losses: assess the load losses.
We recommend that it does not exceed 1 metre in
length or include any bends.
If you are not interested in the sealing feature of the
appliance, you can create an indirect air intake, even if
this is not recommended
Install an air outlet at floor level with an effective sur-
face area (net of the screen or other protections) of at
least 80 cm2(diameter 10 cm).
To prevent draughts, we recommend installing the
intake behind the product or behind a radiator.
Installing it in front of the appliance will create
unpleasant draughts.
The air may be drawn from an adjacent room only if:
• the flow is taken from permanent, unobstructed
openings communicating with the outdoors
• the air pressure in the adjacent room is never
reduced to a level below outdoor pressure
• the adjacent room is not a garage, subject to fire
hazard, a bathroom or a bedroom
• the adjacent room is not a shared room in the
condominium
In Italy, UNI 10683 provides that ventilation is sufficient
even if a pressure difference between the outdoors
and indoors of no more than 4 PA is guaranteed (UNI
EN 13384-1). The installer who issues the declaration
of conformity is responsible for ensuring these
conditions.
USE OF CONCENTRIC PIPES
USE OF CONCENTRIC PIPES
Without prejudice to the general instructions, you can
use concentric pipes (which provide for the passage of
smoke inside and the passage of the combustion air
into the external circular ring).
This type of installation only needs one hole in the wall,
instead of having one hole for the air intake and one for
the smoke discharge.
stufa
scarico fumi sopra
presa aria sopra
con uso coassiale
Examples of possible installations. For the smoke
discharge conditions (on roof, etc.) check local
regulations for sealed pellet stoves.
Upper coaxial fumes discharge and air
intake

13
ENGLISH
INSTALLATION
INSTALLER
CHECKINGTHEELECTRICALCONNECTIONS
(the power socket must be located in an
easily accessible position)
The stove is equipped with an electrical power cord or
connection to a 230V 50 Hz socket, preferably with an
electromagnetic switch.
Variations in voltage of more than 10% can compromise
the operation of the stove.
The electrical system must be compliant; check the
operation of the earth in particular.
Edilkamin is not responsible for malfunctions resulting
from an improperly earthed system.
The power line must be of adequate section for the
power of the appliance.
The power cable must not come into contact with the
flue or other hot parts of the stove.
Power up the stove by setting its switch from 0 to 1.
There is a 4 A fuse on the socket with switch located at
the rear of the stove.

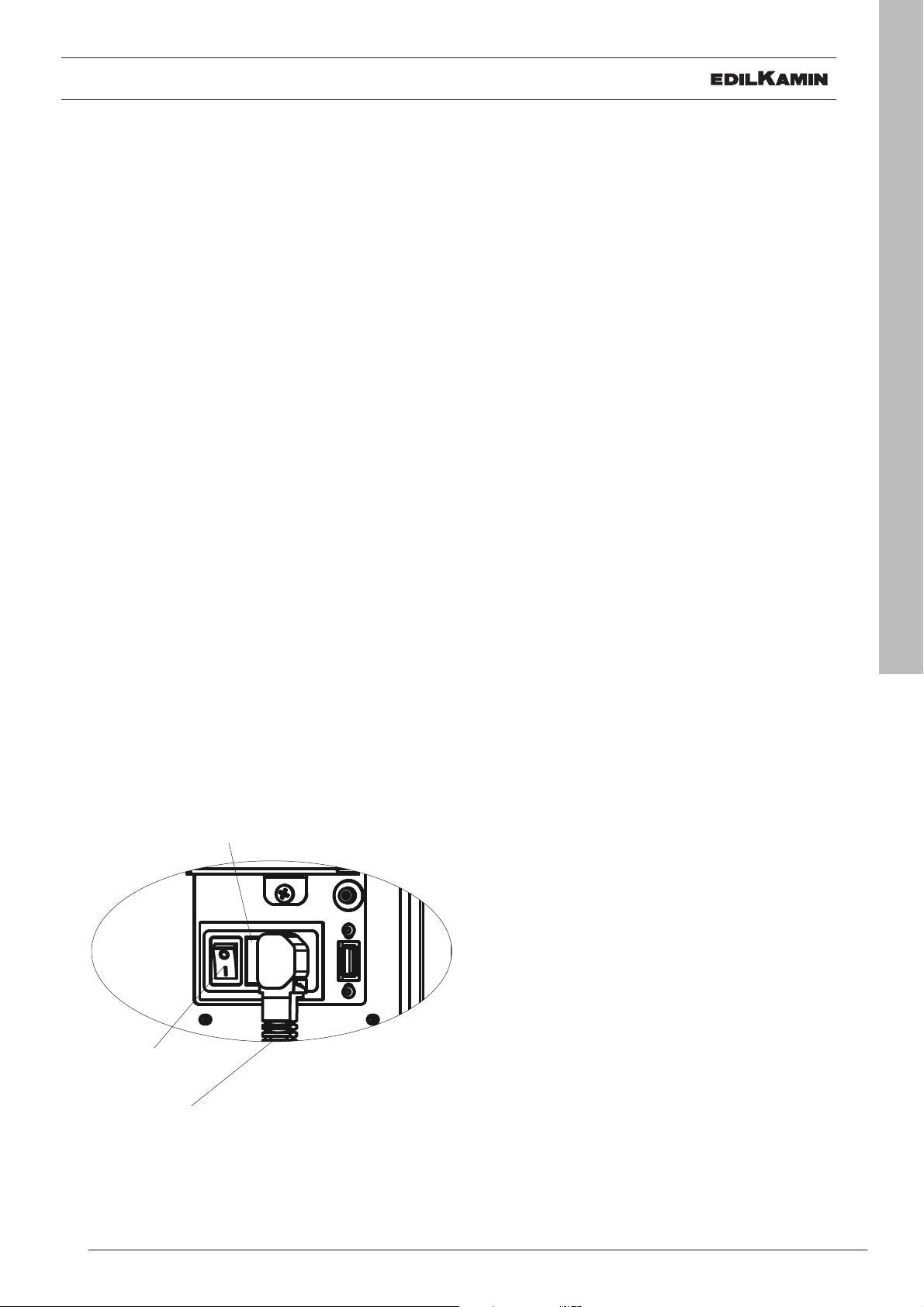

switch
fuse compartment
power supply

14
ENGLISH
DUCTING OF HEATING AIR
DUCTING OF HEATING AIR
To duct the warm air exiting the rear (protected as
standard by a grille), you will find several optional
extras at your reseller:
• air duct pipe (3 metres, 6 cm diameter)
• “Y” deviation for duct pipe (6 cm diameter)
• various models of ducting vents (Bent, Split,
Origami, Sharp).
The instructions for connecting these vents are given
in the manual provided with the vents.
INSTALLATION
INSTALLER

15
ENGLISH
USER INSTRUCTIONS
INSTALLER
FIRST IGNITION (COMMISSIONING) PHASES
• Make sure you have read and understood this
manual
• Remove all flammable materials from the appliance
(manuals, labels, etc.). In particular remove any
labels from the glass
• Make sure that the technician performs the first
ignition and the first loading of the pellet tank (see
“pellet loading”)
PELLET LOADING

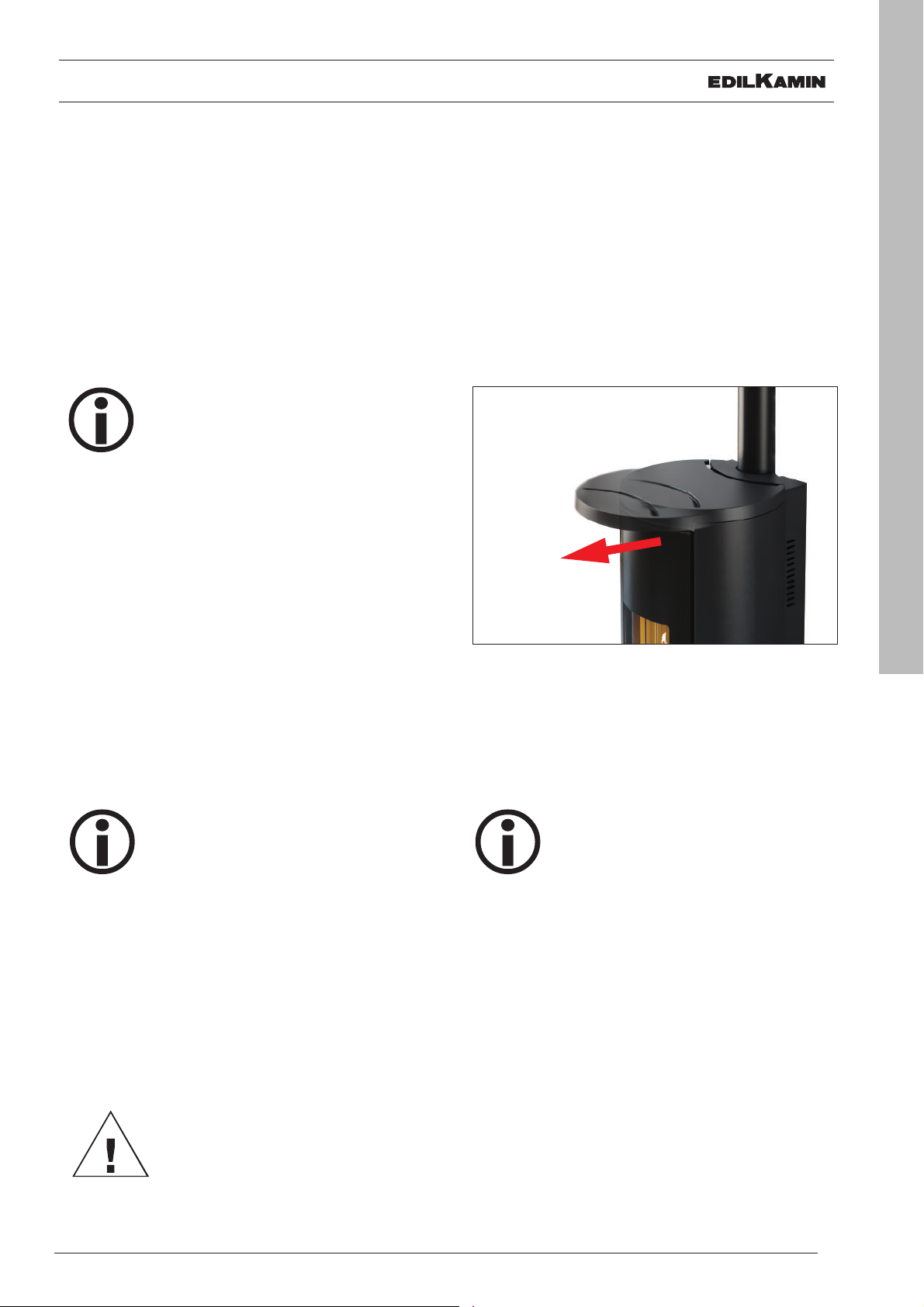

Gently slide the top until the end stop to load pellet.
Open the inner hatch and just pour pellet making sure
not to spill it out
jamming sliding top telescopic guides. Close the
loading hatch and the sliding top.
When the stove is hot, DO NOT MAKE
CONTACT between the pellet bag and the
top grille.
Use the glove when loading the stove while
it is operating and hence hot to the touch.
Make sure not to touch the smoke
discharge pipe if hot.
FUEL
Use UNI EN ISO 17225-2 category A1 wood pellets
Use UNI EN ISO 17225-2 category A1 wood pellets
or similar regulatory products with the following
or similar regulatory products with the following
characteristics.
characteristics.
diameter 6 mm
diameter 6 mm
length 3-4 cm
length 3-4 cm
humidity <10 %
humidity <10 %
For reasons of safety and environmental compatibility,
DO NOT burn plastic, painted wood, coal, bark or
other such materials in the stove.
Do not use the stove as an incinerator
Caution
Using fuels other than those specified can
damage the appliance
On first ignition, there may be a slight
smell of paint, which will disappear in a
short time.
Product can be commissioned only after coverings installation.
Switch on the product only after complete installation including coverings.
Risk of electric shock from live device parts.
* Check that the tank is closed. A contact will stop the
pellet load should the tank remain open
*

16
ENGLISH
USER INSTRUCTIONS
USER
OPERATION
Mode Settable parameters
MANUAL • power level
• ventilation level (if there are
two or more fans, they can be
adjusted separately)*
AUTOMATIC • desired room temperature
• ventilation level *
CRONO • desired room temperature,
selected per day of the week
• ventilation level*
* by lowering ventilation, the product can also
automatically modulate
the power to maintain
maximum performance and avoid overheating. Where
necessary, a safety function is provided: if for reasons
of use or installation the set ventilation does not
allow the necessary heat dissipation, the maximum
ventilation is automatically started.
The product also has the following supplementary
functions.
Function Modes in which
it can be acti-
vated
What it does
Stand-By automatic
crono
when the desired
temperature is
reached, the prod-
uct switches off and
then back on again
when the tempera-
ture drops
RELAX
(not
provided
for some
types of
products)
manual
automatic
crono
enables natural con-
vection mode (fan
off), thus reducing
the power
EASY
TIMER
manual
automatic
can be used to
programme the
switching off/on
after a set number
of hours (maximum
12 hours)

17
ENGLISH
INTERFACE
The product can be managed alternatively as follows
STANDARD
• Bluetooth REMOTE CONTROL: can be used
for all functions, near the product
• The Mind APP T« M®Ä : useful for all functions
at home with direct connection or outside the
home with internet connection and registration
If necessary, a few functions can also be managed
from a
• SAVE PANEL: placed on the product
T« M®Ä
By purchasing the Edilkamin optional elements:
• VOICE CONTROL SYSTEMS: Alexa or Google
Home
USER INSTRUCTIONS
USER

18
ENGLISH
OPTIONAL THERMOSTATS/PROBES CONNECTIONS
USER

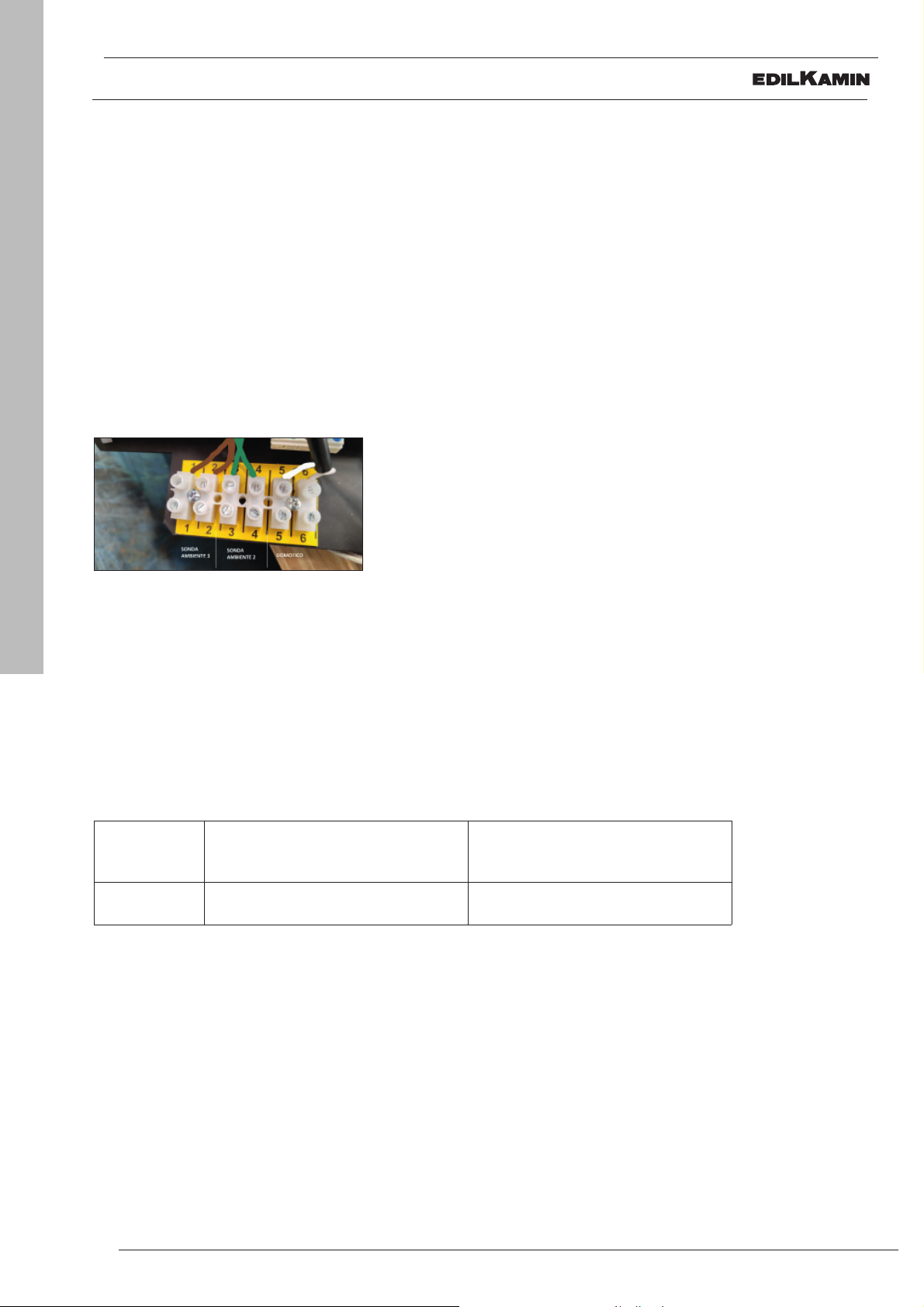

OPTIONAL ELECTRICAL CONNECTIONS
On the product (accessible by removing the coating,
with the electricity off and only by qualified technicians) a
dedicated low voltage terminal block can be found
-Pin 1-2 = zone 3 ambient input = probe or thermostat
of the relative zone
-Pin 3-4 = zone 2 ambient input = probe or thermostat
of the relative zone
-Pin 5-6 = home automation input = commercial tele-
phone dialler
or remote On-Off or Thermostat.
Thermostat on home automa-
tion contact
Thermostat in place of the
ambient probe on the elec-
tronic board
ACTION The product turns on/off without any
modulation.
the product modulates, goes into
stand-by and turns on/off
terminal block example
NOTE:
The connections must be made by qualified
personnel, with the electricity disconnected.
More info for installers on the site.
In case of connection of probes or thermostats on the
room inputs, the relevant parameters must be set in the
Technical Menu of the appliance.
There are two possible modes of operation.
The installer can help you choose, according to your needs:

19
ENGLISH
USER INSTRUCTIONS: REMOTE CONTROL
USER
AIRKARE
RELAX
REMOTE CONTROL
The remote control has specific functions for three
distinct figures:
• USER of the product (operations not protected
by password)
• INSTALLER (operations with dedicated
password because any errors can jeopardise the
product’s operations and SECURITY)
• EDILKAMIN TECHNICAL ASSISTANCE
CENTRE (TAC) (operations with dedicated
password because any errors can jeopardise the
product’s operation and SECURITY).
If on the initial start-up the language was not
set, the screen for setting the language will appear.
Choose the language with the +/- buttons and con-
firm with OK.
REMOTE CONTROL POWER SAVING
After 20" of non-use the backlighting decreases
and after a further 10" the display switches off.
If any button is pressed with the
display on, the counter resets.
If any button is pressed while the display is off, the
display and the backlighting will switch on and the
counter will reset.
This only refers to the remote control, not the product
itself.
In normal use, the remote control's batteries should
last a year. This duration is for illustrative purposes
only. Edilkamin and the reseller will not consider claims
for battery life under any circumstances.
CRONO
timer
EASY TIMER
MENU
CONFIRM OK
USER
DECREASE
INCREASE
DECREASE IN VENTILA-
TION / LEFT
ON-OFF
on-off
AUTO/MAN
IN VENTILATION /
RIGHT
WALL
SUPPORT
Characteristics:
Module for RF transmission and reception with
2.4 GHz frequency - Recommended power sup-
ply 3 x AA slimline 1.5 VDC batteries (with at least
1600 mAh capacity).
Risk of explosion if the batteries are replaced
with other unsuitable batteries.

20
ENGLISH
Bluetooth communication present between the product and the PCB. If there is no communication, the
symbol disappears.
On only if the battery is running out.
Maintenance necessary symbol.
Appears after a certain number of hours of operation. In some models the symbol may be linked to a fuse
problem on the board. In any case, contact the TAC.
The relative function is active (Relax – airKare – EasyTimer – Crono).
EasyTimer and Crono cannot be activated simultaneously.
Reserve indicator. It switches on if the function is active. The arrows switch on in sequence to signal that the
tank must be filled.
Presence of flame and stove power
USER
INSTRUCTIONS FOR USE: REMOTE CONTROL
POWER ON
POWER LEVEL 1
POWER LEVEL 2
POWER LEVEL 3
POWER LEVEL 4
POWER LEVEL 5
Current room
temperature Target room
temperature
