EdilKamin LILLE 8 Up Specification sheet

EN Installation, use and maintenance page 2
LILLE 8 Up
PELLET STOVE
For all updates visit www.edilkamin.com

2
ENGLISH
The undersigned company, EDILKAMIN S.p.A., with
registered office in Via P. Moscati 8 - 20154 Milan (Italy) -
Italian Tax ID VAT NO. 00192220192
Hereby declares, under its sole responsibility, that:
The pellet stoves mentioned below comply with EU
Regulation 305/2011 and the harmonised EU standard
EN 14785:2006
PELLET STOVES, bearing the
EDILKAMIN brand, called
LILLE 8
SERIAL NO.: Rating plate reference
Lille 8 : Performance declaration: (DoP - EK no. 157)
Moreover, the company hereby declares that:
the LILLE 8 wood pellet stoves satisfy the requirements of the
following European directives:
2014/35/EC - Low Voltage Directive
2014/30/EC - Electromagnetic Compatibility Directive
USER/INSTALLER
The original language of this edition is Italian
Up is a commercial suffix to indicate The Mind

3
ENGLISH
Dear Sir/Madam
We thank you for and congratulate you on choosing our
product. Before using it, we would ask you to read this
manual carefully, so that you can make the most of all its
functions in total safety.
This manual is an integral part of the product. We ask you
to keep it for the entire lifetime of the product. If you lose it,
you can request a copy from your dealer or download it from
www.edilkamin.com.
Readers of the manual
This manual is addressed to:
• those who use the product at home (“USER”);
• the technician who will install the product (“INSTALLER”)
The target person of each page is indicated in a band at the
bottom of the page (USER or INSTALLER).
General information
After unpacking the product, check the condition and
completeness of the contents.
In the event of error, immediately contact the retailer where
the purchase was made, providing him with a copy of the
warranty booklet and sales receipt.
The appliance must be installed and operated in compliance
with local and national law and European regulations. For the
installation, and for anything not specifically indicated in the
manual, observe local regulations.
The diagrams provided in this manual are for illustration
purposes only: they do not always strictly refer to your
specific model, and are not binding in any way.
MEANING OF SYMBOLS
In some parts of the manual the following symbols are
used:
INFORMATION:
failure to comply with these requirements
will compromise product use.
PLEASE NOTE:
carefully read and understand the
message in question, since failure to
follow the instructions in it could cause
serious damage to the product and put
the safety of those using it at risk.
OPERATING SEQUENCE:
follow the instructions for the operations
described.
Product identification and warranty.
The product is uniquely identified by a number, the
“counterfoil”, which is indicated on the warranty certificate.
Please keep:
• the warranty certificate accompanying the product
• the purchase receipt given to you by the retailer
• the declaration of conformity given to you by the installer.
The warranty conditions are given in the warranty certificate
accompanying the product.
The warranty, however, covers only demonstrable
manufacturing defects and not, for instance, problems
resulting from improper installation or calibration.
USER/INSTALLER
CE marking
The product’s CE marking plate is located on the back.

4
ENGLISH
SAFETY INFORMATION
• The product is not designed for use by people,
including children, with limited physical, sensory
and mental abilities.
• The appliance is not designed for cooking
purposes.
• The appliance is designed to burn UNI EN ISO
17225-2 category A1 wood pellets, in the amounts
and manner described in this manual.
• The appliance is designed for indoor use and in
areas with normal humidity conditions.
• Keep the product in a dry place out of the weather.
• For the legal and company warranties, refer to the
warranty certificate inside the product: specifically,
neither Edilkamin nor the retailer are liable for
damage resulting from incorrect installation or
maintenance.
Safety risks may be caused by:
• Installation in non-suitable settings, in particular
those that are subject to fire risks. DO NOT
INSTALL THE PRODUCT IN AREAS SUBJECT TO
THE RISK OF FIRE.
• Contact with fire and hot parts (e.g. glass panel
and pipes). DO NOT TOUCH HOT PARTS and,
when the stove is switched off and still hot, always
wear the glove supplied.
• Contact with live electrical equipment (internal).
DO NOT ACCESS THE INTERNAL ELECTRICAL
EQUIPMENT WHILE THE APPLIANCE IS
POWERED ON. Electrocution hazard.
• Use of improper ignition aids (e.g. alcohol). DO
NOT IGNITE OR BOOST THE FLAME WITH FLUID
SPRAYS OR A FLAME TORCH. Serious risk of
burns, damage and injury.
• Use of fuel other than wood pellets. DO NOT BURN
WASTE MATTER, PLASTIC OR MATERIALS OTHER
THAN WOOD PELLETS IN THE COMBUSTION
CHAMBER. The product may become soiled, the
flue may catch fire, and environmental damage
may ensue.
• Cleaning the combustion chamber when hot. DO
NOT CLEAN WITH A VACUUM CLEANER WHEN
HOT. You could damage the vacuum-cleaner and
risk the emission of smoke in the room.
• Cleaning the smoke duct with cleaning products.
DO NOT CLEAN THE PRODUCT WITH
FLAMMABLE PRODUCTS. Risk of fire or blowback.
• Cleaning the glass pane while hot or with unsuitable
cleaning products. DO NOT CLEAN HOT GLASS
WITH WATER. ONLY USE RECOMMENDED
GLASS CLEANING PRODUCTS. Risk of cracking
and permanent, irreparable damage to the glass.
• The storage of flammable materials at a distance
which is less than the safe distances listed in
this manual. DO NOT PLACE LAUNDRY ON
THE APPLIANCE. DO NOT PLACE DRYING
RACKS WITHIN THE SAFETY CLEARANCE. Keep
flammable fluids away from the appliance. Fire
hazard.
• Blocking the aeration vents and air intakes in the
room. DO NOT BLOCK THE AERATION VENTS
OR FLUE. Risk of smoke returning into the room
with consequent damage and injury.
• Use of the product as a support or ladder. DO
NOT CLIMB ONTO THE PRODUCT OR USE IT AS
A SUPPORT. Risk of damage and injury.
• Use of the stove with the combustion chamber
open. DO NOT USE THE PRODUCT WITH ITS
DOOR OPEN.
• Incandescent material may come out from the
open door. DO NOT throw incandescent material
outside the appliance. Fire hazard.
• Use of water in case of fire. CALL THE
AUTHORITIES if a fire breaks out.
• If you have doubts, please do not take any action,
but contact the retailer or the installer.
For reasons of safety, read the user instructions
included in this manual.
USER/INSTALLER

5
ENGLISH

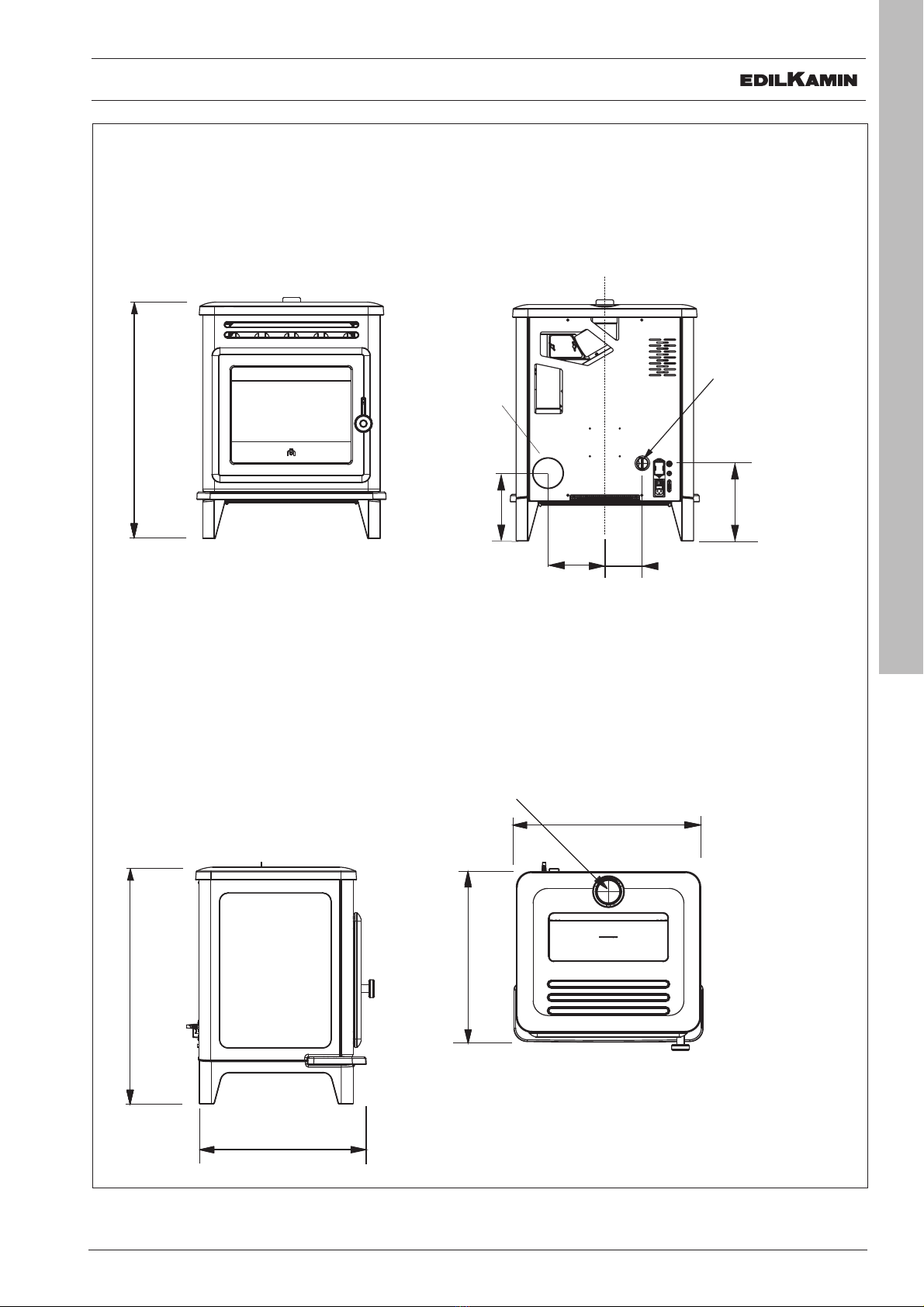

DIMENSIONS
DIMENSIONS (cm)
64
58
Ø 8 cm
standard smoke outlet from above
80
80
58
26.5
Ø 4 cm
combustion air
13
* removable feet: stove height without feet 70 cm
*
USER/INSTALLER
23
19.5
Ø 8 cm
predispo-
sition for
smoke outlet
from behind

6
ENGLISH
The above data are for guidance only and were measured during certification by a notified body.
EDILKAMIN s.p.a. reserves the right to modify the product without notification in the interests of improvement.
TECHNICAL CHARACTERISTICS in accordance with EN 14785
LILLE 8
Nominal power Reduced power
Available power 8,1 2,5 kW
Efficiency 90,3 91,5 %
CO emissions at 13% O20,011 0,026 %
Smoke temperature 158 85 °C
Fuel consumption 1,8 0,5 kg/h
Tank capacity kg
Draw 12 10 Pa
Autonomy 11 40 hours
Heatable volume * 210 m3
Smoke duct diameter (male behind,
female above) 80
Air intake diameter (male) 40
Weight including packaging 180
TECHNICAL DATA FOR SIZING THE FLUE
which must in any case satisfy the requirements of this sheet and the installation instructions for the product
LILLE 8
Smoke temperature at outlet 185 °C
Minimum draw 0,01 Pa
Smoke flow rate 5,8 Rps
ELECTRICAL SPECIFICATIONS
Power supply 230 V AC +/- 10% 50 Hz
Mean absorbed power 50 - 80 W
Power absorption during ignition 300 W
Remote control frequency (provided) 2.4 GHz
Protection rating Fuse 4 AT 250 V AC 5x20
GENERAL INFORMATION
USER/INSTALLER
* The heatable volume is calculated based on the assumption of a heating demand of 33 Kcal/m³ hour.
*A calorific value of 4.8 kW/Kg has been used to calculate consumption

7
ENGLISH
UNPACKING
PREPARATION AND UNPACKING
The packaging materials are neither toxic nor noxious
The packaging materials are neither toxic nor noxious
and do not require special disposal.
and do not require special disposal.
The user is responsible for storing, disposing of and
The user is responsible for storing, disposing of and
recycling them in a regulatory fashion.
recycling them in a regulatory fashion.
Always move the stove vertically with
suitable equipment and in observance of
safety regulations.
Do not turn the package over, and handle
all parts requiring installation with care.
PACKAGING
The delivery consists of two packages:
• one (1) containing the structure of the stove with
its side panels installed, and a bag of small parts.
In the stove package, there is:
• remote control,
• warranty certificate,
• glove,
• this manual,
• power cable.
HOW TO REMOVE STOVE FROM THE PALLET
Remove the stove from the pallet by removing the
Remove the stove from the pallet by removing the
brackets screwed on the rear
brackets screwed on the rear
INSTALLER
HOW TO REDUCE THE WEIGHT OF THE
PRODUCT FOR HANDLING
To reduce the weight of the product for handling you
To reduce the weight of the product for handling you
can remove:
can remove:
top and sides
top and sides
Operations are described from points 1 to 5 of the
Operations are described from points 1 to 5 of the
paragraph “Removing the feet”.
paragraph “Removing the feet”.
Important: make sure you reposition correctly.
Important: make sure you reposition correctly.
We recommend that the operation is carried out by
We recommend that the operation is carried out by
qualified personnel.
qualified personnel.
Do not drag the appliance with the rubber
adjustable feet lowered: they could break

8
ENGLISH
REMOVING THE FEET
At the base of the product there are four removable feet which can be removed to lower the product.
The feet on each side consist of a single element which will be called “two feet assembly” (A) from now on
Proceed as follows to remove them. Each operation is shown in the figure alongside.
1. Open the pellet tank (*) by lifting the lid with the
handle on top.
2. Undo the screws of the pellet loading lid to remove
the top
INSTALLER
*
x4

9
ENGLISH
F
REMOVING THE FEET
3. Remove the top and the pellet loading lid
4. Undo the two screws on each side on the brackets
underneath the top
5. Slide the sides off (F)
INSTALLER
4
5

10
ENGLISH

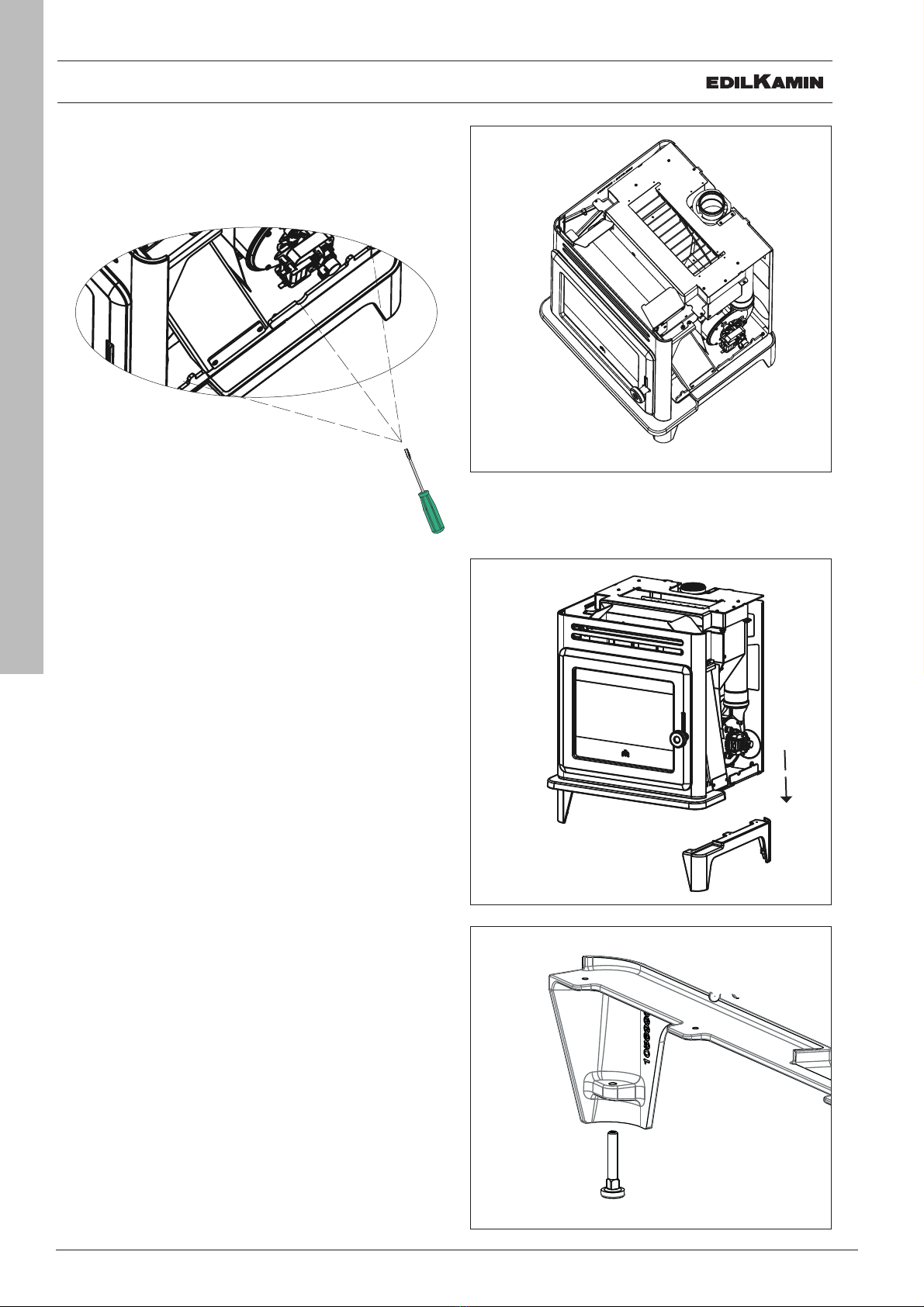

REMOVING THE FEET
6. Undo three screws per side of the feet assembly
7. Remove the feet assembly from each side (A)
8. Remove the adjustable feet (R) from the cast iron feet
(P) to use them underneath the stove for levelling
A
P
R
A
INSTALLER
9. Refit sides and top.
When refitting the sides, take care to snap them back in
their correct position
6
7
8

11
ENGLISH

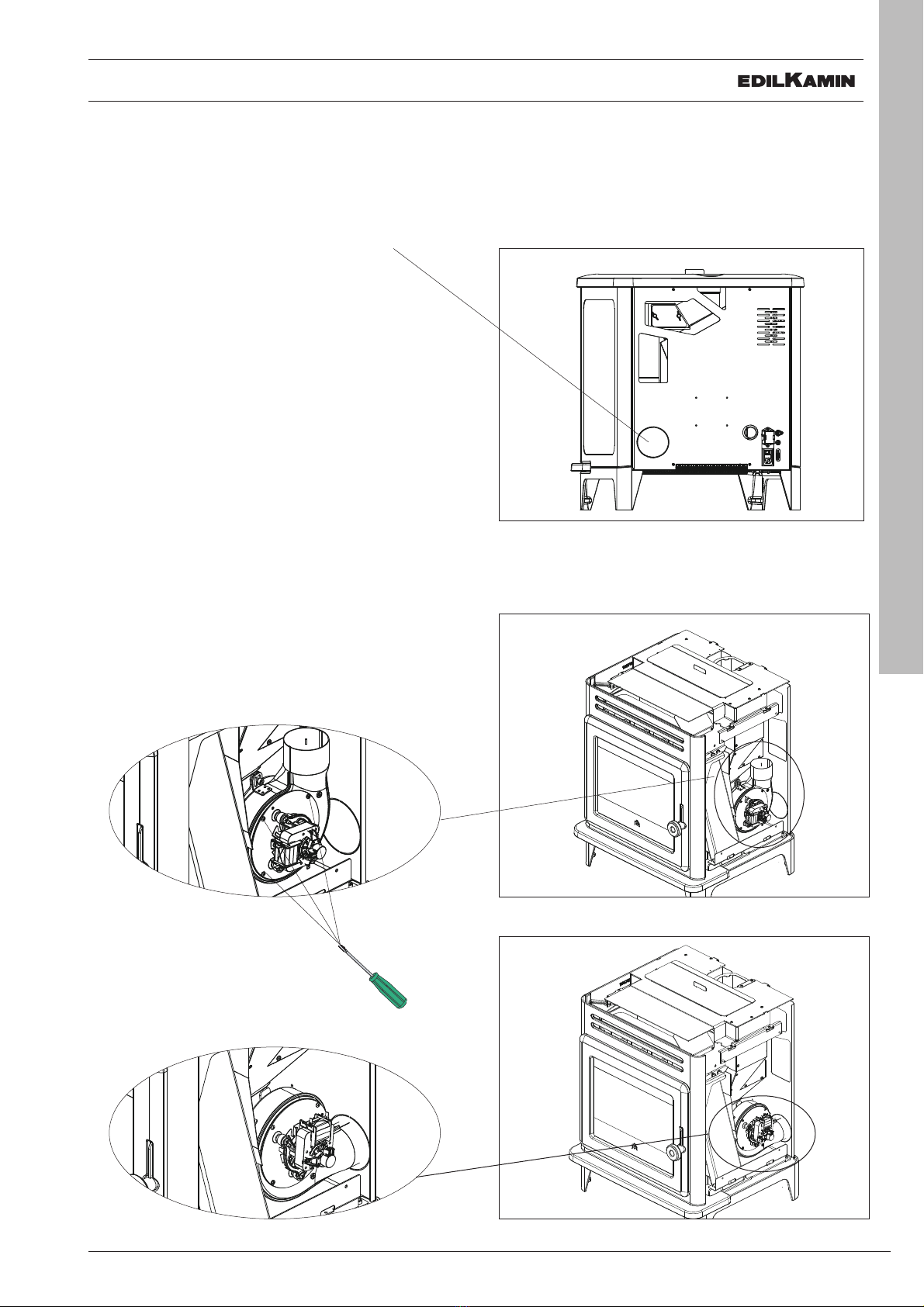

SMOKE OUTLET DIRECTION
INSTALLER
SMOKE OUTLET
SMOKE OUTLET
The stove can have its smoke outlet pipe connected to the top or the rear.
The stove can have its smoke outlet pipe connected to the top or the rear.
The stove is delivered with the smoke outlet pipe on the top.
The stove is delivered with the smoke outlet pipe on the top.
To operate on the rear smoke outlet (
To operate on the rear smoke outlet (
only with the electrical power disconnected
only with the electrical power disconnected
) proceed as follows.
) proceed as follows.
1. remove the pre-cut diaphragm on the rear
1. remove the pre-cut diaphragm on the rear
2. remove the right side looking at the stove frontally
2. remove the right side looking at the stove frontally
(see points from 1 to 5 of the paragraph “Removing
(see points from 1 to 5 of the paragraph “Removing
the feet”)
the feet”)
3. Disconnect the cables of the smoke extractor from
3. Disconnect the cables of the smoke extractor from
the logic board, unscrew the smoke extractor and
the logic board, unscrew the smoke extractor and
direct it towards the rear of the unit (check that the
direct it towards the rear of the unit (check that the
gasket is intact). Screw it back and reconnect the
gasket is intact). Screw it back and reconnect the
cables to the logic board.
cables to the logic board.
1
2
3

12
ENGLISH
4. refit the sides.
4. refit the sides.
Use the metal cover provided with the product to close
Use the metal cover provided with the product to close
off the smoke outlet on the top.
off the smoke outlet on the top.
NOTE
NOTE
The top smoke outlet is female, the rear smoke outlet
The top smoke outlet is female, the rear smoke outlet
is male.
is male.
SMOKE OUTLET DIRECTION
INSTALLER

13
ENGLISH
REPLACING THE KNOB
The product has a knob (C Figure 1) on the handle of the combustion chamber door, with black as the standard
colour. Operations are represented in the even number figures on this page.
To replace it, if needed, proceed as follows.
1. Open the combustion chamber door (P)
2. Undo the Allen screw on the rear of the handle (2)
3. Remove the front pin (3) and the knob (4)
4. Repeat the operations 3, 2 and 1 in the opposite way to mount the new knob.
A
B
C
P
C
INSTALLER
1
3
2

14
ENGLISH
REMARKS ON INSTALLATION
REMARKS ON INSTALLATION
Note that:
Note that:
•
•
installation must be carried out by authorised
installation must be carried out by authorised
technical personnel;
technical personnel;
•
•
The appliance must be installed and operated
The appliance must be installed and operated
in compliance with local and national law and
in compliance with local and national law and
European regulations. The applicable Italian
European regulations. The applicable Italian
regulation is UNI 10683;
regulation is UNI 10683;
•
•
If installed in a condominium, the appliance must
If installed in a condominium, the appliance must
be approved by the administrator.
be approved by the administrator.
We give some general instructions below, however
We give some general instructions below, however
these do not obviate the need to comply with local
these do not obviate the need to comply with local
regulations and do not affect the installer’s liability for
regulations and do not affect the installer’s liability for
the installation.
the installation.
Checking the suitability of the installation
space
• The room must have a volume of at least 20 m3.
• The floor must be able to bear the weight of the
product and its accessories.
• Level the appliance.
• The appliance may not be installed in a bedroom,
bathroom or in the same room as other equipment
which draws air for combustion from the room
itself, or in any area with an explosive atmosphere.
Any extraction fans operating in the same room or
area as the product, may affect its draw.
• In Italy, check the compatibility pursuant to UNI
10683 and UNI 7129 in the presence of gas fired
products.
INSTALLATION
Protection from heat and safety clearances
The surfaces of the building adjacent to the product
must be protected against overheating.
The insulation to be used will depend on the type of
surface in question.
The appliance must be installed in accordance with
the following safety instructions:
- minimum clearance at the sides and rear of 15 cm
from flammable materials.
- no flammable materials may be kept closer to the
front of the appliance than 80 cm.
If connected to a wooden or otherwise flammable wall,
the flue must be insulated appropriately.
If installed on a flammable or combustible floor, or one
incapable of bearing its load, use steel or glass plates
under the stove to distribute the load.
Contact the retailer for such optional equipment
Positioning the product
The product is designed to operate in all climatic
conditions. In special circumstances, such as strong
wind, its safety equipment may switch the appliance
off.
Contact the authorised Edilkamin Technical Assistance
Centre.
INSTALLER
NOTE
The smoke outlet diameter does not match the chimney system diameter. The chimney system must
be sized in accordance with the national and local regulations.
In particular (this is not an exhaustive list), refer to the EN 13384, EN 1443, EN 1856, EN 1457
standards and to all local regulations.

15
ENGLISH
FLUE SYSTEM
FLUE SYSTEM
(
(
Smoke duct, flue and chimney pot
Smoke duct, flue and chimney pot
)
)
This chapter has been drawn up pursuant to European
regulations EN 13384, EN 1443, EN 1856 and EN
1457. The installer must observe both these and any
other local regulations. This manual does not in any
way substitute such regulations.
The product must be connected to a flue system which
ensures that the smoke produced by combustion are
discharged in complete safety.
Before positioning the appliance, the installer must
check that the flue is suitable.
SMOKE DUCT, FLUE
SMOKE DUCT, FLUE
The smoke duct
(which connects the combustion
(which connects the combustion
chamber’s smoke outlet with the flue)
chamber’s smoke outlet with the flue) and the flue itself
must, among other regulatory requirements:
• receive the smoke from a single product (the
outlets of multiple appliances cannot be conveyed
into a single flue)
• be routed vertically for the most part
• have no downwards sloping sections
• preferably have a circular internal cross section, or
with a ratio of the sides of less than 1.5
• terminate at roof level with a proper chimney pot:
the flue may not discharge directly on the wall
or into an enclosed space, even if the space in
question is open to the sky
• be made of material rated in fire reaction class
A1 as per UNI EN 13501 or analogous national
regulations
• be certified, with a chimney plate if metal
• be of uniform cross section or vary in cross section
only immediately after the outlet, not at some mid
point of its length.
THE SMOKE DUCT
THE SMOKE DUCT
Further to the general requirements for the smoke duct
and flue, the smoke duct
:
:
• may not be made of flexible metal material
• must be insulated, if routed through unheated
areas or outdoors
• must not be routed through rooms where the
installation of combustion heat generators is
prohibited, there is risk of fire, or which cannot be
inspected
• must enable the recovery of soot and be open for
inspection
• have at most 3 bends with a maximum angle of
90°
• must have a single horizontal section with a length
of no more than 3 metres, depending on the draw.
Note, in any case, that long sections promote the
accumulation of dirt and are harder to keep clean.
INSTALLATION
INSTALLER
Avoid infiltration of condensate water
through the flue. If necessary, mount an
anti-condensate ring – ask your chimney
sweeper for details.
Damage caused by condensate water is
not covered by the warranty.
*
In some nations, installations with multiple
flues are permitted under certain conditions.
Depending on regional regulations,
additional safety systems are necessary in
case of connection to multiple flues. Your
chimney sweeper/technician will be able to
provide further details.

16
ENGLISH
THE FLUE
THE FLUE:
Further to the general prescriptions for the smoke duct
and flue, the flue
:
:
• must serve solely to discharge smoke
• must be correctly sized to satisfy the requirements
of smoke discharge (EN 13384-1)
• should preferably be insulated, in steel with a
circular internal section. If rectangular, the corners
must have a radius of not less than 20 mm, with a
ratio of the internal dimensions of <1.5
• must normally be at least 1.5 metres in vertical
length
• must have a constant cross section
• must be waterproof and thermally insulated to
ensure a good draw
• must preferably have a collection chamber for
non-combusted matter and any condensation.
• if pre-existing, must be clean, to prevent fire
hazards
• in general, we recommend fitting a tube inside the
existing masonry chimney if its diameter is greater
than 150 mm.
INTUBATED SYSTEM
INTUBATED SYSTEM:
Further to the general prescriptions for the smoke duct
and flue, the intubated system:
• must operate in negative pressure
• must be open to inspection
• must observe local regulations.
THE CHIMNEY POT
THE CHIMNEY POT
• must be windproof
• must have an internal cross section equivalent to
that of the flue and a smoke outlet at least double
that of the interior of the flue
• for dual flues (which should be spaced at least 2 m
apart) the chimney pot receiving the smoke from
the solid fuel appliance or that from the higher
storey, must be at least 50 cm higher than the other
• it must extend beyond the back flow zone (in Italy,
refer to UNI 10683 point 6.5.8.)
• it must allow for maintenance of the chimney
EXTERNAL AIR INTAKE
In general, we suggest two ways to ensure a proper
flow of combustion air.
Indirect air intake
Install an air outlet at floor level with an effective sur-
face area (net of the screen or other protections) of at
least 80 cm2(10 cm in diameter).
To prevent draughts, we recommend installing the air
intake behind the stove or behind a radiator.
Installing it in front of the appliance will create
unpleasant draughts.
Direct air intake*
Install an air intake with effective area (net of the mesh
or other protective equipment) at least equal to that of
the air intake at the rear of the product.
Connect the air intake to the appliance’s air intake
with a tube (which may also be flexible). Increase the
diameter of the pipe if it is not smooth: assess its load
loss.
A maximum length of 1 metres is recommended,
without bends .
The air may be drawn from an adjacent room only if:
• the flow is taken from permanent and unobstructed
openings communicating with the outdoors;
• the adjacent room is never in underpressure
relative to the outdoors;
• the adjacent room is not a garage. subject to fire
hazard, a bathroom or bedroom;
• the adjacent room is not a shared room in the
condominium.
In Italy, UNI 10683 provides that ventilation is sufficient
even if a pressure difference between the outdoors
and indoors of no more than 4 PA is guaranteed (UNI
EN 13384-1). The installer who issues the declaration
of conformity is responsible for ensuring these
conditions.
*The direct connection of the air intake does not make
the product airtight. It is therefore necessary to ensure
an air recovery taken in the room by the product (i.e.
for the glass cleaning)
INSTALLATION
INSTALLER

17
ENGLISH
FIRST IGNITION (COMMISSIONING) PHAS-
ES
• Make sure you have read and understood this
manual
• Remove all flammable materials from the appliance
(manuals, labels, etc.). In particular remove any
labels from the glass
• Make sure that the technician performs the first
ignition and the first loading of the pellet tank (see
“pellet loading”)

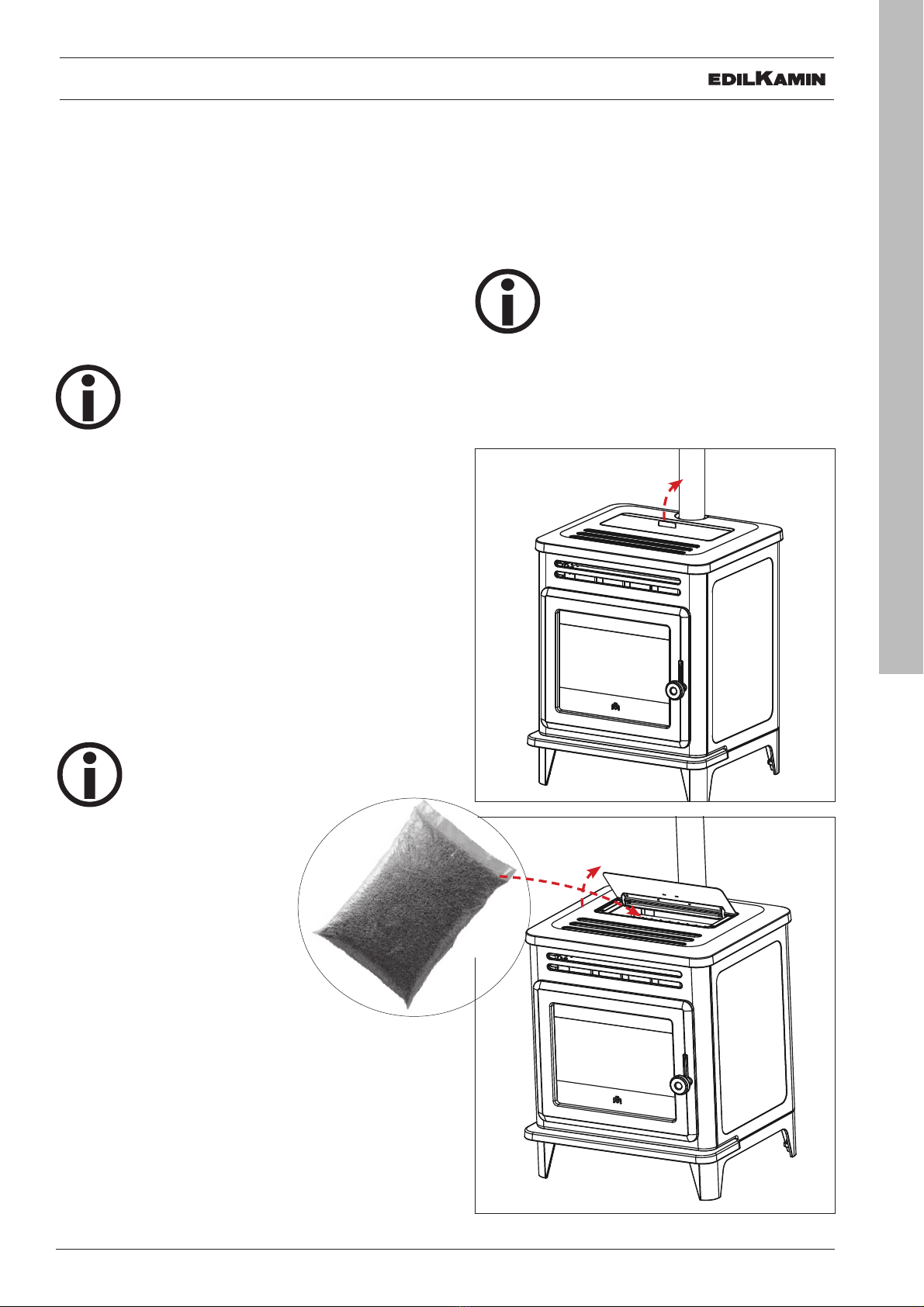

LOADING THE PELLETS INTO THE TANK.
To open the tank, lift the lid by using the handle* (use
glove if hot)
Make sure not to touch the smoke discharge pipe if
hot.
When the stove is hot, DO NOT MAKE
CONTACT between the pellet bag and the
top grille.
Use the provided glove when loading the
stove while it is operating and hence hot to
the touch.
Make sure not to touch the smoke
discharge pipe if hot.
FUEL
Use UNI EN ISO 17225-2 category A1 wood pellets
Use UNI EN ISO 17225-2 category A1 wood pellets
or similar regulatory products with the following
or similar regulatory products with the following
characteristics.
characteristics.
diameter 6 mm
diameter 6 mm
length 3-4 cm
length 3-4 cm
humidity <10 %
humidity <10 %
For reasons of safety and environmental compatibility,
DO NOT burn plastic, painted wood, coal, bark or
other such materials in the stove.
Do not use the stove as an incinerator
Caution
Using fuels other than those specified can
damage the appliance
INSTALLATION
On first ignition, there may be a slight
smell of paint, which will disappear in a
short time.
USER
*

18
ENGLISH
USER INSTRUCTIONS
USER
OPERATION
Mode Settable parameters
MANUAL • power level
• ventilation level (if there are
two or more fans, they can be
adjusted separately)*
AUTOMATIC • desired room temperature
• ventilation level *
CRONO • desired room temperature,
selected per day of the week
• ventilation level*
* by lowering ventilation, the product can also
automatically modulate
the power to maintain
maximum performance and avoid overheating. Where
necessary, a safety function is provided: if for reasons
of use or installation the set ventilation does not
allow the necessary heat dissipation, the maximum
ventilation is automatically started.
The product also has the following supplementary
functions.
Function Modes in which
it can be acti-
vated
What it does
Stand-By automatic
crono
when the desired
temperature is
reached, the prod-
uct switches off and
then back on again
when the tempera-
ture drops
RELAX
(not
provided
for some
types of
products)
manual
automatic
crono
enables natural con-
vection mode (fan
off), thus reducing
the power
EASY
TIMER
manual
automatic
can be used to
programme the
switching off/on
after a set number
of hours (maximum
12 hours)

19
ENGLISH
INTERFACE
The product can be managed alternatively as follows
STANDARD
• Bluetooth REMOTE CONTROL: can be used
for all functions, near the product
• The Mind APP
T« M®Ä
: useful for all functions
at home with direct connection or outside the
home with internet connection and registration
If necessary, a few functions can also be managed
from a
• SAVE PANEL: placed on the product
T« M®Ä
By purchasing the Edilkamin optional elements:
• VOICE CONTROL SYSTEMS: Alexa or Google
Home
USER INSTRUCTIONS
USER

20
ENGLISH
OPTIONAL THERMOSTATS/PROBES CONNECTIONS
USER / INSTALLER

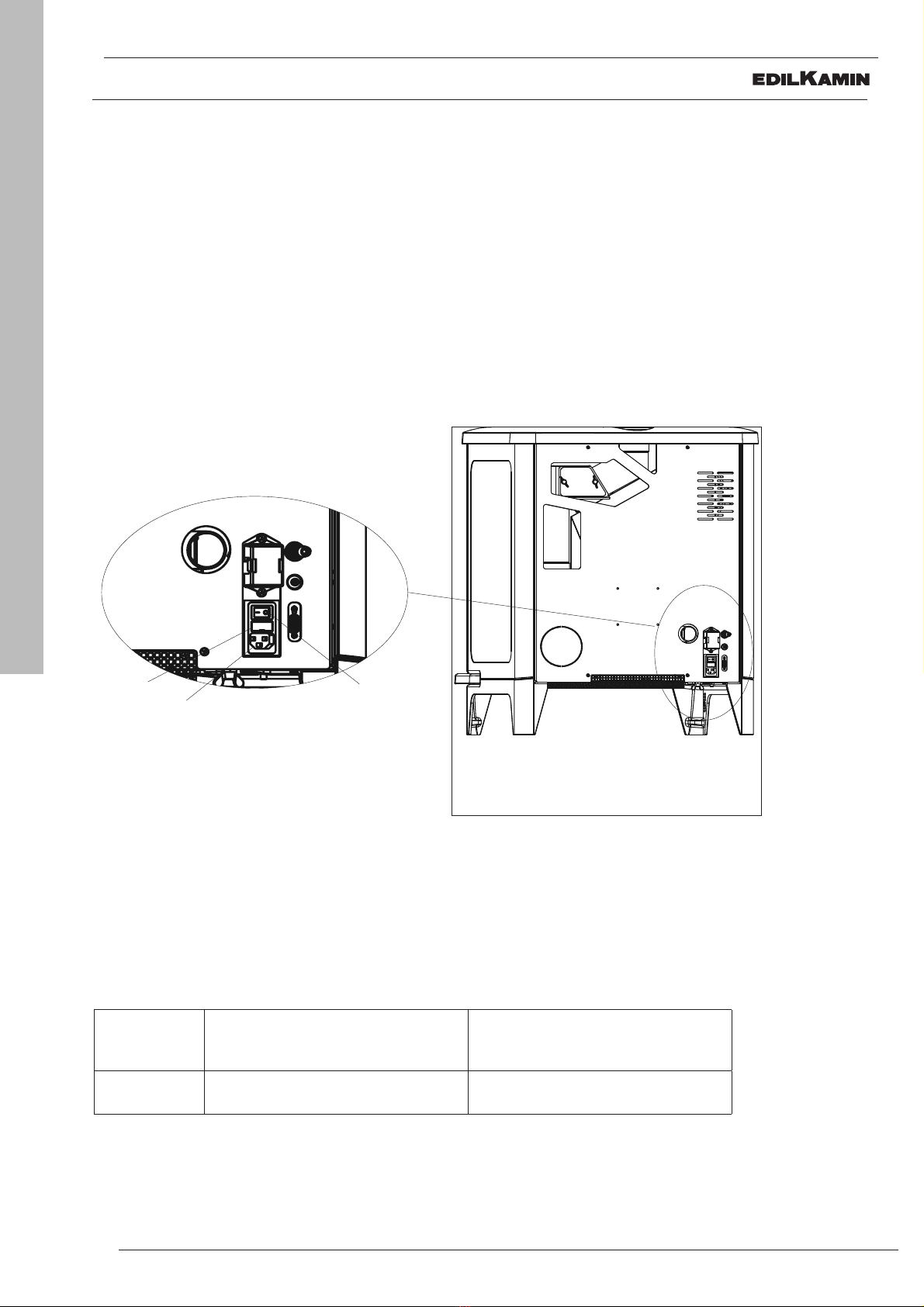

OPTIONAL ELECTRICAL CONNECTIONS
On the product (accessible by removing the coating,
with the electricity off and only by qualified technicians) a
dedicated low voltage terminal block can be found
-Pin 1-2 = zone 3 ambient input = probe or thermostat
of the relative zone
-Pin 3-4 = zone 2 ambient input = probe or thermostat
of the relative zone
-Pin 5-6 = home automation input = commercial tele-
phone dialler
or remote On-Off or Thermostat.
Thermostat on home automa-
tion contact
Thermostat in place of the
ambient probe on the elec-
tronic board
ACTION The product turns on/off without any
modulation.
the product modulates, goes into
stand-by and turns on/off
NOTE:
The connections must be made by qualified personnel,
with the electricity disconnected.
More info for installers on the site.
In case of connection of probes or thermostats on the
room inputs, the relevant parameters must be set in the
Technical Menu of the appliance.
There are two possible modes of operation.
The installer can help you choose, according to your needs:
switch
fuse housing
power supply
