Edimax CV-7428nS User manual

Convert Wired Ethernet to Wireless
Eliminates annoying cables
Universal Compatibility
Works with any Ethernet-enabled device, including smart TVs,
Blu-ray /DVD players, game consoles, DVRs, Set-top boxes
Plug & Play
Hardware WPS button for easy one-touch setup
Home Entertainment
Wi-Fi bridge for up to 5 devices
www.edimax.com
CV-7428nS
Copyright © 2012 Edimax Technology Co. Ltd. All rights reserved. Maximum performance, actual data rates, and coverage will vary depending on network
conditions and environmental factors. Product specifications and design are subject to change without notice.
N300 Universal Wi-Fi Bridge
for Smart TV, Blu-ray and Gaming

Features:
Wireless 11n speed
Complies with wireless IEEE 802.11b/g/n standards, with data
rates up to 300Mbps. Converts wired LAN to wireless, and may
also upgrade existing low-speed 802.11b/g devices to faster
802.11n speeds.
Supports multiple devices
Equipped with five 10/100Mbps Ethernet ports, to connect to
devices such as smart TVs, Blu-ray/DVD players, game consoles,
DVRs, PCs, and set-top boxes.
WPS hardware button
Hardware WPS (Wi-Fi Protected Setup) button allows easy
installation into existing home wireless networking environments.
Simply press the WPS button on the device and the home
wireless router.
Smart iQ Setup
Features user-friendly browser-based iQ Setup for smart,
automatic and quick installation. Previously problematic settings
can be completed with just a few clicks.
WPA/WPA2 advanced wireless encryption
Supports various wireless encryptions protocols, including WEP
64/128 bit, WPA and WPA2.
Green and energy-saving
Supports IEEE802.3az Energy Efficient Ethernet (EEE) and
implements wireless green technology, which can reduce power
consumption by 40% to 80%, by adjusting power to wired and
wireless connections depending on usage.
External antenna with longer wireless distances
Equipped with external dipole antennas for better wireless
transmission range and coverage. The device can be placed in a
living room far away from the wireless router, yet still provide
smooth Internet video and online gaming experiences.
Copyright © 2012 Edimax Technology Co. Ltd. All rights reserved. Maximum performance, actual data rates, and coverage will vary depending on network
conditions and environmental factors. Product specifications and design are subject to change without notice.
www.edimax.com
N300 Universal Wi-Fi Bridge
for Smart TV, Blu-ray and Gaming
CV-7428nS

Application Diagrams
Bridges Wired Internet Devices
The Wi-Fi bridge offers a wireless connection to wired devices, allowing even Ethernet-only devices to go online wirelessly.
Suitable for Home Environments
The wide operating range of the device means it can be installed away from the wireless router or access point, yet still
provide wireless connectivity to attached devices.
Copyright © 2012 Edimax Technology Co. Ltd. All rights reserved. Maximum performance, actual data rates, and coverage will vary depending on network
conditions and environmental factors. Product specifications and design are subject to change without notice.
www.edimax.com
N300 Universal Wi-Fi Bridge
for Smart TV, Blu-ray and Gaming
CV-7428nS

Features
•Wireless streaming
•HDTV video streaming
•Enjoy Internet video, music and
online games
Frequency Band
•2.4 GHz
(Industrial Scientific Medical Band)
Wireless Standards and Data Rates
•IEEE 802.11n (up to 300Mbps)
•IEEE 802.11g (up to 54Mbps)
•IEEE 802.11b (up to 11Mbps)
Hardware Interface
•5 x RJ-45 LAN port
•LED Indicators: Power, Wireless,
LAN ports.
•External antennas
•WPS/Reset button
•Power jack
Management
•12-language user interface
•Upgradable firmware
Security
•64/128-bit WEP encryption and WPA-
PSK, WPA2-PSK security
•802.1x authentication
•WPS (Wi-Fi Protected Setup)
System Requirements
•TV, (Blu-ray) DVD player, NAS or other
devices with Ethernet port
•Existing wireless home network
•Computer with Ethernet port and
Web Browser for software
configuration (Internet Explorer 7 or
above, Google Chrome, Firefox, Safari
latest version)
Package Content
•CV-7428nS device
•Quick Install Guide
•CD with multi-language QIG and User
Manual
•One RJ45 Ethernet Cable
•Access Key card
Installation
•Multi-language iQ Setup
(Browser interface)
•Hardware WPS button
Humidity & Temperature
•10-90% (Non-condensing)
•0-40oC (32 - 104°F)
Power Adapter
•DC 5V 1A switching power
adapter
Antenna
•2 x 2dBi external antennas
Dimensions
•30(H) x 127(W) x 96(D) mm
Weight
•155 grams (0.34 lb)
Certifications
•CE, FCC

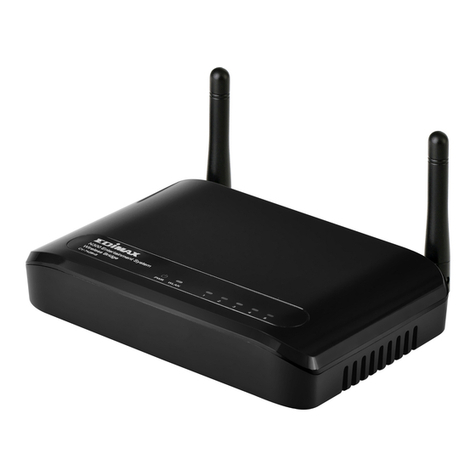

Product Appearance
Product Specifications
Copyright © 2012 Edimax Technology Co. Ltd. All rights reserved. Maximum performance, actual data rates, and coverage will vary depending on network
conditions and environmental factors. Product specifications and design are subject to change without notice.
www.edimax.com
N300 Universal Wi-Fi Bridge
for Smart TV, Bul-ray and Gaming
CV-7428nS
