EGO PSA1000 User manual

REPAIR GUIDELINE
String Trimmer Attachment_PSA1000
Version: 1
Issue Date: 12/02/2016

Table of Contents
2
NO.
Contents
Page
1
Troubleshooting
3
2
Tool list
4
3
Part 1: Replace the Chain and Pinion Assembly
5-25

Troubleshooting
3
Problem
Possible Cause
Fault Position
Test & Solution
Loose chain
Chain-tensioning screw is
not adjusted correctly
Gear case assembly
Adjust the chain-tensioning screw
Won‘t run
Gear worn
Gear case assembly
Replace the gear case with a new
one
Noise
No oil
Gear case assembly
Add oil

Tool List For Repair
4
NO.
Tool List
SPEC
Remark
1
Needle-nose pliers
2
Hex wrench
4mm, 5mm
3
Phillips
PH2

5
Part 1: Replace the Chain and Pinion
Assembly

1. Loosen the screw to remove the cover assembly.
6
Replace the Chain and Pinion Assembly
Cover assembly
screw
Description
Part Number
Quantity
Screw
5640256001
1
Cover assembly
2824778002
1

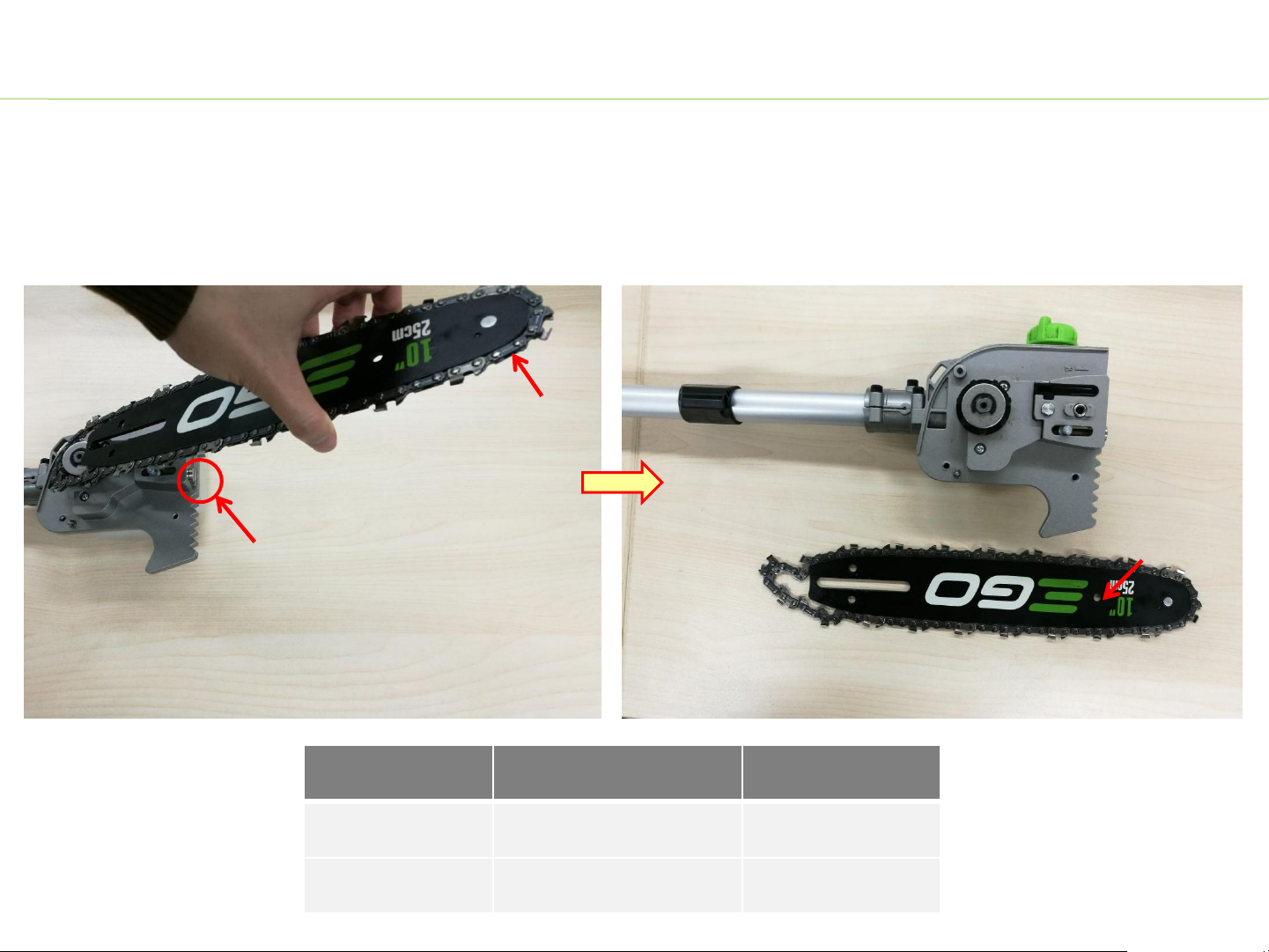

2. Take the bar and chain assembly away.
NOTICE: If there is any difficulty in removing the bar and chain from then mounting surface,
loosen the chain-tensioning screw anticlockwise to remove them easily.
7
Replace the Chain and Pinion Assembly
Chain
Bar
Chain-tensioning screw
Description
Part Number
Quantity
Chain
3810672001
1
Bar
3706017001
1

3. Separate the chain from the bar.
8
Replace the Chain and Pinion Assembly

4. Use a stick to lever the E-ring and remove it.
9
Replace the Chain and Pinion Assembly
E-ring
Description
Part Number
Quantity
E-ring
5660028001
1

5. Remove the washer from the shaft.
10
Replace the Chain and Pinion Assembly
Washer
Description
Part Number
Quantity
Washer
5660208001
1

6. Take the sprocket off the shaft.
11
Replace the Chain and Pinion Assembly
Sprocket
Description
Part Number
Quantity
Sprocket
3421960001
1

7. Loosen 3 screws to remove the oil tank assembly.
12
Replace the Chain and Pinion Assembly
Oil tank assembly
Screw
Description
Part Number
Quantity
Screw
5620434003
3

8. Loosen 2 screws to remove the dust cover.
13
Replace the Chain and Pinion Assembly
Screw Dust cover
Description
Part Number
Quantity
Screw
5620354001
2

9. Loosen 9 screws to disassemble the gear case assembly.
14
Replace the Chain and Pinion Assembly
Screw 2
Screw 1
Gear case assembly
Description
Part Number
Quantity
Screw 1
5620213003
1
Screw 2
5620434003
8
Gear case
assembly
2824813001
1

10. Take the pinion assembly and shaft assembly out of the gear case assembly. If the pinion
assembly was broken or worn, replace it with a new one.
15
Replace the Chain and Pinion Assembly
Pinion assembly Shaft assembly
Description
Part Number
Quantity
Pinion assembly
2824779002
1
Shaft assembly
2823487002
8

11. Mount the new pinion assembly onto the gear case and then mount the shaft assembly onto
the gear case.
16
Replace the Chain and Pinion Assembly

12. Insert the shaft into the hole to assemble the gear case assembly.
17
Replace the Chain and Pinion Assembly
Hole
Shaft

13. Insert the connecting tube assembly into the tube of then gear case assembly and lock them
with screws.
18
Replace the Chain and Pinion Assembly

14. Mount the dust cover onto the shaft and assemble the dust cover with the gear case
assembly with screws.
19
Replace the Chain and Pinion Assembly

15. Assemble the kettle assembly with the gear case assembly with screws.
20
Replace the Chain and Pinion Assembly
