CONTENTS
03/2020 5 NP-DK50-10SM-5_03-2020
CONTENTS
GENERAL INFORMATION............................................................................................................6
1. CONFORTMITY WITH THE REQUIREMENTS OF THE EUROPEAN UNION ................6
2. SYMBOLS........................................................................................................................6
3. DEVICE USE ...................................................................................................................7
4. GENERAL SAFETY INSTRUCTION................................................................................8
5. STORAGE AND TRANSPORT CONDITIONS.................................................................9
PRODUCT DESCRIPTION ..........................................................................................................10
6. VARIANTS.....................................................................................................................10
7. PRODUCT FUNCTION..................................................................................................10
TECHNICAL DATA......................................................................................................................13
INSTALLATION...........................................................................................................................15
8. INSTALLATION CONDITIONS ......................................................................................15
9. COMPRESSOR ASSEMBLY.........................................................................................15
10. PNEUMATIC CONNECTION.........................................................................................17
11. ELECTRICAL CONNECTION........................................................................................18
12. FIRST OPERATION.......................................................................................................19
13. ELECTRICAL DIAGRAMS.............................................................................................19
14. PNEUMATIC DIAGRAM ................................................................................................21
OPERATION................................................................................................................................22
15. SWITCHING ON THE COMPRESSOR..........................................................................22
PRODUCT MAINTENANCE ........................................................................................................23
16. PRODUCT MAINTENANCE...........................................................................................23
17. LONG-TERM SHUTDOWN............................................................................................30
18. DISPOSAL OF DEVICE.................................................................................................30
TROUBLESHOOTING.................................................................................................................30
19. REPAIR SERVCE..........................................................................................................31
ANNEX ........................................................................................................................................87
21.INSTALLATION RECORD .............................................................................................87

GENERAL INFORMATION
NP-DK50-10SM-5_03-2020 6 03/2020
GENERAL INFORMATION
Read the User manual carefully and keep it before use of the product. The User manual provides
information on correct use –installation, operation and maintenance of the product.
The User manual corresponds with the design of the product and condition according to the
applicable safety and technical standards at the time of printing. The manufacturer reserves all
rights concerning the protection for the stated connections, procedures and names.
Slovak version is original of the User manual. The User manual has been translated in accordance
with the best available knowledge. The Slovak version is to be used in the event of any
uncertainties.
1. CONFORTMITY WITH THE REQUIREMENTS OF THE EUROPEAN UNION
This product conforms to the requirements of the European Union 2006/42/EC, 2014/29/EU,
2014/35/EU, 2014/30/EU, 2011/65/EU and is safe if used in compliance with the intended use and
if all safety instructions are followed.
User manual is in compliance with requirements of Directive 2006/42/EC.

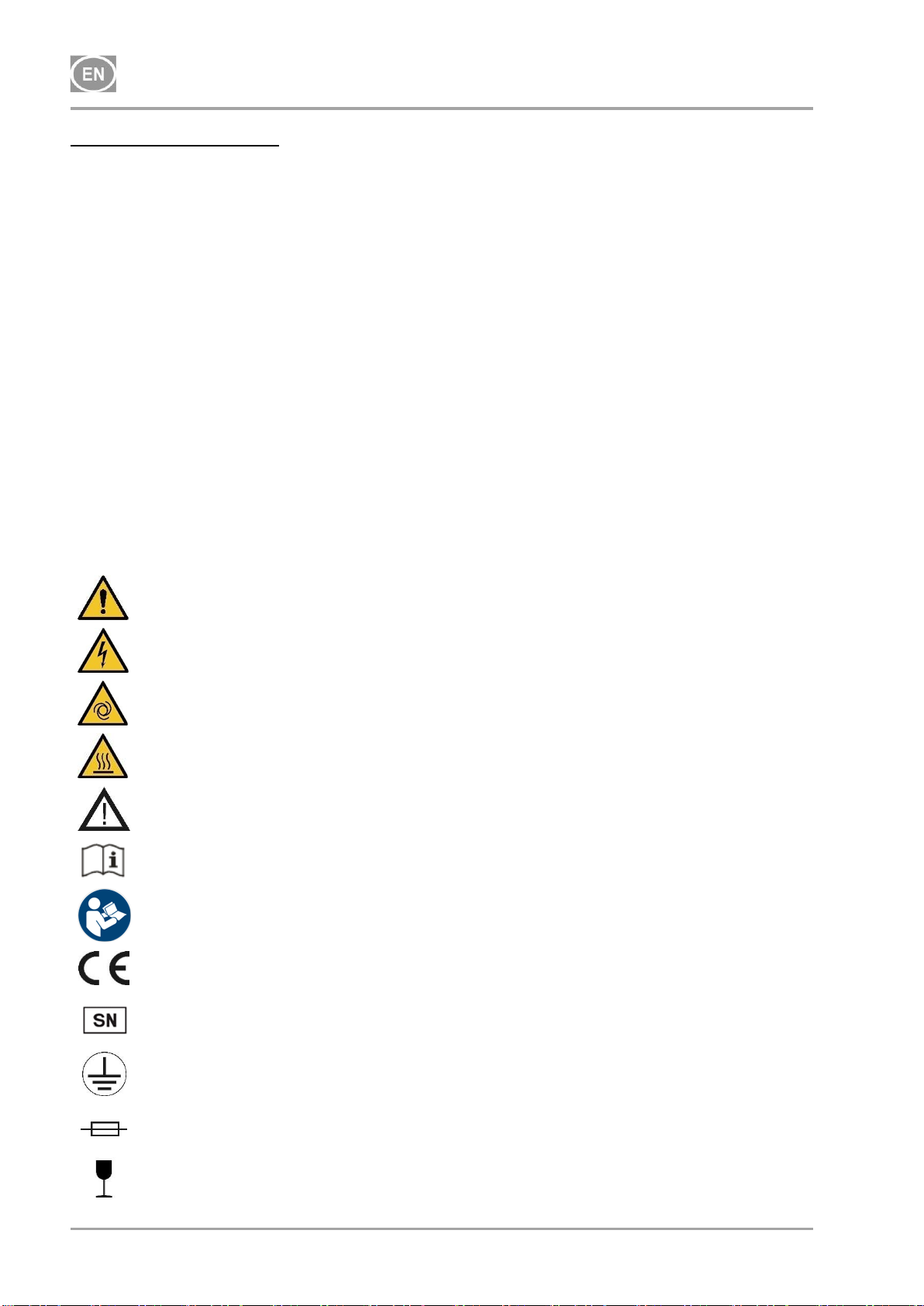

2. SYMBOLS
The following symbols and marks are used in the User manual, on the device and its packaging:
General warning
Warning –risk of electric shock
Warning - compressor is controlled automatically
Warning –hot surface
General caution
Read the operating instructions
Refer to instruction manual
CE –marking
Serial number
Protecting earthing
Fuse
Package handling label –fragile

GENERAL INFORMATION
03/2020 7 NP-DK50-10SM-5_03-2020

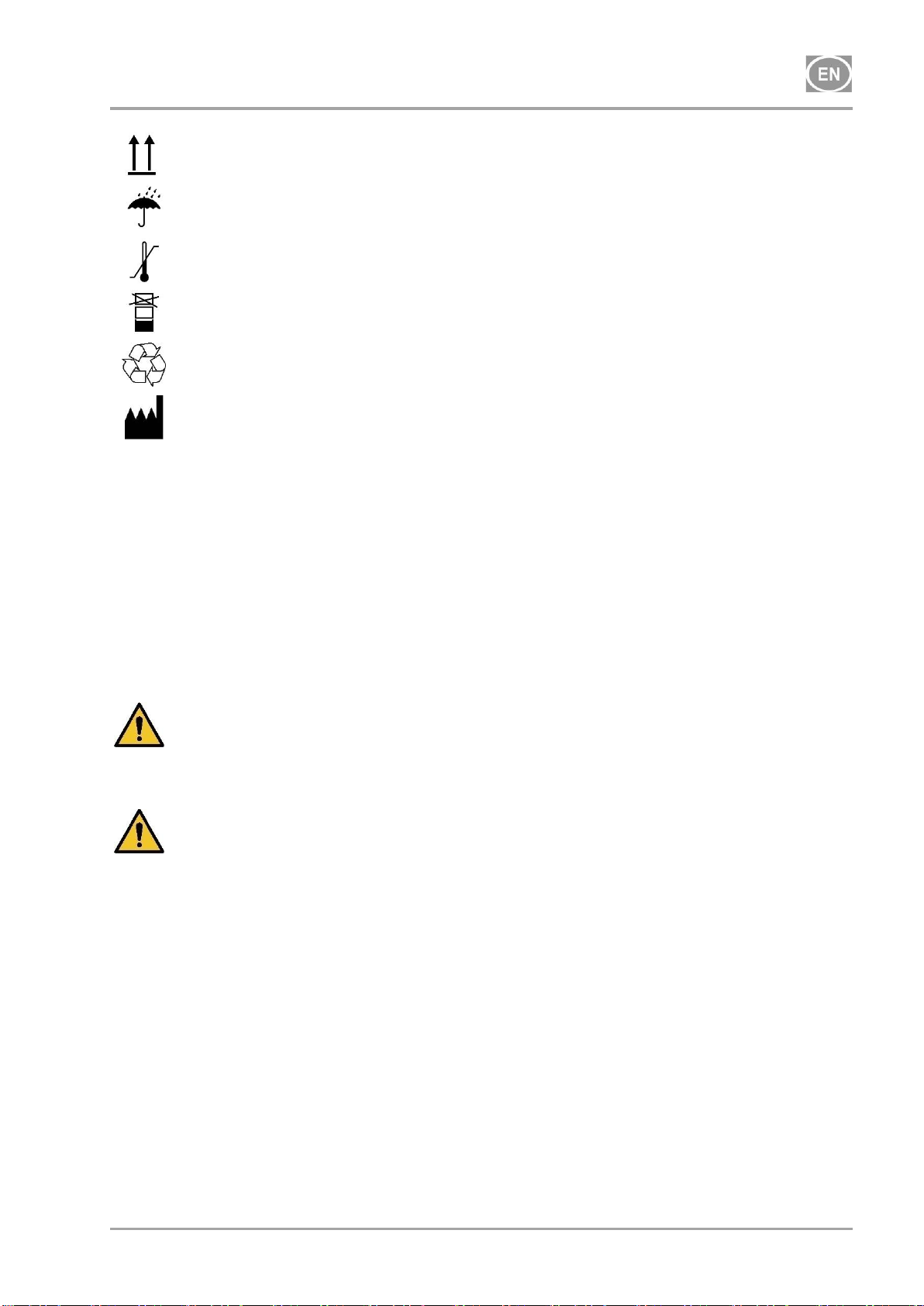

Package handling label –this side up
Package handling label –keep dry
Package handling label –temperature limits
Package handling label –limited stacking
Package label –recyclable material
Manufacturer
3. DEVICE USE
3.1. Intended use
The compressor is used as source of clean oil-free compressed air intended to be used in industry
and laboratories, where parameters and properties of the compressed air are suitable.
The compressor is exclusively intended to compress air without content of explosive or chemically
unstable substances.
The compressor is intended for operation in clean and dry rooms
3.2. Incorrect use
Contamination risk.
Air from the compressor is without additional treatment not suitable for breathing
and direct contact with food
Explosion risk.
The product is not intended for operation in rooms with explosion risk.
The compressor must not be used to compress aggressive gases.
The compressor must not be operated in premises with occurrence of flammable vapors.
The compressor must not be operated in other conditions as mentioned in Technical data.
Any other use of the product beyond the intended use is considered as incorrect use. The
manufacturer is not responsible for any damages or injuries as a result of incorrect use or
disobedience to instructions stated in this User manual. All risks shall be solely borne by the
user/operator.

GENERAL INFORMATION
NP-DK50-10SM-5_03-2020 8 03/2020
4. GENERAL SAFETY INSTRUCTION
The product is designed and manufactured so that any risks connected with its use are minimized
and the product is safe for the user and surrounding when used according to the intended use and
the instructions stated below are followed.
4.1. Required qualification of the personnel
Each user must be trained by the manufacturer or an organization authorized by the
manufacturer or instructed on the device operation by other trained user.
Installation, new settings, changes, extensions and repairs of the product may be
performed by the manufacturer or an organization authorized by the manufacturer
(hereinafter qualified technician).
- Otherwise the manufacturer is not responsible for safety, reliability and correct functioning
of the product.
4.2. General instructions
When operating the compressor, all acts and local regulations valid in the place of use
must be observed. The operator and user are responsible for following the applicable
regulations.
Before every use, the user must check, if the device is functioning correctly and safely.
Before building the compressor in other devices, the supplier must assess, if the supplied
air and construction of the device comply with the requirements of the specified intended
use. Taking this into account, follow the product technical data. Assessment of conformity
shall be performed by the manufacturer –supplier of the final product.
4.3. Protection from dangerous voltage and pressure
The device can be connected only to a properly mounted socket with protective earthing.
Before connecting the product, check if mains voltage and mains frequency stated on the
product are in compliance with the values of the mains.
Before putting the product into operation, check eventual damages to connected
pneumatic hoses and electrical cables. Replace damaged pneumatic hoses and electrical
cables immediately.
Immediately disconnect the product from the mains (pull out the mains plug) in hazardous
situations or technical disorders.
Safety valve settings must not be changed and used to depressurize the air tank.
4.4. Original spare parts and accessories
Safety of operating staff and failure-free operation of the product are guaranteed only when
original spare parts are used. Only accessories and spare parts stated in the technical
documentation or expressly approved by the manufacturer may be used.
The guarantee does not apply to damages arising from use of accessories and spare parts
other than prescribed or recommended by the manufacturer and the manufacture is not
responsible for them.

GENERAL INFORMATION
03/2020 9 NP-DK50-10SM-5_03-2020
5. STORAGE AND TRANSPORT CONDITIONS
The manufacturer ships the compressor in a transport packaging. This protects the device from
damage during transport.
Risk of damage to pneumatic parts.
The compressor may be transported only depressurized. Vent air pressure from
the pressure tank and pressure hoses and drain condensate from the air tank
before transporting the compressor.
Original packaging must be kept for eventual return of the device. If possible,
always use the original compressor packaging for optimal protection of the
product. If it is necessary to return the product within the guarantee period, the
manufacturer does not guarantee for damages caused by incorrect packaging of
the product.
Transport the compressor in an upright position, always secured by transport
fixing elements.
Protect the compressor from high humidity, dirt and extreme temperatures during
transport and storage. Do not store together with volatile chemical substances.
If it is not possible to keep the original packaging, dispose of the packaging in an
environmentally friendly way. Transport cardboard can be recycled with old paper.
It is not permitted to store and transport the device outside the defined
conditions, see below.
5.1. Ambient conditions
Products can be stored in rooms and means of transport that are free from any traces of volatile
chemical substances under the following climatic conditions:
Temperature
from –25°C o +55°C, in 24h to +70°C
Relative humidity
max. 90% (without condensation/ non-
condensing)

PRODUCT DESCRIPTION
NP-DK50-10SM-5_03-2020 10 03/2020
PRODUCT DESCRIPTION
6. VARIANTS
The compressor is manufactured according to its intended application in the following variants:
DK50-10S/M

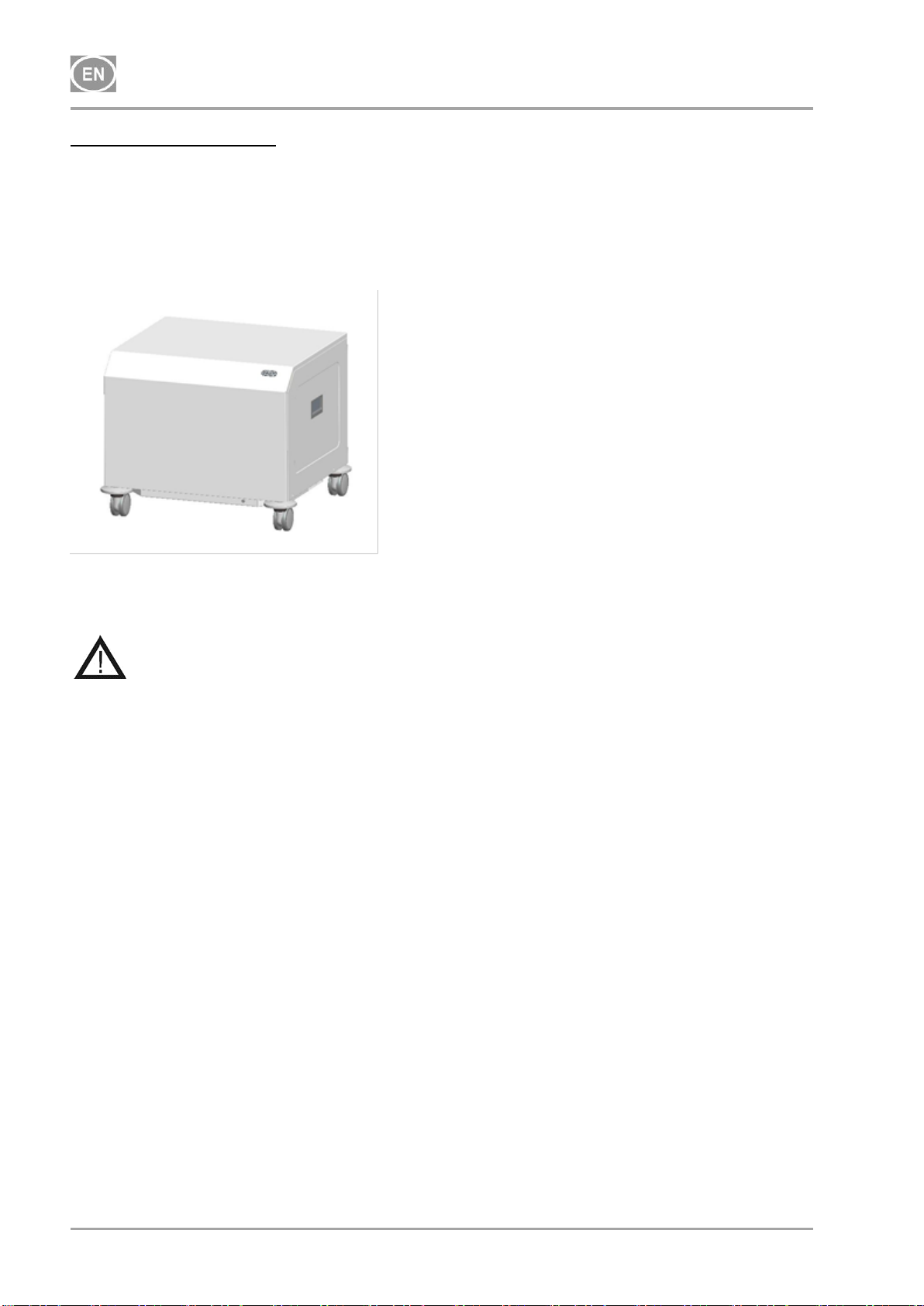

Compressor with membrane air dryer in a compact mobile cabinet.
DK50-10S/M
7. PRODUCT FUNCTION
7.1. Compressor with membrane dryer

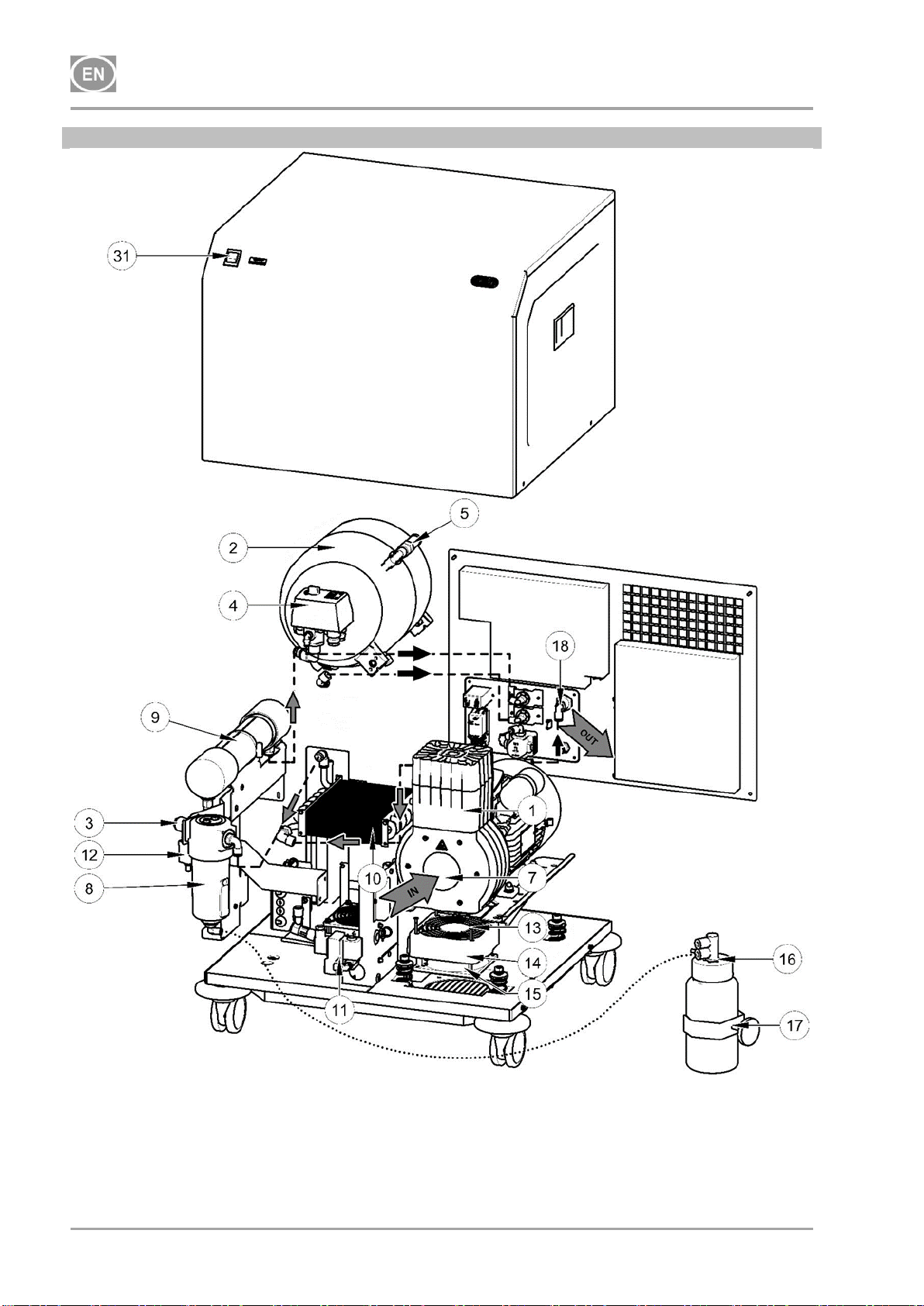

Fig. 2 The compressor aggregate (1) draws in air through an inlet filter (7) and compresses it,
feeding it to the cooler (10) through the filter (8) and the non-return valve (3) into the dryer (9), and
feeds the clean and dry air into the air tank (2). The connected apparatus draws the compressed
air from the air tank until the pressure drops to a default preset level on the air-pressure switch (4)
switching the compressor on. The compressor again compresses air into the nozzle until the
maximum pressure is reached and the compressor switches off. The pressure hose is vented
through the relief solenoid valve (12) once the compressor unit is shut off. The safety valve (5)
prevents the pressure in the air tank from rising above the maximum allowed value. The air tank
pressure gauge (19) displays the current level of pressure in the air tank.
The dryer ensures the continuous drying of the compressed air. Condensate from the filter is
automatically released into a condensate collection vessel (16). Constant output pressure is
maintained by the pressure regulator (24). The pressure is displayed on the pressure gauge
regulator (20). The power switch (22), connector (23), hour counter (21) and compressed air outlet
connector (18) are installed on the outlet panel (25).
7.2. Compressor cabinet
Fig. 1, Fig. 2 The cabinet is compact and soundproof, while the fan (15) under the compressor
aggregate and the cooler fan allow the sufficient exchange of cooling air. The fans also operate
when the compressor motor is running or when the temperature in the cabinet rises above 40°C.
The fans automatically switch off once the space in the cabinet is cooled to below 32°C. The
compressor is equipped with 2 casters with brakes (29) in front and 2 casters without brakes (30)
The compressed air from a compressor is not suitable for the operation of
breathing appliances or similar equipment

PRODUCT DESCRIPTION
03/2020 11 NP-DK50-10SM-5_03-2020
in the back. They can be replaced by packaged rubber feet.
The main switch is located on the front face of the cabinet (31).
Risk of compressor overheating.
Make sure that there are no obstacles at the cooling air inlet into the cabinet
(around the bottom part of the cabinet) and at the hot air outlet on the top back
side of the cabinet.
If the compressor is placed on a soft floor, e.g. carpet, create space between
the base and the floor or the cabinet and the floor, e.g. underlay the footings
with hard pads to ensure sufficient cooling of the compressor.

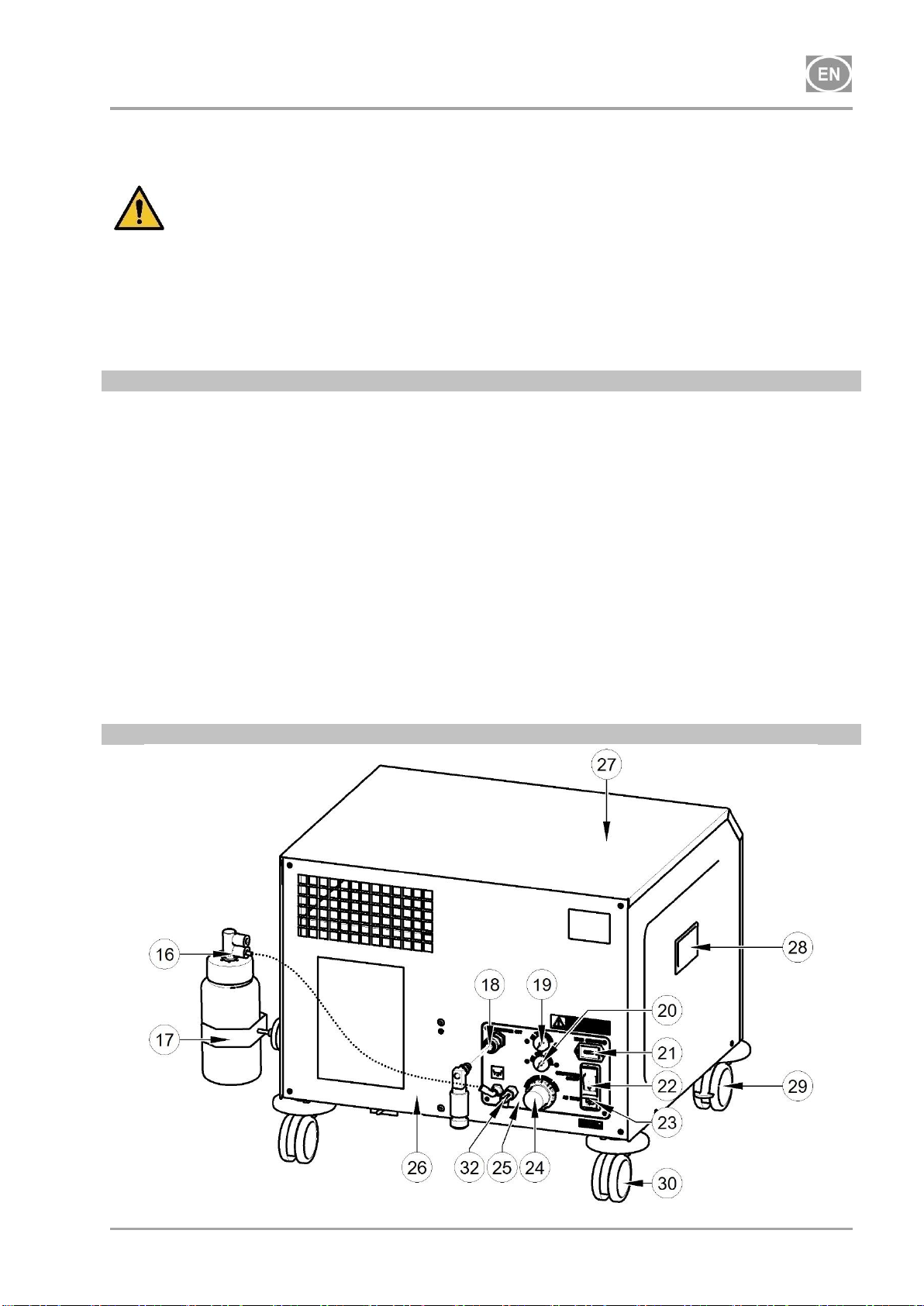

Description to Figures 1-2:
1 Air pump
2 Air tank
3 Non-return valve
4 Pressure switch
5 Safety valve
7 Inlet filter
8 Dryer filter
9 Dryer
10 Cooler
11 Automatic condensate drain
12 Relief valve
13 Screw
14 Fan housing
15 Fan
16 Condensate collection vessel
17 Magnetic holder
18 Compressed air outlet
19 Air tank pressure gauge
20 Regulator pressure gauge
21 Hour counter
22 Power switch
23 Connector
24 Pressure regulator
25 Outlet panel
26 Rear panel
27 Cabinet cover
28 Compressor handle
29 Caster with brake
30 Caster
31 Main switch
32 Drain valve c)
Fig. 1: DK50-10S/M –Compressor

PRODUCT DESCRIPTION
NP-DK50-10SM-5_03-2020 12 03/2020
Fig. 2: DK50-10S/M –Compressor with dryer
c) Singapore certification

TECHNICAL DATA
03/2020 13 NP-DK50-10SM-5_03-2020
TECHNICAL DATA
Compressors are designed to operate in dry, ventilated and indoor dust-free rooms with the
following climatic conditions:
Temperature
from +5°C to +40°C
Relative humidity
max. 70%
Working pressure 6.5 –8.0 bar
DK50-10S/M
DK50-10S/M
DK50-10S/M c)
Nominal voltage
Frequency a)
V, Hz
230, 50/60
115, 60
230, 50
Capacity at 7 bar
(FAD)
l/min,
(Cft./min)
50/60
(1.8/2.1)
45
(1.6)
50
(1.8)
Working pressure b)
bar.
(psi)
6.5 –8.0,
(94,3 –116)
6.5 –8.0,
(94.3 –116)
6.5 –8.0,
(94.3 –116)
Max. current
A
4.7 / 5.1
10.4
4.7
Motor power
kW,
(PS)
0.55
(0.737)
0.55,
(0.737)
0.55
(0.737)
Air tank volume
l,
(gal)
10,
(2.2)
10,
(2.2)
10,
(2.2)
Maximum operating
pressure of safety
valve
bar,
(psi)
12.0
(174)
12.0
(174)
9.0
(130.5)
Noise level at 7 bar
(LpA)
dB
≤58
≤60
≤58
Operating mode
%
S1-100
S1-100
S1-100
PDP drying at 8 bar
°C,
(°F)
3,
(37.4)
3,
(37.4)
3,
(37.4)
Dimensions with the
casters (net)
w x d x h
mm
(in)
595x520x515
(23.4x20.5x20.3)
595x520x515
(23.4x20.5x20.3)
595x520x515
(23.4x20.5x20.3)
Net weight
kg,
(Ibs)
65,
(143)
65,
(143)
65,
(143)
Weight with the
casters
kg,
(Ibs)
66,
(145)
66,
(145)
66,
(145)
a) State the compressor variant in the order
b) For other range of pressure consult with the supplier
c) Singapore certification

TECHNICAL DATA
NP-DK50-10SM-5_03-2020 14 03/2020

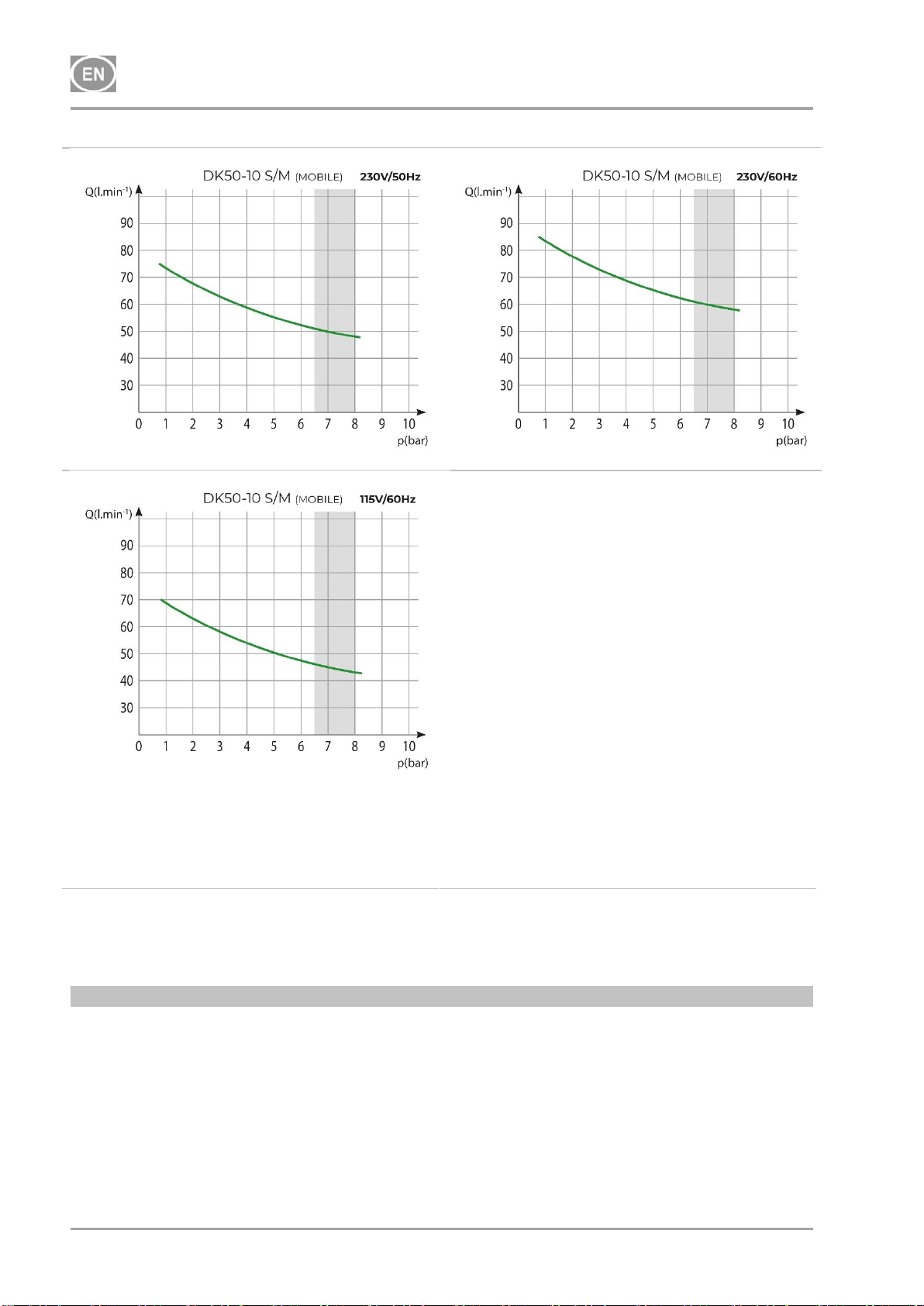

Dependence of compressor capacity on working pressure
FAD correction of capacity for altitude
Capacity given in the form of FAD („Free Air Delivery“) applies to the following conditions:
Altitude
0 m.n.m.
Temperature
20°C
Atmospheric pressure
101325 Pa
Relative humidity
0%
To calculate FAD compressor capacity in dependence on altitude, it is necessary to apply
correction factor according to the following table:
Altitude [m.n.m.]
0 -1500
1501 - 2500
2501 - 3500
3501 - 4500
FAD correction factor
1
0,8
0,71
0,60

INSTALLATION
03/2020 15 NP-DK50-10SM-5_03-2020
INSTALLATION
Risk of incorrect installation.
Only a qualified professional can install the compressor and place it into
operation for the first time. His obligation is to train the operating personnel on
the use and maintenance of the device. He shall confirm installation and
training of operators by an entry into the installation record (see Annex).
8. INSTALLATION CONDITIONS
The compressor may only be installed and operated in dry, well-ventilated and dust-free
rooms with conditions stated in Technical data.
Risk of damage to the device.
Do not operate the device in outdoor environment or in humid or wet rooms.
Explosion risk.
Do not install the device in any rooms, in which explosive gases, dusts or
flammable liquids may be present.
The compressor must be installed in such a way, that it is accessible at all times for
operation and maintenance and label on the device is accessible.
The compressor must stand on a flat, sufficiently stable base (be aware of the compressor
weight, see chap. Technical data).
Ensure the air delivered by the compressor meets the requirements for its intended use
before installing the compressor. Refer to the technical data of the product for this purpose.
The supplier of the final product must classify and evaluate compliance with the intended
application.
Any other use or use above this framework is not considered to be proper use. The
manufacturer is not responsible for damages that arise from such use. The operator/user
assumes all risk.
Cabinet-mounted compressors can only be operated in areas with continuous
air circulation and away from any sources of heat or direct exposure to
sunlight.
Risk of damage to the device.
The equipment must be located at least 100 mm from a wall in order to ensure
proper cooling air circulation. Failure to comply with such spacing may cause
damage to the compressor and cabinet!
9. COMPRESSOR ASSEMBLY
Unpack the compressor from the packaging.
9.1. Manipulation and fixation removal
Put the compressor at the place of operation
Use a hex key to rotate the stabilizer screw (X) down to the stop to the position - the
air pump will reach the operating position (Fig. 3).

INSTALLATION
NP-DK50-10SM-5_03-2020 16 03/2020

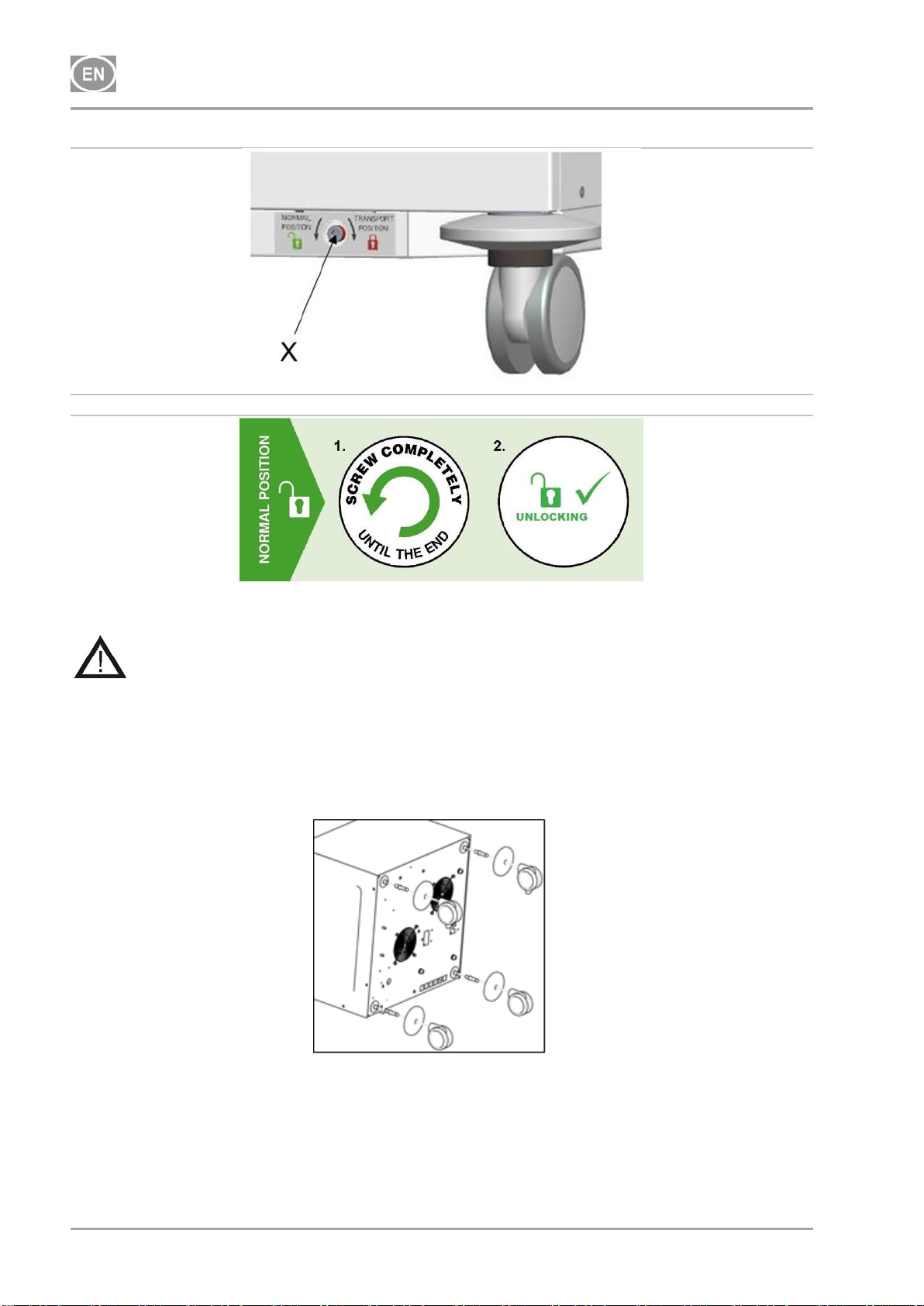

Fig. 3: Fixation removal
Operating position
9.2. Caster installation
The manufacturer delivers the product with casters installed. If the user has previously
installed feet, install the casters as follows
Prior to installation, ensure that the air pump is free of transport packaging and
stabilizers to avoid any risk of damage to the product.

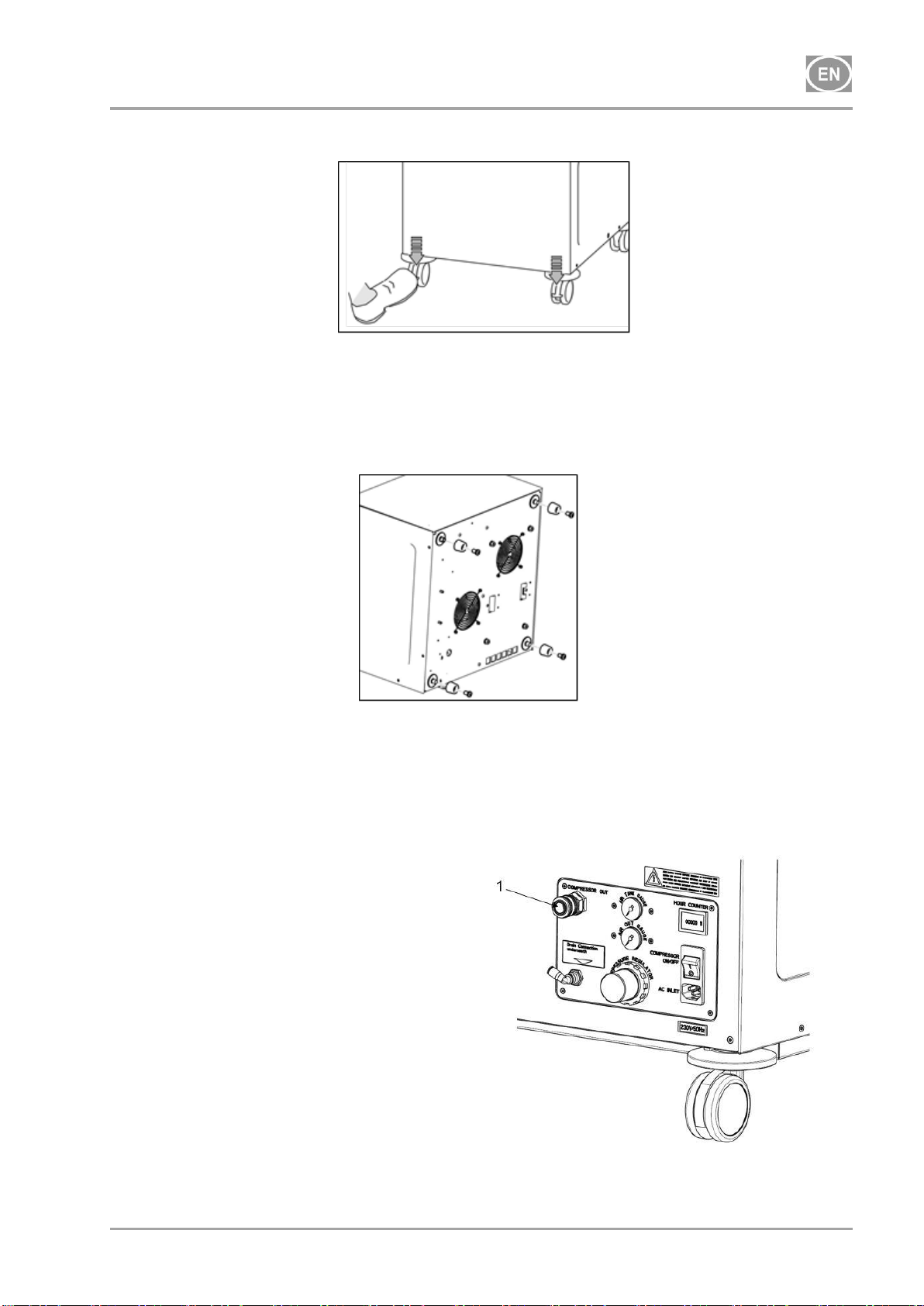

Fig. 4: Caster installation

INSTALLATION
03/2020 17 NP-DK50-10SM-5_03-2020
The compressor may be secured against moving - Lock the casters!
9.3. Installing feet
If using the product on rubber feet is acceptable, continue as follows
10. PNEUMATIC CONNECTION
10.1. Connecting to the compressed air outlet
Fig. 5: Setting the brakes
Fig. 6: Installing feet
Fig. 7: Compressed air outlet
Connect a pressure hose to the compressed
air quick connector (1).

INSTALLATION
NP-DK50-10SM-5_03-2020 18 03/2020
11. ELECTRICAL CONNECTION
11.1. Electrical connection
Risk of electric shock.
Connect the mains power cord to the compressor connector. The compressor
is equipped with a DF11 mains power module, which contains an IEC C14
power connector with a thermal fuse and the mains switch. Make sure this
connection complies with local electrical codes. The mains voltage and
frequency must comply with the data stated on the equipment's label.
The D11 fuse and switch module must be kept in an easily accessible location in case the
equipment has to be safely shut down in an emergency.
The connection to the power distribution box must be limited by a current protection device
at max. 16 A.
Risk of fire and electric shock.
The electrical cord cannot touch any hot parts of the compressor. It may
damage the insulation!
Risk of fire and electric shock.
If any electrical cord or air hose is damaged it must be replaced immediately
The equipment is equipped with C14 power connector with the V-lock system.
The C13 plug may also be equipped with the V-Lock system, which protects the
compressor and mains plug from coming loose unexpectedly.
11.2. Grounding instructions
The product connects to the mains with a grounded plug. The power-supply cord and its
plug may be connected only to a properly installed and grounded socket in accordance
with all local laws and regulations.
Risk of electric shock.
A faulty power-supply cord with a plug or a faulty socket may lead to the risk of
electric shock.
If you have any doubts about the product’s proper connection to the mains,
consult a qualified electrician or service technician. Do not modify the original
socket! Contact a qualified electrician.
Only power-supply cord (included in the packaging) with a matching line-
voltage configuration may be connected to the compressor power inlet. The
mains voltage and frequency must comply with the data stated on the device’s
label.
11.3. Connecting the product to the mains
The compressor connects to the mains using a power-supply cord (included in the packaging) that
has a product-side IEC60320 C13 socket and a mains-side plug in compliance with the standards
of the country of the intended use of the product (e.g. CEE(7) VII / C13).
The power-supply cord with a socket and plug is designed for the current and voltage levels of the
rated current and voltage of the product. The minimum cross-section of the bare conductors of the
cord is 0.75 mm2.

INSTALLATION
03/2020 19 NP-DK50-10SM-5_03-2020
12. FIRST OPERATION
Check whether the compressor has been set to the operating position (Fig. 3)
Check that all compressed air line connections are secure. (see chapter 10)
Ensure electrical connections are secure and properly completed. (see chapter 11)
12.1. Switch on the compressor
Turn the power switch (22) into the “I” position on the rear side of the compressor (Fig. 1)
and the main switch (31) on the front face of the cabinet (Fig. 2)
Compressor - At first operation the air tank is pressurized until it reaches a presets level when the
compressor automatically switches off. As the air is used, the compressor works in automatic
mode, switched on or off by the pressure switch. During operation, the air dryer removes humidity
from the supplied compressed air.
The compressor is not equipped with an emergency power supply.

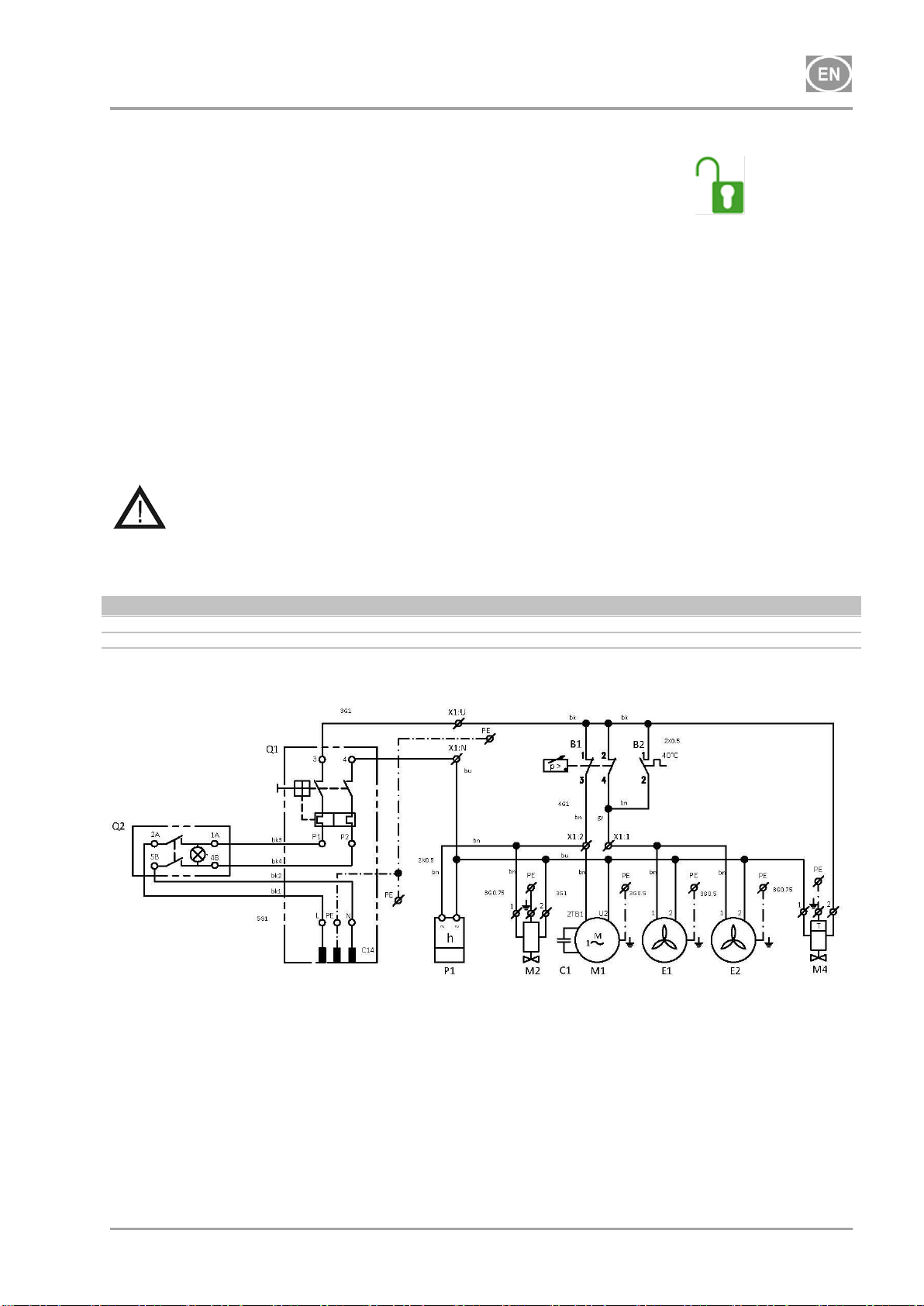

13. ELECTRICAL DIAGRAMS
DK50-10S/M
6.5 –8 bar
1/N/PE 230 V, 50/60 Hz
ELEKTRICAL OBJECT OF 1st. CAT.

INSTALLATION
NP-DK50-10SM-5_03-2020 20 03/2020
DK50-10S/M
6.5 –8 bar
1/N/PE 115 V, 60 Hz
ELEKTRICAL OBJECT OF 1st. CAT.
Description to electrical diagrams:
M1
E1
E2
M2
B2
Q1
Compressor motor
Compressor fan
Dryer fan
Relief valve
Temperature switch
Thermal breaker
Q2
C1
B1
X1
M4
P1
Main switch
Capacitor
Pressure switch
Terminal box
Automatic condensate drain
Hour counter
