ekwb EK-FB ASUS M8G Monoblock Series User manual

All disclosures, notices and warranty conditions are being written on EKWB web page. Please check terms of use. Revision 1.0. Published on October 6th 2015
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no
liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates.
Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard’s circuit board (PCB).
3. The EK-HFB and EK-ACF type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets.
4. The use of quality, market proved corrosion inhibiting coolants is always strongly recommended for any liquid cooling system.

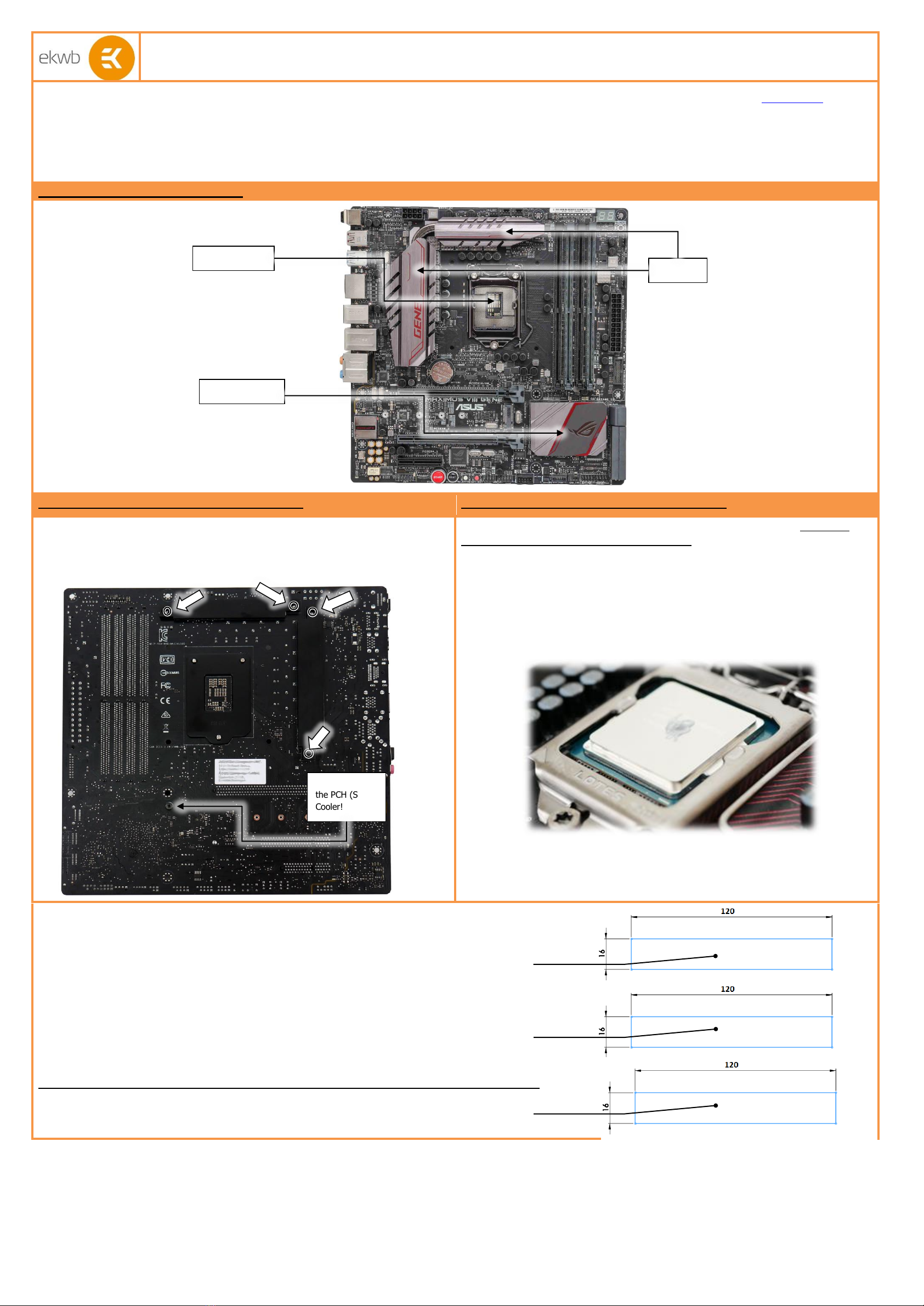

STEP 1: GENERAL INFORMATION Sample photo of ASUS Maximus VIII Gene motherboard
STEP 1: PREPARING YOUR MOTHERBOARD
STEP 2: PREPARING YOUR MOTHERBOARD
REMOVING STOCK COOLER. Remove all encircled screws. There are 4 screws on
the back of the motherboard that need to be removed in order to remove the
factory installed MOSFET heat pipe cooling solution. Please store away the two
factory backplates as they will be reused.
1. APPLYING THERMAL COMPOUND. Apply thermal compound on CPU heat
spreader (IHS) - see sample photo on right with enclosed EK-TIM Ectotherm
thermal grease.
The quantity of about two rice grains is just about right. There is no need to cover
the whole IHS. Applying too much thermal grease will have negative impact on the
cooling performance!
2.. CUTTING THERMAL PADS. Your block comes with thermal pads which needs to be trimmed in order to fit
the voltage regulation area (MOSFET) on the motherboard’s circuit board. WARNING: DIMENSIONS ON
PICTURES BELOW ARE SCALED.
Replacement thermal pads @ EKWB web shop:
Thermal PAD F 1mm - (120x16mm) [EAN: 3830046996732]
Thermal PAD F 0,5mm - (120x16mm) [EAN: 3830046996725]
Thermal PAD F 1,5mm - (120x16mm) [EAN: 3830046996749]
This waterblock is compatible with three motherboard models:
1. ASUS Maximus VIII Hero
2. ASUS Maximus VIII Ranger
3. ASUS Maximus VIII Gene
These motherboards have different inductor coils therefore you must be careful to install the correct thermal pad.
At motherboards 2. And 3. You MUST use thermal pad F –0,5mm.
At motherboard 1. You must use thermal pad F –1,5mm.
Do not remove
the PCH (SB)
Cooler!
Installation manual for EK-FB ASUS M8G Monoblock water block
1. Thermal pad F–1.0mm
(for mosfets):
CPU socket
M8G PCH
(SB)
Mosfets
2.1.Thermal pad F–0,5mm
(for inductor coils):
2.2.Thermal pad F–1,5mm
(for inductor coils):

All disclosures, notices and warranty conditions are being written on EKWB web page. Please check terms of use. Revision 1.0. Published on October 6th 2015
STEP 3: PLACING THE BLOCK ON TO MOTHERBOARD
PLACING THE BLOCK ON THE MOTHERBOARD. Place the EK-FB ASUS M8G Monoblock series water block gently to the motherboard or vice versa (as shown on photo
below). Make sure that mounting holes are aligned.
STEP 4: ATTACHING BLOCK ON TO THE MOTHERBOARD
Prior to fastening the screws please make sure the mounting holes on the
motherboard’s circuit board are aligned with the water block.
A) Mosfet part: Use four M2,5x8 DIN 7985 with factory backplates. Tighten the
screws evenly. Do not use excessive force when tightening the screws!
B) CPU part: Use four M4x8 DIN7984 with screws and washers.
Tighten the screws using enclosed 2.5mm allen key.
Use the enclosed screws and washers as shown in picture below:
For the EK-FB ASUS M8G Monoblock series water block to operate properly the G1/4
port nearest to the right edge of the water block MUST BE USED AS THE INLET
PORT. EK recommends the use of EK-ACF fittings. When using fittings other than EK-
ACF series please use hose clamps or appropriate substitute to secure the tubing to
the barb. The use of biocide containing and corrosion inhibiting coolant is always
recommended for any liquid cooling system.
REQUIRED TOOLS AND MOUNTING SCREWS:
scissors philips screwdriver Allen key
IMPORTANT: THE MONOBLOCK COVERS
THE PUMP HEADER ON THE
MOTHERBOARD THEREFORE IT CANNOT
BE USED TO CONNECT THE PUMP. You
can use any other fan header found on
the motherboard.
Tubing
IMPORTANT: USE
THIS OPENING AS
AN INLET PORT!
M2,5x8 screws
PVC washer
M4x8
screws
Factory backplates
Place 1mm thermal pads in larger
strips over marked area and make
sure all mosfet chips are covered.
3. PLACING THERMAL PADS ON
MOTHERBOARD. Place thermal pads on PCB as
shown on the picture
PLEASE REMOVE THE PROTECTIVE FOIL
FROM BOTH SIDES OF THE THERMAL PADS
PRIOR TO INSTALLATION!
Place 0,5mm (MB M8 Ranger and
Gene) or 1,5mm (MB M8 Hero)
thermal pads in larger strips over
marked area and make sure all
Inductor chips are covered.
