TWN4 PALON SQUARE M LF HF

INTEGRATION MANUAL

TABLE OF CONTENTS

1INTRODUCTION.................................................................................................................................................................. 3

1.1 ABOUT THIS MANUAL ..................................................................................................................................................3

1.2 ABOUT TWN4 PALON SQUARE M LF HF ....................................................................................................................3

1.3 ELATEC SUPPORT........................................................................................................................................................3

1.4 REVISION HISTORY......................................................................................................................................................3

2SAFETY INFORMATION ..................................................................................................................................................... 3

3INTEGRATION INSTRUCTIONS......................................................................................................................................... 4

3.1 GENERAL.......................................................................................................................................................................4

3.2 LIST OF APPLICABLE RULES ......................................................................................................................................4

3.3 SPECIFIC OPERATIONAL USE CONDITIONS.............................................................................................................4

3.4 LIMITED MODULE PROCEDURES ...............................................................................................................................4

3.5 TRACE ANTENNA DESIGN...........................................................................................................................................4

3.6 RF EXPOSURE CONSIDERATIONS.............................................................................................................................4

3.7 ANTENNAS ....................................................................................................................................................................4

3.8 LABEL AND COMPLIANCE INFORMATION .................................................................................................................5

3.9 TEST MODES AND ADDITIONAL TESTING REQUIREMENTS...................................................................................5

3.10 MECHANICAL INSTALLATION......................................................................................................................................5

3.11 ELECTRICAL CONNECTION.........................................................................................................................................5

3.12 PROGRAMMATION/SOFTWARE INTEGRATION ........................................................................................................5

4COMPLIANCE STATEMENTS ............................................................................................................................................ 6

4.1 EU ...................................................................................................................................................................................6

4.2 RF EXPOSURE COMPLIANCE .....................................................................................................................................6

5INTEGRATOR AND HOST REQUIREMENTS .................................................................................................................... 6

APPENDIX ....................................................................................................................................................................................... 7

A – TERMS AND ABBREVIATIONS...........................................................................................................................................7

B – RELEVANT DOCUMENTATION ..........................................................................................................................................7

1INTRODUCTION

1.1 ABOUT THIS MANUAL

This integration manual explains how to integrate ELATEC RFID reader module TWN4 Palon Square M LF HF into a host device and

is mainly intended for integrators and host manufacturers.

The content of this integration manual is subject to changes without prior notice and printed versions might be obsolete. Integrators

and host manufacturers are required to use the latest version of this integration manual.

For the sake of better understanding and readability, this manual might contain exemplary pictures, drawings and other illustrations.

Depending on your product configuration, these pictures might differ from the actual design of your product.

1.2 ABOUT TWN4 PALON SQUARE M LF HF

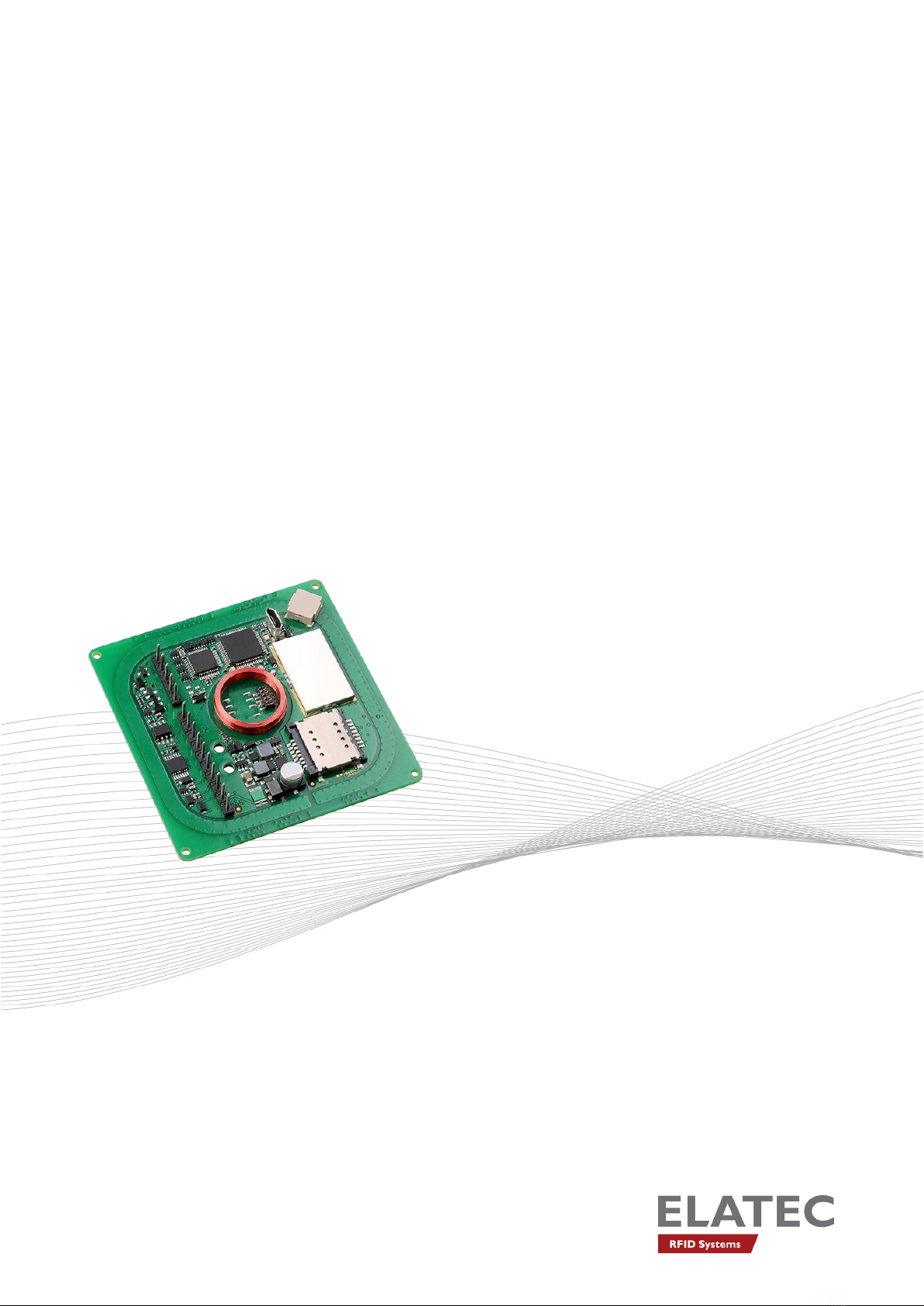

TWN4 Palon Square M LF HF is a versatile OEM PCB for integration into third-party products and devices. It supports enhanced

interfaces, especially RS-485. The new single PCB module inherits all advantages and tool support of the ELATEC TWN4 family.

Although being a general-purpose PCB module, it is optimized for time attendance and access control.

1.3 ELATEC SUPPORT

In case of any technical questions, refer to the ELATEC website (www.elatec.com) or contact ELATEC technical support at:

support-rfid@elatec.com

1.4 REVISION HISTORY

VERSION

CHANGE DESCRIPTION

EDITION

First edition

09/2021

2SAFETY INFORMATION

•ELATEC TWN4 Palon Square M LF HF is an electronic component and should be installed exclusively by a trained and qualified

personnel.

•ELATEC recommends the integrators to follow general ESD protective measures during the installation of

TWN4 Palon Square M LF HF into a host device, e.g. the use of an antistatic wristband or special gloves.

•The integrator should not touch the antennas (if not shielded), printed circuit boards, connectors or other sensitive components on

TWN4 Palon Square M LF HF.

•Before installing TWN4 Palon Square M LF HF into a host device, the integrator should also make sure that he/she has read and

understood the ELATEC technical documentation related to TWN4 Palon Square M LF HF, as well as the technical documentation

related to the host device. In particular, the instructions and safety information given in the user manual of

TWN4 Palon Square M LF HF should be read carefully and listed in the technical documentation of the host manufacturer as well,

as soon as these instructions and safety information are required for a safe and proper use of the host device containing

TWN4 Palon Square M LF HF.

3INTEGRATION INSTRUCTIONS

3.1 GENERAL

TWN4 Palon Square M LF HF may be installed in any host devices, as long as it is operated under the operational conditions stated

in the user manual and other technical documents (e.g. data sheet). TWN4 Palon Square M LF HF is equipped with two integrated

antennas. Thus, no antenna installation is required.

3.2 LIST OF APPLICABLE RULES

Refer to the approval certificates, grants and declarations of conformity issued for TWN4 Palon Square M LF HF, and to Chapter

“Compliance Statements” for a detailed list of the rules applicable to TWN4 Palon Square M LF HF.

3.3 SPECIFIC OPERATIONAL USE CONDITIONS

There are no specific operational use conditions for TWN4 Palon Square M LF HF other than the conditions mentioned in the user

manual and data sheet of TWN4 Palon Square M LF HF. The host manufacturer or integrator must ensure that these use conditions

comply with the use conditions of the host device. In addition, these use conditions must be stated in the user manual of the host

device.

3.4 LIMITED MODULE PROCEDURES

n/a

3.5 TRACE ANTENNA DESIGN

n/a

3.6 RF EXPOSURE CONSIDERATIONS

The module antenna(s) must be installed to meet the RF exposure compliance separation distance of 20 cm and any additional testing

and authorization process as required.

Refer to Chapter “Compliance Statements” for detailed information about the radio frequency exposure conditions applicable to

TWN4 Palon Square M LF HF.

These RF exposure conditions must be stated in the end-product manual(s) of the host product manufacturer.

3.7 ANTENNAS

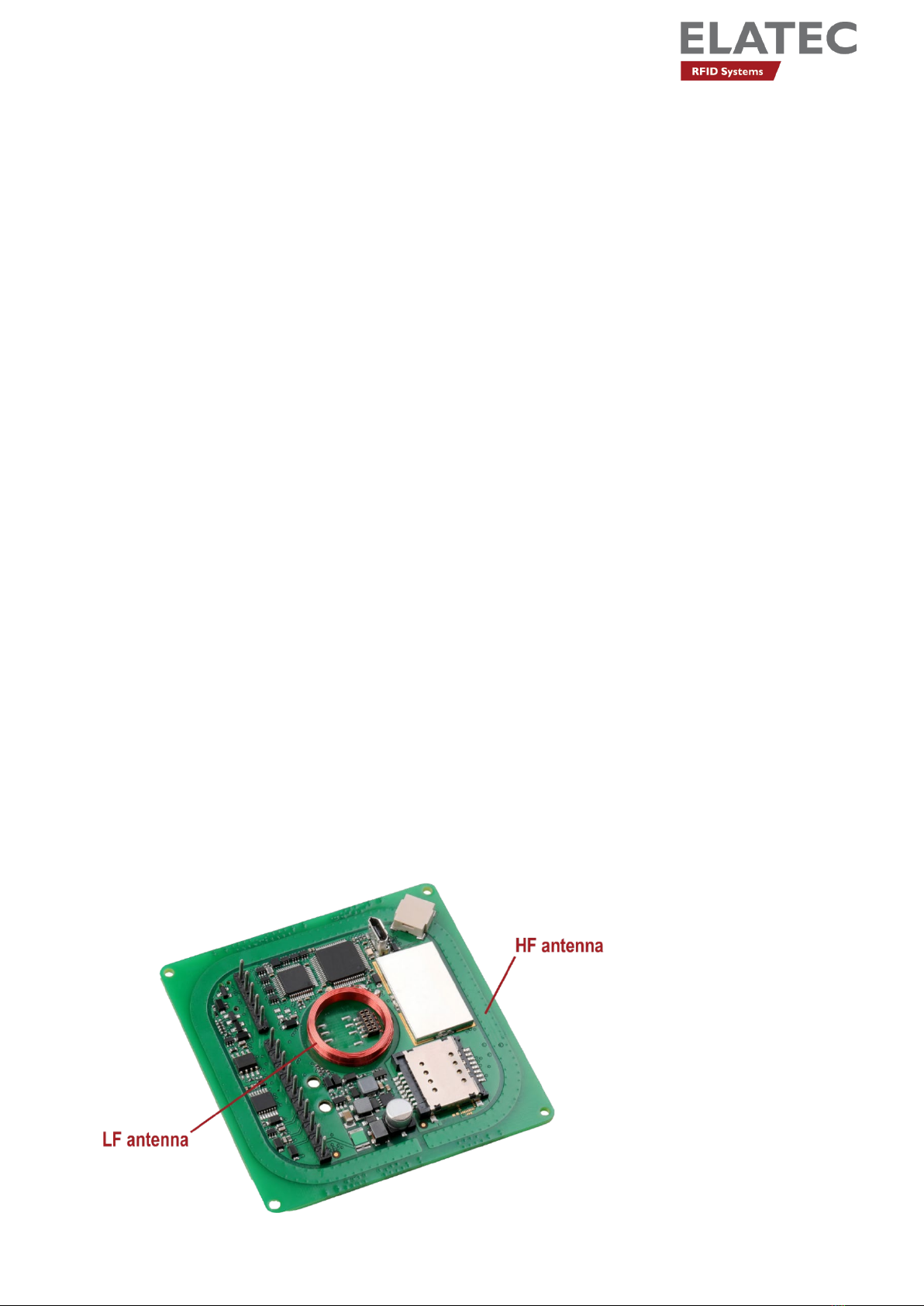

The reader module is equipped with the following antennas:

HF antenna (13.56 MHz)

Dimensions: 62 mm x 62 mm /

2.44 inch x 2.44 inch

Number of turns: 2

LF antenna (125 kHz)

Diameter: 20 mm / 0.79 inch

Number of turns: 234

For more information, refer to the

related product data sheet or other

relevant technical documents.

3.8 LABEL AND COMPLIANCE INFORMATION

Refer to Chapters “Compliance Statements” and “Integrator and Host Requirements” for detailed label and compliance information.

3.9 TEST MODES AND ADDITIONAL TESTING REQUIREMENTS

No specific testing method has been defined by ELATEC for TWN4 Palon Square M LF HF.

TWN4 Palon Square M LF HF has been tested and found in compliance with the specifications noted on the approval certificates and

other relevant approval documents. However, the integrator is still responsible for any additional testing and authorization process

required for the end product.

3.10 MECHANICAL INSTALLATION

The reader can be mounted with four screws M2.0.

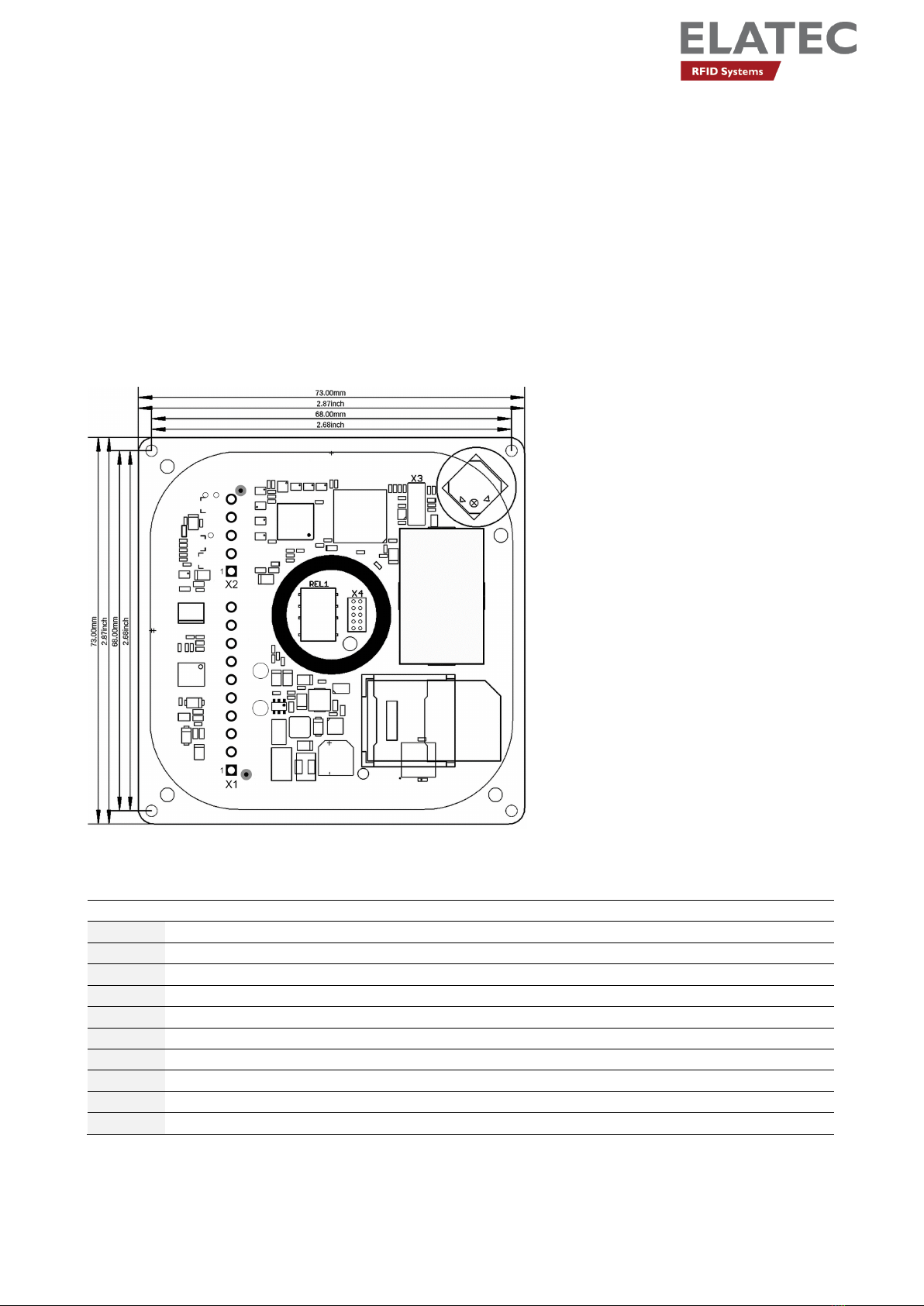

3.11 ELECTRICAL CONNECTION

ASSIGNMENT

X1 PIN

X2 PIN

X4 PIN

GND

Relay N.C. Normally Closed

VOUT +5V

VIN 9 – 30 Volt

Relay N.O. Normally Open

GND

Reserved, do not connect

Relay Common

I2C SDA

Wiegand D0 or DATA, TTL

TAMPER IN, TTL, RFU

I2C SCL

Wiegand D1 or CLOCK, TTL

GND

OUT, TTL, RFU

IN1, TTL, RFU

IN, TTL, RFU

IN2, TTL, RFU

GND

IN3, TTL, RFU

GND

RS-485 A

N.C. reserved, do not connect

RS-485 B

N.C. reserved, do not connect

3.12 PROGRAMMATION/SOFTWARE INTEGRATION

n/a

4COMPLIANCE STATEMENTS

4.1 EU

TWN4 Palon Square M LF HF is in compliance with the EU directives and regulations as listed in the respective declaration of

conformity.

4.2 RF EXPOSURE COMPLIANCE

RF exposure statement (mobile and fixed devices)

This device complies with the RF exposure requirements for mobile and fixed devices. However, the device shall be used in such a

manner that the potential for human contact during normal operation is minimized.

5INTEGRATOR AND HOST REQUIREMENTS

Compliance statements

All statements listed in Chapter “Compliance statements” of this integration manual must be also listed in the user manual of the host

device.

Special accessories

Where special accessories such as shielded cables and/or special connectors are required to comply with the emission limits, the

instruction manual shall include appropriate instructions on the first page of the text describing the installation of the device.

Simultaneous transmission

When the host product supports simultaneous-transmission operations the host manufacturer needs to check if there are additional

RF exposure filing requirements due to the simultaneous transmissions. When additional application filing for RF exposure compliance

demonstration is not required (e. g. the RF module in combination with all simultaneously operating transmitters complies with the RF

exposure simultaneous transmission SAR test exclusion requirements), the host manufacturer may do his own evaluation without any

filing, using reasonable engineering judgment and testing for confirming compliance with out-of-band, restricted band, and spurious

emission requirements in the simultaneous-transmission operating modes. If additional filing is required please contact the person at

ELATEC GmbH responsible for certification of the RF module.

APPENDIX

A – TERMS AND ABBREVIATIONS

TERM EXPLANATION

host device

Also “host” or “host product”. Device in which an RFID module is intended to be installed for operation.

Integrator

Responsible party for the integration of an RFID module into a host device. The integrator might be the

module manufacturer, the host manufacturer, the end user or any other third party.

modular type

Physical configuration in which a modular transmitter operates when installed within a host device. It can

be a single-modular, a limited single-modular, a split-modular or a limited split-modular type.

n/a

Not applicable

RFID (reader)

module

Device intended to be used within another device or product. Depending on the equipment configuration

and intended use, an RFID module has to meet different requirements to get a modular grant.

B – RELEVANT DOCUMENTATION

ELATEC documentation

•TWN4 Palon Square M LF HF data sheet

•TWN4 Palon Square M LF HF functional description

•TWN4 Palon Square M LF HF user manual

•TWN4 Palon Technical Handbook

External documentation

Document name

Document title/description

Source

n/a

Technical documentation related to the

host product

Host product manufacturer

For more information about this integration manual or TWN4 Palon Square M LF HF, go to www.elatec.com or contact ELATEC.

Elatec reserves the right to change any information or data in this document without prior notice. Elatec declines all responsibility for the use of this product with any other specification but the one mentioned above. Any

additional requirement for a specific customer application has to be validated by the customer himself at his own responsibility. Where application information is given, it is only advisory and does not form part of the
