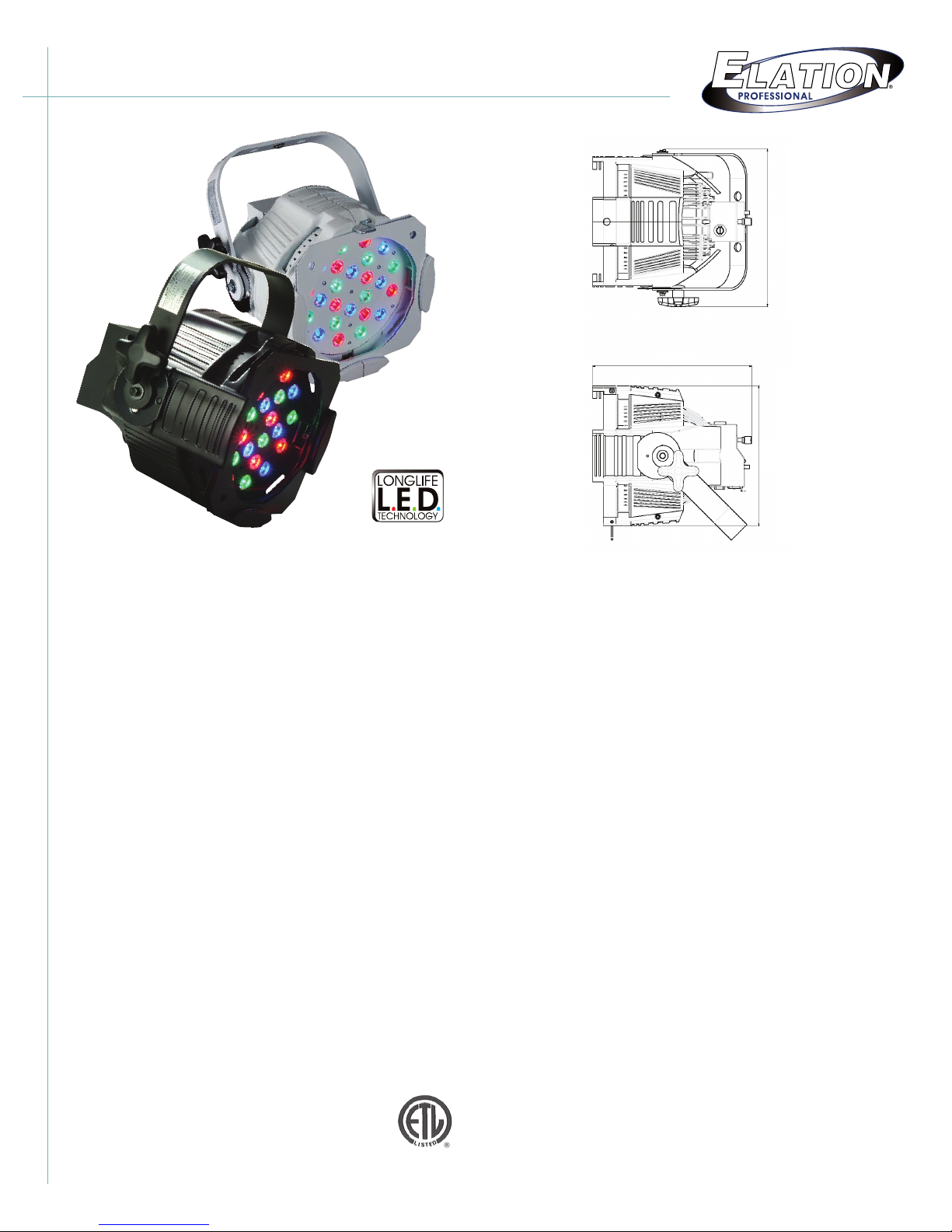

Elation High Output LED Color Changer Opti RGB User manual

Opti RGB / Opti RGB WH
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free [phone]
10.75” (273mm)
9.5” (241.3mm)
10.7” (271.78mm)
TECHNICAL SPECIFICATIONS
• DMX Channels: 7 DMX Channels
• Control: USITT DMX-512, 3 pin XLR serial input/output
• Dimmer: 0 - 100% electronic dimming
• Strobe: Color strobe, 1-18 ashes per second
• IP Rating: IP 20
• Power Supply: 120V / 240V 50/60Hz
• Power consumption: 45W
• Ballast: Magnetic
• Lamp: 24 x 1W long-life L.E.D.s (8 red, 8 green & 8 blue)
• Lamp Life: 50,000 hrs. life
• Dimensions: ( L x W x H - not including hanging bracket)
11.5” x 8.5” x 8.5” / 292mm x 215mm x 215mm
• Weight: 11 lbs / 5 kg
• Rigging: Heavy duty single rigging yoke
FEATURES
• High output L.E.D. Color Changer
• Powerful 24 x 1 Watt L.E.D.s (8 red, 8 green & 8 blue)
• Color strobe
• 15° beam angle
• Optional 45° beam angle lens kit available
(part no. OptiRGB 45D Kit)
• Sturdy, high-impact aluminum construction
• Fan cooled
• Very low power consumption
• Very low heat output
• On-board DMX (addressable via 10 dip switches)
• Built-in sound active programs
• Optional barn doors (part no. OPTI/BDB)
The Opti RGB by Elation Professional is a high output LED color changer featuring full RGB color mixing utilizing
24 LEDs - 8 red, 8 green, 8 blue running at 1W power each. The unit boasts a sturdy, high impact aluminum
construction available in black or white casing. The Opti RGB is fan cooled with the design of the fixture optimized
to provide up to 50,000 hours estimated LED life. This unit is rated at IP 20, designed for indoor applications and
is available in both 120v or 240v models. This unit can be operated in stand alone mode, sound active mode or
controlled via DMX controller. Control data input is via 3 pin XLR Neutrik™ serial first in and out connector cables.
Heavy duty rigging yoke is included and optional safety cables and data cables are available. The Opti RGB
comes fitted with a standard 25° lens kit. Optional 45° lens kit, barn doors, diffusion filter and mounting clamp are
available options.
Opti RGB DimensionsAvailable in white or black

Opti RGB / Opti RGB WH
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free [phone]
COLORS
• Total of 24 L.E.D.s (8 red, 8 green, 8 blue)
• Full RGB color mixing
• Manual control of colors for static color option
PHOTOMETRICS
Optional 45° beam angle lens kit available
(part no. OptiRGB 45D Kit)
RGB
COLOR MIXING
R (8) 15.5 FC / 124 LUX 0.5 FC / 5.6 LUX 0.3 FC / 2.9 LUX 0.2 FC / 1.9 LUX 0.1 FC / 1.6 LUX
G (8) 18.2 FC / 196 LUX 0.6 FC / 6.4 LUX 0.4 FC / 3.8 LUX 0.2 FC / 2.3 LUX 0.2 FC / 1.9 LUX
B (8) 1.4 FC / 14.6 LUX 0.1 FC / 1.6 LUX 0.1 FC / 1.3 LUX 0.09 FC / 1 LUX 0.1 FC / 0.7 LUX
RGB (24)
33.1 FC / 356 LUX 1.7 FC / 18.1 LUX 0.5 FC / 5.4 LUX 0.3 FC / 2.9 LUX 0.2 FC / 2.4LUX
Opti RGB
Photometric Beam Angle Data
Standard Beam Angle 15°
LUX x0.0929 = FC
15°
Beam Angle
0 m
0 ft
1 m
3.28 ft
5 m
16.4 ft
15 m
49.5 ft
20 m
66 ft
10 m
32.8 ft
Ø 4.20 m
Ø 13.80 ft
Ø 5.24 m
Ø 17.20 ft
Beam Diameter
Ø 0.26 m
Ø 0.85 ft
Ø 1.31 m
Ø 4.30 ft
Ø 2.62 m
Ø 8.60 ft
R (8) 111 FC / 1194 LUX 3.7 FC / 39.8 LUX 1.6 FC / 17.5 LUX 0.9 FC / 10.1 LUX 0.8 FC / 8.6 LUX
G (8) 126 FC / 1358 LUX 3.9 FC / 42.5 LUX 2.4 FC / 25.7 LUX 1.4 FC / 14.6 LUX 0.9 FC / 9.5 LUX
B (8) 13 FC / 136.4 LUX 0.3 FC / 3.7 LUX 0.2 FC / 2.5 LUX 0.2 FC / 1.7 LUX 0.1 FC / 1.2 LUX
RGB (24)
217 FC / 2340 LUX 18 FC / 192 LUX 4.7 FC / 50.2 LUX 1.8 FC / 19.7 LUX 1.5 FC / 15.8 LUX
Ø 2.62m / Ø 8.60ft
Ø 4.20m / Ø 13.80ft
Ø 5.24m / Ø 17.20ft
Ø 0.26m / Ø 0.85ft
Ø 1.31m / Ø 4.30ft
Optional Beam Angle 45° (not included)
LUX x0.0929 = FC
45°
Beam Angle
0 m
0 ft
1 m
3.28 ft
5 m
16.4 ft
15 m
49.5 ft
20 m
66 ft
10 m
32.8 ft
Ø 11.93 m
Ø 39.14 ft
Ø 15.91 m
Ø 52.20 ft
Beam Diameter
Ø 0.80 m
Ø 2.60 ft
Ø 3.98 m
Ø 13.05 ft
Ø 7.96 m
Ø 26.12 ft
Ø 7.96m / Ø 26.12ft
Ø 11.93m / Ø 39.14ft
Ø 15.91m / Ø 52.20ft
Ø 0.80m / Ø 2.60ft
Ø 3.98m / Ø 13.05ft

Opti RGB / Opti RGB WH
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free [phone]
DMX TRAITS
Channel Value Function
1 0 - 255 Red ( 0% 100%
)
2 0 - 255 Green ( 0% 100%
)
3 0 - 255 Blue (
0% 100%
)
4 16 - 255 Color macra
5 0 - 15 No function
16 - 255 Strobe/speed control
6 0 - 31 No function
Dimming Control
32 - 63 Dim Bright
64 - 95 Bright Dim
96 - 127 Dim Bright Dim
128 - 159 Color mixing
160 - 191 3 color change
192 - 223 7 color chcange
224 - 255 Sound active
7 0 - 255 Dimming (
0% 100%
)
Product Order Code Description
OPTI RGB Black OPTI RGB
OPTI RGB WH White OPTI RGB
Accessories Order Code Description
PRO CLAMP Mounting Clamp
DF 64 Diffusion lter
OPTI RGB 45D KIT 45° Lens Kit
OPTI/BDB Barn door
