Elation KL PAR FC User manual

User Manual
KL PAR FC

©2021 ELATION PROFESSIONAL all rights reserved. Information, specications, diagrams, images,
and instructions herein are subject to change without notice. ELATION PROFESSIONAL logo and
identifying product names and numbers herein are trademarks of ELATION PROFESSIONAL. Copy-
right protection claimed includes all forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted. Product names used in this docu-
ment may be trademarks or registered trademarks of their respective companies and are hereby ac-
knowledged. All non-ELATION brands and product names are trademarks or registered trademarks
of their respective companies.
ELATION PROFESSIONAL and all aliated companies hereby disclaim any and all liabilities for
property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect
economic loss associated with the use or reliance of any information contained within this docu-
ment, and/or as a result of the improper, unsafe, insucient and negligent assembly, installation,
rigging, and operation of this product.
Due to additional product features and/or enhancements, an
updated version of this document may be available online.
Please scan the QR Code with your mobile device or visit
www.elationlighting.com for the latest revision/update of this
manual, before installation and/or programming.
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | [email protected]
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
[phone] | [phone] fax | www.elationlighting.eu | [email protected]
Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
2
Date Document
Version
Software
Version
DMX Channel Mode Notes
07/19/21 1.0 1.03 1/6/11/18/9/14 Initial Release
07/23/21 2.0 N/C No Change Updated Specications and Dimensional Draw-
ings.
07/27/21 3.0 N/C No Change Update Dimensional Drawing and Specications
DOCUMENT VERSION

CONTENTS
3
General Information 4
Warranty Returns (USA Only) 5
Safety Guidelines 6
Maintenance Guidelines 8
Overview 9
Fixture Installation 10
Accessory Installation 12
Control Panel 14
System Menu 15
Encoder Function 17
DMX Channels Functions 18
Dimmer Modes & Curves 24
Color Temperature Chart 25
Color Macros Chart 26
Dimensional Drawings 27
Specifications 28
Ordering Information | Error Codes 29

INTRODUCTION
Please read and understand the instructions in this manual carefully and thoroughly before attempting
to operate this device. These instructions contain important safety and use information.
UNPACKING
Every device has been thoroughly tested and has been shipped in perfect operating condition. Care-
fully check the shipping carton for damage that may have occurred during shipping. If the carton is
damaged, carefully inspect the device for damage, and be sure all accessories necessary to install
and operate the device have arrived intact. In the event damage has been found or parts are missing,
please contact our customer support team for further instructions. Please do not return this device to
your dealer without rst contacting customer support. Please do not discard the shipping carton in the
trash. Please recycle whenever possible.
BOX CONTENTS
Gel Frame (x1)
Lenses (x4): 11°, 22°, 30°, 52°
Power Cable (x1)
CUSTOMER SUPPORT
Contact ELATION Service for any product related service and support needs.
Also visit forums.elationlighting.com with questions, comments, or suggestions.
ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-3322 | Fax [phone] | [email protected]
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
[phone] | Fax [phone] | [email protected]
REPLACEMENT PARTS please visit parts.elationlighting.com
GENERAL INFORMATION
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR
MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS
FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS
MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY
WARRANTY CLAIMS AND/OR REPAIRS.
IMPORTANT NOTICE!
4

To obtain warranty service, a Return Materials Authorization (RMA) number must first be obtained from ELATION.
It is the Customer’s responsibility to provide product proof of purchase and serial number by acceptable evidence
such as an invoice copy or an approved ELATION Extended Warranty Certificate (“EWC”) and any relevant main-
tenance records at the time warranty service is sought. Failure to provide acceptable evidence of product proof of
purchase or EWC and any relevant maintenance records may be cause for denial of warranty service.
Products returned for warranty service must be sent without any accessories (i.e., power, data, and safety cables,
brackets, clamps, rigging hardware, frost filters, gel frames, barn doors, lenses, hoses, nozzles, rack mounting
hardware, etc.), must be boxed using the original and/or suitable packaging materials (double-box and foam) that
provides ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and
insured to ELATION in Los Angeles, CA or an ELATION Authorized Service Center. The RMA number must be
clearly written on the outside of the return box, and a brief description of the problem and the RMA number must
be documented and included in the box.
Products returned for warranty service without an RMA number clearly marked on the outside of the package will
be refused and returned to the shipper at the Customer’s expense. Products returned for warranty service, which
are received damaged due to inadequate and/or improper packaging and/or due to damage caused by ship-
ping carrier, may incur additional repair charges before warranty service begins and/or may void this warranty. If
any product accessories (included and/or optional) are shipped with the product, ELATION and/or the ELATION
Authorized Service Center shall have no liability what so ever for the loss and/or damage to any such accessories,
nor the safe return thereof. If the requested warranty repairs or service (including parts replacement) are within the
terms of this warranty, ELATION will pay return ground transportation shipping charges to a single designated point
within the United States.
WARRANTY RETURNS (USA ONLY)
5

SAFETY GUIDELINES
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is
important to follow all instructions and guidelines in this manual. Elation Professional is not respon-
sible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the
information printed in this manual. Only qualified and/or certified personnel should perform instal-
lation of this fixture and only the original rigging parts included with this fixture should be used for
installation. Any modifications to the fixture and/or the included mounting hardware will void the
original manufacturer’s warranty and increase the risk of damage and/or personal injury.
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO
NOT ATTEMPT ANY REPAIRS YOURSELF. DOING SO WILL VOID YOUR
MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS
TO THIS DEVICE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND
GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND
ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.
DO NOT PLUG THIS UNIT INTO A DIMMER PACK
DO NOT REMOVE THE COVER UNDER ANY CONDITIONS
NEVER OPERATE THIS UNIT WITH THE CASING REMOVED
UNPLUG FROM POWER DURING LONG PERIODS OF NON-USE
DISCONNECT POWER BEFORE PERFORMING MAINTENANCE
6
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
FOR USE IN INDOOR OR DRY LOCATIONS ONLY!
DO NOT EXPOSE TO RAIN AND/OR MOISTURE!
FIXTURE SHOULD BE PLACED A MINIMUM OF 1.0 FOOT (0.3 METERS) FROM
ANY NEARLY OBJECTS OR SURFACES.
FIXTURE SHOULD BE PLACED A MINIMUM OF 1.6 FEET (0.5 METERS) FROM
ANY FLAMMABLE MATERIALS.
MAXIMUM AMBIENT OPERATING TEMPERATURE IS 113°F (45°C)

For Your Own Personal Safety, Please Read and Understand This Manual Completely Before
You Attempt To Install Or Operate This Unit!
• IP20 Rating: Fixture is protected against intrusion by solids measuring roughly 12.5mm in
sizeorlarger,suchashumanngers.THEFIXTUREISNOTPROTECTEDAGAINSTLIQUIDS
OR MOISTURE OF ANY KIND!
• Do not touch the xture housing during operation, as it may be hot.
• Do not shake the xture, and avoid using brute force when installing and/or operating.
• Use only the original packaging and materials to transport or ship the xture for service. Make sure
to retain the original packaging for this purpose.
• Be sure that the local power outlet matches the required voltage for the device.
• Do not open up the device for any reason. There are no user serviceable parts inside.
• Disconnect the device’s main power when left unused for long periods of time.
• Never connect this device to a dimmer pack.
• Do not attempt to operate this device if it has been damaged in any way.
• Never operate this device with the cover removed.
• Do not attempt to operate this device if the power cord has been frayed or broken.
• Never force a power cord connector into the xture. If the power cord or any of its connectors are
damaged, replace immediately with a new cord of the same power rating.
• Do not attempt to remove or break o the ground prong from the electrical cord. This prong is used
to reduce the risk of electrical shock and re in case of an internal short.
• Only handle the power cord by the plug end. Never disconnect the plug by tugging on the wire
portion of the power cord.
• Disconnect from main power before making any type of connection.
• Never block the air ventilation slots. Always be sure to mount this device in an area that will allow
proper ventilation. Allow about 6” (15cm) between this device and a wall.
• Always mount this unit in a safe and stable matter.
• Please route your power cord out of the way of foot trac. Power cords should be routed so they
are not likely to be walked on or pinched by items placed upon or against them.
• Before performing any servicing, turn off and disconnect the device from power and allow at
least 15 minutes for the device to cool.
• Consistent operational breaks will ensure that this fixture will function properly for many years.
• The device should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen on, or liquid has been spilled into, the device.
C. The device has been immersed in liquid or exposed to moisture.
D. The appliance does not appear to operate normally or exhibits a marked change in performance.
• Keepallammablematerialsawayfromthisxture!
SAFETY GUIDELINES
7

MAINTENANCE GUIDELINES
8
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function, optimized light output, and an
extended life. The frequency of cleaning depends on the environment in which the fixture operates:
damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the fix-
ture’s optics. Clean periodically with a soft cloth to avoid dirt/debris accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to insure proper function and extended life. There are no
user serviceable parts inside this fixture. Please refer all other service issues to an authorized Elation
service technician. Should you need any spare parts, please order genuine parts from an authorized
Elation dealer.
Please refer to the following points during routine inspections:
• A detailed electrical check by an approved electrical engineer every three months, to make sure
the circuit contacts are in good condition and prevent overheating.
• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out
during normal operation, resulting in damage or injury as larger parts could fall.
• Check for any deformations on the housing, color lenses, rigging hardware and rigging points
(ceiling, suspension, trussing). Deformations in the housing could allow for dust to enter into the
fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and seriously
injure a person(s).
• Electric power supply cables must not show any damage, material fatigue or sediments.

OVERVIEW
9

FIXTURE INSTALLATION
FLAMMABLE MATERIAL WARNING
Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotech-
nics.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all electrical connections and/or installations.
MINIMUM DISTANCE TO OBJECTS/SURFACES IS 1 FOOT (0.3 METERS)
MINIMUM DISTANCE OF FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6
FEET (0.5 METER)
MAXIMUM AMBIENT TEMPERATURE 113° F (45°C)
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
10
Fixture MUST be installed following all local, national, and country commercial electrical and con-
struction codes and regulations.
Before rigging/mounting a single fixture or multiple fixtures to any metal truss/structure or placing
the fixture(s) on any surface, a professional equipment installer MUST be consulted to determine if
the metal truss/structure or surface is properly certified to safely hold the combined weight of the
fixture(s), clamps, cables, and accessories.
Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas
where unauthorized personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing, or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment, such as
an appropriately rated safety cable.
Allow approximately 15 minutes for the fixture to cool down before serving.

FIXTURE INSTALLATION
CLAMP INSTALLATION
This device features a mounting clamp attachment point built into the mounting bracket, as well as
two safety cable attachment points located on the rear face of the fixture on either side of the con-
trol panel (see the illustration below). When mounting the fixture to a truss or any other suspended
or overhead installation, be sure to secure an appropriately rated clamp (not included) to the clamp
attachment point and attach a separate SAFETY CABLE of the appropriate safety rating to the safe-
ty cable rigging point.
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A
SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT FALL IF
THE CLAMP FAILS.
RIGGING
Overhead rigging requires extensive experience, including but not limited to: calculating working
load limits, understanding the installation material being used, and periodic safety inspection of all
installation material and the fixture itself. If you lack these qualifications, do not attempt to perform
the installation yourself. Improper installation can result in bodily injury.
11

LENS INSTALLATION
ACCESSORY INSTALLATION
12
1. Flip the retaining clip located near the
top of the lens.
2. Push the latch towards the location of the re-
taining clip. Hold the latch in this position.
3. While holding the latch in place, slide the
desired lens into place. Then release the
latch. It will automatically move back into
the locked position when released.
4. Return the retaining clip to the original
position.

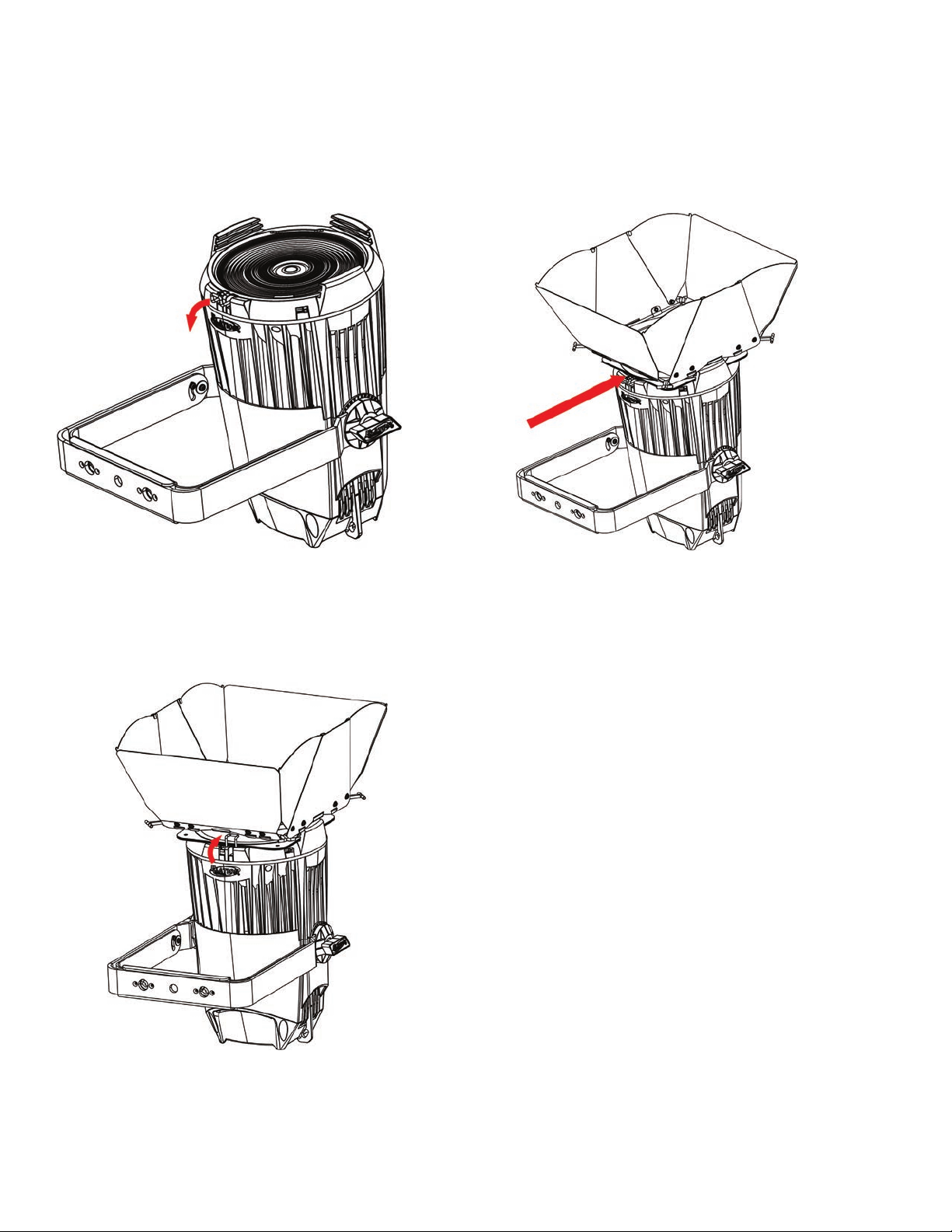

BARNDOOR INSTALLATION
ACCESSORY INSTALLATION
1. Flip the retaining clip located near the
top of the lens.
2. Slide the barn door into place in one of the va-
cant accessory slots on the front of the xture.
3. Return the retaining clip to the original
position to lock the barndoor in place.
13

CONTROL PANEL
14
The fixture includes an easy to navigate system menu. The control panel display is located on the
rear panel of the fixture (see image below) and provides access to the main system menu, where all
necessary system adjustments are made to the fixture. During normal operation, pressing the MODE
button once will access the fixture’s main menu. Once in the main menu you can navigate through
the different functions and access the sub-menus with the DOWN and UP buttons. Once you reach
a field that requires adjusting, press the ENTER button to activate that field and use the DOWN and
UP buttons to adjust the field. Pressing the ENTER button once more will confirm the setting. Exit
the main menu at any time without making any adjustments by pressing the MODE button.
The display screen will shut OFF automatically after 30 seconds of inactivity. To turn the display back
on, press and hold the MODE button for 3 seconds.

15
SYSTEM MENU
ELATION KL PAR FC
Supports Software Versions: 1.03
ENCODER MODE
Disabled For use when running xture in DMX mode
Dimmer For use when running xture in dimmer mode
Int CCT Grn For use when running xture in CCT mode with encoder control
Int Color Sat For use when running xture in color mode with encoder con-
trol
Manual Control For use when running xture in manual control mode with en-
coder control
DMX SETTINGS
DMX Address 001 - 512
DMX Mode
1CH Dimmer
6CH Dimmer Color
11CH Standard
18CH Extended
9CH CMY
14CH CMY Ex
No DMX Status
Hold Last
Fade to Black
Standalone
STANDALONE
Dimmer 000% - 100%
CCT 2400K - 8500K
(Default = 6000K).
Green Shift -100% ~ +100%
(Default = 0)
Virtual Color See Color Macros
PERSONALITY
Primary On / O
Secondary On / O
Dim Modes
Standard
Stage
TV
Architectural
Theatre
Stage 2
Dim Speed 0s - 10s (Default = 0.1s)
Dim Curves
Linear
Square
Square Inverse
S-Curve
CONTINUED ON NEXT PAGE

16
SYSTEM MENU
ELATION KL PAR FC
Supports Software Versions: 1.03
PERSONALITY
LED Refresh Rate
900Hz - 1500Hz, 2500Hz, 4000Hz, 5000Hz, 6000Hz, 10KHz,
15KHz, 20KHz, 25KHz
(Default = 1200 Hz)
LED Power Limit
50%
60%
70%
80%
90%
100%
Fan Mode
Auto
Silent
High
Display
Screen Delay 10s - 5min (Default = 1 min)
Screen Lock O, 10s - 5 min
Rotate Display Yes / No / Auto
Service
(Passcode = 050)
Calibration
Red 000 - 255
Green 000 - 255
Blue 000 - 255
Mint 000 - 255
Amber 000 - 255
Update Software On / O
Factory Restore Yes / No
Edit RDM UID
INFORMATION
Life Time
Last Run Time
Time Reset Passcode = 038
Temperature
Current
Max Resettable
Reset Passcode = 038
DMX Values
Red
Green
...
Product IDs RDM UID
Error Logs Fixture Errors
Reset Error Log Yes / No (Passcode = 050)
Software Version

17
ENCODER FUNCTION
When the device has been set to Encoder mode, the lighting display can be adjusted using the knob
located beside the display screen on the back of the device.
To enter Encoder mode, select the ENCODER MODE option from the main system menu, as de-
scribed in the System Menu section of this manual. Then use the UP and DOWN buttons to scroll
through the dierent modes. Each mode is represented by one of the tables below. Press ENTER to
select the mode that is currently dispalyed.
Once an Encoder Mode has been selected, press the knob to cycle through the available Parameter
options. When the desired Parameter is displayed on the screen, simple turn the knob to adjust the
value of that Parameter.
DIMMER MODE
PARAMETER VALUE RESOLUTION DEFAULT
Intensity Intensity 0-100% 1% 0%
INT CCT GRN MODE
PARAMETER VALUE RESOLUTION DEFAULT
Intensity Intensity 0-100% 1% 0%
Color Temperature CCT 2400 - 8500K 100K 6000K
Green Shift GRN -100% to +100% 1% Neutral
INT COLOR SAT MODE
PARAMETER VALUE RESOLUTION DEFAULT
Intensity Intensity 0-100% 1% 0%
Color Virtual Color 1, 2, 3, 4... Single Color
Saturation Sat 0 - 100% 1% 100%
MANUAL CONTROL MODE
PARAMETER VALUE RESOLUTION DEFAULT
Intensity Intensity 0-100% 1% 100%
Strobe Strobe 0-255 1 0
Red Red 0-255 1 0
Green Green 0-255 1 0
Blue Blue 0-255 1 0
Mint Mint 0-255 1 0
Amber Amber 0-255 1 0

DMX CHANNEL FUNCTIONS
18
ELATION KL PAR FC
Supports Software Versions: 1.03
Dimmer
1CH
Dimmer
Color
6CH
Standard
11CH
Extended
18CH
CMY
9CH
CMY
Extended
14CH
DMX
Values Function
1 1 1 1 1 1 000 - 255 Dimmer, 0% to 100%
2 2 2 2 2 000 - 255 Dimmer Fine
3 3 3 3 3
Strobe
000 - 031 Shutter closed
032 - 063 No function (shutter open)
064 - 095 Strobe eect, slow to fast
096 - 127 No function (shutter open)
128 - 159 Pulse eect (in sequence)
160 - 191 No function (shutter open)
192 - 223 Random strobe eect, slow to fast
224 - 255 No function (shutter open)
4 4 000 - 255 Cyan, 0% - 100%
5 000 - 255 Cyan Fine
5 6 000 - 255 Magenta, 0% - 100%
7 000 - 255 Magenta Fine
6 8 000 - 255 Yellow, 0% - 100%
9 000 - 255 Yellow Fine
4 4 000 - 255 Red, 0% - 100%
5 000 - 255 Red Fine
5 6 000 - 255 Green, 0% - 100%
7 000 - 255 Green Fine
6 8 000 - 255 Blue, 0% - 100%
9 000 - 255 Blue Fine
7 10 000 - 255 Mint, 0% - 100%
11 000 - 255 Mint Fine
8 12 000 - 255 Amber, 0% - 100%
13 000 - 255 Amber Fine
CONTINUED ON NEXT PAGE

19
DMX CHANNEL FUNCTIONS
ELATION KL PAR FC
Supports Software Versions: 1.03
Dimmer
1CH
Dimmer
Color
6CH
Standard
11CH
Extended
18CH
CMY
9CH
CMY
Extended
14CH
DMX
Values Function
4 9 14 7 10
CTO
000 - 023 Open
024 - 085 CTO 2400K - 8500K (see Color Tem-
perature Table)
086 - 255 8500K
5 10 15 8 11
Color Wheel
000 Open
001 - 179 Virtual Swatch Book (see Virtual
Swatch Book Table)
Color Scroll
180 - 201 Clockwise, fast to slow
202 - 207 Stop
208 - 229 Counter-clockwise, slow to fast
230 - 234 Open
Random Slots
235 - 239 Fast
240 - 244 Medium
245 - 249 Slow
250 - 255 Open
16 12
Green Shift
000 Idle
001 - 127 Full Minus Green to Neutral
128 Neutral White
129 - 255 Neutral to Full Plus Green
17 13
Dim Modes
000 - 020 Standard
021 - 040 Stage
041 - 060 TV
061 - 080 Architectural
081 - 100 Theatre
101 - 120 Stage 2
CONTINUED ON NEXT PAGE

20
DMX CHANNEL FUNCTIONS
ELATION KL PAR FC
Supports Software Versions: 1.03
Dimmer
1CH
Dimmer
Color
6CH
Standard
11CH
Extended
18CH
CMY
9CH
CMY
Extended
14CH
DMX
Values Function
17 13
Dimmer Delay Time
121 0s
122 0.1s
123 0.2s
124 0.3s
125 0.4s
126 0.5s
127 0.6s
128 0.7s
129 0.8s
130 0.9s
131 1.0s
132 1.5s
133 2.0s
134 3.0s
135 4.0s
136 5.0s
137 6.0s
138 7.0s
139 8.0s
140 9.0s
141 10s
142 - 255 Idle
6 11 18 9 14
Control
000 - 029 Idle
030 - 039 Fan Mode Auto
040 - 049 Fan Mode Silent
050 - 059 Fan Mode High
060 - 099 Idle
CONTINUED ON NEXT PAGE
