Elba EL 810 User manual

Instructions for the use - Installation advices
KEEP IN A SAFE PLACE
60 cm
ELECTRIC
BUILT-IN OVENS
Before operating this oven,
please read these instructions carefully

2
Dear Customer,
Thank you for having purchased and given your preference
to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of the
features offered by your appliance.
Please keep this booklet in a safe place. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it
has explicitly been designed for, that is for cooking
foodstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance or be faulty installation.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT
IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EC.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority differentiated
waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain signicant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.
DECLARATION OF CE CONFORMITY
This appliance has been designed, constructed, and marketed in compliance with:
• Safety requirements of EU Directive “Low Voltage” 2006/95/EC;
• Protection requirements of EU Directive “EMC” 2004/108/EC;
• Requirements of EU Directive 93/68/EEC;
• Requirements of EU Directive 2011/65/EU.

3
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
• After having unpacked the appliance, check to ensure that it is not
damaged and that the oven door closes correctly.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails, packing
straps, etc.) should not be left around within easy reach of children,
as these may cause serious injuries.
• Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the
appliance.
• IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
• Do not attempt to modify the technical characteristics of the
appliance as this may become dangerous to use. The manufacturer
declines all responsibility for any inconvenience resulting from the
inobservance of this condition.
• Do not operate your appliance by means of an external timer or
separate remote-control system.
• Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the electric
power supply.
• WARNING: Ensure that the appliance is switched off before
replacing the oven lamp to avoid the possibility of electric shock.

4
• Do not use a steam cleaner because the moisture can get into the
appliance thus make it unsafe.
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in barefoot.
• If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it is
recommended that it be made inoperative in an appropriate manner
in accordance to health and environmental protection regulations,
ensuring in particular that all potentially hazardous parts be made
harmless, especially in relation to children who could play with
unused appliances.
• The various components of the appliance are recyclable. Dispose
of them in accordance with the regulations in force in your country.
If the appliance is to be scrapped, remove the power cord.
• After use, ensure that the control knobs are in the off position.
• Children less than 8 years of age shall be kept away unless
continuously supervised.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
• The manufacturer declines all liability for injury to persons or damage
to property caused by incorrect or improper use of the appliance.
• WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements inside
the oven.
– The door is hot, use the handle.
– To avoid burns and scalds, young children should be kept away.
• Make sure that electrical cables connecting other appliances in the
proximity of the oven cannot become entrapped in the oven door.

5
• WARNING: When correctly installed, your product meets all safety
requirements laid down for this type of product category. However
special care should be taken around the rear or the underneath of
the appliance as these areas are not designed or intended to be
touched and may contain sharp or rough edges, that may cause
injury.
• FIRST USE OF THE OVEN - it is advised to follow these instructions:
– Furnish the interior of the oven as described in the chapter
“CLEANING AND MAINTENANCE”.
– Switch on the empty oven on max to eliminate grease from the
heating elements.
– Disconnect the appliance from the electrical power supply, let
the oven cool down and clean the interior of the oven with a cloth
soaked in water and neutral detergent; then dry carefully.
• CAUTION: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch the
surface, which may result in shattering of the glass.
• Do not line the oven walls with aluminium foil. Do not place baking
trays or the drip tray on the base of the oven chamber.
• FIRE RISK! Do not store ammable material in the oven.
• Always use oven gloves when removing the shelves and food trays
from the oven whilst hot.
• Do not hang towels, dishcloths or other items on the appliance or its
handle – as this could be a re hazard.
• Clean the oven regularly and do not allow fat or oils to build up in
the oven base or tray. Remove spillages as soon as they occur.
• Do not stand on the open oven door.
• Always stand back from the appliance when opening the oven door
to allow steam and hot air to escape before removing the food.
• SAFE FOOD HANDLING: Leave food in the oven for as short a time
as possible before and after cooking. This is to avoid contamination
by organisms which may cause food poisoning. Take particular care
during warmer weather.
• WARNING: Take care NOT to lift the appliance by the door handle.

6
ENERGY LABELLING/ECODESIGN
• Commission delegated regulation (EU) No 65/2014 (supplementing Directive 2010/30/EU
of the European Parliament and of the Council).
• Commission regulation (EU) No 66/2014 (implementing Directive 2009/125/EC of the
European Parliament and of the Council).
Reference to the measurement and calculation methods used to establish compliance with
the above requirements:
• Standard EN 60350-1 (electric ovens).
USE OF THE APPLIANCE, ENERGY SAVING TIPS
OVEN
• Check the oven door always closes properly and the door gasket is clean and in order.
During use, open the oven door only when strictly necessary to avoid heat losses (for
some functions it may be necessary to use the oven with the door half-closed, check
the oven operating instructions).
• Turn off the oven 5-10 minutes before the end of the theoretical cooking time to
recuperate the stored heat.
• We recommend using oven proof dishes and adjusting the oven temperature during
cooking if necessary.

7
Attention:
The oven door becomes very hot during operation.
Keep children away.
WARNING:
The door is hot, use the handle.
During use the appliance becomes hot. Care should be taken to avoid touching
heating elements inside the oven.
OVEN FEATURES
1
GENERAL FEATURES
This multifunction electronic oven has 4 heating elements which allow you to choose
between 9 cooking programmes:
• Lower element 1300 W
• Upper element 1000 W
• Grill element 2000 W
• Circular element 2200 W
NOTE:
Before using your new oven, it is necessary to condition your oven.

8
OPERATING PRINCIPLES
Heating and cooking in the FULL ELECTRONIC MULTIFUNCTION oven are obtained in
the following ways:
a. by normal convection
The heat is produced by the upper and lower heating elements.
b. by semi-forced convection from the bottom
The heat produced by the lower heating element is distributed throughout the oven by
the fan.
c. by radiation
The heat is radiated by the infrared grill element.
d. by double radiation
The heat is radiated by the infrared grill and the top heating elements.
e. by radiation and ventilation
The radiated heat from the infrared grill element is distributed throughout the oven by
the fan.
f. by semi-forced convection from the bottom and back
The heat produced by the lower and circular heating elements is distributed throughout
the oven by the fan.
g. by forced convection
The air inside the oven is warmed by a circular heating element at the back of the oven.
Hot air is then moved around the oven by a fan near the heating element. Food can be
placed inside a cold oven because it heats up quickly. The heat is evenly distributed
throughout the oven allowing for different dishes to be cooked simultaneously.
h. by semi-forced convection
The heat produced by the upper and lower heating elements is distributed throughout
the oven by the fan.
i. by ventilation
1. “dEF” - the food is defrosted by using the fan only.
2. By using “dEF” and setting the temperature (from 40° to 100°C maximum) the
lower heating element is activated and this function can be used to keep food
warm (for a limited amount of time).
j. by fast pre-heating (BOOSTER)
This special program allows (by a combination of the heating elements) a fast pre-
heating of the oven cavity.

9

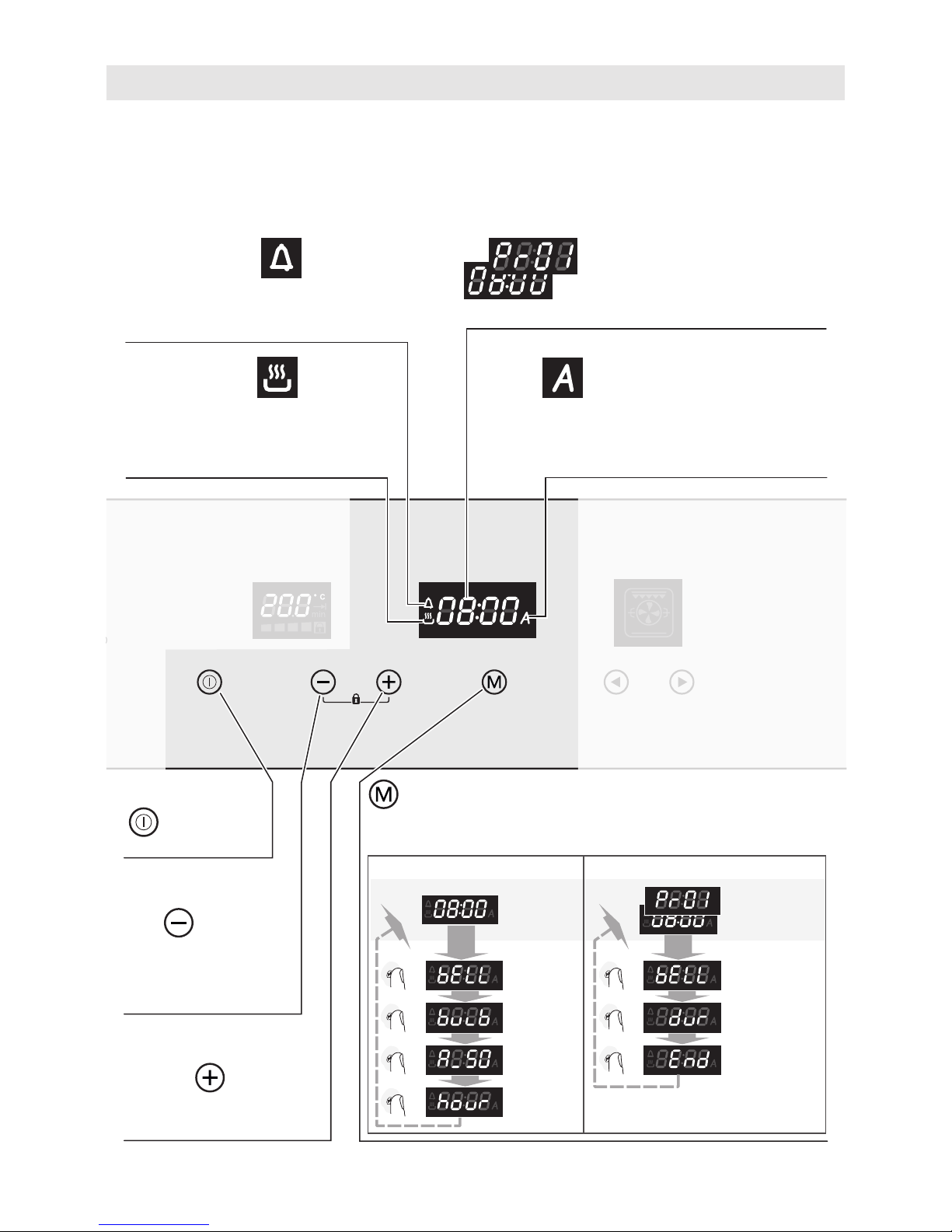

CONTROL PANEL
Fig. 1.1
Fig. 1.2 Fig. 1.3
“TOUCH-CONTROL” KEYS
The “touch-control” keys shall be operated by the ngers (just by touching the key).
When using touch controls it is best to use the ball of your nger rather than the tip.
Oven functions selectionON/OFF selection
Programmer functions
selection
Temperature and programmer
functions regulation,
Childlock selection
Temperature display
Clock/Programmer display
Functions display

10

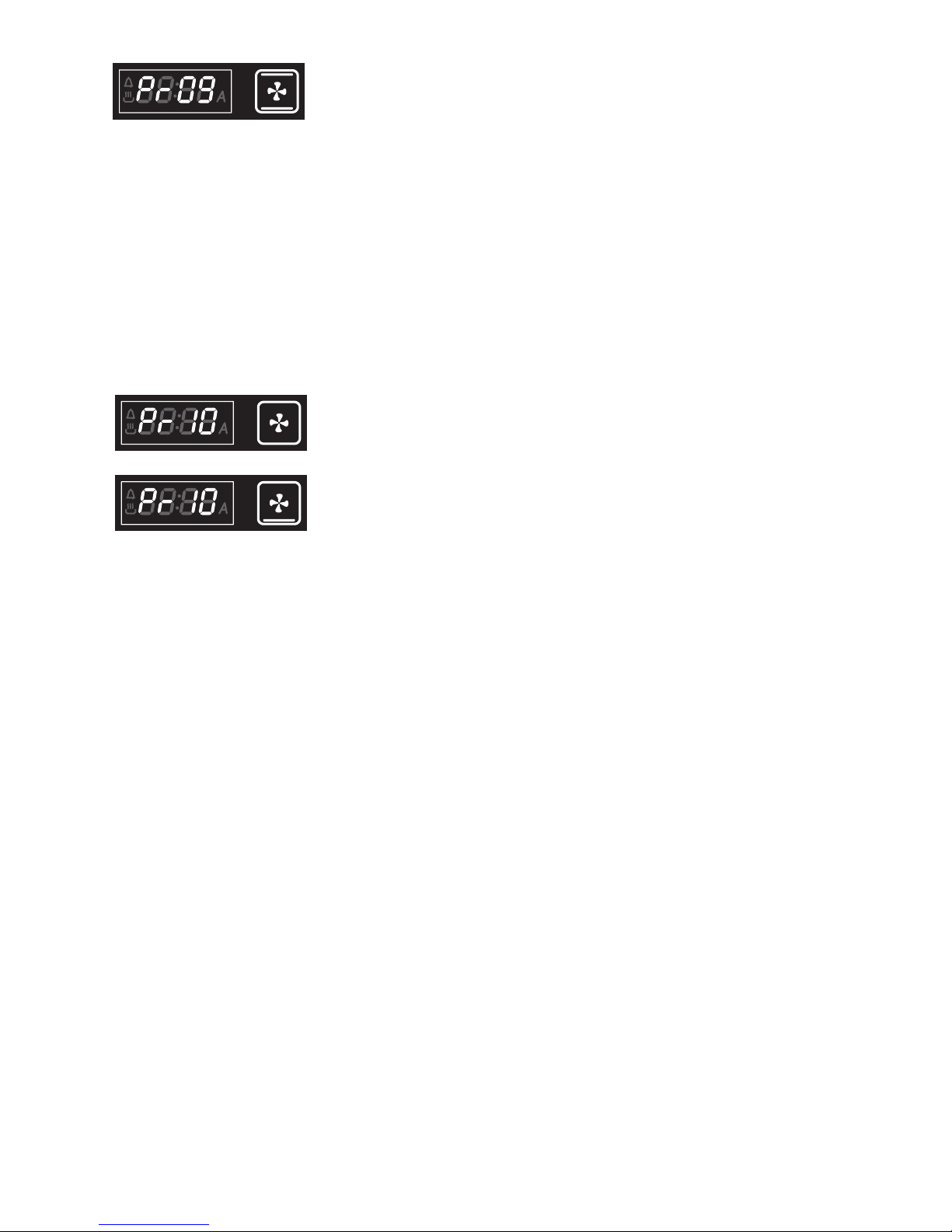

USING THE OVEN - ELECTRONIC DISPLAY
Fig. 1.4
150
125
100
75
50
Lit = minute minder in operation
Flashing = countdown completed
by the minute minder
Lit = operation of heating elements
(cooking functions)
Flashing = semi-automatic or automatic
cooking completed
SYMBOL
SYMBOL
SYMBOL
ON/OFF
Programmer functions - Progressive selection
(each time the key is touched)
To increase the numbers
on the display
SYMBOL
SYMBOL
SYMBOL
SYMBOL
Lit = semi-automatic or automatic cooking
programmed
Flashing = semi-automatic or automatic
cooking completed
To decrease the
numbers on the display
or to set the alarm
sound
DIGITS
- Oven switched on: Time of day
and selected function (alternating)
- Oven switched off: Time of day
OVEN SWITCHED OFF
Timer
OVEN SWITCHED ON
Oven light
options
Time of day
NORMAL
STATUS
Automatic
switch off
options
Timer
Time of day and
selected function
(alternating)
NORMAL STATUS
Duration of a
cooking program
Stop time of a
cooking program
Setting time
of day
4
th
1
st
2
nd
3
rd
1
st
2
nd
3
rd

11
SETTING TIME OF DAY
The controller is provided with an electronic clock with illuminated gures showing the hour
and minutes.
IMPORTANT: The time of day can be set only when the oven is turned off (“stand-by”
condition).
To set the time:
• Select “hour” on the clock/programmer display by using the key “ ”.
• While the hour is ashing touch “ ” and “ ” keys to set the time.
ELECTRONIC CONTROLLER FEATURES
It performs the following functions:
• 24 hours clock with illuminated display.
• Timer (minute minder: up to 600 minutes - 10 hours).
• Programme for semi-automatic oven cooking (up to 600 minutes - 10 hours - of
cooking time).
• Programme for automatic oven cooking (up to 600 minutes - 10 hours - of cooking
time).
• Automatic switch off.
• “Childlock” safety (deactivation of the controller selections).
• Oven functions and temperature selection.
• Each setting is automatically processed about 4 seconds after the last selection.
IMPORTANT NOTE: The rst time the oven is used or after a power failure the clock is
automatically set to 12:00 (“12:00” appears on the clock/programmer display).
WARNING: The oven can be used but it is preferable to set the time of the day.

12
TURNING THE OVEN ON AND OFF
To turn the oven ON:
• Touch the key “ ” and hold until “On” appears on the clock/programmer display.
• You can now operate your oven. The time of the day appears on the clock/programmer
display (followed by the programme number “Pr01, Pr02, ...”).
To turn the oven OFF:
• Touch the key “ ” and hold until “OFF” appears on the clock/programmer display.
• The oven is turned off (“stand-by” condition) and the time of the day appears on the
clock/programmer display.
• 3 beeps indicate that the oven has been turned off.
To select the volume of the beeps, touch the “ ” key when the oven is turned off (”stand-
by” condition) .
WARNING - IMPORTANT NOTE
Do not turn the oven off if you have set it for automatic or semi-automatic cooking.
This operation will cancel the programmed cooking.
Only the timer (minute minder) operates in the “stand-by” condition.
OVEN AUTOMATIC SWITCH OFF
• If you do not use your oven within 3 minutes, it automatically switches back to stand-
by.
• When the oven is operating a cooking function it automatically switches back to stand-
by after 10 hours.
• It is possible to remove the automatic switch off feature by selecting “A_SO” (by using
the key “ ” with the oven switched off) on the clock/programmer display and then
touching the “ ” or “ ” key to set “OFF”.
To reactivate the automatic switch off feature repeat the same procedure and set to
“On”.
It is factory setted for “A_SO - On” (automatic switch off ON) and this option is also
automatically activated after a power failure.

13

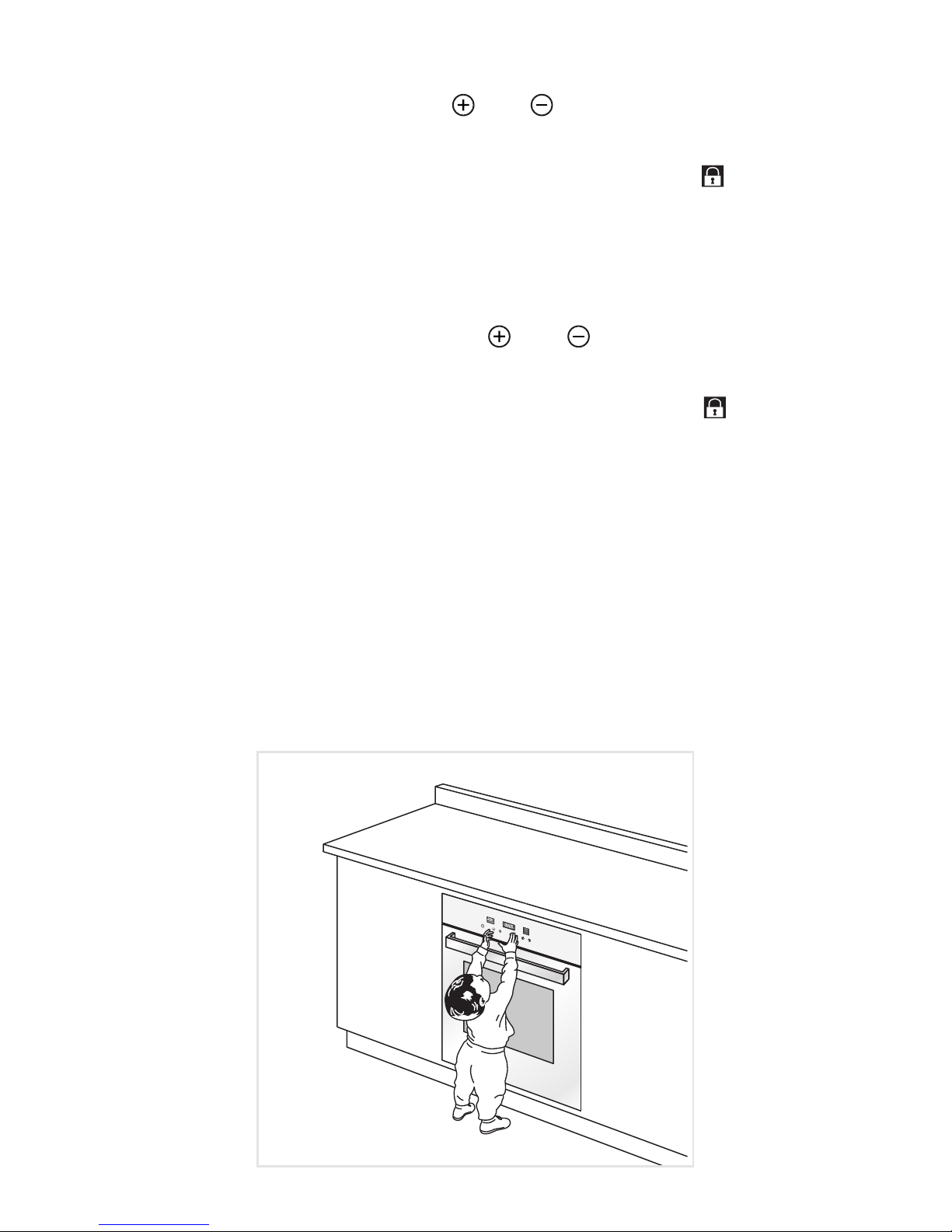

CHILDLOCK SAFETY
To activate the Childlock option touch the “ ” and “ ” keys simultaneously and hold until
the clock/programmer display shows “n--0” and then “On”.
Then the time of the day appears again (followed by the selected programme number
“Pr01, Pr02, ...” when the oven is ON). The temperature display shows “ ”.
When the Childlock option has been selected it is only possible to turn off the oven (stand-
by mode) and operate the timer (minute minder).
In this setting it is not possible to change the oven cooking programme (cooking function,
temperature) and the time selected for a semi-automatic or automatic cooking: if touching
the relative keys “n--0” appears on the central display.
If the oven is turned off (stand-by mode) it is only possible to operate the timer.
To deactivate the “Childlock” option touch the “ ” and “ ” keys simultaneously and hold
until the clock/programmer display shows “n--0” and then “OFF”.
Then the time of the day appears again (followed by the selected programme number
“Pr01, Pr02, ...” when the oven is ON). On the temperature display the “ ” symbol goes
out.
IMPORTANT: If the oven has been switched OFF (stand-by mode) with the Childlock
option selected it is possible to turn ON the oven only after having deactivated the
Childlock.
Fig. 1.5

14
USING THE TIMER (MINUTE MINDER)
You can use the timer at any time, even when the oven is not in use or switched off (stand-
by mode). The timer does not turn the oven off. Remember to turn off the oven manually.
The timer can be set for up to 600 minutes (10 hours).
To set the timer:
• Select “bELL” on the clock/programmer display by using the key “ ” and then, with
“----” ashing on the central display, touch “ ” and “ ” keys and set the time in
minutes.
• To reset the time touch the “ ” or “ ” key.
• Then the time of the day appears again on the clock/programmer display (followed
by the selected programme number “Pr01, Pr02, ...” when the oven is ON) and the
countdown starts immediately.
• To check the countdown select “bELL” on the clock/programmer display by using the
key “ ”; the time is indicated (for a few seconds) in minutes.
• When the time is up, the timer will beep. Touch any key (except the “ ” key) to turn
it off.
NOTE:
The timer also operates if the oven, after selection, is turned OFF (stand-by mode). The
timer can also be set in the stand-by mode (OFF).

15
SELECTING THE COOKING FUNCTIONS
175
150
125
100
75
50
Oven cooking function
When selection a cooking function
the relative programme number and
the symbol are activated.
Set oven function key
Decreasing
Set oven function key
Increasing
setting
setting
Clock/
Programmer
display
Functions
display
Fig. 1.6

16
SELECTING THE TEMPERATURE
150
125
100
75
50
Cooking temperature
All cooking functions start to operate with a pre-set temperature which can be modified, at any
time, by touching the relative “+” and “–” keys positioned below the temperature display.
Childlock symbol
When the symbol is permanently lit the Childlock option is activated.
Set oven temperature key
Decreasing
Set oven temperature key
Increasing
“Celsius degrees” symbol
The symbol is lit when the temperature is displayed.
Fig. 1.7

17
USING THE OVEN - COOKING FUNCTIONS
Turn on the oven as indicated in the “TURNING THE OVEN ON AND OFF” chapter.
Select the oven function and temperature as indicated in the previous pages.
IMPORTANT: the cooking function and temperature can be modied at any time
during the normal, semi-automatic or automatic cooking.
Please remember to set the Childlock option in the presence of children.
OVEN LAMP
When the oven is turned ON the oven light comes on and the relative symbol is lit in the
functions display. The clock/programmer display reads the time of the day and alternates
with “Pr01”.
The oven light remains on in all cooking modes. The lamp is automatically switched off
about three minutes after competing the pre-heating time. During automatic cooking, the
lamp is switched off before the oven starts to operate.
By pressing any key (not “ ”) the lamp is lit for about one minute.
Oven light automatic swich off.
It is possible to deactivate/activate this option (only when the oven is in the “stand-by” OFF
mode):
• select “bulb” on the clock/programmer display by using the key “ ”;
• touch “ ” or “ ” key to select “On” (for automatic switch off) or “OFF” (for oven
lamp always on).
• Automatic switch off “bulb On” has been set by the factory and this option is
automatically activated after a power failure.
TRADITIONAL CONVECTION COOKING
The upper and lower heating elements are switched on.
The heat is diffused by natural convection and the temperature must be set between 50
and 250°C.
The pre-heating temperature is set at 200°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
For foods which require the same cooking temperature both internally and externally, i.e.
roasts, spare ribs, meringue, etc.

18

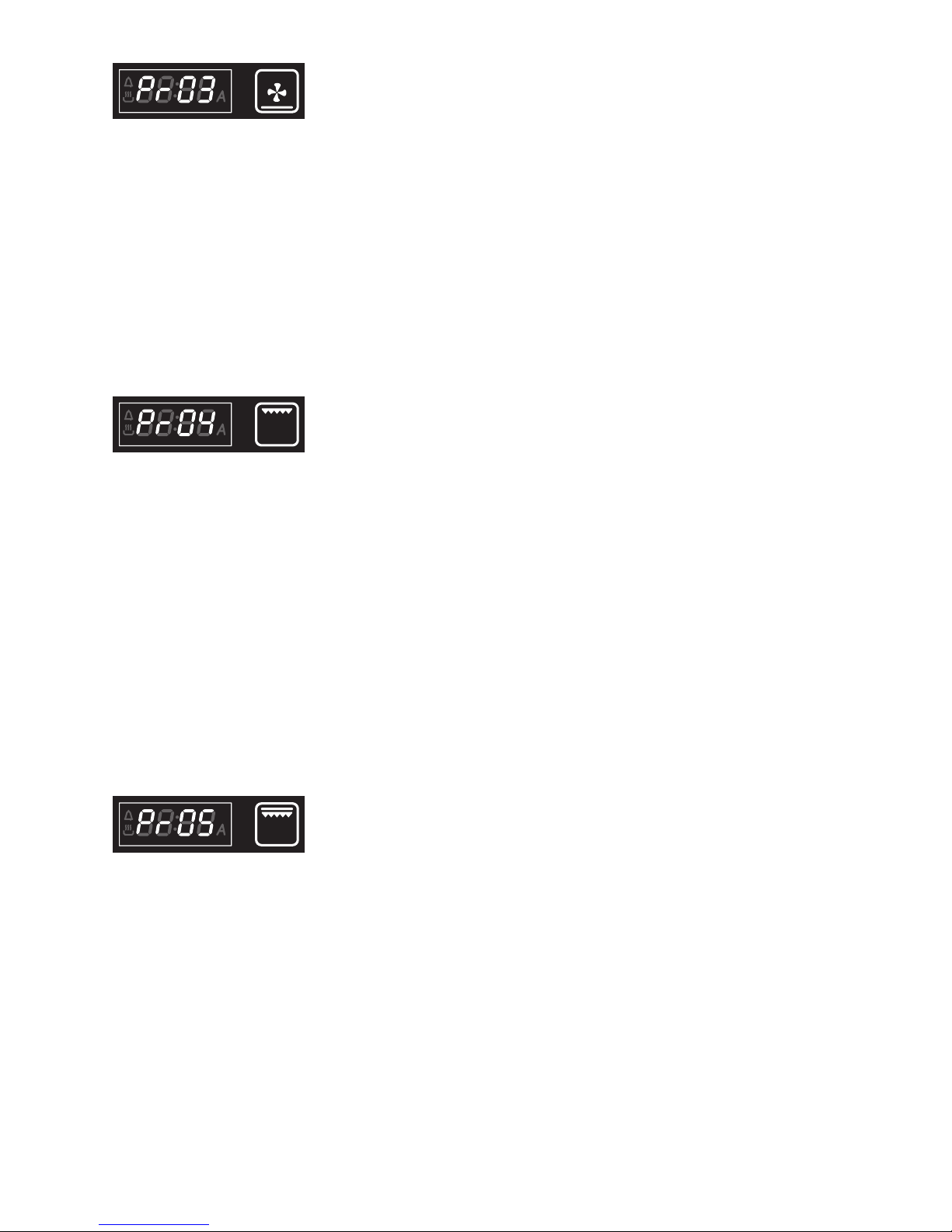

TURBO GRILL
In this position the upper heating element and the grill element are switched on
simultaneously. Heat is radiated over the entire surface area of the grill.
Use with the oven door closed and the temperature between 50 and 225°C maximum.
The pre-heating temperature is set at 225°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
Intense grilling action for browning, crisping, “au gratin”, toasting, etc.
For correct use see the “USE OF THE GRILL AND TURBO GRILL” chapter.
The external parts of the oven become hot during operation.
Keep children well out of reach.
GRILLING
The infrared heating element is switched on.
The heat is diffused by radiation.
Use with the oven door closed and the temperature between 50 and 225°C maximum.
The pre-heating temperature is set at 225°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
Intense grilling action for browning, crisping, “au gratin”, toasting, etc.
For correct use see the “USE OF THE GRILL AND TURBO GRILL” chapter.
The external parts of the oven become hot during operation.
Keep children well out of reach.
FAN LOWER HEAT
The lower heating element and the fan motor are switched on.
The heat coming from the bottom is diffused by forced convection and the temperature
must be set between 50 and 250°C.
The pre-heating temperature is set at 190°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
This mode is particularly suitable to complete cooking of dishes that require higher
temperature at the bottom.

19
VENTILATED GRILL COOKING
The infrared heating element and the fan are switched on.
The heat is mainly diffused by radiation and distributed by the fan throughout the oven.
Use with the oven door closed and the temperature between 50 and 200°C maximum.
The pre-heating temperature is set at 200°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
For fast browning and saut_ing , i. e. veal steak, steak, hamburger, etc.
For correct use see the “GRILLING AND AU GRATIN” chapter.
The external parts of the oven become hot during operation.
Keep children well out of reach.
HOT AIR COOKING WITH LOWER HEAT
This mode combines the lower heating element, the circular heating element and the fan.
The food is cooked by forced air circulation with additional heat from the bottom of the
oven. The temperature can be set between 50 and 250°C.
The pre-heating temperature is set at 210°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
This cooking mode is ideal for large joints of meat and large quantities of food that call for
uniform cooking inside and out, e.g. roasts, turkey, chicken, cakes, etc.
HOT AIR COOKING
The circular heating element and the fan are switched on.
The heat is diffused by forced convection and the temperature can be set between 50 and
250°C.
The pre-heating temperature is set at 175°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
For foods that must be well done on the outside and tender or rare on the inside, i. e.
lasagna, lamb, roast beef, whole sh, etc.

20
CONVECTION COOKING WITH FAN
The upper and lower heating elements and the fan are switched on. The heat from the top
and the bottom is diffused by fan convection. The temperature can be set between 50 and
250°C.
The pre-heating temperature is set at 175°C. To change the temperature, follow the
instructions in the “SELECTING THE TEMPERATURE” chapter.
Recommended for:
For foods of large volume and quantity which require the same internal and external degree
of cooking; e.g. rolled roasts, turkey, legs, cakes, etc.
DEFROSTING FROZEN FOODS
OR
FOOD WARMING
The fan only switches on and the temperature display shows “dEF”.
It is possible to operate also the lower heating element (this function operates as a
food warmer) by regulating the temperature as indicated in the “SELECTING THE
TEMPERATURE” chapter, from 40°C to maximum 100°C (the temperature display shows
the temperature).
Recommended for:
To rapidly defrost frozen food; 1 kilogram requires about one hour. The defrosting times
vary according to the quantity and type of food to be defrosted.
To keep hot cooked food at serving temperature.
