Elba OB60 Series Mounting instructions

Built-in oven
Installation instructions
and User guide
NZ AU
OB60 single & double multifunction models

1
Contents
Safety and warnings 2
Installation instructions 4
First use 11
ELECTRONIC CLOCK MODELS
Setting the clock and using your oven
12
MODELS WITH THREE-BUTTON CLOCK
Oven controls
14
Cooking with ‘auto-off’ 15
MODELS WITH SIX-BUTTON CLOCK
Oven controls 16
Using the timer 17
Automatic cooking 18
120-MIN ANALOGUE TIMER MODELS
Using your oven
20
Oven functions 22
Baking charts 23
Care and cleaning 25
Warranty and service 32
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

2Safety and warnings
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
WARNING!
Fire Hazard
Do not use adapters, reducers, or branching devices to connect this
appliance to the mains power supply.
Failure to follow this advice may result in overheating, burning, or fire.
WARNING!
Electrical Shock Hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs.
Connection to a good earth wiring system is essential and mandatory.
Alterations to the domestic wiring system must only be made by a
qualified electrician.
Failure to follow this advice may result in death or electrical shock.
Important safety instructions
To avoid hazard, follow these instructions carefully before installing or using this appliance.
Please make this information available to the person installing the appliance - doing so could
reduce your installation costs.
This appliance must be installed and connected to the mains power supply only by a suitably
qualified person according to these installation instructions and in compliance with any
applicable local building and electricity regulations. Failure to install the appliance correctly
could invalidate any warranty or liability claims.
Installation

3
Safety and warnings
Operation and maintenance
Your built-in oven has been carefully designed to operate safely during normal cooking
procedures. Please keep the following guidelines in mind when you are using your oven:
WARNING!
Hot Surface Hazard
Accessible parts may become hot when this oven is in use.
To avoid burns and scalds, keep children away.
Do not touch hot surfaces inside the oven.
Use oven mitts or other protection when handling hot surfaces such as oven
shelves or dishes.
Take care when opening the oven door.
Let hot air or steam escape before removing or replacing food.
Failure to follow this advice could result in burns and scalds.
WARNING!
Electrical Shock Hazard
Switch the oven off at the wall before any cleaning or maintenance.
Failure to do so may result in death or electrical shock.
Important safety instructions
Isolating switch: make sure this oven is connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
Household appliances are not intended to be played with by children.
Children, or persons with a disability which limits their ability to use the appliance, should have a
responsible person to instruct them in its use. The instructor should be satisfied that they can use
the appliance without danger to themselves or their surroundings.
Safe food handling: leave food in the oven for as short a time as possible before and after
cooking. This is to avoid contamination by organisms which may cause food poisoning. Take
particular care during warmer weather.
Do not place aluminium foil, dishes, trays, water or ice on the oven floor during cooking as this
will irreversibly damage the enamel.
Do not stand on the door, or place heavy objects on it.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since
they scratch the surface, which may result in shattering of the glass.
Do not use a steam cleaner to clean any part of the oven.
Caution. Hot air can blow from under the control panel as part of the oven’s cooling system.
Do not keep flammable substances in the oven.

4Installation instructions

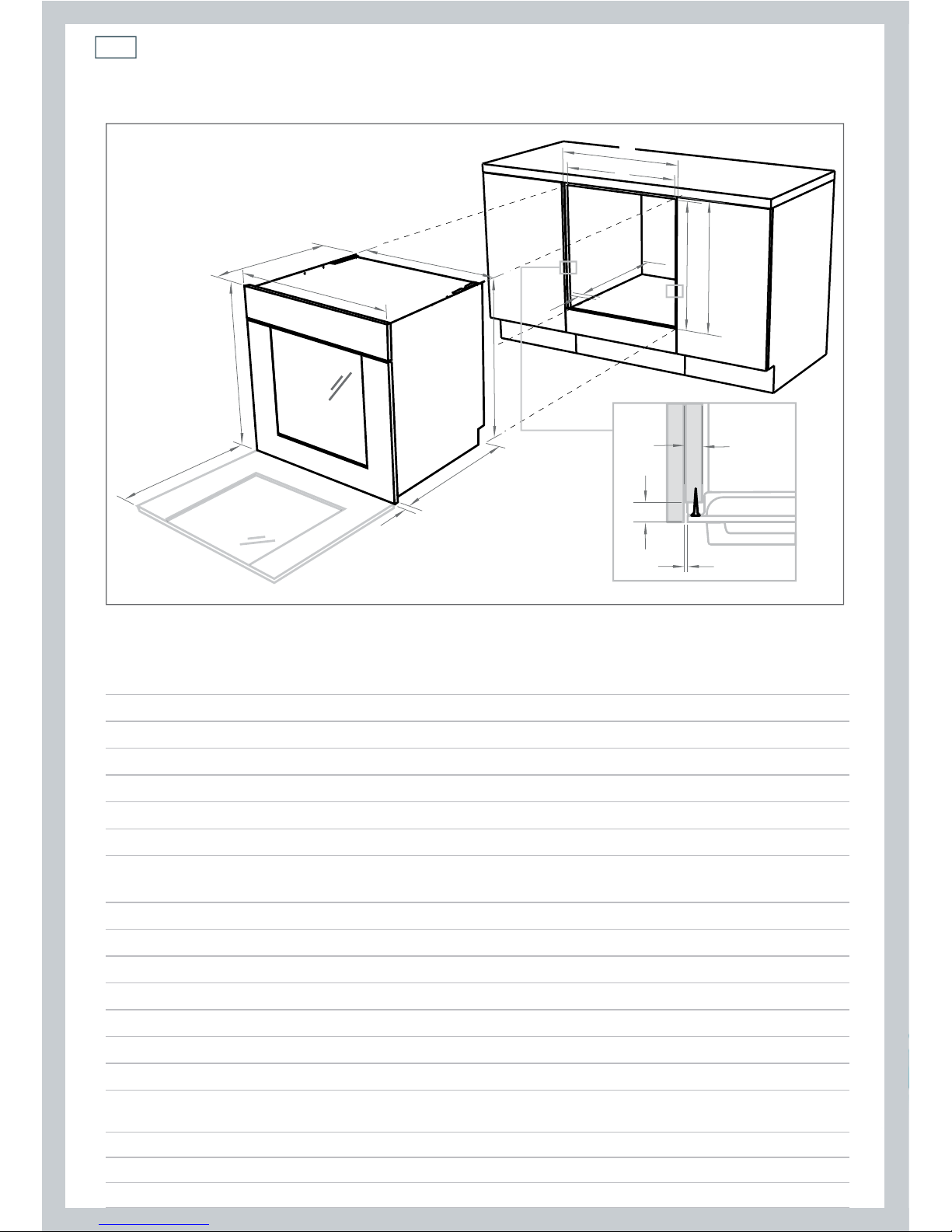

Installation diagrams for illustration purposes only
2.5 mm
16-20 mm
L
Product and cabinetry dimensions (mm)
OB60S
Aoverall height* of product 597
Boverall width of product 595
Coverall depth of product (excluding handle and knobs) 567
Dheight of chassis 582
Ewidth of chassis 556
Fdepth of chassis 545
Gdepth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs) 22
Hdepth of oven door when fully open (measured from front of control panel) 435
Iminimum inside width of cavity 560
IIoverall width of cavity 600
Jinside height of cavity 585
JIoverall height of cavity 600
Kminimum inside depth of cavity 550
Lflush fitting cabinetry clearance 22
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the
cooktop as per the cooktop manufacturer’s instructions.
*All height measurements include mounted feet.
A
CE
D
F
G
H
J
K
L
I
II
JI
B
OB60S models
Fig. 1 OB60S product and cabinetry dimensions

5
Installation instructions
2.5 mm
16-20 mm
L
Product and cabinetry dimensions (mm)
OB60B
Aoverall height* of product 888
Boverall width of product 595
Coverall depth of product (excluding handle and knobs) 567
Dheight of chassis 874
Ewidth of chassis 556
Fdepth of chassis 545
Gdepth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs) 22
Hdepth of upper oven door when fully open (measured from front of control panel) 261
HIdepth of lower oven door when fully open (measured from front of control panel) 435
Iminimum inside width of cavity 560
IIoverall width of cavity 600
Jinside height of cavity 877
JIoverall height of cavity 893
Kminimum inside depth of cavity 550
Lflush fitting cabinetry clearance 22
*All height measurements include mounted feet.
A
CE
D
F
G
H
HI
J
K
L
I
II
JI
B
OB60B models
Fig. 2 OB60B product and cabinetry dimensions

6
Before you install the oven, make sure that
the benchtop and oven cavity are square and level, and are the required dimensions
the installation will comply with all clearance requirements and applicable standards and
regulations
a suitable isolating switch providing full disconnection from the mains power supply is
incorporated in the permanent wiring, mounted and positioned to comply with the local wiring
rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air
gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules
allow for this variation of the requirements)
the isolating switch will be easily accessible to the customer with the oven installed
there is at least 1.5 m (and not more than 2 m) free length of power supply cable within the
cavity for ease of installation and servicing
the oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear wall
the oven will rest on a surface that can support its weight
the height from the floor suits the customer
you consult local building authorities and by-laws if in doubt regarding installation.
When you have installed the oven, make sure that
the oven door can open fully without obstruction
the power supply cable does not touch any hot metal parts
the isolating switch is easily accessible by the customer
you complete the ‘Final checklist’ at the end of these installation instructions.
Unpacking the oven
Remove all packaging and dispose of it responsibly. Recycle items that you can.
When you remove the oven from the carton, place it onto wooden blocks or similar supports to
prevent damaging the lower trim.
Important!
Please take extra care not to damage the lower trim of the oven. It is important for correct air circulation
and allows the door to open and close without obstruction. The manufacturer does not accept any
responsibility for damage resulting from incorrect installation.
You may remove the feet but ensure that the oven does not sit on the lower trim.

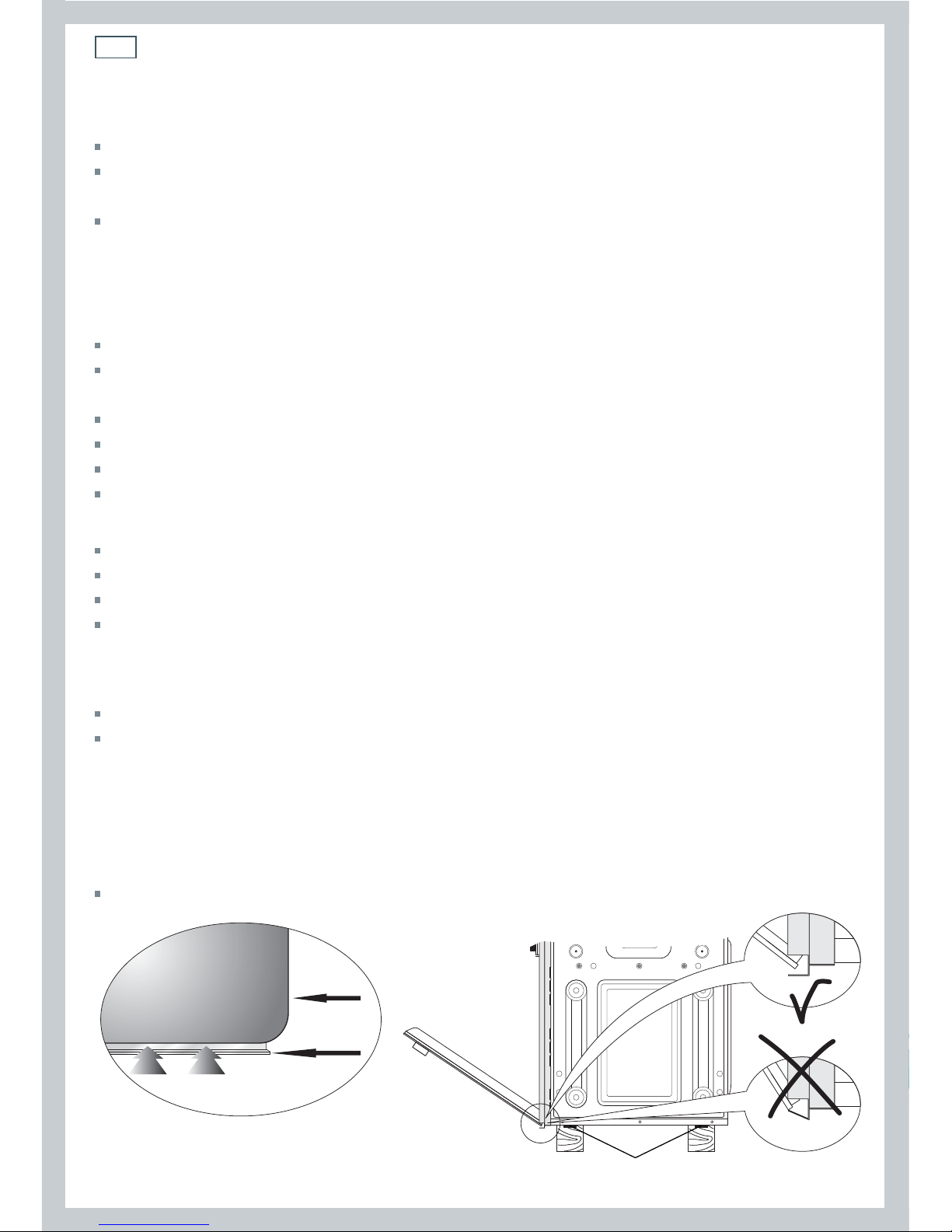

Fig. 3 Correct and incorrect placement of lower trim
LOWER TRIM
OVEN DOOR
LOWER TRIM
AIR FLOW
Feet
Installation instructions

7
Connecting the oven to the mains power supply
Important!
This oven must be connected to the mains power supply only by a suitably qualified person.
This oven must be earthed.
Before connecting the oven to the mains power supply, check that
the domestic wiring system is suitable for the power drawn by the oven
(as specified on the rating plate)
the voltage corresponds to the value given on the rating plate.
OB60S models OB60B models
Installation instructions
E
N
L1(L )2
Unhook to open cover
1
2
Unscrew to open
cable clamp
E
N
L1(L )2
Green & Yellow
(Earth)
Brown (Live)
Blue (Neutral)
N
L
D
1
2
Unscrew to
remove cover
plate
Unscrew to remove
cable clamp
Model code Power Voltage
OB60SC... 2350 - 2550 W 230 - 240 V~
Model code Power Voltage
OB60BC... 4400 - 4800 W 230 - 240 V~

8

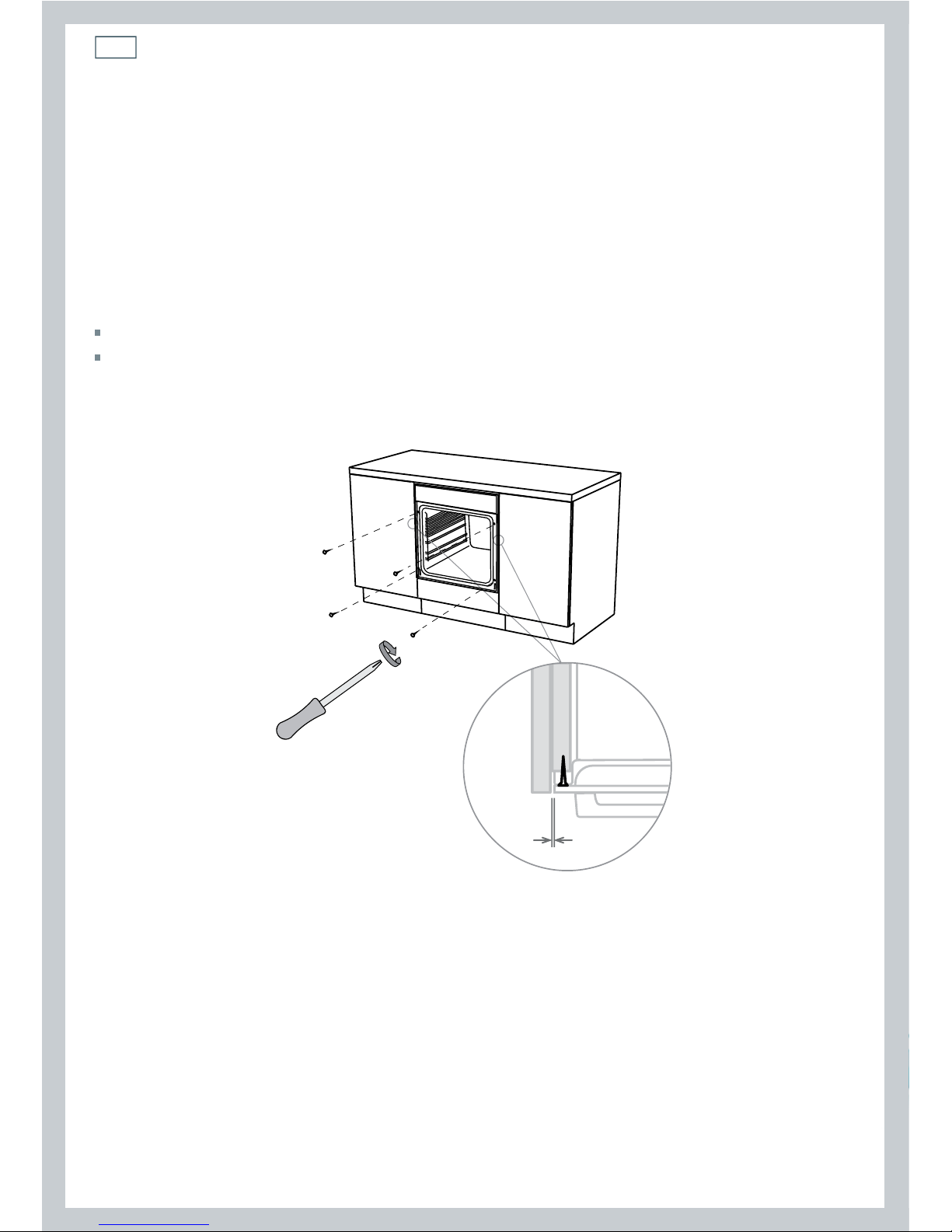

Securing the oven to the cabinetry
1 Position the oven in the prepared cavity.
Important!
Do not lift the oven by the door handle.
2 Open the oven door fully.
3 Use the supplied screws to secure the oven to the cabinetry.
Important!
Do not over-tighten the screws.
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult.
Fisher & Paykel will not cover the costs of removing the oven, or of damage caused by this
removal.
2.5 mm
Fig. 4 Securing the oven to the cabinetry
Installation instructions
