Elba 140-G94 Technical manual

BUILT-IN GAS OVENS
Instructions for the use - Installation advices
Made in Italy
10 0%
ELBA QUALITY
MADE IN ITALY

2

3
Dear Customer,
Thank you for having purchased and given your preference to
our product. The safety precautions and recommendations within
this booklet are for your own safety and that of others. They will also
provide a means by which to make full use of the features offered
by your appliance.
Please preserve this booklet carefully. It may be useful in future,
either to yourself or to others in the event that doubts should arise
relating to its operation.
This appliance must be used only for the task it has
explicitly been designed for, that is for cooking foodstuffs. Any
other form of usage is to be considered as inappropriate and
therefore dangerous.
The manufacturer declines all responsibility in the event
of damage caused by improper, incorrect or illogical use of the
appliance.

4
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
• This appliance has been designed and manufactured in
compliance with the applicable standards for the household
cooking products, including those for surface temperatures.
Some people with sensitive skin may have a more pronounced
temperature perception with some components although these
parts are within the limits allowed by the norms.
The complete safety of the appliance also depends on the correct
use, we therefore recommend to always pay a extreme attention
while using the product, especially in the presence of children.
• After having unpacked the appliance, check to ensure that it is
not damaged and that the oven door closes correctly.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
• Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the
appliance.
• IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
• Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.

5
• CAUTION: this appIiance must only be installed in a permanently
ventilated room in compliance with the applicable regulations.
• Do not operate your appliance by means of an external timer or
separate remote-control system.
• Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the electric
power supply.
• WARNING: Ensure that the appliance is switched off before
replacing the oven lamp to avoid the possibility of electric shock.
• Do not use a steam cleaner because the moisture can get into the
appliance therefore making it unsafe.
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in bare feet.
• If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it is
recommended that it be made inoperative in an appropriate manner
in accordance to health and environmental protection regulations,
ensuring in particular that all potentially hazardous parts be made
harmless, especially in relation to children who could play with
unused appliances.
• The various components of the appliance are recyclable. Dispose
of them in accordance with the regulations in force in your country.
If the appliance is to be scrapped, remove the power cord.
• After use, ensure that the knobs are in the off position.
• Children less than 8 years of age shall be kept away unless
continuously supervised.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
• The manufacturer declines all liability for injury to persons or damage
to property caused by incorrect or improper use of the appliance.

6
• WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements
inside the oven.
– The door is hot, use the handle.
– To avoid burns and scalds, young children should be kept
away.
• Make sure that electrical cables connecting other appliances in
the proximity of the oven cannot become entrapped in the oven
door.
• WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the rear or the
underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges,
that may cause injury.
• FIRST USE OF THE OVEN - it is advised to follow these
instructions:
– Furnish the interior of the oven as described in the chapter
“CLEANING AND MAINTENANCE”.
– Switch on the empty oven on max to eliminate grease from the
heating elements.
– Disconnect the appliance from the electrical power supply, let
the oven cool down and clean the interior of the oven with a
cloth soaked in water and neutral detergent; then dry carefully.
• CAUTION: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch the
surface, which may result in shattering of the glass.
• Do not line the oven walls or oor with aluminium foil. Do not place
baking trays or the drip tray on the base of the oven chamber.
• FIRE RISK! Do not store ammable material in the oven.
• Always use oven gloves when removing the shelves and food
trays from the oven whilst hot.
• Do not hang towels, dishcloths or other items on the appliance or
its handle – as this could be a re hazard.

7
• Clean the oven regularly and do not allow fat or oils to build up in
the oven base or tray. Remove spillages as soon as they occur.
• Do not stand on the open oven door.
• Always stand back from the appliance when opening the oven
door to allow steam and hot air to escape before removing the
food.
• SAFE FOOD HANDLING: Leave food in the oven for as short
a time as possible before and after cooking. This is to avoid
contamination by organisms which may cause food poisoning.
Take particular care during warmer weather.
• WARNING: Take care NOT to lift the appliance by the door
handle.
• The appliance must not be installed behind a decorative door in
order to avoid overheating.
• The oven accessories (e.g. oven wire rack) must be tted
correctly as indicated at page 26.
• If the power supply cable is damaged, it must be replaced only
by an authorized service agent in order to avoid a hazard.

8
CONTROL PANELS
1
1
4a
3a 3b 3c 3d 3e 2
12
1 2
4b 4c 4d
4b 4c 4d
5
3a 3b 3c 3d 3e
3a 3b 3c 3d 3e
12
4b 4c 4d
3a 3b 3c 3d 3e
5
Fig. 1.1
Fig. 1.2
Fig. 1.3
Fig. 1.4

9
Do not line the oven walls or oor with aluminium foil. Do not place baking trays or
the drip tray on the base of the oven chamber.
NOTES:
The knobs and symbols may vary.
The symbols may be printed on
the knob itself.
CONTROLS DESCRIPTION
1. Gas grill control knob
2. Gas oven thermostat control knob
3. Depending on the models:
a. Oven light control knob

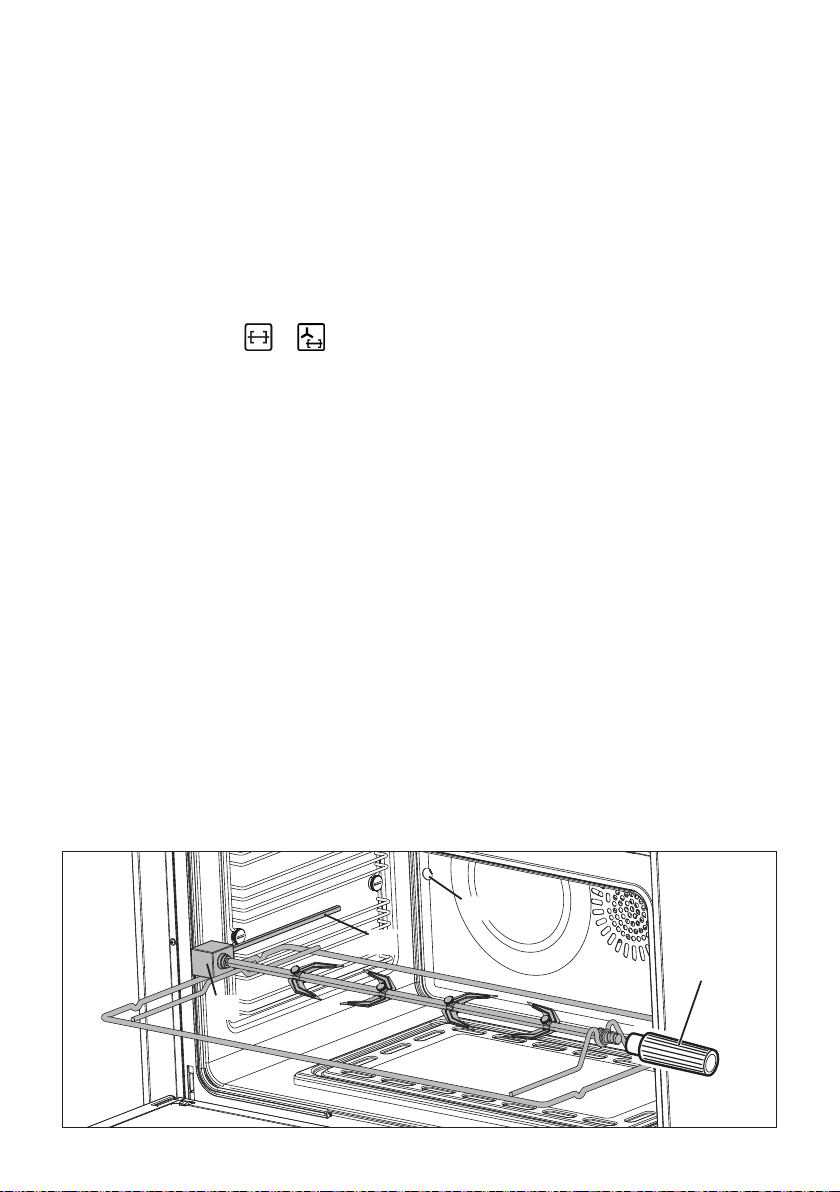

b. Oven light / rotisserie control knob
c. Oven light / fan motor control knob
d. Oven light / rotisserie / fan motor control knob
e. Oven light / rotisserie and fan motor / fan motor control knob
4. Depending on the models:

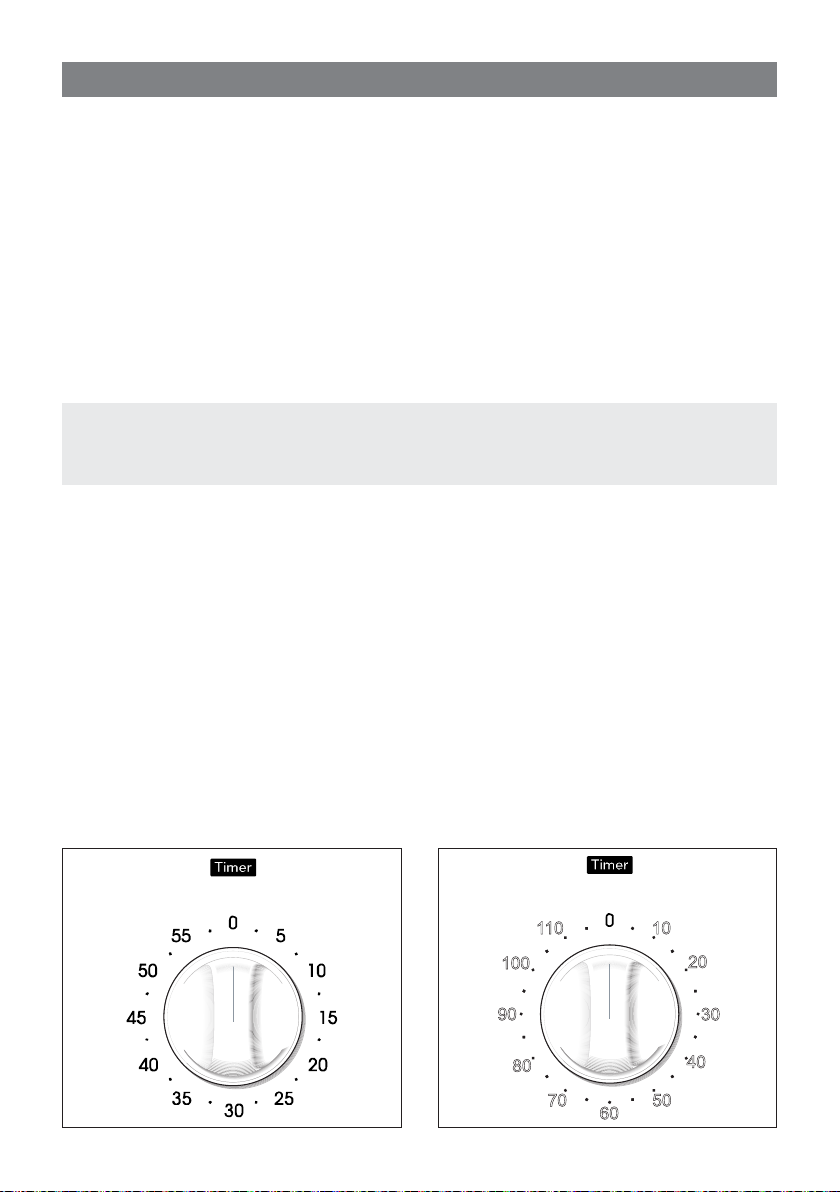

a. 60’ or 120’ alarm control knob

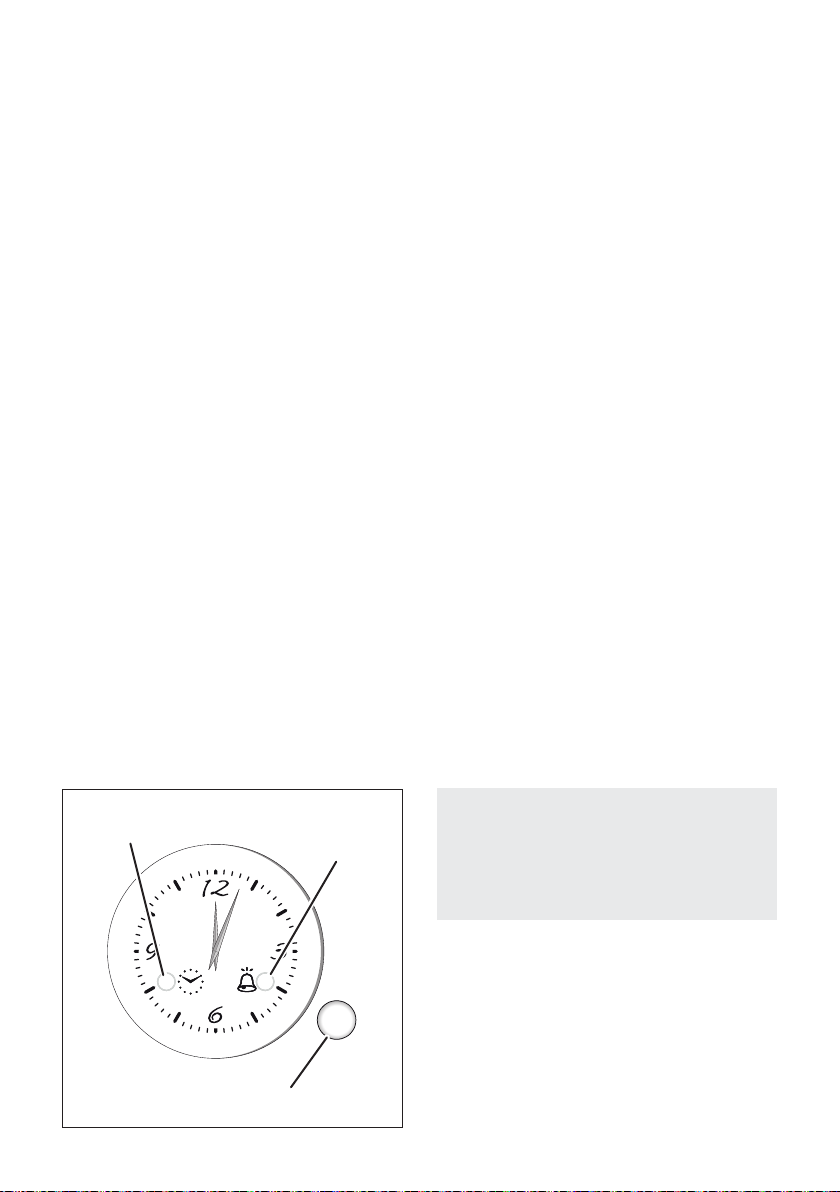

b. Electric clock with alarm
c. Electronic clock with alarm
d. Digital electronic clock with timer (with “Touch-control” keys)

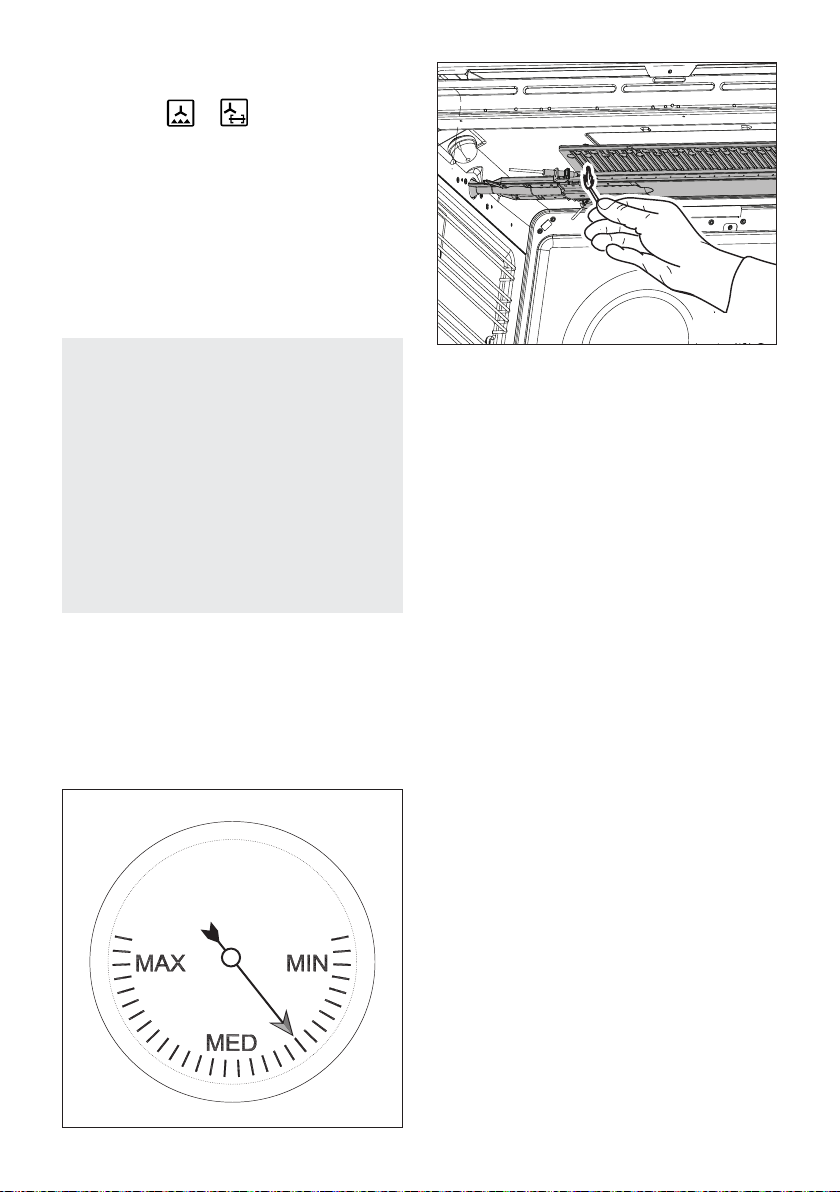

5. Oven thermometer
Notes:

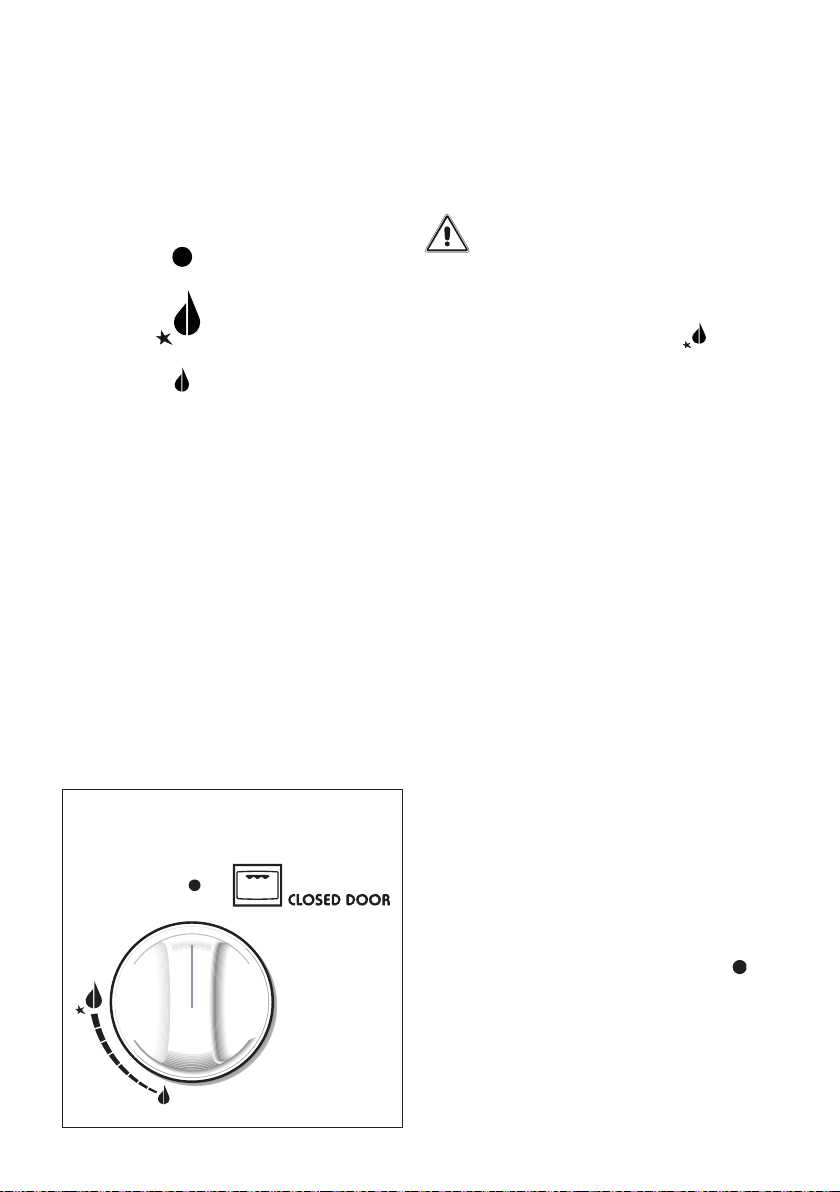

• The electric ignition is incorporated in the thermostat control knob.
• The appliance has a safety valve system tted, the ow of gas will be stopped if and
when the ame should accidentally go out.
CAUTION:
If the burner is accidentally extinguished, turn the gas off at the control knob and wait at
least 1 minute before attempting to relight.
CAUTION:
Gas appliances produce heat and humidity in the environment in which they are installed.
Ensure that the cooking area is well ventilated by opening the natural ventilation grilles or
by installing an extractor hood connected to an outlet duct.
CAUTION:
If the appliance is used for a prolonged time it may be necessary to provide further ventilation
by opening a window or by increasing the suction power of the extractor hood (if tted).

10
ATTENTION:
The oven door becomes very hot
during operation and very hot steam
goes out from the area below the
control panel. Keep children away.
The door is hot, use the handle.
During use the appliance becomes
hot. Care should be taken to avoid
touching the heating elements inside
the oven.
TECHNICAL FEATURES
The oven is furnished completely clean.
It is advisable however, upon rst use,
to turn the oven on to the maximum
temperature to eliminate possible traces of
grease from the oven burner.
The same operation shall be done with the
gas grill.
This oven is tted with:
• One gas oven burner (4,70 kW),
located at the bottom, providing self-
ignition and safety device.
• One gas grill burner (3,00 kW), placed
on the top, providing self-ignition and
safety device.
• Only for the “fan assisted” models
(models having also the position
or ) - A fan motor, positioned
on the back panel of the oven cavity,
which can be used in combination with
the oven gas burner or alone, without
heating.
IMPORTANT NOTE - It is not
possible to use the fan motor in
combination with the gas grill: a
safety device switches off the fan
motor when the gas grill control
knob is turned on grill position.

OPERATING PRINCIPLES
Heating and cooking in the gas oven are
obtained in the following ways:
a. by normal convection
The heat is produced by the oven gas
burner.
b. by forced convection (only for the
“fan assisted” models - models
having also the position or ).
The heat produced by the oven burner
is distributed throughout the oven by
the fan. (In the position also the
rotisserie motor is operating).
c. by radiation
The heat is radiated by the gas grill.
d. by ventilation (only for the “fan
assisted” models - models having
also the position ).
The food is defrosted by using the fan
only without oven burner (this is not a
cooking function).
COOLING FAN MOTOR
This appliance incorporates a safety
cooling fan motor to achieve optimum
efciency of the controls, ensure lower
surface temperatures are maintained and
cool the internal components.
The cooling fan motor turns on automatically
when igniting the oven or grill burner.
It may run on (for various minutes) even
after the oven or grill burner has been
turned off.
HOW TO USE THE OVEN
2

11
IMPORTANT NOTES:
• Do not use the appliance in case of
power failure or if the cooling fan
motor is damaged. The appliance
may overheat and get damaged due
to the non-operation of the cooling
fan motor.
• In case of failure of the cooling fan
motor during the operation of the
gas oven or gas grill, the oven or grill
burner is turned off automatically
after about 20 minutes. In that case
do not use the oven or the grill and
contact the after-sales service.
• When the cooling fan motor is
operating correctly there is an air
ow in the top area of the appliance.
OVEN BURNER
The gas ow to the burner is regulated by
a thermostat which allow to maintain the
oven temperature constant.
The control of the temperature is assured by a
thermostatic probe positioned inside the oven.
The probe must be always kept in its
housing, in a clean condition, as an
incorrect position or encrustment may
cause an alteration in the control of the
temperature.
Moreover, the thermostat is tted with a
safety valve which automatically shuts off
the gas supply when the ame goes out.
THERMOSTAT
The numbers printed on the control panel or
on the knob (g. 2.2) indicate the increasing
oven temperature value (see table below).
To regulate the temperature, set the
knob to the chosen number. The “FAN
ASSISTED GAS OVEN” column refers to
the oven burner used in combination with
the fan motor (forced convection cooking:
only for the “fan assisted” models - models
having also the position or ), while
the “GAS OVEN” column refers to the
oven burner used in the normal convection
mode (without fan motor). The symbol
close to the maximum position indicates
that the electric ignition is incorporated into
the knob (activated by the knob itself).
THERMOSTAT GRADE TABLE (°C)
Knob
position
GAS
OVEN
FAN ASSISTED
GAS OVEN
130 (or 1) 130 130
140 (or 2) 140 140
155 (or 3) 155 155
165 (or 4) 165 165
180 (or 5) 180 180
190 (or 6) 190 190
205 (or 7) 205 205
215 (or 8) 215 215
230 (or 9) 230 230
240 (or 10 or Max) 240 240
Fig. 2.2
Fig. 2.1
NOTES: The knob and symbols may vary.
The symbols may be printed on the knob
itself.

12
LIGHTING OF OVEN BURNER
IMPORTANT: The oven door must be
open during this operation.
To light the oven burner:
1 – Open the oven door to the full
extent.
If this operation is not performed
you should not proceed to light the
oven.
2 – Lightly press and turn the thermostat
knob anti-clockwise to the maximum
position (g. 2.2). Press the knob
rmly until the burner lights.
Never continue this operation for
more than 15 seconds. If the burner
has still not ignited, wait for about
1 minute prior to repeating the
ignition.
In case of problems with the electric
ignition, approach a lighted match or
taper to the opening “A” (g. 2.3) and
immediately press the knob rmly.
3 – Wait about 10/15 seconds after the
burner lighting before releasing the
knob (time of priming of the valve).
4 – Check that the burner has lit; if not, turn
the knob clockwise back to “0”, “ ” or
“O” (OFF) and repeat the procedure
from step 1.
5 – Close the oven door slowly and adjust
the burner according to the power
required.
If the ame extinguishes for any reason,
the safety valve will automatically shut off
the gas supply to the burner.
To re-light the burner, rst turn the oven
control knob to OFF position (“0”, “ ” or
“O”), wait for at least 1 minute and then
repeat the lighting procedure.
For the correct use of the gas oven see the
chapters “COOKING WITH GAS OVEN”
and “COOKING WITH FAN ASSISTED
GAS OVEN” (only for the “fan assisted”
models - models having also the position
or .
A
Fig. 2.3
During and after use of the oven,
certain parts will become very hot.
Keep children away.
ATTENTION: In case of manual
lighting, never turn the thermostat
before approaching a ame to the hole
“A” of the oor.
For correct use of the gas oven, always
preheat it (bottom burner) for at least
15 minutes.
Preheating should always be carried
out with the oven empty: remove the
trays and racks from the oven cavity.

13
GRILL BURNER
The grill is controlled by a gas tap assuring
the opening and the closing of the gas
supply.
Turning the knob, so that the indicator line
points to the symbols printed on the panel,
achieves the following functions:
- symbol closed valve
- symbol maximum
aperture or ow
- symbol minimum
aperture or ow
√The maximum aperture position
permits rapid boiling of liquids, whereas
the minimum aperture position allows
slower warming of food or maintaining
boiling conditions of liquids.
√ To reduce the gas ow to minimum
rotate the knob further anti-clockwise
to point the indicator towards the small
ame symbol.
√Other intermediate operating
adjustments can be achieved by
positioning the indicator between the
maximum and minimum aperture
positions, and never between the
maximum aperture and closed
positions.
Fig. 2.4
IGNITION OF THE GRILL BURNER
ATTENTION: Never turn the control
knob before opening the oven door.
To ignite the grill burner:
1. Open the oven door to the full
extent.
WARNING: Risk of explosion! The
oven door must be open during this
operation.
2. Press in the corresponding knob and
turn counter-clockwise to the full ame
position marked by the symbol
(g. 2.4) and hold the knob in until the
ame has been lit.
Never continue this operation for
more than 15 seconds. If the burner
has still not ignited, wait for about
1 minute prior to repeating the
ignition.
In case of problems with the electric
ignition, to light the grill burner
manually, put a lit match or taper
to the pipe of the burner (g. 2.5a).
Never turn the thermostat before
approaching a ame to the burner.
3. After lighting the burner, wait a few
seconds before releasing the knob
(until the safety valve stays open).
4. Check that the burner has lit.
Do always grill with oven door
closed.
 See specic instructions in the
sections “USE OF THE GRILL” and
“HOW TO OPERATE THE OVEN AND
GRILL TOGETHER”.
If the ame extinguishes for any reason,
the safety valve will automatically shut off
the gas supply to the burner.
To re-light the burner, rst turn the grill
control knob to OFF position (“0”, “ ” or
“O”), wait for at least 1 minute and then
repeat the lighting procedure.
NOTES: The knob and symbols may vary.
The symbols may be printed on the knob
itself.

14
ATTENTION: The oven door becomes
very hot during operation. Keep
children away.
During and after use of the grill, certain
parts will become very hot.
Keep children away.
ATTENTION: In case of manual
lighting, never turn the thermostat
before approaching a ame to the
burner.
Fig. 2.5a
Fig. 2.5b
IMPORTANT NOTE (only for the “fan
assisted” models - models having also
the position or ): It is not possible
to use the fan motor in combination with
the gas grill; a safety device switches off
the fan motor when the gas grill control
knob is turned on grill position.
OVEN THERMOMETER (SOME MODELS ONLY)
The thermometer allows to have a general (non-exhaustive) indication of the oven heating
level ( MIN, MED, MAX) (fig. 2.5b).
To set the temperature, always refer to the oven temperature control knob.

15
COOKING WITH GAS OVEN
Once the oven gas burner has been lit,
close the oven door and preheat the oven
for at least 15 minutes. Preheating should
always be carried out with the oven empty:
remove the trays and racks from the oven
cavity.
Once the oven has been preheated, insert
the food you intend to cook.
Check the cooking time and turn off the
oven 5 minutes before the theoretical time
to recuperate the stored heat.
FAN MOTOR (Only for the “fan
assisted” models - models having also
the position or )
The fan motor is designed to distribute
throughout the oven the heat generated by
the oven gas burner.
The fan motor can also be used without
the oven gas burner (without heating) to
defrost frozen foods.
The fan is controlled by a knob (g. 2.6a
or 2.6b).
• To operate the fan motor turn the knob
indicated in g. 2.6a, 2.6b or 2,6c to
or position. (In the position
also the rotisserie motor is operating).
• To switch it off turn the knob to the off
position (“O” or “0”).
IMPORTANT: When using the fan motor
together with the oven gas burner, switch
on the fan only after the ignition of the gas
burner.
Fig. 2.6a
Only for the “fan assisted” models -
models having also the position .
NOTES: The knob and symbols may vary.
The symbols may be printed on the knob
itself.
Fig. 2.6b
Fig. 2.6c
Only for the “fan assisted” models -
models having also the position .
Only for the “fan assisted” models - models
having also the position or .
NOTES: The knob and symbols may vary.
The symbols may be printed on the knob
itself.
NOTES: The knob and symbols may vary.
The symbols may be printed on the knob
itself.

16
Fig. 2.7
For correct use of the gas oven, always
preheat it (bottom burner) for at least
15 minutes.
Preheating should always be carried
out with the oven empty: remove the
trays and racks from the oven cavity.
COOKING WITH FAN ASSISTED
GAS OVEN (Only for the “fan assisted”
models - models having also the
position or )
OVEN BURNER AND FAN MOTOR
Once the oven gas burner has been lit,
close the oven door and preheat the oven
for at least 15 minutes. Preheating should
always be carried out with the oven empty:
remove the trays and racks from the oven
cavity.
Once the oven has been preheated, switch
on the fan and insert the food you intend
to cook.
Check the cooking time and turn off the
oven 5 minutes before the theoretical time
to recuperate the stored heat.
DEFROSTING FROZEN FOODS
(Only for the “fan assisted” models -
models having also the position )
FAN MOTOR ONLY
Switch on the fan motor only.
The oven thermostat control knob shall be
in the “0”, “ ” or “O” (OFF) position.
The defrosting is done by simple ventilation
without heat.
Fig. 2.8

17
OVEN LIGHT
The oven provides an interior lamp to allow
the visual inspection during the cooking.
To light the oven lamp turn the knob (g.
2.9) to the symbol .
Fig. 2.9
NOTES: The knob and symbols may vary.
The symbols may be printed on the knob
itself.
USE OF THE GRILL
Very important: The grill must always be
used with the oven door closed.
Turn on the grill, as explained in the
preceding paragraphs and let the oven
preheat for about 5 minutes with the door
closed.
Introduce the food to be cooked, positioning
the rack as close to the grill as possible.
The dripping pan should be placed under
the rack to catch the cooking juices and
fats.
Note: It is recommended that you do not
grill for longer than 60 minutes at any
one time.
Attention: The oven door becomes very
hot during operation. Keep children
away.
HOW TO OPERATE THE OVEN AND
GRILL TOGETHER
You can operate the oven and grill together
following these instructions:
a. Remove the tray and light the oven
burner (lower burner) then close the
oven door.
b. Await about 15 minutes until the oven
burner gets a stable operation.
c. Light the grill burner (upper burner)
and close the oven door.
d. With the oven door closed wait for
about 10 minutes until the grill burner
is burning steadily.
e. Then put in the tray with the food to be
cooked and close the oven door.
ATTENTION: The gas oven and grill
should be used together for max 60
minutes.

18
USE OF THE ROTISSERIE (g. 2.10)
• Insert the tray into the lowest rack
holders of the oven and insert the
rod support into the intermediate rack
holders.
• Put the meat to be cooked onto the
rod, being careful to secure it in the
center with the special forks.
• Insert the rod into the side gear
opening “P” (g. 2.10).
• Remove the grip “H” by turning it to the
left.
• Insert completely the rotisserie
support; the shaft “S” must be inserted
in the spit motor collar “G”.
• Fit the heat shield and switch on the
grill and turnspit.
The rotation direction of the
rotisserie can be either clokwise or
counterclockwise.
Attention: The oven door becomes very
hot during operation.
Keep children away.
It is recommended that you do not grill
for longer than 60 minutes at any one
time.
P
S
G
H
ROTISSERIE
(MODELS WITH ROTISSERIE ONLY)
This is used for spit roasting under the grill
and comprises:
• an electric motor tted to the rear of
the oven;
• a stainless steel skewer provided with
slide-out heatless handgrip and two
sets of adjustable forks;
• a skewer support to be tted in the
middle runner.
The rotisserie motor is operated by a switch
knob (g. 2.6a or 2.9b- or position).
The rotation direction of the rotisserie can
be either clokwise or counter-clockwise.
Fig. 2.10

19
60’ ALARM (g. 3.1)
The timer is equipped with a time buzzer
and may be regulated for a maximum
period of 60 minutes.
The regulating knob must be turned in
a clockwise direction until it reaches the
60 minutes position and then turned to
the desired time by turning the knob in a
counterclockwise direction.
120’ ALARM (g. 3.2)
The timer is equipped with a time buzzer
and may be regulated for a maximum
period of 120 minutes.
The regulating knob must be turned in
a clockwise direction until it reaches the
120 minutes position and then turned to
the desired time by turning the knob in a
counterclockwise direction.
Fig. 3.1 60
20
40
80
100
10
30
5070
90
110
Fig. 3.2
ATTENTION - MOST IMPORTANT:
This is only a mechanical timer that DOES NOT switch off the oven or grill.
REMEMBER TO TURN OFF THE OVEN OR GRILL MANUALLY.
ALARM, ELECTRIC OR ELECTRONIC CLOCK
3
NOTES: The knob and symbols may vary.
The symbols may be printed on the knob
itself.

20
MODELS WITH ELECTRIC CLOCK
WITH MINUTE MINDER (g. 3.3)
The electric clock is a device which groups
the following functions:
• 12-hour analog clock;
• minute minder (max 3 hours);
• acoustic signal (beep) which is
activated each time the “setting knob”
is pressed or at the end of the minute
minder function.
ELECTRIC CLOCK
Upon immediate connection of the oven
or after a blackout, the “clock indicator
light” is ashing. This indicates that it is
recommended to check if the time of the
day is correct.
• If the time of the day is correct keep
the “setting knob” pressed until the
“clock indicator light” goes out.
• To set the time of the day press the
“setting knob” briey (repeatedly) until
the “clock indicator light” is ashing.
Then turn the “setting knob” (to the
right or left) to set the time of the day.
At the end of the time adjustment,
keep the “setting knob” pressed for
conrmation until the “clock indicator
light” goes out.
MINUTE MINDER
The minute minder function consists only
of a buzzer which is automatically activated
at the end of the set time (max 3 hours).
To set the minute minder press the “setting
knob” briey (one or more times) until the
“minute minder indicator light” is ashing.
Then turn the “setting knob” (to the right or
left) to set the time.
At the end of the adjustment (within 10
seconds), keep the “setting knob” pressed
for conrmation until the “minute minder
indicator light” changes from ashing to
steadily lit.
Then the countdown starts immediately.
At the end of the time, the “minute minder
indicator light” changes from steadily lit to
ashing and a buzzer (beep) sounds for
one minute.
Press the “setting knob” briey to stop the
buzzer and to turn off the ashing “minute
minder indicator light”.
During the minute minder program it is
possible, at any time, to display the set time
by pressing the “setting knob” briey (one
or more times) until the “minute minder
indicator light” is ashing.
To cancel the program before completion,
keep the “setting knob” pressed for about
3 seconds; the minute minder function will
be cancelled.
ATTENTION - MOST IMPORTANT:
This is only an alarm that DOES NOT
switch off the oven or grill.
REMEMBER TO TURN OFF THE OVEN
OR GRILL MANUALLY.
Fig. 3.3 Setting knob
Clock indicator
light
Minute minder
indicator light
