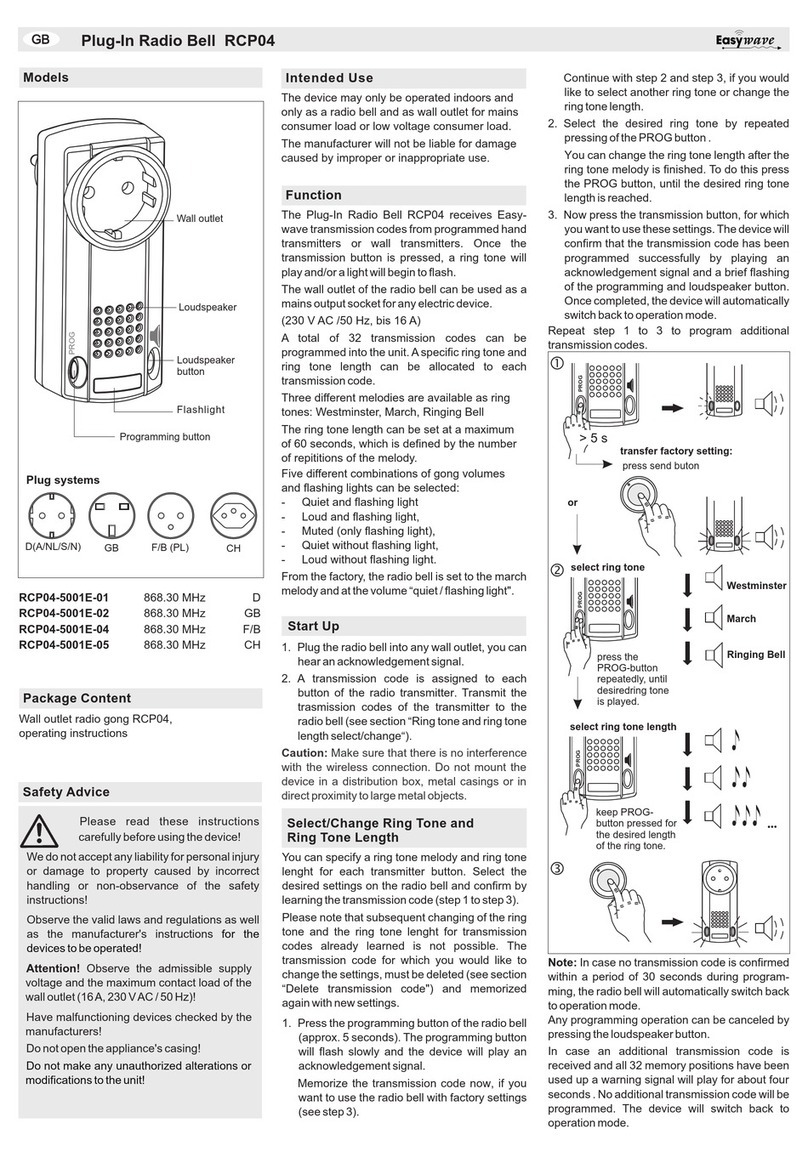

Eldat Easywave RCP04E5001-15 User manual

You can change the ring tone length after the
ring tone melody is finished. To do this press
the PROG button, until the desired ring tone
length is reached.
3. Now press the transmission button, for which
you want to use these settings or connect the
RTS17 to the voltage. The device will confirm
that the transmission code has been
programmed successfully by playing an
acknowledgement signal and a brief flashing
of the programming and loudspeaker button.
Once completed, the device will automatically
switch back to operation mode.
Repeat step 1 to 3 to program additional
transmission codes.
Note: In case no transmission code is confirmed
within a period of 30 seconds during program-
ming, the radio bell will automatically switch back
to operation mode.
Any programming operation can be canceled by
pressing the loudspeaker button.
In case an additional transmission code is
received and all 32 memory positions have been
used up a warning signal will play for about four
seconds . No additional transmission code will be
programmed. The device will switch back to
operation mode.
GB
Wall outlet
Loudspeaker
Loudspeaker
button
Programming button
Flashlight
Plug-In Radio Bell RCP04
Safety Advice
Models Intended Use
Function
Select/Change Ring Tone and
Ring Tone Length
Start Up
Scope of Delivery
RCP04 5001-11 868.30 MHz D
RCP04E5001-15 868.30 MHz CH
E
The device may only be operated indoors and
only as a radio bell and as wall outlet for mains
consumer load or low voltage consumer load.
The manufacturer will not be liable for damage
caused by improper or inappropriate use.
You can specify a ring tone melody and ring tone
lenght for each transmitter button. Select the
desired settings on the radio bell and confirm by
learning the transmission code (step 1 to step 3).
Please note that subsequent changing of the
ring tone and the ring tone lenght for
transmission codes already learned is not
possible. The transmission code for which
you would like to change the settings, must be
deleted (see section “Delete transmission code")
and memorized again with new settings.
1. Press the programming button of the radio bell
(approx. 5 seconds). The programming button
will flash slowly and the device will play an
acknowledgement signal.
Memorize the transmission code now, if you
want to use the radio bell with factory settings
(see step 3).
Continue with step 2 and step 3, if you would
like to select another ring tone or change the
ring tone length.
2. Select the desired ring tone by repeated
pressing of the PROG button .
The Plug-In Radio Bell RCP04 receives Easy-
wave transmission codes from programmed hand
transmitters or wall transmitters. Once the
transmission button is pressed, a ring tone will
play and/or a light will begin to flash.
The wall outlet of the radio bell can be used as a
mains output socket for any electric device.
A total of 32 transmission codes can be
programmed into the unit. A specific ring tone and
ring tone length can be allocated to each
transmission code.
Three different melodies are available as ring
tones: Westminster, March, Ringing Bell
The ring tone length can be set at a maximum
of 60 seconds, which is defined by the number
of repititions of the melody.
Five different combinations of gong volumes
and flashing lights can be selected:
- Quiet and flashing light
- Loud and flashing light,
- Muted (only flashing light),
- Quiet without flashing light,
- Loud without flashing light.
From the factory, the radio bell is set to the march
melody and at the volume “quiet / flashing light".
1. Plug the radio bell into any wall outlet, you can
hear an acknowledgement signal.
2. Transmit the trasmission codes of the
transmitter to the radio bell (see section “Ring
tone and ring tone length select/change“).
Caution: Make sure that there is no interference
with the wireless connection. Do not mount the
device in a distribution box, metal casings or in
direct proximity to large metal objects.
Wall outlet radio gong RCP04,
operating instructions
Please read these instructions
carefully before using the device!
We do not accept any liability for personal injury
or damage to property caused by incorrect
handling or non-observance of the safety
instructions!
Observe the valid laws and regulations as well
as the manufacturer's instructions
Attention! Observe the admissible supply
voltage and the maximum contact load of the
wall outlet (see „Technical Details“)!
Do not plug one Plug-In Radio Bell into
another.
The Plug-In Radio Bell is only de-energized
when it is disconnected from the mains supply.
The Plug-In Radio Bell must be easily
accessible.
Have malfunctioning devices checked by the
manufacturers!
Do not open the appliance's casing!
for the
devices to be operated!
Do not make any unauthorized alterations or
modifications to the unit!
IMPORTANT! The device has an internal
overload protection that switches off the
socket insert permanently in case of improper
loads. The doorbell function is not affected
and will continue to work.
PROG
PROG
select ring tone
transfer factory setting
select ring tone length
press the
PROG-button
repeatedly, until
desiredring tone
is played.
keep PROG-
button pressed for
the desired length
of the ring tone.
> 5 s
Westminster
March
Ringing Bell
PROG
PROG
D(A/NL/S/N) CH
Max. Contact load of sockets:
10 A 10 A
OR
transmit the trasmission code:
press button
connect
the
power
Memorize the transmission code
press button
connect
the
power

UM90696E 01.07.2016 GB
1. Keep the PROG button pressed for approx
5 seconds. The PROG button will flash slowly
and you will hear an acknowledgement signal.
2. Press the PROG and mode button at the same
time. You will hear an intermittent signal tone
and both buttons will flash quickly.
3. Press the transmission button of the trans-
mission code you would like to delete until a
brief acknowledgement signal is played and
both buttons light up. The transmission code
has been deleted and the device will auto-
matically switch back to operational mode.
Attention! With a RESET all memorized
transmission codes as well as all relevant settings
are deleted and factory settings are activated.
1. Press the programming button of the radio bell
(approx. 5 seconds). The programming button
will flash slowly and the device will play an
acknowledgement signal.
2. Press the PROG and mode button at the same
time. You will hear an intermittent signal tone
and both buttons will flash quickly.
3. Press the PROG and loudspeaker button until
a brief acknowledgement signal is played and
both buttons light up. and the radio gong will
switch back to its default settings.
Delete Transmission Code
Reset to Default Settings
> 5 s
approx.1,6 s
> 5 s
> 1,6 s
> 1,6 s
1. Briefly (< 1.6 seconds) press the mode button.
The march melody will play.
2. Press the loudspeaker button several times
while the ring tone is being played. The device
will switch to the next volume/flashlight option.
If you do not press the loudspeaker button,
kombination of volume and flashlight will be
accepted automatically after ring tone melody
has stopped playing.
Changing Ring Tone Volume /
Switching Flashlight On and Off
Disposal
Conformity
Customer Service
Put the packaging material into the
recycling bins for cardboard, paper and
plastics.
Dispose of the waste product via a collec-
tion point for electronic scrap or via your
specialist dealer.
Waste electrical products should not be
disposed of with household waste!
The product fulfils the essential require-
ments of the R&TTE directive
1999/5/EG.
Warranty
We will remedy defects on the device based on
material or production errors within the statutory
warranty period or exchange the device.
Any unauthorized tampering with, or modifica-
tions to, the product shall render this warranty null
and void.
For application in: EU/CH/FL/IS/N
The Declaration of Conformity can be found on
the internet at: www.eldat.de
General Information
If the device does not work properly despite
proper handing or in case of damage, please
contact your retailer or the manufacturer:
ELDAT GmbH
Im Gewerbepark 14
15711 Königs Wusterhausen
Germany
Phone: + 49 (0) 33 75 / 90 37-310
Fax: + 49 (0) 33 75 / 90 37-90
Internet: www.eldat.de
E-Mail: [email protected]
Frequency: 868.30 MHz
Modulation: FSK
Radio channels: 1
Range: up to 150 m under
favourable open field
conditions
Opperating voltage: 230 V AC / 50 Hz
Current consumption: max. 7 mA
Power consumption: 0,3 W Stand by
Gong volumes: Distance 30 cm:
quiet: 75 dB
loud: 82 dB
Protective type: IP 20
Operating
temperature: -20°C to +35°C
Max. relative air
humidity: 60%
Mains output: Power plug
non switchable
Max. contact load:
D(A/NL/S/N) Schuko 10 A / 230 V AC
CH 10 A / 230 V AC
Dimensions
(HxWxD) 122 x 50 x 38,3 mm
Weight: approx. 190 g
Technical Details
Loud +
flashing
light
Mute
Quiet
(no flashing
light)
Loud (no
flashing
light)
Quiet +
flashing
light
< 1,6 s
Press the
loadspeaker
button until the
desired
combination is
played.
PROGPROG
To cancel press the loudspeaker button
To cancel press the loudspeaker button
PROGPROG
PROG
PROG PROG
