Eldat EasyWave SH01 User manual

Before using the Radio humidity
sensor, carefully read through the
operating instructions!
Also note the operating instructions of the
receiver!
Have faulty Radio humidity sensor checked
by the manufacturer!
Do not make any unauthorized alterations
or modifications to the Radio humidity
sensor!
Keep the batteries out of the reach of
children!
Function
Model
Technische Daten
Technical Details
Only use the Radio humidity sensor SH01 in
indoor rooms to switch Easywave receivers.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use.
Intended Use
Safety Advice
Scope of Delivery
Memorizing the sensor codes Memorizing the button code
Sensor module,
plate, button, attachment set, operating
instructions
battery CR2032, mounting
Frequency: 868,30 MHz
Radiated
power: 0.54 mW
Modulation: FSK
Coding: Easywave A/B
Power supply: 1x 3-V-battery, CR2032
or alternatively 12-24 V AC/DC
SELV
Current
consumption: approx. 15 mA
Measuring
range: 1-99 % rH
Accuracy: +-5 % (with 30 % - 70 % rH)
Switching
value: 1. >74 % rH
2. fast rise at 4 %
starting from >40 % rH
Data logging: all 2 min
Operating
temperature: -20 °C to +60 °C
Range: free-field: approx. 150 m
buildings: approx. 30 m
Degree of
protection: IP30
Dimensions: button: 55x55x10 mm
plate: 71x71x1,5 mm
Weight: 32,0 g incl. battery
The wireless sensor SH01 is a combination of
humidity sensor and push button.
Both the humidity sensor and the push button
have their own transmission code. The trans-
mission code of the push button is referred here
hereafter as A1 and B1 and the transmission
code of the sensor is referred to asA2 and B2.
The humidity sensor measures the relative air
humidity in cycles and sends a switching signal
to an Easywave wireless receiver when
exceeding and/or reaching defined values.
This can then switch connected ventilation
devices like e.g. fans or electric window
openers.
The push button function is a standard
Easywave application for turning electric
consumers ON or OFF.
The sensor is compatible to several frames,
having internal dimensions of 55x55 mm.
Please find a choice of compatible in the data
sheet.
SH01E5002-01
OFF (B1)
GB Radio humidity sensor SH01
ON (A1)
0
I

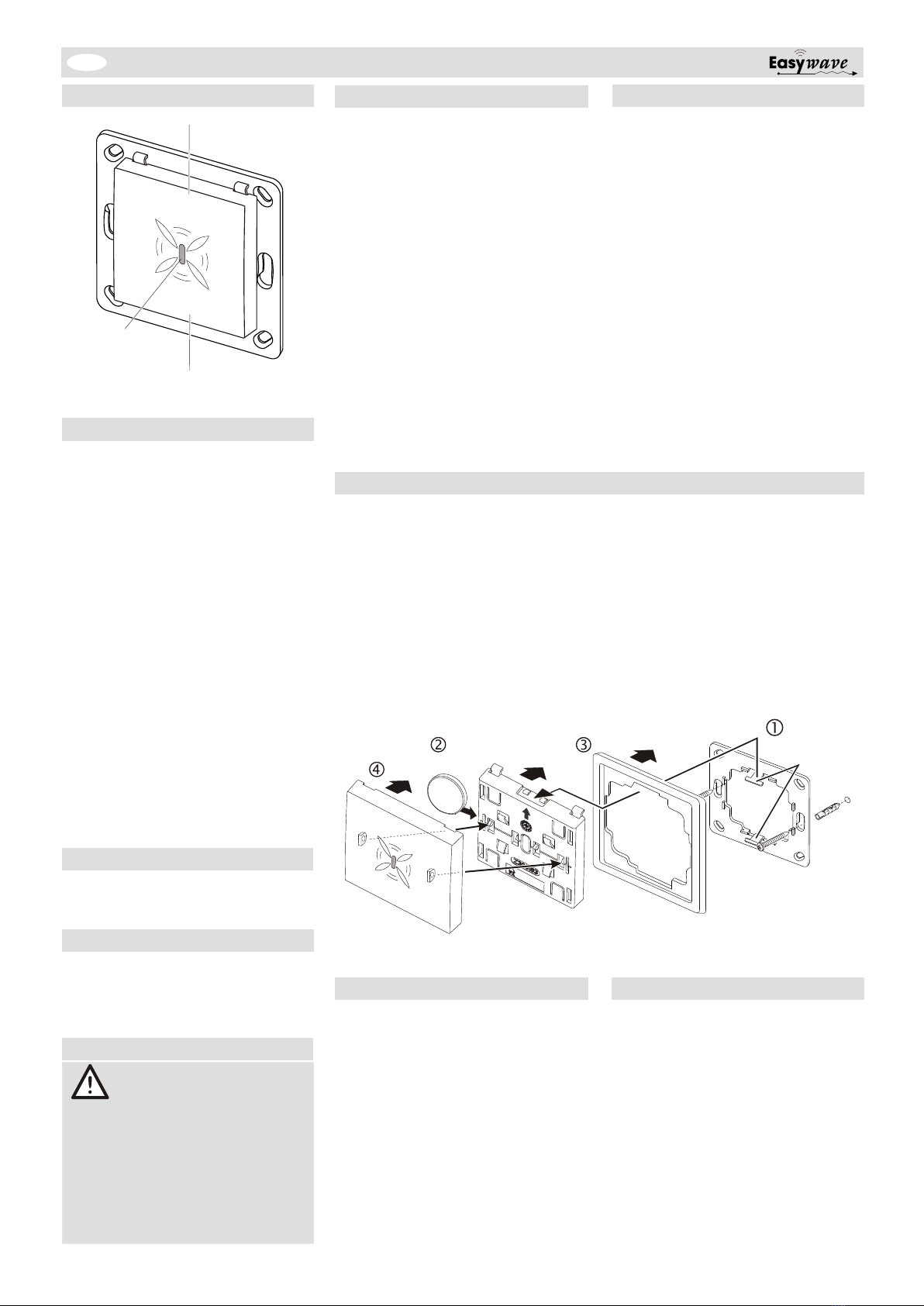

Start-up
1.
2. Legen Sie die Batterie in das Sensormodul
ein (s. auchAbschnitt „Batterie wechseln“).
Screw or stick the mounting plate to the
installation site with the screws and dowels
or the adhesive pads.
Caution: Make sure there is no inter-
ference with the wireless connection. Do
not mount the device in a distribution box,
in metal casings, in direct proximity to
large metal objects, on the floor or close
to it.
There are two possibilities to teach the sensor
code into an Easywave radio receiver.
ATwo seconds after inserting the battery, the
Easywave code B2 is sent automatically.
BTeaching in through button assignment
1. Press the button on the top for approx. 5
seconds (measuring point A1) until the
LED in the humidity sensor lights up.
2. Put the radio receiver into teach-in mode
and then press the button on the bottom.
You have 10 seconds to complete this
procedure. The sensor code (Easywave
code B2) is transmitted to the receiver and
the LED goes off after 10 seconds.
1. Put the radio receiver into teach-in mode.
2. Press the button on the top briefly
(measuring point A1), the tranmission
code is sent.
sensor module
battery
cover frame
(not in the delivery)
button
mounting plate
catch
3.
plate and snap the transmission module to
the catches on top and bottom. The arrow
on the sensor module has to point
upwards.
4. Snap the button onto the transmission
module
5. Memorize the sendor code and additional
the button code in the receiver. Please
read the chapter „Memorizing the sensor
code“ or „Memorizing the button code“ and
the instructions supplied with the receiver.
Place the cover frame onto the mounting
0
I
Humidity sensor
ON(A2)
OFF(B2)
Monitoring of air humidity
The wireless humidity sensor has three
operating ranges.
Range 1 is the range below 40% rH (relative
humidity). The humidity sensor does not react
in this range.
Range 2 is the range from 40% rH to 74% rH. In
this range the humidity sensor reacts to a
sudden rise in air humidity. If the relative
humidity rises 4% rH within two minutes (e.g.
when showering), an A2 switch signal (ON) is
sent. Once the humidity level approaches the
initial value again, a B2 switch signal (OFF) is
sent.
Range 3 is the range above 74 % rH. If this
range is reached, the sensor sends an A2
switch signal (ON). If the relative humidity
drops below 72% rH, the humidity sensor
sends a B2 switch signal (OFF). If the relative
humidity does not drop below 72% rH within
four hours, the sensor will also send a B2
switch signal (OFF).

Disposal
Conformity
If, despite correct handling, faults or mal-
functions occur or if the product was damaged,
please contact your retailer or the manufactu-
rer.
ELDAT GmbH
Im Gewerbepark 14
15711 Königs Wusterhausen
Germany
Phone: + 49 (0) 33 75 / 90 37-310
Fax: + 49 (0) 33 75 / 90 37-90
Internet: www.eldat.de
E-Mail: [email protected]
Waste electrical products and batteries not
be disposed of with household waste!
Dispose of the waste product via a
collection point for electronic scrap
or via your specialist dealer.
Dispose of used batteries in a recy-
cling bin for batteries or via the
specialist trade.
Put the packaging material into the
recycling bins for cardboard, paper
and plastics.
Hereby, ELDAT GmbH declares that
the radio equipment type SH01 is in
c o m p l i a n c e w i t h D i r e c t i v e
2014/53/EU.
The full text of the EU declaration of
conformity is available at the follo-
wing internet address: www.eldat.de
Warranty
Within the statutory warranty period we
undertake to rectify free of charge by repair or
replacement any product defects arising from
material or production faults.
Any unauthorized tampering with, or modifica-
tions to, the product shall render this warranty
null and void.
Service
C32R20
CR2032
+
Replacing the Battery
voltage
Connecting the protective low
1. L
2. Replace the battery. Only use batteries of
the type CR2032. Make sure the poling is
correct. The positive pole has to be
visible!
3. Replace the transmission group back onto
the catches.
Note: Two seconds after inserting the battery,
the Easywave code B2 is sent automatically.
ever off the transmission group.
The humidity sensor can also be operated with
12-24 VAC/DC low voltage.
Use flexible equipment wires Ø 0.5 to 0.6 mm
for this purpose. These must be stripped 8 mm.
1. L
2. Remove the battery and insert the wires
into one of the borings KL1 and KL2 on the
circuit board. The wire is clamped into the
spring contact on the rear and cannot be
removed again without destroying it.
The second boring KL1 or KL2 is intended
for looping through, if applicable.
3. Re-attach the to the
catches.
Note:Two seconds after activating the supply
voltage, the Easywave send code B2 is sent
automatically.
ever off the transmission group.
transmission group
1.
1.
2.
2.
KL2
KL1
Trouble Shooting
If the radio receiver does not react to the Radio
humidity sensor :
Radio humidity sensor
- Exchange the battery.
- Check that the wireless connection at the
installation site is not impaired between the
and the receiver.
- Memorize the transmission code in the
receiver.
- Other wireless devices using the same
frequency or working in direct proximity
may interfere with the device.
