Eldes ET082 User manual

ET082
GSM/GPRS COMMUNICATOR

2
2
EN ET082 GSM/GPRS COMMUNICATOR
User Manual v2.1
Valid for ET082 v01.13.01 and up; hardware version: ET082-30 and up.
SAFETY INSTRUCTIONS
Please read and follow these safety guidelines to safeguard yourself and others:
• GSM/GPRS communicator ET082 (later referred to as “the device” or “the communicator”) contains a built-in radio transceiver operat-
ing in GSM 850/900/1800/1900 MHz bands.
• DO NOT use the device where it can cause potential danger and interfere with other devices – such as medical devices.
• DO NOT use the device in hazardous environment.
• DO NOT expose the device to high humidity, chemical environment or mechanical impact.
• DO NOT attempt to repair the device yourself – any repairs must be carried out by fully qualied personnel only.
Please, use the 10-24V 300 mA DC power supply unit that meets the EN 60950-1 standard. Any additional device you
connect to the device, such as a computer, must also be powered by an EN 60950-1 approved supply. When connecting the
power supply to the device, mind the polarity terminals. DO NOT switch the polarity terminals places.
External power supply can be connected to AC mains only inside installation
room with automatic 2-pole circuit breaker capable of disconnecting circuit in
the event of short circuit or over-current condition. Open circuit breaker must
have a gap between connections of more than 3mm and the disconnection
current 5A.
Phase
AC 230V
50 Hz/DC 24V
USB cable
Null
PE
ET082
AC/DC
Disconnect the mains power before installing. Never install or carry out maintenance during stormy weather. The electric
socket that powers the device must be easily accessible.
To switch the device o, unplug the external electric power supply or any other linked equipment that the device is powered
from.
A blown fuse cannot be replaced by the user. The replacement fuse has to be of the kind indicated by the manufacturer (fuse
F1 model – MINISMDC050F 0.5A).
If you use a computer for the device conguration, it must be earthed.
The WEEE (Waste Electrical and Electronic Equipment) marking on this product (see left) or its documentation indicates that
the product must not be disposed of together with household waste. To prevent possible harm to human health and/or the
environment, the product must be disposed on in an approved and environmentally safe recycling process. For further infor-
mation on how to dispose of this product correctly, contact the system supplier, or the local authority responsible for waste
disposal in your area.

3
3
EN
ET082 GSM/GPRS COMMUNICATOR
Contents
1. GENERAL INFORMATION ........................................................................................................................................................5
2. TECHNICAL SPECIFICATIONS..................................................................................................................................................5
2.1. Electrical and Mechanical Characteristics ....................................................................................................................................................5
2.2. Main Unit, LED Indicator and Connector Functionality ...............................................................................................................................6
2.3. LED Indicator Functionality .............................................................................................................................................................................6
2.4. Wiring Diagrams ................................................................................................................................................................................................7
3. INSTALLATION.........................................................................................................................................................................8
4. GENERAL OPERATIONAL DESCRIPTION.................................................................................................................................9
5. CONFIGURATION METHODS .................................................................................................................................................10
5.1. SMS Text Messages.........................................................................................................................................................................................10
5.2. ELDES Conguration Tool Software.............................................................................................................................................................10
6. COMMUNICATION WIRING METHODS...................................................................................................................................16
6.1. RING/TIP Interface ..........................................................................................................................................................................................16
6.2. Keybus Interface..............................................................................................................................................................................................18
7. COMMUNICATION MODES AND METHODS...........................................................................................................................19
7.1. Basic Mode........................................................................................................................................................................................................21
7.2. Advanced Mode .............................................................................................................................................................................................. 24
8. GSM MODEM SETTINGS........................................................................................................................................................ 28
9. MONITORING STATION PHONE NUMBER AND ACCOUNT REPLACEMENT ........................................................................ 28
10. SMS PASSWORD ................................................................................................................................................................... 29
11. USER PHONE NUMBERS....................................................................................................................................................... 29
12. INPUTS.................................................................................................................................................................................. 30
13. OUTPUTS ...............................................................................................................................................................................32
13.1. Output Name ...................................................................................................................................................................................................32
13.2. Output Control by SMS Text Message..........................................................................................................................................................32
13.3. Output Control by Event.................................................................................................................................................................................33
14. PSTN CONNECTION STATE MONITORING.............................................................................................................................35
15. GSM CONNECTION STATE MONITORING.............................................................................................................................. 36
16. DATE AND TIME .................................................................................................................................................................... 36
17. PERIODIC TEST ......................................................................................................................................................................37
18. AUTOMATIC RESTART ...........................................................................................................................................................37
19. EVENTS LOG...........................................................................................................................................................................37
20. TECHNICAL SUPPORT .......................................................................................................................................................... 38
20.1. Troubleshooting ............................................................................................................................................................................................. 38
20.2. Restoring Default Parameters ..................................................................................................................................................................... 38
20.3. Updating the Firmware via USB Cable ....................................................................................................................................................... 38
21. RELATED PRODUCTS............................................................................................................................................................ 39

4
4
EN ET082 GSM/GPRS COMMUNICATOR
It is strictly forbidden to copy and distribute information in this document or pass to a third party without an advanced written authorization
from “ELDES UAB”. “ELDES UAB” reserves the right to update or modify this document and/or related products without a warning. Hereby,
“ELDES UAB” declares that the GSM/GPRS communicator ET082 is in compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC. The declaration of conformity may be consulted at www.eldes.lt
Copyright © “ELDES UAB”, 2014. All rights reserved
Limited Liability
The buyer agrees that the device will reduce the risk of re, theft, burglary or other danger but that it does not guarantee against the
occurrence of such events.
“ELDES UAB” will not take any responsibility for the loss of personal eects, property or revenue whilst using the device. The liability of
“ELDES UAB” is limited to the value of the device purchased.
“ELDES UAB” is not aliated with any mobile/wireless/cellular provider and is therefore not responsible for the quality of such services.
Manufacturer Warranty
The device carries a 24-month manufacturer warranty from “ELDES UAB”.
The warranty begins the day the device is purchased by the user and the receipt must be retained as proof of purchase date. The warranty
remains valid only if the device is used as intended, following all guidelines outlined in this manual and in accordance with the operating
conditions specied.
The warranty is void if the device has been exposed to mechanical impact, chemicals, high humidity, uids, corrosive and hazardous envi-
ronments or force majeure factors.
Dear Customer,
Thank you for choosing to purchase the GSM/GPRS communicator ET082. Your thoughtful decision will ensure reliable solution for
many years as all ELDES products are manufactured to meet the highest standards.
We are condent that you will be completely satised with your product. However, in the unlikely event that you do experience a prob-
lem, please contact the dealer from whom you made your purchase.
UAB ELDES
www.eldes.lt
Contents of Pack
Item Quantity
1. ET082. ..................................................... 1
2. User manual............................................1
3. GSM/GPRS antenna...............................1
Not included:
• SIM card – we recommend you get a contract SIM, not Pay As You Go.
• miniUSB cable – can be obtained from your local distributor.

5
5
EN
ET082 GSM/GPRS COMMUNICATOR
1. GENERAL INFORMATION
ET082 is a micro-controller based device intended to replace the third-party PSTN/non-GSM alarm panel communication method via the
GSM and IP-based networks.
Examples of using the system:
• Property security.
• Non-GSM/PSTN alarm panel communication replacement by GSM, SMS, GPRS, CSD or Ethernet communication methods
• Backup connection for PSTN (land line).
• Any electrical appliance control: lighting, watering, heating etc.
• Remote reboot of the “frozen” systems, such as computer network or a server.
Main features
• Conguration by PC and SMS text message.
• Supported communication methods: Voice Calls (direct channel or data buering via GSM audio), SMS, CSD, GPRS network and Ether-
net via ELAN3-ALARM device.
• PSTN line state supervision.
• Supported communication protocols: Ademco Contact ID, 4+2, Scancom, EGR100, Kronos, SIA IP.
• Alarm panel wiring via PSTN (RING/TIP terminals) or keybus (serial data) interface.
• 3 inputs customizable as NC (normally-open) or NO (normally-closed) with customizable alarm/restore Contact ID code and text for
monitoring station notication and user by SMS text message respectively.
• 3 open-collector outputs for electrical appliance control, non-GSM alarm panel arming/ disarming (keyswitch) or alarm/restore event
report.
• Manual output control by free of charge phone call and SMS text message.
• Automatic output control in accordance with a specied event.
• Up to 3 users for minor device conguration by SMS text messages, acceptance of input alarm SMS text messages, output control by
SMS text message and free of charge phone call.
• Up to 5 users for SMS text message containing Contact ID data converted to user-understandable text acceptance.
• Up to 2 administrators for remote device conguration initiation.
• Event log indicating communication activity in real-time.
• Periodic self-test notication to monitoring station.
• Automatic device restart.
2.TECHNICAL SPECIFICATIONS
2.1. Electrical and Mechanical Characteristics
Supply voltage 10-24V 300mA max
Peak current Up to 700mA
Current used in idle state Up to 120mA
GSM modem frequency 850/900/1800/1900 MHz
Number of “low” level (negative) digital inputs 3
Allowable input values voltage 0... 1.45V; current: 0.8... 0.6mA
Number of outputs 3
Output C1 - C3 circuit 1 R OUT Open collector output.
Output is pulled to COM
when turned ON.
Maximum commuting output values Voltage: 30V ; current: 50mA
Generated phone line values Voltage: 48V; current: 25mA; impedance: 270Ω
Dial tone frequency of generated phone line 425 Hz
Dimensions 129 x 78 x 18 mm
Operating temperature range -20...+55 °C
Humidity 0-90% RH @ 0... +40 °C (non-condensing)

6
6
EN ET082 GSM/GPRS COMMUNICATOR

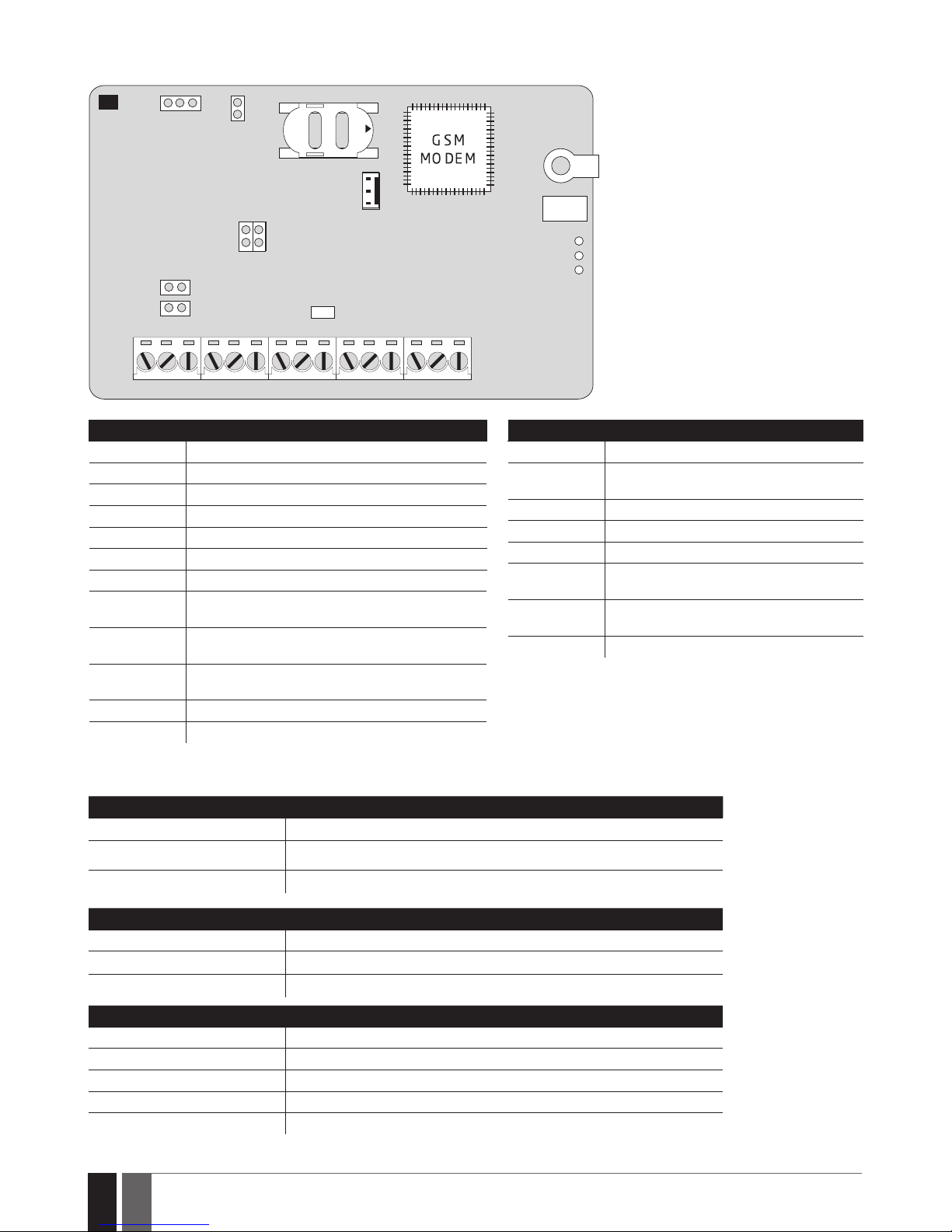

2.2. Main Unit, LED Indicator and Connector Functionality
OPEN
JP9
JP8
L1 L2 L4 C1RING DC+TIP COM C2 C3Z2 Z3Z1 COM
F1
SET
DEF
MODE
INFO
SIM CARD
ANT
USB
STATUS
GSM
SERIAL
1
Main Unit Functionality
DEF Pins for restoring default settings
SIM CARD SIM card slot / holder
GSM MODEM GSM network 850/900/1800/1900 MHz modem
ANT GSM antenna SMA type connector
SET – MODE Pins for Basic mode communication method set up
SERIAL RS232 interface pins for ELAN3-ALARM connection
USB Mini USB port
INFO Light-emitting diode indicating data transmission/
conversion activity
STATUS Light-emitting diode indicating micro-controller
status
GSM Green light-emitting diode indicating GSM signal
strength
JP8 – JP9 Pins for PSTN state supervision set up
F1 0.5A fuse
Connector Functionality
L1 – L4 Terminals for connection to PSTN/PBX
RING – TIP Terminals for connection to alarm panel's
RING/TIP interface
C1 – C3 Open-collector output terminals
DC+ Positive power supply terminal
COM Common terminal
Z2 Input terminal / DATA terminal for alarm
panel connection via keybus interface
Z1 Input terminal / CLOCK terminal for alarm
panel connection via keybus interface
Z3 Input terminal
2.3. LED Indicator Functionality
INFO indication Description
OFF Idling
Flashing several times per sec.Transmitting data, retrieved from alarm panel, to the monitoring station
Steady ON Converting Contact ID data to user-understandable text
STATUS indication Description
OFF No mains power / micro-controller fault
Flashing several times per sec. SIM card not present / PIN code enabled
Steady ON Device operating successfully
GSM indication GSM signal strength
OFF No GSM signal
Flashing every 3 sec. Poor
Flashing every 1 sec. Medium
Flashing several times per sec. Good
Steady ON Excellent

7
7
EN
ET082 GSM/GPRS COMMUNICATOR

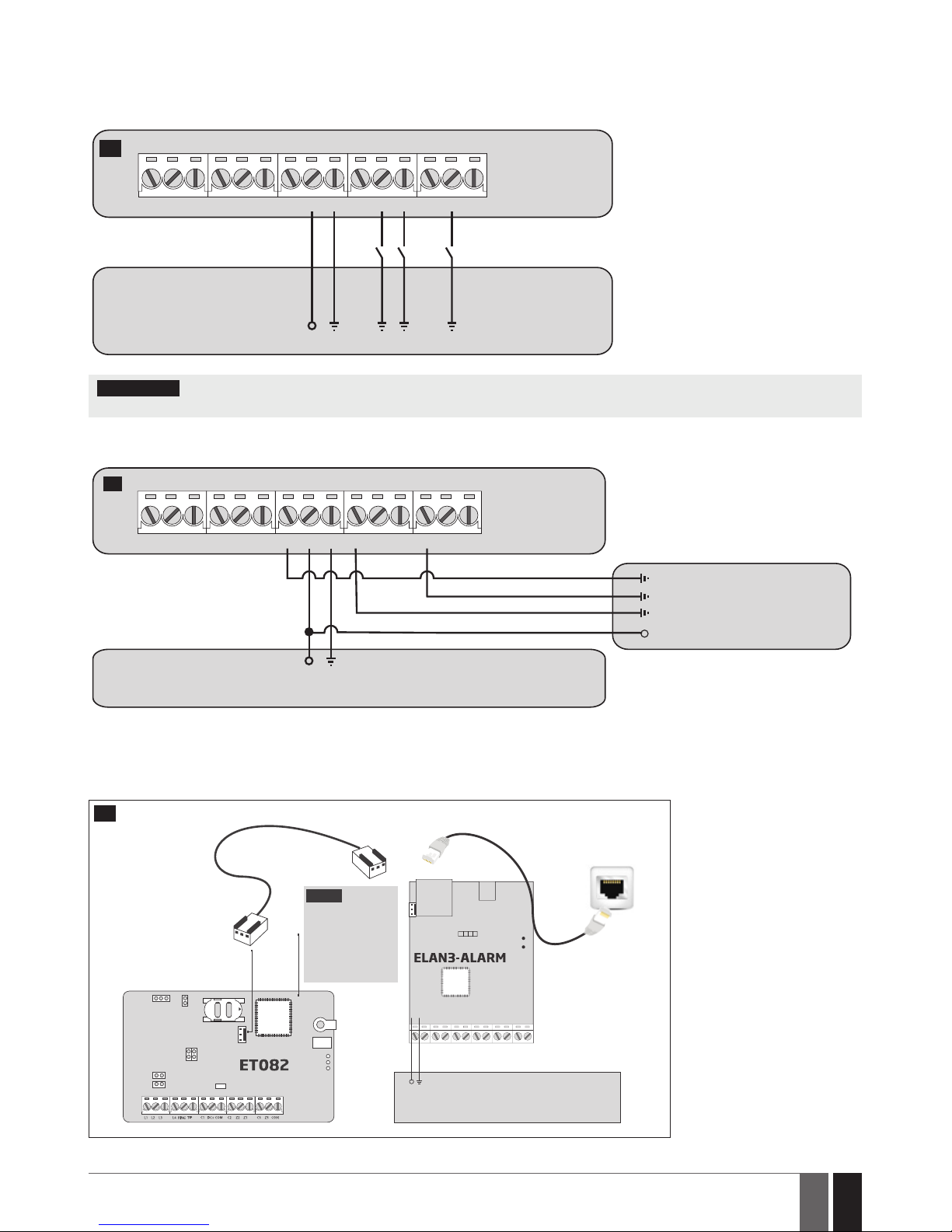

2.4. Wiring Diagrams
2.4.1. General Wiring
L1 L2 L4 C1RING DC+TIP COM C2 C3Z2 Z3Z1 COM
ALARM PANEL
OR OTHER APPLIANCE
AUX+
+12 +24
AUX- PGM2 PGM1 PGM3
ET082
2
ATTENTION: When connecting ET082 power supply terminals to alarm panel’s auxiliary output (AUX), ensure that the output is able
to maintain peak current consumption of up to 700mA. Otherwise, please use an external power supply unit for ET082.
2.4.2. Output Wiring
L1 L2 L4 C1RING DC+TIP COM C2 C3Z2 Z3Z1 COM
ALARM PANEL
OR OTHER APPLIANCE
ELECTRICAL
APPLIANCE
+12 +24
+
AUX+ AUX-
ET082
3
2.4.3. ELAN3-ALARM
Compatibility: ELAN3-ALARM v0.4 and up + ET082 v01.12.00 and up; hardware version ET082-30 and up.
For more details on ELAN3-ALARM device, please refer to its user manual located at www.eldes.lt/download
NSG 25-3
NSG 25-3
ET082-30
Thirdy-party alarm panel’s AUX output
or AC/DC power supply unit
OPEN
SERIAL
SERIAL
NOTE: ELAN3 -
ALARM is
compatible
with ET082
hardware
version ET082-30
and up.
AC/DC
ETHERNET
ROUTER
4

8
8
EN ET082 GSM/GPRS COMMUNICATOR
3.INSTALLATION
• The device can be installed in a metal or non-ammable cabinet only.
• The device should be installed indoors, in stationary environment ONLY.
• For terminal connection, use 0.50 mm21 thread unshielded cable of up to 100 meters length.

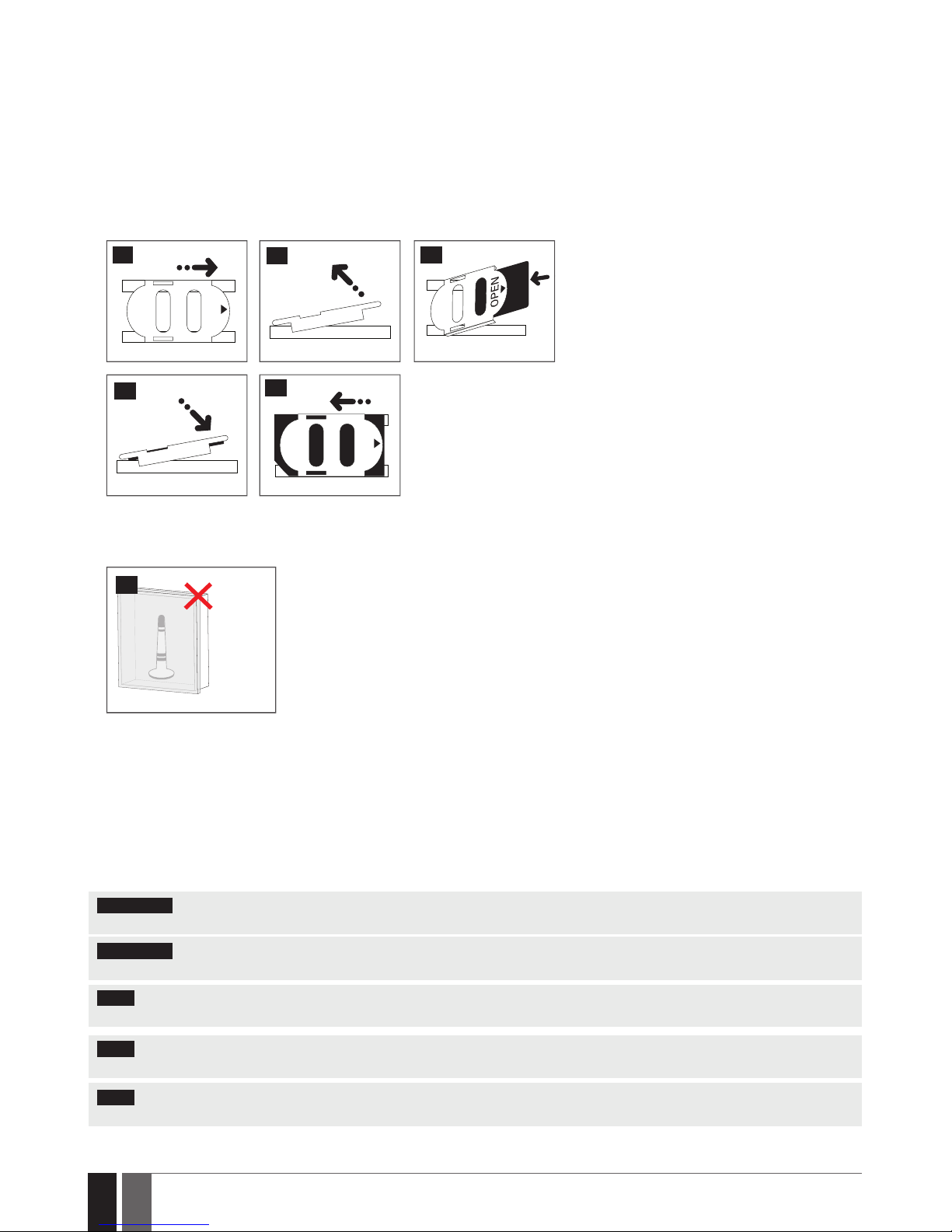

1. Disable the PIN code of the SIM card by inserting it into a mobile phone and following the proper menu steps. Ensure that the addition
al services, such as voice mail, call forwarding, report on missed/busy calls („call catcher“) are disabled on the SIM card. For
more details on how to disable these services, please contact your GSM operator.
2. Once the PIN code is disabled, place the SIM card into the SIM CARD slot of the device.
6
OPEN
57
8
OPEN
9
3. Place the device inside the metal enclosure.
4. Connect the GSM/GPRS antenna. Based on the type of the GSM/GPRS antenna supplied with ET082 device, follow the recommenda-
tions for the antenna installation:
GSM/
GPRS
antenna
10
Never install in the following
locations:
• inside the metal cabinet
• closer than 20 cm from
the metal surface and/or
power lines
5. Wire up ET082 device power supply and communication terminals to the third-party alarm panel (see 2.3. Wiring Diagrams and 6.
COMMUNICATION WIRING METHODS for more details).
6. Power up the device and wait until indicator STATUS lights up.
7. The device starts up in less than a minute. Indicator STATUS should be steady ON indicating successful micro-controller operation.
8. The illuminated or ashing indicat or GSM indicates that the device has successfully registered to the GSM network. To nd the
strongest GSM signal, place the GSM/GPRS antenna and follow the indications provided by GSM indicator (see 2.2. Main Unit, LED
Indicator and Connector Functionality for more details).
9. Select and congure the communication mode and method (see 7. COMMUNICATION MODES AND METHODS for more details)
ATTENTION: When connecting ET082 power supply terminals to alarm panel’s auxiliary output (AUX), ensure that the output is able
to maintain peak current consumption of up to 700mA. Otherwise, please use an external power supply unit for ET082
ATTENTION: The device is NOT compatible with pure 3G SIM cards. Only 2G/GSM SIM cards and 3G SIM cards with 2G/GSM prole
enabled are supported. For more details, please contact your GSM operator.
NOTE: For maximum device reliability we recommend you do NOT use a Pay As You Go SIM card. Otherwise, in the event of insucient
credit balance on the SIM card, the device would fail to make a phone call or send messages.
NOTE: We advise you to choose the same GSM SIM provider for your device as for your mobile phone. This will ensure the fastest, most
reliable SMS text message delivery service and phone call connection.
NOTE: Even though ET082 installation process is not too complicated, we still recommend to perform it by a person with basic knowl-
edge in electrical engineering and electronics to avoid any device damage.

9
9
EN
ET082 GSM/GPRS COMMUNICATOR
4.GENERAL OPERATIONAL DESCRIPTION
ET082 communicator is used with third-party PSTN/non-GSM alarm panels as a communication gateway via GSM and IP-based networks
for data transmission from the alarm panel to monitoring station and/or preset user phone number by SMS text message.
The device comes equipped with PSTN line state monitoring feature that in case of PSTN line loss would result in switching to a pre-
congured communication method, such as GSM, SMS, GPRS, until the PSTN line is restored followed by notifying the monitoring station
and/or preset user phone number by SMS text message. The device can detect a physical PSTN line cut-o or even when a dial tone is still
present due to temporary service suspension by the service provider for technical or billing reasons (requires Smart PSTN module).
The device has 3 digital inputs (normally closed or normally open) for alarm device’s PGM output or detection device connection, such as
magnetic door contact. By connecting the input to a non-GSM alarm panel’s PGM output, up to 3 preset user phone numbers will be able to
receive an SMS text message as well as to notify the monitoring station regarding arming/disarming and other events depending on the
alarm panel conguration.
The device comes equipped with 3 open-collector outputs allowing up to 3 preset user phone numbers to turn ON or OFF the electrical
appliances, such as heating, lighting, lift the gates, blinds by free of charge phone call or SMS text message. Alternatively, the outputs
can be controlled automatically based on the associated ET082 input alarm/restore event. The outputs can also be used for PSTN or GSM
connection loss indication as well as for arming/disarming by connecting an output to one of the alarm panel’s zones pre-congured as a
keyswitch.
The device will ignore SMS requests and phone calls coming from non-preset phone numbers.

10
10
EN ET082 GSM/GPRS COMMUNICATOR
5.CONFIGURATION METHODS
5.1. SMS Text Messages
!!! In this user manual the underscore character ”_” represents one space character. Every underscore character must be
replaced by a single space character. There must be no spaces or other unnecessary characters at the beginning and at
the end of the SMS text message.
SMS
In order to congure and control the device by SMS text message, send the text command to the ET082 device phone number
from one of the preset administrator phone numbers. The structure of SMS text message consists of 4-digit SMS password
(the default SMS password is 0000 – four zeros), the parameter and value. For some parameters the value does not apply e. g.
STATUS. The variables are indicated in lower-case letters, while a valid parameter value range is indicated in brackets.
5.2. ELDES Conguration Tool Software
Cong
Tool
Software ELDES Conguration Tool is intended for ET082 communicator conguration locally via USB port or remotely via
GPRS network or Ethernet connection (ELAN3-ALARM device required). This software simplies system conguration process
by allowing to use a personal computer in the process. Before starting to use ELDES Conguration Tool software, please read
the user guide provided in the software’s HELP section.
ELDES Conguration Tool is freeware and can be downloaded at: www.eldes.lt/download
5.2.1.Administrator Phone Numbers
The device supports 2 administrator phone numbers identied as Admin 1 and Admin 2. When the phone number is set, the administrator
will be able to initiate remote conguration session by SMS text message.
The supported phone number format is the following:
• International (with plus) – The phone numbers must be entered starting with plus and an international country code in the following
format: +[international code][area code][local number], example for UK: [phone]XXXX.
• International (with 00) – The phone numbers must be entered starting with 00 and an international country code in the following
format: 00[international code][area code][local number], example for UK: 00441709111XXXX.
• Local – The phone numbers must be entered starting with an area code in the following format: [area code][local number], example for
UK:01709111XXXX.
Set administrator
phone number
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
NOTE: The administrator phone numbers are used for remote conguration session initiation ONLY. Admin 1/Admin 2 phone numbers CAN-
NOT be used for output control or input alarm/restore SMS text message acceptance.
5.2.2. Remote System Conguration via Conguration Server
ATTENTION: The system will NOT send any data to monitoring station while conguring the system remotely via GPRS network or
Ethernet connection. However, during the conguration session, the data messages are queued up and transmitted to the monitoring
station after the conguration session is over.
Before conguring ET082 remotely using GPRS network or Ethernet (using ELAN3-ALARM) connection, please ensure that:
• SIM card is inserted into SIM CARD slot of ET082 device (see 2.2. Main Unit, LED Indicator and Connector Functionality).
• Mobile internet service (GPRS) is enabled on the SIM card – required for GPRS network connection only.
• APN, user name and password are set up – required for GPRS network connection only.
• Power supply is connected to ET082.
• At least Admin 1 phone number is set up (see 5.2.1. Administrator Phone Numbers)
ET082
Conguration
Server
ELDES Conguration
Tool
GPRS network/
Internet Internet
Remote system conguration via GPRS network connection

11
11
EN
ET082 GSM/GPRS COMMUNICATOR
ET082 & ELAN3-
ALARM
Conguration
Server
ELDES Conguration
Tool
Ethernet/
Internet Internet
+
Remote system conguration via Ethernet connection using ELAN3-ALARM
a) In order to activate a remote connection between ET082 device and ELDES con-
guration server, please send the following SMS text message from preset admin-
istrator phone number. Upon the successful SMS text message delivery, the device
establishes a connection session for 20 minutes.
Initiate connection
with ELDES server GPRS
SMS text message content:
ssss_STCONFIG
Value: ssss – 4-digit SMS password.
Example: 1111_STCONFIG
ELAN3
ALARM
SMS text message content:
ssss_STCONFIG:ELAN
Value: ssss – 4-digit SMS password.
Example: 1111_STCONFIG:ELAN

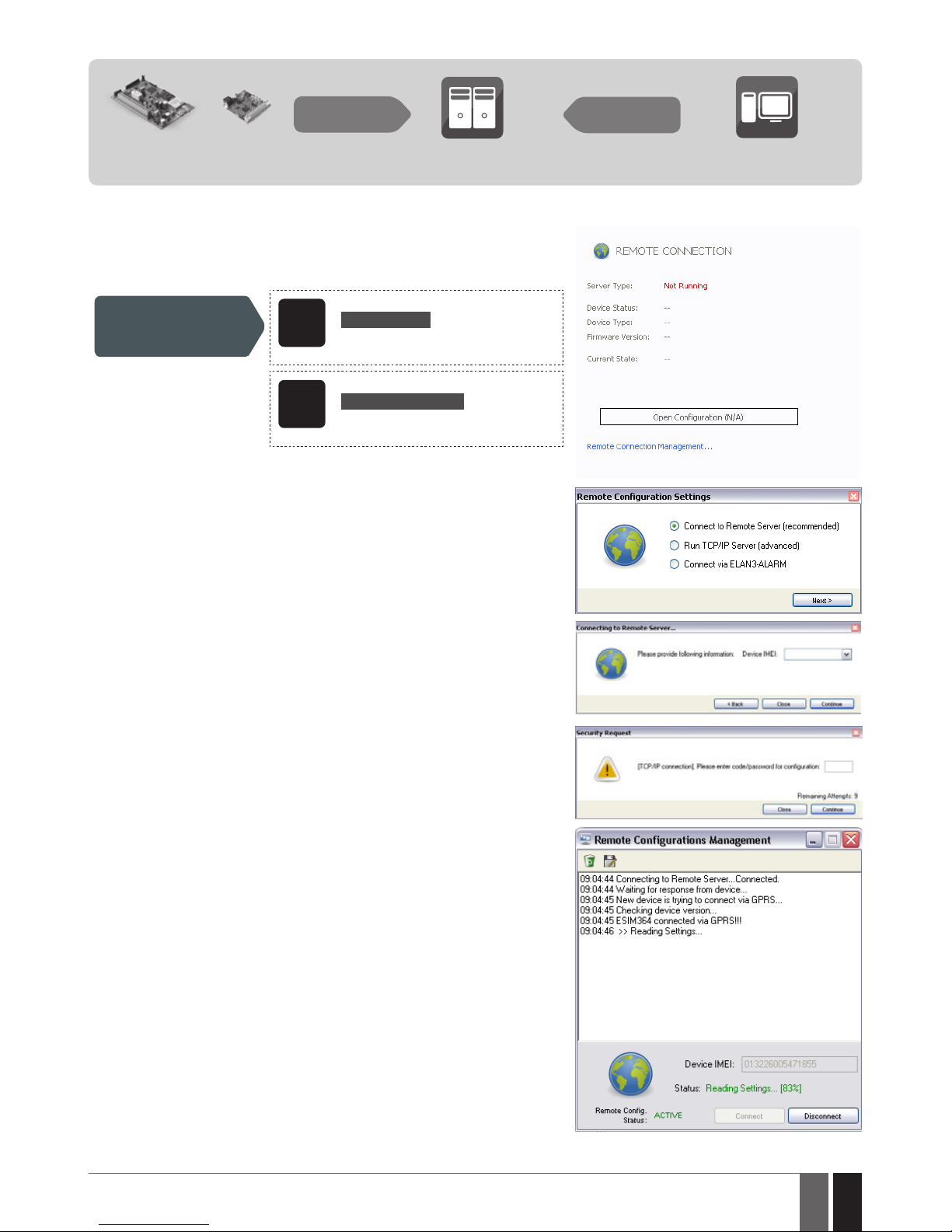

b) Once the SMS text message containing device IMEI number and conrming a suc-
cessful connection establishment is received, please run ELDES Conguration Tool
software.
c) Click Remote Connection Management...
d) In the next window, select Connect to Remote Server (recommended) and
click Next button.
e) In Device IMEI entry, enter the IMEI number previously received by SMS text mes-
sage.
f) Click Continue button.
g) By default, upon the successfully established connection, the system will prompt
for an SMS password.
h) By entering a valid SMS password, the device grants access to full conguration
remotely.
i) Remote Conguration Management window displays all performed congura-
tion actions and connectivity information.

12
12
EN ET082 GSM/GPRS COMMUNICATOR
5.2.3. Remote System Conguration via Direct Connection
ATTENTION: The system will NOT send any data to monitoring station while conguring the system remotely via GPRS network or Eth-
ernet connection. However, during the conguration session, the data messages are queued up and transmitted to the monitoring station
after the conguration session is over.
Before conguring ET082 remotely using GPRS network or Ethernet (using ELAN3-ALARM) connection, please ensure that:
• SIM card is inserted into SIM CARD1 slot of ET082 device (see 2.2. Main Unit, LED Indicator and Connector Functionality) – re-
quired for GPRS network connection only.
• Mobile internet service (GPRS) is enabled on the SIM card – required for GPRS network connection only.
• APN, user name and password are set up – required for GPRS network connection only.
• At least Admin 1 phone number is set up (see 5.2.1. Administrator Phone Numbers) - required for GPRS network connection only.
• Machine running ELDES Conguration Tool software provides access via public IP address.
• TCP port 5000 is forwarded for the IP address of the machine running ELDES Conguration Tool software.
• Power supply is connected to ET082.
ET082
ELDES Conguration
Tool
GPRS network/
Internet
Remote system conguration via GPRS network connection
ELDES Conguration
Tool
Internet/
Ethernet
ET082 & ELAN3-
ALARM
+
Remote system conguration via Ethernet connection

13
13
EN
ET082 GSM/GPRS COMMUNICATOR
5.2.3.1.Establishing Remote Connection Between ET082 System and ELDES Conguration Tool via GPRS Network
GPRS
a) Run ELDES Conguration Tool software.
b) Click Remote Connection Management...
c) In the next window, select Run TCP/IP Server (advanced) and click
Next button.
d) Set a TCP port for listening for incoming connections or leave the de-
fault TCP port 5000.
e) Click Continue button.
f) In order to activate a remote connection between ET082 system and
ELDES Conguration Tool software running as remote conguration
server, please send the following SMS text message from preset user
phone number. Upon the successful SMS text message delivery, the
system establishes a connection session for 20 minutes.
Initiate connection
with ELDES
Conguration Tool
GPRS
SMS text message content:
ssss_STCONFIG:add.add.add.add:pprrt
or
ssss_STCONFIG:host-name:pprrt
Value: ssss – 4-digit SMS password;
add.add.add.add – public IP address
of the machine running ELDES
Conguration Tool software; pprrt –
TCP port number, range – [1... 65535];
host-name – public host-name of the
machine running ELDES Conguration
Tool software.
Example: 1111_STCON-
FIG:62.80.115.102:4522
g) By entering a valid SMS password, the device grants access to full con-
guration remotely.
h) Remote Conguration Management window displays all per-
formed conguration actions and connectivity information.

14
14
EN ET082 GSM/GPRS COMMUNICATOR
5.2.3.2. Establishing Remote Connection Between ET082 System and ELDES Configuration Tool via Ethernet Using ELAN3-ALARM
ELAN3
ALARM
a) Run ELDES Conguration Tool software.
b) Click Remote Connection Management...
c) In the next window, select Connect via ELAN3-ALARM and click Next
button.
d) Click Continue button.
e) In LAN IP Address entry, enter the public IP address of ELAN3-ALARM
device and click Continue button.
f) By entering a valid SMS password, the device grants access to full con-
guration remotely.
g) Remote Conguration Management window displays all performed
conguration actions and connectivity information.

15
15
EN
ET082 GSM/GPRS COMMUNICATOR
5.2.4. Ending the Conguration Process
GPRS
ELAN3
ALARM
After the system conguration is complete, use one of the following methods to end the conguration process:
• Click Disconnect or Stop button and close ELDES Conguration Tool software;
• The session will automatically expire in 20 minutes. Before the last 5 minutes, the software will oer the user to
extend the session for another 20 minutes.
• Alternatively, the connection with the server can be terminated at any time by sending an SMS text message.
Terminate the
connection
SMS text message content:
ssss_ENDCONFIG
Value: ssss – 4-digit SMS password.
Example: 1111_ENDCONFIG
Once the session is expired or terminated, the system will reply with an SMS text message conrming the end of the session.

16
16
EN ET082 GSM/GPRS COMMUNICATOR
6.COMMUNICATION WIRING METHODS
ET082 communicator supports one of the following communication wiring methods:
• RING/TIP interface – The alarm panel is linked up with ET082 communicator via the RING and TIP terminals simulating the connectiv-
ity of the PSTN line. For more details, please refer to 6.1. RING/TIP Interface
• Keybus interface – The alarm panel is linked up with ET082 communicator via the keybus (serial data) interface just like the alarm
panel accessory, such as keypad. For more details, please refer to 6.2. Keybus Interface
ATTENTION: Only one of the aforementioned methods is supported at a time.
6.1. RING/TIP Interface
Using this communication wiring method, the communicator simulates the PSTN line presence for the alarm panel. Depending on the
PSTN line accessibility in the installation area and user requirements, the communicator can be wired to the alarm panel using one of the
following diagrams:
• No PSTN line – The communication link between the alarm panel and the monitoring station is established using ET082 device in the
middle. The communicator retreives data from the alarm panel and transmits it to the monitoring station via the pre-congured com-
munication method. PSTN line is completely excluded from the communication process.

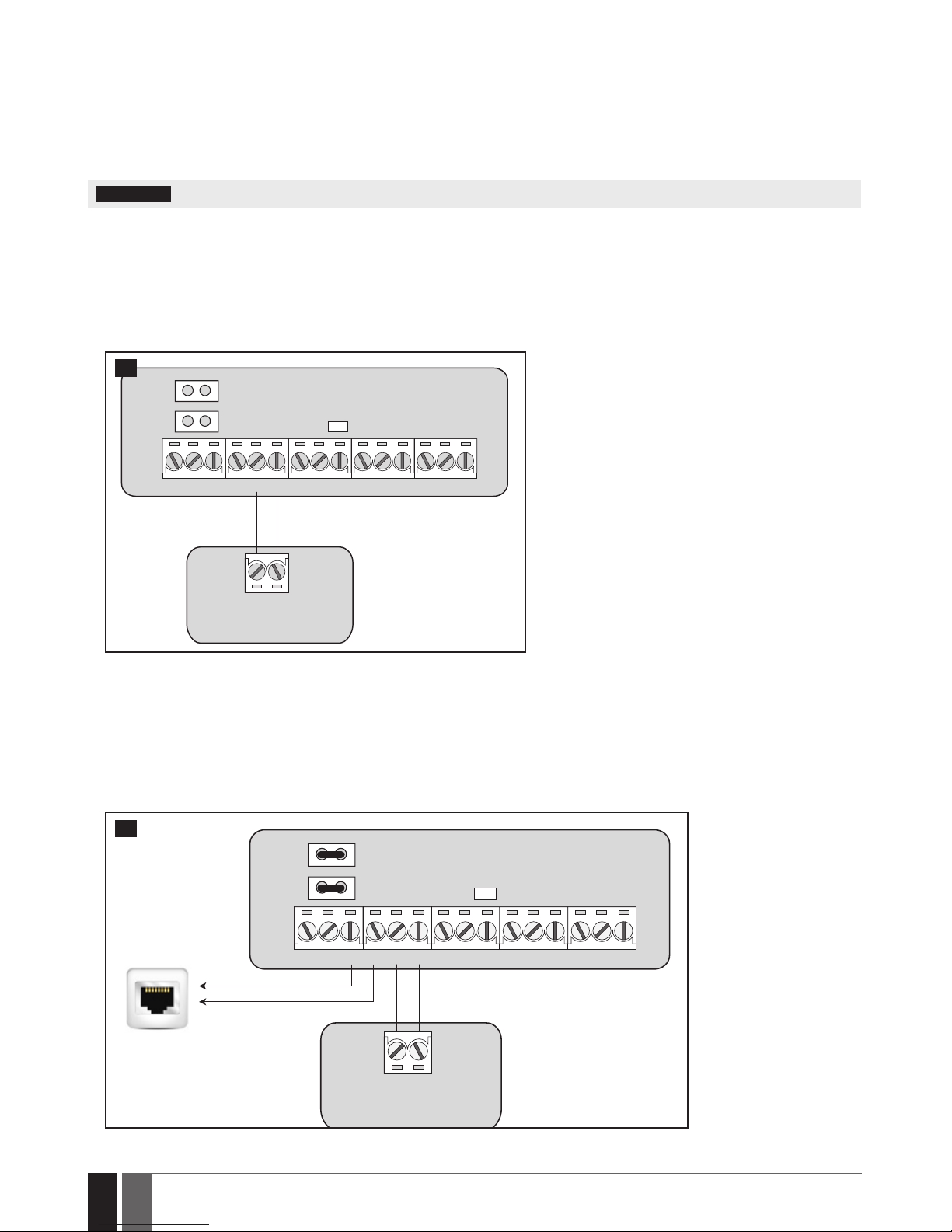

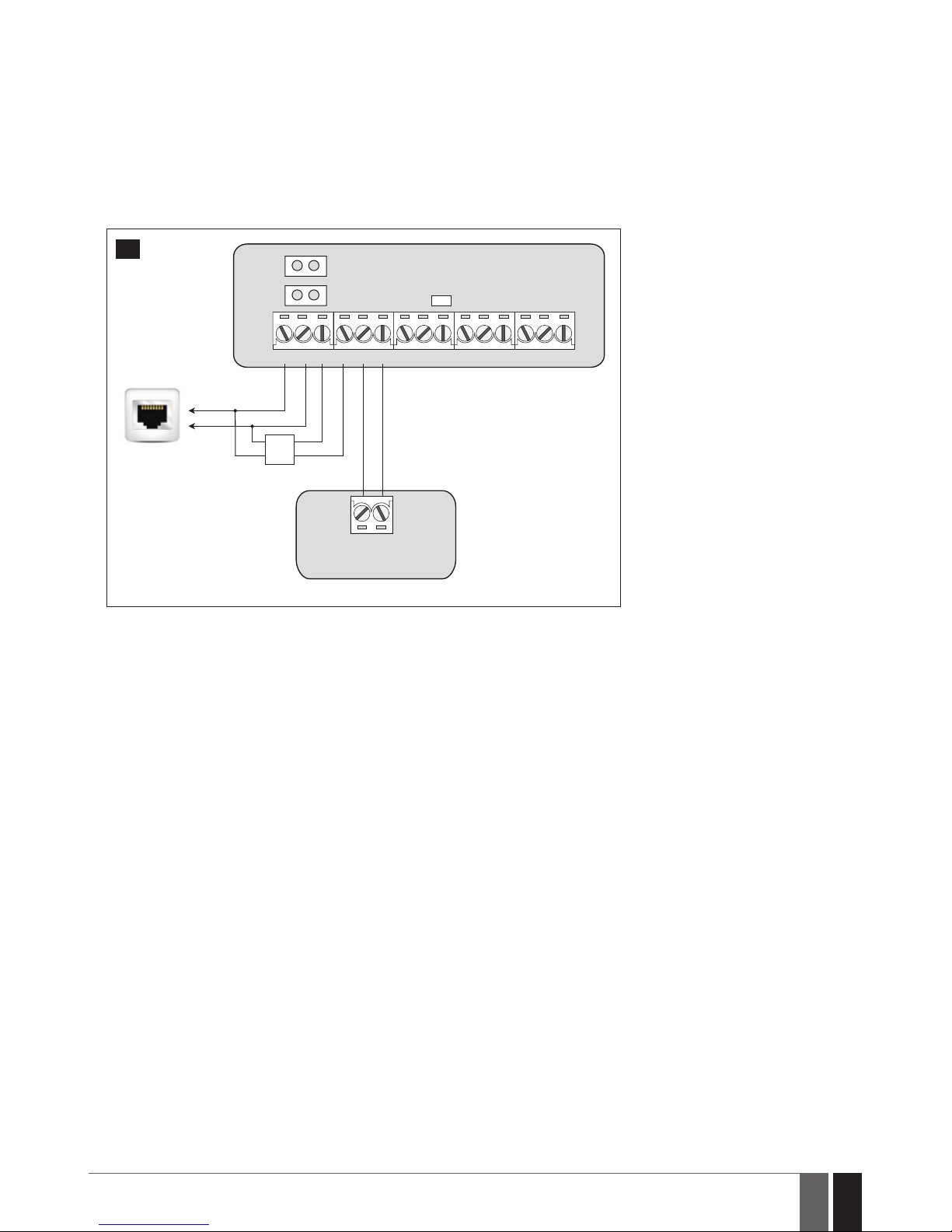

L1 L2 L3 L4 RING TIP

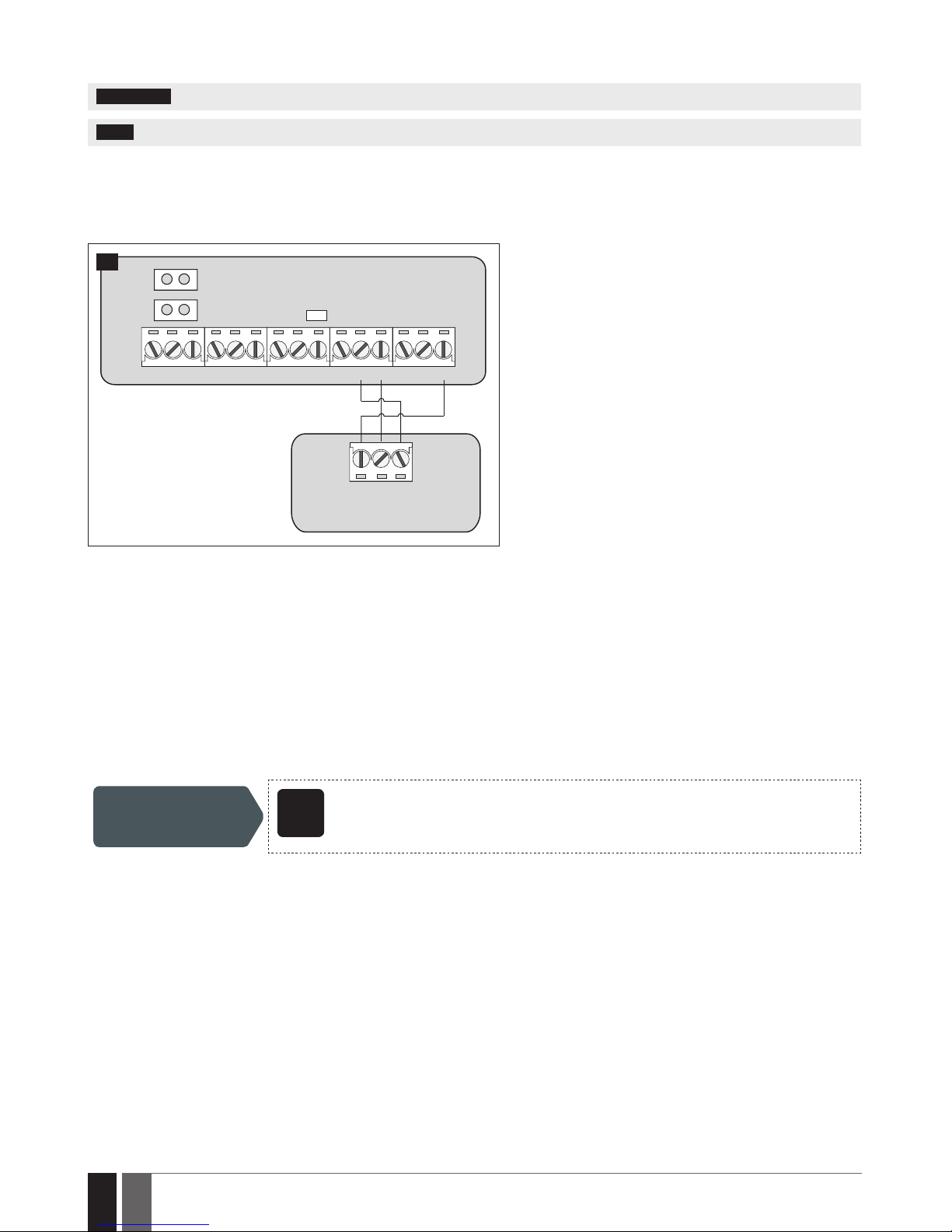

ALARM
PANEL
JP9
JP8
RING TIP
ET082
11
1. Connect the communicator’s RING and TIP terminals to the alarm panel’s RING and TIP terminals respectively.
2. DOT NOT set any jumpers on the communicator’s JP8 and JP9 pins.
• With PSTN Line Supervision – The communication link between the alarm panel and the monitoring station is established directly
via PSTN line adding PSTN state (terminals L3 and L4) supervision provided by ET082 communicator. The communicator is not involved
in the communication process while PSTN connectivity is available. In case of PSTN loss (terminals L3 and L4), the communicator will
take over the communication link and continue data transmission via the pre-congured communication method as described in No
PSTN Line until PSTN connectivity is restored.
L1 L2 L3 L4 RING TIP
ALARM
PANEL
JP9
JP8
RING TIP
to PSTN line
PSTN
Socket
ET082
12

17
17
EN
ET082 GSM/GPRS COMMUNICATOR
1. Connect the communicator’s RING and TIP terminals to the alarm panel’s RING and TIP terminals respectively.
2. Connect L3 and L4 terminals to the PSTN socket.
3. Set the jumpers on the communicator’s JP8 and JP9 pins.
• With External PSTN Line Supervision – The communication link between the alarm panel and the monitoring station is established
directly via PSTN line connected via PBX (private branch exchange) adding external PSTN state (terminals L1 and L2) supervision
provided by ET082 communicator. The communicator is not involved in the communication process while PSTN connectivity is
available. In case of external PSTN loss (terminals L1 and L2), the communicator will take over the communication link and continue
data transmission via the pre-congured communication method as described in No PSTN Line until PSTN connectivity is restored. In
case of internal PSTN loss (terminals L3 and L4), the PSTN connectivity would remain present.
L1 L2 L3 L4 RING TIP
ALARM
PANEL
JP9
JP8
RING TIP
PSTN Socket
to external
PSTN line
to internal
PSTN line
PBX
ET082
13
1. Connect the communicator’s RING and TIP terminals to the alarm panel’s RING and TIP terminals respectively.
2. Connect the communicator’s L1 and L2 terminals in parallel to the external PSTN line of the PBX connected to PSTN socket.
3. Connect L3 and L4 terminals to the internal PSTN line of the PBX.
4. DOT NOT set any jumpers on the communicator’s JP8 and JP9 pins.
For more details on how the PSTN loss is detected and managed by the communicator, please refer to 14. PSTN CONNECTION STATE
MONITORING.

18
18
EN ET082 GSM/GPRS COMMUNICATOR
6.2. Keybus Interface
ATTENTION: This communication wiring method is supported by hardware version ET082-30 and up.
NOTE: PSTN connectivity is NOT supported when using this communication wiring method.
Using this communication wiring method Z1 and Z2 terminals convert to keybus interface for alarm panel connection. In such case Z1 and
Z2 terminals cannot be used as digital inputs.
The communicator retreives serial data from the alarm panel and transmits it to the monitoring station via the pre-congured communi-
cation method.
ALARM
PANEL
JP9
JP8
BLK YEL GRN
Z2 Z1 COM
ET082
14
1. Connect the communicator’s Z2 and Z1 terminals to the alarm panel’s GRN and YEL terminals respectively.
2. If the communicator is powered from the external power supply unit, connect the communicator’s COM terminal to alarm panel’s BLK
(on some alarm panel models GND) terminal.
3. Select the alarm panel model from the list of the supported third-party alarm panels supported by the communicator:
• Paradox SP*
• Paradox EVO192*
• DSC 1616/1832/1864
• DSC PC585
4. Set up the Account number, which reects individual alarm panel’s partition, on the communicator..
To manage the aforementioned parameters, please refer to the following conguration parameter.
Select third-party
alarm panel model
Cong
Tool This operation may be carried out from the PC using the ELDES Conguration Tool software.
* Supported by device s/n: and up.

19
19
EN
ET082 GSM/GPRS COMMUNICATOR
7.COMMUNICATION MODES AND METHODS
ET082 communicator supports Basic and Advanced modes and methods providing a variety of communication protocols. Please, note that
some protocols and communication methods are not supported in Basic mode and vice versa.
Basic mode – The communication methods supported by Basic Mode can be set as primary connection only. Backup connections are NOT
available in this mode.
Advanced mode – The communication methods supported by Advanced Mode can be set as primary or backup connection. The user can
set up to 2 backup connections in any sequence order.
Basic mode* Advanced mode
Method Protocol Method Protocol
Voice Calls (direct channel
via GSM audio)
Ademco Contact ID, 4+2 Voice Calls (GSM audio with data
buering)
Ademco Contact ID, Scan-
com**
SMS – up to 5 user phone
numbers
Ademco Contact ID
(converted to user-understand-
able text)
SMS – up to 5 user phone numbers*** Ademco Contact ID (con-
verted to user-understand-
able text)
IP (GPRS/Ethernet via
ELAN3-ALARM) – 1 desti-
nation IP address
EGR100, Kronos, SIA IP IP (GPRS/Ethernet via ELAN3-ALARM)
– up to 3 destination IP addresses
EGR100, Kronos, SIA IP
Voice Calls (direct channel
via GSM audio) + SMS – up
to 5 user phone number
Ademco Contact ID (by SMS:
converted to user-understandable
text)
CSD
* Supported only when ET082 is linked up with the alarm panel via RING/TIP interface (see 6.1. RING/TIP Interface). Does NOT support
notications to the preset user by SMS text message and data report to the monitoring station regarding PSTN line loss/restore events
(see 14. PSTN CONNECTION STATE MONITORING).
** Supported only when ET082 is linked up with the alarm panel via RING/TIP interface (see 6.1. RING/TIP Interface).
*** Can be used with any communication method of Advanced mode simultaneously (see 7.2.2. SMS Method)

20
20
EN ET082 GSM/GPRS COMMUNICATOR

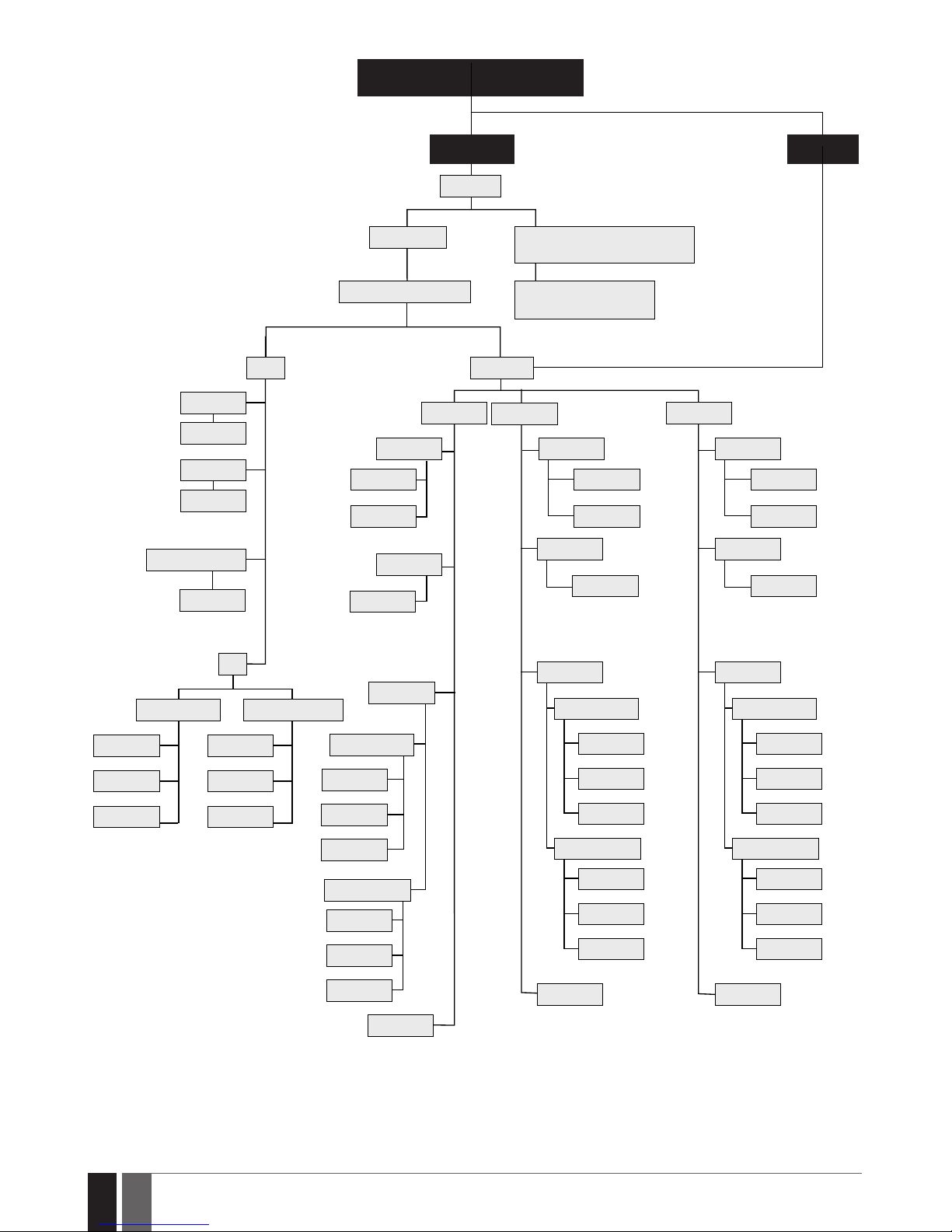

Communication wiring method?
RING/TIP Keybus
PSTN line is being supervised
by ET082 in case it is cut-o
Set by PCB jumper combination
Direct channel
Direct
channel
Converted to
user-under-
standable text
By SMS:
converted to
user-under-
standable text
Set by ELDES Conguration Tool
Diagram?
With PSTN line supervision / With
external PSTN line supervision
No PSTN line
Communication mode? Direct data transmission
to the monitoring station
Voice Calls
Voice Calls + SMS
SMS
Primary
CSDCSD
CSD
Backup 2
EGR100 EGR100
Kronos Kronos
SIA IP SIA IP
Contact ID
Contact ID
Contact ID
IP1
GPRS netwrok ELAN3-ALARM
Basic Advanced
Data bueringData bueringData buering
Converted to
user-under-
standable text
Converted to
user-under-
standable text
Voice CallsVoice CallsVoice Calls
ScancomScancomScancom
Contact IDContact ID
ELAN3-ALARMELAN3-ALARM
ELAN3-ALARM
EGR100EGR100
EGR100
EGR100EGR100
EGR100
KronosKronos
Kronos
KronosKronos
Kronos
SIA IPSIA IP
SIA IP
SIA IPSIA IP
SIA IP
Contact IDContact IDContact ID
SMSSMS
IP1... 3IP1... 3
IP1... 3
GPRS netwrokGPRS netwrok
GPRS netwrok
Backup 1
Converted to
user-under-
standable text
Contact ID
SMS
