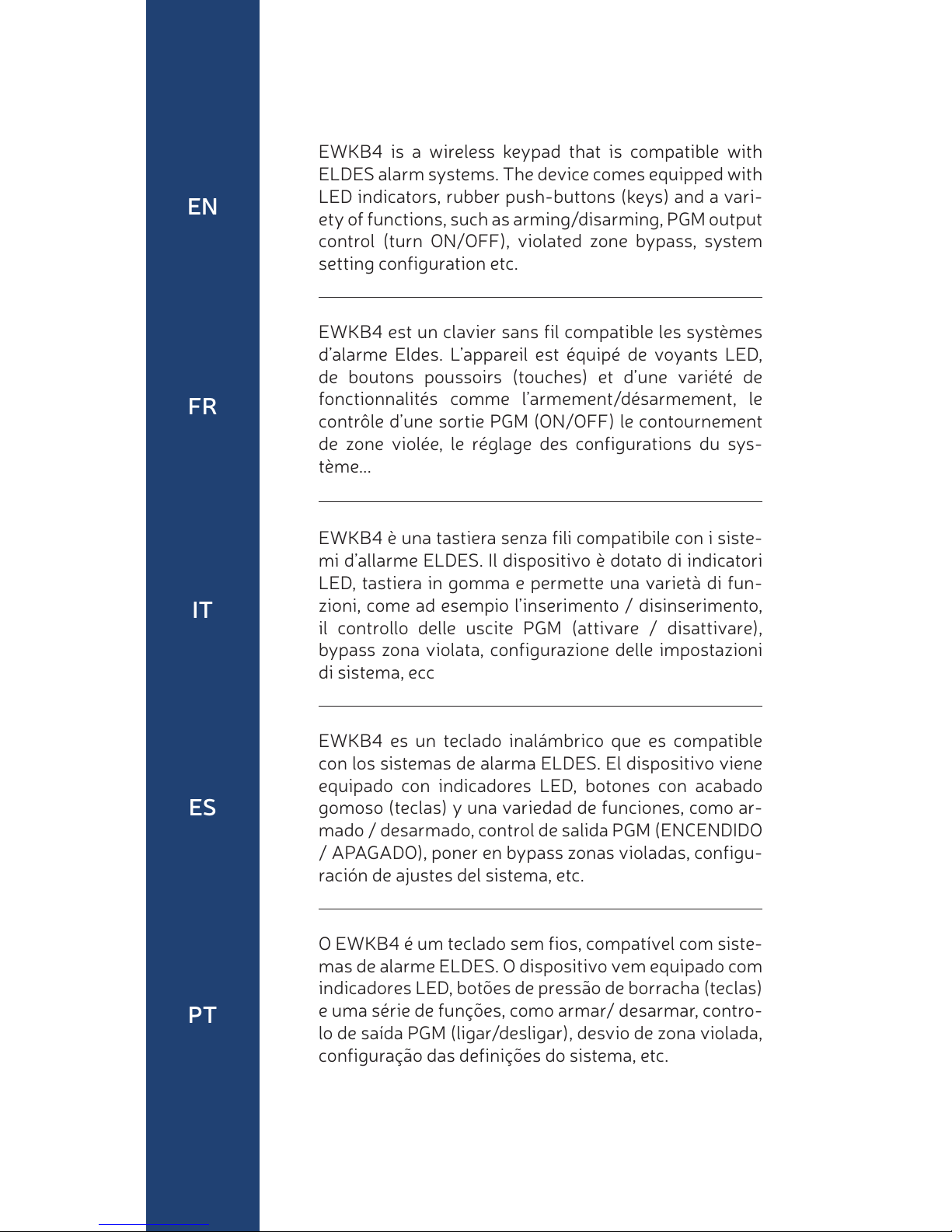

EWKB4 is a wireless keypad that is compaible with
ELDES alarm systems. The device comes equipped with
LED indicators, rubber push-butons (keys) and a vari-
ety of funcions, such as arming/disarming, PGM output
control (turn ON/OFF), violated zone bypass, system
seing coniguraion etc.
EWKB4 est un clavier sans il compaible les systèmes
d’alarme Eldes. L’appareil est équipé de voyants LED,
de boutons poussoirs (touches) et d’une variété de
foncionnalités comme l’armement/désarmement, le
contrôle d’une sorie PGM (ON/OFF) le contournement
de zone violée, le réglage des coniguraions du sys-
tème...
ES
EWKB4 es un teclado inalámbrico que es compaible
con los sistemas de alarma ELDES. El disposiivo viene
equipado con indicadores LED, botones con acabado
gomoso (teclas) y una variedad de funciones, como ar-
mado / desarmado, control de salida PGM (ENCENDIDO
/ APAGADO), poner en bypass zonas violadas, conigu-
ración de ajustes del sistema, etc.
PT
O EWKB4 é um teclado sem ios, compaível com siste-
mas de alarme ELDES. O disposiivo vem equipado com
indicadores LED, botões de pressão de borracha (teclas)
e uma série de funções, como armar/ desarmar, contro-
lo de saída PGM (ligar/desligar), desvio de zona violada,
coniguração das deinições do sistema, etc.

3
EN | FR | IT | ES | PT
1 x
1 x
1 x
4 x
3 x

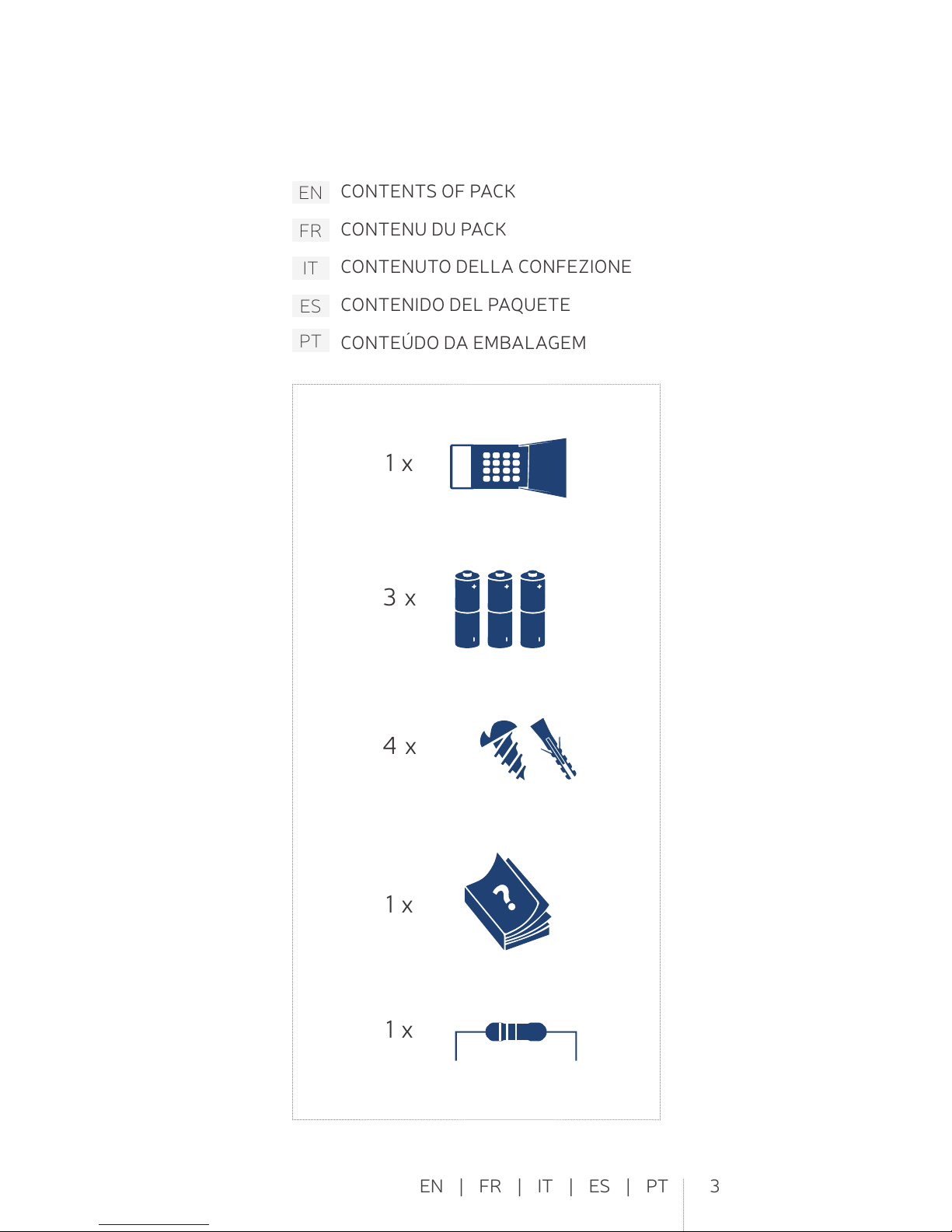

EN CONTENTS OF PACK
FR CONTENU DU PACK
IT CONTENUTO DELLA CONFEZIONE
ES CONTENIDO DEL PAQUETE
PT CONTEÚDO DA EMBALAGEM

4
EN | FR | IT | ES | PT
0,5 - 30m
(1.64 - 98.43t)
METAL
MÉTAL
METALLO
METAL
METAL
INSTALLATION
FR INSTALAÇÃO PT
INSTALLATION
EN
INSTALLAZIONE
IT
INSTALACIÓN
ES
MIN
-10°C(+14°F)
MAX
+55°C(+131°F)

5
EN | FR | IT | ES | PT
1
2

6
EN | FR | IT | ES | PT
4
3

7
EN | FR | IT | ES | PT
5
COM
NO
Magnet
COM
Z1
5,6kΩ
6
COM
NC
Magnet
COM
Z1
5,6 kΩ

8
EN | FR | IT | ES | PT
8
7

9
EN | FR | IT | ES | PT
9
ELDES
coniguraion
sotware

WIRELESS LED KEYPAD EWKB4
10
EN
EN

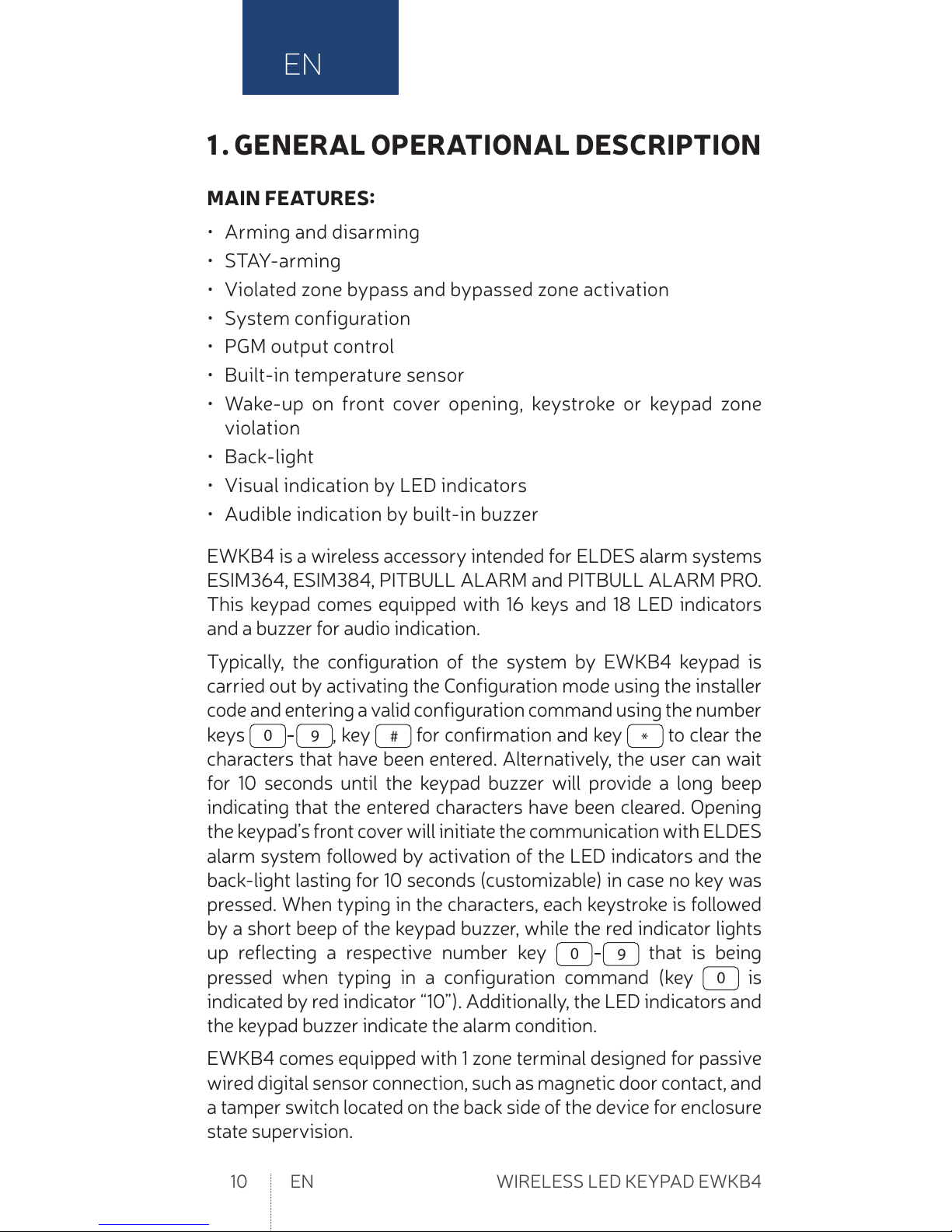

1 .GENERAL OPERATIONAL DESCRIPTION
MAIN FEATURES
• Arming and disarming
• STAY-arming
• Violated zone bypass and bypassed zone acivaion
• System coniguraion
• PGM output control
• Built-in temperature sensor
• Wake-up on front cover opening, keystroke or keypad zone
violaion
• Back-light
• Visual indicaion by LED indicators
• Audible indicaion by built-in buzzer
EWKB4 is a wireless accessory intended for ELDES alarm systems
ESIM364, ESIM384, PITBULL ALARM and PITBULL ALARM PRO.
This keypad comes equipped with 16 keys and 18 LED indicators
and a buzzer for audio indicaion.
Typically, the coniguraion of the system by EWKB4 keypad is
carried out by acivaing the Coniguraion mode using the installer
code and entering a valid coniguraion command using the number
keys
0
9
, key for conirmaion and key
*
to clear the
characters that have been entered. Alternaively, the user can wait
for 10 seconds unil the keypad buzzer will provide a long beep
indicaing that the entered characters have been cleared. Opening
the keypad’s front cover will iniiate the communicaion with ELDES
alarm system followed by acivaion of the LED indicators and the
back-light lasing for 10 seconds (customizable) in case no key was
pressed. When typing in the characters, each keystroke is followed
by a short beep of the keypad buzzer, while the red indicator lights
up relecing a respecive number key
0
9
that is being
pressed when typing in a coniguraion command (key
0
is
indicated by red indicator “10”). Addiionally, the LED indicators and
the keypad buzzer indicate the alarm condiion.
EWKB4 comes equipped with 1 zone terminal designed for passive
wired digital sensor connecion, such as magneic door contact, and
a tamper switch located on the back side of the device for enclosure
state supervision.

WIRELESS LED KEYPAD EWKB4 EN
11
It is possible to connect up to 4 EWKB4 devices to ELDES alarm
system. The maximum wireless connecion range is 1000m
(3281t) (in open areas).
FRONT
1 2 3
4 5 6
7 8 9
*0 #
BACK
Z1 COM
TAMPER
BUZZER
F1
B AT S W
+ -
AA 1.5V
+ -
AA 1.5V
+ -
AA 1.5V
F3
F2
DESCRIPTION
F1, F2, F3 Fuse model MINISMDC050F 0.5A
Z1 Zone terminal
COM Common terminal
TAMPER Switch for enclosure state supervision
BUZZER Sound-signalling component for audible indicaion
BATSW Switch for batery type selecion

WIRELESS LED KEYPAD EWKB4
12
EN

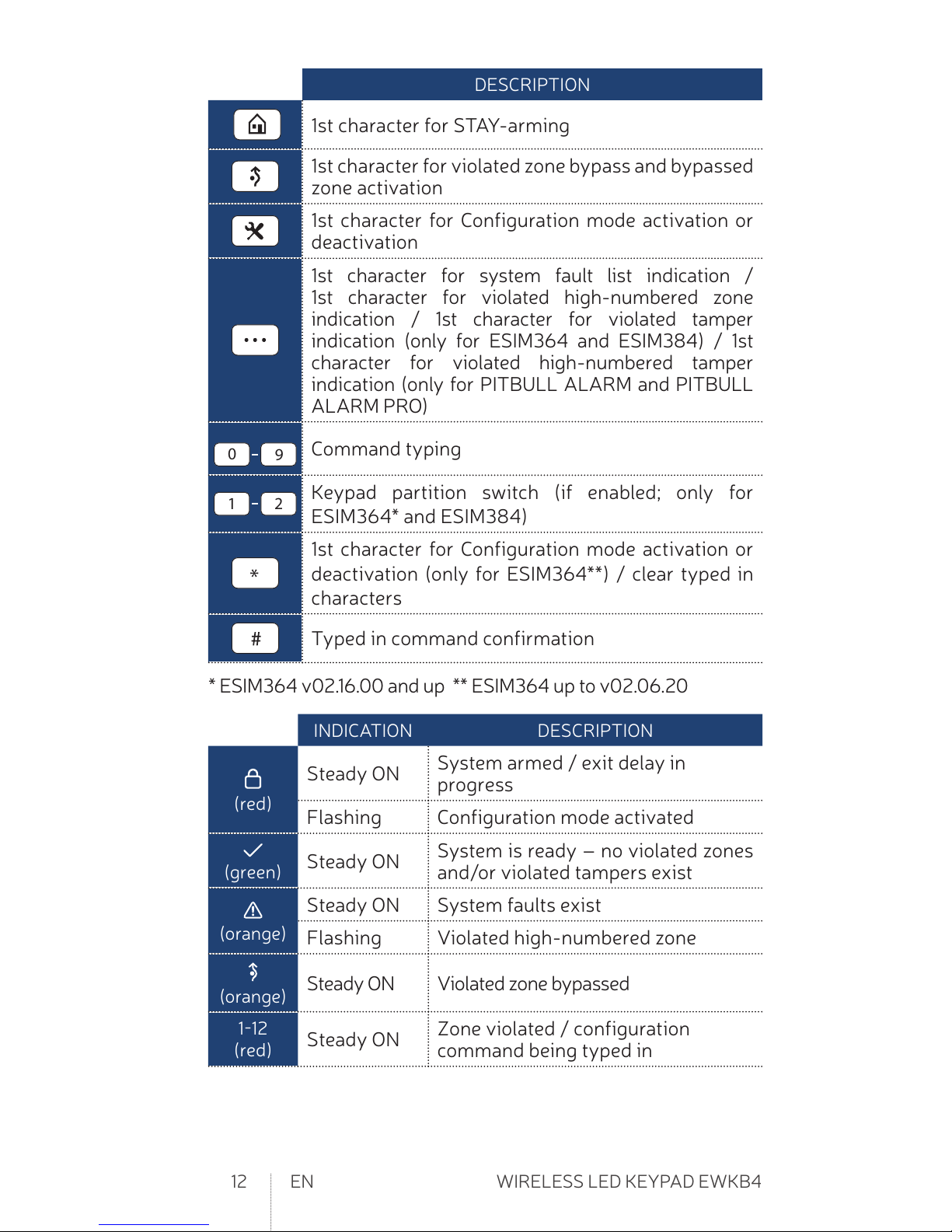

DESCRIPTION
1st character for STAY-arming
1st character for violated zone bypass and bypassed
zone acivaion
1st character for Coniguraion mode acivaion or
deacivaion
1st character for system fault list indicaion /
1st character for violated high-numbered zone
indicaion / 1st character for violated tamper
indicaion (only for ESIM364 and ESIM384) / 1st
character for violated high-numbered tamper
indicaion (only for PITBULL ALARM and PITBULL
ALARM PRO)
0
9
Command typing
1 2 Keypad pariion switch (if enabled; only for
ESIM364* and ESIM384)
*
1st character for Coniguraion mode acivaion or
deacivaion (only for ESIM364**) / clear typed in
characters
Typed in command conirmaion
* ESIM364 v02.16.00 and up ** ESIM364 up to v02.06.20
INDICATION DESCRIPTION
(red)
Steady ON System armed / exit delay in
progress
Flashing Coniguraion mode acivated
(green) Steady ON System is ready – no violated zones
and/or violated tampers exist
(orange)
Steady ON System faults exist
Flashing Violated high-numbered zone
(orange) Steady ON Violated zone bypassed
112
(red) Steady ON Zone violated / coniguraion
command being typed in

WIRELESS LED KEYPAD EWKB4 EN
13
2. CONFIGURING AND PAIRING WITH THE
SYSTEM
ELDES
coniguraion
sotware
For more details on how to conigure and pair
the device with the system, please refer to
ELDES coniguraion sotware’s documen-
taion or ELDES alarm system’s installaion/
user manual located at eldesalarms.com
If you are unable to pair the wireless device, please
restore the parameters of the wireless device to
default and try again (see 6. RESTORING DEFAULT
PARAMETERS for more details.)
3. EWKB4 ZONE AND TAMPER
Upon successful EWKB4 connecion process, the system adds 1
Instant-type wireless zone. The zone can be used for passive wired
sensor connecion, such as magneic door contact intended to be
installed at the designated entry/exit doors and used along with the
keypad buzzer indicaing the opening of the doors, while the system
is disarmed. Once the system is armed, triggering the connected
sensor will result in alarm condiion of the zone.
In case of tamper violaion, the alarm is caused regardless of system
being armed or disarmed. There are 2 ways to detect tamper
violaion on EWKB4:
• By tamper switch. EWKB4 comes equipped with a built-
in tamper switch intended for enclosure supervision. Once
the enclosure of EWKB4 is tampered, the tamper switch will
become triggered. By default, this acion will be followed by
alarm, resuling in sending an SMS text message and/or phone
call to the user. The SMS text message contains the violated
tamper name.
• By wireless connecion loss. The wireless connecion loss
between EWKB4 and ELDES alarm system leads to alarm. The
system ideniies this event as a tamper violaion and sends alarm
by SMS text message and phone call to the user, by default. The
SMS text message contains the wireless device model, wireless ID
code and tamper name. The user will also be noiied by SMS text
message as soon as the wireless signal is restored.

WIRELESS LED KEYPAD EWKB4
14
EN

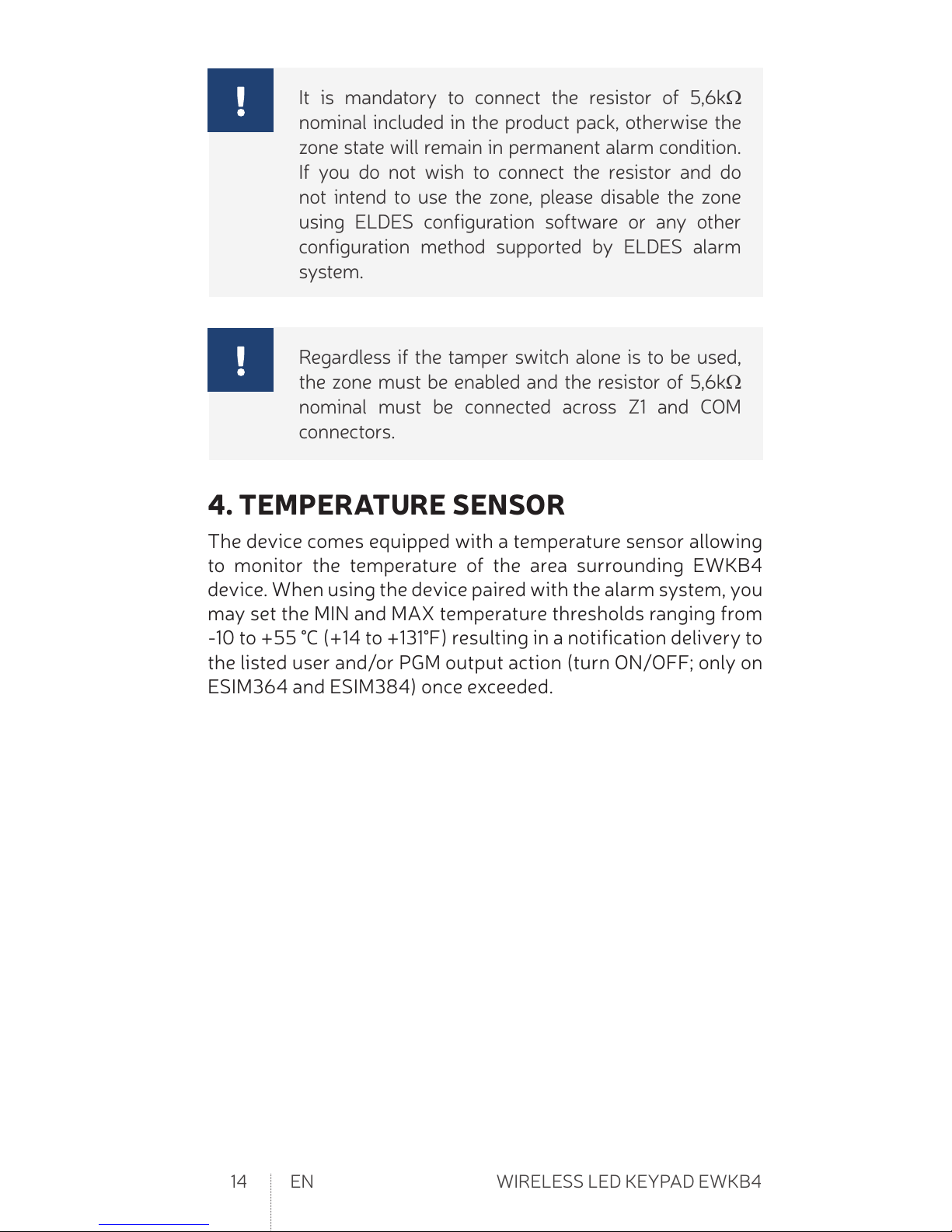

It is mandatory to connect the resistor of 5,6kΩ
nominal included in the product pack, otherwise the
zone state will remain in permanent alarm condiion.
If you do not wish to connect the resistor and do
not intend to use the zone, please disable the zone
using ELDES coniguraion sotware or any other
coniguraion method supported by ELDES alarm
system.
Regardless if the tamper switch alone is to be used,
the zone must be enabled and the resistor of 5,6kΩ
nominal must be connected across Z1 and COM
connectors.
4. TEMPERATURE SENSOR
The device comes equipped with a temperature sensor allowing
to monitor the temperature of the area surrounding EWKB4
device. When using the device paired with the alarm system, you
may set the MIN and MAX temperature thresholds ranging from
-10 to +55 °C (+14 to +131°F) resuling in a noiicaion delivery to
the listed user and/or PGM output acion (turn ON/OFF; only on
ESIM364 and ESIM384) once exceeded.

WIRELESS LED KEYPAD EWKB4 EN
15
5. BATTERY REPLACEMENT
Z1 COM
TAMPER
F3
B AT S W
Z1 COM
TAMPER
F3
B AT S W
Z1 COM
TAMPER
F3
B AT S W
1. Open EWKB4 enclosure.
2.Remove the old bateries from the batery slots using NO
sharp tools (DO NOT use any screwdriver, knife etc.).
3.Select the appropriate batery type that is intended to be used
by sliding the batery type switch (BATSW) to the posiion
needed.
4.Insert the new bateries based on the batery slot posiive/
negaive terminals indicated on the batery slots of EWKB4.
We strongly recommend to use quality brand
bateries, such as: GP, Ansmann, Energizer.

WIRELESS LED KEYPAD EWKB4
16
EN

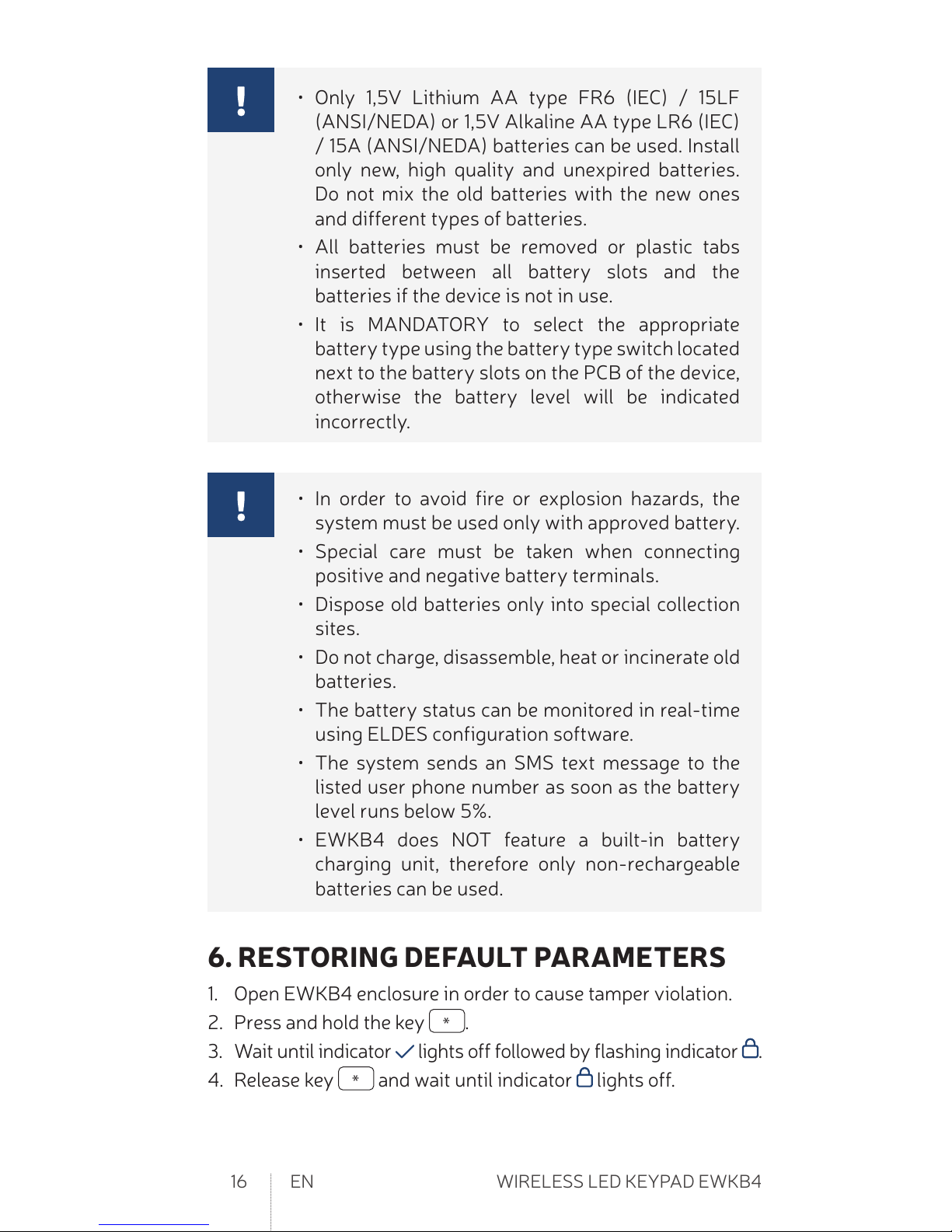

• Only 1,5V Lithium AA type FR6 (IEC) / 15LF
(ANSI/NEDA) or 1,5V Alkaline AA type LR6 (IEC)
/ 15A (ANSI/NEDA) bateries can be used. Install
only new, high quality and unexpired bateries.
Do not mix the old bateries with the new ones
and diferent types of bateries.
• All bateries must be removed or plasic tabs
inserted between all batery slots and the
bateries if the device is not in use.
• It is MANDATORY to select the appropriate
batery type using the batery type switch located
next to the batery slots on the PCB of the device,
otherwise the batery level will be indicated
incorrectly.
• In order to avoid ire or explosion hazards, the
system must be used only with approved batery.
• Special care must be taken when connecing
posiive and negaive batery terminals.
• Dispose old bateries only into special collecion
sites.
• Do not charge, disassemble, heat or incinerate old
bateries.
• The batery status can be monitored in real-ime
using ELDES coniguraion sotware.
• The system sends an SMS text message to the
listed user phone number as soon as the batery
level runs below 5%.
• EWKB4 does NOT feature a built-in batery
charging unit, therefore only non-rechargeable
bateries can be used.
6. RESTORING DEFAULT PARAMETERS
1. Open EWKB4 enclosure in order to cause tamper violaion.
2. Press and hold the key
*
.
3. Wait unil indicator lights of followed by lashing indicator .
4. Release key
*
and wait unil indicator lights of.

WIRELESS LED KEYPAD EWKB4 EN
17
7. TECHNICAL SPECIFICATIONS
Compaible with:
• ESIM364 v02.16.00 and up.
• ESIM384 all versions.
• PITBULL ALARM v2.05.00 and up.
• PITBULL ALARM PRO all versions.
Batery type 1,5V Lithium AA type FR6
(IEC) / 15LF (ANSI/NEDA)
or 1,5V Alkaline AA type LR6
(IEC) / 15A (ANSI/NEDA)
Number of bateries 3
Batery operaion ime Up to 6 years (Lithium
batery)* or up to 4 years
(Alkaline batery)*
Wireless band ISM868 or ISM915**
Range of operaing
temperatures
-10...+55 °C (+14... +131°F)
Humidity 0-90% RH @ 0... +40°C (0-
90% RH @ +32... +104°F) (non-
condensing)
Dimensions 145x80x29mm
(5,71x3.15x1.14in)
Wireless communicaion
range.
Up to 30m (98.43t) in
premises; up to 1000m
(3281t) in open areas
Compaible with alarm
systems
ELDES Wireless
* This operaing ime may vary in diference condiions.
** Depends on region.
TERMS OF USE
The following terms and condiions govern use of the EWKB4
device and contains important informaion on limitaions re-
garding the product’s use and funcion, as well as informaion
on the limitaions of the manufacturer’s liability. Please care-
fully read these terms and condiions. For more informaion on
your product, please visit eldesalarms.com
TECHNICAL SUPPORT
In order to ensure coninuous and proper operaion of the

WIRELESS LED KEYPAD EWKB4
18
EN
EWKB4 device and uninterrupted service, it is the responsi-
bility of the User to make sure that: (I) the product is properly
installed, and (II) there is constant electrical supply (low batery
must be replaced in ime).
If you experience diiculty during the installaion or subse-
quent use of the system, you may contact “ELDES, UAB” dis-
tributor or dealer in your country/region. For more informaion
see eldesalarms.com
SAFETY INSTRUCTIONS
Please read and follow these safety guidelines in order to
maintain safety of operators and people around:
• DO NOT use the device where it can cause potenial danger
and interfere with other devices – such as medical devices.
• DO NOT use the device in hazardous environment.
• DO NOT expose the device to high humidity, chemical
environment or mechanical impact.
• DO NOT atempt to repair the device yourself – any repairs
must be carried out by fully qualiied personnel only.
• EWKB4 can be powered by 3 bateries of 1,5V Lithium AA
type FR6 (IEC) / 15LF (ANSI/NEDA) or 1,5V Alkaline AA type
LR6 (IEC) / 15A (ANSI/NEDA). When insering the bateries
into the batery slots, mind the polarity terminals!
• To switch the device of, remove all bateries. A blown fuse
cannot be replaced by the user. The replacement fuse has to
be of the kind indicated by the manufacturer (fuse F1, F2, F3
model – MINISMDC050F 0.5A).
• The device is not meant for outdoor use, i.e. you should use
it inside a building. Protect the device against cold, heat and
keep away from direct sunlight while in storage or operaion.
WARRANTY PROCEDURES
Warranty and out of warranty service should be obtained by
contacing the system integrator/dealer/retailer/e-tailer or
distributor where the customer purchased the product. When
requesing for service, the proof of purchase and the product
serial number must be provided. The return of the defecive
product should be strictly through the original route of purchase,
andthe customersshallpacktheproductappropriatelytoprevent
the returned product from sufering in the transportaion.

WIRELESS LED KEYPAD EWKB4 EN
19
MANUFACTURER WARRANTY
“ELDES, UAB” provides a limited warranty for its products only
to the person or enity that originally purchased the product from
“ELDES, UAB” or its authorized distributor or retailer and only in
case of defecive workmanship and materials under normal use of
the system for a period of twenty four (24) months from the date
of shipment by the “ELDES, UAB” (Warranty Period). Warranty
obligaions do not cover expandable materials (power elements
and/or bateries), holders and enclosures. The warranty remains
valid only if the system is used as intended, following all guidelines
outlined in this manual and in accordance with the operaing
condiions speciied. The warranty is void if the system has been
exposed to mechanical impact, chemicals, high humidity, luids,
corrosive and hazardous environments or force majeure factors.
If a hardware defect arises and a valid claim is received within the
Warranty Period, at its own discreion, “ELDES, UAB” will either
(a) repair a hardware defect at no charge, using new or refurbished
replacement parts, or (b) exchange the product with a product that
is new or which has been manufactured from new or serviceable
used parts and is at least funcionally equivalent to the original
product, or (c) refund the purchase price of the product.
LIMITED LIABILITY
The buyer must agree that the system will reduce the risk thet,
burglary or other dangers but does not provide guarantee against
such events. “ELDES, UAB” will not assume any responsibility
regarding personal or property, or revenue loss while using the
system.
“ELDES, UAB” shall also assume no liability due to direct or
indirect damage or loss, as well as unreceived income when
using the system, including cases, when the damages arise
due to the above menioned risks, when due to breakdown or
malfuncion the user is not informed in a imely manner about a
risk which has arisen. In any case, the liability of “ELDES, UAB”,
as much as it is allowed by the laws in force, shall not exceed the
price of acquisiion of the product.

WIRELESS LED KEYPAD EWKB4
20
EN
CONSUMER PROTECTION LAWS
FOR CONSUMERS WHO ARE COVERED BY CONSUMER
PROTECTION LAWS OR REGULATIONS IN THEIR COUNTRY
OF PURCHASE OR, IF DIFFERENT, THEIR COUNTRY
OF RESIDENCE, THE BENEFITS CONFERRED BY THIS
WARRANTY ARE IN ADDITION TO ALL RIGHTS AND
REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION
LAWS AND REGULATIONS. This warranty grants upon you
speciic legal rights, and you may also have other rights that vary
by country, state or province.
DISPOSAL AND RECYCLING INFORMATION
The WEEE (Waste Electrical and Electronic Equipment)
symbol on this product (see let) means it must not be dis-
posed of in household waste. To prevent possible harm to
human health and/or the environment, you must dispose
of this product in an approved and environmentally safe
recycling facility. For further informaion contact your sys-
tem supplier, or your local waste authority.
Copyright © ELDES UAB, 2017. All rights reserved
It is strictly forbidden to copy and distribute the infor-
maion contained in this document or to pass thereof to
a third party without an a priori writen authorizaion
obtained from “ELDES, UAB”. “ELDES, UAB” reserves the
right to update or modify this document and/or related
products without an a priori warning. “ELDES, UAB” here-
by declares that wireless LED keypad EWKB4 is in com-
pliance with the essenial requirements and other relevant
provisions of the Direcive 1999/5/EC. The declaraion of
conformity is available at eldesalarms.com.
