Electrolux EPF18V1O8 User manual

EN
IT
PL
Installation Manual
Manuale di installazione
Podręcznik Instalacji
2
32
62
EPF18V1O8
EPF27V1O8
EPF36V1O8
EPF42V1O8

2 www.electrolux.com
CONTENTS
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it
has been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time. Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Subject to change without notice.
1. ACCESSORIES.................................................................................................. 3
2. SAFETY PRECAUTIONS ................................................................................... 4
3. INSTALLATION OVERVIEW .............................................................................. 7
4. INSTALLATION DIAGRAM ................................................................................ 8
5. SPECIFICATIONS .............................................................................................. 9
6. OUTDOOR UNIT INSTALLATION ................................................................... 10
7. REFRIGERANT PIPING CONNECTION ......................................................... 13

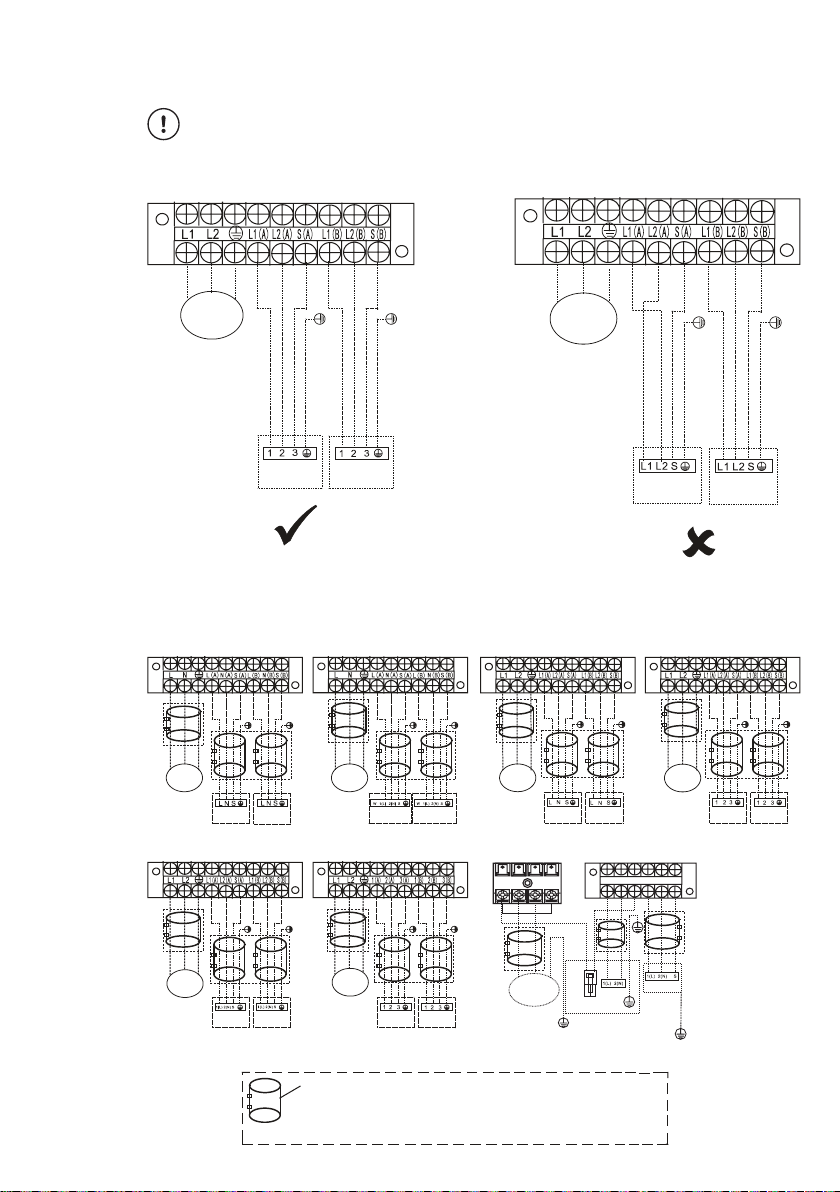

8. WIRING ............................................................................................................ 16
9. AIR EVACUATION ........................................................................................... 22
10. TEST RUN ........................................................................................................ 24
11. FUNCTION OF AUTOMATIC WIRING/PIPING CORRECTION ...................... 25
12. EUROPEAN DISPOSAL GUIDELINES............................................................ 26
13. INFORMATION SERVICING ........................................................................... 27

3ENGLISH

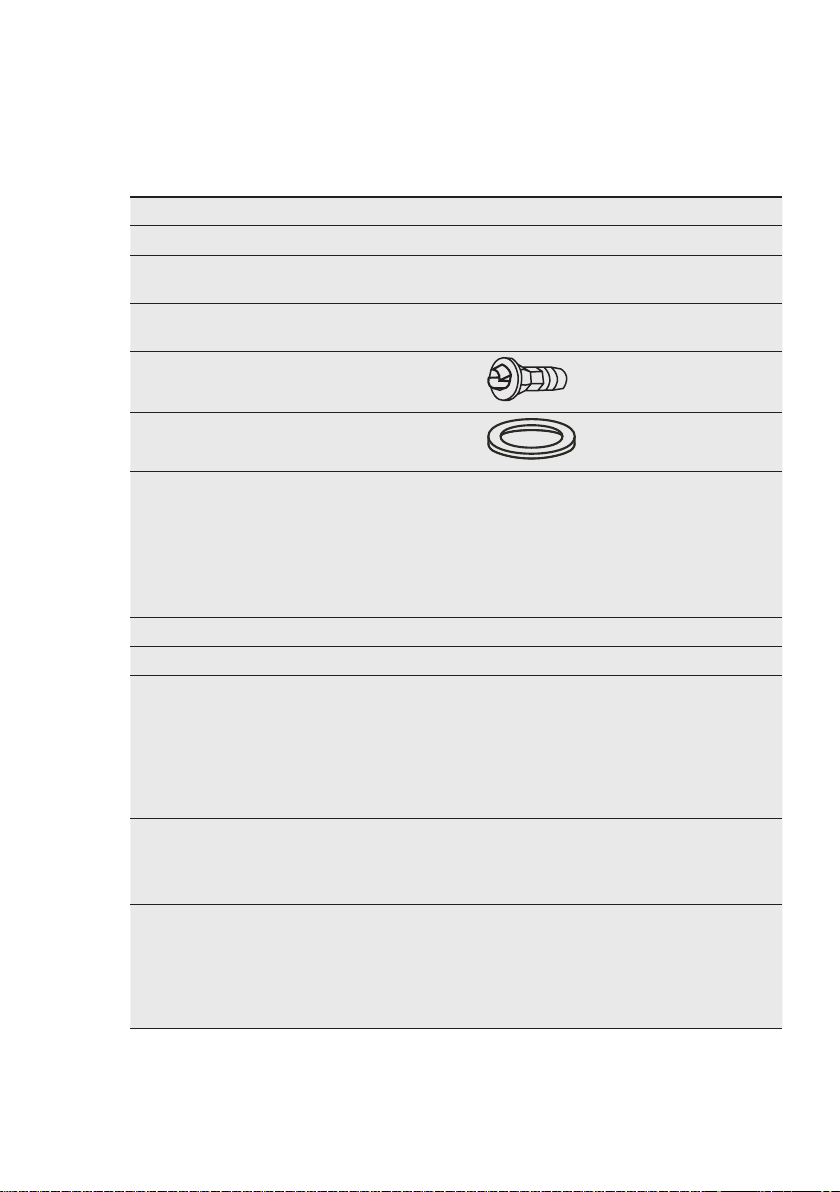

1. ACCESSORIES
The air conditioning system comes with
the following accessories. Use all of the
installation parts and accessories to install
Name Shape Quantity
Installation plate 1
Plastic expansion sheath 5-8
(depending on models)
Self-Tapping Screw A ST3.9X25 5-8
(depending on models)
Drain joint (some models) 1
Seal ring (some models) 1
Connecting pipe
assembly Liquid side Ø6.35 Parts you must purchase. Consult
a technician for the
proper size.
Ø9.52
Gas side Ø9.52
Ø12.7
Ø15.9
Owner’s manual 1
Installation manual 1
Transfer connector (packed with the indoor
or outdoor unit, depending on models)
NOTE: Pipe size may di󰘯er from appliance
to appliance. To meet di󰘯erent pipe
size requirements, sometimes the pipe
connections need a transfer connector
installed on the outdoor unit.
Optional part (one
piece/one indoor unit)
Optional part
(1-5 pieces for outdoor
unit, depending on
models)
Magnetic ring
(Hitch on the connective cable between
the indoor unit and outdoor unit after
installation.)
Optional part
(one piece/one cable)
Cord protection rubber ring
(If the cord clamp cannot fasten on a small
cord, use the cord protection rubber ring
[supplied with accessories] to wrap around
the cord. Then 󰘰x it in place with the cord
clamp.)
1 (on some models)
Optional Accessories
There are two types of remote controls:
wired and wireless.
Select a remote controller based on
customer preferences and requirements
and install in an appropriate place.
the air conditioner. Improper installation
may result in water leakage, electrical
shock and 󰘰re, or equipment failure.
Refer to catalogues and technical
literature for guidance on selecting
a suitable remote controller.

4 www.electrolux.com
2. SAFETY PRECAUTIONS
2.1 Read safety precautions
before installation
Incorrect installation due to ignoring
instructions can cause serious
damage or injury.
The seriousness of potential damage
or injuries is classi󰘰ed as either a
WARNING or CAUTION.
WARNING
Failure to observe a warning may
result in death. The appliance
must be installed in accordance
with national regulations.
CAUTION
Failure to observe a caution
may result in injury or equipment
damage.
WARNING
• Carefully read the Safety
Precautions before
installation.
• In certain functional
environments, such as
kitchens, server rooms, etc.,
the use of specially designed
air-conditioning units is highly
recommended.
• Only trained and certi󰄈ed
technicians should install,
repair and service this air
conditioning unit.
Improper installation may result
in electrical shock, short circuit,
leaks, 󰘰re or other damage to
the equipment and personal
property.
• Strictly follow the installation
instructions set forth in this
manual.
Improper installation may result
in electrical shock, short circuit,
leaks, 󰘰re or other damage to
the equipment.
• Before you install the unit,
consider strong winds, typhoons
and earthquakes that might
a󰘯ect your unit and locate it
accordingly. Failure to do so
could cause the equipment to fail.
• After installation, ensure there
are no refrigerant leaks and that
the unit is operating properly.
Refrigerant is both toxic and
󰘱ammable and poses a serious
health and safety risk.
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved. Children shall not play
with the appliance. Cleaning
and user maintenance shall not
be made by children without
supervision.
• Do not use means to
accelerate the defrosting
process or to clean, other than
those recommended by the
manufacturer.
WARNING
• The appliance disconnection
must be incorporated with an all-
pole disconnection device in the
󰘰xed wiring in accordance with
the wiring rules.
• Any person who is involved with
working on or breaking into a
refrigerant circuit should hold a
current valid certi󰘰cate from an
industry-accredited assessment
authority, which authorises
their competence to handle

5ENGLISH
refrigerants safely in accordance
with an industry recognised
assessment speci󰘰cation.
• Servicing shall only be
performed as recommended by
the equipment manufacturer.
Maintenance and repair
requiring the assistance of other
skilled personnel shall be carried
out under the supervision of the
person competent in the use of
󰘱ammable refrigerants.
• The appliance shall be stored
so as to prevent mechanical
damage from occurring.
• Keep ventilation openings clear
of obstruction.
NOTE: The following informations are
required for the units adopt R32/R290
Refrigerant.
• The appliance shall be stored in a
room without continuously operating
ignition sources (for example: open
󰘱ames, an operating gas appliance or
an operating electric heater).
• Do not pierce or burn.
• Be aware that the refrigerants may not
contain an odour.
• Compliance with national gas
regulations shall be observed.
• Appliance shall be stored in a well-
ventilated area where the room size
corresponds to the room area as
speci󰘰ed for operation.
• Appliance shall be installed, operated
and stored in a room with a 󰘱oor area
larger than X m² (Please see the
following form). The appliance shall not
be installed in an unventilated space,
if that space is smaller than X m²
(Please see the following form).
Note about Fluorinated Gasses
1. This air-conditioning unit contains
󰘱uorinated gasses. For speci󰘰c
information on the type of gas and
the amount, please refer to the
relevant label on the unit itself.
2. Installation, service, maintenance
and repair of this unit must be
performed by a certi󰘰ed technician.
3. Product uninstallation and recycling
must be performed by a certi󰘰ed
technician.
4. If the system has a leak-detection
system installed, it must be checked
for leaks at least every 12 months.
5. When the unit is checked for leaks,
proper record-keeping of all checks
is strongly recommended.
Model (Btu/h) Amount of refrigerant
to be charged (kg)
Maximum installation
height (m)
Minimum room
area (m²)
≤30000 ≤2.048 2.2m 4
≤30000 ≤2.048 1.8m 4
≤30000 ≤2.048 0.6m 35
30000-48000 2.048-3.0 2.2m 4
30000-48000 2.048-3.0 1.8m 8
30000-48000 2.048-3.0 0.6m 80
>48000 >3.0 2.2m 5
>48000 >3.0 1.8m 9
>48000 >3.0 0.6m 80

6 www.electrolux.com
Explanation of symbols displayed
on the indoor unit or outdoor unit
(applicable to the unit adopts R32/
R290 Refrigerant only):
WARNING
This symbol shows that this
appliance uses a 󰘱ammable
refrigerant. If the refrigerant is
leaked exposed to an external
ignition source, there is a risk of 󰘰re.
CAUTION
This symbol shows that the
operation manual should be read
carefully.
CAUTION
This symbol shows that a service
personnel should be handling this
equipment with reference to the
installation manual.
CAUTION
This symbol shows that a service
personnel should be handling this
equipment with reference to the
installation manual.
CAUTION
This symbol shows that
information is available such
as the operating manual or
installation manual.
R32 refrigerant warning
This product uses R32
di󰘱uoromethane refrigerant, which
is a mildly 󰘱ammable gas class
2.2 according to ISO 5149 and
must be handled by a refrigeration
mechanic with appropriate
refrigerant handling licence.
F-Gas
Refrigerant: R32;
Refrigerant leakage contributes to
climate change. Refrigerant with lower
global warming potential (GWP) would
contribute less to global warming than
a refrigerant with higher GWP, if leaked
to the atmosphere. This appliance
contains a refrigerant 󰘱uid with a GWP
equal to 675. This means that if 1 kg
of this refrigerant 󰘱uid would be leaked
to the atmosphere, the impact on global
warming would be 675 times higher than
1 kg of CO2, over a period of 100 years.
Never try to interfere with the refrigerant
circuit yourself or disassemble the
product yourself and always ask
a professional. The product or equipment
contains 󰘱uorinated greenhouse gases,
and the 󰘱uorinated greenhouse gases
are contained in hermetically sealed
equipment.
Model 18K 27K 36K 42K
Charge (kg) 1.30 1.57 2.10 2.40
CO2 Equivalent (tonnes) 0.878 1.060 1.418 1.620

7ENGLISH

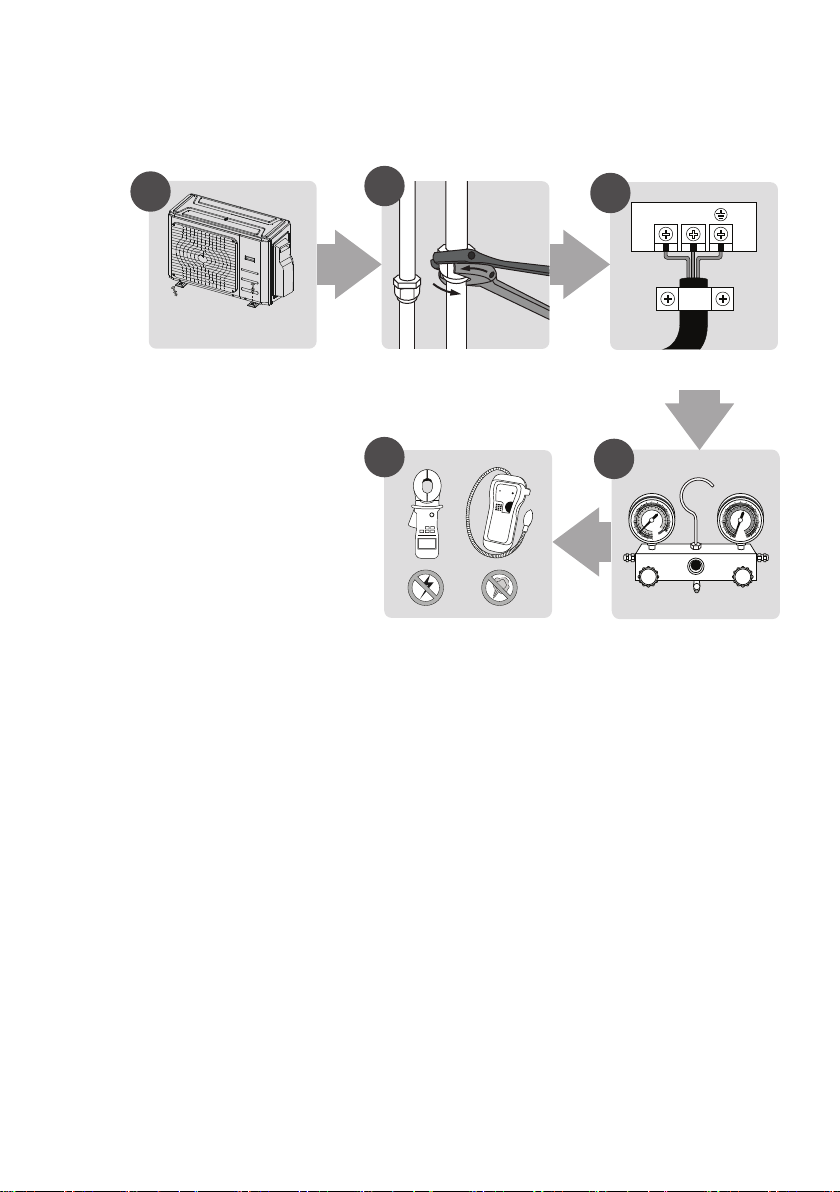

3.1 Installation order
/1



0& 0&


,QVWDOOWKHRXWGRRUXQLW
3DJH
&RQQHFWWKHZLUHV
3DJH
&RQQHFWWKHUHIULJHUDQWSLSHV
3DJH
3HUIRUPDWHVWUXQ
3DJH
(YDFXDWHWKHUHIULJHUDWLRQ
V\VWHP
3DJH
3. INSTALLATION OVERVIEW

8 www.electrolux.com

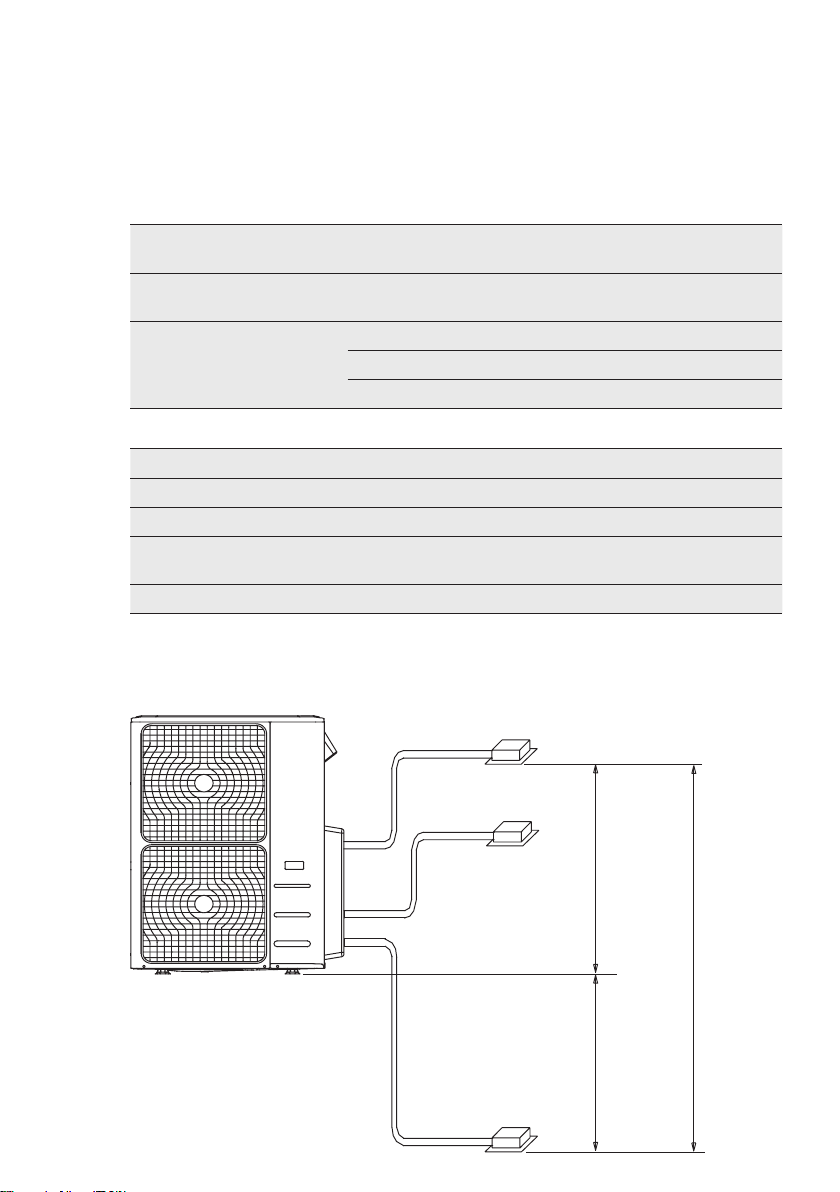

4. INSTALLATION DIAGRAM
4.1 Installation Diagram


&OLSDQFKRU
$LUILOWHU





2QH7ZR
2QH7KUHH
2QH)RXUH
2QH)LYH


,QVWDOODWLRQSODWH
&OLSDQFKRU



$LUEUHDN6ZLWFK
'UDLQDJH
3LSH
0RUHWKDQFP
0RUHWKDQFP
0RUHWKDQFP
$LUILOWHU
0RUHWKDQFP
0RUHWKDQ
FP
0RUHWKDQ
FP
0RUHWKDQ
FP
0RUHWKDQ
FP
0RUHWKDQFP
0RUHWKDQ
FP
$LUEUHDN
6ZLWFK
0RXQWLQJVFUHZ
67&+ 0RUHWKDQFP
5HPRWH
FRQWUROOHU
$LUILOWHU
5HPRWH
FRQWUROOHU
$LUILOWHU
$LUILOWHU
5HPRWH
FRQWUROOHU
5HPRWH
FRQWUROOHU
5HPRWH
FRQWUROOHU
KROGHU
2XWGRRU8QLW
3RZHU&DEOH
7KHPD[LPXP
DPRXQWRIWKH
FRQQHFWLRQFDEOHV
LV7KLVVHFWLRQLV
IRUUHIHUHQFHRQO\
$LURXW
0RUHWKDQFP
0RUHWKDQ
FP
0RUHWKDQ
FP
,QVWDOODWLRQ
SODWH
5HIULJHUDQW
SLSH
5HPRWH
FRQWUROOHU
5HPRWH
FRQWUROOHU
KROGHU
0RXQWLQJVFUHZ
67&+
0RUHWKDQFP
0RUHWKDQ
FP
0RUHWKDQ
FP
0RUHWKDQFP
$LURXW
4.2 Safety Precautions
CAUTION
• To prevent wall damage, use
a stud 󰘰nder to locate studs.
• A minimum pipe run of 3 metres
is required to minimise vibration
& excessive noise.
• Two of the A, B, and C air
circulation pathways must be
free from obstructions at all
times.
• This illustration is for
demonstration purposes only.
• The actual shape of your air
condtioner may be slightly
di󰘯erent.
• Copper lines must be
independently insulated.

9ENGLISH
5. SPECIFICATIONS
NOTE: The installation must be
performed in accordance with the
requirement of local and national
When installing multiple indoor units
with a single outdoor unit, ensure that
the length of the refrigerant pipe and
Table 5.2 Unit: m/ft.
1 drive 2 1 drive 3 1 drive 4 1 drive 5
Max. length for all rooms 40/131 60/197 80/262 80/262
Max. length for one indoor unit 25/82 30/98 35/115 35/115
Max. height di󰘯erent between indoor
and outdoor unit
15/49 15/49 15/49 15/49
Max. height di󰘯erent between indoor units 10/33 10/33 10/33 10/33
Table 5.1
Number of units that can
be used together Connected units 1-5 units
Compressor stop/start
frequency Stop time 3 min or more
Power source voltage voltage 󰘱uctuation within ±10% of rated voltage
voltage drop during start within ±15% of rated voltage
interval unbalance within ±3% of rated voltage
PIW
,QGRRUXQLW
,QGRRUXQLW
,QGRRUXQLW
0D[+HLJKWGLIIHUHQFH
2XWGRRUXQLW
PIW
PIW
standards. The installation may be
slightly di󰘯erent in di󰘯erent areas.
the drop height between the indoor and
outdoor units meet the requirements
illustrated in the following diagram:

10 www.electrolux.com
6. OUTDOOR UNIT INSTALLATION
6.1 Outdoor Unit Installation
Instructions
Step 1: Select installation location.
The outdoor unit should be installed in
the location that meets the following
requirements:
• Place the outdoor unit as close
to the indoor unit as possible.
• Ensure that there is enough room
for installation and maintenance.
• The air inlet and outlet must not be
obstructed or exposed to strong wind.
• Ensure the location of the unit will not
be subject to snowdrifts, accumulation
of leaves or other seasonal debris.
If possible, provide an awning for
the unit. Ensure the awning does
not obstruct air󰘱ow.
• The installation area must be dry and
well ventilated.
• There must be enough room to install
the connecting pipes and cables and
to access them for maintenance.
6WURQJZLQG
6WURQJZLQ
G
Fig. 6.1
• The area must be free of combustible
gases and chemicals.
• The pipe length between the outdoor
and indoor unit may not exceed the
maximum allowable pipe length.
• If possible, DO NOT install the unit
where it is exposed to direct sunlight.
• If possible, make sure the unit is
located far away from your neighbors’
property so that the noise from the unit
will not disturb them.
• If the location is exposed to strong
winds (for example: near a seaside),
the unit must be placed against the wall
to shelter it from the wind. If necessary,
use an awning. (See Fig. 6.1 & 6.2)
• Install the indoor and outdoor units,
cables and wires at least 1 meter from
televisions or radios to prevent static
or image distortion. Depending on the
radio waves, a 1 meter distance may not
be enough to eliminate all interference.
6WURQJZLQ
G
Fig. 6.2
Step 2: Install outdoor unit.
Fix the outdoor unit with anchor bolts (M10)
!FPೀ
)L[ZLWKEROWV
Fig. 6.3
CAUTION
• Be sure to remove any obstacles
that may block air circulation.
• Make sure you refer to Length
Speci󰘰cations to ensure there is
enough room for installation and
maintenance.

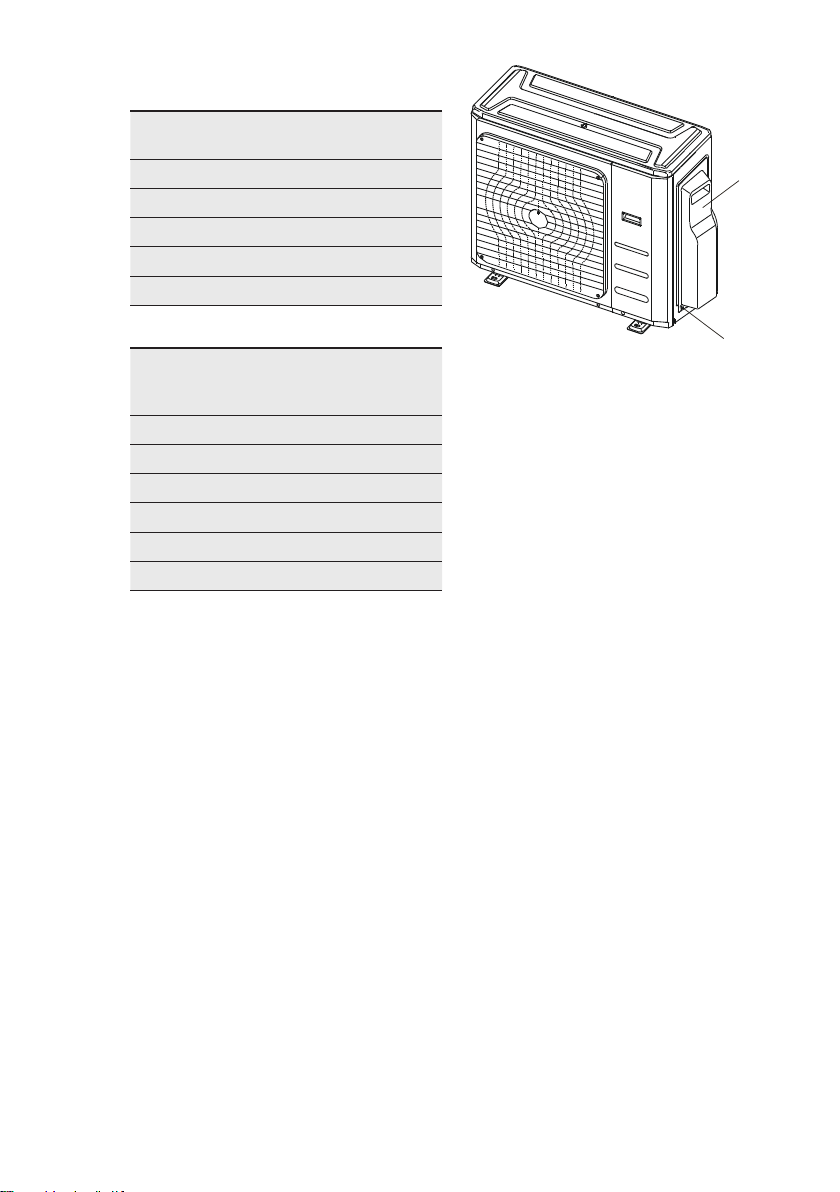

Split Type Outdoor Unit
(Refer to Fig 6.4, 6.5, 6.6, 6.10 and
Table 6.1)
:
+
Fig. 6.4

11ENGLISH
:
+
Fig. 6.5
$
%
'
Fig. 6.6

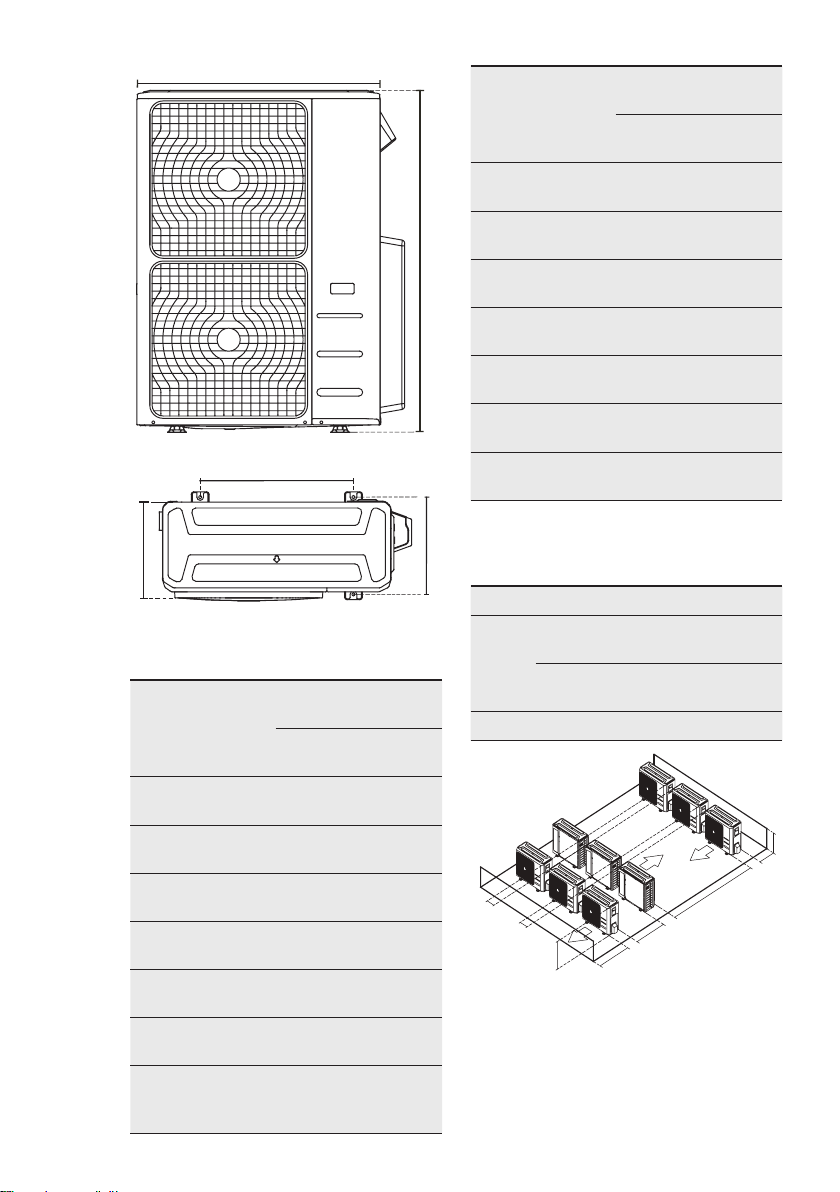

Table 6.1: Length Speci󰘰cations of Split
Type Outdoor Unit (unit: mm/inch)
Outdoor Unit
Dimensions
W x H x D
Mounting
Dimensions
Distance
A
Distance
B
760x590x285
(29.9x23.2x11.2) 530 (20.85) 290 (11.4)
810x558x310
(31.9x22x12.2) 549 (21.6) 325 (12.8)
845x700x320
(33.27x27.5x12.6) 560 (22) 335 (13.2)
900x860x315
(35.4x33.85x12.4) 590 (23.2) 333 (13.1)
945x810x395
(37.2x31.9x15.55) 640 (25.2) 405 (15.95)
990x965x345
(38.98x38x13.58) 624 (24.58) 366 (14.4)
938x1369x392
(36.93x53.9x
15.43)
634
(24.96) 404 (15.9)
Outdoor Unit
Dimensions
W x H x D
Mounting
Dimensions
Distance
A
Distance
B
900x1170x350
(35.4x46x13.8) 590 (23.2) 378 (14.88)
800x554x333
(31.5x21.8x13.1) 514 (20.24) 340 (13.39)
845x702x363
(33.27x27.6x14.3) 540 (21.26) 350 (13.8)
946x810x420
(37.2x31.9x16.53) 673 (26.5) 403 (15.87)
946x810x410
(37.2x31.9x16.14) 673 (26.5) 403 (15.87)
952x1333x410
(37.5x52.5x16.14) 634 (24.96) 404 (15.9)
952x1333x415
(37.5x52.5x16.14) 634 (24.96) 404 (15.9)
Rows of series installation
Table 6.2 The relations between
H, A and L are as follows.
L A
L ≤ H L ≤ 1/2H 25cm / 9.8″
or more
1/2H < L ≤ H 30cm / 11.8″
or more
L > H Can not be installed
/
+
FPರRUPRUH
$
FP
ರ
R
UPR
UH
FPರ
RUPRUH
FPರ
RUPRUH FPರ
RUPRUH
Fig. 6.7

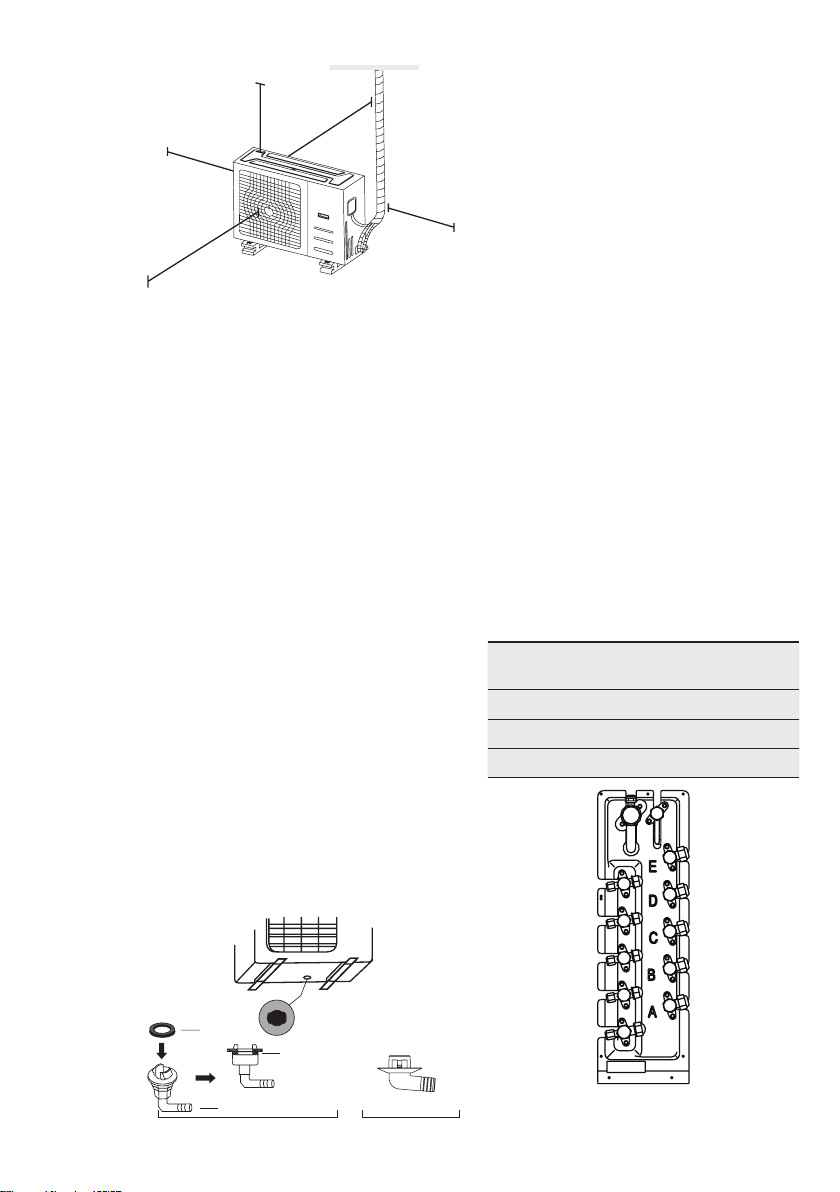

NOTE: The minimum distance between
the outdoor unit and walls described in
the installation guide does not apply to
airtight rooms. Be sure to keep the unit
unobstructed in at least two of the three
directions (M, N, P) (See Fig. 6.8)

12 www.electrolux.com
0
1
3
FPೀIURPEDFNZDOO
FPರDERYH
FPೀRQULJKW
FPೀRQOHIW

FPೀLQ
IURQW
Fig. 6.8
6.2 Drain Joint Installation
If the drain joint comes with a rubber seal
(see Fig. 6.9 - A), do the following:
1. Fit the rubber seal on the end of the
drain joint that will connect to the
outdoor unit.
2. Insert the drain joint into the hole in
the base pan of the unit.
3. Rotate the drain joint 90° until it clicks
in place facing the front of the unit.
4. Connect a drain hose extension (not
included) to the drain joint to redirect
water from the unit during heating
mode.
If the drain joint doesn’t come with a
rubber seal (see Fig. 6.9 - B), do the
following:
1. Insert the drain joint into the hole in
the base pan of the unit. The drain
joint will click in place.
2. Connect a drain hose extension (not
included) to the drain joint to redirect
water from the unit during heating
mode.
NOTE: Make sure the water drains to
a safe location where it will not cause
water damage or a slipping hazard.
6HDO
'UDLQMRLQW
$ %
%DVHSDQKROHRI
RXWGRRUXQLW
6HDO
Fig. 6.9
6.3 Notes On Drilling Hole
In Wall
You must drill a hole in the wall for the
refrigerant piping, and the signal cable that
will connect the indoor and outdoor units.
1. Determine the location of the wall
hole based on the location of the
outdoor unit.
2. Using a 65-mm (2.5″) core drill, drill
a hole in the wall.
NOTE: When drilling the wall hole,
make sure to avoid wires, plumbing,
and other sensitive components.
3. Place the protective wall cu󰘯 in the
hole. This protects the edges of the
hole and helps seal it when you 󰘰nish
the installation process.
6.4 When Select a 24K Indoor
Unit
The 24K indoor unit can only be connected
with an A system. If there are two 24K
indoor units, they can be connected with
A and B systems. (See Fig. 6.10)
Table 6.3: Connective pipe size
of an A and B system (unit: inch)
Indoor Unit
capacity (Btu/h)
Liquid Gas
7K/9K/12K 1/4 3/8
12K/18K 1/4 1/2
24K 3/8 5/8
Fig. 6.10

13ENGLISH
7. REFRIGERANT PIPING CONNECTION
7.1 Safety Precautions
WARNING
• All 󰘰eld piping must be completed
by a licensed technician and
must comply with the local and
national regulations.
• When the air conditioner is
installed in a small room,
measures must be taken
to prevent the refrigerant
concentration in the room from
exceeding the safety limit in the
event of refrigerant leakage.
If the refrigerant leaks and its
concentration exceeds its proper
limit, hazards due to lack of
oxygen may result.
• When installing the refrigeration
system, ensure that air, dust,
moisture or foreign substances
do not enter the refrigerant
circuit. Contamination in
the system may cause poor
operating capacity, high
pressure in the refrigeration
cycle, explosion or injury.
• Ventilate the area immediately
if there is refrigerant leakage
during the installation. Leaked
refrigerant gas is both toxic
and 󰘱ammable. Ensure there
is no refrigerant leakage after
completing the installation work.
7.2 Refrigerant Piping
Connection Instructions
CAUTION
• The branching pipe must be
installed horizontally. An angle
of more than 10° may cause
malfunction.
• DO NOT install the connecting
pipe until both indoor and outdoor
units have been installed.
• Insulate both the gas and liquid
piping to prevent water leakage.
Step1: Cut pipes
When preparing refrigerant pipes,
take extra care to cut and 󰘱are them
properly. This will ensure e󰘲cient
operation and minimize the need
for future maintenance. For R32/
R290 refrigerant models, the pipe
connection points must be placed
outside of room.
1. Measure the distance between the
indoor and outdoor units.
2. Using a pipe cutter, cut the pipe
a little longer than the measured
distance.
CAUTION
DO NOT deform pipe while cutting.
Be extra careful not to damage,
dent, or deform the pipe while
cutting. This will drastically reduce
the heating e󰘲ciency of the unit.

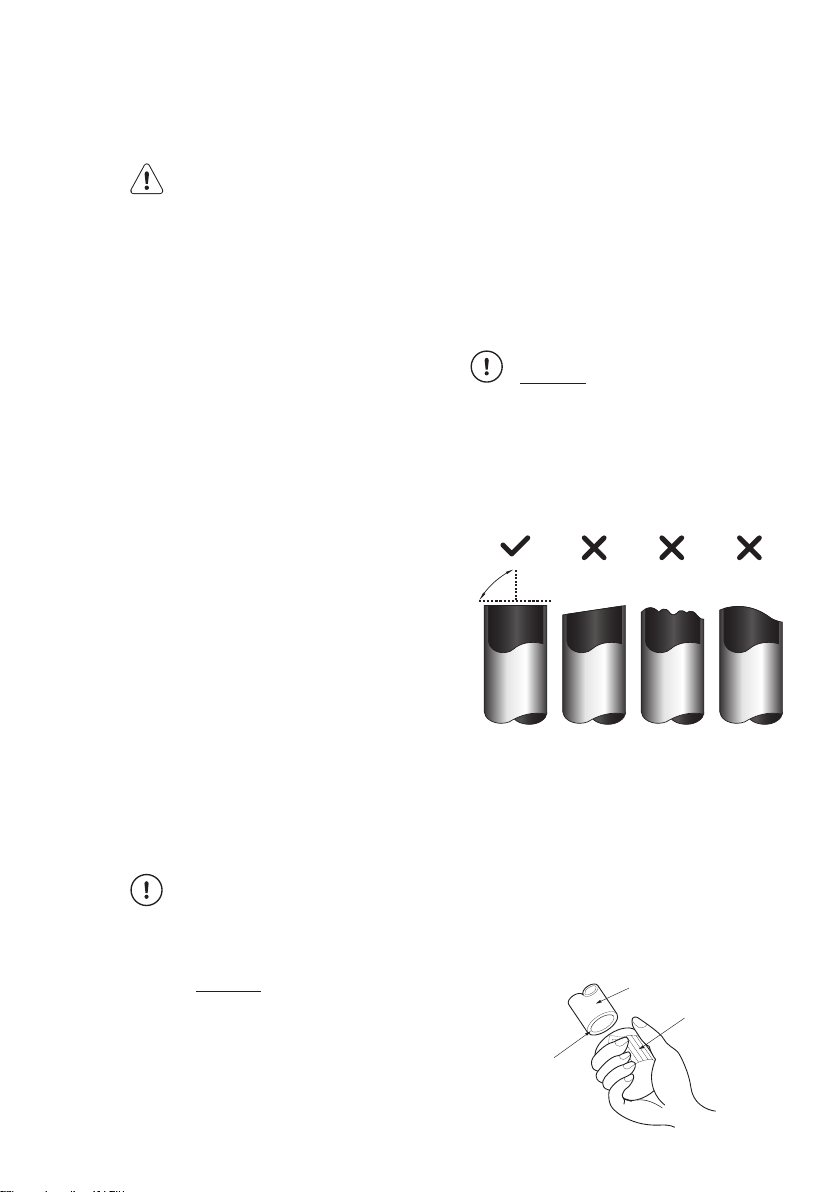

1. Make sure that the pipe is cut at a
perfect 90° angle. Refer to Fig. 7.1
for examples of bad cuts
2EOLTXH 5RXJK :DUSHG
r
Fig. 7.1
Step 2: Remove burrs.
Burrs can a󰘯ect the air-tight seal of
refrigerant piping connection. They must
be completely removed.
1. Hold the pipe at a downward angle
to prevent burrs from falling into the
pipe.
2. Using a reamer or deburring tool,
remove all burrs from the cut section
of the pipe.
3LSH
5HDPHU
3RLQWGRZQ
Fig. 7.2

14 www.electrolux.com
Step 3: Flare pipe ends
Proper 󰘱aring is essential to achieve
an airtight seal.
1. After removing burrs from cut pipe,
seal the ends with PVC tape to
prevent foreign materials from entering
the pipe.
2. Sheath the pipe with insulating
material.
3. Place 󰘱are nuts on both ends of pipe.
Make sure they are facing in the right
direction, because you can’t put them
on or change their direction after
󰘱aring. See Fig. 7.3
)ODUHQXW
&RSSHUSLSH
Fig. 7.3
4. Remove PVC tape from ends of pipe
when ready to perform 󰘱aring work.
5. Clamp 󰘱are form on the end of the
pipe. The end of the pipe must
extend beyond the 󰘱are form.
)ODUHIRUP
3LSH
Fig. 7.4
6. Place 󰘱aring tool onto the form.
7. Turn the handle of the 󰘱aring tool
clockwise until the pipe is fully 󰘱ared.
Flare the pipe in accordance with the
dimensions shown in table 7.1.
8. Remove the 󰘱aring tool and 󰘱are
form, then inspect the end of the pipe
for cracks and even 󰘱aring.
Step 4: Connect pipes
Connect the copper pipes to the indoor
unit 󰘰rst, then connect it to the outdoor unit.
You should 󰘰rst connect the low-pressure
pipe, then the high-pressure pipe.
1. When connecting the 󰘱are nuts,
apply a thin coat of refrigeration oil to
the 󰘱ared ends of the pipes.
2. Align the center of the two pipes that
you will connect.
Table 7.1: PIPING EXTENSION BEYOND FLARE FORM
Pipe gauge Tightening
torque
Flare dimension (A)
(Unit: mm/Inch)
Flare shape
Min. Max.
Ø6.4 18-20 N.m
(183-204 kgf.cm) 8.4/0.33 8.7/0.34
5a
rs
r

s
$
Fig. 7.5
Ø9.5 25-26 N.m
(255-265 kgf.cm) 13.2/0.52 13.5/0.53
Ø12.7 35-36 N.m
(357-367 kgf.cm) 16.2/0.64 16.5/0.65
Ø15.9 45-47 N.m
(459-480 kgf.cm) 19.2/0.76 19.7/0.78
Ø19.1 65-67 N.m
(663-683 kgf.cm) 23.2/0.91 23.7/0.93
Ø22 75-85N.m
(765-867 kgf.cm) 26.4/1.04 26.9/1.06

15ENGLISH

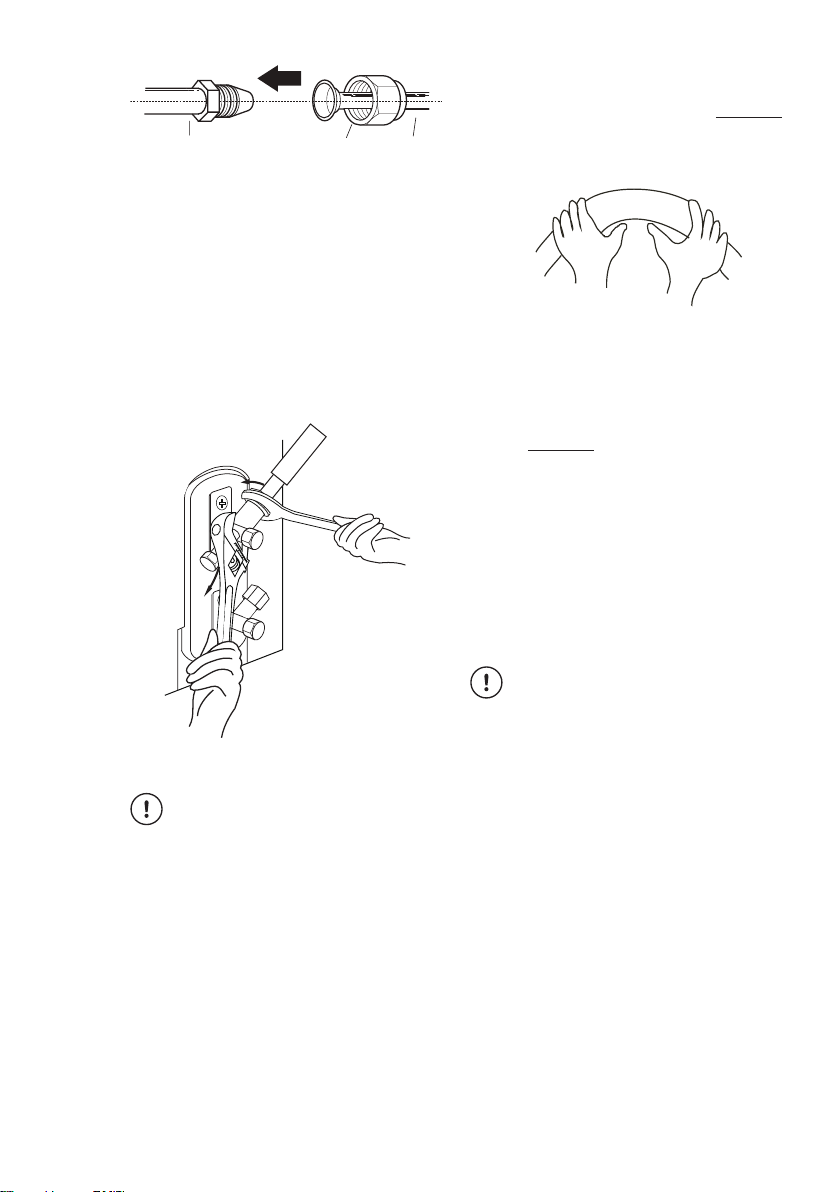

,QGRRUXQLWWXELQJ )ODUHQXW 3LSH
Fig. 7.6
3. Tighten the 󰘱are nut as tightly
as possible by hand.
4. Using a spanner, grip the nut on the
unit tubing.
5. While 󰘰rmly gripping the nut, use
a torque wrench to tighten the 󰘱are
nut according to the torque values
in table 7.1.
NOTE: Use both a spanner and a
torque wrench when connecting or
disconnecting pipes to/from the unit.
Fig. 7.7
CAUTION
• Ensure to wrap insulation
around the piping. Direct contact
with the bare piping may result
in burns or frostbite.
• Make sure the pipe is properly
connected. Over tightening may
damage the bell mouth and
under tightening may lead to
leakage.
NOTE ON MINIMUM BEND RADIUS
Carefully bend the tubing in the middle
according to the diagram below. DO NOT
bend the tubing more than 90° or more
than 3 times.
%HQGWKHSLSHZLWKWKXPE
PLQUDGLXVFPೀ
Fig. 7.8
6. After connecting the copper pipes to
the indoor unit, wrap the power cable,
signal cable and the piping together
with binding tape.
NOTE: DO NOT intertwine signal cable
with other wires. While bundling these
items together, do not intertwine or cross
the signal cable with any other wiring.
7. Thread this pipeline through the wall
and connect it to the outdoor unit.
8. Insulate all the piping, including the
valves of the outdoor unit.
9. Open the stop valves of the outdoor
unit to start the 󰘱ow of the refrigerant
between the indoor and outdoor unit.
CAUTION
Check to make sure there is no
refrigerant leak after completing
the installation work. If there is a
refrigerant leak, ventilate the area
immediately and evacuate the
system (refer to the Air Evacuation
section of this manual).

16 www.electrolux.com
8. WIRING
8.1 Safety Precautions
WARNING
• Be sure to disconnect the power
supply before working on the
unit.
• All electrical wiring must be
done according to local and
national regulations.
• Electrical wiring must be
done by a quali󰘰ed technician.
Improper connections may
cause electrical malfunction,
injury and 󰘰re.
• An independent circuit and
single outlet must be used for
this unit. DO NOT plug another
appliance or charger into the
same outlet. If the electrical
circuit capacity is not enough or
there is a defect in the electrical
work, it can lead to shock, 󰘰re,
unit and property damage.
• Connect the power cable to the
terminals and fasten it with a
clamp. An insecure connection
may cause 󰘰re.
• Make sure that all wiring is
done correctly and the control
board cover is properly installed.
Failure to do so can cause
overheating at the connection
points, 󰘰re, and electrical shock.
• Ensure that main supply
connection is made through a
switch that disconnects all poles,
with contact gap of a least 3mm
(0.118″).
• DO NOT modify the length of the
power cord or use an extension
cord.
CAUTION
• Connect the outdoor wires
before connecting the indoor
wires.
• Make sure you ground the unit.
The grounding wire should be
away from gas pipes, water
pipes, lightning rods, telephone
or other grounding wires.
Improper grounding may cause
electrical shock.
• DO NOT connect the unit with
the power source until all wiring
and piping is completed.
• Make sure that you do not cross
your electrical wiring with your
signal wiring, as this can cause
distortion and interference.
Follow these instructions to prevent
distortion when the compressor starts:
• The unit must be connected to the
main outlet. Normally, the power
supply must have a low output
impedance of 32 ohms.
• No other equipment should be
connected to the same power circuit.
• The unit’s power information can be
found on the rating sticker on the
product.
TAKE NOTE OF FUSE SPECIFICATIONS
The air conditioner’s circuit board(PCB)
is designed with a fuse to provide
overcurrent protection. The speci󰘰cations
of the fuse are printed on the circuit
board, such as:
Outdoor unit: T20A/250VAC
(for <24000Btu/h unit), T30A/250VAC
(for >24000Btu/h unit)
NOTE: The fuse is made of ceramic.
8.2 Outdoor Unit Wiring
WARNING
Before performing any electrical
or wiring work, turn o󰘯 the main
power to the system.
1. Prepare the cable for connection
a. You must 󰘰rst choose the right
cable size before preparing it
for connection. Be sure to use
H07RN-F cables.

17ENGLISH
Table 8.1: Minimum Cross-Sectional Area
of Power and Signal Cables North America
Rated Current
of Appliance (A)
AWG
≤7 18
7 - 13 16
13 - 18 14
18 - 25 12
25 - 30 10
Table 8.2: Other Regions
Rated Current of
Appliance (A)
Nominal
Cross-Sectional
Area (mm²)
≤6 0.75
6 - 10 1
10 - 16 1.5
16 - 25 2.5
25 - 32 4
32 - 45 6
b. Using wire strippers, strip the rubber
jacket from both ends of signal
cable to reveal about 15cm (5.9″)
of the wires inside.
c. Strip the insulation from the ends
of the wires.
d. Using a wire crimper, crimp u-lugs
on the ends of the wires.
NOTE: While connecting the wires,
please strictly follow the wiring diagram
(found inside the electrical box cover).
2. Remove the electric cover of the
outdoor unit. If there is no cover
on the outdoor unit, disassemble the
bolts from the maintenance board
and remove the protection board.
(See Fig. 8.1)
&RYHU
6FUHZ
Fig. 8.1
3. Connect the u-lugs to the terminals
Match the wire colors/labels with
the labels on the terminal block, and
󰘰rmly screw the u-lug of each wire to
its corresponding terminal.
4. Clamp down the cable with
designated cable clamp.
5. Insulate unused wires with electrical
tape. Keep them away from any
electrical or metal parts.
6. Reinstall the cover of the electric
control box.
Harmonic declaration
“The equipment M4OB-36HFN8-Q
complies with IEC 61000-3-12 provided
that the short-circuit power Ssc is
greater than or equal to 4787737.5 at
the interface point between the user’s
supply and the public system. It is the
responsibility of the installer or user of
the equipment to ensure, by consultation
with the distribution network operator
if necessary, that the equipment is
connected only to a supply with a short-
circuit power Ssc greater than or equal
to 4787737.5.” “The equipment M5OD-
42HFN8-Q complies with IEC 61000-3-
12 provided that the short-circuit power
Ssc is greater than or equal to 3190042.5
at the interface point between the user’s
supply and the public system. It is the
responsibility of the installer or user of
the equipment to ensure, by consultation
with the distribution network operator
if necessary, that the equipment is
connected only to a supply with a short-
circuit power Ssc greater than or equal
to 3190042.5.”

18 www.electrolux.com
NOTE: Refer to the following 󰘰gures if
end-users wish to perform their own wiring.
Run the main power cord through the
lower line-outlet of the cord clamp.

32:(5 32:(5
72 $72%
72 $72%
127(8VHWKHPDJQHWLFULQJQRWVXSSOLHGRSWLRQDO
SDUWWRKLWFKWKHFRQQHFWLYHFDEOHRILQGRRUDQG
RXWGRRUXQLWVDIWHULQVWDOODWLRQ2QHPDJQHWLFULQJ
LVXVHGIRURQHFDEOH
32:(5
6833/<
/$
6$
1$ /% 1%
6%
<*
:/1
/ 
0RGHO$
0RGHO( 0RGHO) 0RGHO*
0RGHO% 0RGHO& 0RGHO'
237,21$/
237,21$/ 237,21$/ 237,21$/
237,21$/ 237,21$/
237,21$/
237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/
237,21$/ 237,21$/
237,21$/ 237,21$/ 237,21$/ 237,21$/
32:(5 32:(5 32:(
53
2:(5
32:(532:(5
72 $ 72 %
72 $ 72 % 72 $ 72 %
72 $ 72 % 72 $72% 72 $72%
72 %
One-two models:
8.3 Wiring Figure
CAUTION
Connect the connective cables
to the terminals, as identi󰘰ed,
with their matching numbers
on the terminal block of the indoor
and outdoor units. For example,
in the US models shown in the
following diagram, Terminal L1(A)
of the outdoor unit must connect
with terminal L1 on the indoor unit.

19ENGLISH
NOTE: Please refer to the following
󰘰gures if end-users wish to perform
their own wiring.
One-three models:
0RGHO,0RGHO+ 0RGHO-
6%
1$
1% /% /
/$ 1
6$
32:(5
6833/<
72% 72$
6
6
<*
72%
/$
/1 66
/1
1$ 6$ /% 1% 6%
32:(5
6833/<
1
/
<*
72$
6%
1$
1% /% /
/$ 1
6$
32:(5
6833/<
72% 72$
6
6
237,21$/
237,21$/ 237,21$/
237,21$/
237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/
/16 /16
32:(5
72 %
72 $
32:(5
72 $ 72 % 72 &
32:(5
72 $ 72 %72&
72 &
32:(5
72 %
72 $ 72 &
32:(5
72 %
72 $ 72 &
/16 /16 /16
/16 /16 /16
<*
72% 72&
<*
/$ 1$ 6$ /% 1% 6% /& 1& 6&
32:(5
6833/<
1
/
<*
72$
0RGHO$ 0RGHO% 0RGHO&
0RGHO' 0RGHO(
0RGHO)
237,21$/
237,21$/ 237,21$/ 237,21$/
237,21$/
237,21$/ 237,21$/ 237,21$/ 237,21$/
237,21$/ 237,21$/
237,21$/
237,21$/ 237,21$/
237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/
237,21$/
237,21$/ 237,21$/ 237,21$/

20 www.electrolux.com
One-four models:
One-󰄈ve models:
<*
72%
/$ 1$ 6$ /% 1% 6%
32:(5
6833/<
1
/
<*
72$
<*
72%
/& 1& 6& /' 1' 6'
<*
72$
0RGHO$ 0RGHO%
0RGHO& 0RGHO'
0RGHO( 0RGHO)
237,21$/
237,21$/
237,21$/
237,21$/
237,21$/ 237,21$/
237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/
237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/
237,21$/
237,21$/
237,21$/ 237,21$/ 237,21$/ 237,21$/
237,21$/ 237,21$/ 237,21$/ 237,21$/
32:(5
72 $
/16
72 %
/16
72 &
/16
72 '
/16
32:(5
72 $ 72 % 72 & 72 '
32:(5
72 $ 72 % 72 & 72 '
32:(5
72 $ 72 % 72 & 72 '
32:(5
72 $ 72 % 72 & 72 '
/16 /16 /16 /16
0RGHO$ 0RGHO%
237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/ 237,21$/
237,21$/
237,21$/
237,21$/ 237,21$/
32:(5
72 $ 72 % 72 & 72 ' 72 (
32:(5
72 $ 72 % 72 & 72 ' 72 (
/16 /16 /16 /16 /16
