Electrolux ESV09CRS-B2 User manual

ESV ESV09CRR-C2
ESV12CRR-C2
ESV18CRR-C2
ESV09CRR-C3
ESV12CRR-C3
ESV18CRR-C3
09CRS-B2
ESV12CRS-B2
ESV09CRR-C6
ESV09CRR-C7

WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it has been
designed with you in mind. So whenever you use it, you can be safe in the knowledge that
you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number
Warning / Caution-Safety information.
General information and tips
Environmental information.
Subject to change without notice.
2 www.electrolux.com
CONTENTS
1. SAFETY INSTRUCTIONS .................................................................................... 3
2. PRODUCT DESCRIPTION................................................................................... 5
3. INDOOR UNIT DISPLAY ...................................................................................... 6
4. REMOTE CONTROLLER..................................................................................... 6
5. REMOTE CONTROLLER DESCRIPTION ............................................................. 8
6. HOW TO USE THE REMOTE CONTROLLER .................................................... 11
7. HOW TO USE THE INDOOR UNIT..................................................................... 17
8. OPERATING TEMPERATURE ............................................................................ 18
9. EMERGENCY OPERATION ............................................................................... 18
10. CLEANING AND MAINTENANCE ...................................................................... 18
11. OPERATION TIPS.............................................................................................. 21
12. TROUBLESHOOTING ....................................................................................... 23
13. CORRECT DISPOSAL OF THIS PRODUCT....................................................... 24

3ENGLISH
1. SAFETY INSTRUCTIONS
Before the installation and use of the
appliance, carefully read the supplied
instructions. The manufacturer is not
responsible if an incorrect installation and
use causes injuries and damages. Always
keep the instructions with the appliance
for future reference.
1.1 Children and vulnerable
people safety
WARNING!
Risk of suffocation, injury or
permanent disability.
• This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved.
• Children shall not play with the
appliance.
• Cleaning and user maintenance shall
not be made by children without
supervision.
1.2 Installation and Use
WARNING!
Risk of suffocation, injury or
permanent disability.
• Contact an authorised installer for
installation of this unit.
• Contact an authorised service
technician for repair or maintenance of
this unit.
• The socket outlet required to supply
power must be connected and
commissioned by a licenced contractor.
• If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualied
persons in order to avoid a hazard.
• Installation work must be performed
in accordance with the national wiring
standards and the electricity suppliers
service rules by authorised personnel
only.
• If the unit is to be moved to another
location or disposed of, only a suitably
qualied person is permitted to
undertake such work.
• If you notice an unusal situation, such
as a burning smell, please switch off
the power to the air conditioner and
contact an Electrolux service agent. If
this abnormal status continues the air
conditioner may be damaged or even
cause electric shock or re.
• Do not operate the air conditioner with
wet hands. This may cause electric
shock.
• Do not damage or cut off the power
cord or other wires. If this occurs,
please have it repaired or replaced by
an accredited technician.
• Do not connect this air conditioner to a
multi outlet power board.
• Please switch off the power supply to
the air conditioner if it is not to be used
for an extended period. Otherwise, it
will accumulate dust and may cause a
re.
• Before cleaning the air conditioner,
please disconnect the power supply
in order to eliminate the possibility of
electric shock.
• The power supply should be matched
with the air conditioner. Air conditioners
provided with a supply cord should
be connected directly to a power
outlet with a suitable safety switch. Air
conditioners that are hard wired must
be connected to a suitable safety circuit
breaker.
• Please ensure that the power supply
to the air conditioner is stable and
meets the requirements set out in the
installation manual.
• Always ensure the product is installed
with appropriate earthing.

4 www.electrolux.com
•For safety, be sure to turn off the
circuit breaker before performing any
maintenance or cleaning or when the
product is not used for an extended
period of time. Accumulated dust may
cause re or electric shock.
•Select the most appropriate
temperature. It can save electricity.
•Do not keep windows and doors open
for a long time during operation. It will
result in insuf cient performance.
•Do not block the air inlet or outlet. It will
result in insuf cient performance and
cause malfunctions.
•Keep combustible materials away from
the units at least 1meter. It may cause
re.
•Do not step on the top of the outdoor
unit or place heavy things on it. It may
cause damage or injury.
•Do not attempt to repair the air conditioner
by yourself. Incorrect repairs may cause
electric shock or re. Please contact your
local authorised service centre.
•Do not insert your hands or objects into
the air inlet or outlet. It may cause injury.
•Do not expose animals or plants directly
to the airflow.
•Do not use the unit for any other
purpose, such as preserving food or
drying clothes.
•Do not splash water on the air conditioner.
It may cause electric shock or malfunction.
RoHS
compliant
Conformed to the stipulation on permissible content limitation
of some hazardous & restricted chemical substances.
(RoHS compliant)
(According to the Circular No. 30/2011/TT-BCT, Vietnam,
dated 10 th August, 2011)

5ENGLISH
3 4
5 6 78
14
1
13
16
12
11
15
9
10
2
Air inlet
Air Outlet
Air inlet (side)
Air inlet (rear)
Air outlet
1 Front panel
2 Digital display
3 Air lter
4 Pre-dust lter
5 Horizontal air flow louver
6 Vertical air flow louver (inside)
7 Manual control button
8 Ion generator (if applicable)
9 Remote controller
10 Remote controller Holder (some units)
11 Refrigerant pipe
12 Drain hose
13 Power cable (some units)
14 Mounting plate
15 Connecting cable
16 Power cable (some units)
All the pictures in this manual are for explanation
purposes only. The actual shape of the indoor unit
you purchased may be slight different on front
panel and display window. The actual shape shall
prevail.
2. PRODUCT DESCRIPTION

6 www.electrolux.com
3. INDOOR UNIT DISPLAY
4. REMOTE CONTROLLER
4.1 How to use the Remote
controller
1. Keep the remote controller where its
signal can reach the receiver of the
indoor unit.
2. When operate the air conditioner, make
sure the remote controller is pointing to
the signal receiver of the indoor unit.
3. When the remote controller sends out
a signal, the symbol will blink in the
display of the remote controller.
4. The indoor unit will acknowledge the
signal with a beep sound when it
receives the signal from the remote
controller.
5. Please press the button of the remote
controller and resend the signal if you
did not hear a beep sound from the
indoor unit.
• The air conditioner will not
operate if curtains, doors or
other materials block the signals
from the remote controller to the
indoor unit.
• Prevent any liquid from falling
into the remote controller. Do not
expose the remote controller to
direct sunlight or heat.
• If the infrared signal receiver on
the indoor unit is exposed to
direct sunlight, the air conditioner
may not function properly. Use
curtains to prevent the receiver
being exposed to sunlight.
• If other electrical appliances react
to the remote controller, either
move these appliances or consult
your local dealer.
For some models, we do not have
the display in the indoor unit, only with
the lights to show the work status.
1 2 3 54 6 7
4
4 3 2
15
1 On/Off indication lamp
Lights up when the unit is work.
2 Heat mode indication lamp
Lights up when Heat mode is activated.
3 Cool mode indication lamp
Lights up when Cool mode is activated.
4 Temperature indication lamp
• Displays the setting or room temperature
when the unit is operational.
• Displays the malfunction code when fault
occurs.
• Displays the function code when some
function is activated.
6 Dry mode indication lamp
Lights up when Dry mode is activated.
5 Wireless indication lamp
Lights up when Wireless function is activated.
7 Timer indication lamp
Lights up when Timer function is activated.

7ENGLISH

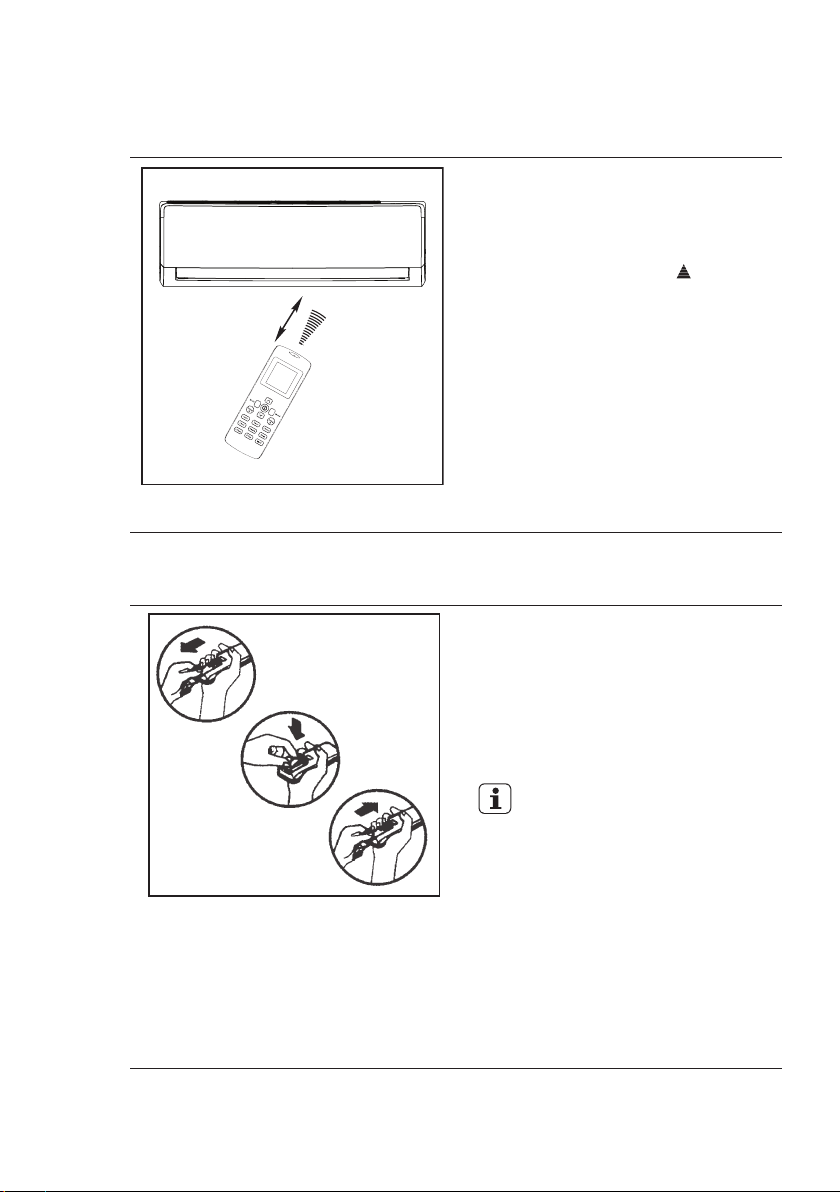

4.2 Location of the Remote Controller
Max. 8m
• Keep the remote controller where its
signal can reach the receiver of the
indoor unit (a maximum distance of
8 m is allowed).
• When the remote controller sends
out a signal, the symbol will blink
on the display. The indoor unit will
acknowledge the signal with a beep
sound when it receives an effective
signal.
4.3 Battery installation/replacement
• Remove the back cover from the
remote controller, exposing the
battery compartment and insert two
new alkaline dry batteries (2x AAA 1.5
Volt). Make sure that the polarity of (+)
or (-) is installed correctly.
• Slide the battery compartment cover
back on.
• When changing batteries, do
not use old or varied ones,
otherwise, it may cause
problems with the remote
controller.
• If the remote controller is not
used for a long time, remove
the batteries as old batteries
may leak or corrode and
damage the remote controller.
• If the remote controller does
not operate normally, please
remove and ret the batteries. If
abnormal operation continues,
replace with new batteries.

8 www.electrolux.com

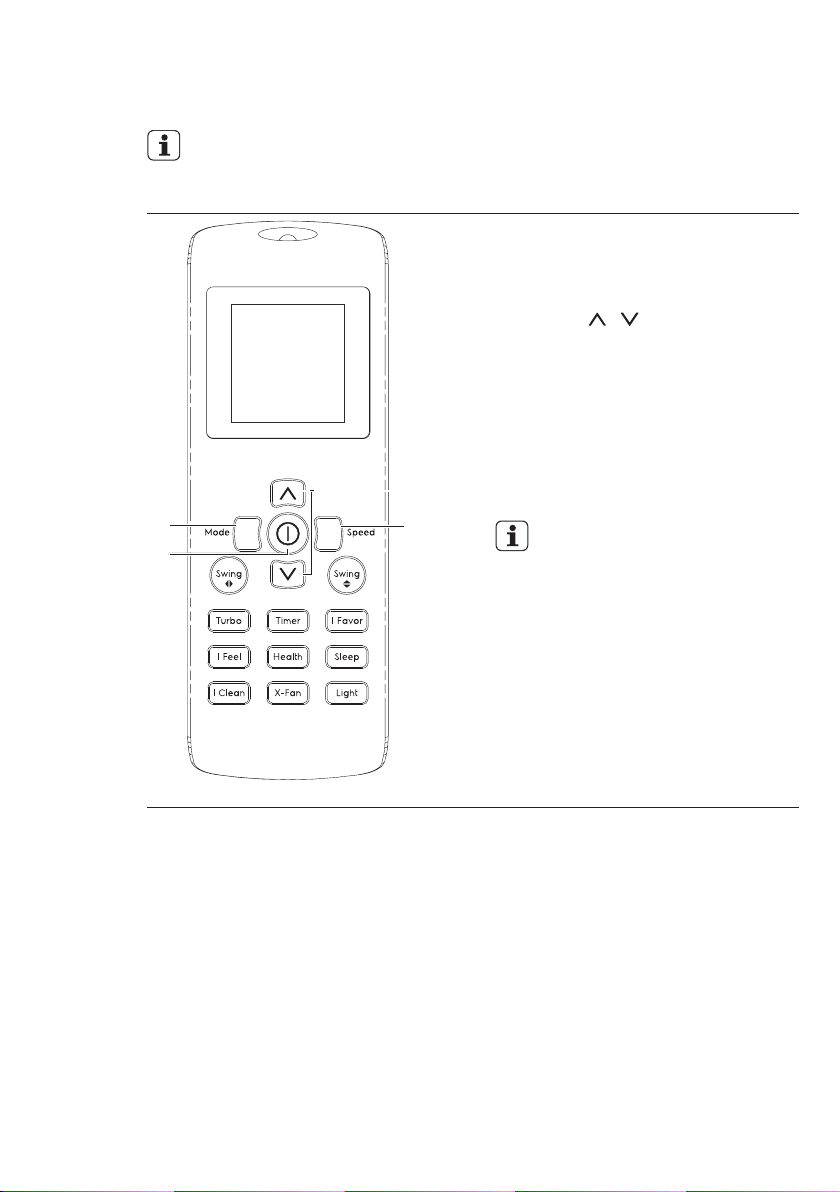

5. REMOTE CONTROLLER DESCRIPTION
1
3
4
6
7
8
2
5
10
9
14
12
11
13
15
16
17
18
19
20
1. MODE BUTTON
Press the button to set the operation
mode: Auto, Cool, Dry, Heat and Fan.
Default setting: AUTO.
• For Cooling only models, there is
no HEAT mode available.
2. ON/OFF BUTTON
Press the button to switch on or off the
unit.
3. SWING BUTTON
Press this button to stop or start vertical
louver movement or set the desired left/
right air flow direction.
• For the models without Swing
Left/Right function, there is no
feedback received by the indoor
unit when you press the button.
4. TURBO BUTTON
In COOL or HEAT mode, press the button
to enable or disable the turbo function.
If the turbo function is enabled, the unit
will operate at turbo speed to cool or heat
rapidly so that the ambient temperature
approaches the set temperature as soon
as possible.
5. TIMER BUTTON
Press the button to set the timer function
for switching on/off the unit.
6. I FEEL BUTTON

9ENGLISH
Press the button to enable or disable the I
Feel function.
7. I CLEAN BUTTON
Press the button to enable or disable the I
Clean function. Default setting: OFF.
8. X-FAN BUTTON
Press the button to enable or disable
X-Fan function. Default setting: OFF.
9. / BUTTON
Press the button to increase/decrease the
temperature.
Temperature range: 16-32 °C (60-90 °F).
In Timer function, use the button to set the
timer adjustment.
10. SPEED BUTTON
Press the button to set the fan speed:
Low, Mid, High and Auto. Default setting:
Auto.
11. SWING BUTTON
Press this button to stop or start horizontal
louver movement or set the desired up/
12. I FAVOR BUTTON
Press the button to enable I Favor
function.
13. SLEEP BUTTON
Press the button to enable or disable
Sleep function. Default setting: OFF.
This is ideal for the users to use while
sleeping.
14. HEALTH BUTTON
Press the button to enable or disable
Health function. Default setting: OFF.
15. LIGHT BUTTON
Press the button to switch the display of
the indoor unit on or off. Default setting:
ON.
16. MODE DISPLAYS
Displays the current selected mode.
Including Auto, Cool, Dry, Heat and Fan.
• For Cooling only models, there is
no HEAT mode available.
•
17. FAN SPEED DISPLAYS
Displays the selected fan speed: Low,
Mid, High, Auto and Turbo when you
active Turbo function.
18. TIMER AND TEMPERATURE
DISPLAYS
Displays when the Timer function is
enabled.
Displays the Set/Room temperature in °C
or °F.
19. ON/OFF AND SWING
DISPLAYS
Displays when Remote Controller is on or
off.
Displays when active the Swing function.
20. FEATURE DISPLAYS
Displays when the chosen feature is
enabled.
• See section “How to use the remote controller“ for the the functions description
in details.
For models with Wireless
function, continuous pressing
Health button 8 times in 10s to
enter the Wireless binding status.

10 www.electrolux.com

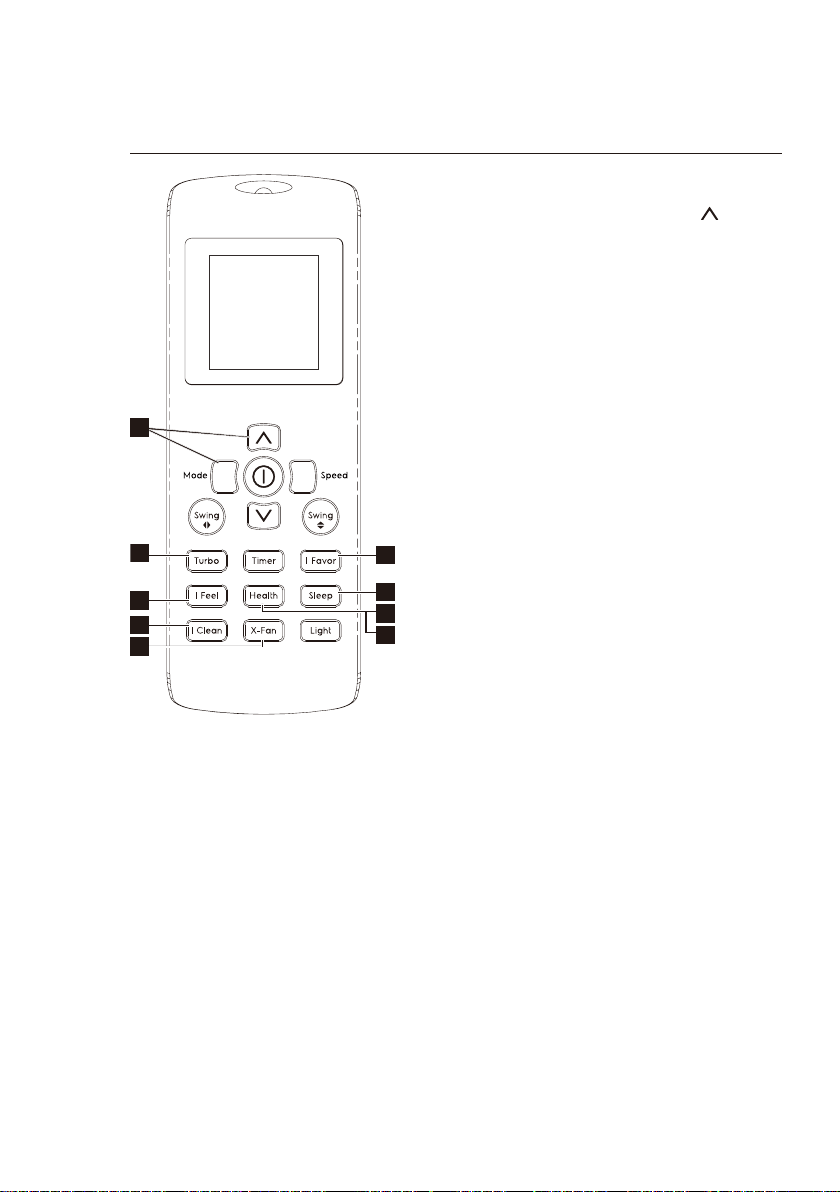

6. HOW TO USE THE REMOTE CONTROLLER
Ensure the unit is plugged in and power is available. The OPERATION indicator on
the display panel of the indoor unit illuminates.
Basic Operation
A
B
C
D
1. Press the ON/OFF button (A) to start
the air conditioner.
2. Press the MODE button (B) to select
Auto, Cool, Dry, Fan or Heat mode.
3. Press the / button (C) to
set the desired temperature. The
temperature can be set in 1ºC
increments. Keep the button pressed
for two seconds to accelerate the
process.
4. Press the FAN SPEED button (D) to
select the fan speed.
5. Press the ON/OFF button (A) to turn
the air conditioner off.
• In the Auto mode, the air
conditioner can logically
choose the mode of Cool,
Fan, and Heat by sensing the
difference between the actual
ambient room temperature
and the set temperature on the
remote controller.
• For Cooling only models, there
is no HEAT mode available.
• In the Auto and Dry mode, the
fan speed can be switched.
• In the Fan mode, you can not
adjust the setting temperature.
